iTracker GPS Tracker User manual

GSM/GPRS/GPS Portable Tracker
User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes
no responsibility for any errors or omissions in this document.

1
Content
1. Introduction......................................................................................................................................................2
2. Hardware Description...................................................................................................................................... 2
3. Specifications...................................................................................................................................................2
4. Instructions for web platform and mobile App................................................................................................3
5. Insert SIM card, turn on the device..................................................................................................................7
6. Function introduction.......................................................................................................................................8
6.1. Initialization.............................................................................................................................................8
6.2. Change Password.................................................................................................................................... 8
6.3. Add and Delete Authorized phone number............................................................................................. 8
6.4. Single tracking.........................................................................................................................................9
6.5. Auto track continuously.......................................................................................................................... 9
6.5.1. Track with limited times upon time interval................................................................................... 9
6.5.2. Track with unlimited times upon time interval............................................................................... 9
6.5.3. Track with unlimited times upon distance.................................................................................... 10
6.5.4. Smart track upon time and distance interval.................................................................................10
6.6. Exact street address............................................................................................................................... 10
6.7. SIM card Balance Inquiry..................................................................................................................... 10
6.8. Decide how many times of alarm message........................................................................................... 11
6.9. Alarm functions..................................................................................................................................... 11
6.9.1. Low battery alarm......................................................................................................................... 11
6.9.2. Geo-fence...................................................................................................................................... 11
6.9.3. Movement alarm........................................................................................................................... 11
6.9.4. Over speed alarm.......................................................................................................................... 12
6.9.5. Shock sensor Alarm...................................................................................................................... 12
6.9.6. Anti-tamper alarm......................................................................................................................... 12
6.10. Sleep mode............................................................................................................................................ 12
6.10.1. Always online............................................................................................................................... 13
6.10.2. Sleep by shock.............................................................................................................................. 13
6.10.3. Sleep by time.................................................................................................................................14
6.10.4. Deep Sleep by Shock.................................................................................................................... 14
6.10.5. Schedule report............................................................................................................................. 14
6.10.6. Deep sleep by shock + Schedule report........................................................................................ 14
6.11. Check the status.....................................................................................................................................14
6.12. Check IMEI........................................................................................................................................... 15
6.13. GPRS configuration.............................................................................................................................. 15
7. Cautions......................................................................................................................................................... 16
8. Faults & the Solutions....................................................................................................................................16

2
1. Introduction
1.1. This tracker is based on the GSM / GPRS network and GPS satellite positioning
system to track and monitor remote target by SMS or internet.
1.2. Features
1.2.1.Waterproof Grade IP66.
1.2.2.Strong magnet to absorb to vehicle firmly.
1.2.3.Built-in large capacity 10000MA battery.
1.2.4.Super long time standby, 6 months if it works under “sleep by time” mode and 6.9
years if it works under “schedule” mode.
1.2.5.Real-time tracking, movement alarm, Geo-fence alarm, shock alarm, remove
anti-tamper alarm.
1.2.6.Support real-time tracking by mobile applications and web platform, and you can
check the exact street address by cell phone as well.
1.2.7.Built-in high sensitivity GSM and GPS antenna, no installation, convenient and fast.

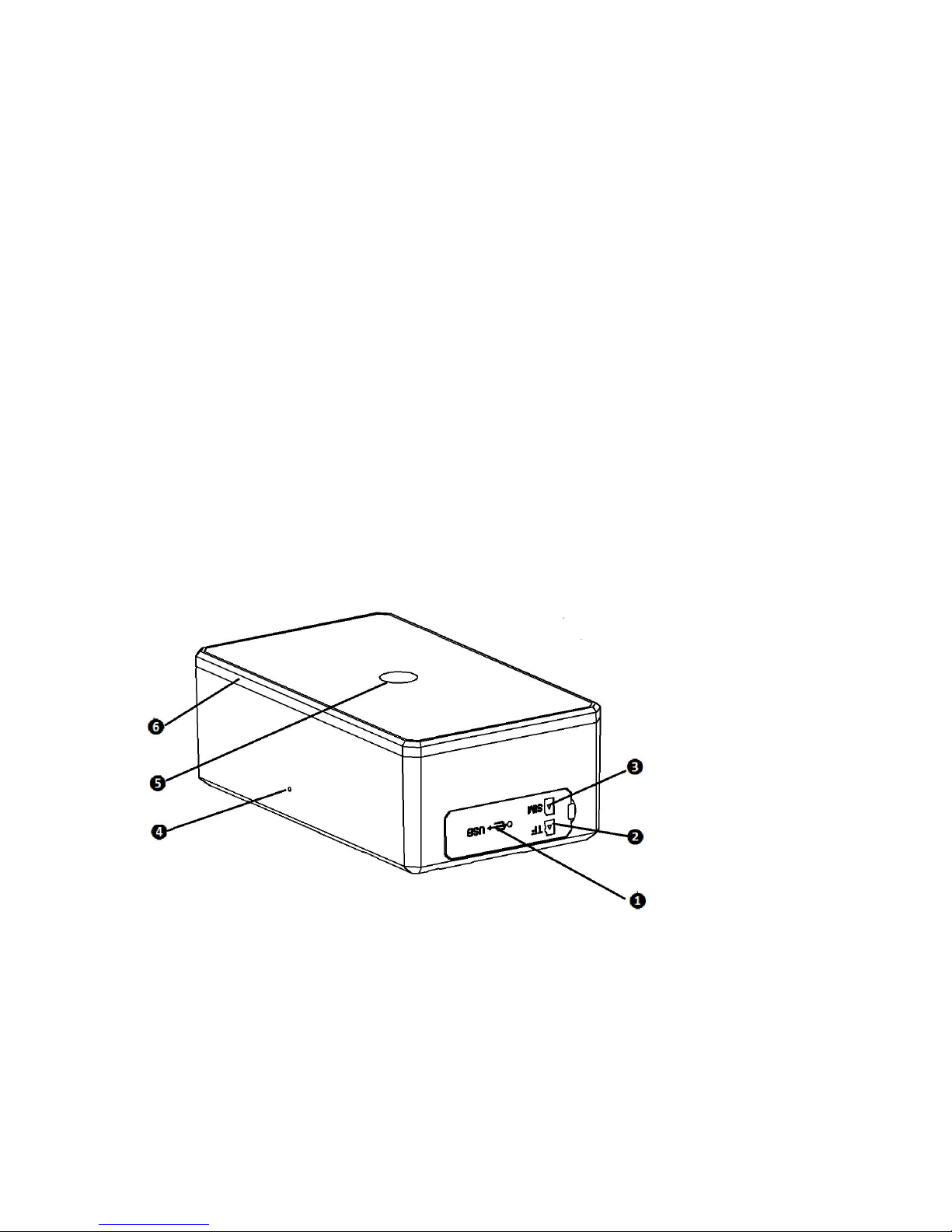

2. Hardware Description
① USB Port ② TF card slot ③ SIM card slot
④ Microphone ⑤ Infrared window ⑥ Rear cover of magnet
3. Specifications

3
Content
Specifications
DIM.
106mm x 63mm x 37.5mm
Weight
343g
Network
2G GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-165dBm
GPS Accuracy
5m
Time To First Fix
Cold starts: 30s
Aided starts: 5s
Reacquisition: 1s
Charger voltage
110－220V input
5V output
Battery
Chargeable 3.7V 10000mAh Li-ion battery
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Waterproof Grade
IP66
Schedule mode
10000*0.85 (battery self-lost) /0.14mA/24h/365d=6.9 years
4. Instructions for web platform and mobile App
Users need to register an account on www.gpstrackerxy.com before use web platform
or mobile App, account name and password is the same on web platform and mobile
App.
4.1. Register an account

4
4.2. Login
4.3. Add a terminal
1.choose the right
server to login in
2.Validate your
IMEI is valid or not
3. Click "register".
Pop-up a dialog box,
register an account
4. Input the newly
registered user ID and
password, click "login"

5
4.4. Configure your tracker to web platform to track it online
Step 1：Set APN，refer to 6.13.1
Step 2：Set GPRS user name and password，refer to 6.13.2
Step 3 ：Set IP and port, please use the corresponding IP and port of the server you
choose, Refer to 6.13.3
Step 4：Switch to GPRS mode，refer to 6.13.4
5. add terminal
6. add terminal
7. enter IMEI
10. Save
11. The newly
registered device is
offline in grey color
12. After receiving GPRS OK, wait
about one minute, tracker will be
online in green color, then you can
operate the tracker.
8.Device name
9. Choose icon

6
4.5. If the tracker is always offline (grey color), make sure the SIM card subscribe the
GPRS service, and the credit is enough to surf the Internet, you can use phone to
test if the SIM card can surf the Internet.
Besides, please check the APN, user name, password, IP, port settings are correct,
refer to 6.11.
4.6. IOS &Android mobile APP
4.6.1. Download and install the mobile application.
According to your phone type, download and install mobile app below the home
page on web tracking platform.
4.6.1.1. Login and use the GPRS version
2. Filling the
registered
user ID and
password
3. Choose the
right server
1. Click
“GPRS
login”
4.Click
“login”

7
5. Insert SIM card, turn on the device
Attention: Please be sure to open the voice call function, caller display function and
data flow function, and PIN code is off, no call forwarding function. The recommended
data flow package is not less than 30MB per month.
Please use the manufacturer’s original charger and battery, the charge time of the
5. Click “the
online device” to
operate the device
①Open the soft glue plug.
②Insert MicroSD as the picture shows.
③Insert SIM Card as the picture shows,
and tracker will be turned on automatically.
④Cover the soft glue plug

8
battery is about 7-9 hours.
Warning: Lithium batteries contain harmful chemical constituents and may explode,
please do not slam, stab or put into the fire.
When you first use, bring the device outdoors, wait for the device to search for GSM
and GPS signals, and in normal conditions the lights of the device will flash once every 3
seconds.
6. Function introduction
6.1. Initialization
Send SMS "begin+password" to tracker, it will reply "begin ok" and return to the
default factory settings. (Default password: 123456). For example: Send SMS
"begin123456", it will reply "begin ok".
6.2. Change Password
6.2.1. Send SMS "password+old password+space+new password" to the tracker to
change the password. For example: Send SMS "password123456 888888" to tracker,
it will reply “password OK”, it means the password has changed successfully. And
please keep the new password in mind
6.2.2. Note: The new password must be 6 digits Arabic numbers, or the tracker can't
recognize.
6.2.3. When reading this user manual, you will notice that we have used "+" and "space"
between some words;"+" between two words means they should be written together
as one word and "space" between two words means you should leave one character
space between two words.
6.3. Add and Delete Authorized phone number
6.3.1. You must setup the authorized phone number before using SOS, geo-fence
alarm, etc. Up to 5 numbers can be authorized.
6.3.2. Call the tracker for 10 times continuously and get its position, then it will save
the cell phone number as the authorized number automatically. and reply “add
master ok”.
6.3.3. Authorization: Send SMS “admin+password+space+cell phone number” to set
up an authorized number, the other authorized numbers should be set by the first
authorized number, if the number is successfully authorized, the unit will reply
“ admin OK” by SMS.
6.3.4. Delete authorization: Send SMS “noadmin+password+space+authorized

9
number” to delete the authorized number.
6.3.5. If you want to track the target when it enters into another country, you must
add the country code before the cell phone number. You should authorize your
number in international format as follows: “admin123456 008613322221111” to
tracker to set 13322221111 as an authorized number.
6.4. Single tracking
6.4.1. If there aren’t any authorized number set-up, it will reply all calls with a
location report; if there are authorized numbers set-up, then it will not respond when
an unauthorized number calls it.
6.4.2. If you call it from authorized phone number, it will hang up and report a
real-time location as below:
6.4.3. When lost fix to satellites, the message will includes the GPS coordinates of last
known position and LAC code of current position as well.
6.5. Auto track continuously
6.5.1. Track with limited times upon time interval
Send SMS command “fix030s005n +password” to the tracker device, it will report the
latitude & longitude at intervals of 30 seconds for 5 times. (s:second, m:minute, h:hour).
This command set must be in 3 digits Arabic numbers and the maximum value is 255.
e.g. fix030s005n123456.
6.5.2. Track with unlimited times upon time interval
Send SMS “fix030s***n+password” to the tracker device, it will reply the latitude &
longitude continuously at 30 seconds intervals.
Note: the interval must not less than 10s.

10
6.5.3. Track with unlimited times upon distance
6.5.3.1. Send SMS command “Distance+password+space+distance value”, tracker
will reply “Distance ok”, and then tracker will track according to this distance
value interval.
E.g Send “Distance123456 0050”, that means the distance interval is 50 meter, the
value must be 4 digits Arabic numbers.
Cancel: Send SMS “nofix+password” to the tracker.
6.5.4. Smart track upon time and distance interval
6.5.4.1. Send SMS command “fix030s600s***n+password+space+distance value” to
tracker. The unit of distance value is meter. E.g. Send SMS command
“fix030s600s***n123456 0200”, that means track interval is 600 seconds when
tracker is motionless, and tracker interval is 30 seconds when tracker is moving, or
track each 200 meters movement.
6.5.4.2.Cancel: Send SMS “nofix+password” to the tracker.
6.6. Exact street address
6.6.1. You must set up the APN of your local GSM network for the SIM card in
tracker first before using this function, if there is user name and password for GPRS
login, Please refer to 6.12 section of this manual to configure the APN, user name
and password for GPRS login.
6.6.2. After configure the APN, send "address+password" to device, it will reply
SMS including exact street/address name. For example: No.113, Guankou 2nd Rd,
Nantou, Nanshan district, Shenzhen, Guangdong, china.
6.7. SIM card Balance Inquiry
6.7.1. Send SMS command "balance+password+space+carrier’s phone
number+space+code" to tracker, it will forward the code to carrier’s phone number
and return the balance message received from carrier’s phone number.
6.7.2. How it works: Take the carrier “China Mobile” for example, after accept balance
command, tracker will remember the “mobile phone number”, carrier’s number and
the code;
6.7.3. And then send the code to carrier’s number, and forward the message from carrier to
mobile phone number which send the balance command.
Send balance back
Mobile
balance123456 10086 ye
Tracker
Received and execute
Send ye out to 10086
10086(China mobile)
Received ye from number in the
tracker and process
Received Balance message
Forward balance message to mobile phone

11
6.8. Decide how many times of alarm message
For those alarm messages sent in cycle, you can decide how many SMS messages of
alarm to be sent. Send SMS “ xtime+password+005 “ to tracker, alarm message will be sent
5 times once alarms are triggered .
Alarm SMS will be sent 5 times by default.
6.9. Alarm functions
6.9.1. Low battery alarm
6.9.1.1. Send SMS “lowbattery+password+space+on”, it will send SMS “low
battery+latitude/longitude” to authorized numbers 2 times in total at 15 minutes
interval when voltage of battery is going to be about 3.5V.
6.9.1.2. This function activates by default, send SMS “lowbattery+password+space+off”
to deactivate.
6.9.2. Geo-fence
6.9.2.1. Set up a geo-fence for the tracker to restrict its movements within a district.
The unit will send SMS to the authorized numbers when it goes out of this district.
6.9.2.2. Set up: When the unit stays immobile in a place for 3-10 minutes, the user
can send SMS “stockade+password+space+latitude,longitude;latitude,longitude”to
unit to set the restricted district. In case of breach, it will send SMS “stockade!+
latitude & longitude” to the authorized numbers.
Attention: The first latitude & longitude is coordinate of the top left corner of
the Geo-fence, while the second latitude & longitude is the coordinate of the
bottom right corner, it will send alarm SMS at interval of 3 minutes once beyond
the restricted district.
6.9.2.3. Cancel: Send SMS “nostockade+password” to deactivate this function.
6.9.3. Movement alarm
6.9.3.1. Set up: when the unit stays immobile in a place for 3-10 minutes with GPS
signal reception, the user can send SMS“move+password+space+0200” to the
tracker (Suppose area of a radius of 200 meters, it supports 4 digits at most. Unit:
Meter). It will reply “move OK”. In case of such a movement (the default

12
distance is 200m), it will send SMS “Move+ latitude & longitude” to the
authorized numbers.
6.9.3.2. Cancel: Send SMS “nomove+password” to deactivate the movement alarm.
6.9.4. Over speed alarm
6.9.4.1. Set up: Send SMS “speed+password+space+080” to the unit (suppose the
speed is 80km/h), and it will reply “speed OK!”. When the target moves exceeding
80km/h, the unit will send SMS “speed+080!+ latitude & longitude” to the
authorized numbers ,it will send only one SMS in 3 minutes in SMS mode.
6.9.4.2. Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm.
Attention: The recommended speed should be not less than 30km/h. For below
that rate, it will be effected the accuracy by GPS signals drift etc.
6.9.5. Shock sensor Alarm
The built-in 3-axis acceleration sensor can detect it when the vehicle move, tilt or vibrate。
6.9.5.1. Activate Shock alarm: Send “shock+password” to tracker, it will reply “Shock is
activated!”, “Sensor alarm+latitude&longitude will be sent to authorized phone
number when detecting vibration.
6.9.5.2. Cancel: Send “noshock+password” to tracker to deactivate Shock alarm.
6.9.5.3. Configure sensitivity of vibration (First level by default)
First level: alarm will be triggered after detect slight vibration; send SMS command
“sensitivity+password+space+1”;
Second level: alarm will be triggered after detect medium vibration; send SMS
command “sensitivity+password+space+2”;
Third level: alarm will be triggered after detect heavy vibration; send SMS command
“sensitivity+password+space+3”;
6.9.6. Anti-tamper alarm
6.9.6.1. Setup: Send SMS command “tamper+password” to tracker, it will reply “tamper
ok”. If the tracker is removed or detached from the vehicle, tracker will send SMS
“Tamper alarm+latitude / longitude.
6.9.6.2. Cancel: Send SMS “notamper+password” to deactivate this function.
6.10. Sleep mode
Sleep
Mode
Description
Application
Occasions
Standby Time

13
Always
online
GPRS is always online, tracker will be
intelligent to shutdown some
components to save power during the
period which doesn’t need to track.
The target need to
be tracked by
real-time.
10000*0.9 (Battery
self-loss) /4.5mA/24h=83
days
Sleep by
shock
GPRS will be offline if it is
motionless, vibration, calling can
wake up the tracker, GPRS will be
online if target is moving.
Sleep if the target
is motionless, and
track when the
target start to move
10000*0.9(Battery
self-loss)/2.1mA/24h=178
days
Sleep by
time
The GSM module of the tracker will
run in low power mode no matter it is
motionless or moving, vibration
cannot awake the tracker, but calling
can wake it up to works 3 minutes and
then sleep again.
The target doesn’t
need to be tracked
frequently and can
track it any time
when necessary.
10000*0.9(Battery
self-loss)/2mA/24h=187
days
Deep sleep
by shock
GPRS and GPS module will shut
down during sleep time, calling cannot
reach, but vibration can wake up.
Sleep if the target
is motionless, and
track when the
target start to move
10000*0.85(Battery
self-loss)/0.24mA/24h/365
d=4 years
Schedule
GPRS and GPS module will shut
down during sleep time, calling cannot
reach and vibration cannot wake it up,
but it will wake by itself to report its
position at the scheduled time
The target doesn’t
need to be tracked
frequently and let it
report positions
according to the
schedules.
10000*0.85(Battery
self-loss)
/0.14mA/24h/365d=6.9
years
Deep sleep
by shock +
schedule
GPRS and GPS module will shut
down during sleep time, the tracker
will wake up at the scheduled time or
when it detect vibrations.
The target need to
be tracked when it
start to move and
let it report
positions according
to schedule when it
is motionless.
10000*0.85(Battery
self-loss)
/0.24mA/24h/365d=4years
6.10.1. Always online
Send SMS command “sleep+password+space+off”, tracker will reply “sleep off ok”,
then the tracker will always stay online, GSM, and the LED will works all the time.
6.10.2. Sleep by shock
Send SMS command "sleep+password+space+shock", the tracker will reply "sleep
shock ok", and will enter sleep mode if no vibration is detected, GPS module shuts down,
LED will be off . Vibration or any operation can wake up the tracker. e.g. sleep123456

14
shock。
6.10.3. Sleep by time
Send "sleep+password+space+time", tracker will reply "sleep time ok", if no
operations in 3 minutes, tracker will sleep, GPS module shuts down, and LED will be off
too. Calling or SMS can wake up the tracker.
6.10.4. Deep Sleep by Shock
Send "sleep+password+space+deep", tracker will reply "sleep deep ok", it will sleep if
didn’t detect vibration, GPS & GSM module shuts down, and LED will be off too. Only
vibration can wake it up, and tracker will send wake up message automatically after wake
up.
6.10.5. Schedule report
Send "schedule+password+space+1h " to tracker, It will wake up every one hour, and
automatically send location message after wake up. (m: minute; h: hour; d: day). The
maximum time interval is set to three digits, and not more than 30 days. After sent this
command, GPS & GSM module shut down, tracker runs in super lowest power
consumption, calls or messages cannot wake it up. Triggered alarm can wake up the tracker
to work normally, after alarm canceled, tracker come back to schedule report mode.
Cancel: After the tracker wake up, send “noschedule+password” to deactivate this
function.
6.10.6. Deep sleep by shock + Schedule report
Send SMS command “sleep+password+space+schedule+space+12h”, tracker will
reply “sleep schedule ok”, then tracker will wake up and send “work notify” message every
12 hours, and the vibration can wake up the tracker too, after wake up, it will send “deep
shock”message.
6.11. Check the status
Send SMS command “check+password” to tracker, it will reply a message includes
battery percentage, GPS signal, GSM signal, GPRS status, APN, UP, IP and port, etc.
E.g send SMS command “check123456” to tracker, after execute the command, it will
reply a message which includes following information：
Battery: 100%
GPRS: ON/OFF

15
GPS: OK/NO GPS
GSM Signal: 1-32 the higher, the better
APN: cmnet
IP: 104.250.138.146
PORT: 9000
6.12. Check IMEI
Send SMS "imei+password" to the tracker. For example, Send SMS "imei123456" to
the tracker device, an IMEI number in 15 digits will be returned.。
6.13. GPRS configuration
User must send SMS command via cell phone to set up APN, IP and port before
starting track by GPRS.
6.13.1. Configure APN
APN standards for Access Point Name and differs from country to country. For more
information about your local APN, please inquire with your local GPRS network operator.
Send SMS command to tracker “APN+password+Space+your local APN” via a cell
phone and if executed, the tracker will reply “APN OK”.
For example: Send SMS command “APN123456 CMNET”. If executed, the tracker
will reply “APN OK”.
Notes: 123456 refer to password of tracker and CMNET is the APN of Network
Operator of china (China mobile).
6.13.2. Configure user, password for GPRS login
In most countries, the user name and password involving GPRS login are not
compulsorily necessary, therefore, the entry can be skipped. For those countries requiring
user name and password, please configure as following:
Send SMS “up+password+space+user+space+password”, If executed, tracker will
reply “user, password ok!”, for example: send SMS “up123456 jonnes 666666”
Note: 123456 is password of tracker, jonnes is the user name for GPRS login, 666666
is the password for GPRS login.
6.13.3. Configure IP and port
Send SMS “adminip+password+space+IP+space+port”, tracker will reply “adminip
ok” if executed.
For example: send SMS “adminip123456 104.250.138.146 9000”, tracker will reply
“adminip ok” if executed. (123456 is the password of tracker, and 104.250.138.146 is the
ip, 9000 is the port.)
6.13.4. Switch to GPRS mode
6.13.4.1.Send SMS command “GPRS+password” to tracker, it will reply “GPRS ok!”, that

16
means tracker have switched to work in GPRS mode.
6.13.4.2.TCP/UDP Switch
SMS command: “GPRS+password,0,0” is used to switch to TCP mode, TCP is the
default mode.
SMS command: “GPRS+password,1,1” is used to switch to UDP mode.
6.13.4.3.Send SMS command: “SMS+password” to tracker, it will reply “SMS OK!”, and
switch back to SMS mode
7. Cautions
1. Don’t put the unit in overheated or overcooled places.
2. Handle carefully. Don’t vibrate or shake it violently.
3. Please use a dry cloth to clear and don’t use chemicals and cleaners.
4. Please don’t paint the device, this may lead to internal circuit failure.
5. Please don’t disassemble the device.
6. Please read the user manual carefully before installation and operation, learn
something more about the voltage range. Otherwise, it won’t work properly or destroy the
product.
8. Faults & the Solutions
Faults
Possible reason
Solution
Can’t turn it on
Battery is too low
Plug charger
No GSM signal
Check if SIM card load well, and
confirm it is GSM network.
1. no calls can be diverted and the
PIN code is locked
2、Change SIM card
Hang off fail
/ monitor fail
If users setup the authorized phone
number, and it will be invalid to call
from a non authorized phone number.
Please delete the authorized phone
number or send command to
initialize the settings to factory
default settings.
GPRS fail to be
online
1.Configure wrong APN, IP, port.
2.Check if there is GPRS subscription
with carrier.
3. Balance is not enough
1. Configure again
2. Subscribe GPRS subscription
3. Charge for the SIM card.
