Ivation IVA-4308PCS User manual

Thank you for purchasing the Ivation Electric Pole Saw. This User Guide is intended to provide you with guidelines
to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to
the guidelines described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for reference. This product is intended for
household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions.
See warranty for details.
Electric Pole Saw
User Guide

Table of Contents
Safety.......................................................................... 2
Parts List and Diagram............................................ 5
Assembly.................................................................... 7
Operation.................................................................... 9
Maintenance ............................................................11
Troubleshooting......................................................13
Specifications..........................................................13
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
When using electric gardening appliances, basic safety precautions should always be followed
to reduce the risk of fire, electric shock, and personal injury, including the following:
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
Power Cord Safety
WARNING! - To reduce the risk of electric
shock, use only with an extension cord
intended for outdoor use, such as an
extension cord of cord type
SW-A, SOW-A, STW-A, STOW-A, SJW-A,
SJOW-A, SJTW-A. or SJTOW-A.
1. Extension Cord - Make sure your extension cord
is in good condition. When using an extension
cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized
extension cord will cause a drop in line voltage
resulting in loss of power and overheating.
2. Ground Fault Circuit Interrupter (GFCI) protection
should be provided on the circuit(s) or outlet(s) to
be used for the gardening appliance. Receptacles
are available having built-in GFCI protection and may be
used for this measure of safety.
3. Do not Abuse Cord - Do not carry appliance by cord or
yank it to disconnect from receptacle. Keep cord from
heat, oil, and sharp edges.
4. To reduce the risk of electric shock, this appliance
has a polarized plug (one blade is wider than the other)
and will require the use of a polarized extension cord.
The appliance plug will fit into a polarized extension cord only
one way. If the plug does not fit fully into the extension cord,
reverse the plug. If the plug still does not fit, obtain a correct
polarized extension cord.
5. A polarized extension cord will require the use of a
polarized wall outlet. This plug will fit into the polarized
wall outlet only one way. If the plug does not fit fully into the
wall outlet, reverse the plug. If the plug still does not fit,
contact a qualified electrician to install the proper wall outlet.
Do not change the equipment plug, extension cord receptacle,
or extension cord plug in any way. This design is referred to as
double-insulated, indicated by .
2

Power Cord Safety (cont.)
Personal Safety
6. WARNING: Handling the cord on this product
will expose you to lead, a chemical known to the
State of California to cause cancer, and birth
defects or other reproductive harm. Wash hands after
handling. (California Health & Safety Code § 25249.5, et seq.)
Extension Cord Size
The following table shows the correct cord size to use
depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
1. Dress Properly - Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber gloves
and substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long hair.
2. Wear ANSI-approved safety goggles, hard hat and
heavy-duty rubber work gloves. Use face or dust mask if
operation is dusty.
3. Avoid Unintentional Starting - Do not carry plugged-in
appliance with finger on switch. Be sure switch is off when
plugging in.
4. Do not Overreach - Keep proper footing and balance
at all times.
5. Stay Alert - Watch what you are doing. Use common
sense. Do not operate appliance when you are tired.
6. DANGER! People with pacemakers should not use
pole saws. Pole saws produce strong electromagnetic
fields that can cause pacemaker interference or
pacemaker failure. People with pacemakers should
consult their physician(s) for advice.
Gardening Appliance Use and Care
1. Avoid Dangerous Environment - Do not use appliances in
damp or wet locations.
2. Do Not Use In Rain.
3. Keep Children Away - All visitors should be kept at a
distance from work area.
4. When servicing use only identical replacement parts.
5. Use Right Appliance - Do not use appliance for any job
except that for which it is intended.
6. Do Not Force Appliance - It will do the job better
and with less likelihood of injury at the rate for which
it was designed.
7. Store Idle Appliances Indoors - When not in use,
appliances should be stored indoors in dry, and high or
locked-up place - out of reach of children.
8. Disconnect Appliance - Disconnect the appliance from
the power supply when not in use, before servicing, when
changing accessories such as blades, and the like.
9. Check Damaged Parts - Before further use of the appliance,
a guard or other part that is damaged should be carefully
checked to determine that it will operate properly and perform
its intended function. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting, and any
other condition that may affect its operation. A guard or other
part that is damaged should be properly repaired or replaced
by a qualified technician unless indicated elsewhere in this manual.
10. Carefully follow cutting procedures explained in this
manual. They are specifically planned to reduce risk to
the operator.
11. Lock pole in place securely before using Pole Saw.
12. Maintain Appliance With Care - Keep cutting edge sharp
and clean for best performance and to reduce the risk of injury.
Follow instructions for lubricating and changing accessories.
Inspect appliance cord periodically, and if damaged, have it
repaired by an authorized service facility. Inspect extension
cords periodically and replace if damaged. Keep handles dry,
clean, and free from oil and grease.

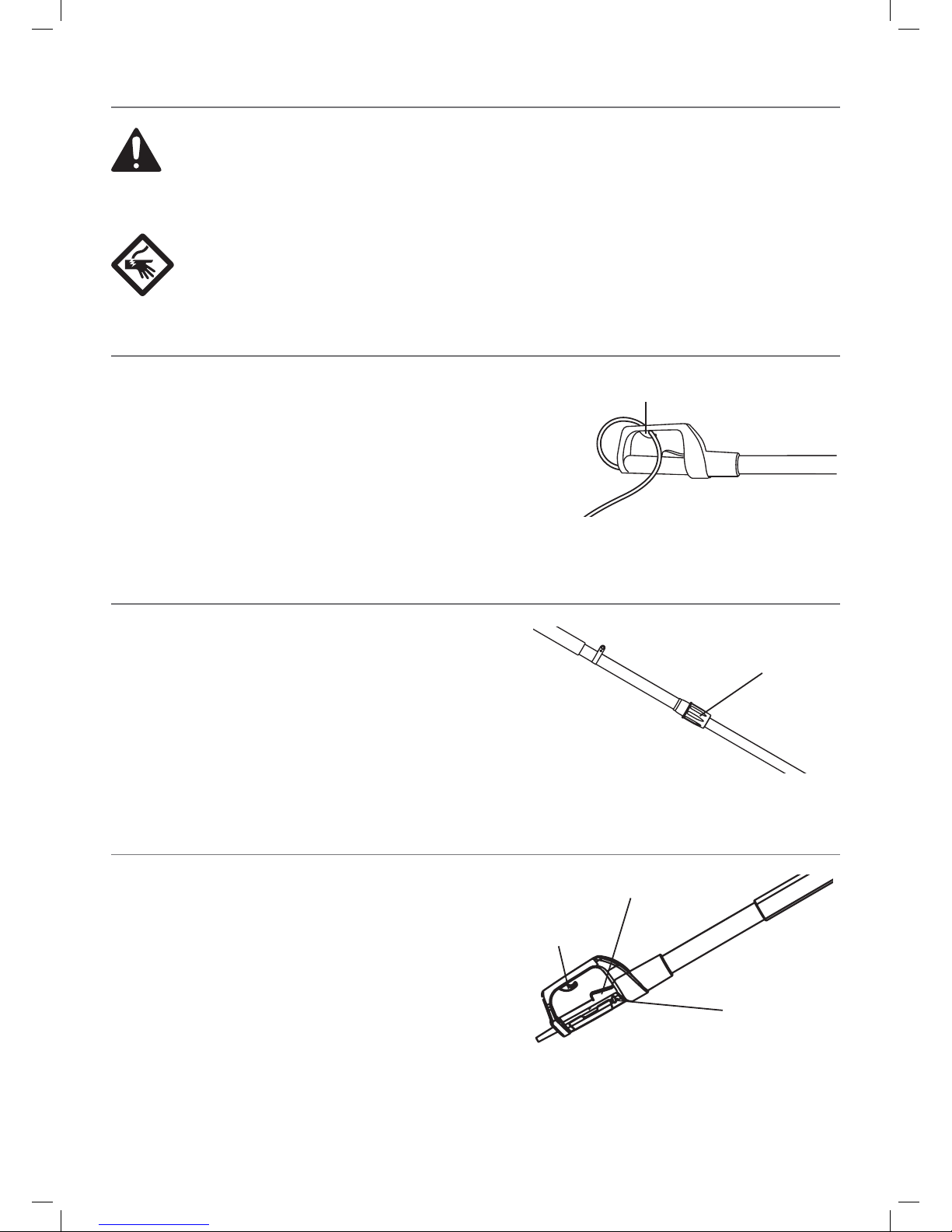

Connecting Cords
To reduce the risk of the cords pulling apart during operation,
do one of the following:
a. Make a knot as shown below then connect the cords:
a. Or, use a plug-receptacle retaining strap or connector
designed to hold extension cords to appliance cords.
TABLE A – MINIMUM WIRE GAUGE FOR
EXTENSION CORDS (120 VOLT)
Ampere Rating
(at full load)
EXTENSION CORD LENGTH
25′50′100′150′
0 – 6 18 16 16 14
6 – 10 18 16 14 12
10 – 12 16 16 14 12
12 – 16 14 12 Not recommended
Extension
Cord
Appliance
Cord
1
2
3

Vibration Hazard
General Safety
1. Stop working when you feel tired or exhausted. Make
regular breaks to rest.
2. Keep all parts of the body away from saw chain. Do not
remove cut material or hold material to be cut when
saw chain is moving. Make sure the switch is off when
clearing jammed material.
3. Hold Pole Saw by insulated gripping surfaces only,
because the saw chain may contact hidden wiring or its
own cord. Saw chains contacting a “live” wire may make
exposed metal parts of the garden power tool “live” and
could give the operator an electric shock.
4. Keep power cord away from cutting area. During operation
the power cord may be hidden in shrubs and can be accidentally
cut by the blade.
5. Before use, make sure the saw chain is not
contacting anything.
6. Hold Pole Saw with both hands on the handle.
7. Do not operate Pole Saw from within a tree. Operation of
tool while up in a tree may result in personal injury.
8. Keep proper footing and operate the garden power tool only
when standing on fixed, secure and level surface. Slippery
or unstable surfaces such as ladders may cause a loss of
balance or control of the garden power tool.
9. When cutting a limb that is under tension, be alert for spring
back. When the tension in the wood fibers is released, the
limb may strike the operator and/or throw the tool out of control.
10. Use extreme caution when cutting brush and saplings. The
slender material may catch the saw chain and be whipped around.
11. Carry Pole Saw with tool switched off and away from
your body. Proper handling of the Pole Saw will reduce the
likelihood of accidental contact with the moving saw chain.
12. Follow instructions for lubricating, chain tensioning and
changing accessories. Improperly tensioned or
lubricated chain may either break or increase the chance
for kickback.
13. Kickback is the result of tool misuse and/or incorrect
operating procedures or conditions. Kickback may occur
when the nose or tip of the guide bar touches an object, or
when the wood closes in and pinches the saw chain in the cut.
Kickback can be avoided by taking proper precautions as
given below:
a. Maintain a firm grip, with thumbs and fingers encircling
the Pole Saw handles, with both hands on the saw and
position your body and arm to allow you to resist
kickback forces. Kickback forces can be controlled by
the operator, if proper precautions are taken.
Do not let go of the garden power tool.
b. Do not overreach. This helps prevent unintended tip
contact and enables better control of the garden power
tool in unexpected situations.
c. Only use replacement bars and chains specified by the
manufacturer. Incorrect replacement bars and chains
may cause chain breakage and/or kickback.

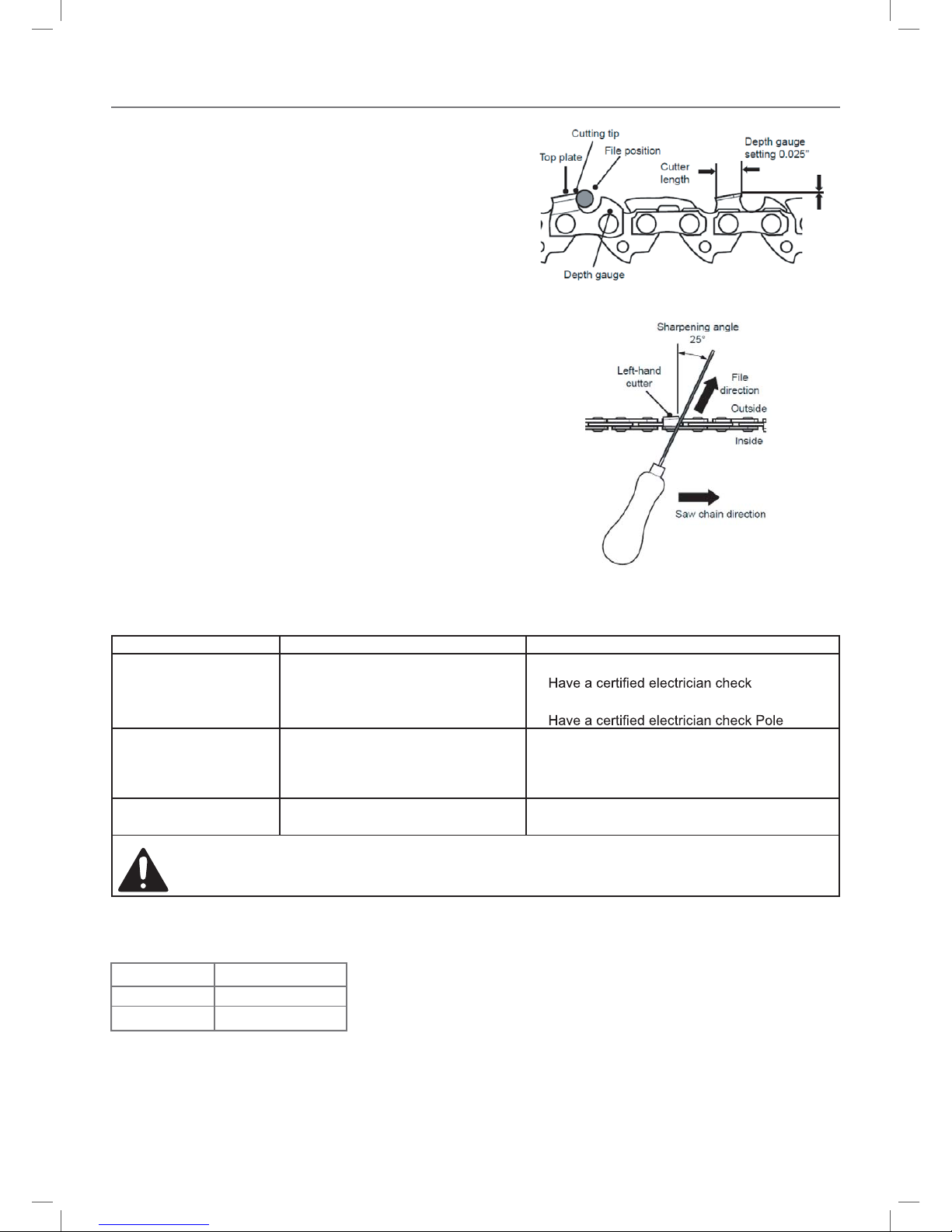

d. Follow the manufacturer’s sharpening and maintenance
instructions for the saw chain. Decreasing the depth gauge
height can lead to increased kickback.
14. Keep handles dry, clean, and free from oil and grease.
15. Use for cutting wood only. Do not use for cutting plastic,
masonry or non-wood building materials.
16. Do not touch guide bar tip to any object. Tip contact may
cause guide bar to move suddenly upward and backwards.
17. Maintain labels and nameplates on the appliance. These
carry important safety information. If unreadable or missing,
contact Ivation for a replacement.
18. The warnings, precautions, and instructions discussed in
this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood by the
operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by
the operator.
1. Anyone using vibrating appliances regularly or for an
extended period should first be examined by a doctor and
then have regular medical check-ups to ensure medical
problems are not being caused or worsened from use.
Pregnant women or people who have impaired blood
circulation to the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should not use this
appliance. If you feel any symptoms related to vibration (such
as tingling, numbness, and white or blue fingers), seek medical
advice as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood supply
to the hands and fingers, increasing the risk of vibration-
related injury.
3. Wear suitable gloves to reduce the vibration effects
on the user.
4. Use appliances with the lowest vibration when there is a
choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip appliance as lightly as possible (while still keeping
safe control of it). Let the appliance do the work.
7. To reduce vibration, maintain the appliance as explained
in this manual. If any abnormal vibration occurs, stop
use immediately.
This appliance vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury:
4

Parts List and Diagram
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A
REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY
KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL
REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here: _____________________________________________________________________________________
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
Parts List
Part Description Qty
1 Power Cord 1
2 Strain Relief 1
3 ST Screw 4*14 5
4 ST Screw 4*12 1
5 Right Handle 1
6 ST Screw 4*12 2
7 Cable Clamp 1
8 Control Switch 1
9 Left Handle 1
10 Lock Switch Spring 1
11 Trigger 1
12 Lock Switch 1
13 Spring 1
14 Cable Clamp 1
15 ST Screw 4*12 2
16 ST Screw 5*20 2
17 Spring Wire 1
18 Tube 1
18-1 Middle Tube 1
18-2 Rivet 2
18-3 Draw Tube Reed 1
18-4 Tube Connector 1
18-5 Tube Conn. Washer 1
18-6 Tube Conn. Sleeve 1
18-7 Tube Connector 1
18-8 Guide Pin 1
18-9 Big Retaining Ring 1
18-10 Tube Sleeve 1
18-11 Large Tube 1
20 Left Housing 1
21 Cable Clamp 1
22 ST Screw 4*12 2
23 Sponge Washer 1
24 Sponge Washer 1
Part Description Qty
25 Label 1
26 Oil Connector 1
27 Oil Tube 1
28 Oil Tube Spring 1
29 Pump 1
29-1 Turbine Gear 1
29-2 Turbine 1
29-3 Piston Frame 1
29-4 Piston Sleeve 1
29-5 Pump Body 1
29-6 Pump Spring 1
30 Flange ST Screw 3*8 2
31 Tank 1
31-1 Oil Tube Spring 1
31-2 Oil Tube 1
31-3 Tank Gasket 1
31-4 Tank Connector 1
31-5 Sponge 1
31-6 Choke Plug 1
31-7 Tank 1
32 Tank Cap 1
32-1 Valve 1
32-2 Tank Cap Gasket 1
32-3 Tank Cap 1
32-4 Tank Cap Cover 1
33 Wire (L-70) 2
34 Stator 1
35 Bearing (607) 1
36 Carbon Brush 2
37 Bushing 2
38 Brush Holder 2
39 Rotor 1
40 Bearing (608) 1
41 Small Gear 1
Part Description Qty
42 Hex Nut (M5) 1
43 Bearing (606) 1
44 Retaining Ring 1
45 Big Gear 1
46 Output Shaft 1
47 Bearing (6900) 1
48 ST Screw 4*12 4
49 Right Housing Inlay 1
49-1 Machine Screw 4*8 1
49-2 Washer 1
49-3 Self Locking Nut (M8) 1
49-4 Rt. Hsg. Inlay Gasket 1
49-5 Right Housing Inlay 1
49-6 Oil Output Gasket 1
50 Stretching Screw 1
51 Tension Pin 1
52 Sponge Washer 1
53 Rubber Pad 2
54 Sponge Washer 3
55 Right Housing 1
56 ST Screw 4*14 8
57 Sprocket 1
58 Retaining Ring 1
59 ST Screw 5*20 2
60 End Cap 1
60-1 End Cap Gasket 1
60-2 End Cap 1
60-3 Sprocket Clamp 1
60-4 Nameplate 1
61 Inner Hex Screw 8*25 1
62 Guide Bar 1
63 Saw Chain 1
64 Chain Cover 1
65 Hex Wrench 1
5

Assembly Diagram
6

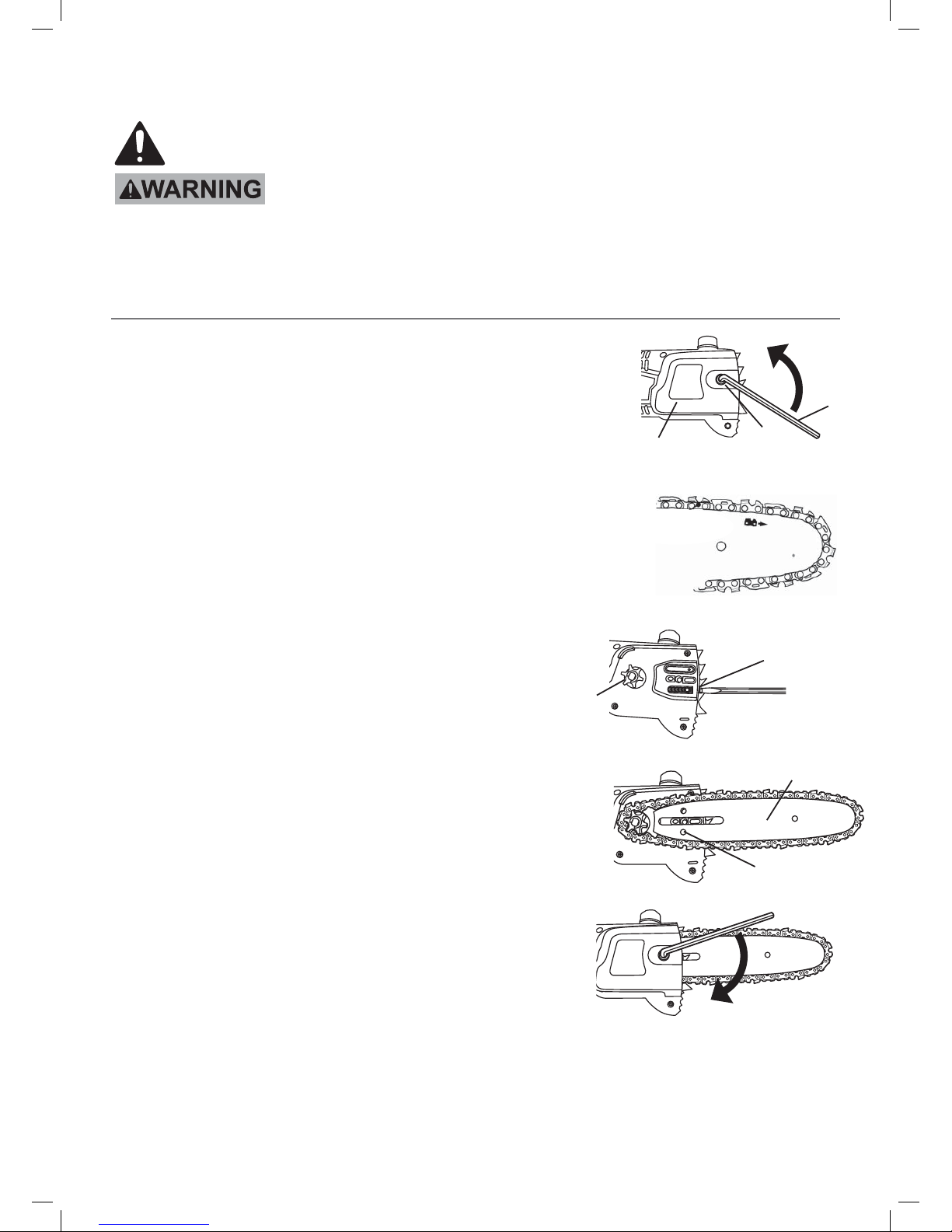

Saw Chain Assembly
1. Set the Pole Saw on a suitable flat surface
with the cover facing upwards.
2. Use Hex Wrench (65) to remove the Sprocket Clamp
(60-3) and End Cap (60-2). See Figure 1, right.
3. Spread the Saw Chain (63) out with the cutting edges
of the chain pointing in the direction of rotation.
4. Slide the chain into the slot around the
Chain Cover (64). See Figure 2, right.
Note: Verify chain is installed with correct direction of rotation.
5. Use the Hex Wrench to turn the chain tension screw
counterclockwise. The Tension Pin (51) is moved toward the
left. See Figure 3, right.
6. Mount Saw Chain assembly over the Sprocket (57) and align
the slot in the Chain Cover with the Guide Rail (62). Push the
Chain Cover to the left towards the Sprocket.
Note: Make sure the tension pin is inserted into the lower hole on
the Guide Rail. See Figure 4, right.
7. Replace the Sprocket Clamp and End Cap and fasten back in
place using Hex Wrench. See Figure 5, right.
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Release the Trigger and unplug the appliance from its electrical outlet
before assembling or making any adjustments.
Note: For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram near the end of this manual.
Assembly Instructions
End Cap
(60-2) Figure 1
Hex
Wrench
(65)
Sprocket
Clamp
(60-3)
Figure 2
Figure 3
Chain Tension
Screw
Sprocket
(57)
Figure 4
Tension Pin (51)
Guide Rail (62)
Figure 5
7

Tensioning Saw Chain
Check the saw chain tension before use, after the first initial cuts,
and periodically after regular use (about every 5 cuts).
WARNING! A loose chain will increase the risk of kickback and may jump out
of guide bar groove, leading to possible injury and property damage. A loose chain
can also lead to rapid wear to chain and sprocket.
Note: After initial use, new chains can lengthen considerably. This is normal during
the break-in period. Future adjustments will lengthen Saw Chain more gradually.
WARNING! Unplug Pole Saw from power outlet before adjusting
saw chain tension.
1. Set Pole Saw on a suitable flat surface.
WARNING! Sharp cutting edges on saw chain. Wear
heavy-duty work gloves whenever handling Saw Chain.
2. Use the flat end of the Hex Wrench to turn the chain tension screw
clockwise until the chain tie straps just touch the bottom edge of the
guide bar. See Figure 6, left.
3. The correct chain tension is reached when the Saw Chain can be lifted
by 2-4 mm from the center of the chain bar. Use one hand to lift the chain
against the weight of the machine. See Figure 7, left.
WARNING! Tensioning saw chain too tightly will overload the motor and
cause damage. Insufficient tension can cause chain to derail.
Note: The chain life depends mainly upon sufficient lubrication and correct tensioning.
Lubricating Pole Saw
Note: The Pole Saw is not filled with oil. Fill with oil before using. The Pole Saw is equipped with an automatic
oiling system. The oiling system automatically delivers the proper amount of oil to the bar and chain.
1. Set Pole Saw down with the Oil Tank Cap (13) facing upward.
2. Add lubrication oil (either SAE30 or SAE10) until reservoir is full.
3. The oil tank holds 110mI lubrication oil, which will lubricate the chain
for 20-25 minutes of cutting. The oil tank level can be checked by way
of the oil level gauge. See Figure 8, left.
4. Check oil level gauge before start-up and regularly during operation.
Refill oil before oil level is lower than “MIN” marking.
5. Use clean cloth to wipe up an excess or spilled oil.
6. Replace oil filler cap and tighten.
7. WARNING! Do not operate Pole Saw without enough lubrication oil.
Running the Pole Saw dry or with too little oil will decrease cutting
efficiency, shorten Saw Chain life, and cause rapid wear and overheating.
Figure 6
Chain Tie Straps
Figure 7
Figure 8
Oil
Level
Gauge
8

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
• Before operating the gardening appliance, put on ANSI-approved safety goggles, hard hat
and other safety gear. Safety goggles and other safety gear are sold separately.
• If an extension cord is used, ensure that it is an outdoor type extension cord
and that it is the correct design to accept this appliance’s plug.
WARNING! TO PREVENT ELECTRIC SHOCK AND SERIOUS PERSONAL INJURY:
The extension cord must remain secured to the appliance’s plug.
Secure the extension cord by either using the knot method explained in the safety warning section,
or by using a device designed specifically for retaining the extension cord (sold separately).
Power Cord Routing
1. Route the power cord away from the work area to prevent it from contacting
with the blade. Plan your route before starting work. Start your work at the
nearest point to the electrical outlet, and work away from it. This will keep the
power cord away from the Pole Saw and avoid it being accidentally cut.
2. Keep the power cord over your shoulder for added safety.
3. For tension relief of the power cord, loop the cord and bring this through the
opening at the handle and insert it into the Cable Hook. See Figure 10, right.
Adjusting Cutting Length
WARNING! Always release the Trigger and unplug the Pole Saw before
any adjustment.
1. The cutting length of the Pole Saw can be adjusted according to required
cutting height. Unscrew the locking sleeve in clockwise direction and
adjust the pole bar.
2. After adjusting required length, tighten the locking sleeve.
See Figure 11, right.
Activating/Deactivating Pole Saw
1. The Pole Saw is fitted with a lock button feature. To start Pole Saw,
depress the Lock Button then fully press and hold the Trigger. The
Lock Button can now be released. See Figure 12, right.
Note: It is not necessary to maintain pressure on the Lock Button
once the Trigger is squeezed and the motor is running. The Lock
Button is a safety device to avoid accidental start-up of the device.
2. The Pole Saw will automatically stop once the Trigger is released.
The Lock Button will have to be depressed and the switch trigger
squeezed to restart the Pole Saw motor.
Trigger
Lock
Button
Figure 12
Cable
Hook
Figure 11
Locking
Sleeve
Operating Instructions
Figure 10
Cable Lock
9

1. Kickback occurs when the chain (at the tip of the guide bar) comes in contact with a log or wood, or when the saw chain becomes
jammed, often when sawing sideward, slanted or during lengthwise cuts.
WARNING! When kickback occurs, the Pole Saw can react unpredictably and cause severe injuries to the operator or bystanders.
2. To avoid kickback:
a. Saw with guide bar at a flat angle
b. Do not work with a loose, overstretched or worn out chain
c. Ensure chain is sharpened correctly
d. Do not work with the tip of the guide bar
e. Hold the chain saw firmly with both hands
f. Use a low kickback chain
g. Ensure correct chain tension.
Avoiding Kickback During Use
1. Hold the Pole Saw with both hands using the soft grip.
2. Fully grip both handles at all times during operation.
WARNING! Do not operate Pole Saw using only one hand.
3. Hold the Pole Saw at a max. angle of 60° from the horizontal
level. See Figure 13, right.
WARNING! Do not stand directly under the limb you are
sawing. Objects may fall different than expected. Position
yourself well out of the path of falling limbs. Keep bystanders
away from cutting end of garden power tool and a safe
distance from the work area.
4. Maintain a minimum distance of thirty feet to bystanders.
WARNING! Do not stand on a ladder or other support while
using Pole Saw.
5. Make sure the power cord is located to the rear, away from
the chain and wood, and kept free of branches during cutting.
6. Hold the Pole Saw to the side of your body.
WARNING! Do not operate the Pole Saw with arms fully
extended or attempt to saw areas that are difficult to reach.
7. Keep a firm, steady pressure on the Pole Saw while working.
Do not try to force the Pole Saw through the wood, let the
chain do the work. Use the gripping teeth to apply minimal
leverage pressure.
8. Use caution when reaching end of cut. The Pole Saw’s weight
may change unexpectedly as it cuts free from the wood.
Always remove the Pole Saw from a wood cut while it
is running.
Handling Pole Saw
1. Thin branches can be cut off with a single cut.
2. To prevent the branch from slivering and buckling, cut the
branch off in several pieces. See Figure 14, right.
Cutting Thin Branches
Figure 13
Figure 14
10

1. When cutting larger branches, the following four cuts are necessary:
a. First cut into the branch from below, outside of the location
where you intend to cut off the branch. The cut should go one
third to halfway through the branch. See Cut 1 on Figure 15, right.
b. Cut into the branch from the top, making sure it’s outside from
where the branch is to be sawn. See Cut 2 on Figure 15, right.
c. To keep stump and branch from splintering, do a stub undercut
below branch. See Cut 3, on Figure 15, right.
d. Cut off the stump with one clean cut from top to bottom. If
desired, seal the cut with a suitable compound. See Cut 4 on
Figure 15, right.
2. When finished cutting, turn off the Pole Saw and disconnect its power
supply after use.
3. Clean, then store the appliance indoors out of children’s reach.
Cleaning, Maintenance and Lubrication
1. BEFORE EACH USE, inspect the general condition of the appliance. Check for loose screws, misalignment or binding of moving parts,
cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation.
2. AFTER USE, clean external surfaces of the appliance with clean, moist cloth.
3. REGULARLY check for loose, dislodged or damaged chain and guide bar, loose fixings and worn or damaged components.
4. Check that covers and guards are undamaged and correctly fitted. WARNING! Do not use Pole Saw if guards are damaged. Make sure
that all repairs are handled by a qualified service technician.
5. Clean Pole Saw with a brush or cloth.
WARNING! Do not clean the Pole Saw while it is running.
6. Do not use any solvents or water to remove dirt.
7. Ensure that all hardware (screws, nuts, etc.) is tight at all times so that you can safely work with the Pole Saw.
8. WARNING! If the supply cord of this appliance is damaged, it must be replaced only by a qualified service technician.
9. Store Pole Saw in a dry, secure location away from children.
Procedures not specifically explained in this manual
must be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION OR ELECTRIC SHOCK: Release the Trigger and unplug the appliance
from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the
problem corrected before further use.
Maintenance And Servicing
Cutting Thick Branches
Figure 15
11

Lubricating Drive Sprocket
Replacing/Changing Saw Chain and Guide Bar
1. Check the condition of the saw chain and its mounting at regular intervals.
a. If the saw chain is worn or blunt it must be replaced or sharpened immediately;
b. If the Pole Saw starts to suffer from excessive vibrations, this means that the saw chain or guide bar has not been balanced
correctly or has suffered deformation due to impacts. In this case it must be repaired or replaced.
c. Assemble the chain and guide bar as described in “Saw Chain Assembly and Tensioning” sections.
2. Over time, the circular groove of the guide bar will show wear on the lower edge. When replacing the chain, turn the chain bar 180° to
allow even wear, extending chain bar life.
3. If the guide bar is worn out or damaged, replace it with an identical guide bar.
1. Unplug the chain saw from the power source.
Note: It is not necessary to remove the saw chain to lubricate the guide bar sprocket tip.
2. After about every ten uses, clean the guide bar sprocket tip.
3. Using disposable lube gun (not included), insert needle nose into the lubrication hole
and inject grease until it appears at the outside edge of the sprocket tip.
See Figure 16, right.
4. Make sure to switch Pole Saw off and rotate the saw chain by hand. Repeat the
lubrication procedure until the entire sprocket tip has been greased.
5. Check drive sprocket. If it is worn out or damaged, have it replaced by a qualified service technician.
Cleaning Guide Bar Rails
1. Remove side cover, guide bar and saw chain.
2. After every ten regular uses, take a screwdriver or putty knife (not included) and
clear residue from the rails on the guide bar. This will keep the oil passages open to
provide proper lubrication to the bar and chain. See Figure 17, right.
3. Reinstall the bar, chain (adjust tension), sprocket cover and bar bolt retaining nuts.
Sharpening Saw Chain
1. Ensure the chain is correctly tensioned. See Figure 18, right.
Figure 17
Figure 16
Figure 18
12

Sharpening Saw Chain (cont.)
2. Use a round file (not included) with a diameter of 1.1 times the
cutting tooth depth. Make sure 20 percent of the file diameter is
above the cutter’s top plate.
3. File at an angle perpendicular to the bar and at an angle of 25 degrees
to the direction of travel. See Figure 19, right.
4. File each tooth from the inside towards outside only. File one side of the
chain first, then turn the Pole Saw around and repeat the process.
5. Sharpen each tooth equally by using the same number of strokes.
See Figure 20, right.
6. Keep all cutter lengths equal.
7. If the depth gauges are also trimmed, make sure the original profile be restored.
Use a depth gauge measuring instrument to check the height of the depth gauge.
Figure 19
Figure 20
Troubleshooting
Problem Possible Causes Likely Solutions
Pole Saw does not start. 1. Power supply interrupted.
2. Power cord or plug is damaged.
3. Other electrical defect to Pole Saw.
1. Check the power supply.
2. power cord and plug.
3. Saw.
Pole Saw does not
operate at full output. 1. Extension cord is too long and/ or has cross section is too small.
2. Power supply voltage
(generator) is too low.
1. Check and adjust rip fence.
2. Connect Pole Saw to another power outlet.
Bade cutting result. 1. Saw chain not tensioned properly.
2. Saw chain dull. 1. Tension saw chain properly. 2. Sharpen saw chain or replace.
Follow all safety precautions whenever diagnosing or servicing
the tool. Disconnect power supply before service.
Electrical Rating 120V~ / 60Hz / 7A
Reach 6' to 8'10"
Bar Length 9.5"
Specifications
13
This product is covered by a limited one-year warranty.
Coverage is subject to limits and exclusions. See warranty for details.
Customer Service:
[e-mail]
866-849-3049
Distributed by C & A Marketing
2 Bergen Turnpike
Ridgefield Park, NJ 07660
[email protected]
Made in China
Ivation is a trademark of C&A IP Holdings, LLC
©2015 All rights reserved
