Izzo Golf Swami Swing Cam User manual

User Manual

TABLE OF CONTENTS
Warranty Information ..........................................................................................................3
1. Basic Specications.....................................................................................................4-5
2. Getting Started ................................................................................................................6
2.1 Button Layout..................................................................................................6
2.2 Power On/O󰀨...................................................................................................6
2.3 Main Screen....................................................................................................7
2.4 Selecting Options.............................................................................................7
2.5 Returning to Previous Screen........................................................................8
2.6 Record Mode...................................................................................................8
2.7 Record with Timer............................................................................................9
2.8 Reviewing Recorded Videos..........................................................................10
2.9 Delete Recorded Videos...........................................................................10-11
2.10 Settings...................................................................................................11-12
2.11 Charging.......................................................................................................12
2.12 Attaching Mount...........................................................................................13
3. Swing Cam App...............................................................................................................14
3.1 Pairing Swing Cam with App.....................................................................14-15
3.2 Swing Cam App Guide..............................................................................15-18
3.3 App Swing Lines.......................................................................................18-19
2Table of Contents

Thank You for Choosing Swami Swing Cam
The Swami Swing Cam allows you to record, analyze & improve your golf swing anywhere!
It’s a perfect practice companion at home or on the course. Sync your recordings with the
free app to review and analyze your swing plane and alignment lines in slow motion.
Warranty / Return Policy
The SWAMI SWING CAM is warranted to be free from defects for up to (1) year from your
purchase date. Software updates are free of charge. IZZO will replace any defective unit
within the warranty period. Please call Swami Support at 800-777-7899 to request a Return
Authorization. All defective product must be returned to:
IZZO Golf
1635 Commons Parkway
Macedon, NY 14502
Please include a note with your Name, Address, Phone # and the Return Authorization #.
Your replacement SWAMI SWING CAM will be shipped once we receive and diagnose
the returned unit.
Table of Contents / Warranty 3
CONTACT
PHONE: [phone]
EMAIL: [email protected]
WEB: WWW.IZZO.COM / WWW.SWAMIGPS.COM

4Basic Specications
1. Basic Specications
MCU NOVATEK NT96658
Sensor IMX323
Lens Six glass lenses
Aperture F1.6
Wide angle 95°
Resolution 1920x1080
Encode H.264@1080P 30fps H.264@720P 60fps
Video format H.264, MOV format
Pixels 2 million pixels
Storage MicroSDHC class 10 or above, 64G max
LCD 2 Inches
Voltage DC 5V
Current 450mA
Standby current ≤3mA
Li-ion battery 3.7V 500mAh
Li-ion battery cycle life 300 times

5
Basic Specications
Li-ion battery Charging time 2-3 hours
Swing Cam Battery Life 1 hour
Storage temperature(°C) (-20 °C - 70 °C ), (-4°F - 158°F )
Working temperature(°C) (0 °C - 45 °C ), (32°F - 113°F )
Working humidity (RH) 15%-60%RH
WIFI 802.11b/g/n
Waterproof rating IPX0
Includes:
Swami Swing Cam 8 GB Micro SD
Card (installed)
Bag Mount Carry Case Charging Cord

2. Getting Started
2.1 Button Layout
6Getting Started
Button 1. [ POWER ] HOLD to turn On/O󰀨
Button 2. [ UP ] Arrow: Use to scroll up
Button 3. [ DOWN ] Arrow: Use to scroll down
Button 4. [ OK / BACK ]: PRESS once to select option, HOLD to return to previous screen
Button 5. [ RECORD ]: PRESS to start/stop recording
2.2 Power On/O󰀨
• HOLD [ Power ] (button 1) to turn on or o󰀨. A chime will be emitted and the IZZO Golf
logo will appear on the screen when powered on.
12345

2.3 Main Screen
• The Main Screen displays 4 options to select: record, record with timer, review, & settings
• Record: When selected, the Swing Cam will begin recording when the [ RECORD ]
button (button 5) is pressed and will continue recording until the record button is
pressed again. This mode records in 1280x720x60fps.
7
Getting Started
• Record with Timer: This mode allows the Swing Cam to record in timed intervals.
The user can select recording intervals of 5 seconds, 10 seconds, & 15 seconds with
5 seconds between each recording period. This mode records in 1280x720x60fps.
• Review: View previous recordings. You can delete videos while in this option
• Settings: Set the date/time, adjust the volume, and select WIFI from this option
2.4 Selecting Options
• To select an option on the Main Screen, use the [ UP/DOWN ] (buttons 2&3) to scroll up or
down to desired option. Once option is highlighted, PRESS [ OK ] (button 4) to select.

8Getting Started
2.6 Record Mode
• From the Main Screen, scroll to “record” using the [ UP/DOWN ] buttons (buttons 2/3)
until “record” is highlighted. Next, PRESS [ OK ] (button 4) to select.
• The device will go into “camera mode” but will not begin recording
• In order to start recording, PRESS [ RECORD ] (button 5). The Swing Cam will begin
recording with the amount of recording time available on SD Card displayed in
the middle of the screen. The Indictor light below the screen will be green.
• The Swing Cam will continue recording until the [ RECORD ] button (button 5) is
PRESSED again.
• When you have stopped recording and want to return to the Main Screen, HOLD
[ OK ] (button 4) until the Main Screen appears.
• NOTE: A single recording period can’t exceed 4 GB (≈39 minutes) of le size. The Swing
Cam will automatically stop recording if you have reached the maximum le size for a
single recording period. The user will need to press record again to resume recording.
2.5 Returning to Previous Screen
• To return to the previous screen at any time, HOLD [ OK ] (button 4) until previous
screen is displayed.

2.7 Record with Timer
• From the Main Screen scroll using [ UP/DOWN ] (buttons 2/3) to “Record with Timer”
until highlighted. Then PRESS [ OK ] (button 4) to select.
•
•
• The Swing Cam will now record for the selected interval and will keep repeating the process
of counting down from 5 seconds and recording. A “beep” will occur at the beginning of
each recording.
• To stop recording, PRESS [ RECORD ] (button 5). The recordings are automatically
saved. Select “review” from the main screen to view previous recordings.

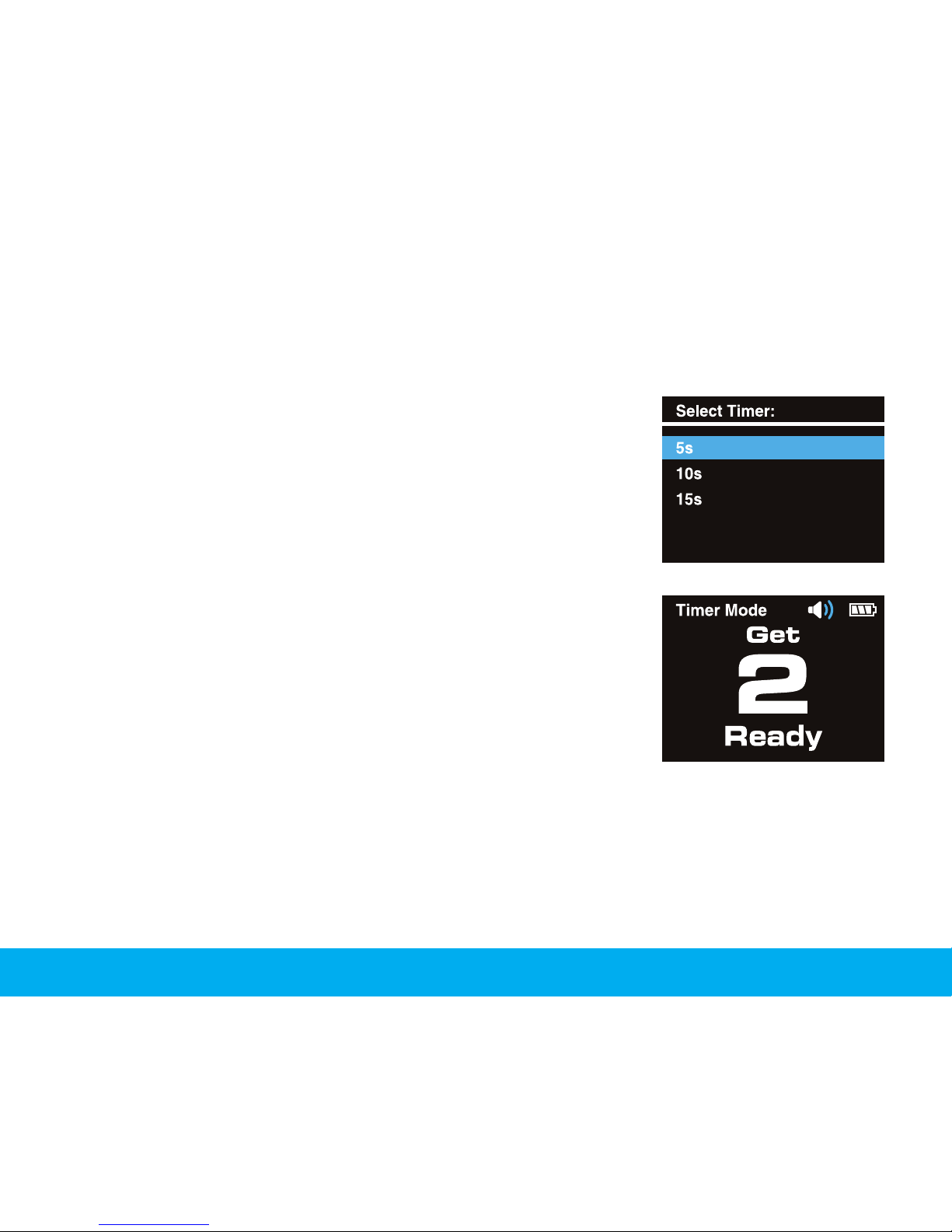

The next screen will display the duration of recording options.
Choose between 5 seconds, 10 seconds, and 15 seconds
recording intervals. All options will have 5 seconds between
each recording period. Scroll using the [ UP/DOWN ] buttons
(buttons 2/3) and select the option by PRESSING [ OK ]
(button 4).
Once a time has been selected, the Swing Cam will go into
“camera mode” but will not begin recording. To start recording,
PRESS [ RECORD ] (button 5). The Swing Cam will begin
counting down and start recording in 5 seconds after the
record button is pressed.
9
Getting Started

10 Getting Started
2.8 Reviewing Recorded Videos:
• From the Main Screen, scroll to “review” using the [ UP/DOWN ] buttons (buttons 2/3)
until “review” is highlighted. Then PRESS [ OK ] (button 4) to select.
• The next screen will display a list of recorded videos in order of recorded date & time.
• Use the [ UP/DOWN ] buttons (buttons 2/3) to scroll to the intended recording for review.
Once highlighted, PRESS [ OK ] (button 4). The video will appear but will be paused. In
order to play video, PRESS [ RECORD ] (button 5).
• To pause the video during review, PRESS [ RECORD ] (button 5).
• If you would like to delete the video after or during viewing, HOLD [ RECORD ] until
the video is deleted. The next recording will automatically appear.
2.9 Delete Recorded Videos from Swing Cam
• From the Main Screen, scroll down to “review” using the [ UP/DOWN ] (buttons 2/3)
until “review” is highlighted. Then PRESS [ OK ] (button 4) to select.
• The following screen will display the recorded videos in order of recorded date & length
on recorded video measured in seconds.
• When the recording you intend to delete is highlighted, PRESS & HOLD [ RECORD ]
(button 5). until “Delete Current” screen appears.
• Select “OK” to delete, or scroll to “cancel”

11
Getting Started
• Another option to delete a video: while you are viewing a previous recording, PRESS &
HOLD [ RECORD ] (button 5) until the video being viewed disappears. The Swing Cam
will automatically advance to the next video.
• If you have deleted all recorded videos and a blue box with “no image” appears on the
Swing Cam screen, PRESS [ OK ] (button 4) 2 times.
2.10 Settings
• From Main Screen scroll using the [ UP/DOWN ] buttons (buttons 2/3) to “Settings” until
highlighted. Then PRESS [ OK ] (button 4) to select. Scroll and select a setting you
would like to change.
• Set Date/Time: Use the [ RECORD ] (button 5) to
shift the selected date or time you would like to change.
Use the [ UP/DOWN ] arrows (button 2&3) to change the
date/time. When the Date/Time is correct, PRESS
[ OK ] (button 4).

12 Getting Started
2.11 Charging
• Simply plug the charging cord into Swing Cam. The indicator light below the screen will
be red when the device is charging.
• The red light will turn o󰀨 when the unit is fully charged
• NOTE: If Swing Cam is o󰀨 and charging cable is connected, the device will turn on and
“main Screen” will appear. When the Swing Cam is unplugged from charging, the “Main
Screen” stays on screen for 3-5 seconds and the device will power down. The Swing
Cam must be powered on for use after.
• WIFI: This setting allows the device to be linked to WIFI. This allows previously
stored videos to be uploaded to the Swing Cam app. To exit WIFI Mode screen,
HOLD [ RECORD ] (button 5) until the device goes into “camera mode”. To return
to the Main Menu, HOLD [ OK ] (button 4).
• Auto Power O󰀨: When enabled, the Swing Cam will power o󰀨 after 15 minutes of no use.
• PRESS & HOLD [ OK ] (button 4) to return to Main Screen.
2.10 Settings (continued)
• Volume: Adjust using the [ UP/DOWN ] arrows (button
2&3). When correct, PRESS [ OK ] (button 4).

13
Getting Started
2.12 Attaching Mount
STEP 1: On the bottom of the Swing Cam is a T groove which accepts the T slot on the
Swing Cam mount. Slide the T Slot from the bag mount into the groove on the
bottom of the swing camera (this may require a generous amount of force).
STEP 2: Next, thread the collar onto the mount until the collar is tight. This collar can be
loosened and tightened to adjust the angle of the swing camera when the mount
is clipped to a bag.
This is how the Swing Cam
will look when the stand end
is attached correctly.
TIP: With camera lens facing towards
you, push camera to the right with your
thumb and pull the mount to the left
using your index and lower ngers.

14 Swing Cam App
NOTE: The Swing Cam can only pair to your device via WIFI. The maximum range between
your paired device and the Swing Cam is 60 feet.
1. First download the “SwingCAM” app from the app store onto your
device. The app title is case sensitive. The app will only be found
by searching “SwingCAM”.
2. Next, on the Swing Cam, select WIFI under settings.
3. After the WIFI symbol appears on the
swing cam unit screen, go to the list of
available WIFI’s on the device you are
pairing the swing cam to.
4. Under the list of available WIFI’s, “Swing Cam” will appear. Select this WIFI to pair the
swing cam with your device. If your device requests a password entered to pair, the
password is: “12345678”.
5. The “x” on the swing camera screen will now turn into a “check” once the unit is
paired correctly.
6. Next, open the “SwingCAM” app on your device. Select the plus mark in the top right
corner of the screen.
3. Swing Cam App
3.1 Pairing Swing Cam with App

15
Swing Cam App
7. “SWING CAM” will appear under the “Camera List” within the app.
8. Select “SWING CAM”. Your device will now begin to stream live video from the swing
camera to your paired device. You now have the option to record new videos, edit,
delete, store, and share videos recorded on your Swami Swing Cam.

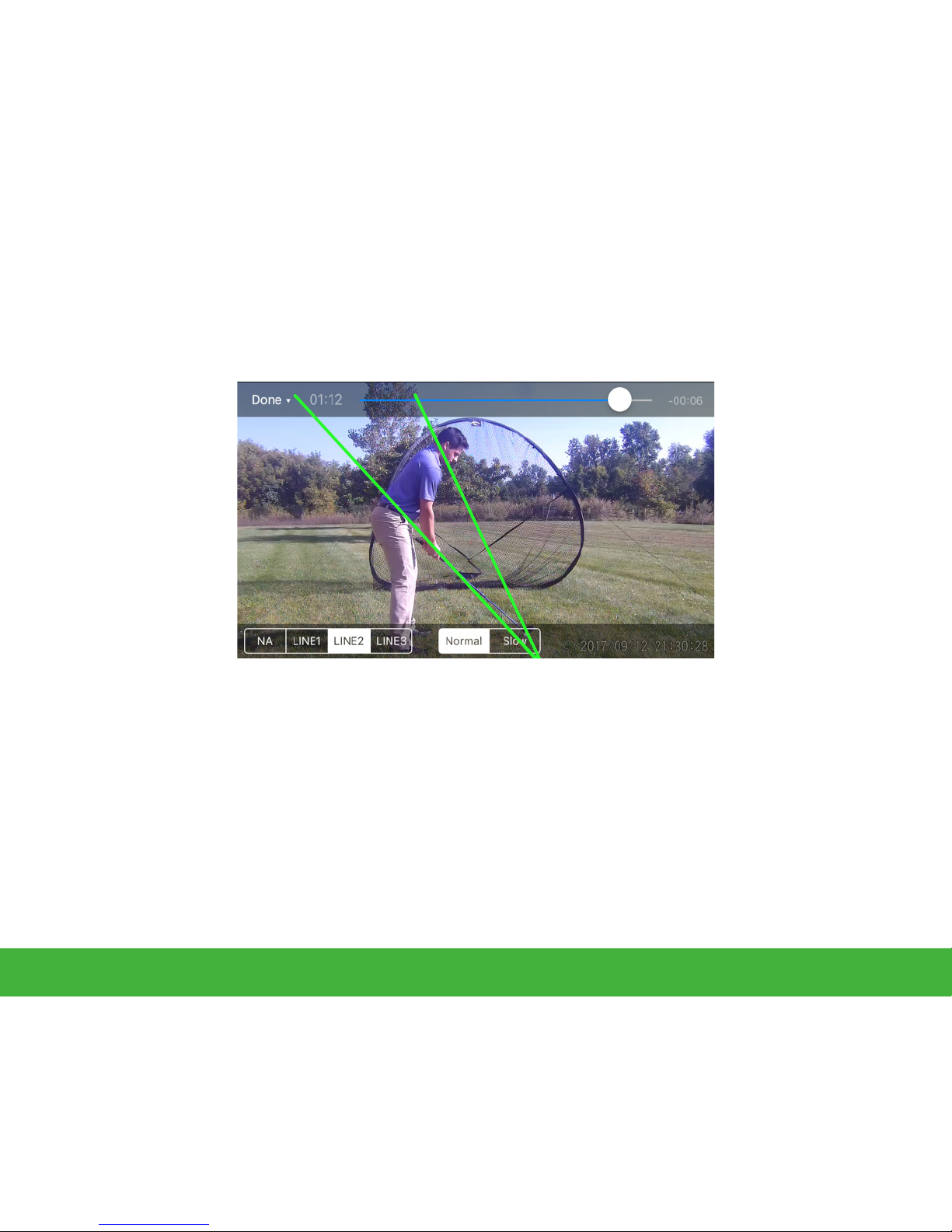

3.2 Swing Cam App Guide
1. When you have successfully paired your smart phone with the swing cam via the app,
the rst screen displayed will have multiple options for recording or analysis:
• The Red circle on the right side of the app screen is the record option (A). The user
can select this option to begin recording through the Swing Cam.
• The option in the upper right corner of the app screen is the option to review previous
recordings (B) which are on the Swing Cam memory or view downloaded recordings
which have been saved to the app.

16 Swing Cam App
2. Viewing recordings: Select this option in the upper right corner of the app screen
• Remote Camera: View and analyze recordings stored on the Swing Cam via the app
• Local Media: View and analyze recordings downloaded to the Swing Cam app from
the Swing Cam.
• When a video is selected under “Local Media”, the user will have the option to play,
share, or delete the stored recording.
• Sharing Recordings: Once a video has been downloaded and selected under “Local
Media”, the user has the option to share via multiple options or save a recording to
their device for analysis on the Swing Cam app or other app platforms.

17
Swing Cam App
3. Switching between camera mode and record mode: in the upper left corner of the app
screen is a camera icon with arrows in a rotating direction (A). This switches between
recording or taking photos:
• To switch back to recording mode, select the video camera icon with the rotating
arrows in the upper left corner of the app screen.
4. Downloading recordings from the Swing Cam to the app:
• When you select a video within “Remote Camera” the user has the option to download,
play via streaming or delete the recording from the Swing Cam memory.

18 Swing Cam App
5. Analyzing recordings: Analyzing a recording allows the user to plot swing plane lines
as well as play the recording in normal speed or in a slower frame by frame speed.
3.3 App Swing Lines
Swing Lines: Swing plane lines are intended to analyze club & body positioning throughout
the duration of the golf swing. These lines provide instant feedback so the user can monitor
their swing & make adjustments accordingly to improve their consistency, accuracy & power.
Line 1: Vertical line: Intended to be used during a straight on recording shot to check head
position, shoulder angle, ball position, and body movement. The golfer’s trailing shoulder
should be lower than their leading shoulder creating an upward shoulder angle. A golfer’s
head positioning should never be ahead of their hips throughout the swing. Ideally, a golfer
who keeps their body stable and compact during the swing will produce more accurate and
powerful golf shots.

19
Swing Cam App
Line 2: Right handed swing plane: Position the line to check club positioning, club shaft
plane, and shoulder plane throughout the golf swing. A golfer will be much more consistent
and accurate if they can maintain a similar swing plane on the backswing, down swing, and
follow through.
Line 3: Left handed swing plane line: Position the line to check club positioning, club shaft
plane, and shoulder plane throughout the golf swing. A golfer will be much more consistent
and accurate if they can maintain a similar swing plane on the backswing, down swing, and
follow through.

1635 Commons Parkway
Macedon, NY 14502
www.izzo.com
1-800-284-1220
