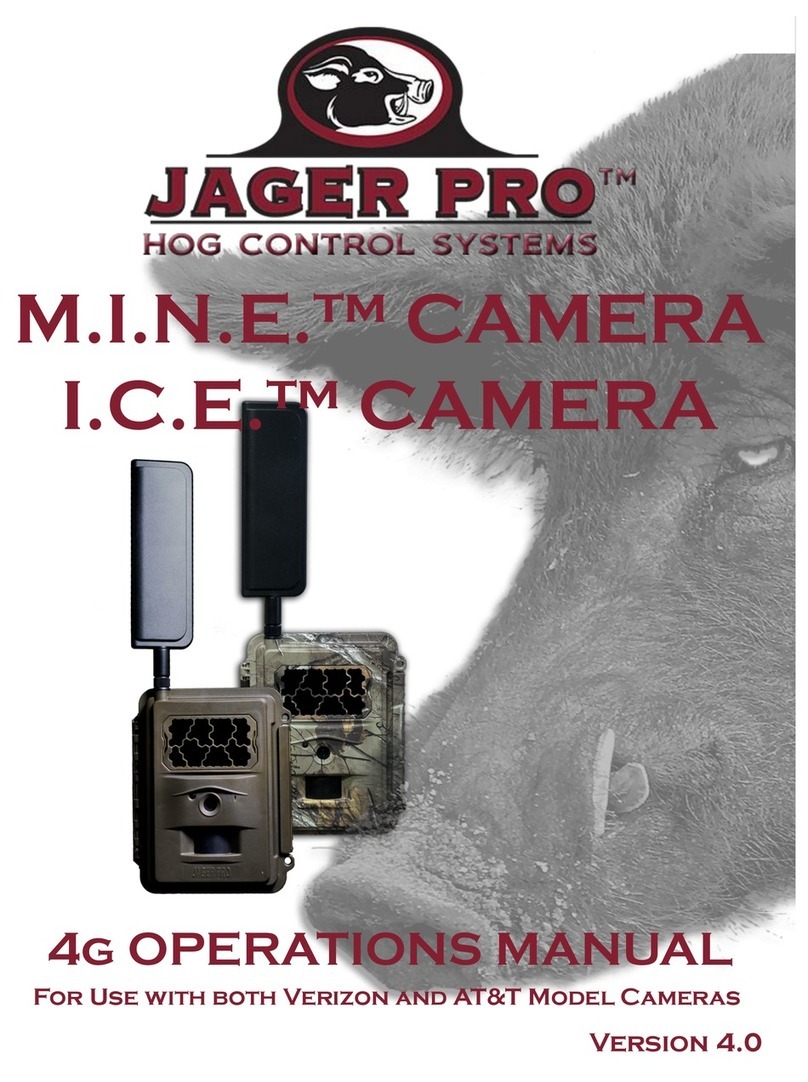

JAGER PRO M.I.N.E. User manual

1

2
WARRANTY
Limited Warranty: JAGER PRO™, LLC warrants the Product to be free from malfunctions
and defects in both materials and workmanship for one (1) year from the date of purchase
(“Warranty Period”). JAGER PRO™, LLC will repair or replace, at its option, the Product
if it fails to function properly during the Warranty Period, subject to the conditions and/or
limitations stated herein. Such repair or replacement is your sole remedy under this Limited
Warranty.
Limitations: Limited Warranty service will not be provided unless the Product, returned in
the manner set forth below, is accompanied by a copy of your original dated sales invoice.
JAGER PRO™, LLC reserves the right to require you to provide your original dated sales
invoice. Products purchased from non-authorized dealers may not qualify for warranty
coverage.
Repair & Service: Please contact our Camera Support department at 1-706-718-9789 (EXT
may be required prior to authorization for warranted repair services. If service is
recommended for your product, an RMA number and document will be provided. Additional
terms and conditions may apply. If it is determined that your product does not qualify for
warranty coverage, the following charges may or may not apply: Labor Hours, Parts,
Materials, Estimate Services, Shipping and Handling.
This Limited Warranty does not cover the following:
a. any defect in or damage to the Product that occurs due to mishandling of the Product;
b. any defect in or damage to the Product that occurs due to repair, modication, or other
similar activity after your purchase of the Product;
c. any defect in or damage to the Product that occurs due to the transport, dropping, shock,
or other similar activity after your purchase of the Product;
d. any defect in or damage to the Product that occurs due to careless or improper storage,
or improper use or maintenance of the Product;
e. any defect in or damage to the Product that occurs due to foreign objects such as dirt or
grime, sand, water or liquids entering the inside of the Product; and
f. any defect to the Product related to your failure to follow proper operating instructions
provided by JAGER PRO™, LLC, claims made after the Warranty Period, or your failure
to follow the instructions set forth below with respect to return of the Product to JAGER
PRO™, LLC.
All other express and implied warranties for the product, including the implied warranties of
merchantability and tness for a particular purpose are hereby disclaimed. JAGER PRO™,
LLC expressly disclaims all warranties not stated in this warranty. Any implied warranties
that may be imposed by law are limited in duration to the terms of this express limited
warranty. Some jurisdictions do not allow the exclusion of implied warranties or limitations
on how long an implied warranty lasts, so the above exclusions or limitations may not apply
to you. In no event will JAGER PRO™, LLC be liable to you, or any third party, for any
damages in excess of the purchase price of the product. In addition, JAGER PRO™,LLC
shall in no event be liable to you, or any third party, for any direct or indirect damages or
other special, incidental, exemplary or consequential damages arising out of the use or
inability to use the product. Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages for some products, so the exclusions or limitations
may not apply to you. This limited warranty gives you specic legal rights, and you may also
have other rights which may vary from jurisdiction to jurisdiction.
Notwithstanding any terms of this Limited Warranty to the contrary, no warranty coverage
shall be provided for a Product purchased from, through, or with the assistance or
involvement of any Internet auction web site. JAGER PRO™, LLC reserves the right to
modify its warranties prospectively at any time, in its sole discretion.

3
TABLE OF CONTENTS
Camera Characteristics................................................ 04
Quick Start Programming............................................. 07
Main Menu Tabs............................................................08
Camera Tab.................................................................. 08
Trigger Tab....................................................................10
System Tab................................................................... 11
Wireless Tab................................................................. 12
Test Manually Sending Photos..................................... 14
Registering Your Verizon Camera.................................14
Application Download....................................................14
LOGIN Fail Corrective Action........................................15
Timing Camera Transmitter to Control Box Receiver....16
Camera Deployment.....................................................17
Care and Maintenance................................................. 19
Accessories.................................................................. 22
Glossary........................................................................ 23
Command Code List..................................................... 24

4
Front View
1
2
345
6
CAMERA CHARACTERISTICS
1. Antenna: Standard antenna shown receives cell tower signals. Our 5
decibel booster antenna is available as an accessory for operation in low
signal areas.
1a. Antenna Seal: Prevents water from getting into the camera through
the antenna port (see page 7).
2. IR Illuminator: 44 infrared LEDs that illuminate the target area when
camera functions at night.
3. Ambient Light Sensor: Detects surrounding light to automatically
control day and night camera functions. This sensor also emits a green,
blinking LED when the selector switch is moved to SETUP. The LED will
stop blinking within 10 to 20 seconds after the selector switch is moved from
SETUP to ON indicating the camera is operational and active.
4. Camera Lens: The camera lens has a 52° eld of view with no magni-
cation. This enables users to observe a 20’ eld of view measured 15’ from
the lens and a 32’ eld of view when measured 21’ from the lens.
5. Microphone: Picks up the ambient sounds around the camera.
6. PIR Sensor: Passive Infrared motion detector. Senses the presence of
a moving object which triggers the camera to take a photo or record a video.
7. Locking Latch: Secures the camera front housing to the main body
housing while providing a waterproof seal to internal components.
This manual is intended to guide users through the individual steps to
properly program, operate and maintain the AT&T version of our JAGER
PRO™ M.I.N.E™ and I.C.E.™ Cameras on the data plan.
1a
7

5
1. USB Port Plug: Waterproof seal to protect internal components when
USB cable is not in use.
2. Mounting Port: 1/4 x 20 internal threads for securing camera to a
T-Post mount. Only thread external devices two complete rotations into the
camera mounting port then tighten using the mount’s adjusting nut.
WARNING! Forcing external threads to the bottom will damage mounting
port and camera housing.
3. DC Port Plug: Waterproof seal to protect internal components when
external battery (optional equipment) is not in use.
Bottom Outside View
12 3
1
6v DC External Battery

6
Inside View
1. Antenna Port: Attachment point to install various antennas depending
on local cellular strength. Our 5 db booster antenna is available as an
accessory for operation in low signal areas.
2. Display: A 2” screen to view menus, photos and settings.
3. Selector Switch: Used to enter into any of the three operating modes:
OFF, SETUP and ON.
4. Menu Button: Used to select various camera options.
5. Playback Button: Allows user to view pictures on SD card.
6. Del Button: Deletes unwanted pictures, numbers, and letters.
7. DC Port: 6 volt connection for external battery optional battery pack.
8. USB Port: Standard USB cable connection interface to transfer
information between the camera and a computer.
9. Move Left Button: Moves from the highlighted area to a selection left.
10. Move Up Button: Moves from the highlighted area to a selection
above.
11. Move Right Button: Moves from the highlighted area to a selection
right.
12. Move Down Button: Moves from the highlighted area to a selection
below.
13. OK Button: Selects the highlighted item.
14. Battery Polarity Symbols: Located on the front of the battery tray.
Aids in 12 proper battery polarity and installation.
7
3
4
2
6
5
8
9
1
10
11
12
13
14

7
Left Side View
1
1. SIM Card Port: Slot for receiving a cellular SIM card from GSM network
providers such as AT&T and T-Mobile.
2. SD Card Port: Slot for receiving an SD card. The camera has no
internal memory. A 32GB or smaller SD card must be used to store photos,
video and data.
Warning! Inserting the memory card upside down or backwards could
damage the camera or the memory card. Damage resulting from inserting
the card incorrectly is not covered under warranty.
QUICK START PROGRAMMING
Begin programming the M.I.N.E™ Camera for operation by removing the
red or yellow shipping plug and replacing the antenna seal if it came off with
the shipping plug. Damage resulting from not having the antenna seal
present is not covered under warranty. Twist the antenna base snug but
do not over tighten.
Unlock the full length locking latch to access the main body. Follow the
battery polarity symbols located on the front of the battery tray to properly
install 12 each batteries. We only recommend Energizer brand AA Lithium
batteries for the best performance in the eld. Alkaline or rechargeable AA
batteries will not operate high-tech equipment nearly as long.
Warning! Do not mix battery types! Damage to the camera can result and
your warranty will be voided if you mix battery types.
The camera will function in emergency situations using only four AA Lithium
batteries in the two left columns, two center columns, or two right columns.
We recommend our 6 volt external power supply for extended, long-term
camera use in the eld. AA Lithium batteries are still required for initial start
up until the camera housing is closed and the 6 volt external power supply
2

8
MAIN MENU TABS
Press the MENU button to access the program display. The camera will
shut down after 3 minutes sitting idle to conserve battery power. Users must
move the selector switch to OFF then SETUP again to restart the camera
and access MENU.
Camera Tab:
• Mode: Choose Photo or Video. (Recommend Photo for immediate
information sent to phone. The camera is not capable of sending any type
of video! It must be downloaded off the SD card and viewed from a
computer)
Press the MENU button to access the program display. From left to right The
four main menu tabs are; CAMERA, TRIGGER, SYSTEM and WIRELESS.
Press the left or right buttons to change tabs. Press the up or down buttons
to cycle through the submenu settings of the highlighted green tab. Press left
or right to select items with green highlights to edit and view choices.
Press OK to save the new setting. Press up or down to view the next setting.
Press MENU and return to the top of the MENU tab before able to move left
or right to view or change another highlighted tab.
cable is inserted into the camera battery port. The camera supports up to
a 32 GB SD card. Insert an activated SIM card into SIM card port with the
notch located in the top-right corner. Ensure SD card is not locked and insert
it into the SD card port. Move the selector switch from OFF to SETUP.
The screen will display “Searching Network” at the bottom center of the
screen. It usually takes 20 to 30 seconds for the camera to nd the network.
AT&T will appear in the top center of the screen after connecting to the
network and the signal strength symbol will appear in the top right.

9
• Photo Size: Choose the image size; 3MP, 5MP, or 8MP.
• Video Size: Choose the video size; 720p, WVGA, QVGA, 1080p.
• Photo Burst: Choose the number of pictures taken consecutively after
each triggering. (Recommend 1 Photo), selecting 2 or 3 will take two or
three photos but only send the last photo of the group taken.
• Video Length: Choose how long the video will be in size between 1 and
30 seconds. (The camera is not capable of sending any type of video! It
must be downloaded off the SD card and viewed from a computer)
• Burst Interval: Choose between one or half second delay between
pictures.
• Sound: Choose between On or Off. Turning this on will record audio.

10
• Trigger Interval- The timeout period between PIR triggers for each
photo or video capture. We recommend a two minute trigger interval. A
one minute selection may not allow a photo to transmit via data in low signal
areas before the next PIR trigger. The photo is always saved on the SD card
but may not have time to send via data to your phone or email.
• Time Lapse
OFF: Camera triggers only during PIR event. (Recommended)
ON: Camera automatically triggers at selected intervals between 30
seconds to 8 hours..
Trigger Tab:
• Sensitivity- Passive Infrared (PIR) Trigger Sensitivity
High: The most sensitive setting and will trigger camera operation when
any movement is detected.
Low: The least sensitive setting used when foliage, wind or shadows
trigger excessive photos.
Normal: Average sensitivity. (Recommended)
• Start - Stop
OFF: Camera triggers 24 hours per day.
ON: Camera only triggers between the START and STOP times

11
System Tab:
• Set Clock: Enter correct Date and Time. Add in UTZ for proper updates
• Time Stamp: Choose ON or OFF to select the date and time stamp on
the picture.
• Flash Power: Choose between Low or High. We recommend High to
extend infrared illumination beyond trap.
• Format: Formats the SD card and deletes all photos/videos.
• Overwrite
OFF: (Recommended) Retains saved photos and videos on SD card
when full. Warning: Camera will stop working when SD card is full.
ON: Camera deletes the oldest photos/videos from SD card when full and
continues to save newer photos/videos.
programmed. Could be used to avoid high trafc from non-target species
during specied times. Since there are two Start- Stop times available,
ensure the programmed times do not overlap.
NOTE: The camera will automatically update to your time zone once it is set
up on our wireless website.

12
• Default: Restores camera back to
factory settings.
Wireless Tab:
• Send Mode
Instant: (Recommended) The
camera sends a photo immediately
when it takes a photo.
• Password: The default password is 000000. Choose OFF to stop this
function and ON to set a six digit password.
• Buzzer: The default is ON. Choose OFF to silence key pad when making
selections.
• Information: Displays model, hardware version, rmware version of
camera and the IMEI number. Check our website for the latest rmware
version and uploading instructions.
Off: Sending and receiving is de-
activated. Photos will not be sent to a
recipient but will be saved to the SD
card.

13
The Max Num eld indicates the maximum number of photos or texts
allowed to be sent within 24 hours. Pressing the right arrow will open the
keypad to make changes. Select SAVE to return to Max Num and OK to
return to Instant. 0 is innite and the recommended setting. The camera
resets to zero each night at 00:00 hours.
Realtime: The Realtime function must be ON for the camera to send and
receive commands from the selected recipients.
Diagnostic:
• Hello Test: This will verify that your camera is activated, has a signal and
can reach the internet and the Server.
Register Camera: Pressing OK
will start the registration process. You
will receive a conrmation with your
IMEI number and registration code.
More information can be found in our
Registering Camera section on page
14.

14
MANUALLY SENDING PHOTO
Our AT&T camera is designed to test program settings and IMEI service by
manually sending a photo. Move the selector switch from OFF to SETUP.
Allow the camera 30 seconds to search the wireless AT&T network. AT&T
will appear in the top center of the LCD screen after connecting. Press the
OK button to immediately capture a photo. Press the OK button again to
upload the image to the network by following the camera program settings.
The automatic commands displayed in the bottom center of the LCD
screen are “Setting”, “Sending” followed by “Sent”. This process should
take approximately 20 seconds to upload and send the photo from the
camera and another 10 seconds to receive the photo as a data photo to a
programmed phone when the signal is strong.
• Premium Test: Once you input at least one recipient, this test will
verify that it can contact the server and send a test email to each of your
congured recipients. This only applies to email address’, not phone
numbers.
REGISTERING YOUR AT&T CAMERA
Visit our website at jagerpro.com
Create a new user or log in.
Register your camera by entering the appropriate information.
Purchase a plan.
Once you receive your conrmation email, follow those instructions listed on
the email to complete the registration process of your camera.
Go to our website www.jagerprowireless.com and input your camera IMEI
number and registration code. Follow the on screen instructions and watch
our video “Setting up your AT&T Camera” for complete details.
APPLICATION DOWNLOAD
Once your camera has been activated on the jagerprowireless website,
make sure you go to “My Cameras” and open up “Mobile Access”.

15
Users should always test their
camera at a new location prior
to erecting a feeder or a trap
enclosure. Move the selector switch
from OFF to SETUP. The screen
will display “Searching Network”.
Allow approximately 20 to 30
seconds for the camera to acquire
a cellular signal. If the camera does
not automatically connect to the
cellular network within 60 seconds, the standard antenna is not sufcient at
this location and the camera will be unable to send photos. Our ve decibel
booster antenna mounted to a 16 foot long telescoping antenna will be
necessary for remote cellular operation in low signal areas.
Drive a 7 foot long T post into the ground approximately 12 inches to the
right and rear of the camera post. Attach our booster antenna with mount to
a 16 foot long telescoping pole using U-bolts or zip ties. Secure the antenna
cable to the telescoping pole in multiple locations to eliminate cable noise
from wind.
Remove the standard antenna. Carefully thread the booster antenna cable
to the antenna port and tighten. Slide the rubber waterproof boot over the
booster antenna cable connector.
LOGIN FAIL CORRECTIVE ACTION
Give your camera an Admin Access Code and a Guest Access Code, you
will need these to authenticate your camera with your mobile app.
For Android, visit your google play store and search for JAGER PRO™
Wireless.
For Apple, visit your App Store and search for JAGER PRO™ Wireless.
Download the appropriate app with our logo. You will have to register your
camera, turn off WiFi setting and download photos for your app to work with
the server and your camera.

16
TIMING CAMERA TRANSMITTER TO
CONTROL BOX RECEIVER
THIS STEP IS ONLY A FUNCTION OF THE M.I.N.E.™ CAMERA.
THE I.C.E.™ CAMERA DOES NOT UTILIZE AN INTERNAL
TRANSMITTER.
The M.I.N.E.™ Camera has an internal transmitter on the circuit board and
must be located within 50 meters of the M.I.N.E.™ Gate to operate correctly.
Users must manually calibrate the camera transmitter signal to each control
box receiver the rst time they are paired together. One camera will operate
multiple control box receivers to trigger multiple gates simultaneously at a
trap enclosure.
1. Move camera selector switch from OFF to SETUP.
2. Open control box housing and
press (A) receiver button. The
receiver red light will only emit from 4
to 15 seconds.
3. Press the camera (A) left arrow
and release then press the camera
(B) right arrow and release to send
a manual RF signal to the control
box. You will see “RF Trigger” in the
bottom center of your screen. The
receiver light should ash three times
and shut off if performed correctly.
Conduct a test by repeating this step,
the latch will activate.
Repeat these steps on other control box receivers if multiple gates are used
at the trap enclosure. Move camera selector switch from SETUP to ON and
send command *777# or select Close Gate in the menu from the mobile
app, to test transmitter and receiver calibration and gate operation.
A B
A
Warning! Stand clear of the gate if it is in the up position as it will fall and
could cause bodily harm or even death!

17
CAMERA DEPLOYMENT
Align the 1/4 by 20 threads of the T-Post mounting bracket to the camera
mounting port. Thread the mounting bracket no more than three complete
rotations into the camera mounting port. Then tighten using the adjusting
nut.
NOTE: Forcing external threads to the bottom will damage the camera
mounting port and the camera housing.
WARNING! Never mount the M.I.N.E.™ Cam on the same T post securing
a trap panel or severe damage may result. Always mount the M.I.N.E.™
Cam on a separate 8 foot long T post at least 12 to 24 inches outside the
trap enclosure. Lower the square collar at a diagonal over the T post spine
and studs, then lower into position between two studs. Insert the mounting
wedge between the T post spine and square collar. Install the thumbscrew
into the 1/4 by 20 threads on the mounting wedge. Tighten the thumbscrew
against the T post spine to secure the camera mount.
Users are able to receive a wider eld of view by mounting the camera at a
higher elevation. Lower the square collar at a diagonal over the T post spine
and studs, then lower into position between two studs. Insert the mounting
wedge between the T post spine and square collar. Install the thumbscrew
into the 1/4 by 20 threads on the mounting wedge. Tighten the thumbscrew
against the T post spine to secure the camera mount.
When mounting using the higher elevation method, it is easier to attach the
booster antenna (if needed) to the camera while on the ground. Remove
the standard antenna from the camera’s antenna port. Carefully thread the
booster antenna cable to the antenna port and tighten. Slide the rubber
waterproof boot over the booster antenna cable connector.
Drive a second 7 foot long T post into the ground approximately 12 inches
to the right and rear of the camera T post to attach the antenna pole. Secure
the 8 foot long T post with camera to the 7 foot long T post using zip ties.
The higher camera elevation will allow the booster antenna to exceed 20 feet
by elevating and securing the telescoping pole to the T post with zip ties.
Standing on a step ladder, align the M.I.N.E.™ Cam by loosening the ball
head set screw and centering the camera’s view to the ground beneath the
feeder legs. Tighten the ball head set screw to secure the camera’s position.
If possible, set up the camera so that no large trees or objects are in the
main eld of view of the camera. As it can adversely affect motion detection
as well as night time ash range.
Move the selector switch from OFF to SETUP. The screen will display
“Searching Network”. The camera has successfully acquired a cellular signal
when the service provider’s initials appear on the display. Move the selector
switch from SETUP to ON. Close and latch the camera within 10 seconds
before the Ambient Light Sensor LED stops blinking green and the PIR

18
triggers a photo. The M.I.N.E.™ Cam is now operational and active.
Ensure the camera PIR triggers and sends a photo to your cell phone. This
step will verify the camera is positioned and programmed correctly. Ensure
the feeder is centered and the entire gate opening is visible.
From left to right- JAGER PRO™ is the camera manufacturer. The “M”
indicates the photo was triggered by “Motion”. The letter “S” would indicate
a photo triggered by Take Photo Now from your mobile app or code *500#.
“T” would indicate a photo triggered by “Time Lapse” and “E” would indicate
a manually triggered photo using the camera’s OK select button during
SETUP or an event triggered from the server.
The date is May 07 2015. The time is 21:24 or 9:24 in the evening. It is a
waning gibbous. Moon Phases displayed include: (new moon), (waxing
crescent), (rst quarter), (waxing gibbous), (full moon), (waning gibbous),
(last quarter), and (waning crescent). The temperature is 84 degrees
Fahrenheit. The battery symbol is “P5” which indicates the batteries are fully
charged.
The nal step is to register your new equipment on the JAGER PRO™
website via the camera MEID number so we may provide appropriate
rmware updates. These updates are necessary to ensure your equipment
operates efciently as network wireless technology changes. Multiple
cameras and control boxes may be registered on a single submission by
following directions in your Quick Start Guide.

19
CARE AND MAINTENANCE
Firmware Updates: You should also periodically check the JAGER
PRO™ website for rmware updates for your camera. We periodically
release rmware updates with new features and/or performance
enhancements. Firmware updates can be done on our JAGER PRO™
wireless website and will automatically download to your camera. Updating
rmware on the M.I.N.E.™ Series cameras takes just a few seconds, and is
well worth the effort to ensure your camera is performing at the highest level
possible.
If during this period, through normal use, a hardware product becomes
defective due to defects in materials or workmanship, JAGER PRO™ will
either repair or replace the product. This warranty is void if a product failure
results from accident, abuse, improper use by Buyer, disassembly, or
unauthorized maintenance and repair.
Repair or Replacement: Buyer must obtain a Return Merchandise
Authorization (RMA) number from JAGER PRO™ before returning any
product(s) for repair or replacement. If JAGER PRO™ concludes that a
returned product is not defective, Buyer will be notied, the product will
be returned to Buyer at Buyer’s expense, and Buyer may be charged for
examination and testing of the product.
This limited warranty is the sole warranty for hardware and software
products offered by JAGER PRO™ and JAGER PRO™ shall not be liable
for any amounts for said products except in compliance with this warranty.
Avoid Strong Magnetic Fields: Never place the camera in close
proximity to electric motors or other equipment generating strong
electromagnetic elds. Exposure to strong magnetic elds may cause
malfunctions or corrupt image data.
Avoid Condensation: Moving the camera rapidly between hot and
cold temperatures may cause condensation (water droplets) to form on its
external and internal surfaces. You can avoid this by placing the camera in
an airtight, plastic bag and letting it adjust to temperature changes slowly
before removing it from the bag. Stop using the camera immediately if you
detect condensation inside the camera. Continued use may damage the
camera. Remove the memory card and batteries from the camera and wait
until the moisture evaporates completely before resuming use.
Warnings
• Store this equipment out of the reach of children and infants. Accidental
damage to the camera or batteries by a child could result in serious injury.
• Do not allow water or other liquids to enter the interior of the camera. The
interior has not been waterproofed. If the exterior comes into contact with
liquids or salt air, wipe it dry with a soft, absorbent cloth. In the event that
water or other foreign substances enter the interior, immediately turn the
camera’s power off and remove the camera batteries. Continued use of

20
the equipment may result in re or electrical shock. Please contact JAGER
PRO™ Technical Support.
• Use of power sources not expressly recommended for this equipment may
lead to overheating, distortion of the equipment, re, electrical shock, or
other hazards. Use only the recommended power sources. Any use of non-
JAGER PRO™ power sources will void the warranty on your camera.
• Do not mix battery types. We recommend Energizer Ultimate Lithium
batteries for your camera. NEVER MIX BATTERY TYPES! Damage to the
camera can result and your warranty will be voided if you do so.
• Do not place the batteries near a heat source, expose them to direct ame
or heat, or immerse them in water. Such exposure may damage the batteries
and lead to the leakage of corrosive liquids, re, electrical shock, explosion,
or serious injury.
• Do not attempt to disassemble, alter, or apply heat to the batteries. There
is serious risk of injury due to an explosion. Immediately ush with water any
area of the body or clothing that comes into contact with the inner contents
of a battery. If the eyes or mouth contact these substances, immediately
ush with water and seek medical assistance.
• Avoid dropping or subjecting the batteries to severe impacts that could
damage the casings. It could lead to leakage and injury.
• Do not short-circuit the battery terminals with metallic objects, such as key
holders. It could lead to overheating, burns, and other injuries.
• Use of batteries not expressly recommended for this equipment may cause
explosions or leaks, resulting in re, injury, and damage to the surroundings.
Use only recommended batteries and accessories.
• Avoid using, placing, or storing the equipment in places subject to strong
sunlight or high temperatures, such as the dashboard or trunk (boot) of
a car. Exposure to intense sunlight and heat may cause the batteries to
leak, overheat or explode, resulting in re, burns or other injuries. High
temperatures may also cause deformation of the casing.
• Damage occurred from not having the waterproof antenna seal present is
not covered under the warranty.
• Be careful not to bang the camera or subject it to strong impacts or shocks
that could lead to injury or damage the equipment.
• When using desiccant, the following precautions should be followed: Keep
out of reach of children, do not eat, and do not inhale desiccant dust. If the
desiccant packet tears or breaks, wash your hands if they come in direct
contact with the desiccant. Desiccant may cause eye, skin, and mucous
membrane irritation. Prolonged inhalation may cause lung damage. Asthma
can be aggravated by exposure to desiccant.
• If you know or suspect desiccant has been ingested, seek medical
assistance for further treatment, observation, and support if necessary. For
eye contact, ush with water for at least 15 minutes. For skin contact, wash
affected area with soap and water. For inhalation of desiccant dust, move
affected person into an environment with fresh air. For accidental ingestion,
drink at least two glasses of water.
• Check your state/local laws concerning the use of this product.
Other manuals for M.I.N.E.
4
This manual suits for next models
1
Table of contents
Other JAGER PRO Security Camera manuals
