Jandy Pro Series PlusHP Series User manual

Lid Seal & Lid O-ring
R0449100
Pump Debris
Trap Basket
R0448900
Align the slot of the basket with the
position tab inside of the pump body.
Lid with
Locking Ring
and Seal
R0448800
Lid O-ring
Lid Seal
NOTE The Lid Seal has
a three-lobed cross section
and the Lid O-ring has a
round cross section.
These instructions are to be used with the following Jandy Pro Series Replacement Parts:
R0448800-- Lid with Locking Ring and Seal Replacement Kit (PHPF/PHPM, WFTR, MHPM)
R0448900-- Pump Debris Trap Basket Replacement Kit (PHPF/PHPM, WFTR, MHPM)
R0449100-- Lid Seal and Lid O-ring Replacement Kit (PHPF/PHPM, WFTR, MHPM)
PHPF/PHPM, WFTR, and MHPM Pumps, Lid w/
Locking Ring and Seal, Lid Seal and Lid O-ring,
and Basket, Replacement Kit Instructions
WARNING
Before servicing the pump, be sure to switch off the circuit breaker to the circuit supplying electrical power to the pump. Failure
to do so could result in property damage, severe personal injury, and/or death.
Figure 1. Exploded View of PHP, WFTR, and MHP Pump Parts
1. Introduction
This document contains instructions for the prop-
er replacement of the lid with locking ring and seal, the
lid seal or lid o-ring, and the pump debris trap basket on
Jandy Pro Series PlusHP (PHP, Models PHPF/PHPM),
Water Features (WFTR) and MaxHP (MHP, Model
MHPM) Pumps.
These replacement kits are designed to be used
with both newer and older model Jandy PHP, WFTR,
and MHP Pumps. Refer to Figure 1 and the parts list on
this page to identify the parts in each kit.
These instructions must be followed exactly.
Read them completely before starting the procedures.
Parts List
Description
R0448800 R0448900 R0449100
Lid with Locking Ring 1 -- --
Lid O-ring -- -- 1
Pump Debris Trap Basket -- 1 --
Lid Seal 1 -- 1
Instructions 1 1 1
WARNING
FOR YOUR SAFETY: This product must be installed and serviced by a contractor who is licensed and qualied in pool
equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. The maintain-
er must be a professional with sufcient experience in pool equipment installation and maintenance so that all of the instruc-
tions in this manual can be followed exactly. Before installing this product, read and follow all warning notices and instruc-
tions that accompany this product. Failure to follow warning notices and instructions may result in property damage, personal
injury, or death. Improper installation and/or operation will void the warranty.
H0281300 Rev E

2. Procedures
2.1 Opening Pump
WARNING
Turn off the pump and main breaker in the pump
electrical circuit before starting the procedure. Failure
to comply could cause a shock hazard, which could
result in property damage, severe personal injury,
and/or death.
WARNING
Due to the potential risk of re, electric shock, or
injuries to persons, Jandy Pumps must be installed
in accordance with the National Electrical Code®
(NEC®), all local electrical and safety codes, and the
Occupational Safety and Health Act (OSHA). Copies
of the NEC may be ordered from the National Fire
Protection Association, 470 Atlantic Ave., Boston,
MA 02210, or obtained from your local government
inspection agency.
In Canada, Jandy Pumps must be installed in
accordance with the Canadian Electrical Code
(CEC).
1. Turn off the pump. Switch off the circuit breaker
to the pump motor.
2. Close all necessary isolation valves to prevent
pool water from reaching the pump.
3. Following the markings on the lid’s locking ring,
turn the ring counter-clockwise until the ‘START’
marking aligns with the ports. Carefully remove
the lid.
4. Depending on the model of the pump, remove
either the lid o-ring or the lid seal. Section 2.2
explains how to determine whether your model
uses a lid o-ring or a lid seal.
5. Clean all lid sealing surfaces. Remove debris in
the lid o-ring groove or lid groove and on the
sealing surface on the pump housing. Debris on lid
sealing surfaces can cause air leaks in the system.
WARNING
Follow all lter manufacturer’s instructions. Never
attempt to assemble, disassemble or adjust the
lter when there is pressurized air in the system.
Starting the pump while there is any pressurized
air in the system can cause the lter lid to be
blown off, which can cause death, serious
personal injury or property damage.
6. Go to the appropriate section:
2.2 Replacing Lid Seal or Lid O-ring
(Kit R0449100)
2.3 Replacing Pump Debris Trap Basket
(Kit R0448900)

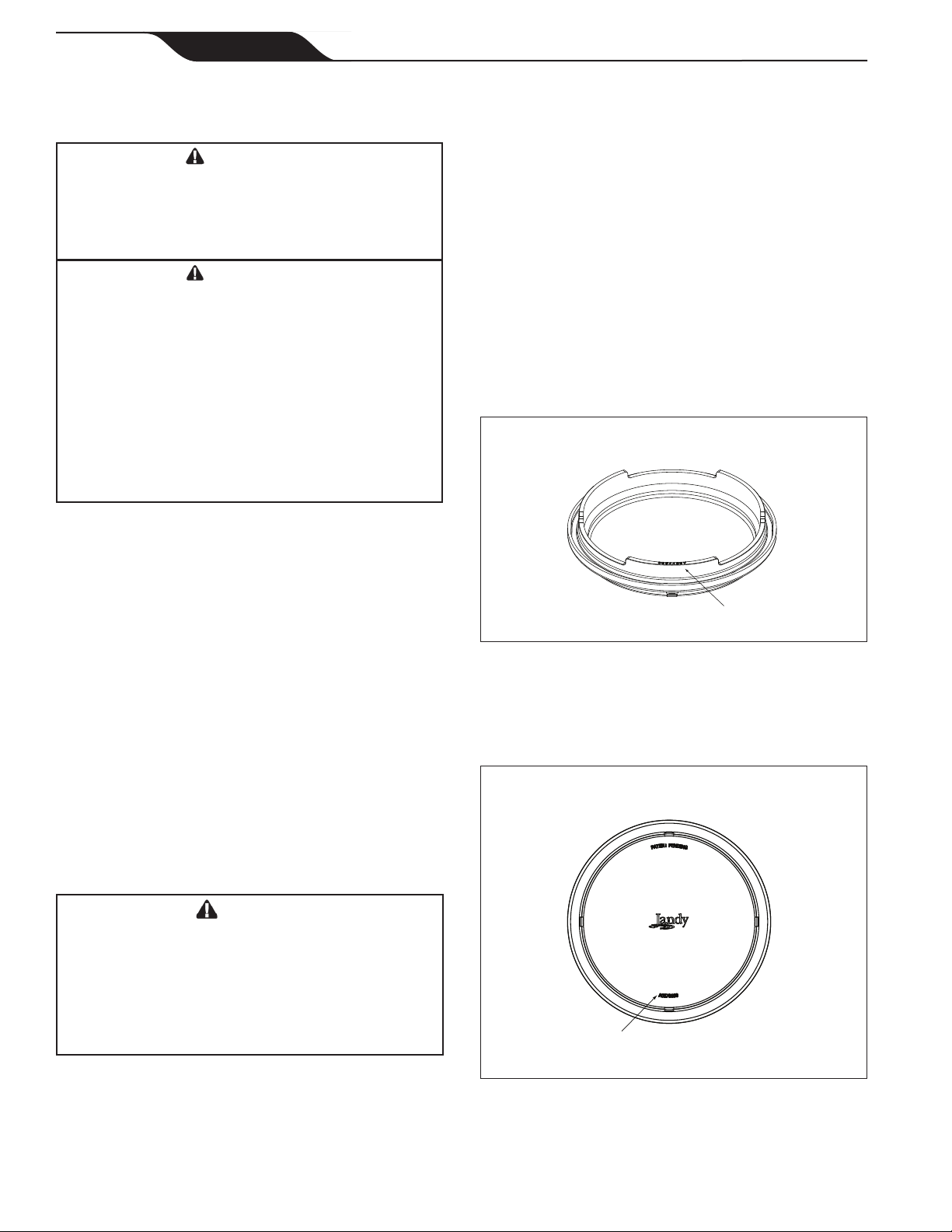

If the lid part number is on the top of the lid,
use a lid seal.
Top View of Lid
(Newer Model)
Figure 3. Newer Model Lid
b. If the part number is on top of the lid (see
Figure 3), the pump is a newer model and uses
a lid seal. Go to Step 3.
Figure 2. Older Model Lid
2.4 Replacing Lid with Locking Ring and Seal
(Kit R0448800)
2.2 Replacing Lid Seal or Lid O-ring
(Kit R0449100)
The lid seal is used with newer model pump lids,
and the lid o-ring is used with older model pump lids.
NOTE The lid seal has a three-lobed cross section and
the lid o-ring has a round cross section.
1. Determine whether your pump lid is a newer or
older model by locating the lid part number.
a. If the part number is on the bottom of the lid
(see Figure 2), the pump is an older model and
uses a lid o-ring. Go to Step 2.
If the lid part number is on a raised ridge
on the bottom of the lid, use a lid o-ring.
Bottom View of Lid
(Older Model)
Page 2 Jandy®Pro Series PHP(F/M), WFTR, and MHPM Pumps, Lid w/ Locking Ring and Seal, Lid Seal and O-ring, and
Basket |Replacement Kit Instructions

Figure 4. Cross Section of Seal
Place side with two
ribs into lid groove.
Cross Section of Lid Seal
2. Replace the lid o-ring.
a. Comply with the warnings and follow Steps
1-5 in Section 2.1, Opening Pump.
b. Clean the lid o-ring groove.
c. Place the new o-ring into the lid o-ring groove.
Skip Step 3 and go to Step 4.
3. Replace the lid seal.
a. Comply with the warnings and follow Steps
1-5 in Section 2.1, Opening Pump.
b. Clean the lid groove.
c. Note that one (1) side of the lid seal has two
(2) ribs and the other side has one (1) rib.
Insert the new lid seal into the lid groove,
placing the side with two (2) ribs into the
groove. See Figure 4.
2.3 Replacing Pump Debris Trap Basket
(Kit R0448900)
WARNING
Follow all lter manufacturer’s instructions. Never
attempt to assemble, disassemble or adjust the
lter when there is pressurized air in the system.
Starting the pump while there is any pressurized
air in the system can cause the lter lid to be
blown off, which can cause death, serious
personal injury or property damage.
1. Comply with the warnings and follow steps 1-5 in
Section 2.1, Opening Pump.
2. Lift the pump debris trap basket out of the pump.
3. Before installing the new debris trap basket,
remove all debris from the pump.
4. Place the new pump debris trap basket into the
pump. Make sure that the slot of the basket is
aligned with the positioning tab inside the pump
housing. (See Figure 1.) If aligned properly, the
basket will drop easily into place. Do not force it
into place.
CAUTION
A misaligned basket will cause the lid to be
improperly seated, allowing an air leak, which
could result in pump damage.
5. Go to the appropriate section:
2.4 Replacing Lid with Locking Ring and Seal
(Kit R0448800)
2.5 Completing Procedures
4. Go to the appropriate section:
2.3 Replacing Pump Debris Trap Basket
(Kit R0448900)
2.4 Replacing Lid with Locking Ring and Seal
(Kit R0448800)
2.5 Completing Procedures
Page 3
Jandy®Pro Series PHP(F/M), WFTR, and MHPM Pumps, Lid w/ Locking Ring and Seal, Lid Seal and O-ring, and
Basket |Replacement Kit Instructions

2.4 Replacing Lid with Locking Ring and
Seal (Kit R0448800)
WARNING
Follow all lter manufacturer’s instructions. Never
attempt to assemble, disassemble or adjust the
lter when there is pressurized air in the system.
Starting the pump while there is any pressurized
air in the system can cause the lter lid to be
blown off, which can cause death, serious per-
sonal injury or property damage.
1. Comply with the warnings and follow Steps 1-5 in
Section 2.1, Opening Pump.
2. Place the lid onto the pump housing.
3. Following the markings on the lid’s locking
ring, align the ‘START’ marking with the ports.
Then turn the lid clockwise until the ‘LOCKED’
marking aligns with the ports. Do not tighten past
the ‘LOCKED’ marking.
2.5 Completing Procedures
1. If necessary, install any remaining parts. Follow
the appropriate procedures, which are described
in Section 2.2, Replacing Lid Seal or Lid O-ring,
Section 2.3, Replacing Pump Debris Trap Basket,
and Section 2.4, Replacing Lid with Locking Ring
and Seal.
2. Return the valves to the proper position for normal
operation.
3. Follow the lter manufacturer’s instructions on
how to bleed all air from the lter.
WARNING
Follow all lter manufacturer’s instructions. Never
attempt to assemble, disassemble or adjust the
lter when there is pressurized air in the system.
Starting the pump while there is any pressurized
air in the system can cause the lter lid to be
blown off, which can cause death, serious per-
sonal injury or property damage.
4. Once all the air has been bled from the lter,
close the lter pressure release valve assembly
or other pressure release means, per the lter
manufacturer’s instructions.
5. Turn on the power to the pump at the circuit
breaker.
6. Turn on the pump.
7. Check to see if the pump is operating properly,
with no lid leaks.
8. If there are lid leaks, repeat the steps in
Section 2, Procedures. For technical support, call
800.822.7933.
