Jazz ultratab c1029 User manual

1
FCC FCC FCC FCCDECLARATION DECLARATION DECLARATION DECLARATION
ThisdevicecomplieswithPart15ofFCCrules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.Privacyofcommunicationsmaynotbeensured
whenusingthisdevice.
Caution:Changesormodificationstothisunitnotexpresslyapprovedbythe
partyresponsibleforcompliancecouldvoidtheuser ’ sauthoritytooperatethe
equipment.
Note:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora
ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimits
aredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.Thisequipmentgenerates,uses,
andcanradiateradiofrequencyenergyand,ifnotinstalledandusedin
accordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrect
theinterferencebyoneormoreofthefollowingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthatto
whichthereceiverisconnected.
-ConsultthedealeroranexperiencedradioTVtechnicianforhelp.
Pertinenttestingdocumentationisavailableforverification.
FCCReportNo.forthisproduct:ES120724214E

2
Attention:
This handbook contains important security measures and product information
essential for using the device safely. Pl ease read this manual carefully before
us ing the device .
�Do not place the device in high temperatures, moist areas or very dusty
places.
�During seasons with hot temperatures do not leave the device in a car with
the windows closed.
�This tablet is a sophisticated device. Please handle with care and do not
drop as it may damage the display screen.
�Please choose the appropriate volume . When utilizing headphones please
ensure the volume is not set at high level .
�Charge the device under the following conditions,
A、The battery power ICONS show there is no power
B、The system automatically shuts off
C、The Operation buttons does not respond
�Do not disconnect the device when it is formatting, downloading or
uploading a file as it can cause an application error.
�Follow the user manual for standardized operational use of the device.
�Don ’ t disassemble the product . Do not use alcohol, thinner or benzene to
scrub the product.
�Don't use the device in a place that prohibits use of electronic equipment.
�Please don't use the Tablet PC when you are driving or walking down the
street.
�USB is only to be used for data transmission.

3
The company reserves the right to improve the product, product specifications
and design and/or make any other changes. The information is subject to change
without prior notice.
(This tablet does not have a waterproof function)
【Remark 】All pictures in this manual are only for your reference. The products
specification and design may change. The information is subject to change
without prior notice.

4
1.
.
.
. Appearance
Appearance
Appearance
Appearance and
and
and
and button:
button:
button:
button:
13

5
Number
Number
Number
Number #
#
#
# Description
Description
Description
Description
1（ 11 ）Rear Camera ( 2M P)
2
Power button
Startup: Hold down the power button for several seconds.
The tablet will turn on and then the system will enter t he
main interface.
S hutdown: In the main menu interface, p ress the power
button for several seconds to shutdown, The system will hint
the "power off" option .Click ” OK ” . Now y ou can safely shut
down.
Turn off screen: When the screen is on, s hort press Power
button to turn off screen . Short press Power button again to
turn on screen.
Remark 1. When the power is depleted the system will shut
down automatically.
2. Restart will scan and restore the disk . I t may
take a longer time to enter into system .
3 Head phone jac k: 3.5mm standard head phone jack
4 Mini HDMI interface : Used to connect to external HDMI
displays
5
M icro USB interface : Used to connect to PC for data
transmission, charging and connecting to external USB
flash drive
6
Power Jack: One end of the AC adaptor can be inserted to
the Power Jack and then the charger is inserted to a
standard AC wall outlet to charge the battery of the tablet.

6
7 TF-card slot : External T-FLASH card, support up to 32G B
8 MIC : B uilt - in Microphone
9 Speaker
10
V olume button ( V olume + / V olume - ): Use Volume + and
Volume - to adjust the volume.
12 Front Camera ( 0.3 M P)
13
Touch panel: 10 ” Capacitive touch panel . In the Operation,
to click, drag on the touch panel
2.
2.
2.
2. First
First
First
First use
use
use
use
2.1 Battery management and charge
Prior to first use, make sure the battery is fully charged
To charge simply connect the adaptor (to AC wall outlet) or USB cable (to
USB port on your computer) .
Charge for six hours for the first two times .Following that the battery need
only be charged for 4 hours.
【Remark 】: This tablet has a Built-in type Lithium ion battery, To charge, use a
standard adaptor (Input: AC1 0 0~240V 50/60Hz Max ：0.65 A. Output: DC5V/ 2 .5A) .
Also USB interface can charge by inserting one end of USB cable to USB
interface of tablet and the other end to an available USB port on your computer .
While charging, the battery icon will scroll. When charging is complete the
battery icon will become green and stop sc rolling.
In order to prolong the service life of the device, let the battery deplete before
charging.
【Remark 】: 1. Charge the battery at least once a month to avoid power
consumption caused damage .
2、After low battery shut down, connect the DC adaptor . While charging,
y ou will need to wait some time until the battery has enough power to switch on

7
and enter into main menu.
3. Device charging should be in standby status to reach normal charging
time ; charging time may take longer if using the tablet during charg ing .
2.2 Connect ion with PC
Use USB cable to connect the device to a PC . After several seconds,
click the right bottom corner of the screen. A menu comes out on the right bottom
corner. Click the option ‘ USB connected ’ . The device will pop up the USB
connection window . C lick ‘ Turn on USB storage ’ to connect to PC.
In storage mode , i t can copy; delete the file on the device and the file on the
memory card.

8
3.
3.
3.
3. Equipment
Equipment
Equipment
Equipment operation
operation
operation
operation interface
interface
interface
interface
3.1 Unlock
Unlock
Unlock
Unlock Interface
Interface
Interface
Interface
After start up, the Locking interface will be as follows:
Tablet can operat e only after unlocking.
Unlocking method: touch the right Lock icon, drag it next to a lock at the right and
then release. The system will be unlocked and will enter the main interface.

9
3. 2 Main interface description
The main interface of the handheld tablet includes two modes: the small tools
on the desktop mode and the icons of application programs mode, both of which
can be switched between each other via the button s at the corner s .

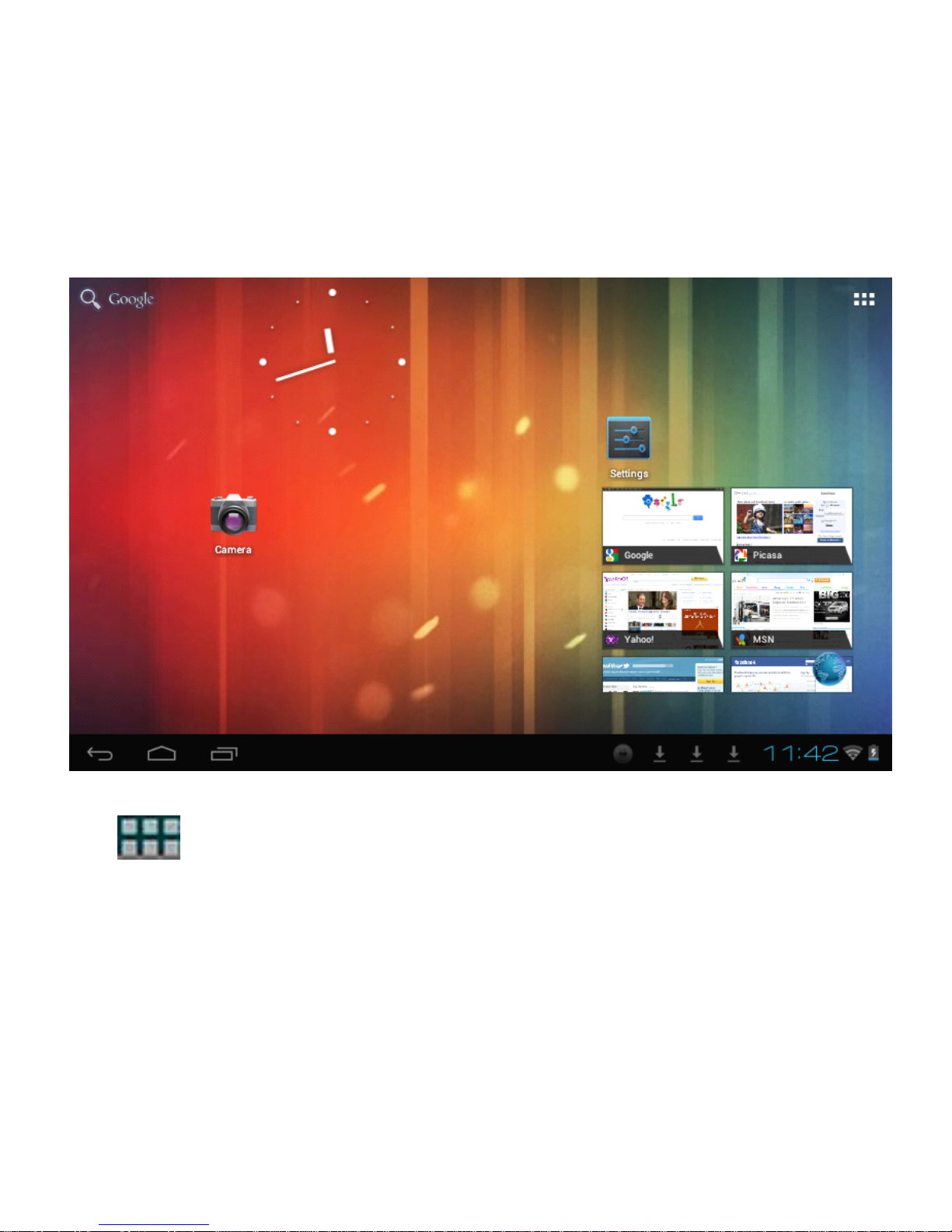

The mode of small tools on the desktop is shown as follows:
Tap button at the top right corner to enter the interface of icon modes for
application programs, which is shown as follows:
