Jazz ULTRATAB C855 User manual

1
FCC
FCC
FCC
FCC DECLARATION
DECLARATION
DECLARATION
DECLARATION
This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation. Privacy of communications may not be ensured
when using this device.
Caution: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user
’ s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio TV technician for help.
Pertinent testing documentation is available for verification.
FCC ID No. for this product: XJN-PR0880X

2
Attention:
This handbook contains important security measures and product information
essential for using the device safely. Please read this manual carefully before
using the device.
Do not place the device in high temperatures, moist areas or very dusty
places.
During seasons with hot temperatures do not leave the device in a car with
the windows closed.
This tablet is a sophisticated device. Please handle with care and do not
drop as it may damage the display screen.
Please choose the appropriate volume. When utilizing headphones please
ensure the volume is not set at high level.
Charge the device under the following conditions,
A、The battery power ICONS show there is no power
B、The system automatically shuts off
C、The Operation buttons does not respond
Do not disconnect the device when it is formatting, downloading or
uploading a file as it can cause an application error.
Follow the user manual for standardized operational use of the device.
Don’t disassemble the product. Do not use alcohol, thinner or benzene to
scrub the product.
Don't use the device in a place that prohibits use of electronic equipment.
Please don't use the Tablet PC when you are driving or walking down the
street.
USB is only to be used for data transmission.

3

4

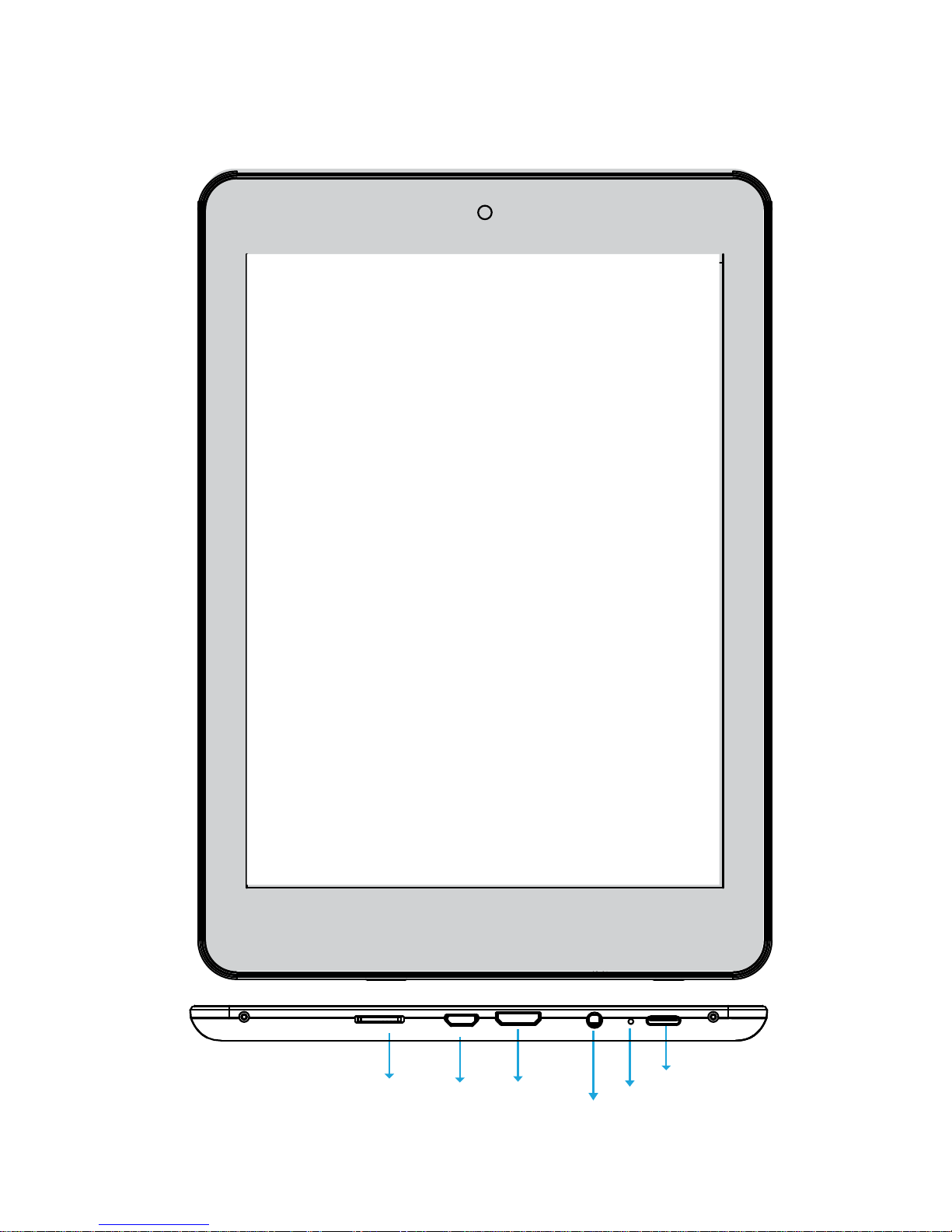

1.
.
.
. Appearance
Appearance
Appearance
Appearance and
and
and
and button:
button:
button:
button:
POWER
EARPHONE JACK
MIC
HDMI
USB
TF-CARD

5
Name Function
3.5mm’ earphone connector
External TF card slot
Power button
Micro USB
Earphone
TF card reader
Battery
Charge
Micro USB jack: you can use it to connect the computer for
drive
In startup: Long Press and hold the button. The system enter
the main interface.
In Shutdown: In the main menu interface, press the button
about 5 seconds to shutdown the tablet. System will show
“Power Off”. Then click “OK” so you can safely shutdown
Lock screen: Short press Power button to lock screen or unlock
screen.
Remark :
1.When power is empty, system will shut down automatically.
2. Illegal turn off the device, restart will scan and restore the disk,
it may take longer time to enter into system.
3.Forced shout down: if the device has no response, press and
hold the power switch for 7 seconds to switch off the device by
force
You can charge the battery through the micro USB port
connected to a PC. Only use external ULTRATAB DC charger.
During the charging, the battery icon will scroll
stop rolling
In order to prolong the service life of the machine, suggest use
please keep about 6 hours, after that you just need 4 hours to
charge
HDMI
HDMI output to TV.

6
2.
2.
2.
2. First
First
First
First use
use
use
use
2.1 Battery management and charge
Prior to first use, make sure the battery is fully charged
To charge simply connect the adaptor (to AC wall outlet) or USB cable (to
USB port on your computer).
Charge for six hours for the first two times .Following that the battery need
only be charged for 4 hours.
【Remark】: This tablet has a Built-in type Lithium ion battery,
To charge, use a
standard adaptor. Also USB interface can charge by inserting one end of USB
cable to USB interface of tablet and the other end to an available USB port
on your computer.
While charging, the battery icon will scroll. When charging is complete the
battery icon will become green and stop scrolling.
In order to prolong the service life of the device, let the battery deplete before
charging.
【Remark】: 1. Charge the battery at least once a month to avoid power
consumption caused damage.
2. After low battery shut down, connect the DC adaptor. While charging,
you will need to wait some time until the battery has enough power to switch on
and enter into main menu.
3. Device charging should be in standby status to reach normal charging
time; charging time may take longer if using the tablet during charging.

7
2.2 Connection with PC
Use USB cable to connect the device to a PC. After several seconds,
click the lefttop topcorner of the screen. A menu comes out on the left
corner. Click the option ‘USB connected’. The device will pop up the USB
connection window. Click ‘Turn on USB storage
’ to connect to PC.
In storage mode, it can copy; delete the file on the device and the file on the
memory card.

8
3.
3.
3.
3. Equipment
Equipment
Equipment
Equipment operation
operation
operation
operation interface
interface
interface
interface
3.1 Unlock
Unlock
Unlock
Unlock Interface
Interface
Interface
Interface
After start up, the Locking interface will be as follows:
Tablet can operate only after unlocking.
Unlocking method: touch the right Lock icon, drag it next to a lock at the right and
then release. The system will be unlocked and will enter the main interface.

9
3.2 Main interface description
The main interface of the handheld tablet includes two modes: the small tools
on the desktop mode and the icons of application programs mode, both of which
can be switched between each other via the buttons at the corners.
The mode of small tools on the desktop is shown as follows:
Tap button to enter the
application programs, which is shown as follows:
located in the center of the main screen
interface of icon modes for

10
Tap button to enter the desktop interface.
Note: If the tablet is switched on for the first time after being purchased, it will
automatically install the built-in application programs. The tablet may operate
slowly and some hints may appear on the screen. After installation of programs
has been completed, the operation of tablet resumes normal.
3.3 Shortcut Mode
Under the interface of the mode of small tools on the desktop,after tapping the top
right corner, the Shortcut menu will pop up at the top right of the screen, shown as
follows:

11
3.4
3.4
3.4
3.4 Usage
Usage
Usage
Usage of
of
of
of Small
Small
Small
Small Tools
Tools
Tools
Tools on
on
on
on Desktop
Desktop
Desktop
Desktop
Users can add or delete the small tools on the desktop, as well as add or delete
icons of application programs or adjust the positions of icons; the icons can be
dragged within the working zone of the desktop.
Under the interface of the mode of small tools on the desktop, press and hold the
icons of small tools, a sign of ‘Remove
’ will pop up in the central top edge of the
desktop. At that time, you are able to drag the icon anywhere on the desktop, or
drag it directly to the ‘Remove
’ sign to delete it.

12
4
4
4
4.
.
.
. Browse
Browse
Browse
Browse Webpage
Webpage
Webpage
Webpage
Users can connect to the Internet via the browser:
Tap the browser icon to open the network browser, and then
the interface below will pop up:

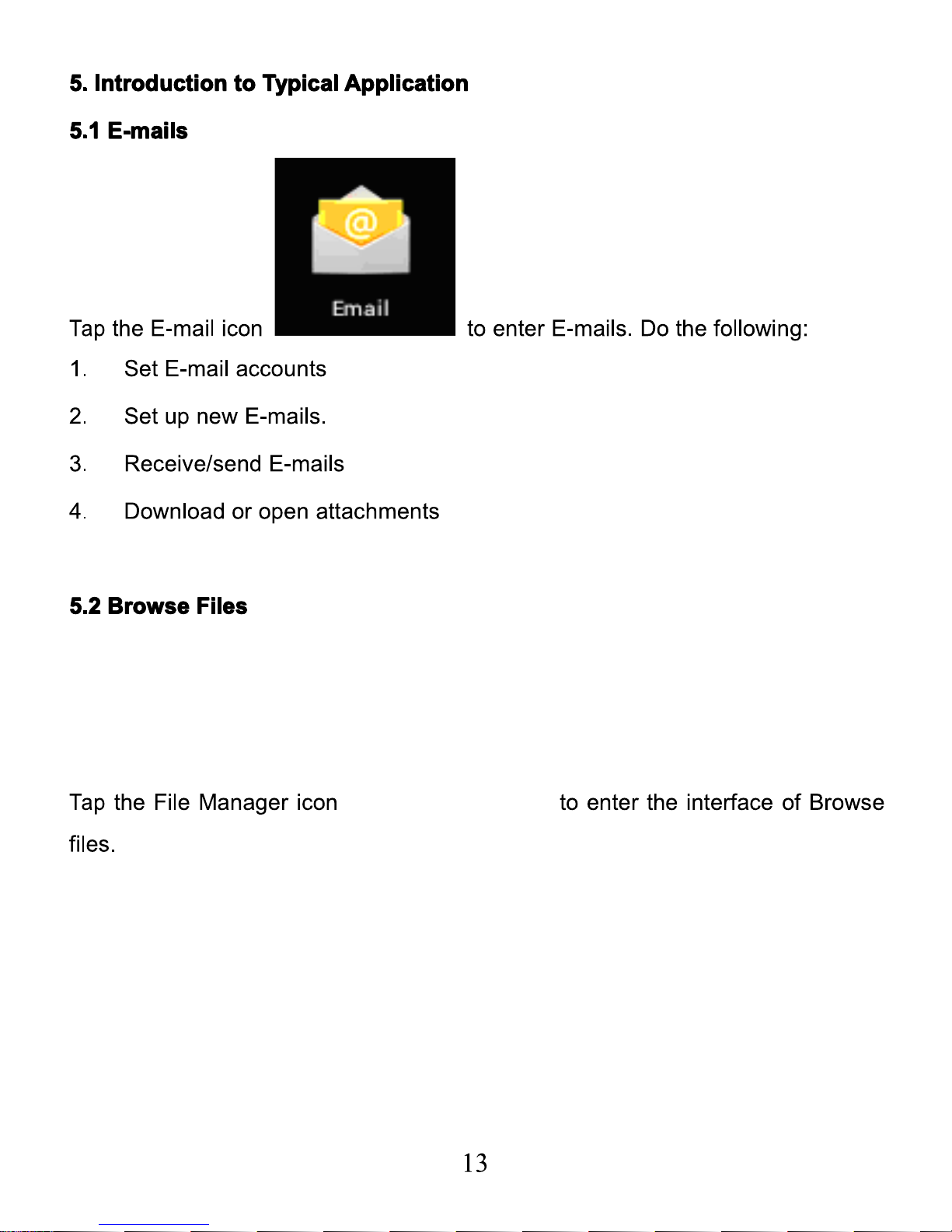

14
After entering the interface of Browse files, you are able to copy, move, paste
or delete files in the LOCAL, SD1 or U disk.
Install
Install
Install
Install Files
Files
Files
Files
To install files in the file browser, tap the installation file with extension name as
APK, an installation window will pop up. Select “Install” to install the software on
the tablet.

15
5.3
5.3
5.3
5.3 Music
Music
Music
Music
Tap the icon to enter the interface of Music.
Menu options of Artists, Albums, Songs, Playlists and Now playing are displayed
at the top of the interface. In addition, user can tap the menu button to pop up the
following shortcut menus, including Party shuffle, Play all and Shuffle all.
Tap Music file to enter the playing interface

16
1. Tap icon to enter the mode of random playing.
2.
Tap icon to switch between the mode of loop for all song, loop for
current song and the mode of single song playing.
5
5
5
5.
.
.
.4
4
4
4 Calendar
Calendar
Calendar
Calendar
Tap icon to check date and time, as well as add
memorandums. If calendar is used for the first time, please set the calendar
before using. Do the following:

17
1. Firstly, connect the network. Then, open the Calendar and add your name,
E-mail address, and password into the pop-up dialog box. Then tap Next
step.
2. During setting of the e-mail account, input information according to the tips.
3. After completion of setting, the system will exit from this interface
automatically. It will then enter Calendar interface to set date, time and
memos. (Note: The pre-set E-mail account can be deleted. User can also
add new E-mail accounts.)
4. Options of Day, Week, Month, Agenda,
Today, New event and menu button
are displayed on the top of Calendar interface.

18
5.5
5.5
5.5
5.5 Calculator
Calculator
Calculator
Calculator
Tap icon to conduct calculation, shown as follows:

19
5.6
5.6
5.6
5.6 Sound
Sound
Sound
Sound Recorder
Recorder
Recorder
Recorder
Tap icon to enter the interface of Sound record.
1.
Tap icon to start recording.
2. During recording, tap icon to stop.
