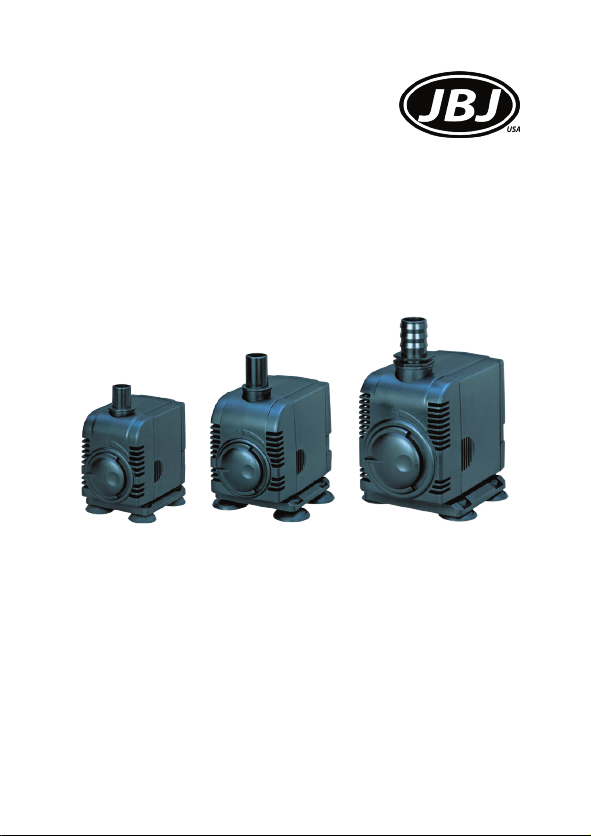

JBJ Accela FP-750 User manual

Accela
Submersible Return Pump
FP-750
FP-1000
FP-1500
User Guide

2JBJ AQUARIUMS
www.jbjaquarium.com
[email protected]
[phone]
TRANSWORLD AQUATIC ENTERPRISES, INC.
3730 W Century Blvd, Ste. #3
Inglewood CA 90303

3
Table of
Contents
SAFETY INFORMATION
ACCELA SUBMERSIBLE RETURN PUMP
Spec Info - FP-750, FP-1000, FP-1500
Diagrams - FP-750, FP-1000, FP-1500
GETTING STARTED
Features
Selecting a Location
Installation & Operation
Maintenance
LIMITED WARRANTY
Warranty Registration
4
8
9
9
10
10
10
10
11
12
13
TABLE OF CONTENTS

4JBJ AQUARIUMS
WARNING: To avoid possible electrical shock, do not
immerse pump in water. If pump falls into the water, or
otherwise becomes wet, do not reach for it until you have
first unplugged it.
CAUTION: To avoid possible electric shock, pump should
be used with a check-valve or positioned higher than the
water level.
DANGER: For each of the following situations, do not
attempt repairs yourself; return the appliance to JBJ
Aquariums for service or discard the appliance.
1. If the appliance falls into water, do not reach for it!
First unplug it and then retrieve it. If the electrical
components of the appliance get wet, unplug the
appliance immediately.
2. Carefully examine the appliance after installation. It
should not be plugged in if there is water on parts not
intended to be wet.
3. Do not operate any appliance if it has a damaged cord
or plug, or if it is malfunctioning or if it is dropped or
damaged in any manner.
4. When removing filters, air stones or air-operated
ornaments from aquarium, do not let water run into
Safety
Information

5
the pump. Leave pump running and prevent back-
siphoning by removing the open end of the tubing from
the pump nozzle and taping it to the top frame of the
aquarium.
5. To avoid getting the appliance plug or receptacle wet,
position the aquarium to the side of a wall-mounted

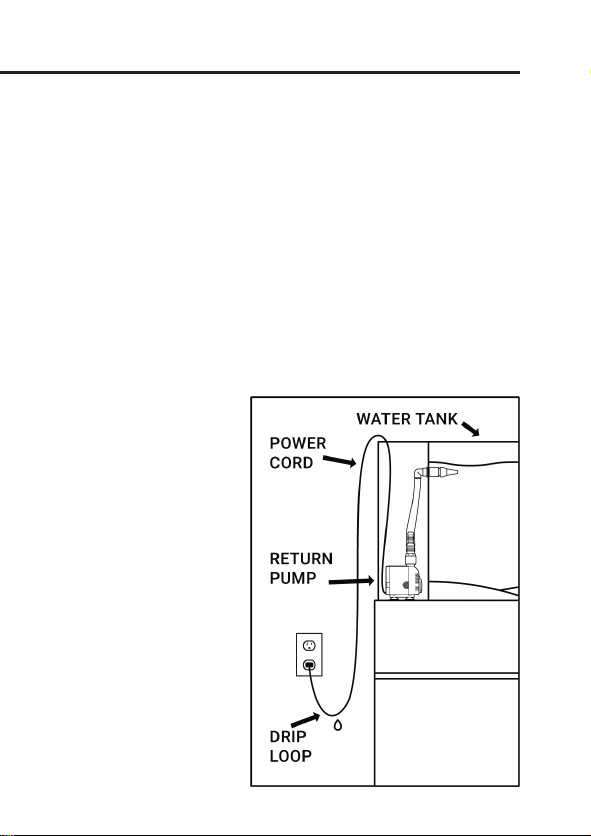

outlet. Arrange a “drip loop” for each cord connecting
an aquarium appliance to an outlet. The “drip loop”
is the part of the cord below the level of the outlet
that prevents water from traveling along the cord
and coming in contact with the outlet. (If using an
extension cord, the “drip loop” is located below the
level of the connector.) If the plug or receptacle
gets wet,
don’t unplug
the cord.
Disconnect
the fuse or
circuit breaker
that supplies
power to the
appliance.
Then unplug
the appliance
and examine
the outlet for
the presence
of water.
SAFETY INFORMATION

6JBJ AQUARIUMS
IMPORTANT:
1. Close supervision is necessary when using any
appliance near children.
2. Always unplug appliance from an outlet when not
in use. Never yank cord to remove plug from outlet.
Grasp plug and pull to disconnect.
3. Do not use appliance for other than its intended use.
The use of attachments not recommended or sold
by the appliance manufacturer may cause an unsafe
condition.
4. Do not install appliance where it will be exposed to
weather, or to temperatures below freezing.
5. Read and observe all important notices on the
appliance and in the product literature.
6. If an extension cord is required, a cord with a proper
rating should be used. A cord rated for fewer amperes
or watts than the total of the various appliance ratings
may overheat. Care should be taken to arrange the
cord so that it will not be tripped over or pulled.

7
SAFETY INFORMATION

8JBJ AQUARIUMS
Accela
Submersible Return Pump
TANK SIZE: Up to 50 gallons
FLOW RATE: 396 gph
MAX HEAD: 8 ft
WATTAGE: 25 w
OUTLET: 1/2 in
EXT. SIZE: 4.0” x 3.6” x 5.5” in
FP-1500
TANK SIZE: Up to 30 gallons
FLOW RATE: 264 gph
MAX HEAD: 6 ft
WATTAGE: 16 w
OUTLET: 15 mm
EXT. SIZE: 3.5” x 2.7” x 4.3” in
FP-1000
TANK SIZE: Up to 20 gallons
FLOW RATE: 198 gph
MAX HEAD: 5 ft
WATTAGE: 12 w
OUTLET: 13 mm
EXT. SIZE: 2.9” x 2.2” x 3.6” in
FP-750

9
Diagrams
ACCELA RETURN PUMP SPECIFICATIONS
FP-1000

10 JBJ AQUARIUMS
FEATURES
• Energy efficient and silent operation pumps.
• Versatile powerful pumps that can be used in fresh and saltwater
applications, protein skimmers, indoor fountains, water-cooling
and most return pump applications.
SELECTING A LOCATION
• Make sure surface is flat and clean from debris to allow the
suction cup plate to securely hold pump in place.
INSTALLATION / OPERATION
1. Slide suction cup plate onto pump.
2. Turn the water flow regulator on the front side of pump to change
the flow.
3. Attach slip fitting or threaded fitting
onto pump.
4. Attach hose/tubing onto fitting
dependent on application.
5. Position/place pump in desired
location.
6. Plug pump into approved household
socket or power strip.
Getting
Started

11
MAINTENANCE
1. Cleaning pump
• Remove front cover grill by pulling front cover from pump.
• Any debris stuck in-between front cover and impeller cover
can be rinsed off.
• To clean impeller, turn impeller cover towards left and pull
off of pump. Remove impeller and ceramic shaft and rinse/
remove and debris.
• Use soft brush to remove any deposits.
2. Clean outside of pump with damp cloth and mild detergent.
3. Do not use oil on the pump.
GETTING STARTED

12 JBJ AQUARIUMS
6 MONTH LIMITED WARRANTY
Accela Submersible Return Pump is warrantied to the original purchaser
against defective material and workmanship for 6 months from the date of
original purchase. This warranty is valid only under the following conditions:
additions, modifications, or changes made to the product by the purchaser
and not by the manufacturer shall void this warranty. Damages brought on by
abuse, misapplication, or mishandling also voids this warranty.
This warranty is limited to the repair or replacement of the product at the
discretion of the manufacturer. This warranty does not cover personal
injury, property loss, including livestock or damage (direct, incidental, or
consequential) arising out of use of this product. This warranty gives you
specific rights and you may also have other rights, which may vary from state
to state.
This warranty card must be filled out completely and returned within (14) days
from the date of purchase. Failure to do so will void this warranty. A proof of
purchase from an authorized dealer must be provided when making a warranty
claim.
Upon discovery of a defect, please call us to obtain an RMA #.
Tel: [phone]
All claims should be sent prepaid to the following address:
Transworld Aquatics Enterprises, Inc.
3730 W Century Blvd, Ste. 3
Inglewood, CA 90308
Limited
Warranty

13
Please Fill Out Completely and Return within 14 days from date of purchase. (Please Print)
NAME: _________________________________________________________
ADDRESS: ______________________________________________________
_________________________________________________________________
CITY: ___________________________________________________________
STATE: ________________________________ ZIP: ___________________
PHONE: ________________________________________________________
EMAIL: _________________________________________________________
Yes I would like to receive emails on JBJ News,
New Products, Sales, Rebates!
DATE OF PURCHASE: __________________________________________
MODEL: ________________________________________________________
PURCHASED FROM: ____________________________________________
Please mail warranty registration and Proof of Purchase to:
TRANSWORLD AQUATICS ENTERPRISES, INC.
ATTN: Warranty Dept.
3730 W Century Blvd, Ste. 3
Inglewood, CA 90308
You can also register your product online at
www.jbjaquarium.com/register
WARRANTY REGISTRATION
