BMW 3 E 36 Sedan / Touring
Guarantee
2002/by.AJ/FH - 15 -
Installation instructions
installation.Art. 45146/FH07/02
item-no. 45146
Jehnert Sound Design
development and
production of
Car-Audio-Systems
Heinrich-Hertz-Str. 11
70794 Filderstadt
Tel.[phone]
Fax: [phone]
e-mail: [email protected]
www.jehnert.com
We grant a manufacturers guarantee of 2 years starting from the date of purchase
of the door panels or sound system from the dealer.
Within this guarantee period to our choice we either repair or replace free of
charge all defects due to material or workmanship.
Exempt from this guarantee are damages due to improper use, wear and tear or
damages which have to be led back on wear or interventions by third parties.
The guarantee does not cover subsequent damages or such defects that only
insignificantly impair the value or the usability of the panels/sound system.
The guarantee does not cover damages due to external influences.
Panels with additional or wrong assembly drill holes cannot be returned.
These are damages to the panel which cannot be repaired again.
�
Production of
Car-Audio-Systems
Porsche Str. 15
70794 Filderstadt
Tel. [phone] / 9 56 99-0
Fax [phone]
e-mail: [email protected]
www.jehnert.com

Steffen Kretzschmar
Saddlery / Completion
page
Contents
Packing list ..........................................................................
1. Disassembly of the door lining ..............................................
2. Installation tweeter - see page 7 ............................................
3. Panel alignment / reference points ........................................
4. Handling of door lining / Panel installation - Fastening ...........
5. Installation tweeter / Loudspeaker cables ...............................
6. Insulation of the door lining / car doors .................................
7. Installation of the door lining ................................................
8. Crossover circuit - Speaker connection ..................................
Loudspeaker wiring diagram .................................................
9. Installation of the speaker-grills .............................................
Technical information ...........................................................
Service / fault diagnoses .......................................................
Guarantee ...........................................................................
2
3
4
5
6
7
8
9
10
11
12
13
14
15
45146 - BMW 3 E 36 Sedan / Touring - 14 - © JEHNERT SOUND DESIGN45146 - BMW 3 E 36 Sedan / Touring - 1 - © JEHNERT SOUND DESIGN
Technical questions Hotline: [phone]
We thank you for your support!
Mirko Schwarz
Development
It is our pleasure to help you!
Dear customer,
We have taken great care to explain the procedures in our installation instructions
more detailed and “step by step”.
Your tips and suggestions help us for the future to eliminate uncertainties and
misinterpretation. Therefore, please inform us. what you would like to be improved
or what we should still change.
Marc Sitter
Service
Marc Sitter
Service
The following notes serve to help troubleshoot and eliminate faults or malfunctions
on your own. If the following measures are not effective, please call us.
What can it be if ... possible cause/ solution
..it doesn’t sound right. wrong polarity on the subwoofers ( page 10)
crosover circuit attached wrong ( page 11)
Doorlining and moisture protection foil
not cut out ( page 5+10)
amplifier doesn’t have enough power( page 13)
amplifier connection
...it doesn’t fit correctly. door panel customization ( page 8)
installation of the panels on the door lining (page 9)
.....grills do not hold. observe notes on page 12!
vibrations insulation, see notes on page 7
Self-help and fault diagnosis







Particularly important notes contain the following remarks:
�
Please follow the installation instructions
“step by step”
and check the package contents

Packing unit Check list
door panel, covered (right / left) 2
Speaker grill, covered (right / left) 2
Tweeter 26 mm (with 6 Ktn.screw M4 x 8 and washer ø 12mm) 2
Midrange 100 mm Q (each mounted on the panel with 4 Sheet metal-screws) 2
Subwoofer 160 mm (each mounted on the panel with 2 Sheet metal-screws) 4
Crossover (right / left) 2
Hardware bag:
 Flat head screws, M 4 x 30 14
 Hex nut M 4 18
 Washer Ø 20mm (18xM4+4xas spacer for Velcro fastener) 22
 Washer Ø 12mm (f.Tweeter-Installation) 2
 Screws 6Ktn. M4x8 (f.Tweeter-Installation) 2
 Sheet metal screws, black 3,9x13(f. subwoofer) 8
 Sheet metal screws, black 3,9x13(f. crossover circuit) 4
 Velcro strip à 2,5 cm (reserve) 2
Preassembled hardware:
 Velcro fastener plus strips 8
 Sheet metal screws, black 3,9x13(f. subwoofer) 8
 Sheet metal screws, black 3,5x13 (8xMR+8xVelcro.) 16
 Flat head screws, M 4 x 40 2
 Flat head screws, M 4 x 50 2
The product was carefully packed an checked for its completeness. If you find anything missing, damaged or
defective, please notice our guarantee services on the back of these assembly instructions.
Hardware bag:
Packing list 45146
Hardware bag:Hardware bag:
45146 - BMW 3 E 36 Sedan / Touring - 13 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 2 - © JEHNERT SOUND DESIGN
Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:
Technical information
Equipment: electric window control
Model/ year : sedan / Touring
Insulation: is recommended
Note about setting: To obtain optimal stereoscopic sound, all settings
on the radio (bass, treble, loudness etc) should be
set to zero or neutral.
Recommended
amplifier power : from 2x 100 - 200 Watt RMS / 2 Ohm
Metal cutwork : not necessary
Cut-outs for loudspeaker/ 2 x 144mm (max.outer dimensions subwoofer 165 mm)
each side (max.installation depth subwoofer 75 mm)
Euro-Norm-standard basket ø 6“ made to fit
1 x 92mm (max.outer dimensions midrange 100 mm)
(max.installation depth midrange 60 mm)
Sound-System: 3-ways
2 x 160 mm subwoofer/ side
1 x 100 mm midrange / side
1 x 26 mm tweeter / side
car-customized crossover network
max.continuous Watt/RMS: 2 x 160/200Watt
car specific frequency range: 47-22.000 Hz
Total impedance: 2 Ohm
Time for Installation car hifi-specialist: 3 hours
We reserve the right to make technical changes, as well as development.

9.1. Precisely align and carefully press grill into the Velcro fasteners.
The Velcro fastener makes a crackling sound
when it is closed correctly.
9.1. Precisely align and carefully press grill into the Velcro fasteners.
The Velcro fastener makes a crackling sound
when it is closed correctly.
Removing the grills:
The Velcro fasteners stick together very strongly!
The grills can be removed anytime by carefully lifting them off.
Please, avoid any way of forceful yanking at the grills.
It could break!
9.3.
9.2. Our Tip:
If the panel cannot be pressed on completely at some points. . .
Cause: the special form at these points and the resulting differences in
material cross section of the grill.
Solution: the distance can be levelled out with spacers 3 under the
Velcro disc.
(Spacers included with the screw kit)
1. roll down the window completely
2. pull off the plastic caps from the door handle and remove the both
Torx Screws (A1 u. 2) underneath
3. carefully push the faceplate of the door latch lever (B) out of the catch
4. remove the switch of the rear-view mirror (driver’s side) and the grill
(co-passenger’s side) on the door handle (C) and disconnect the cable plugs
5. carefully squeeze the door panel away from the plastic clips at the lower
and lateral edges of the door lining
6. lift the door panel out of the sealing above and simultaneously move it
horizontally and forward away from the inner door metal
7. disconnect the original loudspeaker plugs
1 . Disassembly of the door lining
45146 - BMW 3 E 36 Sedan / Touring - 3 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 12 - © JEHNERT SOUND DESIGN
�
9. Installation of the speaker’s grill :
A1A2
BC
grill
2 self-adhesive Velcro-strip
1 Velcro fastener
3 Washer M4 ø20 as spacer
doorpanel

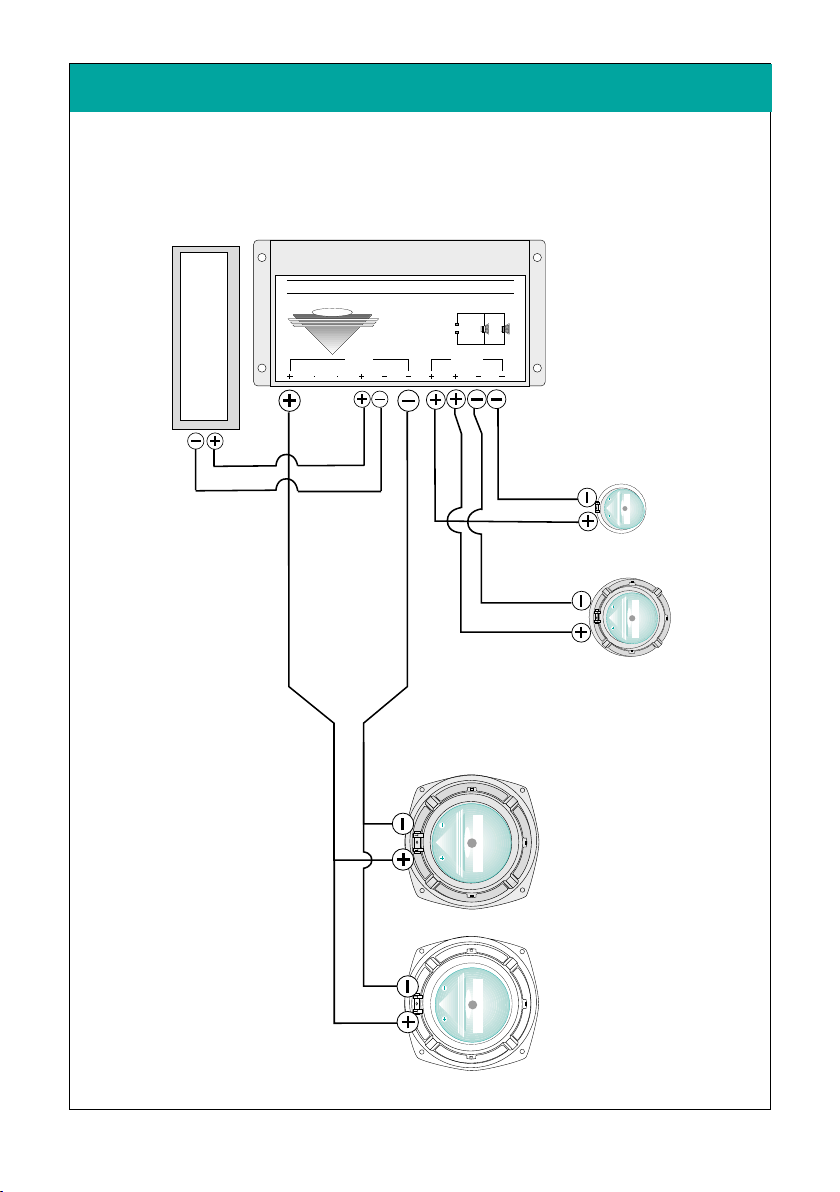

Loudspeaker wiring diagram
Connect all loudspeakers and crossover circuits:
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
Midrange
Speaker
MADE IN GERMANY
see page 7
- first install the door-build
in the original mount
of the car door
installation of tweeter
with mounting bowl
45146 - BMW 3 E 36 Sedan / Touring - 11 - © JEHNERT SOUND DESIGN

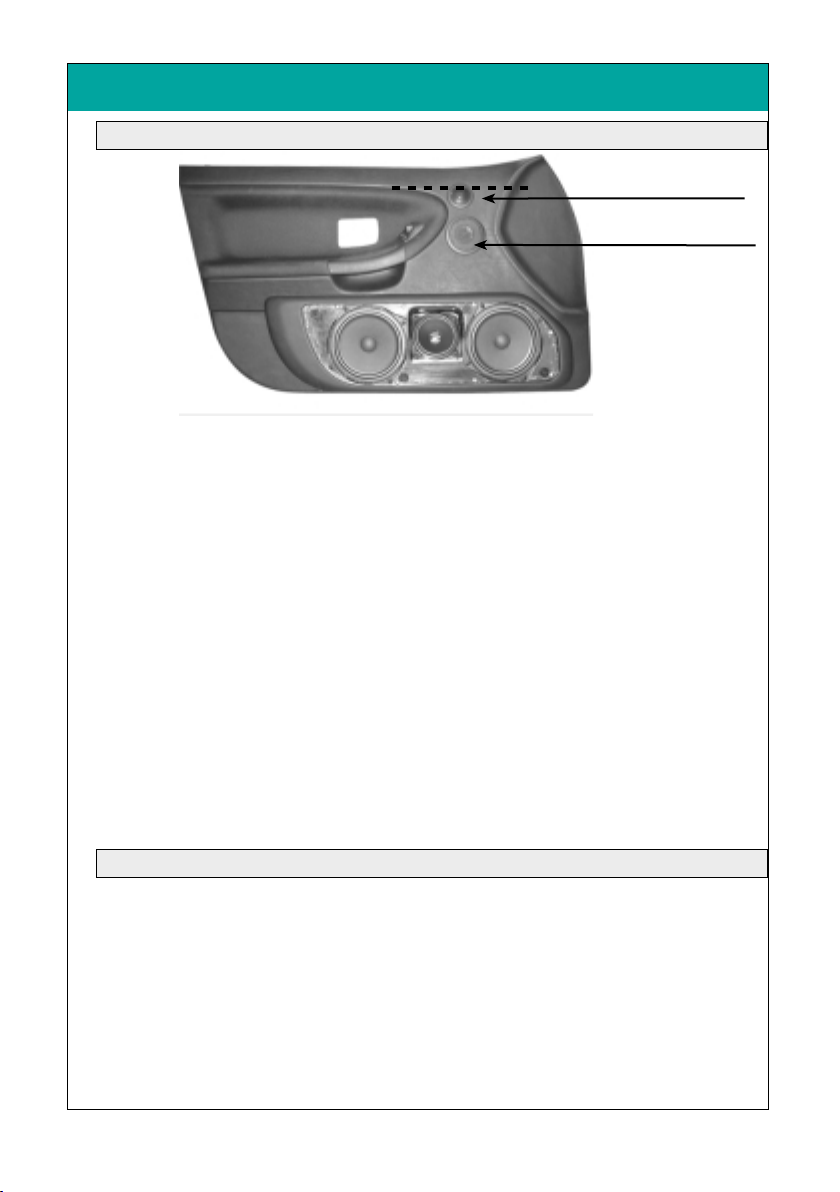

2. installation of tweeter
45146 - BMW 3 E 36 Sedan / Touring - 4 - © JEHNERT SOUND DESIGN
or alternatively :
Circuit diagram of 3-way crossover / 2x subwoofer
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
WOOFER
Speaker
MADE IN GERMANY
tweetersubwoofer
SoundSound
D E S I G N
JEHNERT
midrange input
3-way crossover circuit
BM W 3 E 36 Sed a n / Touri n g No. 45 146
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
Tweeter
Speaker
MADE INGERMANY
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
WOOFER
Speaker
MADE IN GERMANY
amplifier
100-200 Watt RMS / 2 Ohm recommended power

8. Crossover circuit - Speaker connection
8.1. precable crossovers - see fig. page 11.
8.2. install crossover in the back part of the door-lining (see fig. –possibly without
housing, covered with foamed material) –use a hot melt adhesive or 2 sheet
metal screws from the hardware bag
8.3. Insert subwoofer and midrange and connect all loudspeakers
to the crossover circuit (parallel-circuit):
Notice: You should check the polarity of all subwoofers
before connecting them to the crossover circuit
with a 9 volt battery:
pole of the crossover circuit input to of a 9 Volt battery
pole of the crossover circuit input to of a 9 Volt battery
All subwoofers must move uniformly!
Wrong polarity of a subwoofer can totally
equalize the bass sound!
8. Crossover circuit - Speaker connection
8.1. precable crossovers - see fig. page 11.
8.2. install crossover in the back part of the door-lining (see fig. –possibly without
housing, covered with foamed material) –use a hot melt adhesive or 2 sheet
metal screws from the hardware bag
8.3. Insert subwoofer and midrange and connect all loudspeakers
to the crossover circuit (parallel-circuit):
Notice: You should check the polarity of all subwoofers
before connecting them to the crossover circuit
with a 9 volt battery:
pole of the crossover circuit input to of a 9 Volt battery
pole of the crossover circuit input to of a 9 Volt battery
All subwoofers must move uniformly!
Wrong polarity of a subwoofer can totally
equalize the bass sound!

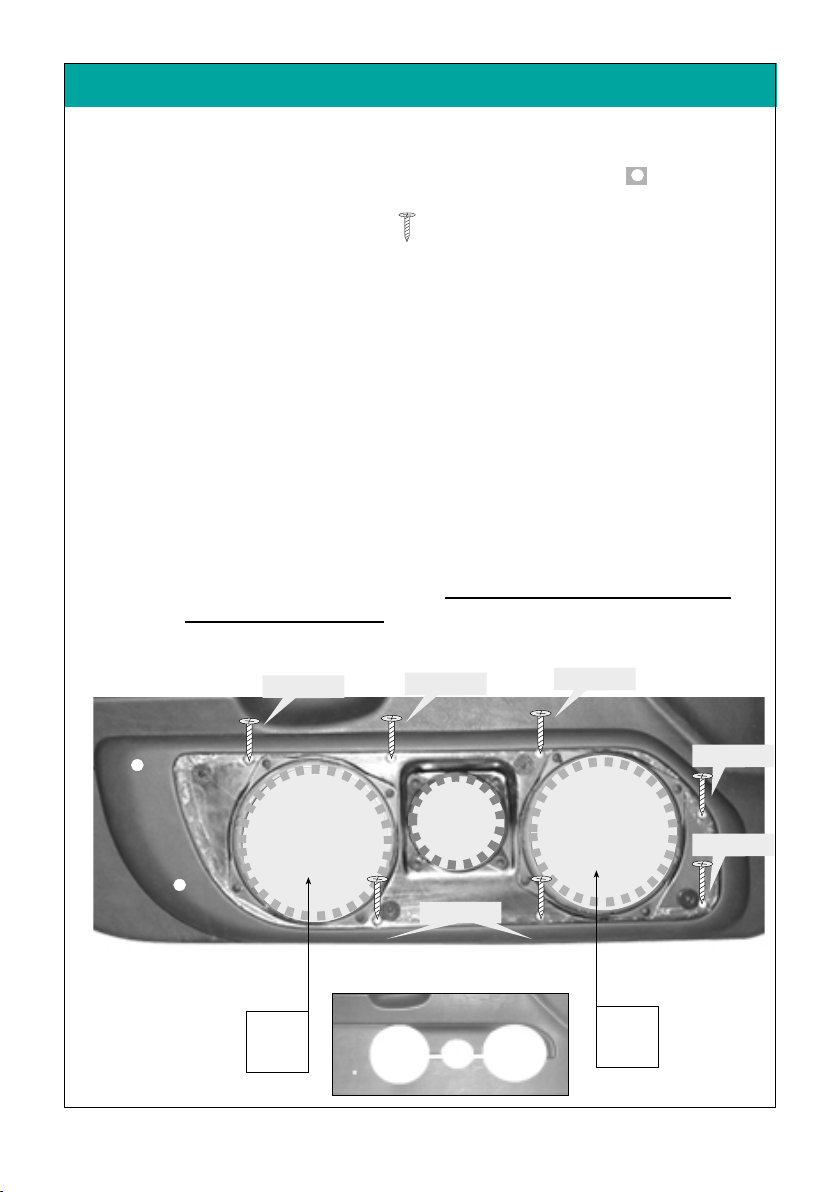

3.1. Place the door lining on a plane surface.
3.2. Dismount the loudspeakers attached to the panel for transport protection.
Retain the screws for later assembly.
3.3. Place the panel without loudspeakers and grill on the door lining and align it:
fig. :
panel alignment behind
the edge of the door lining
and the back edge of the panel
mount of the crossover :
move behind the door-lining
and fix it
45146 - BMW 3 E 36 Sedan / Touring - 10 - © JEHNERT SOUND DESIGN45146 - BMW 3 E 36 Sedan / Touring - 5- © JEHNERT SOUND DESIGN
3 . Panel alignment
Reference points for fitting:
Only precise alignment of the panel with the door
lining warrants optimal fit.
Reference line 1: align “nose”on the panel directly into the notch of the
door lining. This results to a distance between upper edge of
the panel and lower edge of the original tweeter grill of 80 mm.
Reference line 2+3: realign the back edge of the panel to the edge of the door lining
with a distance of 13,5cm (see ref. point 2 above). Distance
of the front side edge 4,6cm (see ref.point 3 above)
Reference line 1: the lower edge of the panel is parallel to the edge of the door lining
�
�
Hochtöner
Tieftöner
Sound
Sound
DESIGN
JEHNERT
Mitteltöner
Eingang
3-Wegefahrzeugspezifische Frequenzweiche
GolfIV
✚ ✚
ref. point 1:
80 mm distance
between upper edge
of the panel and lower
edge of the original
tweeter’s grill
Ref. point 2:
13,5 cm distance
between end of
panel and edge of
the door-lining
Ref. point 3:
4,6 cm distance
between the front
edge of the panel
and the side edge
of the door-lining.
Ref. point 2:
align “nose”on the
panel directly into
the notch of the
door lining
Ref. point 4:

7. installation of the door-lining onto the the car doors
7.1. put the door-lining into the upper sealing of the car door
7.2. fit it in contrary order of succession as described on page no. 3
7.3. cut out the moisture protection foil (u-form) and stabilize the lateral cutting
edges in order to avoid vibration noise ( e.g. use a packing tape)
1. use the precisely aligned panel as template in order to mark fastening points 1- 9:
• mark the fastening points 1-3_ premounted in the panel:
pressing the panel to the door lining leaves visible impressions of the screws
•mark the fastening points 4-8:
use a thin awl to set the marks on the door-lining
2. draw the speakers’cut-outs onto the door-lining.
3. remove the panel again.
cut out holes for loudspeakers along the marking (see fig.)
with a compass saw.
4. use a 6mm drill for the screws according to the marks set before
5. Screw in the M4-screws supplied with. Affix the door build to the door-lining.
Screw all 9 x M4-screws only hand-tight .
Secure all screws with the washers and nuts.
6. check again for precise fitting and tighten screws.
All cutting edges of the panel must fit to the door lining snugly
all around without gap
cut-outs of the door lining
additional cut- out
for subwoofer
4. Handling of door lining / Panel installation - Fastening
45146 - BMW 3 E 36 Sedan / Touring - 9 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 6 - © JEHNERT SOUND DESIGN
�


✍✍
1
original cutout
(possibly to be
enlarged)
3
9
M 4 x 30
M 4 x 30

2
4
M 4 x 30
5
M 4 x 30
87
M 4 x 30
6
M 4 x 30

M 4 x40
already
mounted
M 4 x50
already
mounted
✍
✍

6. insulation of the door lining
Important tip:
the use of 2x16mm mid-woofer /side may cause vibrations which lead to
annoying rattle noises in the car door
some helpful tips:
•use our self-adhesive insulation fleece (art.no.: 27000) or a foam material for
the backside of the door lining (see fig. above) or
•stabilize the backside of the door lining by means of a special material
(Glass Fibre Filler or stiffening material)
i mportant: keep the cut-outs for the door-airbags and speakers open
•affix the *backside of the inner door metal with self-adhesive asphalt mats (see fig. * )
•by knocking on the car door, vibrations caused by mechanic parts (e.g. Bowden pull wire etc. )
and wiring harness may be found out. Cover these parts with foamed material, felt or
something like that
•cut off overlapping cable tie (rattle noise)
•adhere felt or foamed material under the original wiring harness
!
Important:
No insulation material behind
- loudspeaker
- door latch lever
- (fig. A): drill a hole for the
installation clip
6. insulation of the door lining
Important tip:
the use of 2x16mm mid-woofer /side may cause vibrations which lead to
annoying rattle noises in the car door
some helpful tips:
•use our self-adhesive insulation fleece (art.no.: 27000) or a foam material for
the backside of the door lining (see fig. above) or
•stabilize the backside of the door lining by means of a special material
(Glass Fibre Filler or stiffening material)
i mportant: keep the cut-outs for the door-airbags and speakers open
•affix the *backside of the inner door metal with self-adhesive asphalt mats (see fig. * )
•by knocking on the car door, vibrations caused by mechanic parts (e.g. Bowden pull wire etc. )
and wiring harness may be found out. Cover these parts with foamed material, felt or
something like that
•cut off overlapping cable tie (rattle noise)
•adhere felt or foamed material under the original wiring harness
!
Important:
No insulation material behind
- loudspeaker
- door latch lever
- (fig. A): drill a hole for the
installation clip
fig.: backside of the door lining –insulation with our article no.: 27000
in the original mount
of the car door
installation of tweeter
with mounting bowl
moisture protection foil
front side of
inner door metal
* door metal outside
= back side of the
inner door metal
attention –danger !!
No insulation behind the
side-airbags (fig. B)
45146 - BMW 3 E 36 Sedan / Touring - 7 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 8 - © JEHNERT SOUND DESIGN
5. Installation tweeter / Loudspeaker cables
or alternatively :
�
�
5.1. Installation tweeter:
5.2. Installation of loudspeaker cables
5.2.1. carefully remove the moisture protection foil
5.2.2. install cables:
Lead 1 speaker cable (1,5 - 4mm 2) from amplifier into the door.
(mount of crossover circuit: back part of the car door/
behind the door –lining) - see page 11
5.2.3. reinstall the moisture protection foil
installation of tweeter in the original mount of the door
•affix the tweeter into the original cut-outs by means of a
hot melt adhesive
•connect tweeter cable with the cross-over
(length: crossover in the backside of the car door - see fig page 10)
or alternative….
for a wider sound stage image:
installation of tweeter with mounting bowl (see fig.)
•mark the cut-out for the mounting bowl on the door-lining and cut it
out exactly by means of a compass saw
•insert the tweeter mounting bowl into the back side of the door-lining
and affix it with a hot melt adhesive or silicone
•carefully press the tweeter into the bowl and fix it with hex nut M4x8
and washer. Connect the tweeter with the speaker cable
(length: crossover in the backside of the car door - see fig page 10)

6. insulation of the door lining
Important tip:
the use of 2x16mm mid-woofer /side may cause vibrations which lead to
annoying rattle noises in the car door
some helpful tips:
•use our self-adhesive insulation fleece (art.no.: 27000) or a foam material for
the backside of the door lining (see fig. above) or
•stabilize the backside of the door lining by means of a special material
(Glass Fibre Filler or stiffening material)
i mportant: keep the cut-outs for the door-airbags and speakers open
•affix the *backside of the inner door metal with self-adhesive asphalt mats (see fig. * )
•by knocking on the car door, vibrations caused by mechanic parts (e.g. Bowden pull wire etc. )
and wiring harness may be found out. Cover these parts with foamed material, felt or
something like that
•cut off overlapping cable tie (rattle noise)
•adhere felt or foamed material under the original wiring harness
!
Important:
No insulation material behind
- loudspeaker
- door latch lever
- (fig. A): drill a hole for the
installation clip
6. insulation of the door lining
Important tip:
the use of 2x16mm mid-woofer /side may cause vibrations which lead to
annoying rattle noises in the car door
some helpful tips:
•use our self-adhesive insulation fleece (art.no.: 27000) or a foam material for
the backside of the door lining (see fig. above) or
•stabilize the backside of the door lining by means of a special material
(Glass Fibre Filler or stiffening material)
i mportant: keep the cut-outs for the door-airbags and speakers open
•affix the *backside of the inner door metal with self-adhesive asphalt mats (see fig. * )
•by knocking on the car door, vibrations caused by mechanic parts (e.g. Bowden pull wire etc. )
and wiring harness may be found out. Cover these parts with foamed material, felt or
something like that
•cut off overlapping cable tie (rattle noise)
•adhere felt or foamed material under the original wiring harness
!
Important:
No insulation material behind
- loudspeaker
- door latch lever
- (fig. A): drill a hole for the
installation clip
fig.: backside of the door lining –insulation with our article no.: 27000
in the original mount
of the car door
installation of tweeter
with mounting bowl
moisture protection foil
front side of
inner door metal
* door metal outside
= back side of the
inner door metal
attention –danger !!
No insulation behind the
side-airbags (fig. B)
45146 - BMW 3 E 36 Sedan / Touring - 7 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 8 - © JEHNERT SOUND DESIGN
5. Installation tweeter / Loudspeaker cables
or alternatively :
�
�
5.1. Installation tweeter:
5.2. Installation of loudspeaker cables
5.2.1. carefully remove the moisture protection foil
5.2.2. install cables:
Lead 1 speaker cable (1,5 - 4mm 2) from amplifier into the door.
(mount of crossover circuit: back part of the car door/
behind the door –lining) - see page 11
5.2.3. reinstall the moisture protection foil
installation of tweeter in the original mount of the door
•affix the tweeter into the original cut-outs by means of a
hot melt adhesive
•connect tweeter cable with the cross-over
(length: crossover in the backside of the car door - see fig page 10)
or alternative….
for a wider sound stage image:
installation of tweeter with mounting bowl (see fig.)
•mark the cut-out for the mounting bowl on the door-lining and cut it
out exactly by means of a compass saw
•insert the tweeter mounting bowl into the back side of the door-lining
and affix it with a hot melt adhesive or silicone
•carefully press the tweeter into the bowl and fix it with hex nut M4x8
and washer. Connect the tweeter with the speaker cable
(length: crossover in the backside of the car door - see fig page 10)

7. installation of the door-lining onto the the car doors
7.1. put the door-lining into the upper sealing of the car door
7.2. fit it in contrary order of succession as described on page no. 3
7.3. cut out the moisture protection foil (u-form) and stabilize the lateral cutting
edges in order to avoid vibration noise ( e.g. use a packing tape)
1. use the precisely aligned panel as template in order to mark fastening points 1- 9:
•
mark the fastening points 1-3_ premounted in the panel:
pressing the panel to the door lining leaves visible impressions of the screws
•mark the fastening points 4-8:
use a thin awl to set the marks on the door-lining
2. draw the speakers’cut-outs onto the door-lining.
3. remove the panel again.
cut out holes for loudspeakers along the marking (see fig.)
with a compass saw.
4. use a 6mm drill for the screws according to the marks set before
5. Screw in the M4-screws supplied with. Affix the door build to the door-lining.
Screw all 9 x M4-screws only hand-tight .
Secure all screws with the washers and nuts.
6. check again for precise fitting and tighten screws.
All cutting edges of the panel must fit to the door lining snugly
all around without gap
cut-outs of the door lining
additional cut- out
for subwoofer
4. Handling of door lining / Panel installation - Fastening
45146 - BMW 3 E 36 Sedan / Touring - 9 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 6 - © JEHNERT SOUND DESIGN
�


✍✍
1
original cutout
(possibly to be
enlarged)
3
9
M 4 x 30
M 4 x 30

2
4
M 4 x 30
5
M 4 x 30
87
M 4 x 30
6
M 4 x 30

M 4 x40
already
mounted
M 4 x50
already
mounted
✍
✍

8. Crossover circuit - Speaker connection
8.1. precable crossovers - see fig. page 11.
8.2. install crossover in the back part of the door-lining (see fig. –possibly without
housing, covered with foamed material) –use a hot melt adhesive or 2 sheet
metal screws from the hardware bag
8.3. Insert subwoofer and midrange and connect all loudspeakers
to the crossover circuit (parallel-circuit):
Notice: You should check the polarity of all subwoofers
before connecting them to the crossover circuit
with a 9 volt battery:
pole of the crossover circuit input to of a 9 Volt battery
pole of the crossover circuit input to of a 9 Volt battery
All subwoofers must move uniformly!
Wrong polarity of a subwoofer can totally
equalize the bass sound!
8. Crossover circuit - Speaker connection
8.1. precable crossovers - see fig. page 11.
8.2. install crossover in the back part of the door-lining (see fig. –possibly without
housing, covered with foamed material) –use a hot melt adhesive or 2 sheet
metal screws from the hardware bag
8.3. Insert subwoofer and midrange and connect all loudspeakers
to the crossover circuit (parallel-circuit):
Notice: You should check the polarity of all subwoofers
before connecting them to the crossover circuit
with a 9 volt battery:
pole of the crossover circuit input to of a 9 Volt battery
pole of the crossover circuit input to of a 9 Volt battery
All subwoofers must move uniformly!
Wrong polarity of a subwoofer can totally
equalize the bass sound!
3.1. Place the door lining on a plane surface.
3.2. Dismount the loudspeakers attached to the panel for transport protection.
Retain the screws for later assembly.
3.3. Place the panel without loudspeakers and grill on the door lining and align it:
fig. :
panel alignment behind
the edge of the door lining
and the back edge of the panel
mount of the crossover :
move behind the door-lining
and fix it
45146 - BMW 3 E 36 Sedan / Touring - 10 - © JEHNERT SOUND DESIGN45146 - BMW 3 E 36 Sedan / Touring - 5- © JEHNERT SOUND DESIGN
3 . Panel alignment
Reference points for fitting:
Only precise alignment of the panel with the door
lining warrants optimal fit.
Reference line 1: align “nose”on the panel directly into the notch of the
door lining. This results to a distance between upper edge of
the panel and lower edge of the original tweeter grill of 80 mm.
Reference line 2+3: realign the back edge of the panel to the edge of the door lining
with a distance of 13,5cm (see ref. point 2 above). Distance
of the front side edge 4,6cm (see ref.point 3 above)
Reference line 1: the lower edge of the panel is parallel to the edge of the door lining
�
�
Hochtöner
Tieftöner
Sound
Sound
DESIGN
JEHNERT
Mitteltöner
Eingang
3-Wegefahrzeugspezifische Frequenzweiche
GolfIV
✚ ✚
ref. point 1:
80 mm distance
between upper edge
of the panel and lower
edge of the original
tweeter’s grill
Ref. point 2:
13,5 cm distance
between end of
panel and edge of
the door-lining
Ref. point 3:
4,6 cm distance
between the front
edge of the panel
and the side edge
of the door-lining.
Ref. point 2:
align “nose”on the
panel directly into
the notch of the
door lining
Ref. point 4:
You should check the polarity of all woofers after having
connected them to the crossover circuit with a 9 volt battery
(input cable on the side of the amplier).

Loudspeaker wiring diagram
Connect all loudspeakers and crossover circuits:
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
Midrange
Speaker
MADE IN GERMANY
see page 7
- first install the door-build
in the original mount
of the car door
installation of tweeter
with mounting bowl
45146 - BMW 3 E 36 Sedan / Touring - 11 - © JEHNERT SOUND DESIGN
2. installation of tweeter
45146 - BMW 3 E 36 Sedan / Touring - 4 - © JEHNERT SOUND DESIGN
or alternatively :
Circuit diagram of 3-way crossover / 2x subwoofer
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
WOOFER
Speaker
MADE IN GERMANY
tweetersubwoofer
SoundSound
D E S I G N
JEHNERT
midrange input
3-way crossover circuit
BM W 3 E 36 Sed a n / Touri n g No. 45 146
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
Tweeter
Speaker
MADE INGERMANY
H
i
g
h
P
e
r
f
o
r
m
a
n
c
e
D E S I G N
JEHNERT
SoundSound
WOOFER
Speaker
MADE IN GERMANY
amplifier
100-200 Watt RMS / 2 Ohm
recommended power

9.1. Precisely align and carefully press grill into the Velcro fasteners.
The Velcro fastener makes a crackling sound
when it is closed correctly.
9.1. Precisely align and carefully press grill into the Velcro fasteners.
The Velcro fastener makes a crackling sound
when it is closed correctly.
Removing the grills:
The Velcro fasteners stick together very strongly!
The grills can be removed anytime by carefully lifting them off.
Please, avoid any way of forceful yanking at the grills.
It could break!
9.3.
9.2. Our Tip:
If the panel cannot be pressed on completely at some points. . .
Cause: the special form at these points and the resulting differences in
material cross section of the grill.
Solution: the distance can be levelled out with spacers 3 under the
Velcro disc.
(Spacers included with the screw kit)
1. roll down the window completely
2. pull off the plastic caps from the door handle and remove the both
Torx Screws (A1 u. 2) underneath
3. carefully push the faceplate of the door latch lever (B) out of the catch
4. remove the switch of the rear-view mirror (driver’s side) and the grill
(co-passenger’s side) on the door handle (C) and disconnect the cable plugs
5. carefully squeeze the door panel away from the plastic clips at the lower
and lateral edges of the door lining
6. lift the door panel out of the sealing above and simultaneously move it
horizontally and forward away from the inner door metal
7. disconnect the original loudspeaker plugs
1 . Disassembly of the door lining
45146 - BMW 3 E 36 Sedan / Touring - 3 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 12 - © JEHNERT SOUND DESIGN
�
9. Installation of the speaker’s grill :
A1A2
BC
grill
2 self-adhesive Velcro-strip
1 Velcro fastener
3 Washer M4 ø20 as spacer
doorpanel

Packing unit Check list
door panel, covered (right / left) 2
Speaker grill, covered (right / left) 2
Tweeter 26 mm (with 6 Ktn.screw M4 x 8 and washer ø 12mm) 2
Midrange 100 mm Q (each mounted on the panel with 4 Sheet metal-screws) 2
Subwoofer 160 mm (each mounted on the panel with 2 Sheet metal-screws) 4
Crossover (right / left) 2
Hardware bag:
 Flat head screws, M 4 x 30 14
 Hex nut M 4 18
 Washer Ø 20mm (18xM4+4xas spacer for Velcro fastener) 22
 Washer Ø 12mm (f.Tweeter-Installation) 2
 Screws 6Ktn. M4x8 (f.Tweeter-Installation) 2
 Sheet metal screws, black 3,9x13(f. subwoofer) 8
 Sheet metal screws, black 3,9x13(f. crossover circuit) 4
 Velcro strip à 2,5 cm (reserve) 2
Preassembled hardware:
 Velcro fastener plus strips 8
 Sheet metal screws, black 3,9x13(f. subwoofer) 8
 Sheet metal screws, black 3,5x13 (8xMR+8xVelcro.) 16
 Flat head screws, M 4 x 40 2
 Flat head screws, M 4 x 50 2
The product was carefully packed an checked for its completeness. If you find anything missing, damaged or
defective, please notice our guarantee services on the back of these assembly instructions.
Hardware bag:
Packing list 45146
Hardware bag:Hardware bag:
45146 - BMW 3 E 36 Sedan / Touring - 13 - © JEHNERT SOUND DESIGN 45146 - BMW 3 E 36 Sedan / Touring - 2 - © JEHNERT SOUND DESIGN
Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:Hardware bag:
Technical information
Equipment: electric window control
Model/ year : sedan / Touring
Insulation: is recommended
Note about setting: To obtain optimal stereoscopic sound, all settings
on the radio (bass, treble, loudness etc) should be
set to zero or neutral.
Recommended
amplifier power : from 2x 100 - 200 Watt RMS / 2 Ohm
Metal cutwork : not necessary
Cut-outs for loudspeaker/ 2 x 144mm (max.outer dimensions subwoofer 165 mm)
each side (max.installation depth subwoofer 75 mm)
Euro-Norm-standard basket ø 6“ made to fit
1 x 92mm (max.outer dimensions midrange 100 mm)
(max.installation depth midrange 60 mm)
Sound-System: 3-ways
2 x 160 mm subwoofer/ side
1 x 100 mm midrange / side
1 x 26 mm tweeter / side
car-customized crossover network
max.continuous Watt/RMS: 2 x 160/200Watt
car specific frequency range: 47-22.000 Hz
Total impedance: 2 Ohm
Time for Installation car hifi-specialist: 3 hours
We reserve the right to make technical changes, as well as development.

Steffen Kretzschmar
Saddlery / Completion
page
Contents
Packing list ..........................................................................
1. Disassembly of the door lining ..............................................
2. Installation tweeter - see page 7 ............................................
3. Panel alignment / reference points ........................................
4. Handling of door lining / Panel installation - Fastening ...........
5. Installation tweeter / Loudspeaker cables ...............................
6. Insulation of the door lining / car doors .................................
7. Installation of the door lining ................................................
8. Crossover circuit - Speaker connection ..................................
Loudspeaker wiring diagram .................................................
9. Installation of the speaker-grills .............................................
Technical information ...........................................................
Service / fault diagnoses .......................................................
Guarantee ...........................................................................
2
3
4
5
6
7
8
9
10
11
12
13
14
15
45146 - BMW 3 E 36 Sedan / Touring - 14 - © JEHNERT SOUND DESIGN45146 - BMW 3 E 36 Sedan / Touring - 1 - © JEHNERT SOUND DESIGN
Technical questions Hotline: [phone]
We thank you for your support!
Mirko Schwarz
Development
It is our pleasure to help you!
Dear customer,
We have taken great care to explain the procedures in our installation instructions
more detailed and “step by step”.
Your tips and suggestions help us for the future to eliminate uncertainties and
misinterpretation. Therefore, please inform us. what you would like to be improved
or what we should still change.
Marc Sitter
Service
Marc Sitter
Service
The following notes serve to help troubleshoot and eliminate faults or malfunctions
on your own. If the following measures are not effective, please call us.
What can it be if ... possible cause/ solution
..it doesn’t sound right. wrong polarity on the subwoofers ( page 10)
crosover circuit attached wrong ( page 11)
Doorlining and moisture protection foil
not cut out ( page 5+10)
amplifier doesn’t have enough power( page 13)
amplifier connection
...it doesn’t fit correctly. door panel customization ( page 8)
installation of the panels on the door lining (page 9)
.....grills do not hold. observe notes on page 12!
vibrations insulation, see notes on page 7
Self-help and fault diagnosis







Particularly important notes contain the following remarks:
�
Please follow the installation instructions
“step by step”
and check the package contents
Technical questions: Hotline [phone] / 9 56 99-0
Steffen Kretzschmar
Saddlery / Completion
page
Contents
Packing list ..........................................................................
1. Disassembly of the door lining ..............................................
2. Installation tweeter - see page 7 ............................................
3. Panel alignment / reference points ........................................
4. Handling of door lining / Panel installation - Fastening ...........
5. Installation tweeter / Loudspeaker cables ...............................
6. Insulation of the door lining / car doors .................................
7. Installation of the door lining ................................................
8. Crossover circuit - Speaker connection ..................................
Loudspeaker wiring diagram .................................................
9. Installation of the speaker-grills .............................................
Technical information ...........................................................
Service / fault diagnoses .......................................................
Guarantee ...........................................................................
2
3
4
5
6
7
8
9
10
11
12
13
14
15
45146 - BMW 3 E 36 Sedan / Touring - 14 - © JEHNERT SOUND DESIGN45146 - BMW 3 E 36 Sedan / Touring - 1 - © JEHNERT SOUND DESIGN
Technical questions Hotline: [phone]
We thank you for your support!
Mirko Schwarz
Development
It is our pleasure to help you!
Dear customer,
We have taken great care to explain the procedures in our installation instructions
more detailed and “step by step”.
Your tips and suggestions help us for the future to eliminate uncertainties and
misinterpretation. Therefore, please inform us. what you would like to be improved
or what we should still change.
Marc Sitter
Service
Marc Sitter
Service
The following notes serve to help troubleshoot and eliminate faults or malfunctions
on your own. If the following measures are not effective, please call us.
What can it be if ... possible cause/ solution
..it doesn’t sound right. wrong polarity on the subwoofers ( page 10)
crosover circuit attached wrong ( page 11)
Doorlining and moisture protection foil
not cut out ( page 5+10)
amplifier doesn’t have enough power( page 13)
amplifier connection
...it doesn’t fit correctly. door panel customization ( page 8)
installation of the panels on the door lining (page 9)
.....grills do not hold. observe notes on page 12!
vibrations insulation, see notes on page 7
Self-help and fault diagnosis







Particularly important notes contain the following remarks:
�
Please follow the installation instructions
“step by step”
and check the package contents

SoundSound
D E S I G N
JEHNERT
BMW 3 E 36 Sedan / Touring
Guarantee
2002/by.AJ/FH - 15 -
Installation instructions
installation.Art. 45146/FH07/02
item-no. 45146
Jehnert Sound Design
development and
production of
Car-Audio-Systems
Heinrich-Hertz-Str. 11
70794 Filderstadt
Tel.[phone]
Fax: [phone]
e-mail: [email protected]
www.jehnert.com
We grant a manufacturers guarantee of 2 years starting from the date of purchase
of the door panels or sound system from the dealer.
Within this guarantee period to our choice we either repair or replace free of
charge all defects due to material or workmanship.
Exempt from this guarantee are damages due to improper use, wear and tear or
damages which have to be led back on wear or interventions by third parties.
The guarantee does not cover subsequent damages or such defects that only
insignificantly impair the value or the usability of the panels/sound system.
The guarantee does not cover damages due to external influences.
Panels with additional or wrong assembly drill holes cannot be returned.
These are damages to the panel which cannot be repaired again.
�
