JVC KW-XG704 User manual

CD RECEIVER KW-XG704
For canceling the display demonstration, see page 4.
For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0459-001A
[UI]
Cover_KW-XG704[UI]f.indd 1Cover_KW-XG704[UI]f.indd 1 4/13/07 12:57:50 PM4/13/07 12:57:50 PM

2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.

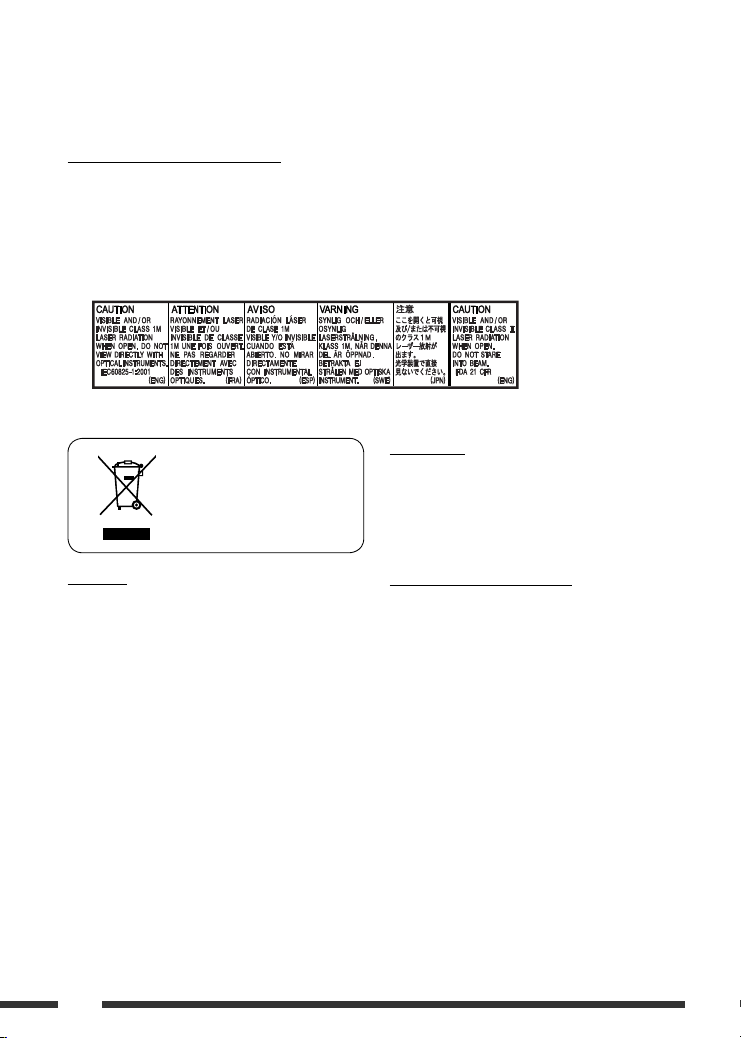

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.
[European Union only]
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• top the car before performing any complicated
operations.
Temperature inside t e car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
Warning:
If you need to operate the unit while driving, be sure to
look around carefully or you may be involved in a traffic
accident.
EN02-07_KW-XG704[UI]f.indd 2EN02-07_KW-XG704[UI]f.indd 2 4/13/07 12:55:59 PM4/13/07 12:55:59 PM

3
How to reset your unit
• Your preset adjustments will also be erased (except
the registered Bluetooth device, see page 12).
How to forcibly eject a disc
• Be care ul not to drop the disc when it ejects.
• I this does not work, reset your unit.
How to use t e MODE button
If you press MODE, the unit goes into functions
mode, then the number buttons and 5/∞ buttons
work as different function buttons.
[Within 5 seconds...]
CONTENTS
INTRODUCTIONS
Preparation ...................................... 4
OPERATIONS
Basic operations ................................ 5
• Using t e control panel ................ 5
• Using t e remote controller
(RM-RK50) ................................... 6
Listening to t e radio ......................... 8
Disc operations .................................. 9
EXTERNAL DEVICES
Listening to t e USB device ................. 11
Using t e Bluetoot ® devices .............. 12
• Using t e Bluetoot cellular
p one ......................................... 14
• Using t e Bluetoot audio
player ......................................... 16
Listening to t e CD c anger ................ 17
Listening to t e iPod / D. player .......... 19
Listening to t e ot er external
components ................................... 20
SETTINGS
Selecting a preset sound mode ............ 22
General settings — PSM ..................... 23
Bluetoot settings ............................. 26
Assigning titles .................................. 27
REFERENCES
Maintenance ..................................... 28
More about t is unit .......................... 28
Troubles ooting ................................ 32
Specifications .................................... 36
EN02-07_KW-XG704[UI]f.indd 3EN02-07_KW-XG704[UI]f.indd 3 4/13/07 12:56:01 PM4/13/07 12:56:01 PM

4INTRODUCTIONS
Preparation

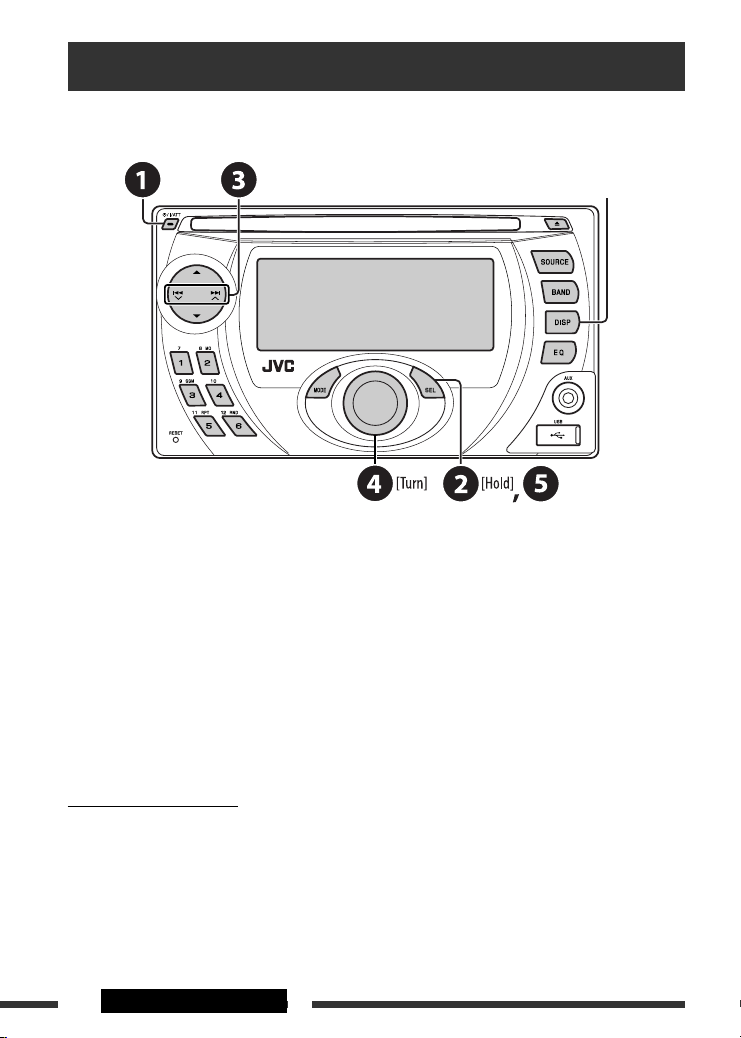

Cancel t e display demonstration and set t e clock
• ee also page 24.
~ Turn on the power.
Ÿ Enter the PSM settings.
! ] ⁄ Cancel the displa demonstrations
elect “DEMO,” then “DEMO OFF.”
Set the clock
elect “CLOCK H” (hour), then adjust the hour.
elect “CLOCK M” (minute), then adjust the minute.
@ Finish the procedure.
Caution on volume setting:
Digital devices (CD/U B) produce very little noise compared with other sources. Lower the volume before playing
these digital devices to avoid damaging the speakers by the sudden increase of the output level.
When the power is turned off: Check the current clock time
When the power is turned on: Change the display information
EN02-07_KW-XG704[UI]f.indd 4EN02-07_KW-XG704[UI]f.indd 4 4/13/07 12:56:02 PM4/13/07 12:56:02 PM

5OPERATIONS
Basic operations

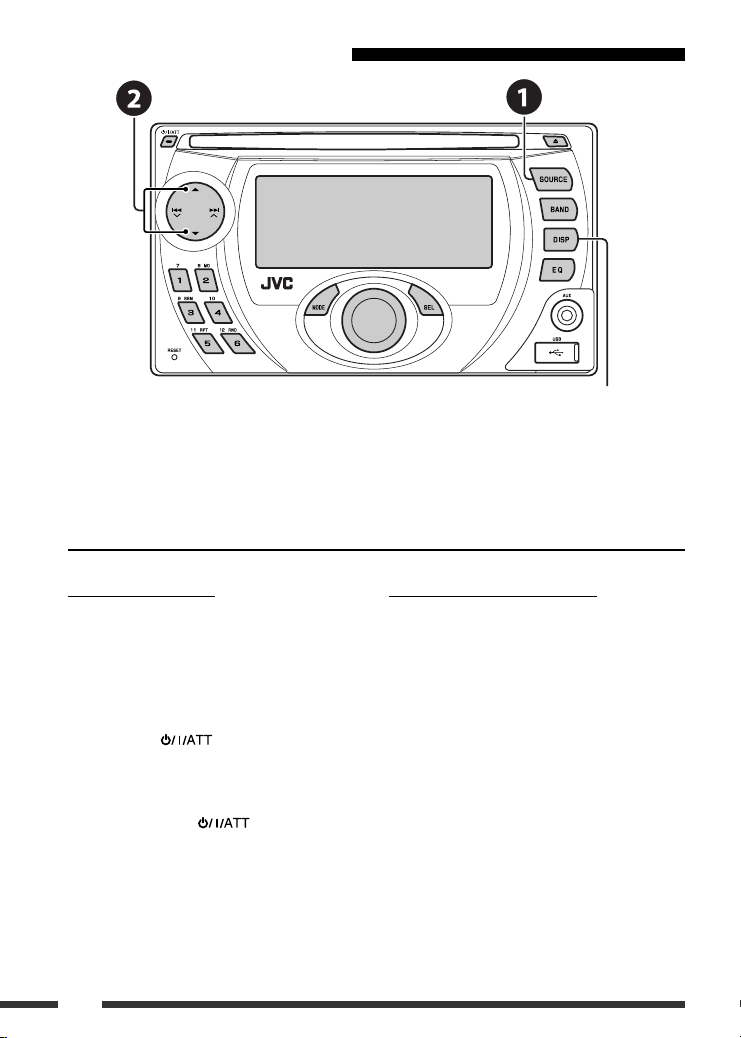

Using t e control panel
1 • FM/AM: elect preset station.
• CD/USB/CD-CH: elect folder.
• IPOD/D.PLAYER: Enter the main menu/Pause or
stop playback/Confirm selection.
• BT-PHONE/BT-AUDIO: Enter setting menu/
Confirm selection.
2 • Turn on the power.
• Turn off the power [Hold].
• Attenuate the sound (if the power is on).
3 • FM/AM: earch for station.
• CD/USB/CD-CH: elect track.
• IPOD/D.PLAYER: elect track.
• BT-PHONE/BT-AUDIO: elect setting item/
elect a registered device.
4 Loading slot
5 Display window
6 elect the source.
FM/AM = CD * = USB * = CD-CH */IPOD */
D.PLAYER * (or EXT IN) = BT-PHONE *
(Bluetooth Phone) = BT-AUDIO * (Bluetooth
Audio) = AUX IN = (back to the beginning)
* You cannot select these sources i they are not
ready or not connected.
7 Eject disc.
8 elect the bands.
9 Reset button
p • FM/AM: elect preset station.
• CD/USB/CD-CH: elect folder/track/disc (for CD
changer).
• BT-PHONE: elect preset phone number.
q Enter functions mode.
Press MODE, then one of the following buttons
(within 5 seconds)...
MO : Turn on/off monaural reception.
SSM : Automatic station presetting [Hold].
RPT : elect repeat play.
RND : elect random play.
5 / ∞ : kip 10 tracks.
w Volume control [Turn].
e • Enter the P M settings [Hold].
• Adjust the sound mode.
r elect the sound mode.
t AUX (auxiliary) input jack
y U B (Universal erial Bus) input terminal
u Change the display information.
EN02-07_KW-XG704[UI]f.indd 5EN02-07_KW-XG704[UI]f.indd 5 4/13/07 12:56:02 PM4/13/07 12:56:02 PM

6
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
Display window

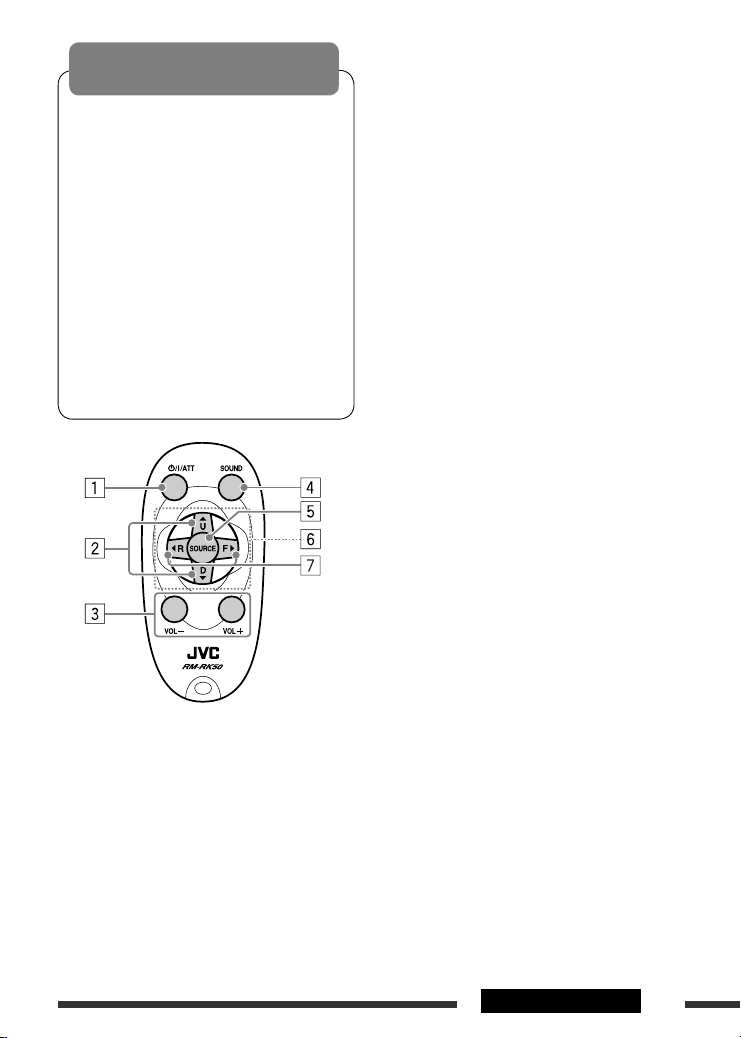

Using t e remote controller (RM-RK50)
Installing the lithium coin batter (CR2025)
Remote sensor
1 Playback source indicators
2 Track information indicators
3 Main display
(Menu, playback information)
4 Tuner reception indicators
5 Playback mode/item indicators
(Random/Repeat)
6 • pectrum analyzer meter
• Volume level indicator
7 ound mode indicators
8 Equalizer indicator
9 Loudness indicator
p Clock indicator
q Analyzer indicator
w Bluetooth indicator
e Track indicator
r ource display/Preset No./Track No./Folder No./
Disc No.
t tatus of Bluetooth device
(Device number, [1 – 5]; signal strength, [0 – 3]*;
battery reminder, [0 – 3]*)
* As the number increases, the signal/battery
strength becomes stronger.
EN02-07_KW-XG704[UI]f.indd 6EN02-07_KW-XG704[UI]f.indd 6 4/13/07 12:56:03 PM4/13/07 12:56:03 PM

7OPERATIONS
Warning:
To prevent accidents and damage
• Do not install any battery other than CR2025 or
its equivalent.
• Do not leave the remote controller in a place
(such as dashboards) exposed to direct sunlight
for a long time.
• tore the battery in a place where children
cannot reach.
• Do not recharge, short, disassemble, heat the
battery, or dispose of it in a fire.
• Do not leave the battery with other metallic
materials.
• Do not poke the battery with tweezers or similar
tools.
• Wrap the battery with tape and insulate when
throwing away or saving it.
1 • Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
2 • Changes the FM/AM bands with 5 U.
• Changes the preset stations with D ∞.
• Changes the folder of the MP3/WMA/WAV.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
• While listening to an Apple iPod or a JVC
D. player:
– Pauses/stops or resumes playback with D ∞.
– Enters the main menu with 5 U.
(Now 5 U/D ∞/2 R/F 3 work as the menu
selecting buttons.)*
* 5 U : Returns to the previous menu.
D ∞ : Con irms the selection.
3 Adjusts the volume level.
4 elects the sound mode (iEQ: intelligent equalizer).
5 elects the source.
6 For Bluetooth cellular phone:
– Answers calls if pressed briefly.
– Rejects calls if pressed and held.
7 • earches for stations if pressed briefly.
• Fast-forwards or reverses the track if pressed and
held.
• Changes the tracks if pressed briefly.
• While listening to an iPod or a D. player (in menu
selecting mode):
– elects an item if pressed briefly. (Then, press
D ∞ to confirm the selection.)
– kips 10 items at a time if pressed and held.
• Reverse skip/forward skip for Bluetooth audio.
EN02-07_KW-XG704[UI]f.indd 7EN02-07_KW-XG704[UI]f.indd 7 4/13/07 12:56:03 PM4/13/07 12:56:03 PM

8
Listening to the radio
Change the display information
~ Select “FM/AM.”
Ÿ Select the bands.
! Search for a station to listen—Auto Search.
Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.
* If no title is assigned to a station, “NO NAME” appears. To assign a title to a station, see page 27.
Select preset station.
When an FM stereo broadcast is hard
to receive
1
2
Reception improves, but stereo effect will be lost.
• M indicator lights up.

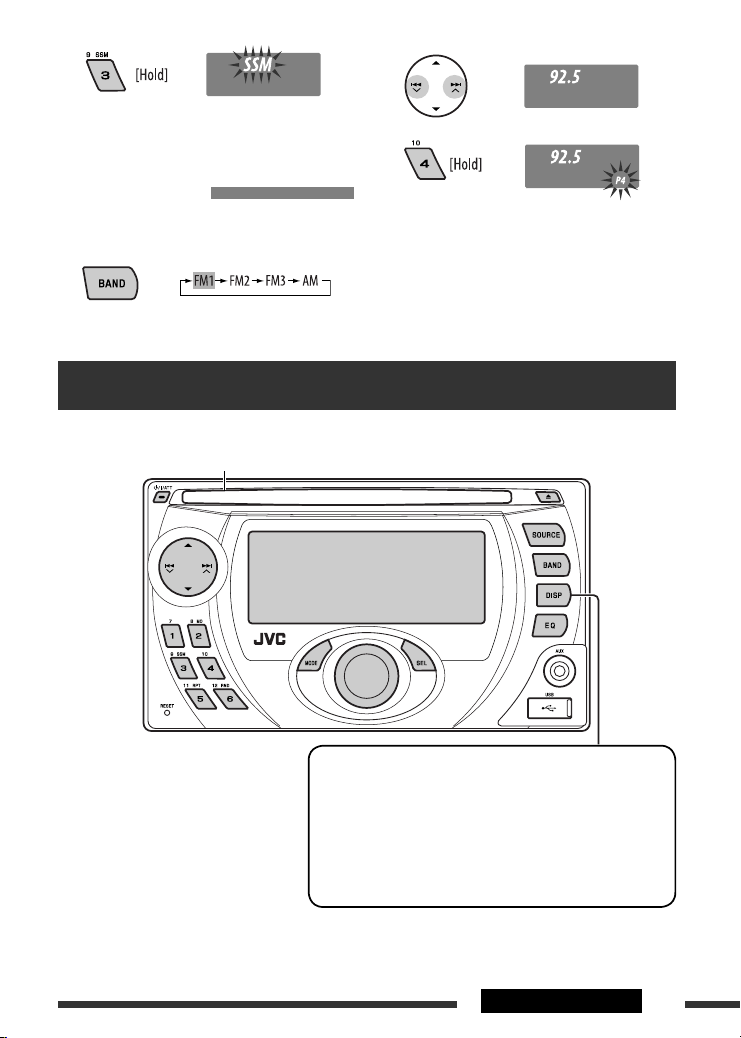

FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
You can preset up to six stations for each band.
1
2
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
EN08-13_KW-XG704[UI]f.indd 8EN08-13_KW-XG704[UI]f.indd 8 4/13/07 12:56:16 PM4/13/07 12:56:16 PM

9OPERATIONS
Continued on the next page
3
Local FM stations with the strongest signals are
searched and stored automatically in the FM band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number
4 of the FM1 band.
1
2
3
Disc operations
Insert the disc.
Playback starts automatically.
Change the display information
MP3/WMA: Album name/performer (folder name *1) = Track
title (file name *1) = Elapsed playing time and Current track
number = (back to the beginning)
Audio CD/CD Text: Disc title/performer *2 = Track title *2 =
Elapsed playing time and Current track number = (back to the
beginning)
*1 If the file does not ha e Tag information
or “TAG DISP” is set to “TAG OFF” (see
page 25), folder name and file name
appear. TAG indicator will not light up.
*2 “NO NAME” appears for an audio CD.
EN08-13_KW-XG704[UI]f.indd 9EN08-13_KW-XG704[UI]f.indd 9 4/13/07 12:56:18 PM4/13/07 12:56:18 PM

10 OPERATIONS
Prohibiting disc ejection
To cancel the prohibition, repeat the same
procedure.
o stop play and eject the disc
• Press S URCE to listen to another
playback source.

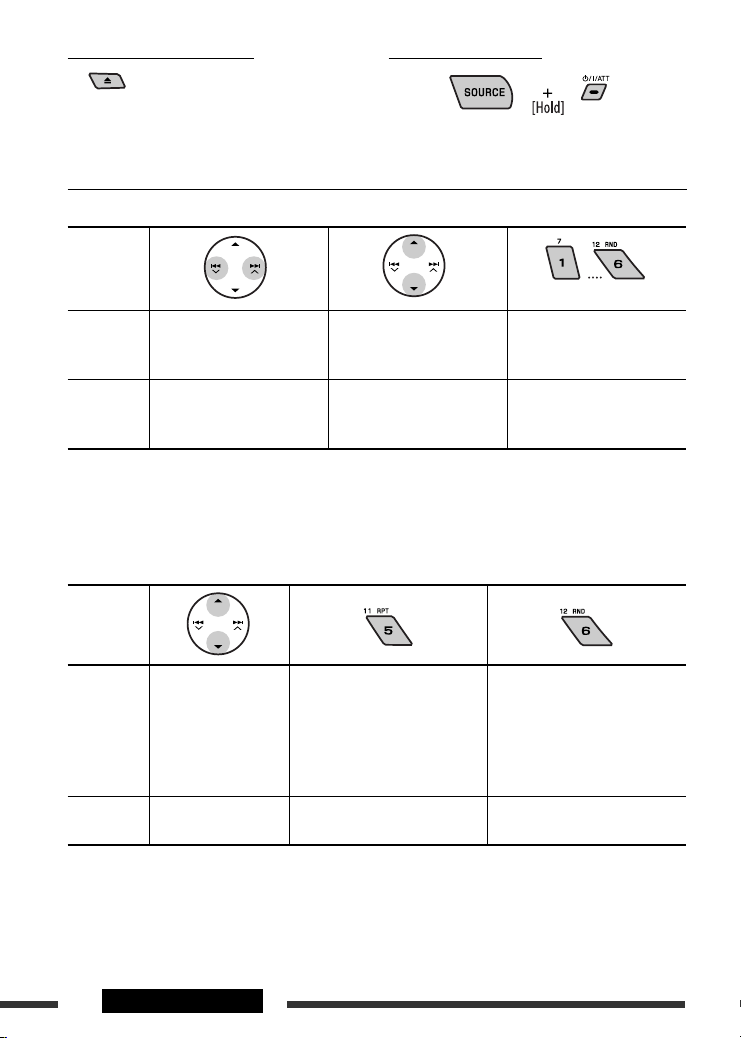

Pressing (or holding) the following buttons allows you to...
Disc type
(Number buttons) *1
MP3/WMA
Press: Select track
Hold: Reverse/fast-forward
track
Select folder Locate particular folder
directly *2
Audio CD/
CD Text
Press: Select track
Hold: Reverse/fast-forward
track
—
Locate particular track directly
*1 Press to select number 1 to 6; hold to select number 7 to 12.
*2 It is required that folders be assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and
so on.
After pressing M DE, press the following buttons to...
Disc type
MP3/WMA
Skip 10 tracks (within
the same folder)
TRK RPT:
Repeat current track
FLDR RPT:
Repeat current folder
FLDR RND:
Randomly play all tracks of
current folder, then tracks of
next folders
DISC RND:
Randomly play all tracks
Audio CD/
CD Text
Skip 10 tracks TRK RPT:
Repeat current track
DISC RND:
Randomly play all tracks
• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”
EN08-13_KW-XG704[UI]f.indd 10EN08-13_KW-XG704[UI]f.indd 10 4/13/07 12:56:18 PM4/13/07 12:56:18 PM

11EXTERNAL DEVICES

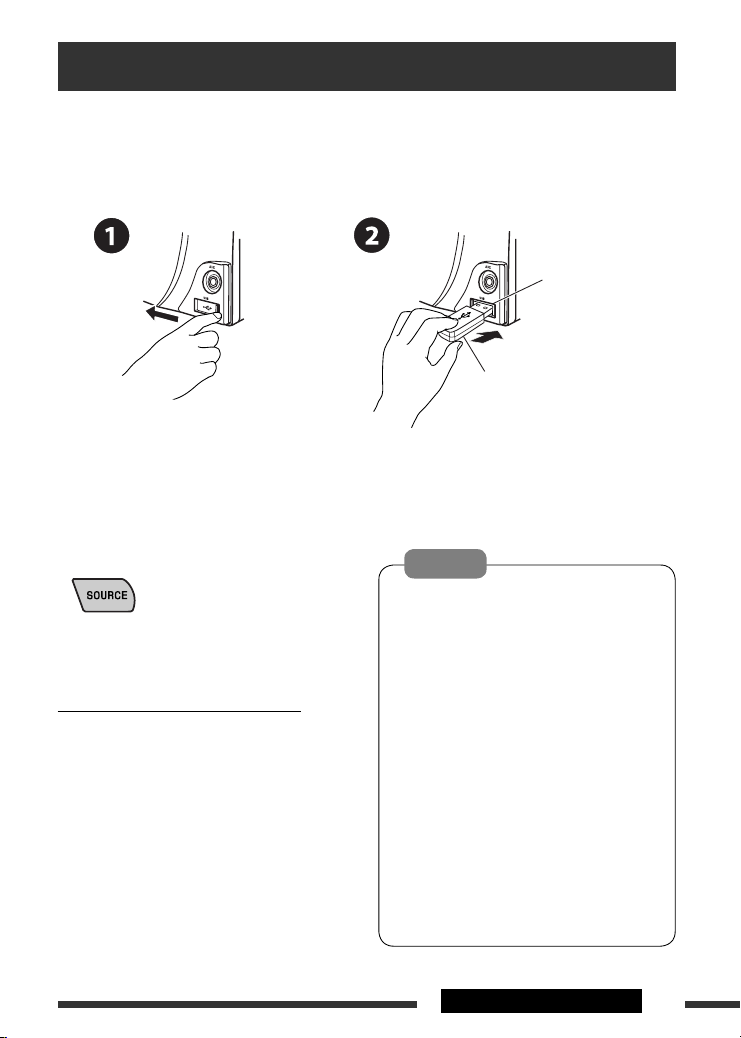

Listening to the USB device
You can connect a USB mass storage class device such as a USB memory, Digital Audio Player *, portable HDD, etc. to
the unit.
* You can connect both MTP (Media Transfer Protocol) de ices and USB mass storage class de ices.
Attaching a USB memory
This unit can play MP3/WMA/WMA-DRM10 */WAV tracks stored in a USB device.
* See page 30.
Cautions:
• Avoid using the USB device if it might hinder your
safety driving.
• Do not pull out and attach the USB device
repeatedly while “CHECK” is flashing on the
display.
• Do not start the car engine if a USB device is
connected.
• Stop play back before disconnecting a USB device.
• This unit may not be able to play the files
depending on the type of USB device.
• You cannot connect a computer to the USB input
terminal of the unit.
• Make sure all important data has been backed up
to avoid losing the data.
• Do not leave a USB device in the car, expose to
direct sunlight, or high temperature to avoid
deformation or cause damages to the device.
If a USB device has been attached...
Playback starts from where it has
been stopped previously.
• If a different USB device is
currently attached, playback
starts from the beginning.
o stop play and detach the USB device
Straightly pull it out from the unit.
• Press S URCE to listen to another playback source.
You can operate the USB device in the same way you
operate the files on a disc. (See pages 9 and 10.)
• You can listen to WAV files by following the MP3/
WMA files operations listed on pages 9 and 10.
USB input terminal
USB memory
EN08-13_KW-XG704[UI]f.indd 11EN08-13_KW-XG704[UI]f.indd 11 4/13/07 12:56:19 PM4/13/07 12:56:19 PM

12
Using the Bluetooth ® devices
For Bluetooth operations, it is required to connect the Bluetooth Adapter (KS-BTA200) to the CD changer jack on
the rear of this unit. See also page 21.
• Refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth device.
• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.
To use a Bluetooth device through the unit (“BT-PH NE” and “BT-AUDI ”) for the first time, you need to establish
Bluetooth wireless connection between the unit and the device.
• nce the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be
registered in total.
• nly one device can be connected at a time for each source (“BT-PH NE” and “BT-AUDI ”).
Registering a Bluetooth device
3 Select “OPEN.”
4 Enter a PIN (Personal Identification
Number) code to the unit.
• You can enter any number you like (1-digit to
16-digit number). [Initial: 0000]
* Some de ices ha e their own PIN code. Enter the
specified PIN code to the unit.
1 Move to the next (or previous) number
position.
2 Select a number or blank space.
3 Repeat steps 1 and 2 until you finish
entering a PIN code.
4 Confirm the entry.
“ PEN...” flashes on the display.
Registration (Pairing) methods
Use either of the following items in the Bluetooth menu
to register and establish the connection with a device.
• Select “BT-PH NE” or “BT-AUDI ” as the source to
operate the Bluetooth menu.
OPEN Make the unit ready to establish a new
Bluetooth connection.
Connection is established by operating the
Bluetooth device.
SEARCH Make the unit ready to establish a new
Bluetooth connection.
Connection is established by operating
the unit.
Registering using “OPEN”
Preparation
perate the device to turn on its Bluetooth function.
1 Select “BT-PHONE” or “BT-AUDIO.”
2 Select “NEW.”
EN08-13_KW-XG704[UI]f.indd 12EN08-13_KW-XG704[UI]f.indd 12 4/13/07 12:56:19 PM4/13/07 12:56:19 PM

13EXTERNAL DEVICES
2 Select a device you want to connect.
3 Use “OPEN’ or “SEARCH’ to connect.
o connect/disconnect a registered device
1 Select “BT-PHONE” or “BT-AUDIO.”
2 Select a registered device you want to
connect/disconnect.
3 Select “CONNECT” or “DISCNNCT” to connect/
disconnect the selected device.
You can set the unit to connect a Bluetooth device
automatically when the unit is turned on. (See
“AUT CNT” on page 26.)
o delete a registered device
1 Select “BT-PHONE” or “BT-AUDIO.”
2 Select a registered device you want to delete.
3 Select “DELETE,” then “YES” to delete the
selected device.
5 Use the Bluetooth device to search and
connect.
n the device to be connected, enter the same PIN
code you have just entered for this unit. “C NNECT”
flashes on the display.
Now connection is established and you can use the
device through the unit.
The device remains registered even after you
disconnect the device. Use “C NNECT“ (or activate
“AUT CNT”) to connect the same device from next
time. (See the right column and page 26.)
o search for available devices
Perform steps 1 and 2 on page 12, then...
1 Select “SEARCH.”
The unit searches and displays the list of the
available devices.
• If no available device is detected, “UNF UND”
appears.
2 Select a device you want to connect.
3 Enter the specific PIN code of the device to
the unit.
• Refer to the instructions supplied with the device
to check the PIN code.
4 Use the Bluetooth device to connect.
Now connection is established and you can use the
device through the unit.
o connect a special device
Perform steps 1 and 2 on page 12, then...
1 Select “SPECIAL.”
The unit displays the list of the preset devices.
EN08-13_KW-XG704[UI]f.indd 13EN08-13_KW-XG704[UI]f.indd 13 4/13/07 12:56:20 PM4/13/07 12:56:20 PM

14
When a call comes in....
The source is automatically changed to “BT-PHONE.”
When “AUTO ANS” (answer) is activated....
The unit answers the incoming calls automatically, see
page 6.
• When “AUTO ANS” (answer) is deactivated, press any
button (except /control dial/0) to answer
the incoming call.
To end the call
Hold any button (except /control dial/0).
• You can adjust the microphone volume level (see
page 6).
When a text message comes in....
If the cellular phone is compatible with text message
and “MSG INFO” (message info) is set to “AUTO” (see
page 6), the unit rings and “RCV MSG” (receiving
message) appears on the display to inform you the
arrival of the message.
Using the Bluetooth cellular phone
~ Select “BT-PHON .”
Ÿ nter Bluetooth menu.
! Make a call or settings using the Bluetooth menu. (See pages 15 and 26.)
Return to the device list menu
EN14-21_KW-XG704[UI]f.indd 14EN14-21_KW-XG704[UI]f.indd 14 4/13/07 12:56:33 PM4/13/07 12:56:33 PM

15EXTERNAL DEVICES
Making a call
You can make a call using the following methods.
Select “BT-PHONE,” then follow the following steps to make a call:
12 3 (unless mentioned otherwise)
Call history Display the Dial
Menu.
Select a call history.
REDIAL, RECEIVED, MISSED
Select a name (if it is acquired) or
phone number.
Phone book Select “PH BOOK.”
The list of phone number appears.
Select a name from the list.
Direct dialing Select “NUMBER.” Enter the phone number.
Voice
command
1 “SAY NAME” appears on the display.
2 Speak the name you want to call.
• You can also use voice command from the Dial Menu. Select “VOICE” from the Dial Menu.
• If your cellular phone does not support the voice recognition system, “ERROR” appears on the
display.
Preset phone
number
See page 16 for settings.
EN14-21_KW-XG704[UI]f.indd 15EN14-21_KW-XG704[UI]f.indd 15 4/13/07 12:56:35 PM4/13/07 12:56:35 PM

16

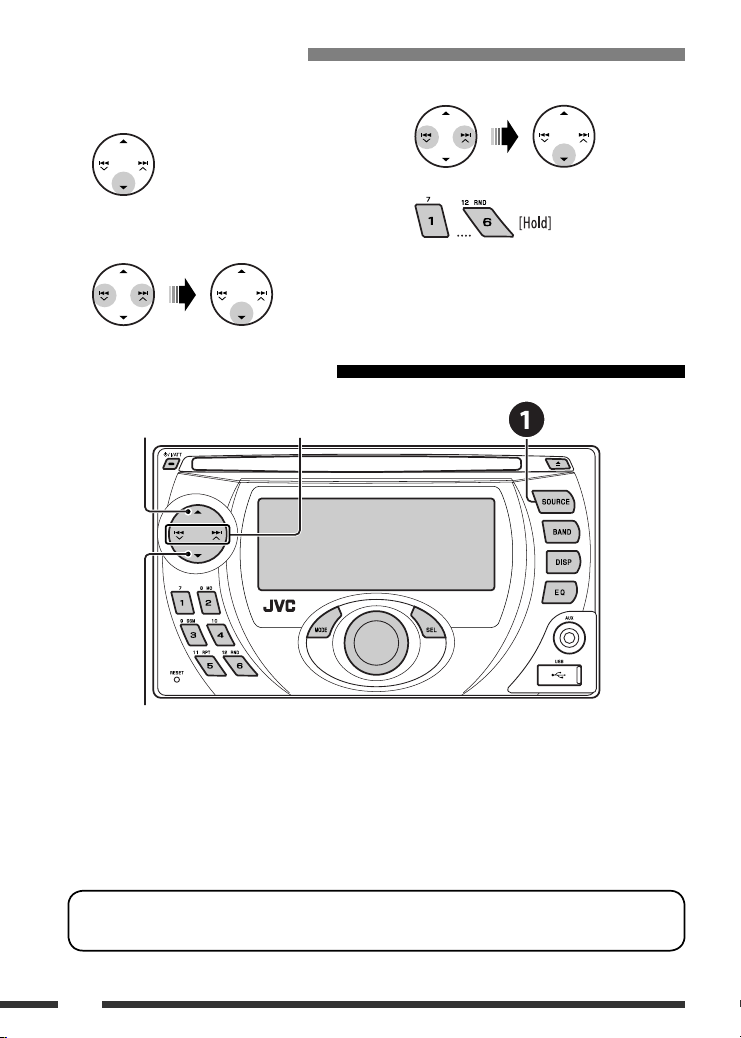

Using the Bluetooth audio player
~ Select “BT-AUDIO.”
If playback did not start automatically, operate the Bluetooth audio player to start playback.
• Refer also to page 13 for connecting/disconnecting/deleting a registered device.
* Operation may be different according to the connected phone.
Bluetooth Information:
If you wish to receive more information about Bluetooth, visit our JVC web site.
Presetting the phone number
You can preset up to six phone numbers.
1 Display the Dial Menu.
2 Select “PH BOOK,“ “MISS D,” or
“R C IV D” whichever you want to use.
3 Select a phone number.
4
Reverse skip/forward skipPause/start play back*
nter setting menu (Device list)
EN14-21_KW-XG704[UI]f.indd 16EN14-21_KW-XG704[UI]f.indd 16 4/13/07 12:56:35 PM4/13/07 12:56:35 PM

17EXTERNAL DEVICES
Listening to the CD changer
It is recommended to use a JVC MP3-compatible CD changer with your unit. You can connect a CD changer to the CD
changer jack on the rear of the unit. See also page 1.
• You can only play conventional CDs (including CD Text) and MP3 discs.
Preparation
Make sure “CHANGER” is selected for the external input setting, see page 5.
~ Select “CD-CH.”
Ÿ Select a disc to start playing.
Press: For selecting disc number 1 – 6.
Hold: For selecting disc number 7 – 1 .
Pressing (or holding) the following buttons allows you to...
Disc type
Press: Select track
Hold: Reverse/fast-forward track
Select folder
Press: Select track
Hold: Reverse/fast-forward track —
Change the display information
(see page 9)
Continued on the next page
EN14-21_KW-XG704[UI]f.indd 17EN14-21_KW-XG704[UI]f.indd 17 4/13/07 12:56:35 PM4/13/07 12:56:35 PM

18
After pressing MODE, press the following buttons to...
Disc type
Skip 10 tracks (within
the same folder)
TRK RPT:
Repeat current track
FLDR RPT:
Repeat all tracks of current folder
DISC RPT:
Repeat all tracks of the current
disc
FLDR RND:
Randomly play all tracks of
current folder, then tracks of
next folders
DISC RND:
Randomly play all tracks of
current disc
MAG RND:
Randomly play all tracks of the
inserted discs
Skip 10 tracks TRK RPT:
Repeat current track
DISC RPT:
Repeat all tracks of the current
disc
DISC RND:
Randomly play all tracks of
current disc
MAG RND:
Randomly play all tracks of the
inserted discs
• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”
EN14-21_KW-XG704[UI]f.indd 18EN14-21_KW-XG704[UI]f.indd 18 4/13/07 12:56:36 PM4/13/07 12:56:36 PM

19EXTERNAL DEVICES
Selecting a track from the menu
1 nter the main menu.
• This mode will be canceled if no
operations are done for about
5 seconds.
2 Select the desired menu.
Continued on the next page
Listening to the iPod / D. player
Change the display information
Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of
this unit. See also page 1.
• Interface adapter for iPod—KS-PD100 for controlling an iPod.
• D. player interface adapter—KS-PD500 for controlling a D. player.
Preparations
Make sure “CHANGER” is selected for the external input setting, see page 5.
~ Select “IPOD” or “D. PLAY R.”
Ÿ Select a song to start playing.
For iPod:
PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS
Ô G NR S Ô COMPOS R Ô (back to the
beginning)
For D. player:
PLAYLIST Ô ARTIST Ô ALBUM Ô G NR
Ô TRACK Ô (back to the beginning)
EN14-21_KW-XG704[UI]f.indd 19EN14-21_KW-XG704[UI]f.indd 19 4/13/07 12:56:36 PM4/13/07 12:56:36 PM

20
3 Confirm the selection.
• To move back to the previous menu, press 5.
• If a track is selected, playback starts
automatically.
• Holding 4 /¢ can skip 10 items at
a time.
Pause/stop playback
• To resume playback, press the button
again.
Press: Select tracks
Hold: Reverse/fast-forward track
After pressing MODE, press the following buttons to...
ON RPT:
Functions the same as “Repeat One” or
“Repeat Mode = One.”
ALL RPT:
Functions the same as “Repeat All” or
“Repeat Mode = All.”
ALBM RND *:
Functions the same as “Shuffle Albums”
of the iPod.
SONG RND/RND ON:
Functions the same as “Shuffle Songs” or
“Random Play = On.”
• To cancel repeat play or random play, select
“RPT OFF” or “RND OFF.”
* iPod: Functions only if you select “ALL in “ALBUMS of
the main “MENU.
Listening to the other external components
Portable MD player, etc.
Stereo mini plug (not supplied)
EN14-21_KW-XG704[UI]f.indd 20EN14-21_KW-XG704[UI]f.indd 20 4/13/07 12:56:37 PM4/13/07 12:56:37 PM
