Jensen CR2450J User manual

Color TV
User's Manual
Before connecting, operating or adjusting this product, please read the manual completely.
Please keep this manual for future reference
CR2450J

Table of Contents
Important Safety Adjusting Picture and
Instructions .............................1 Sound.......................................16
Adjusting Picture........................................16
Getting Started........................3
Selecting Picture Mode..............................16
Front Panel ...............................................3
Adjusting Volume.......................................16
Back Panel ...............................................4
Timer ........................................17
Remote Control .........................................5
Installing Batteries .....................................6 Setting Current Time..................................17
Effective Range of the Remote..................6 Setting Sleep Timer ...................................17
Setting Timer Off........................................17
Installation...............................7
Setting Timer On........................................18
Antenna Connections ................................7
Setting Remind Timer ................................18
Cable/Satellite Connections ......................8
Preengaging Channel................................18
Using AV Outputs.......................................9
System Setup ..........................19
Using AV1 Inputs .......................................10
Using AV2 Inputs .......................................10 Selecting an OSD Language .....................19
Using S-Video Input...................................10 Setting Color System.................................19
Using DVD Inputs ......................................11 Setting Closed Caption..............................19
Setting CCD When Mute ...........................19
Power On/Off...........................12
Parental Control......................20
Power On...................................................12
Power Off...................................................12 Setting or Clearing Password ....................20
Setting Parental Control ............................20
Tuning ......................................13
Using Child Lock Function.........................20
Auto Search...............................................13
Setting TV Rating.......................................21
Setting Reception Option...........................13
Setting MPAA Rating .................................21
Skipping an Unwanted Channel ................14
Setting Canadian English Rating...............22
Fine Tuning................................................14
Setting Canadian French Rating ...............22
Setting AFT................................................14
Troubleshooting......................23
Channel Selection...................15
Specifications .........................25

Before using the unit, be sure to read all operating instructions carefully. Please note that these are general
precautions and may not pertain to your particular unit. For example, this unit may not have the capability
to be connected to an outdoor antenna.
1. READ THESE INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
2. KEEP THESE INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED ALL WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW ALL INSTRUCTIONS
All operating and use instructions should be followed.
5. DO NOT USE THIS APPARATUS NEAR WATER
Do not use this product near water (a bathtub, washbowl, kitchen sink, laundry tub, wet
basement, or swimming pool for example)
6. CLEAN ONLY WITH DRY CLOTH
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry
cloth for cleaning.
7. ATTACHMENTS
8. ACCESSORIES
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury and serious damage to the unit.
8A.
9. VENTILATION
10. POWER SOURCES
This product should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your appliance dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
.
12. POWER-CORD PROTECTION
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Insert the power cord fully and properly into the wall outlet. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Important Safety Instructions
1
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
CAUTION-These servicing instructions are for use by
qualified service personnel only. To reduce
the risk of electric shock, do not perform any
servicing other than that contained in the
operating instructions unless you are
qualified to do so.

13. LIGHTNING
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching power lines or circuits as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY (C-UL standards)
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges. Section 810 of the National Electric Code, ANSI/NFPA
70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna discharge product,
connection to grounding electrodes, and requirements for grounding electrodes.
18. SERVICING
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the
manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result
in fire, electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
22. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally after installation by following the operating instructions. Adjust only those
controls that are covered by the operating instructions, as adjustment of other controls may result in damage and
will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance.
23. HEAT
The product should be situated away from heat
sources such as radiators, heat registers, stoves,
or other products (including amplifiers) that
produce heat.
24. NOTE TO Cable SYSTEM INSTALLER
This reminder is provided to call the Cable system
installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding
and, in particular, specifies that the cable ground
shall be connected to the grounding system of the
building, as close to the point of cable entry as
practical.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Apparatus shall no t be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

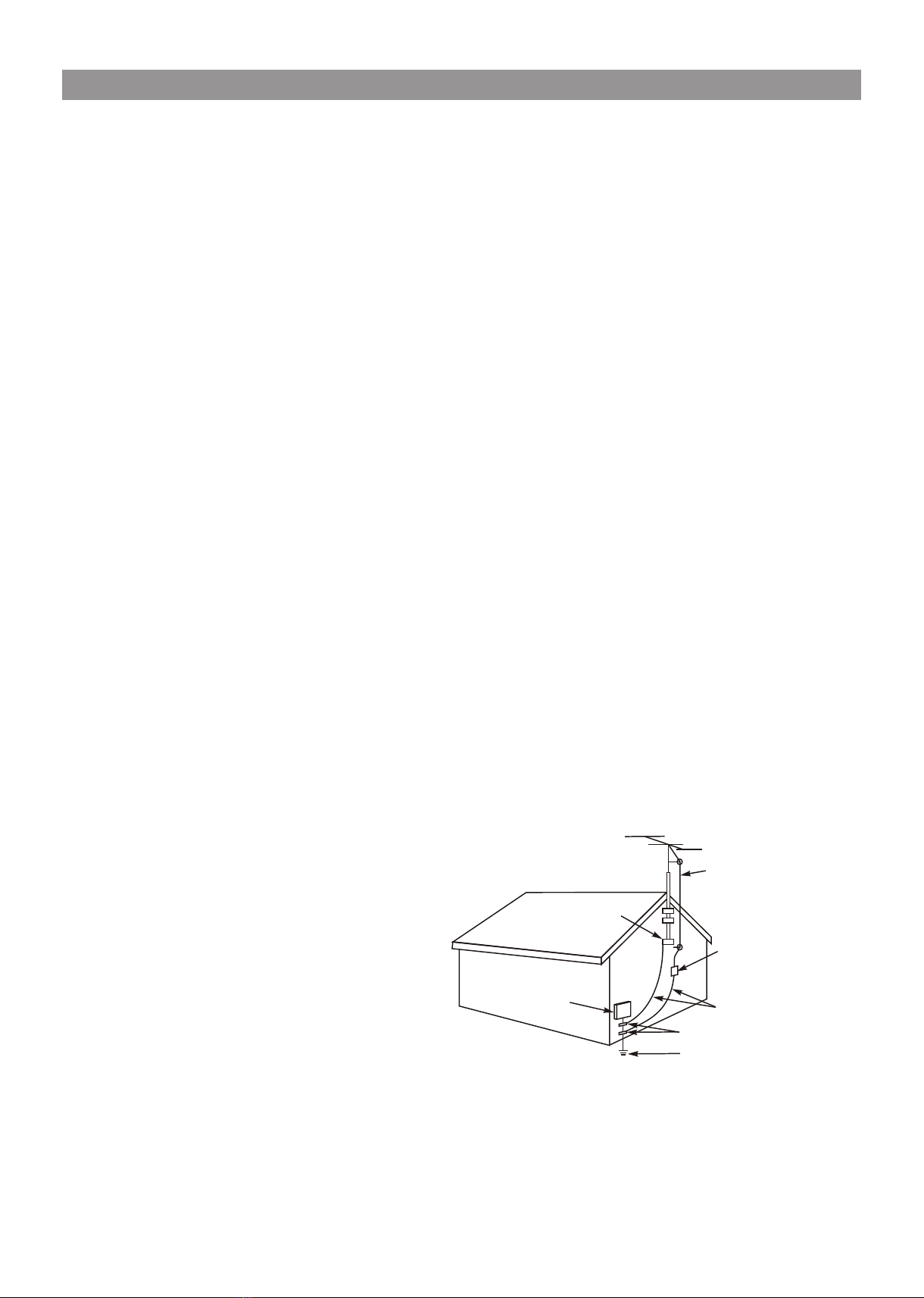

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
WARNING: FOR CONTINUED SAFETY, REPLACE SAFETY CRITICAL COMPONENTS
ONLY WITH MANUFACTURER'S RECOMMENDED PARTS (REFER TO SERVICE
LITERATURE).
2
Important Safety Instructions(continued)

Getting Started
3
Front Panel
2
1
3
4
5
6
7
8
1. CH+ button: channel up select; menu item select.
2. CH- button: channel down select; menu item select.
3. VOL+ button: volume up adjust; menu item adjust.
4. VOL- button: volume down adjust; menu item adjust.
6. AV/TV button: Video input select.
5. MENU button: To enter into menu operation.
7. Power Button.
8. Remote sensor.

Back Panel
Getting Started(continued)
4
Note:
The VIDEO(1), YCbCr and S-VIDEO use the same audio input terminals.
To prevent abnormal picture, if you are going to view the program from any one of
VIDEO(1), YCbCr or S-video, please disconnect the other two groups of video terminal(s).
1
2
53
S-VIDEO
VIDEO
AUDIO
R R
LL
Y
C
B
R
C
DVD
VIDEO
AUDIO
(1)
4

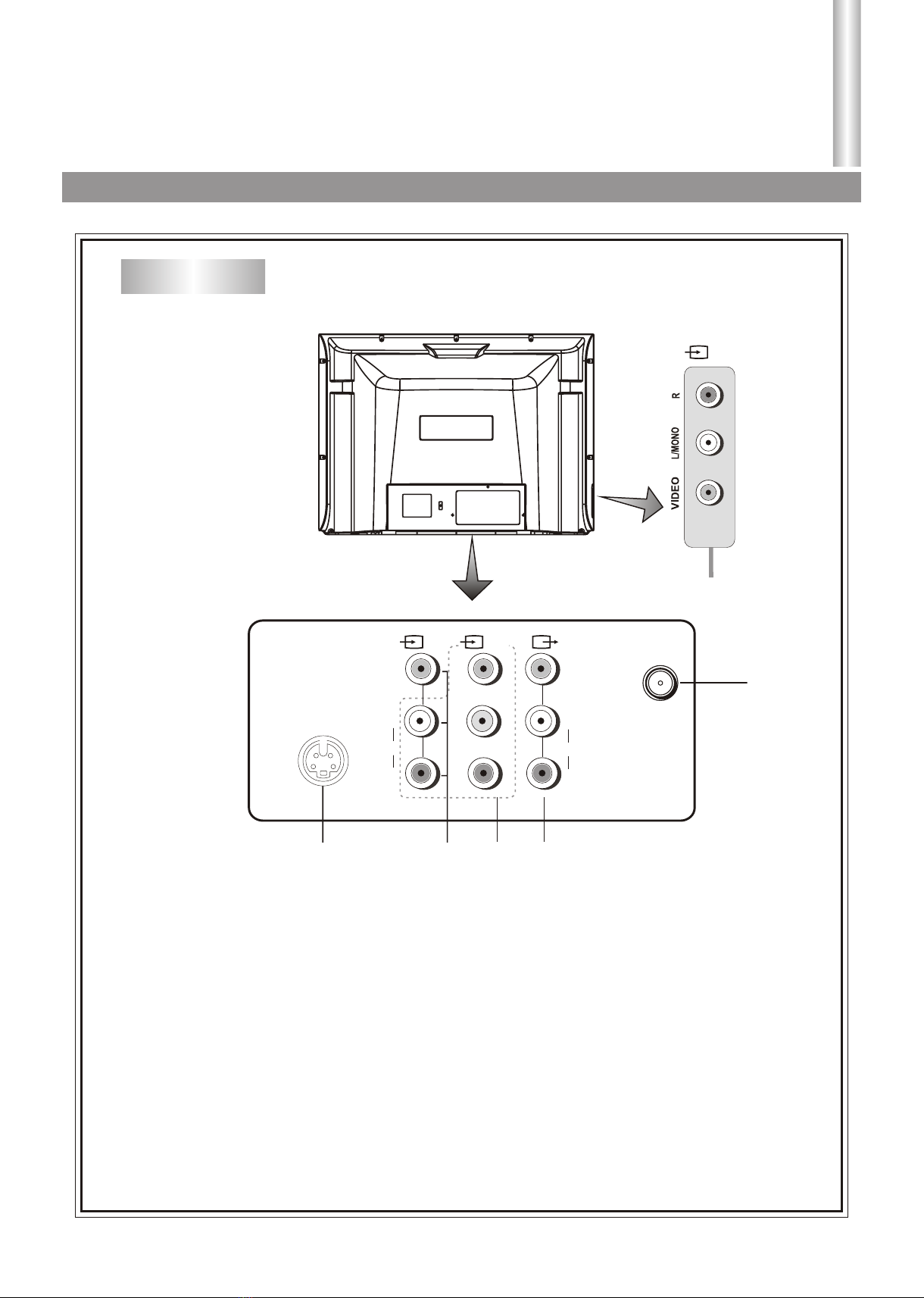

1. Antenna input
2. AV output (VIDEO, AUDIO L, R)
3. DVD input (YCbCr, AUDIO L, R)
4. AV1 input (VIDEO, AUDIO L, R)
5. S-video input
6. AV2 input (VIDEO, AUDIO L/MONO, R)
6
(2)

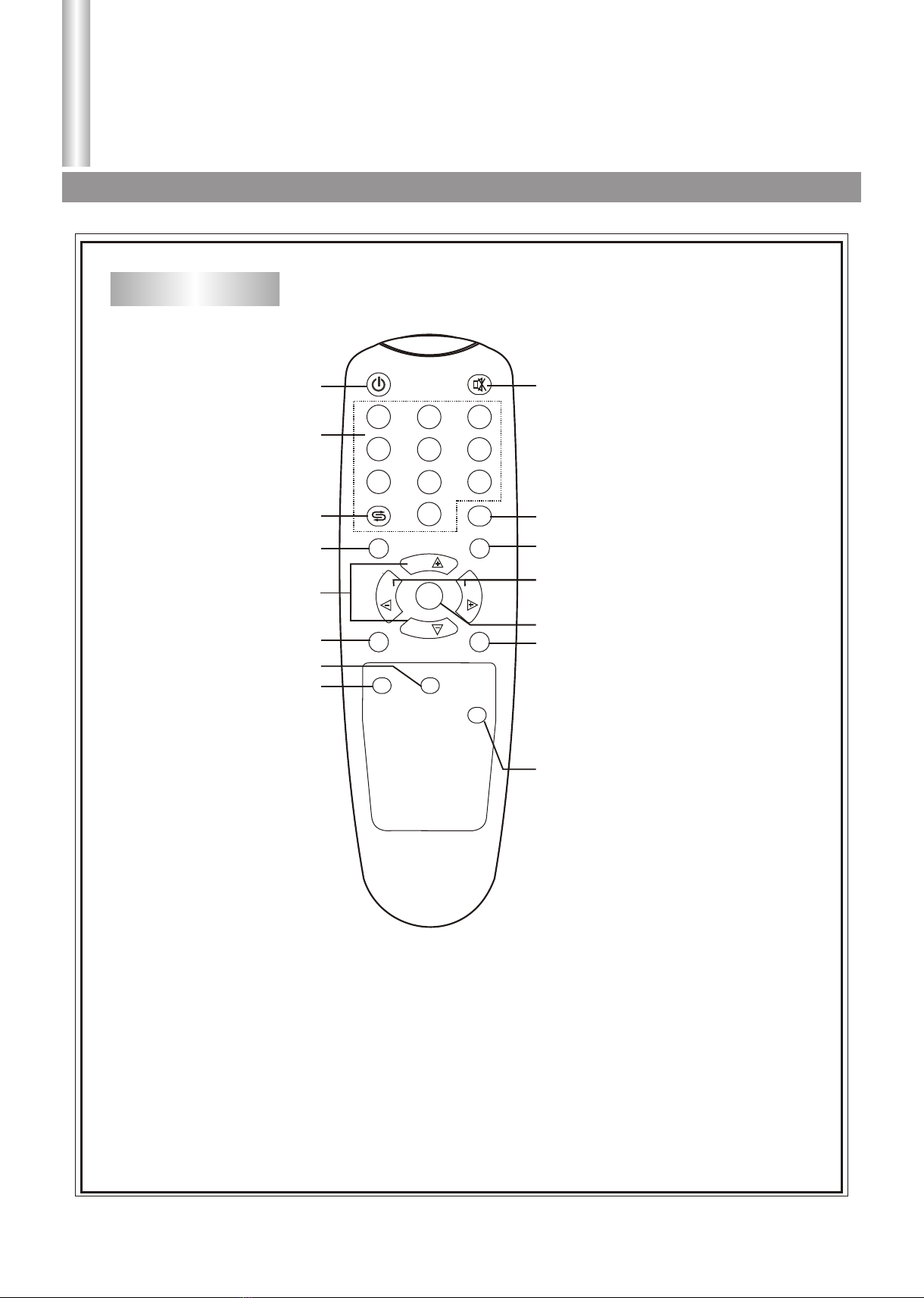

Remote Control
Getting Started(continued)
5
Access the main menu
To mute the sound
To select to view program from
external video equipment (VCR, DVD,
Set-Top Boxes ,etc.)
On-screen display
Channel select
or menu item select
Volume adjust or menu item adjust
Sleep timer
Picture mode select
Closed Caption decoder
channel select
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE
To display PICTURE menu
To switch between CATV and Air
Turn the unit on or off
Quickly returns to previous
selected channel
Direct channel selector
Parental Control

Installing Batteries
Getting Started(continued)
6
1122
Install two "AAA"
batteries matching
the +/- polarities of the
battery to the +/-
mark s ins ide the
battery compartment.
Open the battery cover. Replace the battery
cover.
When there is an obstacle between the TV and the
transmitter, the transmitter may not operate.
When direct sunlight, incandescent lamps, fluorescent
lamps or any other strong light shines on the REMOTE
SENSOR, the remote control function may be unstable.
Do not try to recharge batteries they are not intended to be
recharged.
Use only the size and type of batteries specified. Do not mix
different types of batteries together or old batteries with
fresh ones.
When the remote control will not be used for a long period of
time or when the batteries are worn out, remove the
batteries.
Do not throw the batteries into a fire. Dispose of or recycle
used batteries properly.
Do not drop, dampen or disassemble the remote control.
33
Effective Range of the Remote
Notes:
0
30 3。
。
30 30
。
。
5m5m

Installation
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the
picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Antenna Connections
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)
Follow the instructions for the type of antenna system you intend to use. If using cable or satellite, see
the next page.

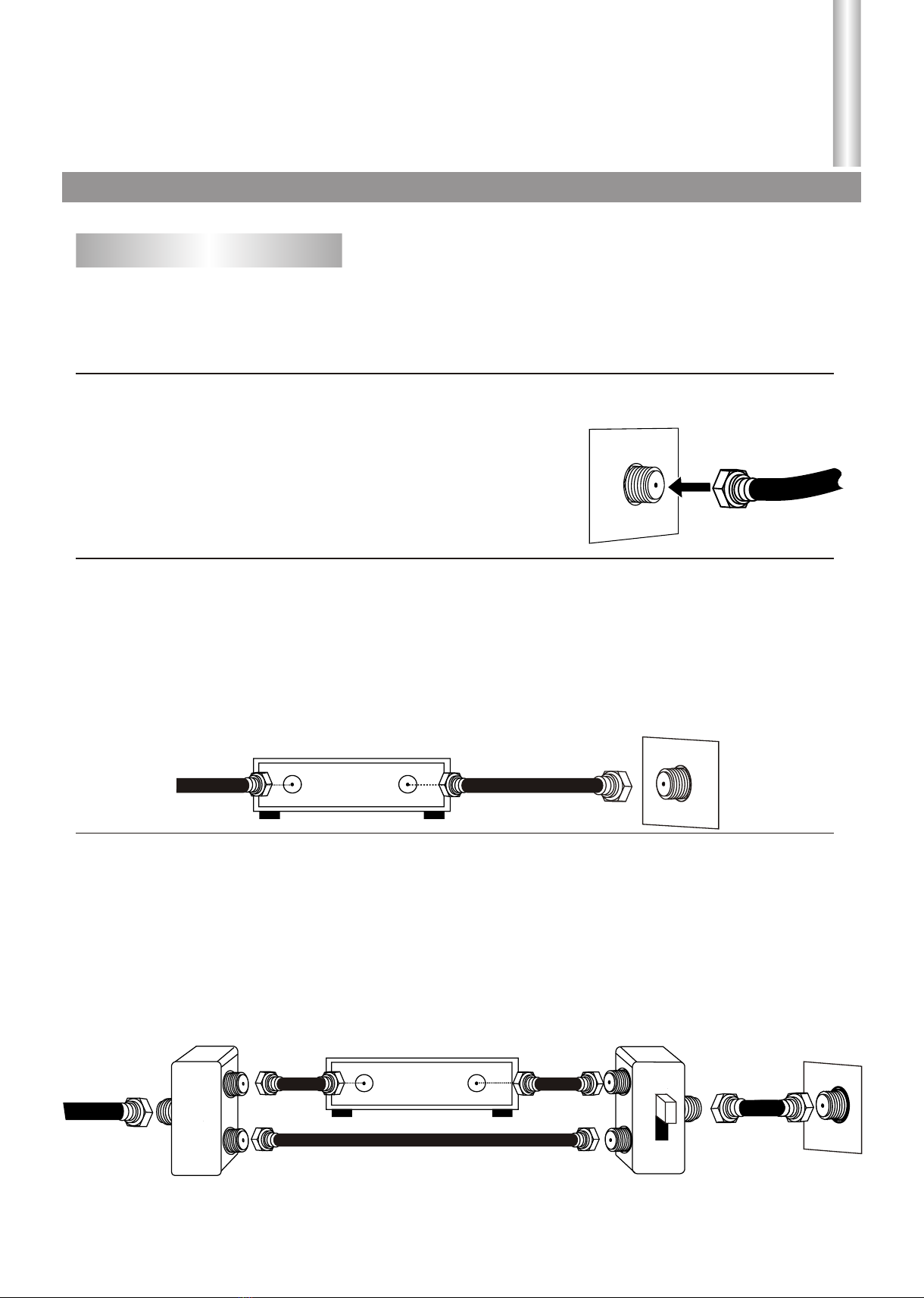

Combination VHF/UHF
Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Connect the 75 ohm cable from combination VHF/UHF antenna
to the antenna jack.
OR
If your combination antenna has a 300 ohm twin-lead wire, use a
300-75 ohm matching transformer (NOT SUPPLIED).
Connect the UHF twin-lead wire to a combiner (NOT SUPPLIED).
Connect the VHF twin-lead to a 300-75 ohm matching transformer
(NOT SUPPLIED). Attach the transformer to the combiner. Attach
the combiner to the antenna jack.
Connect the 75 ohm cable from the VHF antenna and the UHF
antenna twin-lead wire to a combiner (NOT SUPPLIED). Attach
the combiner to the antenna jack.
NOTE: If your VHF antenna has a twin-lead wire use a 300-75
ohm matching transformer, then connect the transformer to the
combiner.
Combination VHF/UHF
Antenna (Separate VHF and UHF 300 ohm twin-leads)
Separate VHF/UHF Antennas
VHF/UHF
75 OHM
VHF 75 Ohm
Combiner
UHF 300 Ohm
7
VHF 300
OHM
Combiner
UHF 300 Ohm

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE OR SATELLITE
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE
WITH SCRAMBLED PREMIUM CHANNELS
If you subscribe to a satellite service or a cable TV service which requires the use of a converter/
descrambler box, connect the incoming 75 ohm coaxial cable to the converter/descrambler box. Using
another 75 ohm cable, connect the output of the converter/descrambler or satellite box to the antenna jack
on the TV. Follow the connections shown below. Set the TV/VCR to the output channel of the
converter/descrambler or satellite box (usually 3 or 4) and use the converter/descrambler or satellite box to
select channels.
If you subscribe to a satellite service or a cable TV service in which basic channels are unscrambled and
premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter
and an A/B switch box (available from the cable company or an electronic supply store). Follow the
connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled
channels on your TV. With the switch in the "A" position, tune your TV to the output of the
converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to tune
scrambled channels.
Cable/Satellite Connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV converter box.
Some Cable TV companies offer "premium pay channels" in which the signal is scrambled. Descrambling these
signals for normal viewing requires the use of a descrambler device which is generally provided by the cable
company.
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
For basic cable service not requiring a converter/descrambler box,
connect the CATV 75 ohm coaxial cable to the VHF/UHF jack on the
rear of the TV.
75 OHM CABLE
TO TV/VCR
INCOMING
75 OHM
CATV CABLE
INCOMING
75 OHM
CATV CABLE
75 OHM
CABLE
CONVERTER/DESCRAMBLER
OR SATELLITE BOX
CONVERTER/DESCRAMBLER
SPLITTER A/B SWITCH
Installation(continued)
8

S-VIDEO
VIDEO
AUDIO
R R
LL
Y
C
B
R
C
DVD
VIDEO
AUDIO
(1)
S-VIDEO
VIDEO
AUDIO
R R
LL
Y
C
B
R
C
DVD
VIDEO
AUDIO
(1)
Using AV Outputs
Installation(continued)
To video
output
To audio
outputs
WW
YY
RR
VCR for recording
WW
YY
RR
To video
input
To audio
inputs

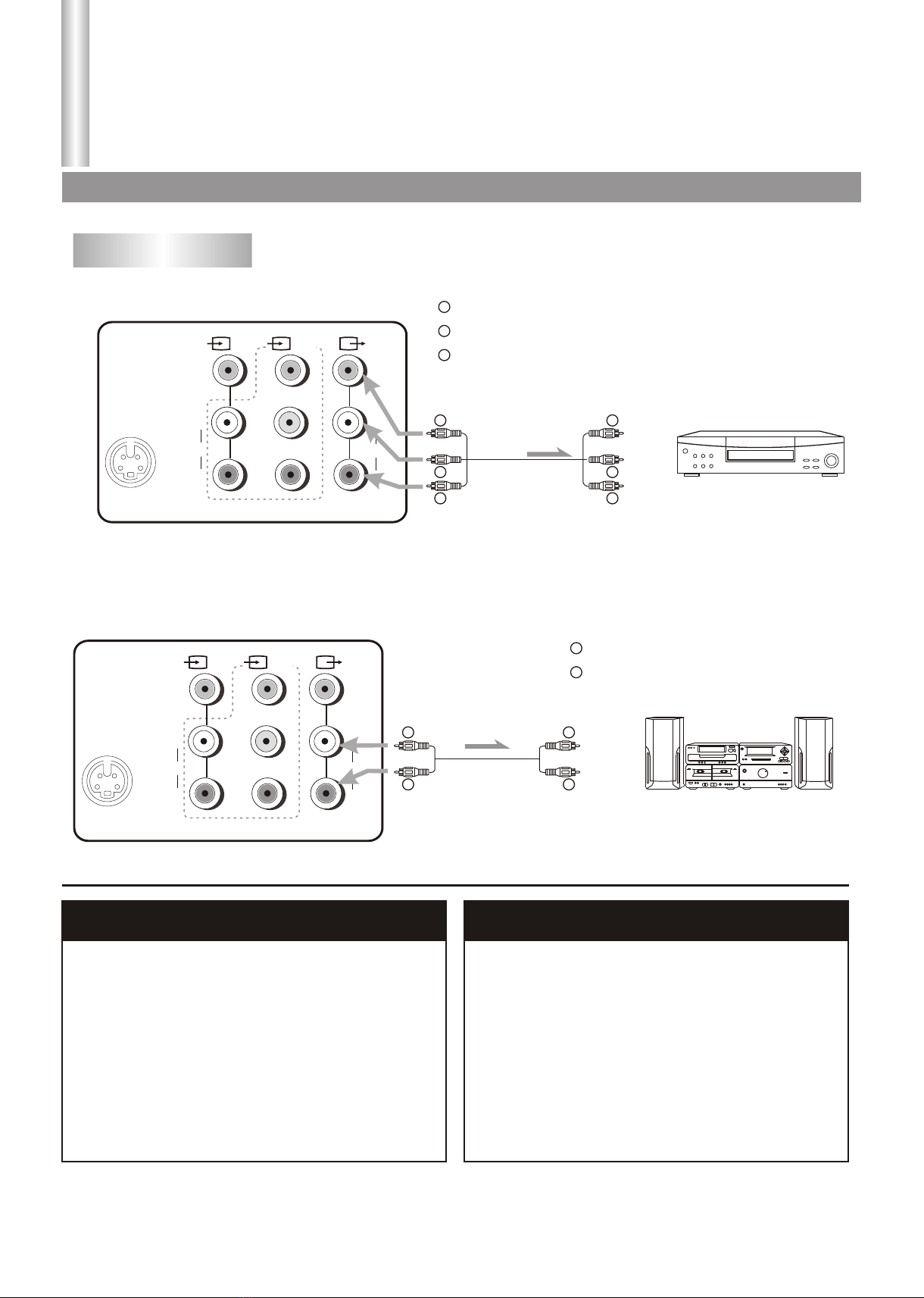

You can connect the AV output terminals to the VCR to record the program you like.
OR you can connect an audio amplifier to the AV output terminals on the TV set rear to enjoy
high-quality sound from the audio amplifier.
WW
RR
WW
RR
To audio
inputs
Yellow (VIDEO)
White (AUDIO L)
Red (AUDIO R )
WW
YY
RR
Recording TV programs Connecting Audio Amplifier
External Amplifier
Connect the AV outputs to VCR as
shown in the figure above.
Select the desired TV program that you
would like to record.
Press "RECORD" button of the VCR to
record TV program.
Connect the audio outputs to audio
amplifier as shown in the figure above.
Set amplifier volume to minimum.
Adjust amplifier to a proper volume.
Select the desired TV program that you
would like to amplify.
1
2
3
1
2
3
4
White (AUDIO L)
Red (AUDIO R )
WW
RR
Signal
Signal
Please refer to the owner's manual of your specific equipment as well.
9

(2)
S-VIDEO L
VIDEO
AUDIO
R R
L
Y
C
B
R
C
DVD
VIDEO
AUDIO
(1)
Installation (continued)
Using AV1 Inputs
VIDEO EQUIPMENT
Without S-video
terminal To video
output
To audio
outputs
WW
YY
RR
Yellow (VIDEO)
White (AUDIO L)
Red (AUDIO R )
WW
YY
RR
Using AV2 Inputs
To video
output
To audio
outputs
WW
YYRR
WW
YYRR
To video
input
To audio
inputs
To view video programs from AV inputs
Connect video equipments to AV inputs (AV1, AV2 or S-Video) as shown in the figure above.
Press AV button repeatedly to select AV1, AV2 or S-VIDEO.
1
2
Side terminals
Signal
Signal
Please refer to the owner's manual of your specific equipment as well.
10
S-VIDEO L
VIDEO
AUDIO
R R
L
Y
C
B
R
C
DVD
VIDEO
AUDIO
(1)
Using S-Video Input
VIDEO EQUIPMENT
With S-video
terminal To audio
outputs
WW
RR
White (AUDIO L)
Red (AUDIO R )
WW
RR
Signal
To S-video
output
WW
YY
RR
Camcorder, etc.
To audio
inputs
WW
RR

S-VIDEO L
VIDEO
AUDIO
R R
L
Y
C
B
R
C
DVD
VIDEO
AUDIO
(1)
RRGGBB
RRGGBB
WW
RR
WW
RR
To audio
outputS
WW
RR
GG
BB
R
B
Rear terminals
Connect DVD player to DVD inputs as shown in the figure above.
Press AV to select DVD.
1
2
Installation (continued)
Rear of DVD player
Signal
Please refer to the owner's manual of your specific equipment as well.
White (audio L)
Red (audio R, C )
Green (Y)
Blue (C )
To view DVD programs
Using DVD Inputs
To Y output To C output
B
To C output
R
11
Note:
The VIDEO(1), YCbCr and S-VIDEO use the same audio input terminals.
To prevent abnormal picture, if you are going to view the programs from any one of
VIDEO(1), YCbCr or S-video, please disconnect the other two groups of video terminal(s).

12
Power On/Off
Power On
Power Off
1
The TV set can turn off automatically with the functions of:
Off timer (need to be set in advance).
2In STANDBY mode, press the power button on the
TV set or on the remote control to turn the TV on.
If no picture appears and the indicator lights up, then the TV set is
in STANDBY mode. Please refer to step 2.
Notes:
Notes:
11Press the Power button on the remote control or on
the TV set to turn the TV off.
Insert the AC plug (with 2 blades) into an AC outlet .
The AC plug supplied with the unit is polarized to help minimize the
possibility of electric shock. If the AC plug does not fit into a
nonpolarized AC outlet, do not file or cut the wide blade. It is the
user's responsibility to have an electrician replace the obsolete
outlet.
To prevent electric shock, do not use the
polarized plug with an extension cord
receptacle or other outlet unless the blades
can be fully inserted.
21,1,
Sleep timer (need to be set in advance).
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE

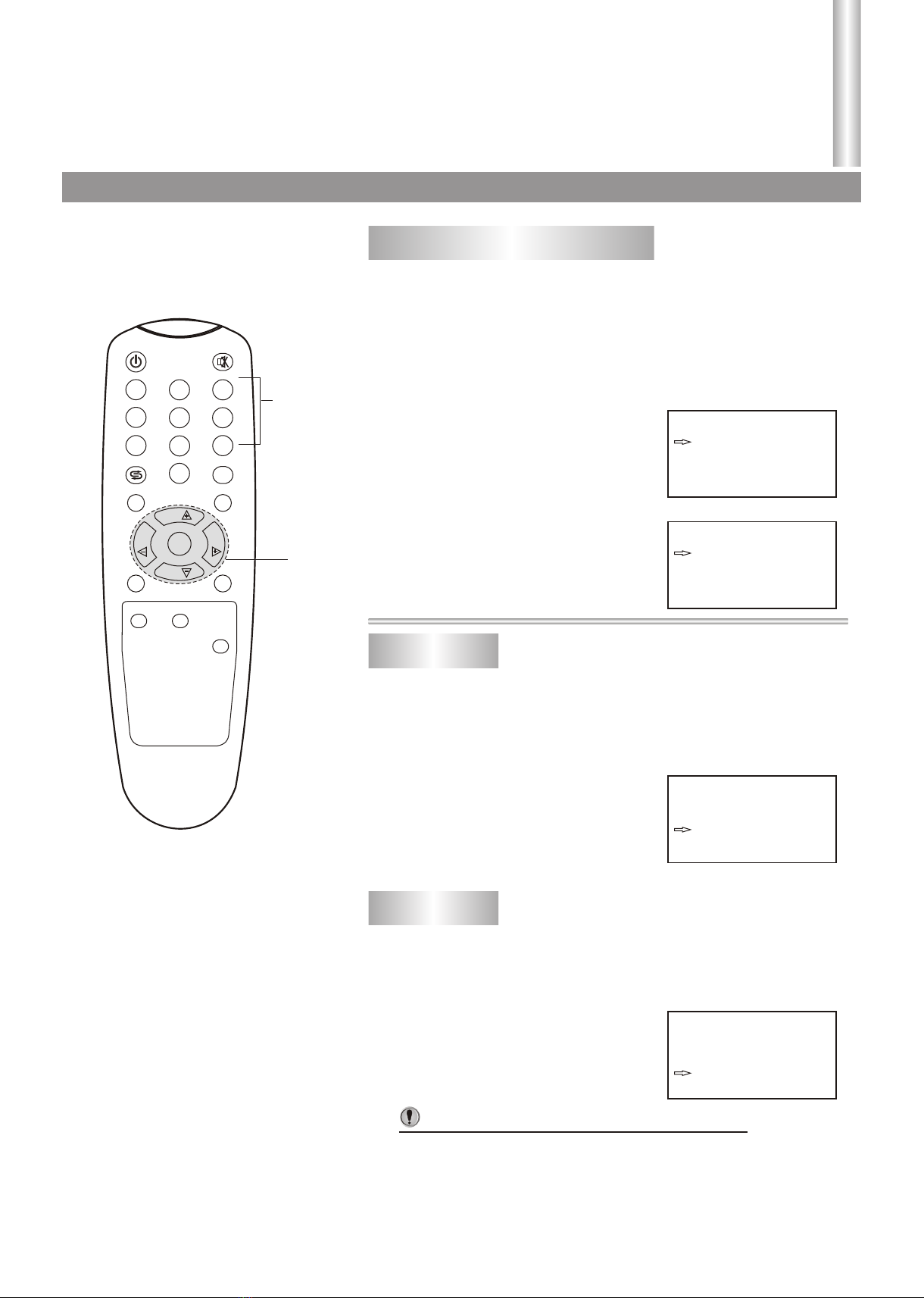

You can also press one of CH+ , CH- or 0~9 number buttons on the
remote control to turn the TV on.

Tuning
Auto Search
1
2
3
Press MENU repeatedly to display the PRESET menu.
Press VOL+ or VOL- to start auto search.
Press CH+/- repeatedly to select Auto Search item.
All active channels will be stored
into memory automatically.
Press the MENU button if you want
to stop AUTO SEARCH.
Notes:
Channel
Add/Delete
Reception
Auto Search
Fine
AFT
09
Add
CATV
56Select 34Adjust
PRESET
On
Channel
Reception 10
CATV
Auto Searching
Please Wait...
13
1~3
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE

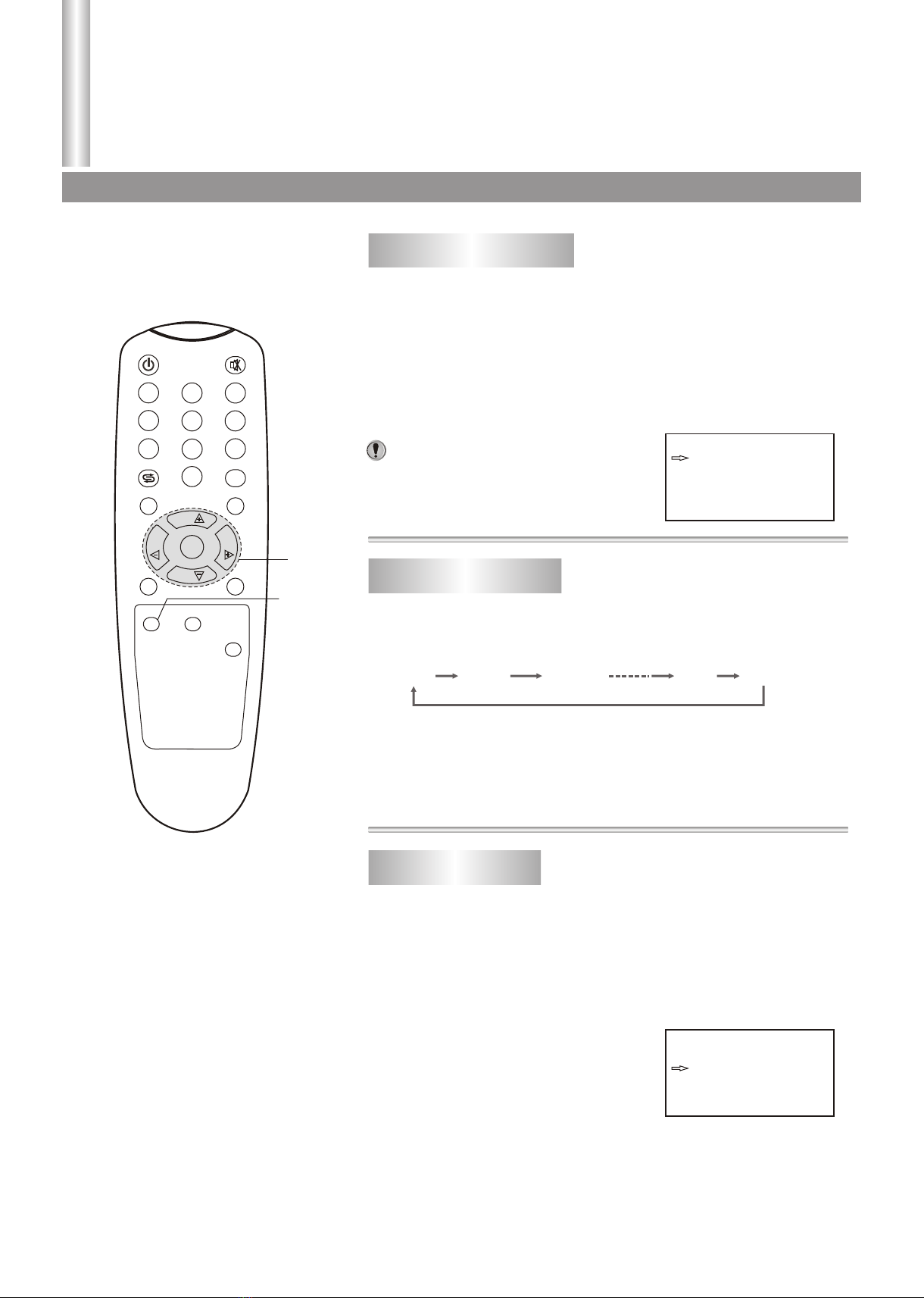

In TV mode, the set receives antenna
signals. In Cable mode the set receives
Cable TV programs. Please select:
AIR: If using VHF/UHF antenna.
CATV: If using Cable TV.
You may use the AIR/CABLE button quickly to select AIR or CATV.
Setting Reception Option
1
2
3Press VOL+ or VOL- to select CATV or Air.
Press CH+/- repeatedly to select Reception item.
Press MENU repeatedly to display the PRESET menu.
Channel
Add/Delete
Reception
Auto Search
Fine
AFT
09
Add
CATV
56Select 34Adjust
PRESET
On
AIR/CABLE

Tuning
1
2
4
3
Press MENU repeatedly to display the PRESET menu.
Press VOL+ or VOL- to select
Del.
Press CH+/- repeatedly to select Add/Delete item.
The "deleted" channel will be skipped
when you browse channels by CH+ or
CH- button.
To view a skipped channel, use digit
keys to select the "deleted" channel.
Then repeat the above steps and set
the Add/Delete item to Add.
Skipping an Unwanted Channel
(continued)
Channel
Add/Delete
Reception
Auto Search
Fine
AFT
09
Del
CATV
56Select 34Adjust
PRESET
On
Using 0-9 digit buttons to select a desired channel
that you would like to skip.
Channel
Add/Delete
Reception
Auto Search
Fine
AFT
09
Add
CATV
56Select 34Adjust
PRESET
On
1
2
3
Press MENU repeatedly to display the PRESET menu.
Press CH+/- repeatedly to
select Fine item.
Fine Tuning
Channel
Add/Delete
Reception
Auto Search
Fine
AFT
09
Del
CATV
56Select 34Adjust
PRESET
Off
Using 0-9 digit buttons to select a desired channel
that you would like to fine tune.
After Auto Search, the AFT is set to On automatically .
When you use Fine, the AFT will be set to Off automatically.
Notes:
14
+08
4Press VOL+ or VOL- to fine
tune until a best possible
picture and sound is obtained.
1
2
Press MENU repeatedly to display the PRESET menu.
Press CH+/- repeatedly to
select AFT item.
Setting AFT
If picture and sound's effect of the channel is instead poor by making
use of the Fine Tune, you can correct them by making use of AFT.
3Press VOL+ or VOL- to select
On or Off.
2~4
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE
Direct
channel
selector
Channel
Add/Delete
Reception
Auto Search
Fine
AFT
09
Del
CATV
56Select 34Adjust
PRESET
On

Channel Selection
3
Use Direct Channel Selector (0-9)
Use CH+ or CH- button
Before you select a channel, please select TV or Cable input signal. Please
see the Tuning section to set the TV/Cable input.
When you select TV, only channels received on antenna can be selected;
When you select Cable, channels received on cable can be selected.
Press one of the 0-9 digit keys and wait for 2 seconds.
Input the channel using the digit keys. Be sure to enter the
channel within 2 seconds.
Press "1" to display "C1--".
Press two digit keys to input the remaining two digits of the
channel. For example, to select channel 124, press "1", press 2,
then press 4.
Press CH+, the channel number increases;
Press CH-, the channel number decreases.
Press this button to switch between the current channel and the
previous viewed channel.
To select one-digit channel:
To select two-digit channel:
To select three-digit channel:
Previous channel button
1
2
(Available in "Cable" mode only)
15
3
Direct
channel
selector
2
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE

Item VOL- VOL+
Contrast
Color paler deeper
Brightness darker lighter
Sharpness softer sharper
Tint purplish
greenish
There are four preset picture modes (Standard, Nature, Mild and
Vivid) and one user-set picture mode (Custom).
Each preset mode has its own picture settings (Color, Brightness,
Contrast, Sharpness and Tint).
Using PP button can select picture mode quickly.
Adjusted settings are stored in Custom mode.
Adjusting Picture
Selecting Picture Mode
1
2
3
Press MENU to display the PICTURE menu.
Press VOL+ or VOL- to adjust.
Press CH+/- repeatedly to select item.
Adjusting Picture and Sound
Minus Plus
1VOL+ or VOL- button.
Press VOL+ to increase the volume.
Press VOL- to decrease the volume.
2MUTE button.
To mute the sound, press MUTE on the remote.
To restore the sound, press MUTE again.
Adjusting Volume
Mode Picture quality
Mild
Soft and moody picture
Standard
Standard picture
Nature Normal picture
Vivid Bright and dynamic picture
You may press the PIC button to quickly display the Picture
menu.
Notes:
16
Settings To select a desired picture mode
PIC
1~3
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE
PP
MUTE

Timer
Setting Current Time
1
2
3
Press MENU repeatedly to display the CLOCK menu.
Press CH+/- repeatedly to select Clock item.
Setting Sleep Timer
You can quickly set the sleep timer by using the SLEEP
button. With every press of this button the sleep time changes
as follows:
For example, you would like the TV to auto turn off in 30
minutes, you can press SLEEP repeatedly until the screen
displays the desired amount of time. If you want to cancel the
sleep timer, you can press SLEEP repeatedly until "--:--"
displays on the screen.
--:-- 2:001:450:15 0:30
Clock
On time
Off time
Attention
Exchange
Channel
10:00AM
56Select 34Adjust
CLOCK
56Select 34Adjust 56Select 34Adjust 56Select 34Adjust
--:--
--:--
--:--
--:--
- -
Press VOL +/- to set. Use VOL+ to set the
minute(00~59), use VOL- to set the hour(1~12).
The other functions in the CLOCK
menu can not be set unless you
finish setting current time.
Notes:
Setting Timer Off
1
2
3
Press MENU repeatedly to display the CLOCK menu.
Press CH+/- repeatedly to select Off time item.
For example, if you would like the TV
to turn off automatically at 10:00PM,
please set the Off time to 10:00PM.
ff .
The TV set in working mode goes to
STANDBY mode automatically
when the O time elapses
Once the function of Off time fulfills,
you need to set the Off time again if
you want to use this function next
time.
Clock
On time
Off time
Attention
Exchange
Channel
10:00AM
56Select 34Adjust
CLOCK
56Select 34Adjust 56Select 34Adjust 56Select 34Adjust
--:--
10:00PM
--:--
--:--
- -
17
Press VOL +/- to set. Use VOL+ to set the
minute(00~59), use VOL- to set the hour(1~12).
SLEEP
1~3
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE

Timer (continued)
Setting Timer On
1
2
3
Press MENU repeatedly to display the CLOCK menu.
Press CH+/- repeatedly to select On time item.
For example, if you would like the
TV to turn on automatically at
7:00PM, please set the On time to
7:00PM.
In Standby mode, the TV set auto
turns on when your preset On time
elapses.
Once the function of On time fulfills, you need to set the On
time again if you want to use this function next time.
Clock
On time
Off time
Attention
Exchange
Channel
10:00AM
56Select 34Adjust
CLOCK
56Select 34Adjust 56Select 34Adjust 56Select 34Adjust
7:00PM
10:00PM
--:--
--:--
- -
Press VOL +/- to set. Use VOL+ to set the
minute(00~59), use VOL- to set the hour(1~12).
Setting Remind Timer
1
2
3
Press MENU repeatedly to display the CLOCK menu.
Press CH+/- repeatedly to select Attention item.
Press VOL +/- to set. Use VOL+
to set the minute(00~59), use
VOL- to set the hour(1~12).
If you would like the TV to remind
you at 8:00PM, please set the
Attention to 8:00PM.
Clock
On time
Off time
Attention
Exchange
Channel
56Select 34Adjust
CLOCK
56Select 34Adjust 56Select 34Adjust 56Select 34Adjust
8:00PM
--:--
- -
Preengaging Channel
1
2
3
Press MENU repeatedly to display the CLOCK menu.
Press CH+/- repeatedly to select Exchange item.
Press VOL +/- to set. Use VOL+ to set the
minute(00~59), use VOL- to set the hour(1~12).
For example, if you would like the TV
to change to channel 18 automatically
at 8:10PM, please set the Exchange
item to 8:10PM, set Channel item to
18.
Clock
On time
Off time
Attention
Exchange
Channel
56Select 34Adjust
CLOCK
56Select 34Adjust 56Select 34Adjust 56Select 34Adjust
8:10PM
18
4Press CH+/- repeatedly to select Channel item.
5Press VOL+/- to select a desired channel number.
18
10:00AM
7:00PM
10:00PM
8:00PM
10:00AM
7:00PM
10:00PM
1~5
MENU
VOL VOL
CH
CH
1 2 3
456
78 9
0
AV
PP
PIC
P.C.
SLEEP DISPLAY
CCD
AIR/CABLE
