Jobsite CT2729 User manual

800W IMPACT DRILL CT2729
ORIGINAL MANUAL
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description: 800W IMPACT DRILL
Model: CT2729
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
EC Directive of Electromagnetic Compatibility 2014/30/EU
Harmonized standards
EN 62841-1:2015+AC:15, EN 62841-2-1:2018,
EN 55014-1:2017, EN 55014-2:2015,
EN 61000-3-2:2014, EN 61000-3-3:2013
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2021-03-22

1. SPECIFICATION
Type CT2729
Operating power 220-240V~ 50 Hz
Capacity 800W
No load speed 0-3000/min
Max. Drill chuck 13mm
Max. Drilling Capacity
Wood 25mm
Concrete 13mm
Steel 13mm
Sound pressure level(LPA) 96dB(A)
Sound pressure level(LWA) 107dB(A)
Uncertainty(K) 3bB(A)
Vibration Level
Impact drill into metal a h,D =6.55m/s2, K=1.5m/s2
Impact drill into concrete a h,ID =17.20m/s2, K=1.5m/s2
2. SAFETY INFORMATION
WARNING! Read all safety warnings and all instructions. Failure to follow all warnings and
instructions may result in electric shock, fire and/or serious injury.
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas incite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust.Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2)ELECTRICAL SAFETY
a)Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
c) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
d) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.

e) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
f) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b) Use safety equipment. Always wear eye protection.Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used.Use of these devices can reduce dust related
hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tools operation. If damaged, have the power
tool repaired before use.Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and
in the manner intended for the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for operations different from
intended could result in a hazardous situation.
5) SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
Special Warning for impact drill
• Wear ear protection. Exposure to noise can cause hearing loss.
• Use auxiliary handle with the tool. Loss of control can cause personal injury.
• Wear protective goggles. When working, sparks or flying splinters, shavings, and dust
can cause loss of vision.

3. TECHNICAL DESCRIPTION
1. Drill Chuck 2. Changeover switch (Drilling / impact drilling)
3. Depth gauge 4. Tightening knob
5. Left/right rotation switch 6. On / Off button
7. Auxiliary handle
Detail graphic C
(Attachable Handle)
(c1) Depth gauge
(c2) Depth gauge adjuster
(c3) Handle
2
3
4
1
7
5
6
C1
C2
C3

4. UNPACKING AND CHECKING
Carefully remove the product from the packaging and examine it for any sign of
damage that may have happened during shipping. Lay the contents out and
check them against the parts shown below. If any part is damaged or missing;
please contact the seller and do not attempt to use the product.

5. PREPARING THE IMPCAT DRILL
DANGER!
Danger of injury!
Before all adjustments and
settings:
• Turn the machine off.
• Pull out the power plug.
• Wait until the machine is still.
Danger of burning!
Drills and chisels become very hot
during operation. You can be burned by
this.
• Change the drills or chisels
after they have cooled down.
Attachable handle
Never use the impact drill without the attachable handle (7). The attachable handle provides
additional support and allows you to work exhaustion-free. The attachable handle is intended
for both right-and left-handed persons.
• Loosen the wing screw (c2) of the attachable handle (7) by turning it counter-clockwise.
• Guide the drill chuck (1) of the impact drill through the attachable handle.
• Then turn the attachable handle to the position which is best for you.
• Turn the wing screw (c2) clockwise until the attachable handle sits tightly and can no
longer be moved.
Depth gauge
With the depth gauge (c1), you can drill several holes with the same drilling depth.
• Loosen the wing screw (c2) of the attachable handle (7).
• Guide the depth gauge (c1) through the opening on the attachable handle.
• To set the desired drilling depth.
• Pull the depth gauge out far enough so that the distance between the point of the drill and
the point of the depth stopper is the desired drilling depth.
• Turn the wing screw (c2) clockwise until the attachable handle sits tightly and can no
longer be moved.
Using screw tools
When using screw bits, you should always use a universal bit-holder.
Only use screw bits which fit the screw head. For screws, always set the changeover switch (x)
"(Drill/ impact drill)" to the symbol. Make sure that the screw tools are used only with reduced
rotation speed .

6. OPERATION
Protective clothing
• If possible, wear designated gloves for protection from splinters and shavings.
• While working, wear designated protective goggles. Flying shavings can cause injury.
• Wear hearing protection for protection against continuous noise in the work place.
• Wear a designated dust mask for protection against airborne dust.
Special safety advice
• The machine may not get wet and may not be operated in moist surroundings.
• Connect the plug to an outlet only when the machine is turned off.
• Do not cover up the air vent, so that the machine does not overheat.
• Keep the handle dry and free from oil and grease.
• Make sure that there is no water or electricity source behind the place to the drilled.
• Fasten work pieces, if possible, to a workbench.
• Only set screws or nuts on the hammer drill when it is turned off.
Turning On/Off
• Connect the power plug to a designated outlet.
• Press and hold the On/Off button to turn the machine on.
• To turn the machine off, let go of the On/Off button.
DANGER!
Danger of injury!
If the machine is laid down before it comes to a complete standstill, parts
of the machine can become caught on the surface. This can lead to a loss
of control as well as severe injuries.
• Lay the machine down after it has come to a complete standstill.
Long duration operation
DANGER!
Danger of accident!
If the machine should fall out of your hand during long duration operation, it
will not automatically shut off. In this situation, immediately pull out the power
plug and turn the machine off. To ensure a safe long duration operation:
•Hold the machine securely at all times.
•Always keep one finger on the On/Off button to be able to turn it off quickly.
•If the machine falls out of your hand during long duration operation,
immediately pull out the power plug.

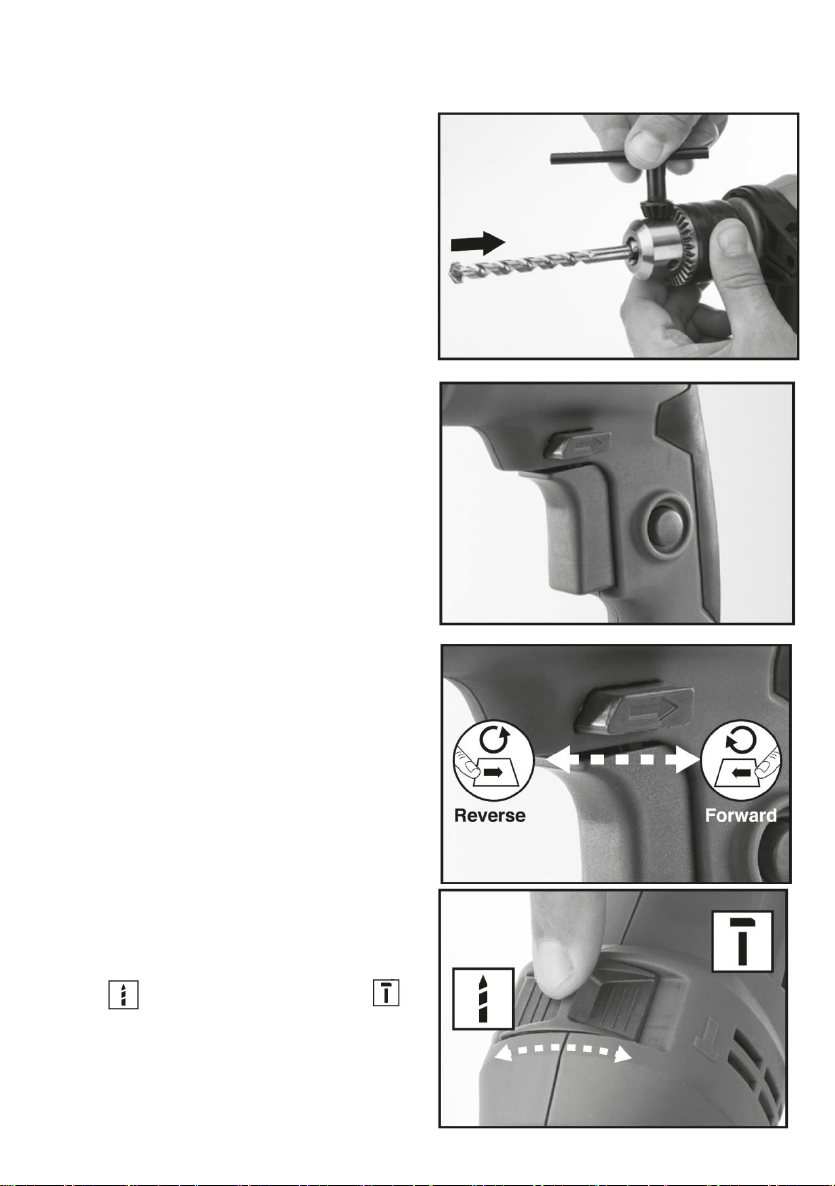

INSTALLING AND REMOVINGDRILL BITS
-Whilst gripping the base of the chuck, use chuck key to open up the chuck jaws .
-Place the bit into the chuck as far as it will go.
Again, grip the base of the chuck and turn the
chuck key clockwise so the jaws take up the grip
on the drill bit. Keep turning until the bit is firmly
and securely locked into the chuck. Repeat this
locking process on all 3 holes in the chuck.
-To remove the bit,repeat the first step as above
to open up the chuck.
*Make sure to grip the bit by the plain shank at
the bottom, gripping the flutes could lead to the
Bit coming loose.
SWITCH OPERATION
Trigger
-To activate the drill, press the trigger.
- To operate the drill for prolonged periods,
Press and hold the trigger .
•Press the switch lock button and hold.
•Release the trigger and lock button .
•To stop the drill, press the trigger once.
Note: The speed of the drill will vary depending
on the amount the trigger is pushed.
Direction of rotation
This drill is equipped with a reverse function
to help remove jammed drill bits, etc.
-Move the selector to the right to engage
reverse.
Rotary/percussion (hammer) selection
When drilling masonry,selecting the percussion
mode will improve performance.
-Ensure the chuck has stopped.
- Slide the selection switch from the rotary
position to the percussion (hammer)
setting.

DRILLING WOOD AND PLASTIC
To prevent splitting around the drill holes on
The reverse side, clamp a piece of scrap
timber (A) under the material to be drilled.
DRILLING METAL
Metals such as mild steel, aluminium
and brass may be drilled.
- Mark the point to be drilled with a
Centre Punch(B) to help the drill bit
tip to locate.
-A drop of oil on the drilled area will
Aid cutting and help prolong the life
of the bit.
DRILLING MASONRY
Start drilling at a low speed to prevent the drill bit from wandering. Once penetration is
achieved, fully depress the trigger to achieve maximum speed and hammer power.
DUST AND SWARF
A correctly fitted dust mask, suitable for the activity and in accordance to the relevant standard
must be worn.
Swarf produced by metal drilling is extremely sharp.Take precautions when clearing swarf.The
burr left on the hole is also sharp and should be removed with a suitable tool.
Always wear safety goggles.
Warning! Drill bit will be hot after use.
Warning! Before drilling check that there are no hidden hazards such as electrical cables,
water or gas pipes running below the surface - use a metal/voltage detector.
Do not expose the drill to either rain or water.

7. MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will
keep your tool in good working condition.
The motor must be correctly ventilated during tool operation.Avoid blocking the air inlets and
vacuum the ventilation slots regularly.
TROUBLESHOOTING
Note: Remove the plug from the socket before carrying out adjustment, servicing or
maintenance.
Problem
Possible cause
Solutions
Motor does
not run.
No electricity comes to
the machine.
Check the power supplier and the power line. .
The motor is overloaded
or overheated. .
Allow the machine to run idle for about 2 minutes
so that it can cool down.
The carbon brushes are
used.
Change out both carbon brushes
(Changing out carbon brushes).
8. DISPOSAL
At the end of the machine's working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
Contact your local authority for details of collection schemes in your area.
In all circumstances:
Do not dispose of this tool with domestic waste.
Do not incinerate.
Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

9. EXPLANATION OF SYMBOLS
The following symbols are used in this manual and/or on the machine:
Denotes risk of personal
injury or damage to the tool
WARNING – To
reduce the risk of
injury, user must read
instruction manual”
In accordance with
essential safety standards
of applicable European
directives
Mandatory use of eye
protection
Wear ear protection
Wear a dust mask
Wear safety gloves
Double insulated for
additional protection
Keep out of the reach of
children.

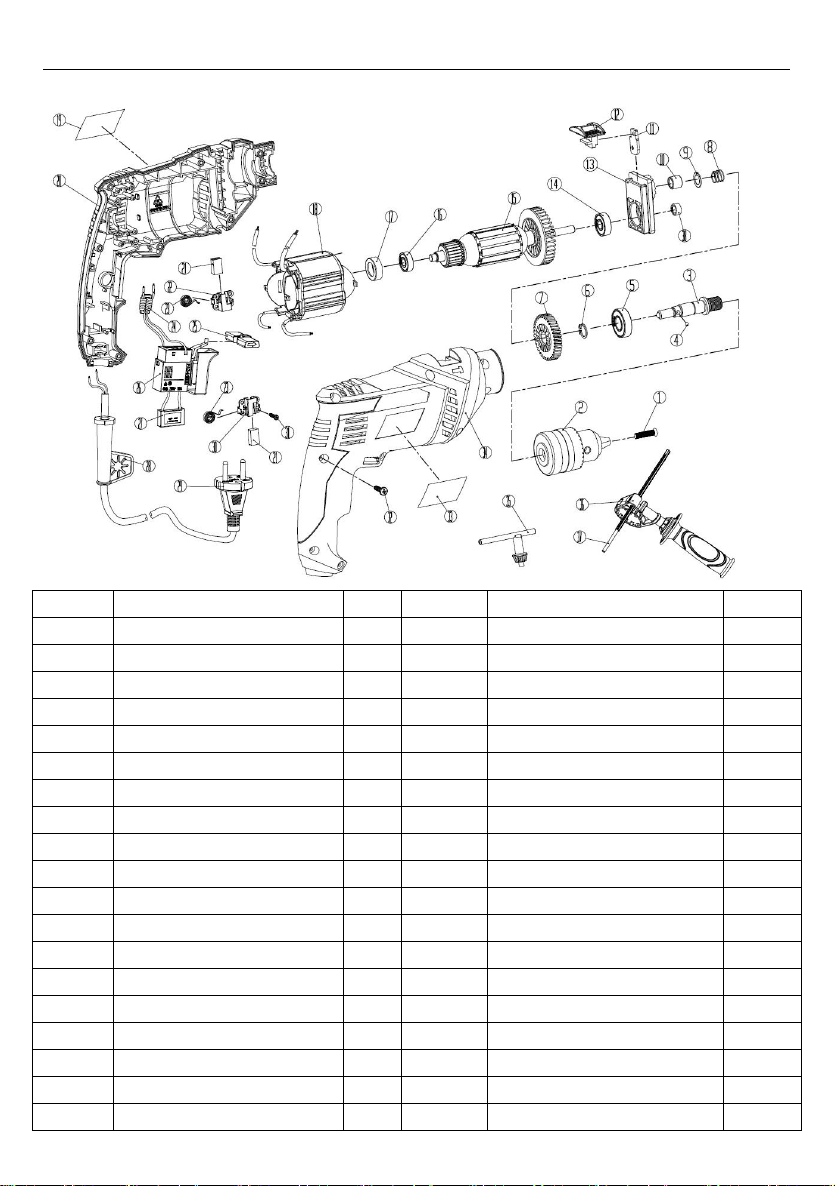

10. EXPLODED VIEW
Part no
Description
Qty
Part no
Description
Qty
No.01
Left-threaded screw M*25
1
No.20
Housing
1
No.02
Chuck
1
No.21
Carbon brush
2
No.03
Output spindle
1
No.22
Upper Brush holder
1
No.04
Steel Ball Ф3
1
No.23
Roll Spring
2
No.05
Rolling bearing 6001-2Z
1
No.24
Inductor
1
No.06
Snap ring 12
1
No.25
Forwarder/ reverse knob
1
No.07
Driven gear
1
No.26
SwitchFA2-6/1BEK
1
No.08
Spring
1
No.27
Capacitor 0.22uF 250V
1
No.09
Wearing washer
1
No.28
Cable protector
1
No.10
Needle bearing
1
No.29
Cable
1
No.11
Steel plate
1
No.30
Lower brush holder
1
No.12
Function shift knob
1
No.31
Self-tapping screw ST3*10
4
No.13
Central support bracket
1
No.32
Self-tapping screw ST4*16
9
No.14
Rolling bearing 608-2Z
1
No.33
Right label
1
No.15
Rotor
1
No.34
Upper housing
1
No.16
Rolling bearing 607-2Z
1
No.35
Chuck key
1
No.17
Bearing bushings
1
No.36
Auxiliary handle
1
No.18
Stator
1
No.37
Depth stop
No.19
Left label
1
No.38
Throwerring

CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
