JVC AV28WT5EP, AV24WT5EP User manual

AV28WT5EP / AV24WT5EP
ENGLISH
DEUTSCH
FRANÇAIS
NEDERLANDS
CASTELLANO
ITALIANO
PORTUGUÊS
VICTOR COMPANY OF JAPAN, LIMITED
AV28WT5EP
AV24WT5EP
COLOUR TELEVISION INSTRUCTIONS
FARBFERNSEHGERÄT BEDIENUNGSANLEITUNG
TELEVISEUR COULEUR MANUEL D’INSTRUCTIONS
KLEURENTELEVISIE GEBRUIKSAANWIJZING
TELEVISOR A COLOR MANUAL DE INSTRUCCIONES
TELEVISORE A COLORI ISTRUZIONI
TELEVISOR A CORES INSTRUÇÕES
LCT0897-001A-U
1200-T-CR-JMUK
©2000 VICTOR COMPANY OF JAPAN, LIMITED
LCT0897_COVER.fm Page 1 Wednesday, December 27, 2000 4:28 PM

ENGLISH
4
44
4
15 cm
10 cm 10 cm 15 cm
Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly be-
fore you begin.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE
USE OF THIS UNIT.
1. Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.
2. Avoid damaging the AC plug and power cord.
3. Avoid improper installation and never position the unit where good ventilation is unattainable.
When installing this television, distance recom-
mendations must be maintained between the
floor and wall, as well as instalment in a tightly
enclosed area or piece of furniture. Adhere to
the minimum distance guidelines shown for
safe operation.
4. Do not allow objects or liquid into the cabinet openings.
5. In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it
yourself or remove the rear cover.
6. The surface of the TV screen is easily damaged. Be very careful with it when handling the TV.
Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never
use any cleaner or detergent on it.
When you do not use this TV set for a long period of time, be sure to disconnect the power plug
from the AC socket.
CONTENTS
PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
T-V LINK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
BASIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
REMOTE CONTROL BUTTONS AND FUNCTIONS . . . . . . . .9
MENU OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
PICTURE SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
PICTURE FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
SOUND SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXT SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
INSTALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ADDITIONAL MENU OPERATIONS. . . . . . . . . . . . . . . . . . . .28
ADDITIONAL PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . .30
CH/CC NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
TV BUTTONS AND PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . .33
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
WT5EP_EN.book Page 1 Wednesday, December 27, 2000 4:45 PM

5
35(3$5$7,21
35(3$5$7,2135(3$5$7,21
35(3$5$7,21
■
■■
■&RQQHFWLQJ#WKH#$HULDO#DQG#9&5
&RQQHFWLQJ#WKH#$HULDO#DQG#9&5&RQQHFWLQJ#WKH#$HULDO#DQG#9&5
&RQQHFWLQJ#WKH#$HULDO#DQG#9&5
If connecting a VCR, follow A→B→C→D.
If not connecting a VCR, follow 1→2.
*1: To operate T-V LINK functions, a T-V LINK compatible
VCR must be connected to the EXT-2 terminal on the TV.
For details about T-V LINK functions, see “T-V LINK
FUNCTIONS” on page 5.
Note:
•
For further details, refer to the manuals provided with the
devices to be connected.
• The connecting cables are not provided.
• A video can be viewed from the VCR without performing
C . For details, refer to your VCR instruction manual.
• To connect additional external devices, please see “AD-
DITIONAL PREPARATION” on page 30.
• When a decoder is connected to a T-V LINK compatible
VCR, set the DECODER (EXT-2) function to ON. For de-
tails, see “Using the DECODER (EXT-2) function” on
page 28. Otherwise, you will not be able to view scram-
bled channels.
■
■■
■3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO
3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO
3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO
Use two AAA/R03 dry cell batteries.
Insert the batteries from the óend, making sure the ôand ó
polarities are correct.
To open the battery compartment, slide the door downwards
and lift off. Replace the door by sliding it upwards until it is se-
cure.
Note:
•
Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on
your frequency of use.
• If the remote control does not work properly, replace the
batteries.
• The batteries we supply are only for setting up and test-
ing your TV, please replace them as soon as necessary.
• Always use good quality batteries.
EXT-1
EXT-2EXT-3
SS
EXT-1
EXT-2EXT-3
SS
VCR
*1
VHF/UHF
Aerial
75-ohm Coaxial
Cable
AC Outlet
(AC 220 - 240 V,
50 Hz)
21-pin SCART Cable
75-ohm
Coaxial
Cable
AV IN/OUT
Terminal
To Aerial
Output
To Aerial
Input
WT5EP_EN.book Page 2 Wednesday, December 27, 2000 4:45 PM

6
PREPARATION
ENGLISH
■
■■
■,QLWLDO#6HWWLQJV
,QLWLDO#6HWWLQJV,QLWLDO#6HWWLQJV
,QLWLDO#6HWWLQJV
When the TV is first turned on, it enters the initial setting
mode, and the JVC logo is displayed. Follow the instructions
on the on-screen display to make the initial settings.
1 Press the Main power button on the TV.
The Power lamp lights red (for power on), thengreen (for
TV on) and the JVC logo is displayed.
Note:
•
If the power lamp stays red and does not change to
green:
Your TV is in the standby mode. Press the
ü
(Standby) button on the remote control to turn your
TV on.
• The JVC logo does not appear when your TV has
been turned on once.
In this case, use the “LANGUAGE” and “AUTO PRO-
GRAM” functions to make the initial settings. For de-
tails, see “INSTALL” on page 23.
2 Press the é
éé
ébutton.
The LANGUAGE menu appears.
3 Press the ë
ëë
ëbuttons to choose
ENGLISH. Then press the é
éé
ébut-
ton.
English is set for the on-screen display description. The
COUNTRY menu appears as a sub-menu of the AUTO
PROGRAM function.
4 Press the ì
ìì
ìand ë
ëë
ëbuttons to
choose the country where you are
now located.
1 2 3
4 5 6
7 8 9
0
P
AV
TV OK
MENU
P
TV
Main power button
Power lamp
Blue button
WT5EP_EN.book Page 3 Wednesday, December 27, 2000 4:45 PM

PREPARATION
7
5 Press the blue button to start the
AUTO PROGRAM function.
The AUTO PROGRAM menu appears and received TV
channels are automatically registered in the Programme
numbers (PR).
To cancel the AUTO PROGRAM function:
Press the èbutton.
6 After the TV channels have been
registered in the Programme num-
bers (PR), the EDIT menu appears.
You can proceed to edit the Programme numbers (PR)
using the EDIT/MANUAL function. For details, see “ED-
IT/MANUAL” on page 24.
When not using the EDIT/MANUAL function:
If you do not need to use the EDIT/MANUAL function,
go to the next step.
7 Press the é
éé
ébutton to display the
T-V LINK menu.
8 Operate the T-V LINK menu accord-
ing to the type of a VCR connected
to the EXT-2 terminal.
When a T-V LINK compatible VCR is not con-
nected:
Press the èbutton to exit the T-V LINK menu.
The T-V LINK menu disappears.
When a T-V LINK compatible VCR is connected:
Follow the operating procedure “Downloading the data
to VCR” on page 28 to transmit the Programme number
(PR) data.
9 Now, the initial settings are com-
plete, and you can watch the TV.
Note:
•
When your TV can detect the TV channel name from
the TV channel broadcast signal, it automatically
registers the TV channel name (ID) to the Pro-
gramme number (PR) in which the TV channel has
been registered.
• If a TV channel you want to view is not set to a Pro-
gramme number (PR), manually set it using the
MANUAL function. For details, see “EDIT/MANUAL”
on page 24.
• The TV channel is not registered in Programme
number PR 0 (AV). When you want to register a TV
channel to PR 0 (AV), manually set it using the MAN-
UAL function. For details, see “EDIT/MANUAL” on
page 24.
WT5EP_EN.book Page 4 Wednesday, December 27, 2000 4:45 PM

8
ENGLISH
709#/,1.#)81&7,216
709#/,1.#)81&7,216709#/,1.#)81&7,216
709#/,1.#)81&7,216
When a T-V LINK compatible VCR is connected to the EXT-
2 Terminal on the TV, it is easier to set up the VCR and to
view videos. T-V LINK uses the following features:
To use T-V LINK functions:
A T-V LINK compatible VCR is necessary.
The VCR must be connected to the EXT-2 terminal on the TV
by a fully wired SCART cable.
Note:
•
A “T-V LINK compatible VCR” means a JVC VCR with the
T-V LINK logo or a VCR with one of the following logos.
However, these VCRs may support some or all of the fea-
tures described below. For details, refer to your VCR in-
struction manual.
“Q-LINK” (a trademark of Panasonic Corporation)
“Data Logic” (a trademark of Metz Corporation)
“Easy Link” (a trademark of Phillips Corporation)
“Megalogic” (a trademark of Grundig Corporation)
“SMARTLINK” (a trademark of Sony Corporation)
■
■■
■3UH0VHW#'RZQORDG
3UH0VHW#'RZQORDG3UH0VHW#'RZQORDG
3UH0VHW#'RZQORDG
Downloadtheregistereddataon the TVchannelsfromthe TV
to the VCR.
The Preset Download function automatically begins when the
initial setting is complete or whenever the AUTO PROGRAM
or EDIT/MANUAL operations are performed.
Note:
• This function can be operated via VCR operation.
When “FEATURE NOT AVAILABLE” is displayed:
If “FEATURE NOT AVAILABLE” is displayed, the download
was not performed correctly. Before trying to download again,
ensure the following:
•
The VCR power is turned on.
• The VCR is T-V LINK compatible.
• The VCR is connected to the EXT-2 terminal.
• The SCART cable is fully wired.
■
■■
■'LUHFW#5HF
'LUHFW#5HF'LUHFW#5HF
'LUHFW#5HF
“What You See Is What You Record”
You can record to VCR the images that you are currently
viewing on TV by a simple operation.
For details, read the manual for your VCR.
Operate via the VCR. “VCR IS RECORDING” is displayed.
In the following conditions, theVCR will stop recording if
theTVisturnedoff, ifthe TVchannelor inputisswitched,
or if the menu is displayed on the TV:
• When recording images from an external device connected
to the TV.
• When recording a TV channel after it has been unscrambled
on a decoder.
• When recording a TV channel by using the TV’s output be-
cause that TV channel cannot be properly received on the
VCR’s tuner.
Note:
•
Operation via the TV is not possible.
• Generally, the VCR cannot record a TV channel that can-
not be received properly by the VCR’s tuner, even though
you can view that TV channel on the TV. However, some
VCRs can record a TV channel by using the TV’s output
if that channel can be viewed on the TV, even though the
TV channel cannot be received properly by the VCR’s
tuner. For details, refer to your VCR instruction manual.
■
■■
■79#$XWR#3RZHU#2Q29&5#
79#$XWR#3RZHU#2Q29&5#79#$XWR#3RZHU#2Q29&5#
79#$XWR#3RZHU#2Q29&5#
,PDJH#9LHZ
,PDJH#9LHZ,PDJH#9LHZ
,PDJH#9LHZ
When the VCR starts playing, the TV automatically turns on
and the images from EXT-2 terminal are displayed on the
screen.
When the VCR menu is operated, the TV automatically turns
on and the images from EXT-2 terminal are displayed on the
screen.
Note:
•
This function does not operate if your TV’s main power is
turned off. Set your TV’s main power to on (standby
mode).
WT5EP_EN.book Page 5 Wednesday, December 27, 2000 4:45 PM

9
%$6,&#23(5$7,21
%$6,&#23(5$7,21%$6,&#23(5$7,21
%$6,&#23(5$7,21
■
■■
■7XUQ#WKH#0DLQ#SRZHU#RQ
7XUQ#WKH#0DLQ#SRZHU#RQ7XUQ#WKH#0DLQ#SRZHU#RQ
7XUQ#WKH#0DLQ#SRZHU#RQ
Press the Main power button on the TV.
The Power lamp lights red and your TV is in the standby mode.
Note:
• If the Power lamp lights green, the TV is already on.
To turn the Main power off:
Press the Main power button again.
The Power lamp goes off.
Note:
•
To save energy, turn the main power off if you are not us-
ing the TV for a long period of time.
■
■■
■7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH
7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH
7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH
Press the ü
üü
ü(Standby) button, the è
èè
è
button, the ë
ëë
ëbuttons or the Number
buttons.
ThePower lamp lightsred to green and your TV will beturned on.
To turn the TV off:
Press the ü
üü
ü(standby) button again.
The Power lampchanges from green to red andthe TV enters
standby mode.
■
■■
■&KRRVH#D#79#FKDQQHO
&KRRVH#D#79#FKDQQHO&KRRVH#D#79#FKDQQHO
&KRRVH#D#79#FKDQQHO
Choose a Programme number (PR) in which the desired Pro-
gramme TV channel has been set.
Use the
ë
ëë
ë
buttons:
Press the ë
ëë
ëbuttons to choose the desired Pro-
gramme number (PR).
Use the Number buttons:
Enter the desired Programme number (PR) with the
Number buttons.
Example
•PR12
→
press
ú
and
ù
ùù
ù
.
•PR6
→
press
õ
.
Use the PR LIST:
1Press the å
åå
å(Information) button to dis-
play the PR LIST.
Main power button
Power lamp
1 2 3
4 5 6
7 8 9
0
P
AV
TV OK
MENU
P
FREEZE
SUB-P
F.T/L
TV
Number
buttons
WT5EP_EN.book Page 6 Wednesday, December 27, 2000 4:45 PM

:
BASIC OPERATION
ENGLISH
2Press the ì
ìì
ìand ë
ëë
ëbuttons to choose a
Programme number (PR). Then press the
é
éé
ébutton.
Note:
•
For Programme numbers (PR) with the CHILD
LOCK function set, the
@
@@
@
(CHILD LOCK) mark is
displayed next to the Programme number (PR) in
the PR LIST.
• You cannot use the
ë
ëë
ë
buttons to choose a Pro-
gramme number (PR) with the CHILD LOCK fun-
tion set.
• Even if you try to choose a Programme number
(PR) with the CHILD LOCK function set, the
@
@@
@
(CHILD LOCK) mark will appear, and you cannot
watch the TV channel. To watch the TV channel,
see “CHILD LOCK” on page 21.
• If you do not have a clear picture or no colour ap-
pears, change the colour system manually. See
“COLOUR SYSTEM” on page 16.
■
■■
■$GMXVW#WKH#YROXPH
$GMXVW#WKH#YROXPH$GMXVW#WKH#YROXPH
$GMXVW#WKH#YROXPH
Press the ì
ìì
ìbuttons to adjust the vol-
ume.
The Volume indicator appears and the volume changes as
you press the
–/+ buttons.
■
■■
■:DWFK#LPDJHV#IURP#H[WHUQDO#
:DWFK#LPDJHV#IURP#H[WHUQDO#:DWFK#LPDJHV#IURP#H[WHUQDO#
:DWFK#LPDJHV#IURP#H[WHUQDO#
GHYLFHV
GHYLFHVGHYLFHV
GHYLFHV
Choose an EXT terminal to which the desired external device
has been connected.
Use the
â
ââ
â
button:
Press the âbutton to choose an EXT terminal.
Pressing the âbutton changes the choice as follows:
Use the
ë
ëë
ë
buttons:
Press the ë
ëë
ëbuttons to choose an EXT terminal.
Use the PR LIST:
1Press the å
åå
å(Information) button to dis-
play the PR LIST.
2Press the ì
ìì
ìand ë
ëë
ëbuttonsto choose an
EXT terminal. Then press the é
éé
ébutton.
Note:
•
The EXT terminals are registered after the Pro-
gramme number PR 99.
• You can choose a video input signal from the S-VID-
EO signal (Y/C signal) and regular video signal
(composite signal). For details, see “K(S-VIDEO
input)” on page 19.
• If you do not have a clear picture or no colour ap-
pears, change the colour system manually. See
“COLOUR SYSTEM” on page 16.
• When choosing an EXT terminal with no input signal,
the EXT terminal number becomes fixed on the screen.
• This TV set has a function which can automatically
change over the input according to a special signal
output from an external device.(The EXT-4 terminal
does not support it.)
To return to a TV channel:
Press the èbutton,the ë
ëë
ëbuttonsor the Numberbut-
tons.
To use the Programme number PR 0 (AV):
When the TV and VCR are connected only by the Aerial
cable, choosing the Programme number PR 0 (AV) al-
lows you to view images from the VCR. Set the VCR RF
channel to the Programme number PR 0 (AV) manually.
For details, see “EDIT/MANUAL” on page 24.
Pressing the âbutton changes the choice as fol-
lows:
Note:
•
The VCR RF channel is sent as the RF signal from
the VCR.
• Also refer to your VCR instruction manual.
EXT-1
EXT-4
EXT-2
EXT-3
TV mode EXT modes
Programme
numbers
PR 1 – PR 99
EXT-1PR 0
EXT-4
EXT-2
EXT-3
TV mode EXT modes
Programme
numbers
PR 1 – PR 99
WT5EP_EN.book Page 7 Wednesday, December 27, 2000 4:45 PM

BASIC OPERATION
;
■
■■
■2SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#79
2SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#792SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#79
2SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#79
1 Press the P B
BB
Bbuttons to turn the
TV on from standby mode.
2 Press the P B
BB
Bbuttons to choose a
Programme number (PR) or an EXT
terminal.
3 Press the D
DD
D(Volume) button and
the C
CC
Cbuttons to adjust the vol-
ume.
1Press the D
DD
D(Volume) button.
The volume level indicator appears.
2Press the C
CC
Cý
ýý
ýbuttons while the volume
level indicator is displayed.
(Behind the front cover)
WT5EP_EN.book Page 8 Wednesday, December 27, 2000 4:45 PM

<
ENGLISH
5(027(#&21752/#%877216#$1'#)81&7,216
5(027(#&21752/#%877216#$1'#)81&7,2165(027(#&21752/#%877216#$1'#)81&7,216
5(027(#&21752/#%877216#$1'#)81&7,216
10XWLQJ#%XWWRQ
0XWLQJ#%XWWRQ0XWLQJ#%XWWRQ
0XWLQJ#%XWWRQ
You can turn the volume off instantly.
Press the ã
ãã
ã(Muting) button to turn off the Vol-
ume. Pressing the ã
ãã
ã(Muting) button again
resumes the previous Volume level.
21XPEHU#%XWWRQV
1XPEHU#%XWWRQV1XPEHU#%XWWRQV
1XPEHU#%XWWRQV
You can choose a Programme number (PR) by
entering the Programme number.
Example:
•PR12
→
press
ú
and
ù
.
•PR6
→
press
õ
.
You can also press the âbutton repeatedly to choose
an EXT terminal.
3=220#%XWWRQ
=220#%XWWRQ=220#%XWWRQ
=220#%XWWRQ
You can change the screen size according to the picture as-
pect ratio. Choose the optimum one from the following ZOOM
modes.
AUTO(WSS):
When a WSS (Wide Screen Signalling) signal, which shows
the aspect ratioof the picture, is included in the broadcast sig-
nal or the signal from an external device, the TV automatically
changes the ZOOM mode to 16:9 ZOOM mode or FULL
mode according to the WSS signal.
If a WSS signal is not included, the picture is displayed in ac-
cordance with the ZOOM mode set with the 4:3 AUTO AS-
PECT function.
Note:
•
For details of the 4:3 AUTO ASPECT function, see “4:3
AUTO ASPECT” on page 17.
• When the AUTO(WSS) mode does not function correctly
due to poor WSS signal quality or when you want to
change the ZOOM mode, press the
ç
button and
change to another ZOOM mode.
REGULAR:
Use to view a normal picture (4:3 aspect ratio) as its original
size is.
1 2 3
4 5 6
7 8 9
0
P
AV
TV OK
MENU
P
F.T/L
TV
How to open the cover
WT5EP_EN.book Page 9 Wednesday, December 27, 2000 4:45 PM

REMOTE CONTROL BUTTONS AND FUNCTIONS
43
PANORAMIC:
This mode stretches the left and right sides of a normal pic-
ture (4:3 Aspect Ratio) to fill the screen, without making the
picture appear unnatural.
Note:
• The top and bottom of the picture are slightly cut off.
14:9 ZOOM:
This mode zooms up the Wide Picture (14:9 Aspect Ratio) to
the upper and lower limits of the screen.
16:9 ZOOM:
This mode zooms up the Wide Picture (16:9 Aspect Ratio) to
the full screen.
16:9 ZOOM SUBTITLE:
This mode zooms up the Wide Picture (16:9 Aspect Ratio)
with subtitles to the full screen.
FULL:
This mode uniformly stretches the left and right sides of a nor-
mal picture (4:3 aspect ratio) to fill the wide TV screen.
Note:
•
Use for pictures with a 16:9 aspect ratio that have been
squeezed into a normal picture (4:3 aspect ratio), you
can restore their original dimensions.
&KRRVH#WKH#=220#PRGH
&KRRVH#WKH#=220#PRGH&KRRVH#WKH#=220#PRGH
&KRRVH#WKH#=220#PRGH
1Press the ç
çç
çbutton to display the
ZOOM menu.
2Press the ë
ëë
ëbuttons to choose a ZOOM
mode. Then press the é
éé
ébutton.
The picture expands and the chosen ZOOM mode is dis-
played in about 5 seconds.
Note:
•
The ZOOM mode may be automatically changed
due to the control signal from an external device.
When you want to return to the previous ZOOM
mode, choose the ZOOM mode again.
$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0
$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0
$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0
WXUH
WXUHWXUH
WXUH
If subtitles or the top (or bottom) of the picture are cut off, ad-
just the visible area of the picture manually.
1Press the ç
çç
çbutton.
The ZOOM menu appears.
2Press the é
éé
ébutton to display the ZOOM
mode indication.
Indicator is displayed.
3While it is displayed, press the ∞/5but-
tons to adjust the visible area vertically.
Note:
•
You cannot adjust the visible area in REGULAR or
FULL mode.
4+<3(5#6281'#%XWWRQ
+<3(5#6281'#%XWWRQ+<3(5#6281'#%XWWRQ
+<3(5#6281'#%XWWRQ
You can enjoy sounds with a wider ambience.
Press the ä
ää
ä(HYPER SOUND) button to turn
the HYPER SOUND function on or off.
Note:
•
The HYPER SOUND function does not work properly with
mono sound.
• The HYPER SOUND function can be also turned on or off
by using the SOUND SETTING menu. For details, see
“HYPER SOUND” on page 18.
WT5EP_EN.book Page 10 Wednesday, December 27, 2000 4:45 PM

44
REMOTE CONTROL BUTTONS AND FUNCTIONS
ENGLISH
5#,QIRUPDWLRQ#%XWWRQ
#,QIRUPDWLRQ#%XWWRQ#,QIRUPDWLRQ#%XWWRQ
#,QIRUPDWLRQ#%XWWRQ

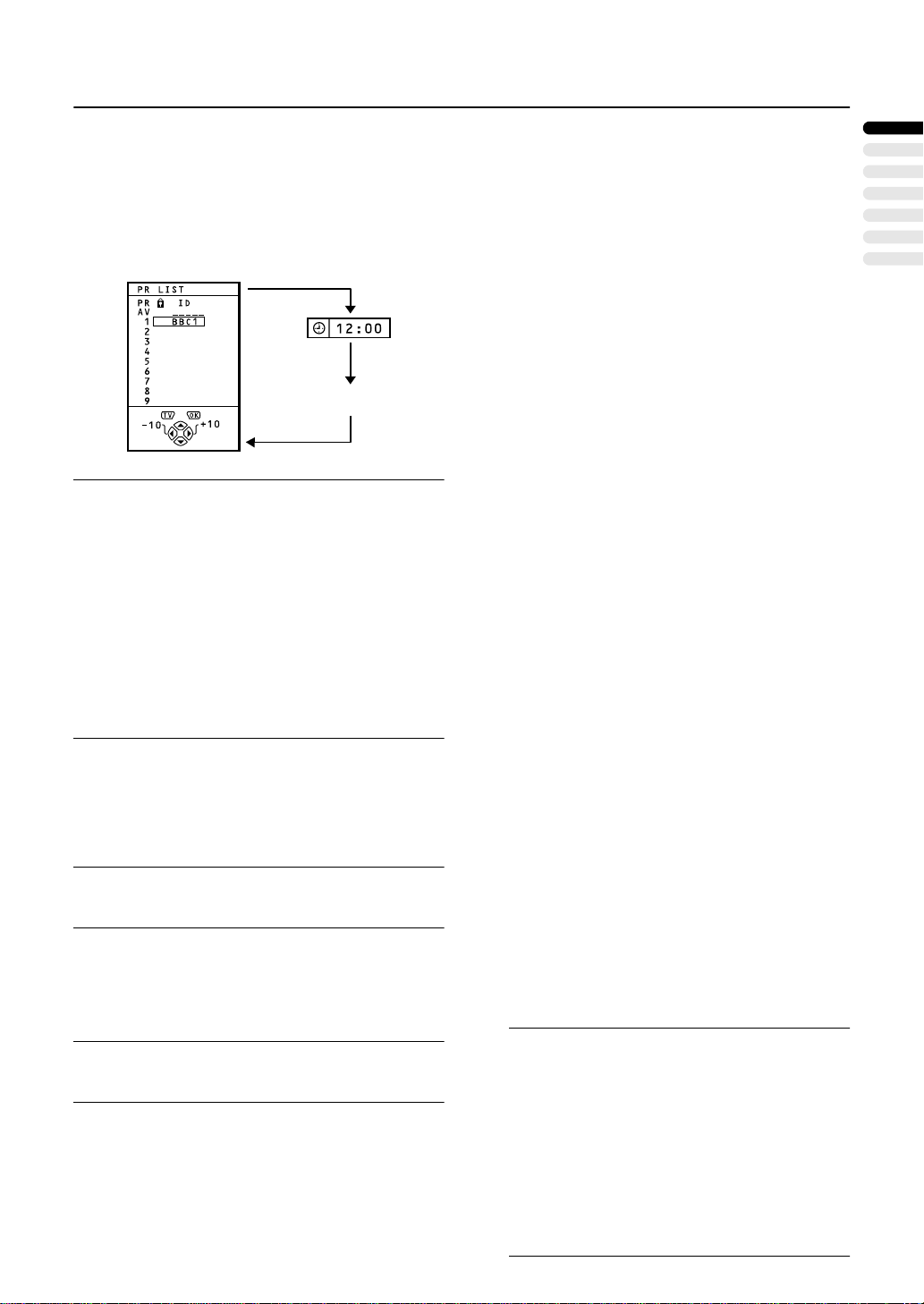

You can display the PR LIST or the Current Time on the
screen.
Press the å
åå
å(Information) button.
Pressing the å(Information) button changes the display as
follows:
Note:
•
You can choose Programme numbers (PR) or EXT termi-
nals with the PR LIST. For details, see “Use the PR LIST:”
on page 6.
• This TV uses teletext data to set the current time. If the TV
has not received a TV channel that has teletext pro-
grammes since it was turned on, the time display is blank.
To view the current time, choose a TV channel that has
teletext programmes. The time will still be displayed as
long as you do not turn off the TV, even if you choose oth-
er TV channels.
• When watching videos, an incorrect current time is some-
times displayed.
• The
å
(Information) button is also used to operate men-
us. For details, see “MENU OPERATION” on page 14.
679#%XWWRQ
79#%XWWRQ79#%XWWRQ
79#%XWWRQ
You can return to a TV channel instantly.
Press the è
èè
èbutton.
The TV returns to the TV mode and a TV channel appears.
Note:
•
The
è
button is also used to operate menus. For details,
see “MENU OPERATION” on page 14.
7ì
ìì
ì#%XWWRQV
#%XWWRQV#%XWWRQV
#%XWWRQV
You can adjust the volume.
Press the ì
ìì
ìbuttons to adjust the sound.
Note:
•
The
ì
ìì
ì
buttons are also used to operate menus. For de-
tails, see “MENU OPERATION” on page 14.
86WDQGE\#%XWWRQ
6WDQGE\#%XWWRQ6WDQGE\#%XWWRQ
6WDQGE\#%XWWRQ
Press the ü
üü
ü(Standby) button to turn the TV
on or off.
When the TV is turned on, the power lamp changes from red
to green.
9&RORXU#%XWWRQV
&RORXU#%XWWRQV&RORXU#%XWWRQV
&RORXU#%XWWRQV
The colour buttons are used for the teletext operations or the
menu operations. For details, see “~Teletext Control But-
tons and VCR (DVD Switch” on page 12 or “MENU OPER-
ATION” on page 14.
02.#%XWWRQ
2.#%XWWRQ2.#%XWWRQ
2.#%XWWRQ
The ébutton is used to operate menus. For details, see
“MENU OPERATION” on page 14.
-ë
ëë
ë#%XWWRQV
#%XWWRQV#%XWWRQV
#%XWWRQV
You can choose a Programme number (PR) or an EXT termi-
nal.
Press the ë
ëë
ëbuttons to choose an Pro-
gramme number (PR) or an EXT terminal.
The ë
ëë
ëbuttons are also used to operate menus.
For details, see “MENU OPERATION” on page 14.
=9&52'9'#&RQWURO#%XWWRQV#DQG
9&52'9'#&RQWURO#%XWWRQV#DQG9&52'9'#&RQWURO#%XWWRQV#DQG
9&52'9'#&RQWURO#%XWWRQV#DQG
9&5#
9&5#9&5#
9&5#(
((
(#'9'#6ZLWFK
#'9'#6ZLWFK#'9'#6ZLWFK
#'9'#6ZLWFK
These buttons can be used to operate a JVC brand VCR or
DVD player. Pressing the button having the same appear-
ance as the original remote control button of a device makes
the function work in the same way as the original remote con-
trol.
1Set the VCR (
((
(DVD Switch to the VCR or
DVD position.
VCR:
When you are operating the VCR, set the switch to the
VCR position.
DVD:
When you are operating the DVD player, set the switch
to the DVD position.
(
((
(
(Text):
When you are viewing Teletext programmes, set the
switch to the (
((
((Text) position.
2Press the VCR/DVD Control Button to con-
trol your VCR or DVD player.
Note:
•
If your device is not made by JVC, these buttons
cannot be used.
• Even if your device is made by JVC, some of these
buttons or any one of the buttons may not work, de-
pending on the device.
• You can use the
B
BB
B
buttons to choose a TV chan-
nel. The VCR will receive or choose the chapter the
DVD player plays back.
• Some DVD player models use the
B
BB
B
buttons for
both operating of Fast forward/backward functions
and choosing the chapter. In this case, the
1/¡
buttons do not work.
No indication
WT5EP_EN.book Page 11 Wednesday, December 27, 2000 4:45 PM

REMOTE CONTROL BUTTONS AND FUNCTIONS
45
■
■■
■~#
##
#7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#
7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#
7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#(
((
(#'9'
#'9'#'9'
#'9'#6ZLWFK
#6ZLWFK#6ZLWFK
#6ZLWFK
%DVLF#RSHUDWLRQ
%DVLF#RSHUDWLRQ%DVLF#RSHUDWLRQ
%DVLF#RSHUDWLRQ
You can view three types of teletext broadcasts on the TV:
FLOF (Fastext), TOP and WST.
1Choose a TV channel with a teletext broad-
cast.
2Set the VCR (
((
(DVD switch to the (
((
((Text)
position.
3Press æ
ææ
æ(Text) button to display the tele-
text.
Pressing
æ
ææ
æ
(Text) button changes the mode as follows:
4Choose a teletext page by pressing the
ë
ëë
ëbuttons, Number buttons or Colour
buttons.
To return to the TV mode:
Press the èbutton or æ
ææ
æ(Text) button.
Note:
•
If you have trouble receiving teletext broadcasts,
consult your local dealer or the teletext station,
• In the Text mode, the ZOOM mode is fixed to the
FULL mode.
• No menu operations are possible when viewing a
teletext programme.
8VLQJ#WKH#/LVW#0RGH
8VLQJ#WKH#/LVW#0RGH8VLQJ#WKH#/LVW#0RGH
8VLQJ#WKH#/LVW#0RGH
You can store the numbers of your favourite teletext pages in
memory and call them up quickly using the colour buttons.
To store the page numbers:
1Press ð
ðð
ðbutton to engage the List mode.
The stored page numbers are displayed at the bottom of
the screen.
2Press a Colour button to choose a posi-
tion. Then press the Number buttons to en-
ter the page number.
3Press and hold down ñ
ññ
ñ(Store) button.
The four page numbers blink white to indicate that they
are stored in memory.
To call up a stored page:
1Press the ð
ðð
ðbutton to engage the List
mode.
2Press a colour button to which a page has
been assigned.
To exit the List mode:
Press the ðbutton again.
+ROG
+ROG+ROG
+ROG
You can hold a teletext page on the screen for as long as you
want, even while several other teletext pages are being re-
ceived.
Press the ï
ïï
ï(Hold) button.
To cancel the Hold function:
Press ï(Hold) button again.
P
TV OK
MENU
P
F.T/L
TV mode Text mode
123
456
789
0AV
Hold indication
WT5EP_EN.book Page 12 Wednesday, December 27, 2000 4:45 PM

46
REMOTE CONTROL BUTTONS AND FUNCTIONS
ENGLISH
6XE0SDJH
6XE0SDJH6XE0SDJH
6XE0SDJH
Someteletextpagesincludesub-pagesthatare automatically
displayed.
You can hold any sub-page, or view it at any time.
1Press the î
îî
î(Sub-page) button to operate
the Sub-page function.
2Press the Number buttons to enter a sub-
page number.
Example:
• 3rd sub-page
→
press
û
,
û
,
û
and
ø
.
To cancel the Sub-page function:
Press the î(Sub-page) button again.
Note:
•
You can also choose a sub-page by pressing the
red or green button.
5HYHDO
5HYHDO5HYHDO
5HYHDO
Some teletext pages include hidden text (such as answers to
a quiz).
You can display the hidden text.
Each time you press the í
íí
í(Reveal) button,
text is hidden or revealed.
6L]H
6L]H6L]H
6L]H
You can double the height of the teletext display.
Press the ì
ìì
ì(size) button.
,QGH[
,QGH[,QGH[
,QGH[
You can return to the index page instantly.
Press ë
ëë
ë(Index) button.
FLOF (Fastext)/TOP/WST:
Returns to page 100 or a previously specified page.
List mode:
Returns to the page number displayed in the lower left area of
the screen.
&DQFHO
&DQFHO&DQFHO
&DQFHO
You can search for a teletext page while watching TV.
1Press the Number button to enter a page
number, or press a Colour button.
The TV searches for a teletext page.
2Press ê
êê
ê(Cancel) button.
The TV programme appears. When the TV finds the
teletext page, its page number appears in the upper left
of the screen.
3Press ê
êê
ê(Cancel) button to return to a tele-
text page when the page number is on the
screen.
Note:
•
The TV mode cannot be resumed even by pressing
the
ê
(Cancel) button. A TV programme is tempo-
rarily displayed instead of the teletext programme.
WT5EP_EN.book Page 13 Wednesday, December 27, 2000 4:45 PM

47
0(18#23(5$7,21
0(18#23(5$7,210(18#23(5$7,21
0(18#23(5$7,21
This TV has a number of functions you can operate using
menus. To fully utilize all your TV’s functions, you need to un-
derstand the basic menu operating techniques fully.
1 Press the é
éé
ébutton to display the
MENU (main menu).
The MENU (main menu) appears. In it, the titles of the
menus are displayed.
2 Press the ëbuttons to choose a
menu title, and press the é
éé
ébutton.
The menu appears.
3 Operate the menus according to the
operation description of each func-
tion.
Note:
•
For details, refer to the operation descriptions of
each function described for each menu which fol-
lows this “MENU OPERATION”.
• The display appearing at the bottom of a menu indi-
cates a button on the remote controller you can use
when you operate a chosen function.
4 Press é
éé
ébutton to complete the
setting.
The menu disappears.
To return to the previous menu:
Press å(information) button.
To exit a menu instantly:
Press the èbutton.
WT5EP_EN.book Page 14 Wednesday, December 27, 2000 4:45 PM

48
ENGLISH
3,&785(#6(77,1*
3,&785(#6(77,1*3,&785(#6(77,1*
3,&785(#6(77,1*
To display the PICTURE SETTING menu:
1Press the ébutton to display MENU
(main menu).
2Press theëbutton to choose PICTURE
SETTING, and press the ébutton.
■
■■
■7,17
7,177,17
7,17
You can select one of three TINT modes (three kinds of pic-
ture settings) to adjust the picture settings automatically.
1Press the ëbuttons to choose TINT.
2Press ìbuttons to choose a mode.
COOL:
A cool white colour base with a boost in the colour and
contrast levels that creates a more vivid picture.
WARM:
A warm orange/red colour base that creates the appro-
priate colour and contrast levels for watching films.
NORMAL:
A normal white colour base with normal colour and con-
trast levels.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
■
■■
■3LFWXUH#$GMXVWPHQW
3LFWXUH#$GMXVWPHQW3LFWXUH#$GMXVWPHQW
3LFWXUH#$GMXVWPHQW
You can change the picture settings of each TINT mode as
you like.
The picture settings changed are stored in the TINT mode.
1Press the ëbuttons to choose an item.
2Press the ìbuttons to change the set-
ting.
Note:
•
You can change the HUE setting (picture hue) only
when the colour system is NTSC 3.58 or NTSC 4.43.
To return to the default settings in each TINT
mode:
Press the blue button.
Returns the picture settings in the currently chosen TINT
mode to the default settings, and stores them inthe TINT
mode again.
3Press the é
éé
ébutton to complete the set-
tings.
The menu disappears.
■
■■
■(&2#02'(
(&2#02'((&2#02'(
(&2#02'(
When you set the ECO MODE function to ON, the screen
contrast is automatically adjusted to a setting suitable for the
brightness of your room. This reduces eye strain for you and
the power consumption of the TV.
1Press ëbuttons to choose ECO MODE.
2Press ìbuttons to choose ON.
To cancel the ECO MODE function:
Press ìbuttons to choose OFF.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
ïItem î
Lower CONTRAST
(picture contrast) Higher
Darker BRIGHT
(picture brightness) Brighter
Softer SHARP
(picture sharpness) Sharper
Lighter COLOUR
(picture colour) Deeper
Reddish HUE
(picture hue) Greenish
WT5EP_EN.book Page 15 Wednesday, December 27, 2000 4:45 PM

49
3,&785(#)($785(6
3,&785(#)($785(63,&785(#)($785(6
3,&785(#)($785(6
To display the PICTURE FEATURES menu:
1Press the é
éé
ébutton to display MENU
(main menu).
2Press the ëbutton to choose PICTURE
FEATURES, and press the ébutton.
■
■■
■$872#915
$872#915$872#915
$872#915
The AUTO VNR function optimally reduces noise of the TV
automatically according to the noise of the current picture.
The function also adjusts the optimum Sharpness (SHARP).
1Press the ëbuttons to choose AUTO
VNR.
2Press the ìbuttons to choose AUTO.
MIN:
The AUTO VNR function is cancelled. When you set the
mode to AUTO but feel that the sharpness of the original
picture has not be reproduced fully, change the mode to
MIN. However, a noise remaining in the original picture
may be emphasized.
MAX:
This mode always maximizes the noise reduction effect
irrespective of state of the picture. When you set the
mode to AUTO but feel that the noise is remarkable,
change the mode to MAX. However, thismay reduce the
sharpness of the picture.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
■
■■
■&2/285#6<67(0
&2/285#6<67(0&2/285#6<67(0
&2/285#6<67(0
The colour system is chosen automatically. However, if the
picture is not clear or no colour appears, choose the colour
system manually.
1Press the ëbuttons to choose COLOUR
SYSTEM. Then press the é
éé
ébutton.
The Sub-menu of the COLOUR SYSTEM function ap-
pears.
2Press the ìbuttons to choose the ap-
propriate colour system.
PAL:
PAL system
SECAM:
SECAM system
NTSC 3.58:
NTSC 3.58 MHz system
NTSC 4.43
NTSC 4.43 MHz system
AUTO:
This function detects a colour system from the input sig-
nal. Only when you are viewing a picture from Pro-
gramme number PR 0 (AV), or EXT terminal, you can
choose using the AUTO function.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
Note:
•
The AUTO function may not function properly if you
have poor signal quality. If the picture is abnormal in
the AUTO function, choose another colour system
manually.
• When in the Programme numbers PR 0 (AV) to PR
99, you cannot choose NTSC 3.58 or NTSC 4.43.
WT5EP_EN.book Page 16 Wednesday, December 27, 2000 4:45 PM

4:
PICTURE FEATURES
ENGLISH
■
■■
■7=6#$872#$63(&7
7=6#$872#$63(&77=6#$872#$63(&7
7=6#$872#$63(&7
This function only works when the ZOOM mode is set to
AUTO (WSS) mode. It sets the ZOOM mode you want to use
for when a WSS signal is not included in the broadcast signal
or the signal from an external device. You can choose one of
three ZOOM modes.
Note:
•
For details of the AUTO(WSS) mode, see the “AU-
TO(WSS)” section within “3ZOOM Button” on page 9.
1Press the ëbuttons to choose 4:3 AUTO
ASPECT. Then press the é
éé
ébutton.
The Sub-menu of the 4:3 AUTO ASPECT function ap-
pears.
2Press the ëbuttons to choose a ZOOM
mode.
3Press the é
éé
ébutton to complete the set-
tings.
The menu disappears.
WT5EP_EN.book Page 17 Wednesday, December 27, 2000 4:45 PM

4;
6281'#6(77,1*
6281'#6(77,1*6281'#6(77,1*
6281'#6(77,1*
To display the SOUND SETTING menu:
1Press the é
éé
ébutton to display MENU
(main menu).
2Press theëbutton to choose SOUND
SETTING. Then press the é
éé
ébutton.
■
■■
■67(5(2#2#,‡,,
67(5(2#2#,‡,,67(5(2#2#,‡,,
67(5(2#2#,‡,,
When you are viewing a bilingual broadcast programme, you
can choose the sound from Bilingual I (Sub I) or Bilingual II
(SubII). When thestereo broadcastingis receivedpoorly,you
can change from stereo to mono sound so that you can hear
the broadcast more clearly and easily.
1
Press
ë
buttons to choose STEREO / I • II.
2Press ìbuttons to choose a sound
mode.
E :Stereo sound
H :mono sound
ý ýF :Bilingual I (sub I)
ý G :Bilingual II (sub II)
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
Note:
•
The sound mode you can choose differs depending
on the TV programme.
• This function does not work in the EXT modes. And
this function does not appear in the SOUND SET-
TING menu.
■
■■
■6RXQG#$GMXVWPHQW
6RXQG#$GMXVWPHQW6RXQG#$GMXVWPHQW
6RXQG#$GMXVWPHQW
You can adjust the sound to your liking.
1Press the ëbuttons to choose an item.
2Press the ìbuttons to adjust it.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
■
■■
■+<3(5#6281'
+<3(5#6281'+<3(5#6281'
+<3(5#6281'
You can enjoy sounds with a wider ambience.
1Press ëbuttons to choose HYPER
SOUND.
2Press ìbuttons to choose ON.
To cancel the HYPER SOUND function:
Press the ìbuttons to choose OFF.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
Note:
•
The HYPER SOUND function does not work properly
with mono sound.
• You can turn on or off the HYPER SOUND function
with a single press. For details, see “4HYPER
SOUND Button” on page 10.
ïItem î
Weaker BASS Stronger
Weaker TREBLE Stronger
Left BALANCE Right
WT5EP_EN.book Page 18 Wednesday, December 27, 2000 4:45 PM

4<
ENGLISH
(;7#6(77,1*
(;7#6(77,1*(;7#6(77,1*
(;7#6(77,1*
To display EXT SETTING menu:
1Press the é
éé
ébutton to display MENU
(main menu).
2Press the ëbutton to choose EXT SET-
TING. Then press the é
éé
ébutton.
■
■■
■K
KK
K+609,'(2#LQSXW,
+609,'(2#LQSXW,+609,'(2#LQSXW,
+609,'(2#LQSXW,
When connecting a device (such as S-VHS VCR) which en-
ables an S-VIDEO signal (Y/C signal) to be output, you can
enjoy high-quality picture of the S-VIDEO signal (Y/C signal).
Preparation:
• At first, read the Device Instruction Manual and “ADDITION-
ALPREPARATION” onpage 30 toconnect the deviceto the
TV properly. Second, follow the Device Instruction Manual
to set the device so that a S-VIDEO signal (Y/C signal) can
be output to the TV.
• Do not set K
KK
K (S-VIDEO input) to the EXT terminal con-
nected to a device which cannot output a S-VIDEO (Y/C sig-
nal). If it is set wrongly, a picture cannot appear.
1Press the ëbuttons or ìbuttons to
choose an EXT terminal.
2Press the yellow button and set the K
KK
K
(S-VIDEO input).
A K
KK
K(S-VIDEO input) mark is displayed. You can view
an S-VIDEO signal (Y/C signal) instead of the regular
video signal (composite signal).
To cancel the
K
KK
K
(S-VIDEO input) setting:
Press the yellow button and turn off K
KK
K(S-VIDEO in-
put) mark.
The regular video signal (composite signal) pictures are
resumed.
3Press the é
éé
ébutton to complete the set-
ting.
The menu disappears.
Note:
•
The EXT-1 terminal does not support S-VIDEO signal
(Y/C signal) and you cannot set
K
KK
K (S-VIDEO input)
in the EXT-1 terminal.
• Setting K
KK
K (S-VIDEO input) changes the head
character from “E” to “S”. For example, “E2” is
changed to “S2”.
• Even an device which enables the S-VIDEO signal (Y/
C signal) to be output may output a regular video sig-
nal (composite signal) depending on the device set-
ting. If a picture cannot appear because
K
KK
K (S-
VIDEO input)
setting has been made, read the device
Instruction Manual carefully again to check for the de-
vice settings.
■
■■
■/,67
/,67/,67
/,67
You can have a name corresponding to the devices connect-
ed for each EXT terminal. Giving a name to an EXT terminal
makes the EXT terminal number appear on the screen, to-
gether with the name.
1Press the ëbuttons or ìbuttons to
choose an EXT terminal.
2Press the blue button to display the name
list (LIST).
P
P
EXT-1
EXT-3
EXT-2
EXT-4
TV
P
P
EXT-1
EXT-3
EXT-2
EXT-4
TV
WT5EP_EN.book Page 19 Wednesday, December 27, 2000 4:45 PM
