JVC AV-65WP55 User manual

For Models:
A V-65WP55
A V-56WP55
A V-48WP55
Illustration of AV-65WP55 and RM-C1257G
In the spaces below, enter the model and serial number of your television (located
at the rear of the television cabinet). Staple your sales receipt or invoice to the
inside cover of this guide. Keep this useKs guide in a convenient place for future
reference, KeeP the carton and origina! packaging for future use,
Model Number:
LCT 1606-001A-A
Serial Number: 0404KGI-II-IM

CAUTION: To reduce the risk of electric shock. Do not
remove cover (or back). No user serviceable
parts inside. Refer servicing to qualified service
personnel.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV
SET TO RAIN OR MOISTURE.
CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES
REGARDING THE USE OF THIS UNIT.
1. Operate only from the power source specified on the unit.
2. Avoid damaging the AC plug and power cord.
3. Avoid Improper installation and never position the unit where good
ventilation is unattainable.
4. Do not allow objects or liquid into the cabinet openings.
5. In the event of trouble, unplug the unit and call a service technician. Do
not attempt to repair it yourself or remove the rear cover.
Changes or modifications not approved by JVC could void the warranty.
* When you don't use this TV set for a long period of time, be sure to
disconnect both the power plug from the AC outlet and antenna for your
safety.
* To prevent electric shock do not use this polarized plug with an
extension cord, receptacle or other outlet unless the blades can be fully
inserted to prevent blade exposure.
IMPORTANT RECYCLI NG IN FORMATION I
This product utilizes both a Cathode Ray Tube (CRT) and other components that |
Contain lead, Disposal Of these materials may be regulated in your c0mmunity due to I
environmental considerations. For disposal or recycling information, please contact |
YOUr local authorities, Or the Electronic industries Alliance; http;!!www,eiae,0rg | I

CAUTION:

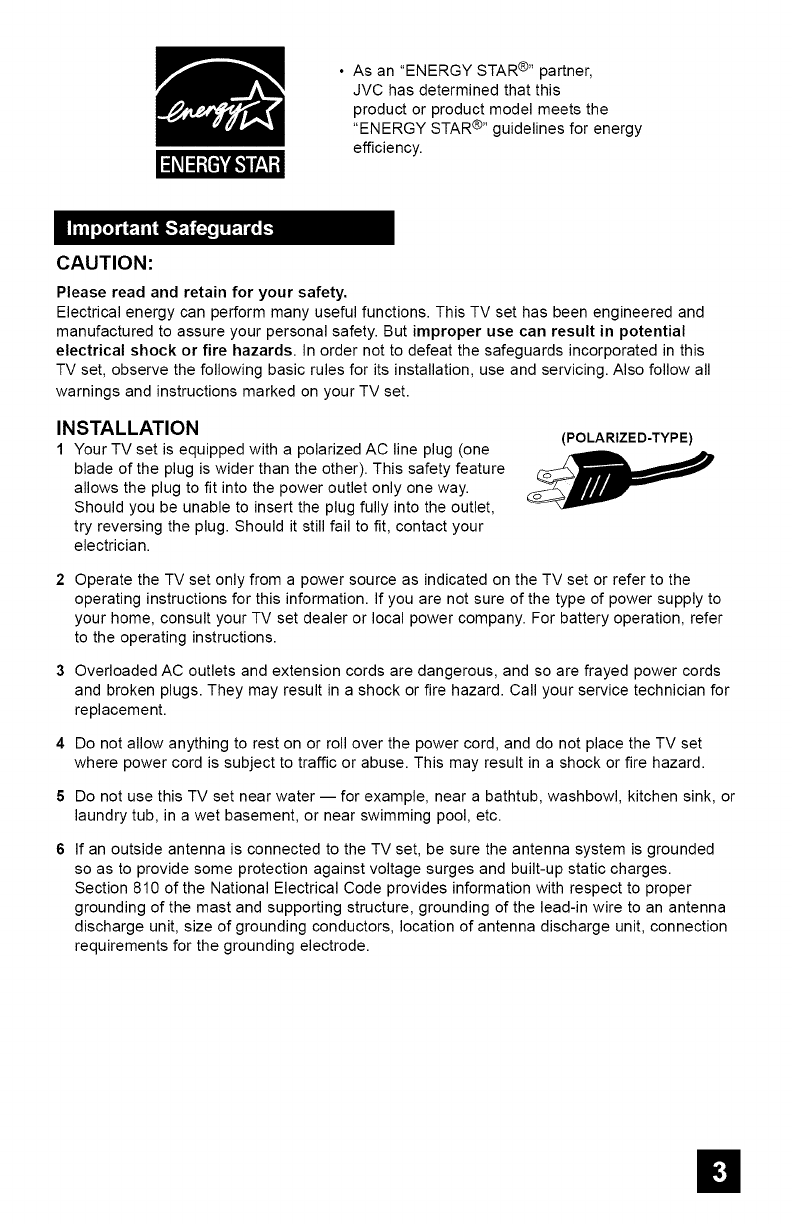

•As an "ENERGY STAR®" partner,
JVC has determined that this
product or product model meets the
"ENERGY STAR®'' guidelines for energy
efficiency.
Please read and retain for your safety.
Electrical energy can perform many useful functions. This TV set has been engineered and
manufactured to assure your personal safety. But improper use can result in potential
electrical shock or fire hazards. In order not to defeat the safeguards incorporated in this
TV set, observe the following basic rules for its installation, use and servicing. Also follow all
warnings and instructions marked on your TV set.
INSTALLATION
1 Your TV set is equipped with a polarized AC line plug (one
blade of the plug is wider than the other). This safety feature
allows the plug to fit into the power outlet only one way.
Should you be unable to insert the plug fully into the outlet,
try reversing the plug. Should it still fail to fit, contact your
electrician.
(POLARIZED-TYPE)
2Operate the TV set only from a power source as indicated on the TV set or refer to the
operating instructions for this information. If you are not sure of the type of power supply to
your home, consult your TV set dealer or local power company. For battery operation, refer
to the operating instructions.
3 Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords
and broken plugs. They may result in a shock or fire hazard. Call your service technician for
replacement.
4Do not allow anything to rest on or roll over the power cord, and do not place the TV set
where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.
5Do not use this TV set near water -- for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near swimming pool, etc.
6 If an outside antenna is connected to the TV set, be sure the antenna system is grounded
so as to provide some protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna discharge unit, connection
requirements for the grounding electrode.

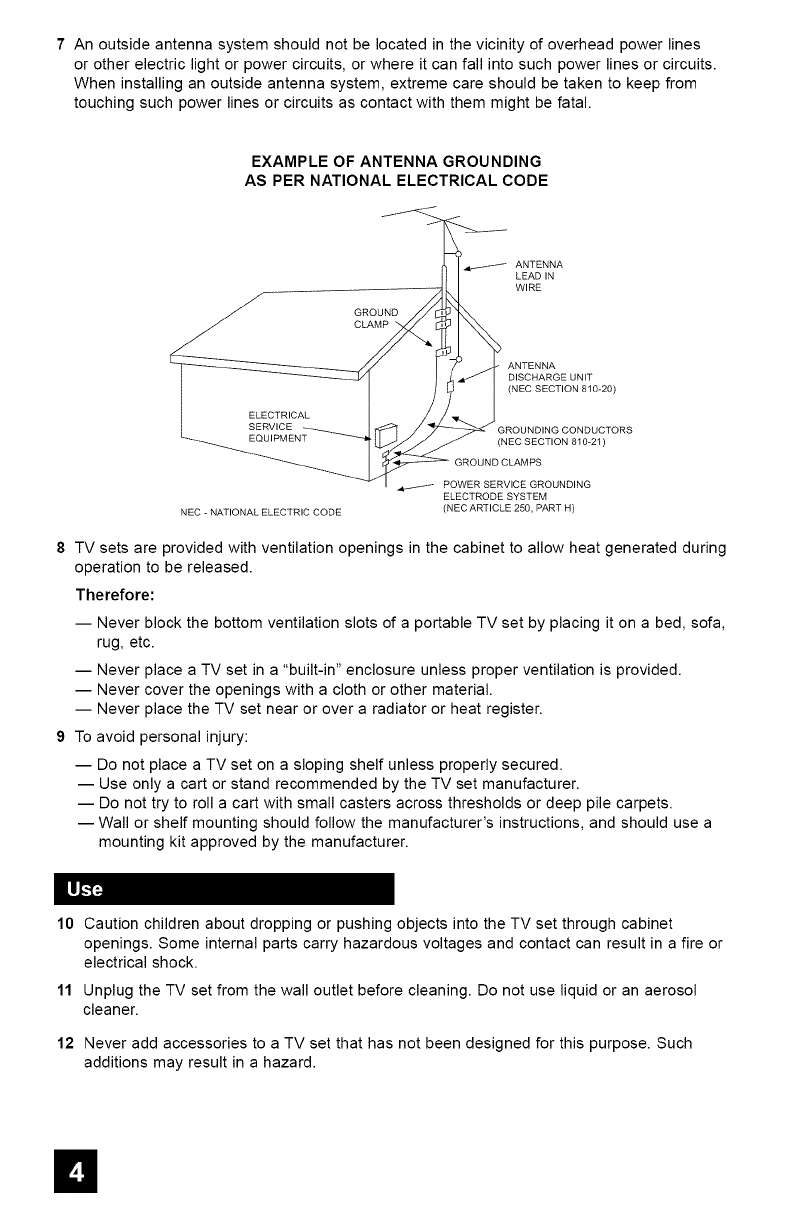

7Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlines
orotherelectriclightorpowercircuits,orwhereitcanfallintosuchpowerlinesorcircuits.
Wheninstallinganoutsideantennasystem,extremecareshouldbetakentokeepfrom
touchingsuchpowerlinesorcircuitsascontactwiththemmightbefatal.
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
GROUND
CLAMP
ANTENNA
LEADIN
WIRE
ELECTRICAL
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRIC CODE
ANTENNA
DISCHARGEUNIT
(NEC SECTION 810-20)
(NEC SECTION 810-21 )
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ARTICLE 250, PART H)
8 TV sets are provided with ventilation openings in the cabinet to allow heat generated during
operation to be released.
Therefore:
m
m
m
9To
-- Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa,
rug, etc.
Never place a TV set in a "built-in" enclosure unless proper ventilation is provided.
Never cover the openings with a cloth or other material.
Never place the TV set near or over a radiator or heat register.
avoid personal injury:
-- Do not place a TV set on a sloping shelf unless properly secured.
-- Use only a cart or stand recommended by the TV set manufacturer.
-- Do not try to roll a cart with small casters across thresholds or deep pile carpets.
-- Wall or shelf mounting should follow the manufacturer's instructions, and should use a
mounting kit approved by the manufacturer.
[ig---4_
10 Caution children about dropping or pushing objects into the TV set through cabinet
openings. Some internal parts carry hazardous voltages and contact can result in a fire or
electrical shock.
11 Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol
cleaner.
12 Never add accessories to a TV set that has not been designed for this purpose. Such
additions may result in a hazard.
II

PORTABLE CART WARNING
(Symbol provided by RETAC)
13 For added protection of the TV set during a lightning storm or when the TV set is to be left
unattended for an extended period of time, unplug it from the wall outlet and disconnect the
antenna. This will prevent damage to product due to lightning storms or power line surges.
14 A TV set and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the TV set and cart combination to overturn.
15 Unplug this TV set from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the TV set.
C. If the TV set has been exposed to rain or water.
D. If the TV set does not operate normally by following the operating instructions. Adjust
only those controls that are covered in the operating instructions as improper adjustment
of other controls may result in damage and will often require extensive work by a
qualified technician to restore the TV set to normal operation.
E. If the TV set has been dropped or damaged in any way.
F. When the TV set exhibits a distinct change in performance -- this indicates a need for
service.
16 Do not attempt to service this TV set yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
17 When replacement parts are required, have the service technician verify in writing that the
replacement parts he uses have the same safety characteristics as the original parts. Use
of manufacturer's specified replacement parts can prevent fire, shock, or other hazards.
18 Upon completion of any service or repairs to this TV set, please ask the service technician
to perform the safety check described in the manufacturer's service literature.
19 When a TV set reaches the end of its useful life, improper disposal could result in a picture
tube implosion. Ask a qualified service technician to dispose of the TV set.
20 Note to CATV system installer.
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the
point of cable entry as practical.

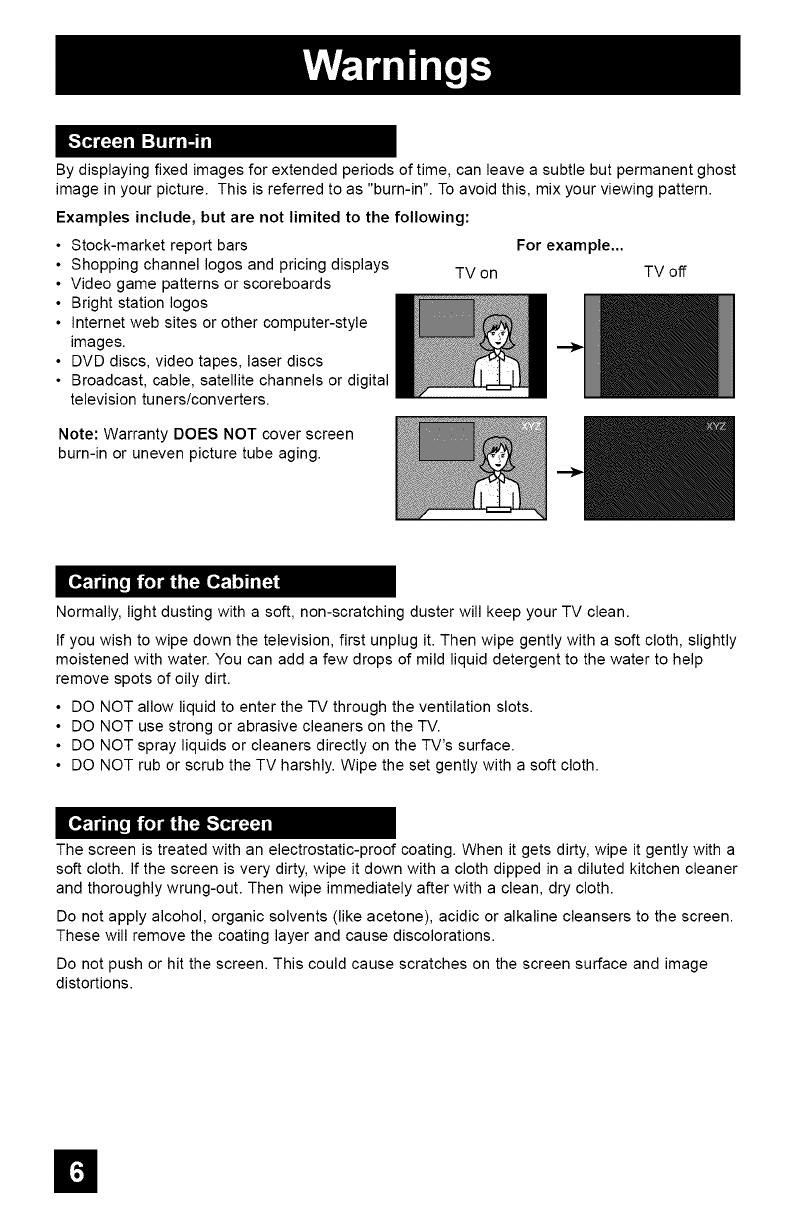

Bydisplayingfixedimagesforextendedperiodsoftime,canleaveasubtlebutpermanentghost
imageinyourpicture.Thisisreferredtoas"burn-in".Toavoidthis,mixyourviewingpattern.
Examplesinclude,butare not limited to the following:
• Stock-market report bars
• Shopping channel Iogos and pricing displays
• Video game patterns or scoreboards
• Bright station Iogos
• Internet web sites or other computer-style
images.
• DVD discs, video tapes, laser discs
• Broadcast, cable, satellite channels or digital
television tuners/converters.
TV on
Note: Warranty DOES NOT cover screen
burn-in or uneven picture tube aging.
For example... TV off
Normally, light dusting with a soft, non-scratching duster will keep your TV clean.
If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly
moistened with water. You can add a few drops of mild liquid detergent to the water to help
remove spots of oily dirt.
• DO NOT allow liquid to enter the TV through the ventilation slots.
• DO NOT use strong or abrasive cleaners on the TV.
• DO NOT spray liquids or cleaners directly on the TV's surface.
• DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.
The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a
soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner
and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.
Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen.
These will remove the coating layer and cause discolorations.
Do not push or hit the screen. This could cause scratches on the screen surface and image
distortions.

Iiil![o] n (.:li| i..",]_"i{:'__',11:di[:.,[o._,lii | [o]i l.:fl
VAtk.ldilli[il
_TII"_,"t_0]

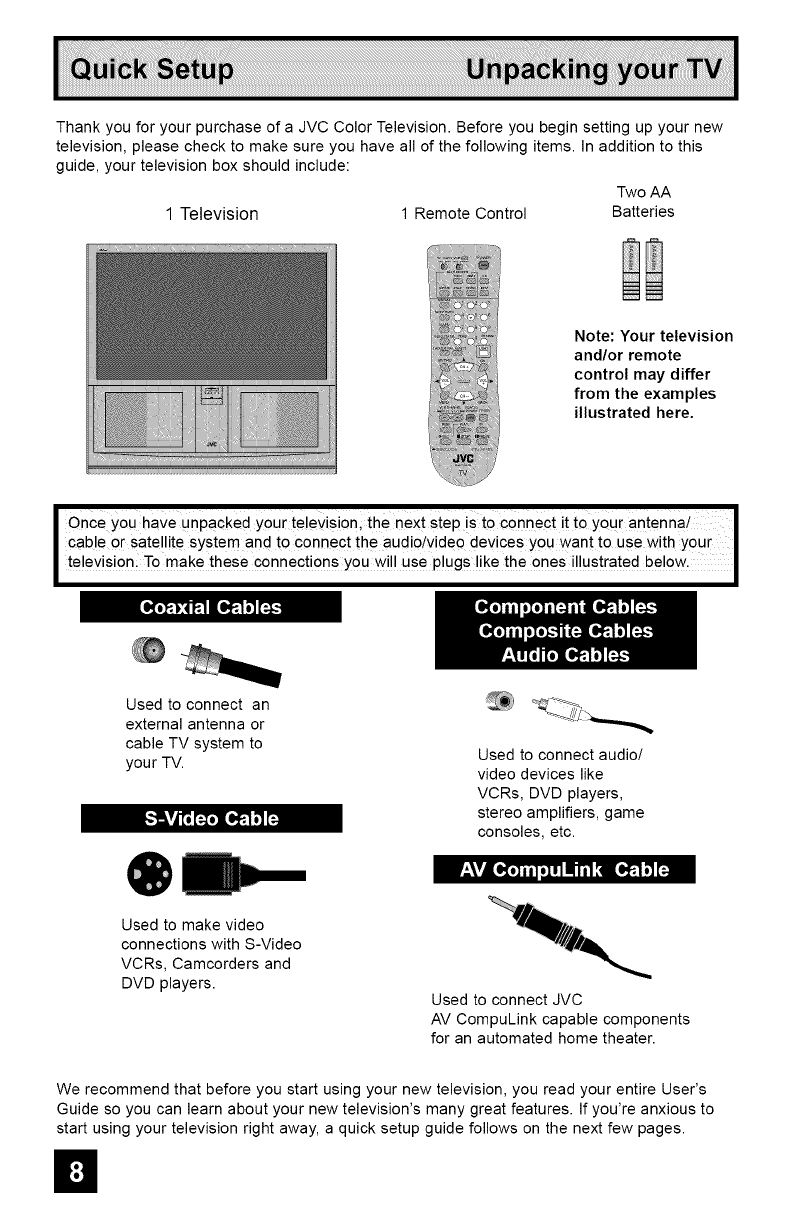

Unpacking your TV ............ 8

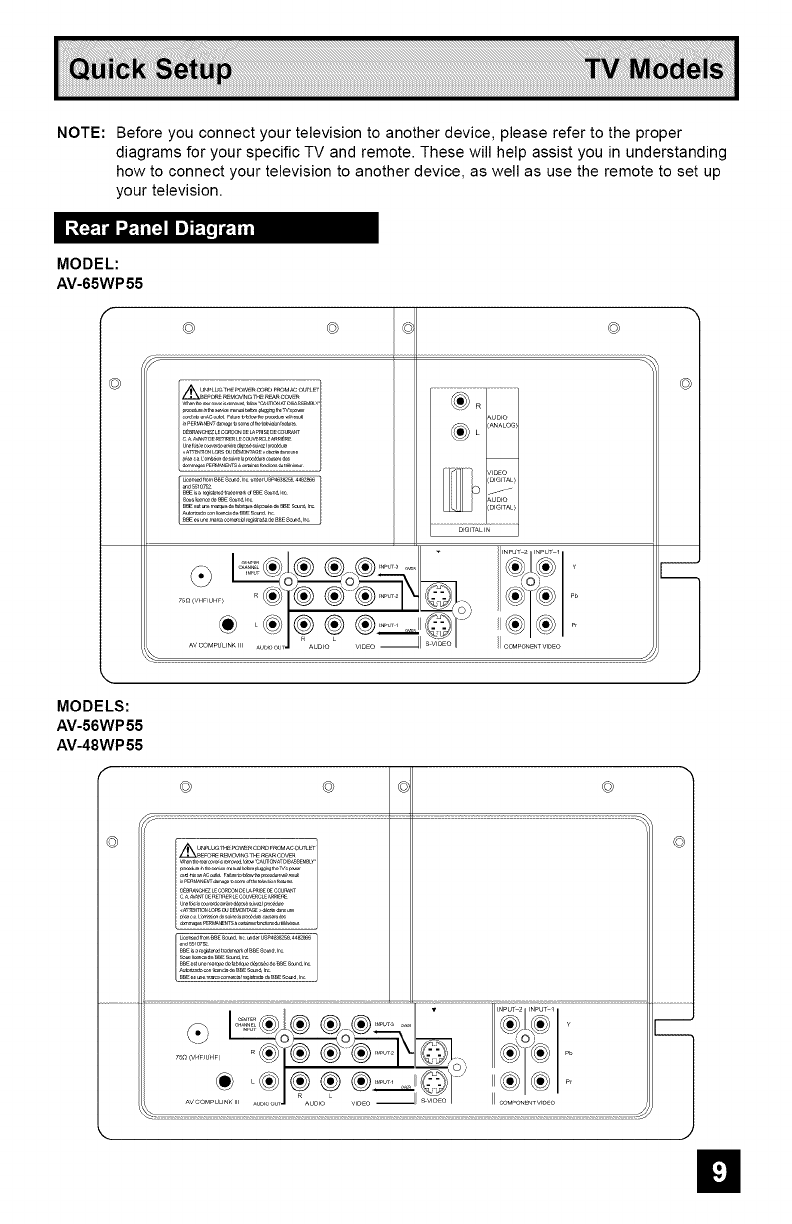

TV Models ................ 9
TV Remote Control ........... 11

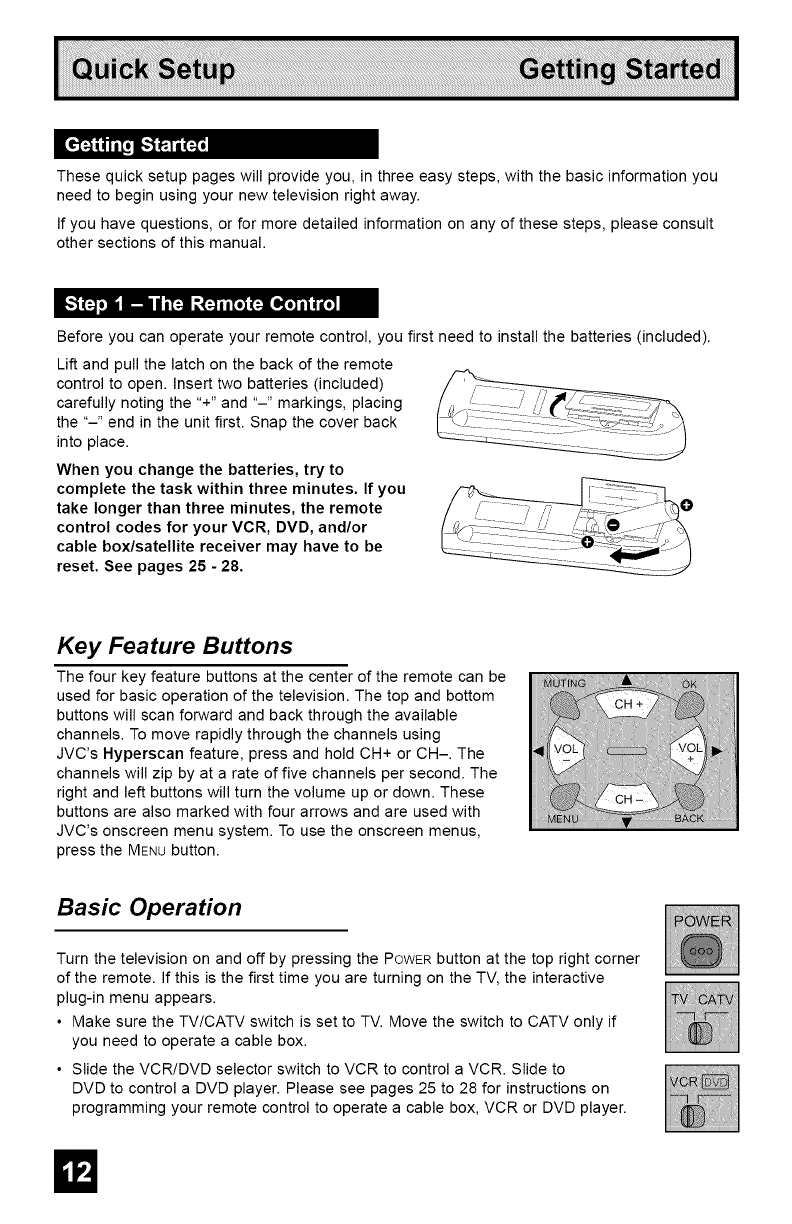

Getting Started ............. 12
The Remote Control .......... 12
Connecting Your Devices ....... 13
Interactive Plug In Menu ........ 22
_'_I_]]FI.!" I I - II II I I ,_
Setting CATV, VCR and DVD Codes . . . 25
CATV or Satellite Codes ........ 25
VCR Codes .............. 26
DVD Codes .............. 27
Search Codes ............. 28
Using the Guide ............. 29
Onscreen Menu System ......... 30
Auto Tuner Setup ............ 32
Channel Summary ............ 32
V-Chip .................. 34
Set Lock Code ............. 40
Adjusting CRT Color Convergence ..... 41
Auto Demo ............... 43
Language ................ 43
Closed Caption ............. 44
Auto Shut Off .............. 44
XDS ID ................. 45
Noise Muting .............. 45
Front Panel Lock ............ 45
V1 Smart Input ........... 46
Video Input Label .......... 46
Position Adjustment ........... 47
Power Indicator ............. 47
Digital-In ................. 48
Digital-In Audio ............. 48
Center CH Input ............. 49
Picture Settings ............. 50
Adjust Picture Settings ......... 50
Color Temperature ............ 50
Digital Noise Clear ............ 51
VSM ................... 51
Natural Cinema ........... 51
Reset .................. 52
Sound Settings ............. 53
Adjust Sound Settings ......... 53
MTS (Multi-channel Sound) ....... 53
Set Clock ................ 54
On/Off Timer ............... 55
Multi Screen Function .......... 56
Index .................. 56
Twin ................. 56
Freeze .................. 57
Swap ................. 57
Select .................. 57
Power .................. 58
Number Buttons ............. 58
Tune ............... 58
Input ................... 58
Channel +/- . ............ 58
Volume +/- . ............ 58
Return + ............... 59
Sound .................. 59
Muting .................. 59
Video Status ............... 60
TheaterPro D6500K ........... 60
Sleep Timer ............... 60
Display ................. 61
C.C .................... 61
Aspect ................. 62
Aspect Ratios ............. 62
Menu .................. 63
OK ................... 63
Back ................... 63
TV/CATV Slide Switch .......... 64
VCR/DVD Slide Switch ......... 64
VCR Buttons ............... 64
DVD Buttons ............... 64
Light ................... 64
No Program .............. 65
Troubleshooting ............. 66
Warranty ................. 67
Authorized Service Centers ....... 68
Specifications ............... 69
Notes .................. 70

ThankyouforyourpurchaseofaJVCColorTelevision.Beforeyoubeginsettingupyournew
television,pleasechecktomakesureyouhaveallofthefollowingitems.Inadditiontothis
guide,yourtelevisionboxshouldinclude: TwoAA
1Television 1RemoteControl Batteries
Note:Yourtelevision
and/or remote
control may differ
from the examples
illustrated here.
I Once You have unpacked your te!evision;the nex t step is to connect it to Your antenna! I
cable or satellite system and to connect the audi0!vide0 device s yo u want t° use with your I
televisi0nl To make these €0nnecti0ns y0u wi!! use Plugs like the 0nes i!!ustrated below. |
I
[_'11 [_';1_ F._I
Used to connect an
external antenna or
cable TV system to
your TV. Used to connect audio/
video devices like
VCRs, DVD players,
stereo amplifiers, game
consoles, etc.
f_,\vJ[o,]';']'fi]_ttl'fl_ [_,_'tl.,'1_
Used to make video
connections with S-Video
VCRs, Camcorders and
DVD players. Used to connect JVC
AV CompuLink capable components
for an automated home theater.
We recommend that before you start using your new television, you read your entire User's
Guide so you can learn about your new television's many great features. If you're anxious to
start using your television right away, a quick setup guide follows on the next few pages.

NOTE:Beforeyouconnectyourtelevisiontoanotherdevice,pleaserefertotheproper
diagramsforyourspecificTVandremote.Thesewillhelpassistyouinunderstanding
howtoconnectyourtelevisiontoanotherdevice,aswellasusetheremotetosetup
yourtelevision.
MODEL:
AV-65WP55
MODELS:
AV-56WP55
AV-48WP55
,.*
©
© © _ ©
................... _,J __o,o_ ..... _1 .... II..............
© © _ ©
..........................................................................................................................._._ __ i......................................................................................._F_ "_ _'_ _ ..................................._e_'_l ¥............................................................
......
©
©

MODELS: AVI65WP55, AVI56WP55, AV-48WP55

MODELS:
AV-65WP55
AV-56WP55
AV-48WP55
• For information on remote control buttons, see pages 56 -64.

Thesequicksetuppageswillprovideyou,inthreeeasysteps,withthebasicinformationyou
needtobeginusingyournewtelevisionrightaway.
Ifyouhavequestions,orformoredetailedinformationonanyofthesesteps,pleaseconsult
othersectionsofthismanual.
Beforeyoucanoperateyourremotecontrol,youfirstneedtoinstallthebatteries(included).
Liftandpullthelatchonthebackoftheremote
controltoopen.Inserttwobatteries(included)
carefullynotingthe"+"and"-"markings,placing
the"-"endintheunitfirst.Snapthecoverback
intoplace.
Whenyouchange the batteries, try to
complete the task within three minutes. If you
take longer than three minutes, the remote O
control codes for your VCR, DVD, and/or
cable box/satellite receiver may have to be
reset. See pages 25 - 28.
Key Feature Buttons
The four key feature buttons at the center of the remote can be
used for basic operation of the television. The top and bottom
buttons will scan forward and back through the available
channels. To move rapidly through the channels using
JVC's Hyperscan feature, press and hold CH+ or CH-. The
channels will zip by at a rate of five channels per second. The
right and left buttons will turn the volume up or down. These
buttons are also marked with four arrows and are used with
JVC's onscreen menu system. To use the onscreen menus,
press the MENUbutton.
Basic Operation
Turn the television on and off by pressing the POWERbutton at the top right corner
of the remote. If this is the first time you are turning on the TV, the interactive
plug-in menu appears.
• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if
you need to operate a cable box.
• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to
DVD to control a DVD player. Please see pages 25 to 28 for instructions on
programming your remote control to operate a cable box, VCR or DVD player.

Pleasefollowtheflowchartbelowtodeterminewhichconnectionsetupisrightforyou.Then,
refertotheappropriatediagramstoconnectyourtelevisiontootherdevicesthatyoumay
have.Afteryouarefinishedconnectingyourdevices,plugthepowercordintothenearest
poweroutletandturnontheTV.
AVCRisn0tnecessaryforoperation0fthetelevision,Ifyoufollowthesediagramsandthe
te!evisi0n does no! work Pr0Pedy I Contact you r local cable operator: I
, To connect a DVD p!ayeB see Diagram #3, A OVD player is optiona I.
, f you have a sate te te ev Son system, P ease refer to the sate te TV manua.
I Do you use a CableTV Box? I
I Do you have a VCR? I I Do you have a VCR? I
Diagram #2 Diagram #1 Diagram #3 Diagram #1

Diagram #1 Cable or Antenna
Output
TV Rear Panel
Note:
•If you do not have a cable box, connect the cable wire from the wall outlet into the back of
the TV.
Diagram #2
TV Rear Panel
Cable or Antenna
Output
Coaxial Cable
Two-Way
Splitter
Notes:
• Use the S-Video connection if possible for superior picture quality.
• Your VCR must be turned on to view premium cable channels.

Notes:
• Green,blueandredarethemostcommoncolorsforDVDcables.Somemodelsmayvary
colors.Pleaseconsulttheuser'smanualforyourDVDplayerformoreinformation.
• BecarefulnottoconfusetheredDVDcablewiththeredaudiocable.Itisbesttocomplete
onesetofconnections(DVDoraudiooutput)beforestartingtheothertoavoidaccidentally
switchingthecables.
• YoumayalsoconnecttheDVDplayertoInput1.
Diagram #3
Cable or Antenna
Output
Two-Way
Splitter
Coaxial Cable
IIIIIII
TV Rear Panel
DVD Player (OPTIONAL)
VCR
R L OUT
Green
Blue
Red

Connecting to JVC AV Compu Link
JVC's AV CompuLink feature makes playing video tapes or DVDs totally automatic. Simply
insert a pre-recorded tape into your JVC brand VCR or DVD into your JVC DVD player and
the device will automatically turn on and begin playback. At the same time, using the
AV CompuLink. the VCR or DVD player sends a signal to the television telling it to turn on
and switch to the proper video input.
• The AV CompuLink cable may be included with the JVC AV CompuLink unit you
wish to connect. If it is not. contact JVC Parts Department at (800)-882-2345. or
www.jvcservice.com for part # EWP 805-012.
• AV CompuLink can only be used with JVC brand products.
AV CompuLink Cable To Connect: Plug one end of the AV CompuLink cable
into the AV COMPULINK INPUT on your VCR, DVD,
or other CompuLink device. Plug the other end of the
AV CompuLink cable into the AV COMPULINK at the
rear of the television.
Note:
• The AV CompuLink cable has a male 3.5 mm (mono)
plug on each end.
TV Rear Panel
• v L R
-_ _} _}OUT
AV CompuLink
VCR
Notes:
• In order for the VCR playback to begin automatically, the recording tabs must be removed
from the VHS tape. If the tab is in place, automatic switching will occur when you push the
VCR's PLAY button.
• If your JVC brand VCR has "Acode/B code remote control switching" (see your VCR's
instruction book), using VCRA code will switch the TV to input 1.
• Refer to your DVD instruction book for detailed connection information.
• To connect a JVC HiFi receiver or amplifier for a completely automated home theater, see
the receiver connection instructions for detailed connection information.
• AV CompuLink is compatible with select AV CompuLink receivers.

Connecting to a Camcorder
IYou may connect a camcorder; game console or other equipment to your te!evision by using I
the fr0n t input jacks (Input 4)located under the front panel door; To access, pu!! on the door I
to open it. YOUcan a!s0 connect thes e using the te!evisi0n's rear input jacks, using the same
instructions: I
Camcorder
1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the front of the TV, OR connect an S-Video cable from the front of the TV to the camcorder.
2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on
the front of the TV.
3) Connect a red cable from the camcorder RIGHTAUDIO OUT, into the RIGHTAUDIO IN on
the front of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
LEFT AUDIO IN on the front of the TV.

Connecting to the Surround Amplifier
in mult,channe Sound Such as 5.i Channel the SpeeCh characters are played back from the
center speaker.
A cente r speaker in a movie theater is set in back 0f the screen So it can recreate a
Conversation scene in the movie more naturally. By using your TV!s speaker as the center
speaker, you can 0btain the same sound effect as in a movie theater in YOUhome theater
sound system.
Front Front Surround
TV Rear Panet
CENTER CHANNEL OUTPUT
(VARIABLE OUTPUT)
1) Connect the Pin cable from the TV's CENTER CHANNEL INPUT terminal to the surround
amplifier's CENTER CHANNEL OUTPUT terminal.
Note:
• Please read the benefit of this feature on page 48.

Connecting to a Digital TV Receiver
By connecting a Digital TV Reciever, high definition pictures can be displayed on your TV in
their digital form.
DTV Decoder
DIGITAL OUT AUDIO oUT
TV Rear Panel
HDMI to DVl Cable
After the connections have been made,
tighten the screw to secure the cables.
1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder, to
the DIGITAL-IN on the back of your television.
2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT, to the RIGHT AUDIO
DIGITAL-IN on the back of your television.
3) Connect a white cable from the DTV decoder LEFTAUDIO OUT, to the LEFTAUDIO
DIGITAL-IN on the back of your television.
• The digital-in terminal is not compatible with the picture signal of a personal computer.
• Use a HDMI to DVI cable (commercially available) in order to digitally connect the television
with a DTV decoder.
Notes:
• If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance
may be slightly shifted. Access the "DIGITAL-IN" in the initial setup menu to adjust it. (Refer
to page 48.)
• When you do the above connection, set DIGITAL-IN AUDIO in the Initial Setup menu to
ANALOG. See "DIGITAL-IN AUDIO", page 48.
•AV-65WP55 ONLY

Connecting to a HDMI Compatible Device
By connecting a HDMI compatible device, high definition pictures can be displayed on your
TV in their digital form. Some HDMI devices can include DVD players, D-VHS or any HDMI
compatible device.
HDMI (High Definition Multimedia Interface) is the first industry supported, uncompressed, all
digital audio/video interface. HDMI provides and interface between any audio/video source,
such as a set-top box, DVD player, A/V receiver or an audio and/or video monitor, such as a
digital television (DTV).
HDMI Compatible Device
TV Rear Panel
I
HDMI Cable
1) Connect the HDMI Cable from the DIGITAL OUT on the back of your DTV or HDMI device, to
the DIGITAL-IN on the back of your television.
Note:
• When you do the above connection, set DIGITAL-IN AUDIO in the Initial Setup menu to
DIGITAL. See "DIGITAL-IN AUDIO", page 48.
• AV-65WP55 ONLY
