Safety information

Important! Read carefully & keep for future

reference.

• The safety of Your appliance complies

with the industry standards and with legal

requirements on the safety of appliances.

However, as manufacturers, we feel it is

our duty to provide the following safety

notes.

• It is most important that this instruction

book should be retained with the appli-

ance for future reference. Should the ap-

pliance be sold or transferred to another

owner, or should you move house and

leave the appliance, always ensure that

the book is supplied with the appliance in

order that the new owner can get to

know the functioning of the appliance

and the relevant warnings.

• You MUST read them carefully before in-

stalling or using the appliance.

• Before first starting up, check the appli-

ance for any damage incurred during

transport. Never connect up a damaged

appliance . If parts are damaged, contact

your supplier.

• If the appliance is delivered in the winter

months when there are minus tempera-

tures. Store it at room temperature for 24

hours before using for the first time.

General safety

• It is dangerous to alter the specifications

or attempt to modify this product in any

way.

• During high temperature wash pro-

grammes the door glass may get hot. Do

not touch it!

• Make sure that small pets and children

do not climb into the drum. To avoid this,

please check into the drum before using.

• Any objects such as coins, safety pins,

nails, screws, stones or any other hard,

sharp material can cause extensive dam-

age and must not be placed into the ma-

chine.

• Only use the advised quantities of fabric

softener and detergent. Damage to the

fabric can ensue if you over-fill. Refer to

the manufacturer’s recommendations of

quantities.

• Wash small items such as socks, laces,

washable belts etc in a washing bag or

pillow case as it is possible for such

items to slip down between the tub and

the inner drum.

• Do not use your washing machine to

wash articles with whalebones, material

without hems or torn material.

• Always unplug the appliance and turn off

the water supply after use, cleaning and

maintenance.

• Under no circumstances should you at-

tempt to repair the machine yourself. Re-

pairs carried out by inexperienced people

may cause injury or serious malfunction-

ing. Contact your local Service Centre.

Always insist on genuine spare parts.

Installation

• This appliance is heavy. Care should be

taken when moving it.

• When unpacking the appliance, check

that it is not damaged. If in doubt, do not

use it and contact the Service Centre.

• All packing and transit bolts must be re-

moved before use. Serious damage can

occur to the product and to property if

this is not adhered to. See relevant sec-

tion in the user manual.

• After having installed the appliance,

check that it is not standing on the inlet

and drain hose and the worktop is not

pressing the electrical supply cable

against the wall.

• If the machine is situated on a carpeted

floor, please adjust the feet in order to al-

low air to circulate freely under the appli-

ance.

• Always be sure, that there is no water

leakage from hoses and their connec-

tions after the installation.

• If the appliance is installed in a location

subject to frost, please read the “dangers

of freezing” chapter.

• Any plumbing work required to install this

appliance should be carried out by a

qualified plumber or competent person.

• Any electrical work required to install this

appliance should be carried out by a

qualified electrician or competent person.

Use

• This appliance is designed for domestic

use. It must not be used for purposes

other than those for which it was de-

signed.

• Only wash and dry fabrics which are de-

signed to be machine washed or dried.

Follow the instructions on each garment

label

• Do not overload the appliance. See the

Washing Programme Table.

• Before washing, ensure that all pockets

are empty and buttons and zips are fas-

tened. Avoid washing frayed or torn arti-

cles and treat stains such as paint, ink,

rust, and grass before washing. Under-

wired bras must NOT be machine wash-

ed.

• Garments which have been in contact

with volatile petroleum products should

not be machine washed. If volatile clean-

ing fluids are used, care should be taken

to ensure that the fluid is removed from

the garment before placing in the ma-

chine.

• As some duvets and eiderdowns should

be washed/dried in large commercial ma-

chines because of their bulk, please

check with the manufacturer of the item

before washing in a domestic machine.

• The users should always check that they

have not left their gas lighters (disposable

or otherwise) in their clothing.

• Never tumble dry items that have had

contact with chemicals such as dry

cleaning fluid. These are of a volatile na-

ture and could cause an explosion. Only

tumble dry items which have been wash-

ed in water or require airing.

• Plastic detergent dispensers should not

remain in the drum during the drying cy-

cle, as the plastic used is not designed to

withstand the heat. If you wish to wash-

through-to-dry you should use the con-

ventional detergent dispenser drawer.

• Never pull the power supply cable to re-

move the plug from the socket; always

take hold of the plug itself.

• Never use your new appliance if the pow-

er supply cable, the control panel, the

working surface or the base are dam-

aged so that the inside of the appliance is

accessible.

Child safety

• This appliance is not intended for use by

person (including children) with reduced

physical sensory or mental capabilities or

lack of experience and knowledge unless

they have been given supervision or in-

struction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure

that they do not play with the appliance.

• The packaging components (e.g. plastic

film, polystyrene) can be dangerous to

children - danger of suffocation! Keep

them out of children’s reach.

• Keep all detergents in a safe place out of

children’s reach.

• Make sure that children or pets do not

climb into the drum. To prevent children

and pets becoming trapped inside the

drum the machine incorporates a special

feature. To activate this device, rotate the

button (without pressing it) inside the

door clockwise until the groove is hori-

zontal. If necessary use a coin.

To disable this device and restore the

possibility of closing the door, rotate the

button counterclockwise until the groove

is vertical.

Product description

Your new appliance meets all modern requirements for effective treatment of laundry

with low water, energy and detergent consumption. Its new washing system allows to-

tal use of detergent and reduces water consumption so saving energy.

1 2

1Detergent dispenser drawer

2Control panel

3Door opening handle

4Rating Plate

5Drain pump

6Adjustable feet

Detergent dispenser drawer

Compartment for detergent used for

prewash and soak phase or for stain re-

mover used during the stain action phase (if

available). The prewash and soak detergent

is added at the beginning of the wash pro-

gramme. The stain remover is added dur-

ing the stain action phase.

Compartment for powder or liquid de-

tergent used for main wash. If using liquid

detergent pour it just before starting the

programme.

Compartment for liquid additives (fabric

softener, starch).

Follow the product manufacturer’s recom-

mendations on quantities to use and do not

exceed the «MAX» mark in the detergent

dispenser drawer. Any fabric softener or

starching additives must be poured into the

compartment before starting the wash pro-

gramme.

Control panel

Below is a picture of the control panel.

It shows the programme selector dial

as well as the buttons, the display and

the pilot lights. These are presented by

relevant numbers on the following pa-

ges.

10987654321

1Programme selector dial

2SPIN button

3AUTOMATIC DRY button

4DRYING TIME button

5PREWASH button

6EXTRA RINSE button

7Display

8START/PAUSE button

9DOOR pilot light

10 DELAY START button

Cotton EEconomy Drying Synthet-

ics

Easy Iron Delicates

Wool Hand-

wash

Cold Rinses

Drain Spin

OFF Rinse

Hold

Child

Lock

Iron Dry

Cup-

board dry

Extra Dry

Prewash Extra

Rinse

Start

Pause

Door

Lock

Delay

Start

Programme selector dial, spin speed button and available options

Programme Selector Dial

It allows you to switch the appliance on/off

and/or to select a programme.

Spin Reduction

By pressing this button you can change the

spin speed of the selected programme.

Available options:

Rinse hold

By selecting this function the water of the

last rinse is not emptied out to prevent the

fabrics from creasing. Before opening the

door it will be necessary to empty out the

water. To empty out the water, please read

the paragraph «At the end of the pro-

gramme».

Automatic Dry

By pressing this button you can choose the

required degree of drying for cottons and

synthetics:

• Extra dry (Cottons)

• Cupboard dry (Cottons and Synthetics)

• Iron dry (Cottons)

The pilot light corresponding to the selected

dryness degree will illuminate.

Drying Time

If you wish to carry out a timed drying pro-

gramme, press this button until the drying

time you want appears on the display ac-

cording to the fabrics (cottons or synthetics)

you have to dry. For Cottons you can select

a drying time from 10 minutes to 250 mi-

nutes (4.10). For Synthetics you can select

a drying time from 10 minutes to 130 mi-

nutes (2.10). Every time you press this but-

ton the drying time increases by 5 mins.

Prewash

By selecting this option the machine per-

forms a prewash cycle before the main

wash phase. The washing time will be pro-

longed. This option is recommended for

heavily soiled laundry.

Extra Rinse

This appliance is designed to save energy.

If it necessary to rinse the laundry using an

extra quantity of water (extra rinse), select

this option. Some additional rinses will be

performed. This option is recommended for

people who are allergic to detergents, and

in areas where the water is very soft.

Start Pause

This button allows you to start or to inter-

rupt the selected programme.

Door locked pilot light

The pilot light 9illuminates when the pro-

gramme starts and indicates if the door can

be opened:

• light on: the door cannot be opened. The

machine in working or has stopped with

water left in the tub.

• light off: the door can be opened. The

programme is finished or the water has

been emptied out.

Delay Start

The programme can be delayed from 30

min - 60 min - 90 min, 2 hours and then by

1 hour up to a maximum of 20 hours by

means of this button.

Display

7.1 7.2

The display shows the following informa-

tion:

7.1: Child safety lock

This device permits you to leave the appli-

ance unattended during it's functioning.

7.2:

•Duration of the selected programme

After selecting a programme, the duration

is displayed in hours and minutes (for ex-

ample ). The duration is calculated

automatically on the basis of the maxi-

mum recommended load for each type of

fabric. After the programme has started,

the time remaining is updated every mi-

nute.

•Selected drying time

After selecting a drying programme the

drying time is shown in minutes or hours

and minutes. After the programme has

started, the time remaining is updated

every minute.

•Delayed start

The Selected delay set by pressing the

relevant button appears on the display for

a few seconds, then the duration of the

selected programme is displayed again.

The delay time value decreases by one

unit every hour and then, when 1 hour re-

mains, every minute.

•Alarm codes

In the event of operating problems, some

alarm codes can be displayed, for exam-

ple (see paragraph «What to do

if...»).

•Incorrect option selection

If an option which is not compatible with

the set wash programme is selected, the

message Err is displayed at the bottom

of the display for a few seconds and the

integrated red light of button 8start flash-

ing.

•End of programme

When the programme has finished the

flashing zero ( ) is displayed, the pilot

light 9and the pilot light of button 8go

out and the door can be opened.

First use

• Ensure that the electrical and water

connections comply with the installa-

tion instructions.

• Remove the polystyrene block and

any material from the drum.

• Pour 2 litres of water into the main

wash compartment of the deter-

gent drawer in order to activate the

ECO valve. Then run a cotton cycle

at the highest temperature without

any laundry in the machine, to re-

move any manufacturing residue

from the drum and tub. Pour 1/2 a

measure of detergent into the main

wash compartment and start the

machine.

Personalization

Acoustic signals

The machine is provided with an acoustic

device, which sounds in the following ca-

ses:

• at the end of the cycle

• in the event of operating problems.

By pressing the 4and 5buttons simultane-

ously for about 6 seconds, the acoustic sig-

nal is deactivated (except for the events of

operating problems). By pressing these 2

buttons again, the acoustic signal is reacti-

vated.

Child safety lock

This device permits you to leave the appli-

ance unsupervised and not to worry that

children might be injured by or cause dam-

age to the appliance.

This function remains able also when the

washing machine is not working.

There are two different ways to set this op-

tion:

• Before pressing button 8: it will be im-

possible to start the machine.

• after pressing button 8: it will be impossi-

ble to change any other programme or

option.

To enable or disable this option press si-

multaneously for about 6 seconds buttons

2and 3until the symbol 7.1 appears or dis-

appears on or from the display.

Daily use

Load the laundry

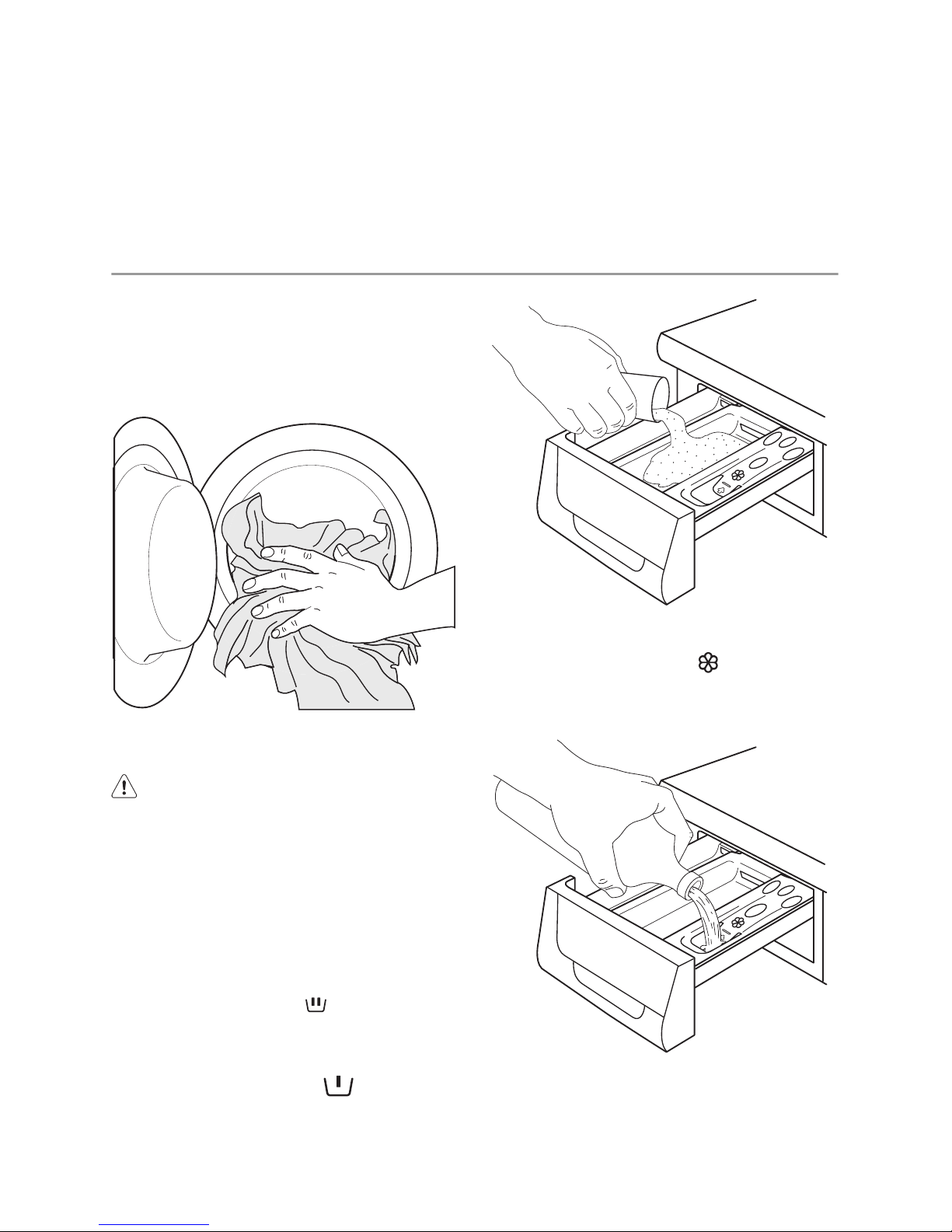

1. Open the door by carefully pulling the

door handle outwards. Place the laun-

dry in the drum, one item at a time,

shaking them out as much as possible.

2. Close the door firmly. You must hear a

click during closing.

Warning! Do not embed the laundry

between the door and the rubber joint.

Measure out the detergent and the

fabric softener

Your new appliance was designed to re-

duce water, energy and detergent con-

sumption.

1. Pull out the dispenser drawer until it

stops. Measure out the amount of de-

tergent required, pour it into the main

wash compartment and, if you wish

to carry out the prewash phase or to

perform the stain function, pour the

detergent or the stain remover into the

compartment marked .

2. If required, pour fabric softener into the

compartment marked (the amount

used must not exceed the MAX mark

in the drawer). Close the drawer gently.

Select the required programme by

means of programme selector dial (1)

You can choose the right programme for

any type of laundry following the descrip-

tions on the washing programme tables

(see «Washing Programmes»).

Turn the programme selector dial to the re-

quired programme. The programme selec-

tor determines the type of washing cycle

(e.g. water level, drum movement, number

of rinses) and the washing temperature ac-

cording to the type of laundry.

The pilot light of button 8starts blinking.

The selector dial can be turned either clock-

wise or anticlockwise. Position to Reset

programme/ Switching OFF of the machine.

At the end of the programme the selec-

tor dial must be turned to position ,

to switch the machine off.

If you turn the programme selector dial

to another programme when the ma-

chine is working, the yellow pilot light of

button 8will blink 3 times and the mes-

sage Err is displayed on the display to

indicate a wrong selection. The ma-

chine will not perform the new selected

programme.

Reduce the spin speed by pressing

button 2

By selecting a programme, the appliance

proposes automatically the maximum spin

speed provided for that programme.

Press button 2repeatedly to change the

spin speed, if you want your laundry to be

spun at a different speed. The relevant light

illuminates.

Select the available options by

pressing the buttons 5 and 6

Depending on the programme, different op-

tions can be combined. These must be se-

lected after choosing the desired pro-

gramme and before starting the pro-

gramme. When these buttons are pressed,

the corresponding pilot lights illuminate.

When they are pressed again, the pilot

lights go out. If an incorrect option is selec-

ted, the integrated red pilot light of the but-

ton 8flashes 3 times and the message Err

is displayed.

For the compatibility among the washing

programmes and the options see chapter

«Washing programmes».

Select the Delay Start by pressing

button 10

Before you start the programme, if you wish

to delay the start, press the button 10 re-

peatedly, to select the desired delay. The

relevant pilot light goes on.

The selected delay time value (up to 20

hours) will appear on the display a few sec-

onds, then the duration of the programme

will appear again.

You must select this option after you have

set the programme and before you press

button 8.

You can cancel or modify the delay time at

any moment, before you press button 8.

Selecting the delayed start:

1. Select the programme and the required

options.

2. Select the delay start by pressing the

button 10.

3. Press button 8:

– the machine starts its hourly count-

down.

– The programme will start after the

selected delay has expired.

Cancelling the delayed start after having

pressed button 8:

1. Set the washing machine to PAUSE by

pressing button 8.

2. Press button 10 once until the symbol

0’ is displayed

3. Press button 8again to start the pro-

gramme.

Important! The selected delay can be

changed only after selecting the washing

programme again.

The Delay Start can not be selected with

DRAIN programme.

Start the programme by pressing

button 8

To start the selected programme, press the

button 8, the green pilot light of the button

8stops blinking.

To interrupt a programme which is running,

press the button 8: the green pilot light

starts blinking.

To restart the programme from the point at

which it was interrupted, press the button 8

again. If you have chosen a delayed start,

the machine will begin the countdown. If an

incorrect option is selected, the red pilot

light of the button 8blinks 3 times and the

message Err is displayed for a few sec-

onds.

Altering an option or a running

programme

It is possible to change any option before

the programme carries it out. Before you

make any change, you must pause the

washing machine by pressing the button 8.

Changing a running programme is possible

only by resetting it. Turn the programme

selector dial to and then to the new pro-

gramme position. Start the new programme

by pressing the 8button again. The wash-

ing water in the tub will not emptied out.

Interrupting a programme

Press the button 8to interrupt a pro-

gramme which is running, the correspond-

ing light starts blinking. Press the button

again to restart the programme.

Cancelling a programme

Turn the selector dial to to cancel a pro-

gramme which is running. Now you can se-

lect a new programme.

Opening the door

After the programme has started (or during

the delay time) the door is locked, if you

need to open it, set first the machine to

PAUSE by pressing the button 8.

The pilot light 9goes out immediately and it

is possible to open the door.

If this pilot light remains lit, this means that

the machine is already heating or that the

water level is too high. In any case, do not

try to force the door!

If you cannot open the door but you need

to open it you have to switch the machine

off by turning the selector dial to O. After a

few minutes the door can be opened (pay

attention to the water level and temper-

ature!).

After closing the door, it is necessary to se-

lect the programme and options again and

to press button 8.

At the end of the programme

The machine stops automatically. Three

blinking 0.00 appear on the display and the

pilot light of button 8goes off. Some

acoustic signals sound.

If a programme or an option that ends with

water left in the tub has been selected, the

door remains locked to indicate that the

water must be emptied out before opening

the door.

Before you empty out the water, the drum

continues to run at regular intervals until the

water draining.

Follow the below instructions to empty out

the water:

1. Turn the programme selector dial to O.

2. Select the draining or spinning pro-

gramme.

3. Reduce the spin speed if needed, by

pressing the relevant button.

4. Press button 8.

At the end of the programme, the door is

released and can be opened. Turn the pro-

gramme selector dial to Oto switch the

machine off.

Remove the laundry from the drum and

carefully check that the drum is empty. If

you do not intend to carry out another

wash, close the water tap. Leave the door

open to prevent the formation of mildew

and unpleasant smells.

Drying only

The recommended load size is 3 kg for cot-

tons and linen, and 2 kg for synthetic items.

Note! By pressing Drying Time button it

is also possible to dry up to 4 kg of cot-

ton items (see the «Drying Programme»

table).

The water tap must be open and the

drain hose must be positioned in the

sink or connected to the drain pipe.

1. Load the laundry.

2. Select a spin cycle at the maximum

spin speed allowed for the type of laun-

dry in order to obtain the best drying

performances.

3. Select the drying programme for Cot-

tons or Synthetic in the Drying sector of

the programme selector dial.

4. If you wish to select an electronic dry-

ing, press the button 3until the pilot

light corresponding to the required dry-

ness degree illuminates.

5. If you wish to select a timed drying,

press button 4until the time you want

appears on the display (see the «Drying

Programmes» table). Every time you

press this button the drying time in-

creases by 5 minutes.

Note!

The programme time will automatically

increase by a few minutes.

6. Press button 8to start the programme.

After the programme has started, the

time remaining is updated every mi-

nute.

Note!

The different type of cottons (towelling,

sheets, shirts, and so on) or any laun-

dry items rolling up during the spinning

phase may result in partial dryness. In

the exceptional case that at the end of

the cycle the laundry remains slightly

wet, we suggest that you unfold the rol-

led up items, redistribute them evenly in

the drum and select an additional dry-

ing cycle of 20-30 minutes.

7. At the end of the programme, the buz-

zer sounds and a blinking « » appear

on the display.

The last 10 minutes of the drying cycle

correspond to an anti-crease phase.

During this time the door is locked and

the display keeps showing the flashing

zero « ».

Note!

If you wish to open the door before or

during the anti-crease phase or to inter-

rupt it, press any button or turn the

programme selector dial to any pro-

gramme position (except ), the door

can be opened after a few minutes.

8. Turn the selector dial to the position

to switch the machine off.

9. Remove the laundry.

Automatic washing and drying (NON-

STOP programme)

For NON-STOP programmes, the recom-

mended load size is 3 kg for cotton and 2

kg for synthetic.

Note! It is possible to dry up to 4 kg of

cotton items by pressing Drying Time

button only (see the «Drying Pro-

gramme» table).

Do not use a dosing device/ball when

carrying out a washing and drying pro-

gramme.

1. Load the laundry.

2. Add detergent and fabric softener.

3. Switch the machine on by turning the

selector dial to the selected washing

programme/fabric.

4. Select the required options by pressing

the relevant buttons.

Note!

If possible, do not select a spin speed

lower than that proposed by the appli-

ance to avoid too long a drying time

therefore saving energy.

In any case the reduction of the spin

speed is only possible after selecting

drying.

5. Select the drying time by pressing the

button 4or dryness degree by pressing

the button 3. The display shows the en-

tire duration of the washing and the se-

lected drying cycle.

6. Start the programme by pressing but-

ton 8. After the programme has started,

the time remaining is updated every mi-

nute.

7. At the end of the programme the buz-

zer sounds. A flashing zero « » ap-

pear on the display. At this point of the

programme, starts an anti-crease

phase which lasts about 10 minutes.

During this time the door is locked and

the display keeps showing the flashing

zero « ». (If you wish to open the

door before or during the anti-crease

phase, please follow the instructions

given in the previous chapter).

8. Turn the selector dial to the position

to switch the machine off.

9. Remove the laundry.

Stand by : once the programme has finish-

ed after a few minutes the energy saving

system will be enabled. The brightness of

the display is reduced. By pressing any but-

ton the appliance will come out of the ener-

gy saving status.

Washing programmes

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

COTTON

95°

Main wash - Rinses - Long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

For white cottons, (heavily soiled cotton items).

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

COTTON 60° E

60°

Main wash - Rinses - Long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

This programme can be selected for normally soiled

cotton items. This allows to obtain a good washing ef-

ficiency by saving energy.

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

COTTON

60°

Main wash - Rinses - Long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

For white and fast coloured cottons, (normally

soiled cotton items).

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

COTTON 40° E

40°

Main wash - Rinses - Long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

This programme can be selected for slightly soiled

cotton items. This allows to obtain a good washing ef-

ficiency by saving energy.

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

COTTON

40°- 30°

Main wash - Rinses - Long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

For coloured cottons, (lightly soiled cotton items).

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

SYNTHETICS

60°- 40°

Main wash - Rinses - Short spin

Maximum spin speed 700 rpm

Max. load 3 kg

Synthetic or mixed fabrics: underwear, coloured

garments, non-shrink shirts, blouses.

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

EASY IRON

40°

Main wash - Rinses - Short spin

Maximum spin speed 700 rpm

Max. load 1 kg

Selecting this programme the laundry is gently wash-

ed and spun to avoid any creasing. In this way ironing

is easier. Furthermore the machine will perform addi-

tional rinses.

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

DELICATES

40°- 30°

Main wash - Rinses - Short spin

Maximum spin speed 700 rpm

Max. load kg 3

Delicate fabrics: acrylics, viscose, polyester.

SPIN REDUCTION

RINSE HOLD

PREWASH

EXTRA RINSE

WOOL / HANDWASH

40° - Cold

Main wash - Rinses - Short spin

Maximum spin speed 1000 rpm

Max. load kg 2

Washing programme for machine washable wool as

well as for hand washable woollens and delicate fab-

rics. Note: A single or bulky item may cause imbal-

ance. If the appliance doesn’t perform the final spin

phase, add more items, redistribute the load manually

and then select the spinning programme.

SPIN REDUCTION

RINSE HOLD

RINSES

Rinses - Long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

With this programme it is possible to rinse and spin

items which have been washed by hand. The machine

performs some rinses, followed by a final spin. The

spin speed can be reduced by pressing the relevant

button.

SPIN REDUCTION

RINSE HOLD

EXTRA RINSE

DRAIN

Draining of water

Max. load 6 kg

For emptying out the water of the last rinse in pro-

grammes with the Rinse Hold option selected.

Programme

Maximum and Minimum Temperature

Cycle Description

Maximum Spin Speed

Maximum Fabrics Load

Type of Laundry

Options Detergent

Compartment

SPIN

Drain and long spin

Maximum spin speed 1200 rpm

Max. load 6 kg

Separate spin for hand washed cotton garments and

after programmes with the Rinse Hold option selec-

ted. Before selecting this programme the selector dial

must be turned to . You can choose the spin

speed by pressing the relevant button to adapt it to

the fabrics to be spun.

SPIN REDUCTION

30 min. / 30°

30°

Main wash - Rinses - Short spin

Maximum spin speed 700 rpm

Max. load 3 kg

Ideal for laundry which is lightly soiled or which only

needs freshening up.

SPIN REDUCTION

/OFF

For cancelling the programme which is running or to

switch the machine off .

1) If using liquid detergents, a programme without PREWASH must be selected.

Drying Programmes

Degree of Drying Type of Fabric Max Load Spin Speed

Suggested

drying time

in Mins

Ideal for towelling materials

Cotton and linen

(bathrobes, bath

towels, etc)

4 kg

3 kg

1,5 kg

1200

160-180

110-120

75-85

Suitable for items to put

away without ironing

Cotton and linen

(bathrobes, bath

towels, etc)

4 kg

3 kg

1,5 kg

1200

150-170

100-110

65-75

Suitable for items to put

away without ironing

Synthetics and

mixed fabrics

2 kg

1 kg 700 90-100

55-65

Suitable for ironing

Cotton and linen

(sheets, tablecloths,

shirts, etc.)

4 kg

3 kg

1,5 kg

1200

120-140

80-90

50-60

In compliance with EC directive EN 50229 the cotton reference programme for the

data entered in the Energy Label must be tested dividing the maximum washing load

by two equal parts and drying with DRYING TIME each of them.

Helpful hints and tips

Sorting out the laundry

Follow the wash code symbols on each

garment label and the manufacturer’s

washing instructions. Sort the laundry as

follows: whites, coloureds, synthetics, deli-

cates, woollens.

Before loading the laundry

Never wash whites and coloureds together.

Whites may lose their «whiteness» in the

wash.

New coloured items may run in the first

wash; they should therefore be washed

separately the first time.

Button up pillowcases, close zip fasteners,

hooks and poppers. Tie any belts or long

tapes.

Remove persistent stains before washing.

Rub particularly soiled areas with a special

detergent or detergent paste.

Treat curtains with special care. Remove

hooks or tie them up in a bag or net.

Removing stains

Stubborn stains may not be removed by

just water and detergent. It is therefore ad-

visable to treat them prior to washing.

Blood: treat fresh stains with cold water.

For dried stains, soak overnight in water

with a special detergent then rub in the

soap and water.

Oil based paint: moisten with benzine

stain remover, lay the garment on a soft

cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpen-

tine, lay the garment on a soft surface and

dab the stain with the fingertips and a cot-

ton cloth.

Rust: oxalic acid dissolved in hot water or a

rust removing product used cold. Be careful

with rust stains which are not recent since

the cellulose structure will already have

been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well

(whites and fast coloureds only).

Grass: soap lightly and treat with bleach

(whites and fast coloureds only).

Ball point pen and glue: moisten with

acetone

, lay the garment on a soft cloth

and dab the stain.

Lipstick: moisten with acetone as above,

then treat stains with methylated spirits.

Treat any residual marks with bleach.

Red wine: soak in water and detergent,

rinse and treat with acetic or citric acid,

then rinse. Treat any residual marks with

bleach.

Ink: depending on the type of ink, moisten

the fabric first with acetone

, then with

acetic acid; treat any residual marks on

white fabrics with bleach and then rinse

thoroughly.

Tar stains: first treat with stain remover,

methylated spirits or benzine, then rub with

detergent paste.

Detergents and additives

Good washing results also depend on the

choice of detergent and use of the correct

quantities to avoid waste and protect the

environment.

Although biodegradable, detergents contain

substances which, in large quantities, can

upset the delicate balance of nature.

The choice of detergent will depend on the

type of fabric (delicates, woollens, cottons,

etc.), the colour, washing temperature and

degree of soiling.

All commonly available washing machine

detergents may be used in this appliance:

• powder detergents for all types of fabric

• powder detergents for delicate fabrics

(60°C max) and woollens

• liquid detergents, preferably for low tem-

perature wash programmes (60°C max)

for all types of fabric, or special for wool-

lens only.

The detergent and any additives must be

placed in the appropriate compartments of

the dispenser drawer before starting the

wash programme.

If using liquid detergents, a programme

without prewash must be selected.

Your appliance incorporates a recirculation

system which allows an optimal use of the

concentrated detergent.

Follow the product manufacturer’s recom-

mendations on quantities to use and do

not exceed the «MAX» mark in the de-

tergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will de-

pend on the type of fabric, load size, de-

gree of soiling and hardness of the water

used.

Follow the product manufacturers’ instruc-

tions on quantities to use.

Use less detergent if:

• you are washing a small load

• the laundry is lightly soiled

1) do not use acetone on artificial silk

• large amounts of foam form during wash-

ing.

Degrees of water hardness

Water hardness is classified in so-called

“degrees” of hardness. Information on hard-

ness of the water in your area can be ob-

tained from the relevant water supply com-

pany, or from your local authority. If the wa-

ter hardness degree is medium or high we

suggest you to add a water softener follow-

ing always the manufacturer’s instructions.

When the degree of hardness is soft, read-

just the quantity of the detergent.

Drying Hints

Preparing the drying cycle

As a dryer, the appliance works on the con-

densation principle.

Therefore, the water tap must be open

and the drain hose must drain water in-

to a sink or into the drain pipe, even

during the drying cycle.

Attention!

Before starting the drying programme, re-

duce the loads of washed laundry, in order

to obtain good performances.

Laundry not suitable for drying

• Particularly delicate items such as syn-

thetic curtains, woollen and silk, gar-

ments with metal inserts, nylon stock-

ings, bulky garments such as anoraks,

bed covers, quilts, sleeping bags and du-

vets must not be machine dried.

• Avoid drying dark clothes with light col-

oured fluffy items such as towels as

these can attract the fluff.

• Remove the laundry when the appliance

has finished drying.

• To avoid a static charge when drying is

completed, use either a fabric softener

when you are washing the laundry or a

fabric conditioner specifically for tumble

dryers.

• Garments padded with foam-rubber or

materials similar to foam-rubber must not

be machine dried; they represent a fire

hazard.

• Also, fabrics containing residue of setting

lotions or hair sprays, nail solvents or

Popular Washer Dryer manuals by other brands

Beko

Beko WDW 85143 user manual

Kuppersbusch

Kuppersbusch IWT 1459.2 W user manual

Beko

Beko HTV8744 X00 user manual

Zanussi

Zanussi ZKG7145 user manual

Midea

Midea MF20ED80WB user manual

Alliance Laundry Systems

Alliance Laundry Systems CI 1650/325 installation instructions

AEG Electrolux

AEG Electrolux LAVAMAT TURBO 14820 Instruction booklet

Hisense

Hisense WDQY8014 Series User's operation manual

Pkm

Pkm WT9+6 instruction manual

Electrolux

Electrolux EWW1042ADWA user manual

Indesit

Indesit WIB101 Instructions for use

Bosch

Bosch XQG100-WNC854A50W User manual and installation instructions

Electrolux

Electrolux EDC 77570 W brochure

Brandt

Brandt BWW7549U instruction manual

Baumatic

Baumatic BWD1409W instruction manual

AEG

AEG L7WBG851R user manual

Hotpoint Ariston

Hotpoint Ariston WDG 8640 Instructions for use

Haier

Haier HWD1600 user manual

Küppersbusch WT1458.0W-CN User manual

Popular Washer Dryer manuals by other brands
