Kalley K-LED19HDT2D User manual

July. 2016
KALLEY
Model:K-LED19HDT2D
Maintenance manual

1:Bill of materials
Code of
materials
Name
Quanlity
Specification
480-306-0902H Screw 1 3*6BMH D6
340-104-0316H Speaker 2 L=500mmR=250mm
640-031-0030H Key board 1
640-021-0022H IR board 1
200-463-1010H Mainboard 1 TE.MS3463S.EA67
365-103-0001H Adapter 1 12V/3A ,20AWG L=1500mm plug2.1mm FCC/UL
600-185-3230H Display 1 LC185TT7A PANDA 1366*768 5V 4COF 4014LED
400-185-3122H Rear case 1
400-236-5102H Left base 1 L165xW72xH34mm

Code of
materials
Name
Quanlity
Specification
400-236-5103H Right base 1 L165xW72xH34mm
410-073-1005H Rubber foot 4 external diameter12.0mm*
internal
diameter8mm*H5.5mm
410-020-1017H Light pipe 1
460-004-1281H Side terminal baffle 1 L126.5*W27.5*H23.1mm
460-005-1288H Bottom
terminal baffle
1 L207*W27.5*H23.1mm
480-307-0201H screw 7 3*7BBH D6
480-304-0905H screw 8 3*4BMH D6
480-305-0903H screw 1 3*5BMH D6
480-305-0806H screw 8 3*5KMH D5

Code of
materials
Name
Quanlity
Specification
480-310-1001H screw 4 3*10 PWA D6 gasket diameter
10mm
480-410-0202H screw 4 4*10BBH D8
345-011-0003H LVDS cable 1 UL1571#28 L=300mm 30pin
345-201-0049H Remote cable 1 UL2651#28, 14pin(2.0) to
8pin(1.25)L=300mm/5pin(1.25)L=300mm
558-182-0020H Key sticker 1 L71*W27.5*0.25mm
558-022-0426H Back inscription sticker 1 L66*W50*H0.25mm PVC
558-042-0248H Side port sticker 1 ELED185G2 L119.5*W14.5*H0.25mm PVC
558-032-0167H Bottom port sticker 1 ELED185G2 L199.5*W14.5*H0.25mm PVC
555-001-0025H Sevice manual 1 L280*W215mm

Code of
materials
Name
Quanlity
Specification
555-001-0017H Packaging paper
bag
1 L220*W145mm KALLEY
555-001-0015H TDT warning icon 1 L150*W150mm
555-001-0016H TDT manual 1
558-205-0150H Promotion sticker 1 L140*W98m PET
558-081-0031H Serial number
sticker
1 L40*W10mm PET
540-185-0003H Up styrofoam 1 ELED185G2 L485*W105*H112mm 65g top
540-185-0004H Down styrofoam 1 ELED185G2 L485*W105*H90mm 65g down
370-015-4701H Battery 2 1.5V
375-144-0047H Remote control 1

Code of
materials
Name
Quanlity
Specification
550-219-0032H Gift box 1 L497*W115*H353mm
555-011-0160H Instructions 1
555-021-0052H Warranty
card
1
410-069-1001H Hand clasp 1 A03 15KG-20KG
560-052-3601H Film bag 1 L520(opening edge)*W360±10mm
560-008-0501H PE bag 1 W50*L80mm
560-035-2501H PE bag 1 L350*W250mm
570-060-0001H Black tape 0.028 L25m*W18mm
570-065-0010H Sellotape 0.0070 L41m*W55mm

Code of
materials
Name
Quanlity
Specification
570-077-0001H cable tie 1 L140
570-067-0001H Wrapping film 0.0060 W450mm
570-066-0001H Masking tape 0.0050 W10mm
570-030-0001H Alcohol 0.0040 Purity 99%

2:Disassembly flow chart
procedure
Figure
Discription
Ready
Put
the
machine
on a
clean,
soft, flat
surface
.

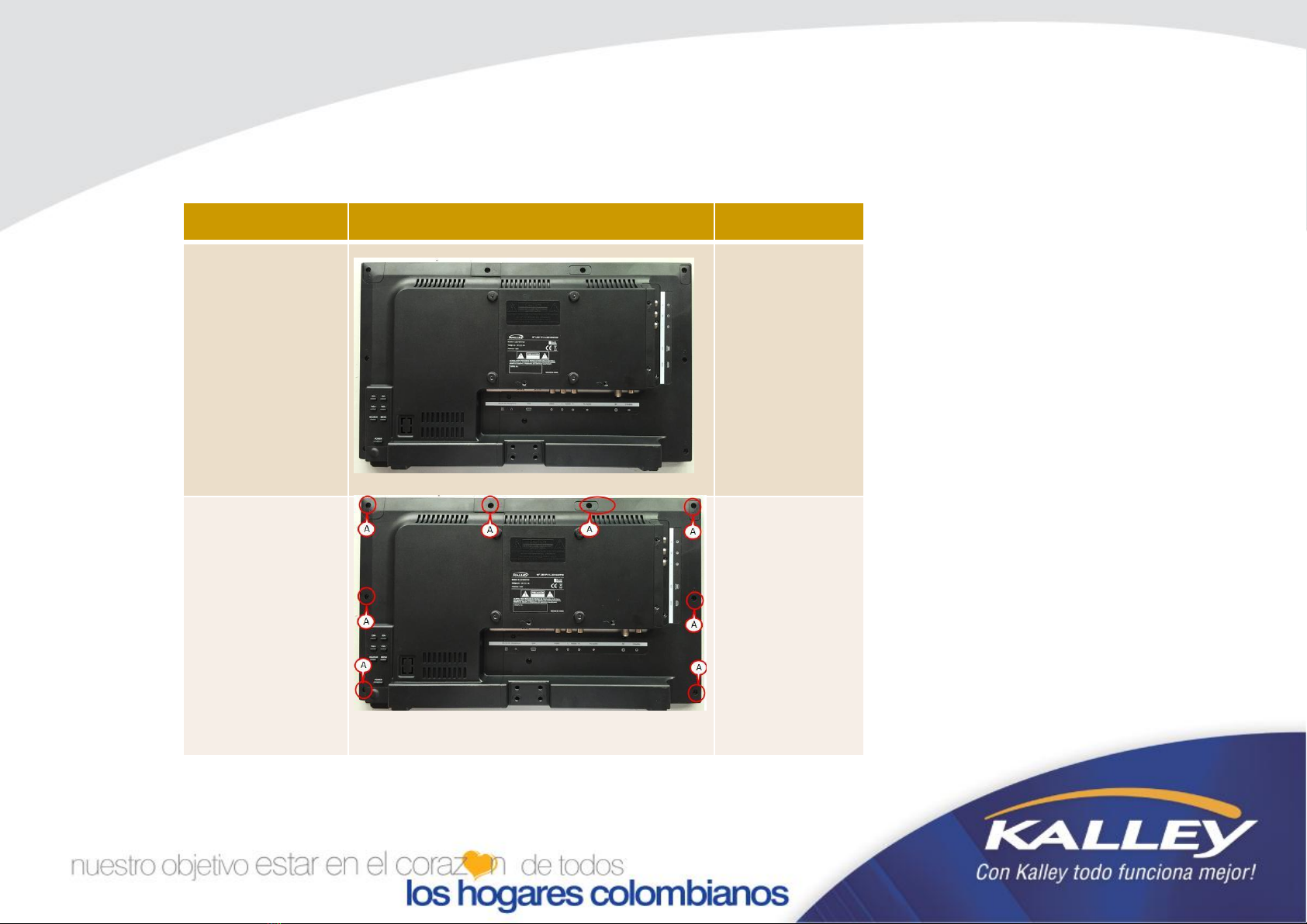

Remove the
screw on
rear case

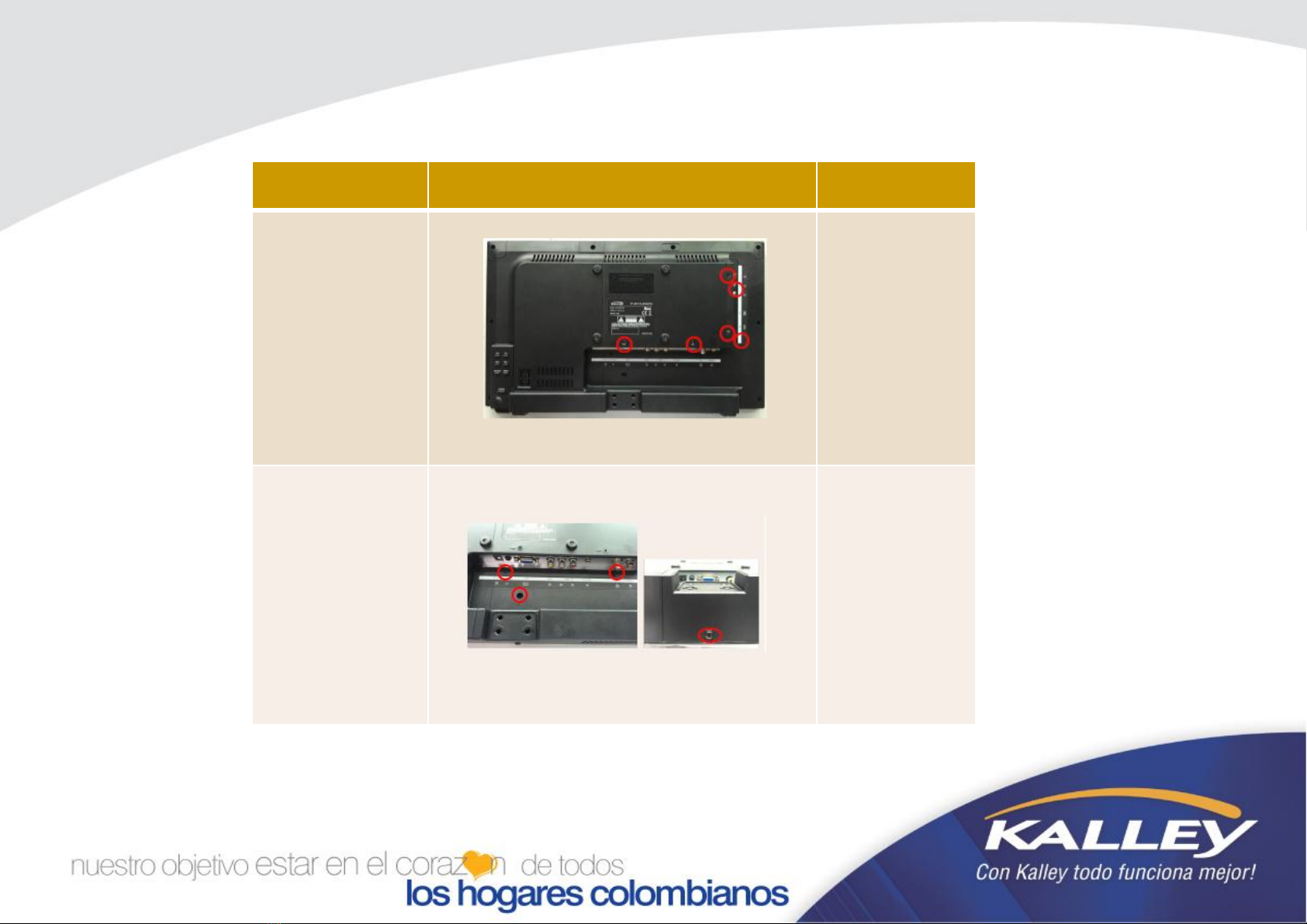

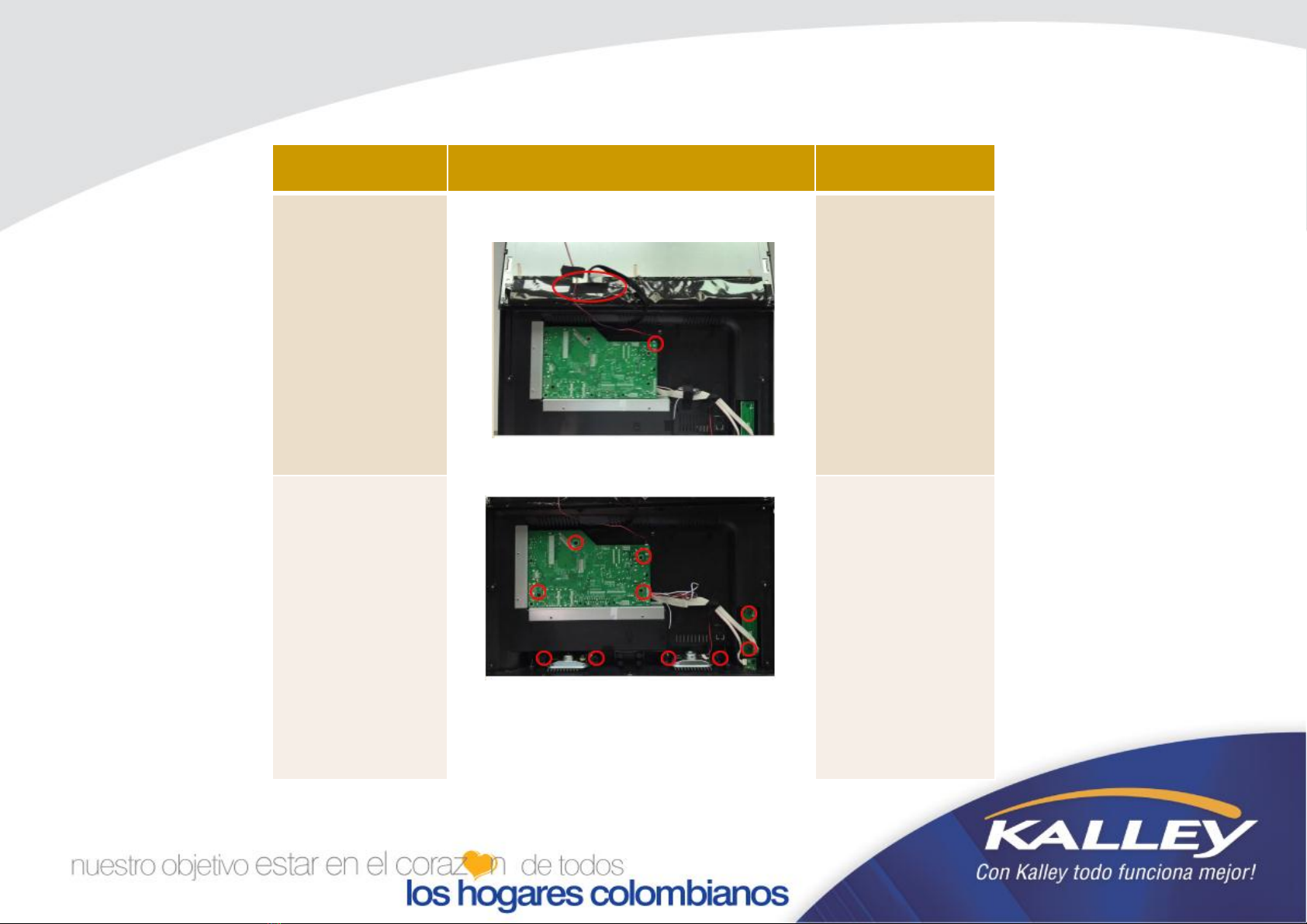

Unscrew the
screw
that
has red
mark

procedure
Figure
Discription
Remove the
screw on
rear case
Put
the
machine
on a
clean,
soft, soft
surface
.
Remove
the rear
case
Unscrew the
screw
that
has red
mark

procedure
Figure
Discription
Remove
the
display
Unplug the cable
which has marked
red
Remove
the
mainboar
d
,key-
group and
the
speakers
Unscrew the
screw
that has
red mark

procedure
Figure
Discription

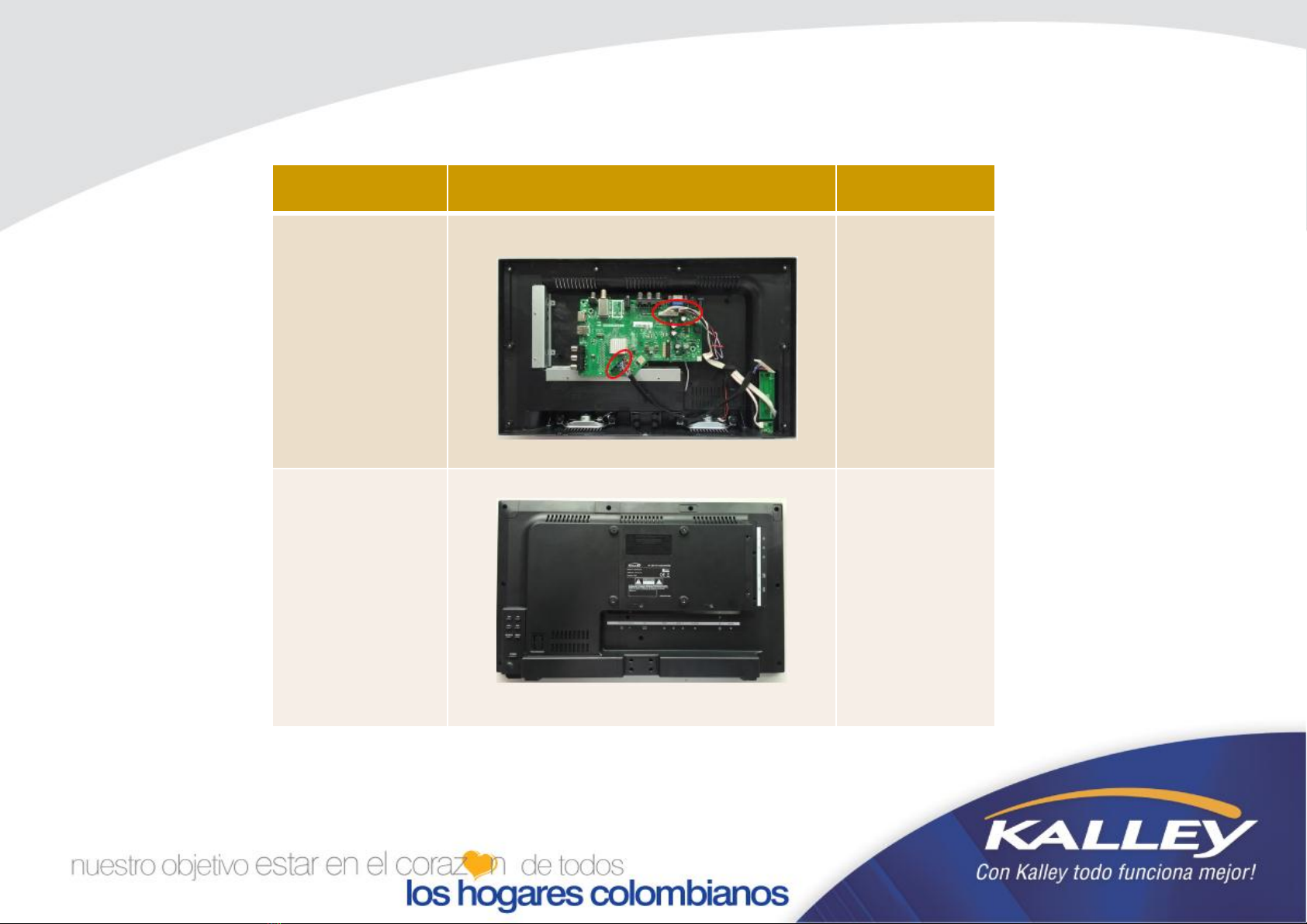

Unplug
the
cables
Put
the
machine
on a
clean,
soft, soft
surface
.
Rear
case Take off the
element
inside the
rear case

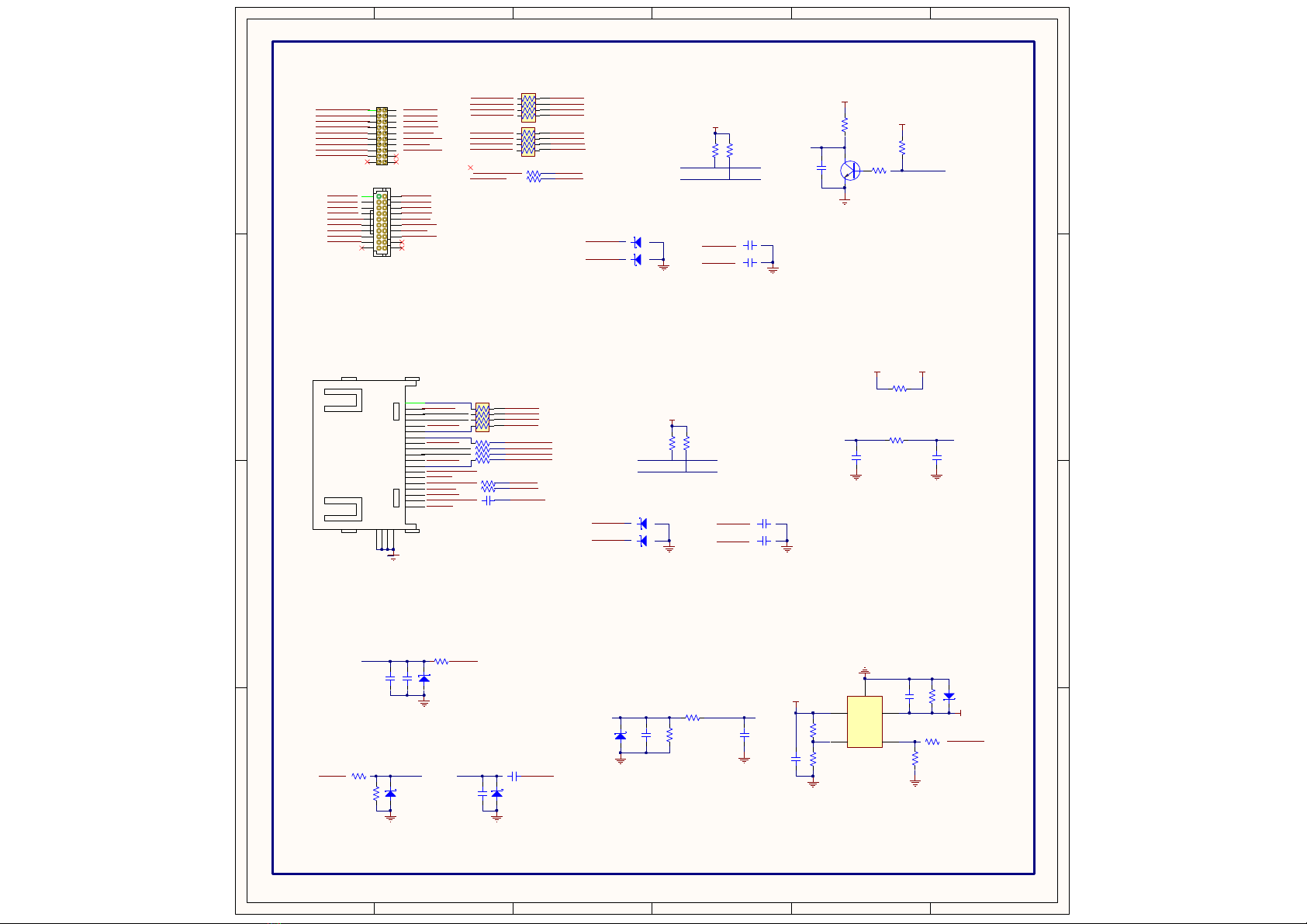

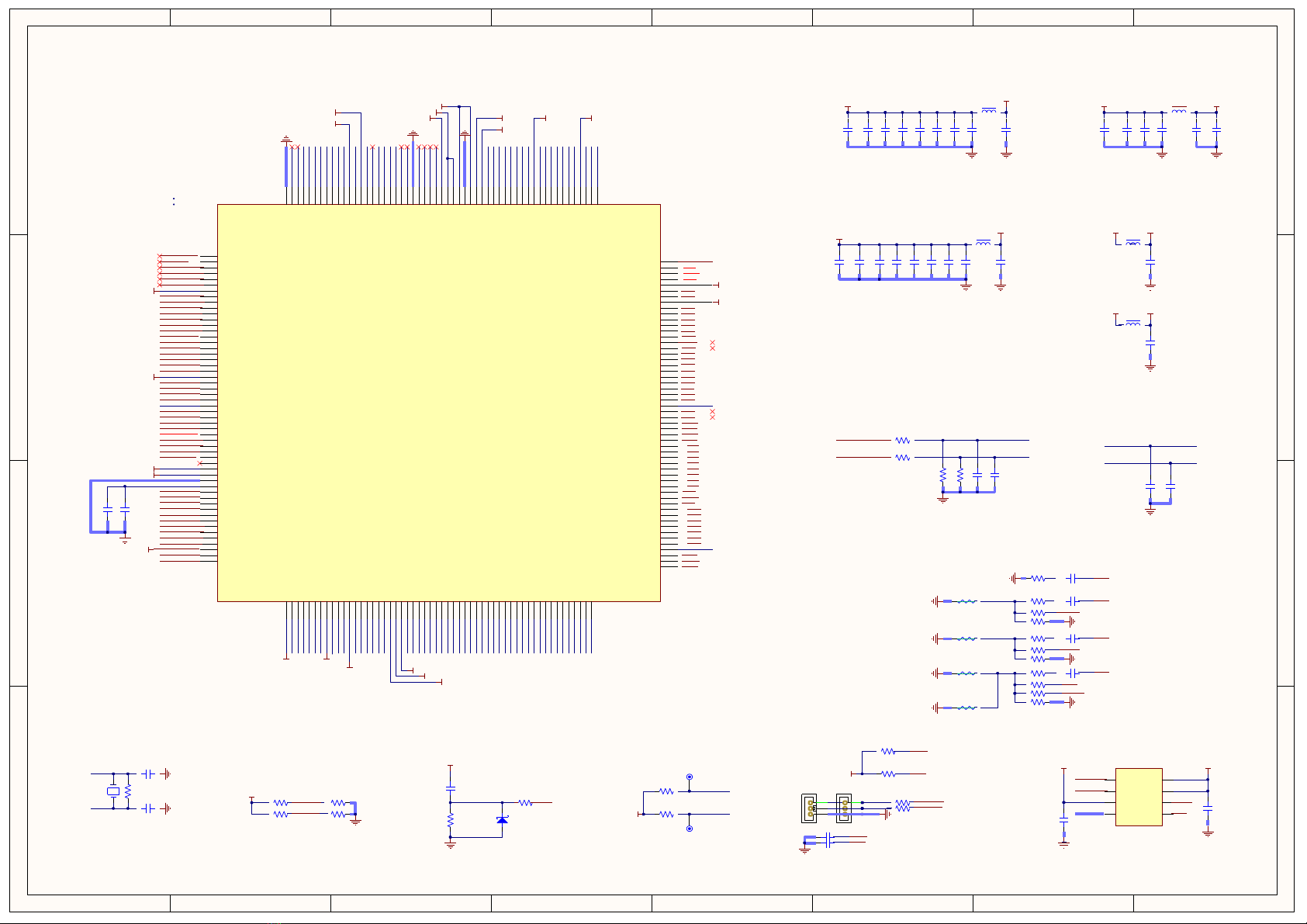

3:The circuit principle diagram of TV

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
1
HS
2
1 2
TE.MS3463 S.EA67
Model Name:
CHK'D:
DRAWN: 2015-04-23
VERSION: V1.0
Ma Fengqi DATE:
XXX DATE: 2015-0X-XX
LED+LED+ LED_FB
LED_FB LED_FB
LED+
GN D
OV P
LED+12V_IN
RB808
LED_FB
RB814
RB807
GATE
RB803
D
G
S
QB801
RB810
LB801
AK
DB804
RB812
CB810
K
DB801
+
EB801
CB809
RB819 RB820 RB821
CB808
LED+
LED_FB
GN D
GN D
7
6 5 4 3 2 1
PW M _DI M
P W M_DI M P W M_DI M
P W M_RE F P W M_R EF
PWM_R EF
RB839 RB837 RB838
BB801
A
CS
HS !
LED_FB
OV P
GN D
P W M_DI M
GN D12V_IN
GN D
PIN1
PIN4
PIN5
PIN6
GN D
1
GATE 2
3
4
6
5
VIN P W M
GATE OVP
GNDCOM P
CS FB
RB801
CB806
RB806
CB804
CB805
GN D
RB804
RB805
CB812
CB803
PIN8 CB807
8
7
CB801
RB816
CS
GN D
GN D
P W M_RE F
CB811
PIN1 1
GATE 2
3
PIN4 4
5
VIN DIM
GATE OVP
GNDCOMP
CS FB
ISET REF
10PIN8
9 OV P
8 PIN6
7 PIN5
6
UB802
GN D
6 5252 4141 3 2 1
2 1
+
EB802 HS
LED_FB
NC
HSB1
LB802 NC
NC
NC
CNB863
CNB824 NC CNB861 NC
CNB862 NC
8
CNB825 NC
CNB826 NC CNB823 NC C NB864 NC
CNB821
CNB822 NC
UB801 NC

1
1
2
2
3
3
4
4
5
5
6
6
D D
C C
B B
A A
1 ADJ
GND
GND
UL2
5V_ M LC1 11 7CL TRAD
3 VI VO 2
CL7 CL8 CL 9 C L10 C L11 C L12
0. 1uF- 04 02-X5 R-20 %-16V
22 uF- 0805 -X5 R-20 %-6. 3V
10 uF- 0603 -X5 R-20 %-6. 3V
10 uF- 0603 -X5 R-20 %-6. 3V
GND
10 uF- 0603 -X5 R-20 %-6. 3V
0. 1uF- 04 02-X5 R-20 %-16V
+1 .5 V_DDR + 1. 5V_ DDR
PVCC VC C_P ANEL
QM4
RM5
GND
GND
0o hm- 0805-5%-1/ 8W
R5 V
5V_STB PVCC
NC/ 0o hm-0 805-5% -1/ 8W
R1 2V
12 V PVCC
G
QM3
S D
GND
POW _EN RM 4
QM1
10 Ko hm-0 402-5%-1 / 16 W
KMB T390 4
5V_ M
RM2
GND
CM2
1 GND BS 6
UD2
MP 14 70 GJ- Z
3 IN SW 2
+1 .1 5V_VD D
C
RD1 1
GND
CD1 7
RD1 0
RD1 2
+1 .1 5V_VD D
C
RM8
CD1 1 CD1 2
5V_STB
0. 1uF- 04 02-X5 R-20 %-16V
12V RD1
AAM
S
W
3
4
BST 5
6 EN/ SYNC
VCC
FB 8 RD4
GND
UD1
2 IN
MP 94 95DJ -LF-Z
GND
7
RD5 1
RD6
GND
GND
CD4
5V_STB
CD3
LD1
10 ohm -040 2-5%-1/ 16W
0. 1uF- 04 02-X5 R-20 %-16V
SWP A60 45 S4R 7MT
CD9
NC/ 1uF -0 402- X5R- 20%-16V 1 0K ohm -0402-5%-1 / 16W 18 Koh m-0402-1%-1/ 1 6W 4K 7oh m-
0402-5%-1/ 16 W 0. 1uF- 04 02-X 5R-2 0%-16V 3K 3o hm-04 02-1%-1/ 16W
0. 1uF- 04 02-X5 R-20 %-16V 1 00 Koh m-040 2-5%-1/ 1 6W 3 3K ohm -0402-1%-1/ 1 6W GND 10 uF- 0603 -X5R- 20%-6. 3V
LD2
POW _EN RM 7 LED-SHO RT
RD9
5 EN FB 4
CD1 6
10 0K ohm- 0402-5%-1/ 1 6W 4K 7o hm-0402-1%-1/ 16W
10 uF- 0805 -X5 R-20 %-16V 10 Koh m-04 02-1%-1/ 16W
0. 1uF- 04 02-X5 R-20 %-16V 10 0K ohm- 0402-5%-1/ 16 W
NC/ 1uF -0 402-X 5R- 20%-16V 1 0pF -04 02-NP O-5%-50V
RL1
VO 4
RL2 7 5o hm-0402-1%-1/ 1 6W
33 0o hm-04 02-1%-1/ 16W
12V
12V_OFF
GND
CM6
G
QM5
S D
12V
RM1 0
RM1 4
10 Ko hm-0 402-5%-1/ 16W
10 0K ohm- 0402-5%-1/ 16W
0. 1uF- 04 02-X5 R-20 %-16V
ME2 32 5-G
RM1
NC/ 10 Koh m-0402-5%-1 / 16W
10 0K ohm- 0402-5%-1/ 16W
ME2 34 5A
0. 1uF- 04 02-X5 R-20 %-16V
POW_E N/
QM2
POW _EN/
+
10 0uF -16V-2 0%-5 11-105℃-黑底白字-编带-F=2.5 -XL
RD3 CD 5 CD2 7 C D6 CD7 C D8 ED1
RD7
GND
22 uF- 0805 -X5 R-20 %-6. 3V
22 uF- 0805 -X5 R-20 %-6. 3V
BRI_ADJ_PWM0 R1 PW M_R EF
PWM1 R2 NC P WM_ DIM 510ohm-0402-5%-1/ 16W
4K 7o hm-0 402-5%-1/ 16W
47 Ko hm-0 402-5%-1/ 16W
CM4 C M5 RM1 6
ME2 32 5-G
0. 01 uF-0402 -X7R- 10%-5 0V
NC/ 10 uF- 0805 -X5R -20%-16V
4K 7o hm-0 402-5%-1/ 16W
CD1 0 22 ohm -040 2-5%-1/ 16W
1uF -0 402- X5R -20%-16V
CTD0 50 4- 4R7 -M
CD1 CD 2 RD2
10 uF- 120 6-X5 R-10 %-25V NC/ ?
12V
DC 2.0mm 1 2 V 1F1
3GND 2GND
AV1
DC-001-内径为2.0 mm-G
GND
12V_IN
CN2 3
4 4 GND
3 3 GND
2 2 12V_ IN
1 1 12V_ IN
CN2 2
+
ED
6
CD5 9 CD3 5
0. 1uF- 04 02-X5 R-20 %-16V
S12 06 H3- TR
0. 1uF- 04 02-X5 R-20 %-16V
47 0uF -16V2 0%- 10 12-1 05℃-编带-F =5. 0-XL
GND 1 GND
GND 2 GND
GND 3 GND
GND 4 GND
A D J 5 ADJ /P WM
BL O N 6 BL _ON
12 V 7 12 V_IN
12 V 8 12 V_IN
12 V 9 12 V_IN
12 V 10 12 V_IN
CN1 6 CN1 8 1
2
3
4
5
6
7
8
9
10
NC/ 10 PIN -2.0 -D-H- G-带扣-J
NC/ 10 PIN -2.0 -D-H- G
RD6 4
RD6 1
QD6
NC/ 10 Koh m-0402-5%-1/ 1 6W
NC/ KMBT3 90 4
GND
NC/4K7 ohm-04 02-5 %-1/ 16W
NC/510oh m-0402-5%-1 / 16W
NC/10Ko hm-040 2-5%-1/ 16W
NC/3CG3906M
RD6 0 QD5
PW _ON
25V S B 2 5V_STB
3GND 3 GND
4GND 4 GND
6 5V 6 5V
5 5V 5 5V
CN1 9 CN2 0
1 P W O N 1 PW_ ON
NC/ 6P IN- 2.0- D-H- G-带扣-J
NC/ 6P IN- 2.0- D-H-G
NC/ 0o hm-0 805-5% -1/ 8W
R3 V3
3V3 _STB P VCC
CL1 CL2
GND
0. 1uF- 04 02-X5 R-20 %-16V
22 uF- 0805 -X5 R-20 %-6. 3V
10 uF- 0603 -X5 R-20 %-6. 3V
10 uF- 0603 -X5 R-20 %-6. 3V
5V_STB 3V3 _STB 3 V3_ STB
CL3 CL 4 C L5 CL6
1 ADJ
VO 4
UL1
3 VI VO 2
10 uF- 0603 -X5 R-20 %-6. 3V
0. 1uF- 04 02-X5 R-20 %-16V
LC1 11 7CL TR33
CN1 CN1 5
1G N D 1 GND
2G N D 2 GND
3A D J 3 ADJ/PWM
4BL O N 4 BL _ON
512 V 5 12V_ IN
612 V 6 12V_ IN
NC/ 6P IN- 2.0- D-H- G-带扣-J
NC/ 6P IN- 2.0- D-H- 红色-G
RB7
RB9
5V_ M
RB6
CB1
RB8
RD8
NC/ 33 ohm -0402-5%-1/ 16W
NC/ NC/ 1uF- 04 02-X 5R-2 0%-6. 3 V
NC/ 10 Koh m-0402-5%-1/ 1 6W
NC/ KMBT3 90 4
NC/ 51 0oh m-0402-5%-1/ 1 6W
NC/ NC/ 3K3 ohm -0402-5%-1/ 16W
GND GND GND
QB2
ADJ/ PW M
PW M 1 PW M/AD J'
RB1 1
QB3
GND
5V_ M
RB4
RB1 0
GND BL_ON
NC/ 10 Koh m-0402-5%-1/ 1 6W
NC/ 1Ko hm- 0402-5%-1/ 16 W
NC/ 33 ohm -0402-5%-1/ 16W
NC/ KMBT3 90 4
NC/ NC/ 2K2 ohm -0402-5%-1/ 16W
RB5
BRI_ ADJ_ PW M0 BL_ON/
RM1 8
5V_STB 5V
NC/ 0o hm-0 805-5% -1/ 8W
RD6 2
POW _EN
RM1 9
NC/ 4P IN- 2.0- D-H- G NC/ 4P IN-2 .0-D -H- G-带扣-J 5V_M 5V
NC/ 0o hm-0 805-5% -1/ 8W
5V_ STB D
10 Ko hm-0 402-5%-1/ 16W
4K 7o hm-0 402-5%-1/ 16W
2K 2o hm-0 402-5%-1 / 16 W
KMB T390 4
3V3_STB
RM6
RM3
CD1 3 CD1 4 CD1 5 CD2 9 CD28 CD32 CD4 2
22 uF-0 805-X5 R-20 %-6. 3V
GND N C/0 .1u F-0 402-X 5R- 20%-16V
10 uF- 0603 -X5 R-20 %-6. 3V
1uF -0 402- X5R -20%-16V
22 uF- 0805 -X5 R-20 %-6. 3V
22 uF-0 805-X5 R-20 %-6. 3V
NC/ 22 uF- 0805 -X5R -20%-6. 3V

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
SC AR T_F B
HDMI_CEC
HDMI2_SCL
HDMI2_SDA HDMI1_SCL HDMI1_SDA
HDMI1_ RX0 _ P
MDI_TP MDI_TN MDI_RP MDI_RN
SCART_FS KEY HDMI0_SDA HDMI0_SCL MHL_CABLE_DET
IP_S IM_S IFAGC_S IFAGC_T VIFP VIFM
AUVAG
M_SDA M_SCL POW_EN AMP_MUTE DISEQC ARC_DET
PCM_RESET PCM_IRQA_N
PCM_CD_N PCM_REG_N
PCM_CE_N PCM_OE_N PCM_WE_N PCM_WAIT_N
PCM_IORD_N
PCM_IOWR_N PCM_D0
PCM_D1 PCM_D2 PCM_D3 PCM_D4 PCM_D5 PCM_D6 PCM_D7
PCM_A14 PCM_A13 PCM_A12 PCM_A11 PCM_A10 PCM_A9 PCM_A8
PCM_A7 PCM_A6 PCM_A5 PCM_A4 PCM_A3 PCM_A2 PCM_A1
PCM_A0
TS O_D 7
RX O4_ N
IR_D AT
XTALI
XTALO
CF3
CF1
GND
GND
RF1Y1
24MHz-20PPM-20PF-HC-49S-SMD
33pF-0402-N PO- 5%-50V
33pF-0402-N PO- 5%-50V
NC/1Mo hm -0402-5%- 1/16W
R7
R9
NC/4K7ohm-0402-5%- 1/16W
4K7o hm -0402-5% -1/16 W
GN D
4K7o hm -0402-5% -1/16 W
NC/4K7ohm-0402-5%- 1/16W
3V3_ STB
PW M 1 R8
BRI_ ADJ _P W M0 R10
L1
C8C7C6C5C4
1uF -0402-X5R-20% - 16V
1uF -0402-X5R-20% - 16V
1uF -0402-X5R-20% - 16V
C3C2C1
10uF-0603-X 5R -2 0% -6. 3V
0.1u F-0402-X5R- 20%- 16V
1uF -0402-X5R-20% - 16V
C9
GND GND
FCM1005KF-121T 06(120o hm -500m A)
0.1u F-0402-X5R- 20%- 16V
1uF -0402-X5R-20% - 16V
1uF -0402-X5R-20% - 16V
L2
1uF -0402-X5R-20%- 16V
NC/0.1u F-0402-X5R-20% -1 6V FC M1005KF-121T06 (120o hm -5 00mA)
C11 C12 C13
1uF -0402-X5R-20%- 16V GND GND
C10
10uF-0603-X5R -2 0% -6.3V
C15
L3
C16 C 17 C 18 C19 C20 C21 C22
0.1u F-0402-X5R- 20%- 16V GND
0.1u F-0402-X5R- 20%- 16V
1uF -0402-X5R-20% - 16V
GND FCM1005KF-121T 06(120o hm -500m A)
0.1u F-0402-X5R- 20%- 16V
C23
FCM1005KF-121T 06(120o hm -500m A)
0.1u F-0402-X5R- 20%- 16V
GND
L5
C26
FCM1005KF-121T 06(120o hm -500m A)
0.1u F-0402-X5R- 20%- 16V
GND
C24 C 25
0.1u F-0402-X5R- 20%- 16V
0.1u F-0402-X5R- 20%- 16V
10uF-0603-X 5R -2 0%-6. 3V
0.1u F-0402-X5R- 20%- 16V
0.1u F-0402-X5R- 20%- 16V
RF3
CF2
DF2
NC/SFI0402-240E-2R5PP-LF
2.2u F-0402-X5R- 20%- 6. 3V
100Kohm-0402-5%-1/1 6W
1Ko hm -0402-5%-1/ 16W
RF2
Sy stem_RS T
GND
5V_ STB
CS#
3 WP#
HOLD# 7
Vcc 8
UF1
SPI FLAS H 芯片,IC SPI FLASH,64Mb,SOIC8,S MD,GD25Q64CSIG,GigaDevice
3V3_ STB
SPI_CS N 1
SCLK 6 SPI_CLK
SPI_DO 2 SO
GN D 4 Vss SI 5 SPI_DI
CF4
GND
CF5
3V3_ STB
RV3
RV2
5V_ STB UART-RX/DDC
4K7o hm -0402-5% -1/16 W UART-TX/DDC 1
4K7o hm -0402-5% -1/16 W
TEST
UART-TX/DDC
UART-RX/ DDC 1
TEST
RA3 RA4 CA1 CA2
GND
AMP_A UOUTL
AMP _AUOU TR
RA1
RA2
100o hm -0402-5%-1/16W
100o hm -0402-5%-1/16W
200Kohm-0402-5%-1/1 6W
200Kohm-0402-5%-1/1 6W
NC/1000pF-040 2-X 7R-10%- 50V
NC/1000pF-040 2-X 7R-10%- 50V
C27
GND
C28
1000p F-0402 -X7R- 10%-50V
1000p F-0402 -X7R- 10%-50V
AMP LIN
AMP RIN
RV1 68oh m-0402-5%-1 /16W
0.047uF-0402-X 7R-1 0%-16V
GND CV1 GIN0M
RI41
RI10RI9
NC
3V3_ Tun R T3 M_S CL
RT1 M _SD A
+1.15V_VDDC
+1.15V_VDDC+1.15V_VDDC
+1.15V_VDDC
+1.15V_VDDC
+1.15V_VDDC
+1.15V_VDDC
+1.5V_D DR
DVDD_DDR
DVDD_DDR
AVDD_DDR_DATA
AVDD_DDR_DATA
3V3_ STB
3V3_ STB
3V3_ STB
3V3_ STB
3V3_ STB
3V3_ MOD1
3V3_ MOD1
3V3_ STB
3V3_ STB 3V3_DMPLL
L4
3V3_ DMPLL
3V3_ DADC
3V3_ DADC
3V3_ STB
3V3_ STB
GNDGND
XTALI
XTALO
LED_R_ON
AVDD5V_MHL
GND
GND
CI2 G IN2M
RI8
RI7 YPbPr_Y
RI5
NC
GND
CI3 V COM0
GND RI6 68oh m-0402-5%-1 /16W
0.047uF-0402-X 7R-1 0%-16V
NC/75ohm -0402-5% -1/1 6W
NC/0ohm-0402-5%-1/16W
CI1 G IN1M
RI4
RI3 S CART_G/
RI1
NC
GND
GND RI2 68oh m-0402-5%-1 /16W
0.047uF-0402-X 7R-1 0%-16V
NC/75ohm -0402-5% -1/1 6W
NC/0ohm-0402-5%-1/16W
RI40 AV_IN
RI42 SCART_VIN
180o hm -0402-5%-1/16W
0.047uF-0402-X 7R-1 0%-16V
NC/75ohm -0402-5% -1/1 6W
NC/75ohm -0402-5% -1/1 6W
NC/0ohm-0402-5%-1/16W
RI43
NC
GND
+1.5V_D DR
SCART_ LINEOUTL
SCART_ LINEOUTR
RX0N_B
HD MI1 _RX0_ N 1
2 RX0P_B
HDMI1_ RX1 _ N 3 RX1N _B
HDMI1_ RX1 _ P 4 RX1P _B
HDMI1_ RX2 _ N 5 RX2N _B
HDMI1_ RX2 _ P 6 RX2P _B
7 AVDD_MOD
HD MI 2 _R XC _ N 8 RXCN_A
HDMI2_ RXC _ P 9 RXC P_A
HDMI2_ RX0 _ N 10 RX0N_A
HDMI2_ RX0 _ P 11 RX0P_A
HDMI2_ RX1 _ N 12 RX1N_A
HDMI2_ RX1 _ P 13 RX1P_A
HDMI2_ RX2 _ N 14 RX2N_A
HD MI2 _RX2_ P 15
HSYN C0
VGA_HS 16 R X2P_A
VG A_ B I N+ 17
VGA_GI N+ 18 BIN0P
GIN0M 19 GIN0P
RIN 0P
VG A_ RI N + 20 GIN0M
VG A_ VS 21 VSYNC 0
22 AVDD3P3_ADC
SC AR T_B 23 BIN1P
SCAR T_G 24 GIN1P
GIN1M 25 GIN1M
SC AR T_R 26 RIN1P
AV _ CV B S I N0 33 C VBS0
SC _ C VB S I N1 34 C VBS1
VCOM0 35 V COM
SC A RT_ C V B S_ OU T 1 36 CVBS_ OUT1
38 VDDC
AINL 2 42
AINR2 43 LINEIN_L2
40 AUVRM
41 VAG
AV_L IN 46 LINEIN_L4
AV _ RI N 47 LINEIN_R4
39 AVDD_AU33
SC A RT_ L I NE OUT R 48 LINEO UTR3
SC A RT_ L I NE OUT L 49 LINEOUTL3
AM P_ AU OUTL 50 EARPHONE_OUTL
AMP_A UOUT R 51 EARPHONE_OUTR
52 AVDD33_EAR
QP _S 53 QP_S
QM_ S 54 QM_S
IRIN 162
R_ODD[5]/LVB0- 157 RX O0_ N
R_ODD[4]/LVB0+ 156 RX O0_ P
AV D D_ MOD 155 3V3_STB
R_ODD[3]/LVB1- 154 RX O1_ N
R_ODD[2]/LVB1+ 153 RX O1_ P
R_ODD[1]/LVB2- 152 RX O2_ N
R_ODD[0]/LVB2+ 151 RX O2_ P
G_ODD[7]/LVB3- 150 RX O3_ N
G_ODD[6]/LVB3+ 149 RXO 3_ P
G_ODD[5]/LVB4- 148
147 RX O4 _P
G_ODD[4]/LVB4+ 146 RXE 0_N
G_ODD[3]/LVA0- 145 RX E0 _P
G_ODD[1]/LVA1-
G_ODD[2]/LVA0+ 144 RX E1 _N
G_ODD[0]/LVA1+ 143 RX E1 _P
B_ODD[7]/LVA2- 142 RX E2 _N
B_ODD[6]/LVA2+ 141 RXE 2 _P
B_ODD[5]/LVACLK- 140 RXEC_ N
B_ODD[4]/LVACLK+ 139 R XE C_ P
B_ODD[3]/LVA3- 138 RX E3 _N
B_ODD[2]/LVA3+ 137 RXE 3 _P
B_ODD[1]/LVA4- 136 RX E4 _N
B_ODD[0]/LVA4+ 135 RXE 4 _P
DP_ P0 134 USB 0 _D P
DM_ P0 133 USB0_D M
DP_ P1 132 USB 1 _D P
DM_ P1 131 USB1_D M
217 216 HDMI1_RXC_P 215 HDMI1_RXC_N 214 HDMI0_RX2_P 213 HDMI0_RX2_N 212 HDMI0_RX1_P 211 HDMI0_RX1_N 210 HDMI0_RX0_P 209 HDMI0_RX0_N 208 HDMI0_RXC_P 207 HDMI0_RXC_N 206 205 HDMI_ARC 204 AVDD5V_MHL 203 HDMI2_HPDIN 202 HDMI1_HPDIN 201 HDMI0_HPDIN
27 VSYNC1
PB2_ IN 28 BIN2P
Y2_I N 29 GIN 2P
GIN2M 30 GIN2M
PR2_I N 31 RIN2P
37 CVBS_OUT2
SC_L IN 44 LINEIN_R2
LINEIN_ R3
SC _ RI N 45 LINEIN_L3
AVDD3P3_DADC
IP_S IM_S IFAGC_S IFAGC_T
IP_T IM_T AVDD3P3_DMPLL
XIN XOUT GPIO68/MHL_VBS
VDDC GPIO44/TX1
GPIO45/RX1
PWR_ON/OFF VBL_CTRL
GPIO48/DISEQC
GPIO49/I2S_OUT_WS
VDDIO_CMD
VDDC AVDD_MOD
PCM_RESET/EJ_RSTZ
PCM_IRQA_N PCM_CD_N
PCM_REG_N PCM_CE_N
PCM_OE_N PCM_WE_N
PCM_WAIT_N PCM_IORD_N PCM_IOWR_N PCM_D0
PCM_D1 PCM_D2
PCM_D3
PCM_D4/EJ_TC K
PCM_D5/EJ_TDO
PCM_D6/EJ_TDI
PCM_D7/EJ_TRSTN
PCM_A14 PCM_A13
PCM_A12/EJ_DINT
PCM_A11 PCM_A10
PCM_A9 PCM_A8 PCM_A7
PCM_A6/EJ_TMS
PCM_A5 PCM_A4
PCM_A3 PCM_A2
PCM_A1 PCM_A0
55 56 57 58 59 60 61
62 63 64 65 66 67 68
69 70 71 72 73 74 75
76 77 78 79 80 81 82
83 84 85 86 87 88 89
90 91 92 93 94 95 96
97 98 99
100 101 102 103 104 105 106
107 108
TS1_D0 130 TSI _D0
TS1_D1 129 TSI _D1
TS1_D2 128 TSI _D2
TS1_D3 127 TSI _D3
TS1_D4 126 TSI _D4
TS1_D5 125 TSI _D5
TS1_D6 124 TSI _D6
TS1_D7 123 TSI _D7
122 TSI _VLD
TS1_VLD 121 TSI _ S YN C
TS1_SYNC 120 TSI_C LK
TS0_D0
TS1_CLK 119 TSO _D 0
TS0_D1 118 T SO_ D1
TS0_D2 117 T SO_ D2
TS0_D3 116 T SO_ D3
TS0_D4 115 T SO_ D4
TS0_D5 114 T SO_ D5
TS0_D6 113 T SO_ D6
TS0_D7 112
TSO_ VLD 111 TS O_V LD
TS0_SYNC 110 TSO_SY NC
TS0_CLK 109 TSO _C LK
AVDDL_ MOD/VDDC 158 +1.15V_ VDD C
GPIO0/TX2/I 2S_ OUT_MC K 161 DV D_I R
GPIO2/RX2/ I2S_OUT_BCK 160 D VD _ DA T
GPIO56/I2S_ OUT_SD 159 D VD_EN
170 5V_ANT_ON/OFF 169 SPI_DI 168 HP_DET 167 SPI_CSN 166 165 PWM1 164 BRI_ADJ_PWM0 163 System_RST 177 UART-RX/DDC 176 UART-TX/DDC 175 SPDIF_OUT 174 173 SPI_DO 172 SPI_CLK 171 LNB_PWEN
GND
RXCP_B RXCN_B RX2P_D RX2N_D RX1P_D RX1N_D RX0P_D
RX0N_D RXCP_D RXCN_D
VDDC/AVDDL_DVI
ARC
AVDD_5V
HOTPLUG_A
HOTPLUG_B
HOTPLUG_D
CEC
DDCDA_CLK
DDCDA_DAT
DDCDB_CLK
DDCDB_DAT
GND-EFUSE
TP
TN RP RN
AVDD_ETH
VDDIO_DRAM
VDDIO_DRAM
VDDIO_DATA
GND
VDDIO_DATA
AVDD_MOD
DVDD_DDR_DATA
SAR1 SAR0
DDCDD_SDA
DDCDD_CLK
MHL_DET
DDCA_CK
DDCA_DA
GPIO96/SPDIF_OUT
VDDC
SPI_DO/SPI-NAND_DO/NANAD_RBZ
SPI_CK/SPI-NAND_CK/NAND_ALE SPI-
NAND_WP/NAND_WP
SPI-NAND_HOLDN/NAND_WEZ
SPI_DI/SPI-NAND_DI/NAND_REZ
NAND_CLE
SPI_CS/SPI-NAND_CS/NAND_CEZ
VDDC
PWM1 PWM0 RESET
200 199 198 197 196 195 194
193 192 191 190 189 188 187
186 185 184 183 182 181 180
179 178
MSD3463GSA
U1
TV主芯片, IC Main C hip ,MSD 34 63 GS A- Z1, L QFP 21 6, SMD , Msta r
LN B_ P W _ 1 3V / 1 8 V_ S E L 32 PANEL_ON/OFF
+1.5V_D DR
CA3 CA4
2.2u F-0402-X5R- 20%-6. 3V
NC/10uF-0603 -X5R - 20%- 6. 3V
GND
GND
3
CN3
1
2
3
CN2
1 M_SDA/ RF5
NC/0.1u F-0402-X5R-20% -1 6V
0.1u F-0402-X5R- 20%- 16V
GND
2 M_SCL/ RF6
NC/3PIN-2.0-D-H-G-带扣
NC/3PIN-2.0-D-H-G
NC/100o hm -0402- 5%- 1/ 16W
NC/100o hm -0402- 5%- 1/ 16W
4K7o hm -0402-5% -1/16 W
4K7o hm -0402-5% -1/16 W
M_S DA
M_SCL
CT40 M _SDA
CT41 M_SCL
NC/22pF-0402-NPO-5%-5 0V
NC/22pF-0402-NPO-5%-5 0V
GND
C14
10uF-0603-X 5R -2 0%-6. 3V
1uF -0402-X5R-20% - 16V

1 2 3 4 5 6 7 8
D D
C C
B B
A A
1
CNK1
NC/14PIN-2.0-D-H-G-带扣-B
10 GND
11 IR
9 K0
8 K1
7 K2
6 K3
5 K4
4 K5
3 K6
13 LED_R
2 K7
12 LED_G
14 5V_IR
CF6RXEC_N
RXEC_P CF7
NC/5.6pF-0402-NPO-5%-50V
NC/5.6pF-0402-NPO-5%-50V
GND
GND
1 2
GND
3 4 GND
GND
SK1 K7
GND
DK9 CK4
NC/TS071H1-A38F-100(C5)
NC/1000pF-0402-X7R-10%-50V
NC/SFI0402-240E-2R5PP-LF
GND
NC/0.1uF-0402-X5R-20%-16V
NC/0.1uF-0402-X5R-20%-16V
LED_R CK10
LED_G CK3
2 K7
3 K6
4 K5
6 K3
5 K4
7 K2
8 K1
9 K0
10 GND
11 IR
CK2
13 LED_R
12 LED_G
KEY
RK3
RK1 CK1
0.67V
1.05V
1.36V
1.79V
2.24V
2.78V
0V
0.32V
GND
5V_STB
K6
K7
K0
K1
K2
K3
K4
K5
GND
GND
GND
GND
GND
GND
GND
K7 DK8
K5 DK7
NC/SFI0402-240E-2R5PP-LF K4 DK6
NC/SFI0402-240E-2R5PP-LF
NC/SFI0402-240E-2R5PP-LF K3 DK5
NC/SFI0402-240E-2R5PP-LF
NC/SFI0402-240E-2R5PP-LF K2 DK4
NC/SFI0402-240E-2R5PP-LF
NC/SFI0402-240E-2R5PP-LF K1 DK3
K0 DK2
RK6
RK7
CNK6
连接插座,connect jack,14Pin,D2.0,D,L=2.8mm,DIP,CNJST
RK10
RK11
1 GNDRK9
RK8
GND GND
510ohm-0402-1%-1/16W
680ohm-0402-1%-1/16W
1Kohm-0402-1%-1/16W
1K2ohm-0402-1%-1/16W
2K2ohm-0402-1%-1/16W
4K7ohm-0402-1%-1/16W
15Kohm-0402-1%-1/16W
IR
5V_STB
IR_DAT
RK18
RK19
GND
RK20
5V_M
LED_G
GND
3V3_STB
LED_R LED_R_ON
RK13
RK15
RK2
14 5V_IR
RK5 DK1 CK5
22ohm-0402-5%-1/16W
0.1uF-0402-X5R-20%-16V
3V3_STB 4K7ohm-0402-1%-1/16W
SFI0402-240E-2R5PP-LF
1Kohm-0402-5%-1/16W
RK4 0.01uF-0402-X7R-10%-50V
NC/0.01uF-0402-X7R-10%-50V
CK6
4K7ohm-0402-5%-1/16W
22pF-0402-NPO-5%-50V
1Kohm-0402-5%-1/16W
QK2
33Kohm-0402-5%-1/16W
510ohm-0402-5%-1/16W
10Kohm-0402-5%-1/16W
KMBT3904
1Kohm-0402-5%-1/16W
VCC_PANEL
GND
VCC_PANEL 1 CN14 2
VCC_PANEL 3 4
215PIN-2.0-D-H-M( 脚长=2.6mm)-LK(缺第6PIN)
2 VCC_PANEL
4 GND
VCC_PANEL 1
VCC_PANEL 3
GND
5GND
5
RXO0_N
7 8 RXO0_P RXO0_N
7
8
RXO0_P
RXO1_N
910 RXO1_P RXO1_N
9
10
RXO1_P
RXO2_N
11 12 RXO2_P RXO2_N
11
12
RXO2_P
GND
13 14 GND GND
13
14
GND
RXEC_N
15 16 RXEC_P RXEC_N
15
16
RXEC_P
RXO3_N
17 18 RXO3_P RXO3_N
17
18
RXO3_P
RXE0_N
19 20 RXE0_P RXE0_N
19
20
RXE0_P
RXE1_N
21 22 RXE1_P RXE1_N
21
22
RXE1_P
RXE2_N
23 24 RXE2_P RXE2_N
23
24
RXE2_P
GND
25 26 GND GND
25
26
GND
RXEC_N
27 28 RXEC_P RXEC_N
27
28
RXEC_P
RXE3_N
29 30 RXE3_P RXE3_N
29
30
RXE3_P
1 2 3 4 5 6 7 8
CN6
NC/连接插座,connect jack,215Pin/without pin6,D2.0,D,SNAP,Fool-proofing,Nature,L=2.6mm,DIP,CJ

1 2 3 4 5 6
D D
C C
B B
A A
5V_ STB
RH19 RH20
hm-0402-5%-1/1 6W
hm-0402-5%-1/1 6W
HDMI2_SDA/
10Ko
10Ko
HDM I2_SCL/
GND
HDM I2_SCL/ DH5
HDM I2_SDA/ DH6
22pF-0402-N PO- 5%-50V
22pF-0402-N PO- 5%-50V
RH18
HOTPLUG2 HDMI2_HPDIN
CH9
22pF-0402-N PO- 5%-50V
CH10
NC/22pF-0402-NPO-5%-5 0V
RH17
10ohm-0402-5%-1/ 16W
HDMI2_5V AVDD5V_ MHL
RH23 HDMI2_S CL
RH24 HDMI2_S DA
HP D 19 HOTPLUG2
HDMI
+5 V 18 HDMI2_5V
GN D 17 GN D
SD A 16 HDMI2_SDA /
SC L 15 HDMI2_SCL /
GN D 11 GN D
RXC+ 10
RX0-9
GN D 8 GN D
RX0+ 7
RX1-6
RX2+ 1
23 GND 22 GND 21 GND 20 GND
AV3
HDMI端子,HD MI Ja ck,H ,SMD,HHF-14A000-2SA-N,HF
GND
RH28
RH30
5V_ STB
CH17 RH26 DH8
10uF-0603-X 5R -2 0%-6. 3V
NC/10Kohm-0402-5%- 1/16W
NC/AVLC18S02003
GND 2
FLA G 3 FLG EN 4 SENS E MHL_CD_SENS E
5 Vin Vout 1
UH1
限流开关芯片,IC switch,0.4-2A adj,5.5V,H,SOT23-5,SMD,SY6280AAAC,SILERGY
GND
47Ko hm -0402-5% -1/16 W
GN D NC /10Koh m-0402-5%-1 /16W
RH31 RH32
GND 4K7o hm -0402-1%-1/16W
RH27 MHL_CA BLE_DETMHL _CD_SENS E
DH9 CH18 RH29
NC/SFI0402-240E-2R5PP-LF
0.047uF-0402-X 7R-1 0%-16V
300Kohm-0402-5%-1/1 6W
GND
CE C HDMI_CEC
HDM I_ARC
GND
NC/SFI0402-240E-2R 5PP-LF
HDM I2_5V RH33
RH34 DH10
22Ko hm -0402-5% -1/16 W
33Ko hm -0402-5% -1/16 W
NC/SFI0402-240E-2R5PP-LF
ARC_D ET
CH12
HDM I2_SCL
NC/22pF-0402-NPO-5%-5 0V GND
CH13
HDM I2_SDA
NC/22pF-0402-NPO-5%-5 0V
CH11 GN D 33ohm -0402-5%-1/ 16W
33ohm-0402-5%-1/ 16W
NC/22pF-0402-NPO-5%-5 0V
CH14 CH15 DH7
RH25
220o hm -0402-5%-1 /16W
22pF-0402-NPO-5%-50V
22pF-0402-NPO-5%-50V
GND
CH22 DH11
CH19
100o hm -0402-5%-1/16W
NC/22pF-0402-NPO-5%-5 0V
HDMI0_5V
RH8
RH14
RH13
HDMI0_5V
HDM I0_HPDIN
HDMI0_5V
HOTPLUG0
RH15 HDMI0_S CL
RH16 HDMI0_S DA
33ohm-0402-5%-1/ 16W
33ohm-0402-5%-1/ 16W
GND
GND
HDM I0_SCL/ DH3
HDM I0_SDA/ DH4
22pF-0402-N PO- 5%-50V
22pF-0402-N PO- 5%-50V
RH11 RH12
hm-0402-5%-1/1 6W
hm-0402-5%-1/1 6W
HDMI0_SDA/
10Ko
10Ko
HDM I0_SCL/
CH7
HDM I0_SCL
NC/22pF-0402-NPO-5%-5 0V GND
CH8
HDM I0_SDA
NC/22pF-0402-NPO-5%-5 0V
CH5
CH20
10uF-0603-X 5R -2 0% -6.3V
NC/10Kohm-0402-5%- 1/16W
GND GND
19
18
20
CN4
8 HDM I0_RXC_N'
6 HDM I0_RX0_N'
HDM I0_RXC_P' 7
4 HDM I0_RX1_N'
HDM I0_RX0_P' 5
2 HDM I0_RX2_N'
HDM I0_RX1_P' 3
HDM I0_RX2_P' 1
HDM I0_5V 13
GN D 11
GN D 15
12 GN D
16 GN D
14 HOTPLUG0
CE C 17
HDM I0_SCL/ 9 10 HDMI0 _SDA/
HDMI2_5V
CH21
HDM I_ARC/
1uF -0402-X5R-20% - 16V
22pF-0402-N PO- 5%-50V
NC/SFI0402-240E-2R5PP-LF
QH2
1Ko hm -0402-5%-1/ 16W
KMBT3904
10Ko hm -0402-5% -1/16 W
10Ko hm -0402-5% -1/16 W
NC/22pF-0402-NPO-5%-5 0V
8 HDM I0_RX2_P
6 HDM I0_RX2_N
4 HDM I0_RX1_P
2 HDM I0_RX1_N
RP3
R4P54R1ohm-0402-5%-1/16W
8 HDM I0_RX0_P
6 HDM I0_RX0_N
4 HDM I0_RXC_P
2 HDM I0_RXC_N
4 5R1ohm-0402-5% -1/16W
RX2-3 5
RX1+ 4 3
GND 5 GN D 1
GN D 2 MHL_CD_SENSE 7 8 HDM I2_RX2_P
6 HDM I2_RX2_N
4 HDM I2_RX1_P
2 HDM I2_RX1_N
RP5
4 5R1ohm-0402-5% -1/16W
RH21 HDMI2_RX0_P 5R1ohm-0402-5%-1 /16W
RH22 HDMI2_RX0_N 5R1ohm-0402-5%-1 /16W
RH9 HDMI2_RXC_P 5R1ohm-0402-5%-1/16W
RH10 HDMI2_RXC_N 5R1ohm-0402-5% -1/1 6W
GND 33ohm-0402-5%- 1/ 16W GND
HDM I0_RX2_P' 7
HDM I0_RX2_N' 5
HDM I0_RX1_P' 3
HDM I0_RX1_N' 1
HDM I0_RX0_P' 7
HDM I0_RX0_N' 5
HDM I0_RXC_P' 3
HDM I0_RXC_N'1
RXC-12
CE C 13 CEC
AR C 14 HDMI_ARC/
4 HDM I0_RX1_N'
8 HDM I0_RXC_N'
12 GN D
10 HDM I0_SDA/
14 HOTPLUG0
16 GN D
18
20
HDM I0_RX2_P' 12 HDMI0_RX2_N'
19
CE C 17
GN D 15
HDM I0_5V 13
GN D 11
HDM I0_SCL/ 9
HDM I0_RXC_P' 7
HDM I0_RX1_P' 3
HDM I0_RX0_P' 56 HDMI0_RX0_N'
1 2 3 4 5 6
金针,pin con necto r,2 10Pin,D,D2.0mm,L=2.6mm,DIP ,LK HDMI0_SCL/
HDM I0_SDA/
CN21
NC/连接插座,co nn ect jack,2 10Pin,D2.0,D,SNAP,Foo l -proofing,Be ige, L=2. 6mm,D IP,CJ

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
D D
C C
B B
A A
VS_VGA HS_VGA
GND
GND GND
RV1 4
10 Kohm-0 402-5% -1/16W
10 Kohm-0 402-5% -1/16W
10 0o hm-040 2-5% -1/1 6W
10 0o hm-040 2-5% -1/1 6W
NC/ 33pF -0402-NPO- 5% -50V
NC/ 33 pF- 040 2-NPO-5% -50V
RV5
RV8
RV4
GND
GNDV GA_H S
CV6
RV1 1
RV1 0 CV4
DV1
DV2
DV5
GND GND
DV8 RV1 6
NC/ SFI0 40 2- 240E-2R 5PP-LF
NC/ SFI0 40 2- 240E-2R 5PP-LF
NC/ SFI0 40 2- 240E-2R 5PP-LF RV1 2
NC/ SFI0 40 2- 240E-2R 5PP-LF VGA_VS GND
DV6 RV1 3 CV5
16
R1GND
6
G2GND
7
B3GND
8RXD 4
5V 9
DET 5
GND 10
GND GND 17
DB15
AV4
WLHD-051A
11 TXD
RV1 5
GND
GND GND GND DV9 RV1 9
DV7
0.1uF-0402- X5R-20% -16V
NC/ SFI0 40 2- 240E-2R 5PP-LF
10 Kohm-0 402-5% -1/16W
12 Kohm-0 402-5% -1/16W
NC/ SFI0 40 2- 240E-2R 5PP-LF
12 Kohm-0 402-5% -1/16W
10 Kohm-0 402-5% -1/16W
0.1uF-0402- X5R-20% -16V
CV8
PC_LIN
RV1 7
RV1 8
CV7
PC_RIN
GND 1
ERO 5
RSPK2
LSPK3
ELO 4
AV7
PJ-32 5
5V_M
+
USB_ 5V F U1
GND
9GND
10 GND 11 GND 12 GND
AV5
CN5
NC/ 4P IN-2 .0 -D-H -G
4 USB_ 5V
3 USB0 _M
2 USB0 _P
1GND GND5
GND6
AV6
USB-042M-002 DP GND
5V 1US B_5V DM 2
USB1 _M DP 3
USB1 _P GND4
UART-R X/D DC RV9
10 0o hm-040 2-5% -1 /16W DV3 DV4
10 0o hm-040 2-5% -1/1 6W
UART-TX /DD C RV7
RU1
NC/ 0ohm -060 3-5% -1/10W
EU1 MSMD110
100uF-16V- 20% -511-105 ℃-黑底白字-编带-F=2.5-XF
RU2
RU3
USB0 _D M
USB0 _D P
RU4
RU5
USB1 _D M
USB1 _D P
NC/ USB端子,USB Ja ck,H,Do ubl e,Bl ack,fl ange,DIP, WLUS-07 4B,WLC O 0o hm-0402-5% -1/16W
0o hm-0402-5% -1/16W
5V-1
1 USB_ 5V
DM-1
2 USB0 _M
2 1
DP-1
3 USB0 _P
GND-1
4GND
5V-2
5 USB_ 5V
DM-2
6 USB1 _M
DP-2
7 USB1 _P
GND-2 8
CU1 D U1 DU2 DU 3 DU4 NC/ AIES12U0 20R2-D
NC/ AIES1 2U020 R2-D
NC/ AIES1 2U020 R2-D
NC/ AIES1 2U020 R2-D
10uF-06 03-X5 R-2 0% -6.3V
0o hm-0402-5% -1/16W
GND GND 0o hm-0402-5% -1/16W
UART-TX_SDA12 SDA
13 HS
14 VS
UART-RX_SCL15 SCL
YPbPr_ Y
YPbPr_ Pr
DI6
GND
DI5
GND
YPbPr_ Pb
RI3 0
RI1 9
RI2 8
GND CI2 3
PR2 _I N
CI2 1
Y2_IN
CI2 2
PB2 _I N
AV10
PJ-320A(Φ5.5mm )
AV-IN /Y 2 AV_IN
AV-R/ Pr 3 AV_R
AV-L/ Pb 4 AV_L
GN D 1GND
Pb 3
GND
4
Pr 5
GND
6
AV12
NC/ RCA- 31 9N-002(绿、蓝、红)-密封
GND
CI4 AV_ CVB SIN0
GND
DI1 RI1 2 CI5
GND
GND
CI7
NC/ 33 0pF -04 02-N PO-5% -50V
0.1uF-0402- X5R-20% -16V
NC/ SFI0 40 2- 240E-2R 5PP-LF
CI9
NC/ 33 0pF -04 02-N PO-5% -50V
0.1uF-0402- X5R-20% -16V
NC/ SFI0 40 2- 240E-2R 5PP-LF
10 Kohm-0 402-5% -1/16W
12 Kohm-0 402-5% -1/16W
RI1 5
RI1 6 10 Kohm-0 402-5% -1/16W
12 Kohm-0 402-5% -1/16W
GND
AV_R DI3
AV_L RI13
DI2 RI1 4
AV_IN
GND
DI7 COAX
NC/ SFI0 40 2- 240E-2R 5PP-LF
NC/ SFI0 40 2- 240E-2R 5PP-LF
DI8 SP DIF _OUT'
GND
COAX
5V_M
RI4 7
AV11
IR Transmit ter
1 Vin
2 Vcc
3GND
4GND
5GND
GND
SPD IF_OUT
GND
CI1 9
33 pF- 04 02-N PO-5% -50V
CI2 0
COAX
光纤
NC/ GQ- 03-08
NC/ 0o hm- 04 02-5% -1/16W
SPD IF_OUT'
DI4 CI1 0
RI2 6
NC/ SFI0 40 2- 240E-2R 5PP-LF
75 ohm -0402 -5% -1/16 W
33 ohm -0402 -5% -1/16 W
0.047uF -0402- X7R-10% -16V
RI2 4
NC/ SFI0 40 2- 240E-2R 5PP-LF
75 ohm -0402 -5% -1/16 W
33 ohm -0402 -5% -1/16 W
0.047uF -0402- X7R-10% -16V
RI2 1
NC/ SFI0 40 2- 240E-2R 5PP-LF
NC/ 10 0pF -04 02-N PO-5% -50V
75 ohm -0402 -5% -1/16 W
33 ohm -0402 -5% -1/16 W
0.047uF -0402- X7R-10% -16V
RI1 1
AV_LIN/ CI6 AV_LIN
AV_RIN/ CI8 AV_RIN
NC/ 12 Kohm -0402- 5% -1/16W
NC/ 12 Kohm -0402- 5% -1/16W
AV_LIN/ RI17
AV_RIN/ RI18
Y 1 YPbPr_ Y
GND
2
YPbPr_ Pb
YPbPr_ Pr
AV13
PJ-320A(Φ5. 5mm )
GN D 1GND
AV-IN /Y 2 YPbP r_Y
AV-R/ Pr 3 YPbPr_ Pr
AV-L/ Pb 4 YPbPr_ Pb
RI4 5 CI18
SPD IF_OUT'
R3
同轴
18 0o hm-040 2-5% -1/1 6W
12 0o hm-040 2-5% -1/1 6W
0.1uF-0402- X7R-10% -16V
NC/ 33 0pF -04 02-N PO-5% -50V
4700pF-0402-X7R- 10% -50V
1000pF-0402-X7R- 10% -50V
GND
AV_L CI25
AV_R CI26
CI2 4 75 ohm-04 02 -5% -1/16 W
NC/ 10 0pF -04 02-N PO-5% -50V
15 0o hm-040 2-5% -1/1 6W
0.047uF -0402- X7R-10% -16V
NC/ SFI0 40 2- 240E-2R 5PP-LF
NC/ ?
RV2 0
CV2
VGA_ RIN+ 0 ohm-0402-5 % -1/16W
NC/ SFI0 40 2- 240E-2R 5PP-LF
75 ohm -0402 -5% -1/16 W
33 ohm -0402 -5% -1/16 W
0.047uF -0402- X7R-10% -16V
RV2 1
RV6 C V3
VGA_ GIN+
0o hm-0402-5% -1/16 W
NC/ SFI0 40 2- 240E-2R 5PP-LF
75 ohm -0402 -5% -1/16 W
33 ohm -0402 -5% -1/16 W
0.047uF -0402- X7R-10% -16V
RV2 6 VGA_ BIN+
0o hm-0402-5% -1/16 W
NC/ SFI0 40 2- 240E-2R 5PP-LF
75 ohm -0402 -5% -1/16 W
33 ohm -0402 -5% -1/16 W
0.047uF -0402- X7R-10% -16V
COAX 1COAX
2GND
3GND
AV9
RCA 端子, RCA J ack,AV 1,H ,Or ange, CH5 .5, Seal ,DIP ,AV3 8A- 01S-5020,QS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
D D
C C
B B
A A
GND
GND
GND
GND
DS5 RS17
NC/SFI0402-240E-2R5PP-LF
75ohm-0402-5%-1/16W
DS9 RS24
NC/SFI0402-240E-2R5PP-LF
75ohm-0402-5%-1/16W
DS3 RS9 CS5
NC/SFI0402-240E-2R5PP-LF
75ohm-0402-5%-1/16W
NC/100pF-0402-NPO-5%-50V
GND
DS1 RS5 CS2
GND
GND
CS7
NC/330pF-0402-NPO-5%-50V
0.1uF-0402-X5R-20%-16V
NC/SFI0402-240E-2R5PP-LF
CS14
DS4 RS14
10Kohm-0402-5%-1/16 W
12Kohm-0402-5%-1/16 W
DS8 RS23 10Kohm-0402-5%-1/16 W
12Kohm-0402-5%-1/16 W
NC/330pF-0402-NPO-5%-50V
0.1uF-0402-X5R-20%-16V
NC/SFI0402-240E-2R5PP-LF
RS6
0ohm-0402-5%-1/16W
75ohm-0402-5%-1/16W
GND
DS2
TVS管,DIO ESD,17.5pF,9V, DFN1006 -2L,SMD,ESD54 51N-2/ TR,Willsemi
GND
RS7 CS3
120pF-0402-NPO-5%-50V
DS6 DS7
GND
SFI0402-240E-2R5PP-LF
SFI0402-240E-2R5PP-LF
Form IC
RS37
GND
DS11
10Kohm-0402-5%-1/16 W
2K7ohm-0402-5%-1/16 W
SFI0402-240E-2R5PP -LF
GND
SC_FS
RS34
SCART_FS
GND 4
GND 6
GND 2
AV15
NC/RCA-319N-004(黄、白、红)-密封
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%- 1/16W
75ohm-0402-5%-1/16W
NC/100pF-0402-NPO-5%-50V
150ohm-0402-5%-1/16W
0.047uF-0402-X7R-10%-16 V
NC/SFI0402-240E-2R5PP-LF
SC_ROUT SCART_LINEOU TR
SC_L OUT
SCART_Bin
SCART_Gin
SCART_Rin
SCART_V OUT SCART_CVBS_OU T1
SCART_V IN RS4 CS1 SC_CVBSIN1
DS10 RS35
GND
SC_FB
RS33
SCART_FB
100ohm-0402-5%-1/16W
75ohm-0402-5%-1/16W
SFI0402-240E-2R5PP- LF
GND
GND 4
GND 6
GND 2
AV16
NC/RCA-319N-004(黄 、 白 、 红) -密封
R
5SC_RIN/
L
3SC_LIN/
CVBS
1 SCART_VIN
R 5 SC_RIN/
L 3 SC_LIN/
CVBS
1 SCART_VIN
GND
SCART_V OUT RS27 SCART_VIN
SC_LOUT RS29 SC_LIN/
SC_ROUT RS31 SC_RIN/
GND
5V_ M RC1 5V_ VMUX
75ohm-0402-5%-1/16W
75ohm-0402-5%-1/16W
75ohm-0402-5%-1/16W
1 GND
2 DVD_ Y
3 GND
4 DVD_Pr
6 DVD_ Pb
5 GND
8 GND
10 GND
CND1
GND GND
GND
5V_ VMUX RI31 2V5_CLAMP
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%- 1/16W
CD18 RD13 RD14 RD15 NC/100pF-0402-NPO-5%-50V
CD19 DVD_LIN
CD20 DVD_RIN
DVD_IR
3V3_STB
1
CND2
NC/10Kohm-0402-5%-1/16W
RD19 RD20 10Kohm-0402-5%-1/16W
CC1
0.1uF-0402-X5R-20%-16V
100ohm-0402-5%-1/16W
RI32 CI14 RI33 RI34 RI35 1Kohm-0402-5%-1/16W
470ohm-0402-5%-1/16W
0.1uF-0402-X5R-20%-16V
CD21 CD22
7 DVD_L_IN RI36
9 DVD_R_IN RI37
RI38 RI39
0.1uF-0402-X5R-20%-16V
0.1uF-0402-X5R-20%-16V
7K5ohm-0402-5%-1/16 W
7K5ohm-0402-5%-1/16 W
10Kohm-0402-5%-1/16 W
GND 10 Kohm-0402-5%-1/16W
0.47uF-0402-X5R-10%-6.3V
0.47uF-0402-X5R-10%-6.3V
0.47uF-0402-X5R-10%-6.3V
2 DVD_DAT/ RD22 DVD_DAT
8 DVD_5V
7 DVD_5V
6 GND
5GND
4 12V_OFF
3 DVD_IR/ RD21
GND
R11 100ohm-0402-5%-1/16W
100ohm-0402-5%-1/16W
100Kohm-0402-5%-1/1 6W
NC/22pF-0402-NPO-5%-50V
NC/22pF-0402-NPO-5%-50V
RV24
GND
RV22
100Kohm-0402-5%-1/1 6W
100Kohm-0402-5%-1/1 6W
RV25
GND
RV23
100Kohm-0402-5%-1/1 6W
100Kohm-0402-5%-1/1 6W
RD25
5V_ M
100ohm-0402-5%-1/16W
0.1uF-0402-X5R-20%-16V
10uF-0603-X5R-20%-6.3V
7 S1
6 S2
B1
4 GND VDD
9
U14
CA37
5V_4052
GND
5V_4052
RD23
RD26 100Kohm-0402-5%-1/1 6W
100Kohm-0402-5%-1/1 6W
GND
5V_4052
RD24
RD27
100Kohm-0402-5%-1/1 6W
100Kohm-0402-5%-1/1 6W
5V_40525V_4052
DVD_LINDVD_RIN
1 GND
2 DVD_Y
3 GND
4 DVD_Pr
6 DVD_Pb
5 GND
7 DVD_L_IN
8 GND
9 DVD_R_IN
10 GND
11 11
CND3
NC/11PIN-2.0-D-H-G-带扣- J 11PIN-2.0-D-H-G
CND4
NC/ 8P IN- 2.0 -D-H- G-带扣- B 8PIN-2.0-D-H-G
8 DVD_5V
7 DVD_5V
6 GND
5 GND
4 12V_OFF
3 DVD_IR/
2 DVD_DAT/ 1
RA22
DVD_ EN ASW0/
RA23
100ohm-0402-5%-1/16W
RD39
DVD_ EN DVD_ 5V
SCART_Bin CI16
SCART_Gin CI15
SCART_Rin CI17
SCART_Bin RD17
SCART_Gin RD16
SCART_Rin RD18
CI13
CI11
CI12
33ohm-0402-5%-1/1 6W
0.047uF-0402-X7R-10%-16V
RI22
33ohm-0402-5%-1/1 6W
0.047uF-0402-X7R-10%-16V
RI20
33ohm-0402-5%-1/1 6W
0.047uF-0402-X7R-10%-16V
SCART_B/ SCART_B
SCART_R/ RI27 SCART_R
SCART_B/ SCART_G/ SCART_G
SCART_R/
SCART_G/
SCART_Bin/
200Kohm-0402-5%-1/1 6W
200Kohm-0402-5%-1/1 6W
200Kohm-0402-5%-1/1 6W
SCART_Gin/
SCART_Rin/
SC_LIN/ RS13 SCART_ AuLin/ CS6 SC_LIN
SC_RIN/ RS20 SCART_AuRin/ CS12 SC_RIN
DVD_LIN 3 B2
DVD_RIN 1 A2
PC_LINPC_RIN
100ohm-0402-5%-1/16W P C_LIN 2 A1
PC_RIN 10
PC_RIN RD28 AINR2
PC_LIN RD29 AINL2
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%-1/16W
NC/0ohm-0402-5%- 1/16W
DVD_Pr RD32
DVD_Y RD30
DVD_Pb RD31
RS16 CS10
RS19 CS11
SCART_LI NEOUTL
100ohm-0402-5%-1/16W 1uF-0402-X5R-20%-16V
100ohm-0402-5%-1/16W 1uF-0402-X5R-20%-16V
DB 5 AINL2/ CD26 AINL2
DA 8 AINR2/ CD25 AINR2
CD31
CD23 CD24
CD30
GND
AZAW2213F
NC/33pF-0402-NPO-5%-50V
0.1uF-0402-X5R-20%-16V
GND 0.1uF-0402-X5R-20%-16V NC/330 pF-
0402-NPO-5%-50V NC/330 pF-
0402-NPO-5%-50V
GND
GND
9 SCART_R/
1
SCART_B/ 4 A2 D1 13 GND
B2 C1
DVD_Y 6 B1 DD 11 SCART_Ri n/
SCART_Gin/ 5 DA D2 12 GND
SCART_G/ 7 DB C2 10 DVD_Pr
GND DC
GND 8
16
DVD_Pb 3 A1 ENB 14 GND
SCART_Bin/ 2 IN VDD 15 GND
AZAW4210P
DVD_EN ASW0// UC1
SCART
AR-OU T 1 SC_ROUT
AR-I N 2 SC_RIN/
AL-O U T 3 SC_LOUT
A- GND 4
B-GND 5
AL-I N 6 SC_LIN/
B-I / O 7 SCART_Bin
FSW- I /O 8 SC _FS
G- GND 9
CLK - OUT 10
G- I / O 11 SCART_Gin
DA T A 12 R-
GND 13 D-
GND 14
R-I / O 15 SCART_Rin
BK-I / O 16 S C_FB
V- GND 17
BK-GND 18
V- O U T 19 SCA RT_VOUT
V- I N 20 SCART_VIN
GND 21
AV14
EV-021F-62A- 密封
GND
RD34
10uF-0603-X5R-20%-6.3V
GND
GND
RD33 CD34
CD41
12V
3 IN SW 2
5 EN FB 4
1 GND BS 6
UD3
MP1470 GJ-Z
1uF-0402-X5R-20%-6.3V
22ohm-0402-5%-1/16W
CTD0504-4R7-M DVD _5 V
LD3 DVD_5 V TEST
CD36 CD37
10uF-0805-X5R-20%-16V
NC/1uF-0402-X5R-20%-16V
NC/100Kohm-0402-5%-1/16 W
RD44
+
RD35
RD36 CD38 CD40 CD39 ED3
RD38 GND NC/10pF-0402-NPO-5%-50V
100Kohm-0402-5%-1/1 6W
18Kohm-0402-1%-1/16 W
3K3ohm-0402-1%-1/16 W
10uF-0603-X5R-20%-6.3V
0.1uF-0402-X5R-20%-16V
NC/100uF-16V-20%-511-105 ℃-黑底白字-编带-F= 2.5 -XL
RD45
GND
DVD5 V_EN RD37
NC/0ohm-0805-5%-1/8W
5V_ M DVD_5V
RD46
100ohm-0402-5%-1/16W
NC/100ohm-0402-5%-1/1 6W
4K7ohm-0402-5%-1/16 W
HP_DET
DVD_ EN DVD5 V_EN RD47
NC/100ohm-0402-5%-1/1 6W
NC/100ohm-0402-5%-1/1 6W
HP_DET
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1
1
2
2
3
3
4
4
5
5
6
6
D D
C C
B B
A A
PCM_CD2_N PCM_CD_N
PCM_IRQA_N
PCM_CD1_N
GND
5V_M
5V_CI R12
R14
4K7ohm-0402-5%-1/16W
4K7ohm-0402-5%-1/16W
R16 R17 1Kohm-0402-5%-1/16W
1Kohm-0402-5%-1/16W
R18
10Kohm-0402-5%-1/16W
R19
10Kohm-0402-5%-1/16W
C33
1000pF-0402-X7R-10%- 50V
GND GND
PCM_CE_N
5V_M
GND
5V_CI
R13
PCM_WAIT_N
0ohm-0402-5%-1/16W
NC/20pF-0402-NPO-5%-50V
TSO_CLK
GND
C32
NC/10pF-0402-NPO-5%-50V
0ohm-0402-5%-1/16W
5V_CI
TSI_CLK
1
2
3
4
5
6
7
8
9
PCM_WE_N 15
17
18
20
D0
D1
D2
D3
D4
D5
D6
D7
PCM_D0 30
PCM_D1 31
PCM_D2 32
PCM_D3
PCM_D4
PCM_D5
PCM_D6
PCM_D7
33
34
35
CE1#
CE2# 42
43
PCM_IORD_N 44
PCM_OE_N
PCM_IOWR_N 45
MISTRT
MCLKI
MIVAL
46 TSI_SYNC
TSI_CLK'
MDI0
19 TSI_VLD
C31
47 TSI_D0
VCC
VCC
51 VPP1
VPP2 52
MDI1
MDI2
MDI3
MDI4
MDI5
MDI6
MDI7
48 TSI_D1
49 TSI_D2
50 TSI_D3
53 TSI_D4
54 TSI_D5
55 TSI_D6 GND
56 TSI_D7
WAIT#
IRQ#
RESET
IOWR#
IORD#
OE#
WE#
PCM_WAIT_N 59
PCM_IRQA_N 16
PCM_RESET 58
IOIS16#
INPACK# 60
REG#
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
PCM_REG_N 61
PCM_A14 14
PCM_A13 13
PCM_A12 21
PCM_A11 10
PCM_A10
PCM_A9 11
PCM_A8 12
PCM_A7 22
PCM_A6 23
PCM_A5 24
PCM_A4 25
PCM_A3 26
PCM_A2 27
PCM_A1 28
PCM_A0 29
R15
57 TSO_CLK'
62 TSO_VLD
MOSTRT
MCLKO
MOVAL
63 TSO_SYNC
MDO0
MDO1
MDO2
MDO3
MDO4
MDO5
MDO6
MDO7
64 TSO_D0
65 TSO_D1
66 TSO_D2
37 TSO_D3
38 TSO_D4
39 TSO_D5
40 TSO_D6
41 TSO_D7
CD2#
CD1#
VS1#
67 PCM_CD2_N
36 PCM_CD1_N
GND
GND
GND
GND
68
69
GND
GND 70
CN11
PC-CL1D-PV-A03-C-03
L6
FCM1005KF-121T06(120ohm-500mA)
C29 C30
22uF-0805-X5R-20%-6. 3V
0.1uF-0402-X5R-20%- 16V
