Kalley K-LED20HDT2 User manual

KALLEY
SERVICE MANUAL
K-LED20HDT2
1. Caution…………………………………………………………………………
2. specification……………………………………………………………………
3. Alignment Procedure…………………………………………………………
4．Block diagram…………………………………………………………………
5．Scheme Diagram ……………………………………………………………
6. Troubleshooting………………………………………………………………
([SORGHGUDZLQJ
This m anual i s t he l atest at t he t ime of pr intiandg, doe s not
include the modification which may be made after the printing, by
the constant improvement of product

1. CAUTION
CA UTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA UT ION : T O RE DU CE TH E RIS K
OF
CA U T ION
EL ECTR ICA L SHOCK, DO NOT RE MOVE
COVE R (OR BACK). NO USER SERVIC EABLE
R ISK OF ELECTRIC
PAR TS INS IDE . RE FE R SE R VIC ING
T O
SHOCK DO NOT OPEN.
QUALIFIE D SERVIC E PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended
to alert the user to the presence of uninsulated dangerous voltage within the
products enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to the person.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
2

IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and
refer servicing to qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is
subject to traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from
the wall outlet and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer
servicing to qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s
instructions, and should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination to overturn.
3
3

PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set
from the wall outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the
receiver, to protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in a built-in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges, Section 810 of the National Electrical Code,
NFPA No. 70-1975, provides information with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrode, and requirements for the grounding electrode.

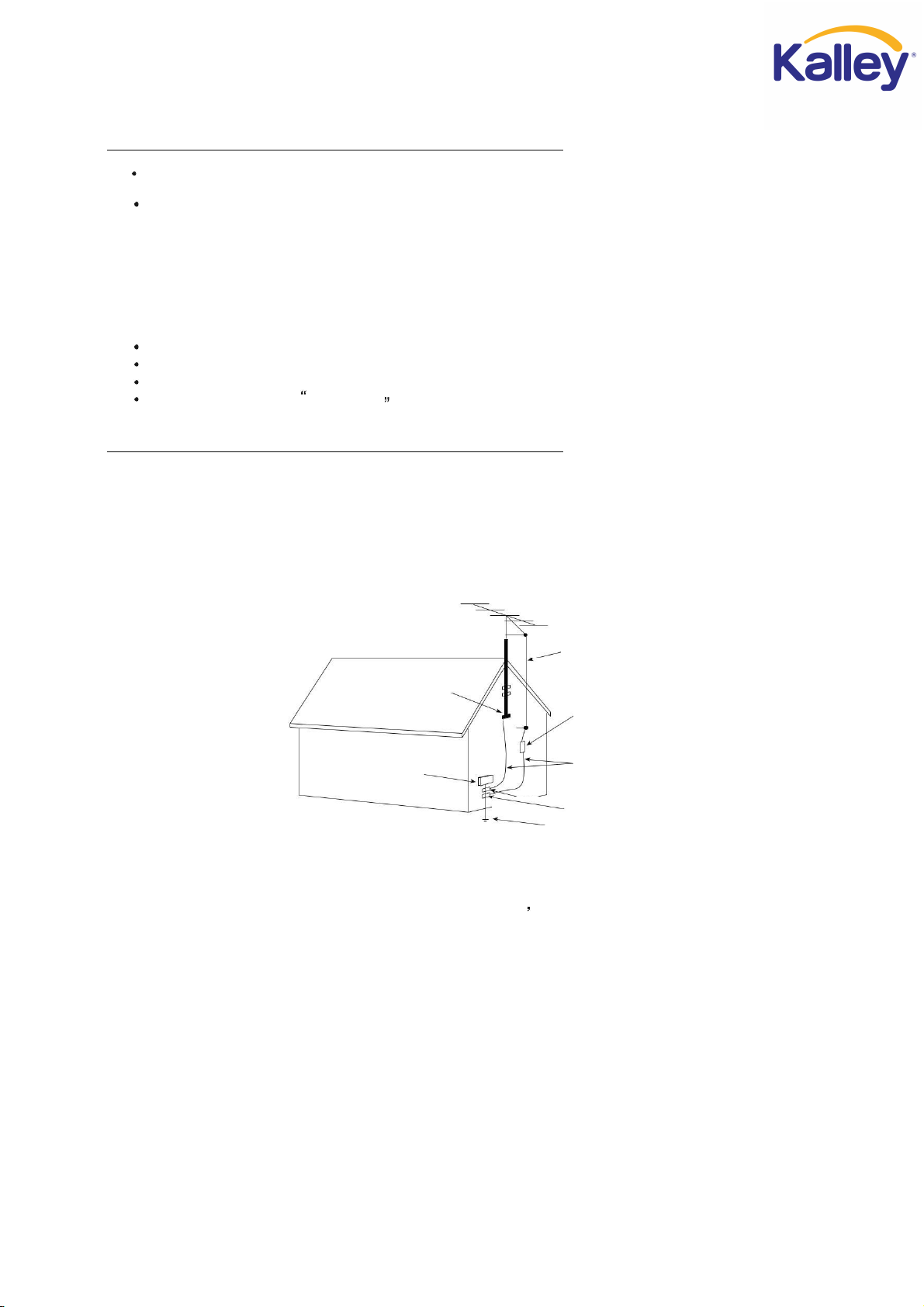

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTR UCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
LEAD- IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
ELECTRIC SERVICE (NEC SECTION810-21)
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM (NEC ART 250. PART H)
15.2.Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system installer s attention to Ar ticle 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will
prevent damage due to lightning and power-line surges.
4
4

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label.If
you are not sure of the type of power supply at your home, consult your television dealer or local power
company. For television sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television
set from the wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are
covered in the operating instructions as improper adjustment of other controls may result in damage and
will often require extensive work by a qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when
you go on a holiday, turn the television set off and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailedprocedurein your operating instructions, do
not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need
for service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when
being turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult
your dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
26. Upon completion of any ser vice or repairs to the television set, ask the ser vice technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
5

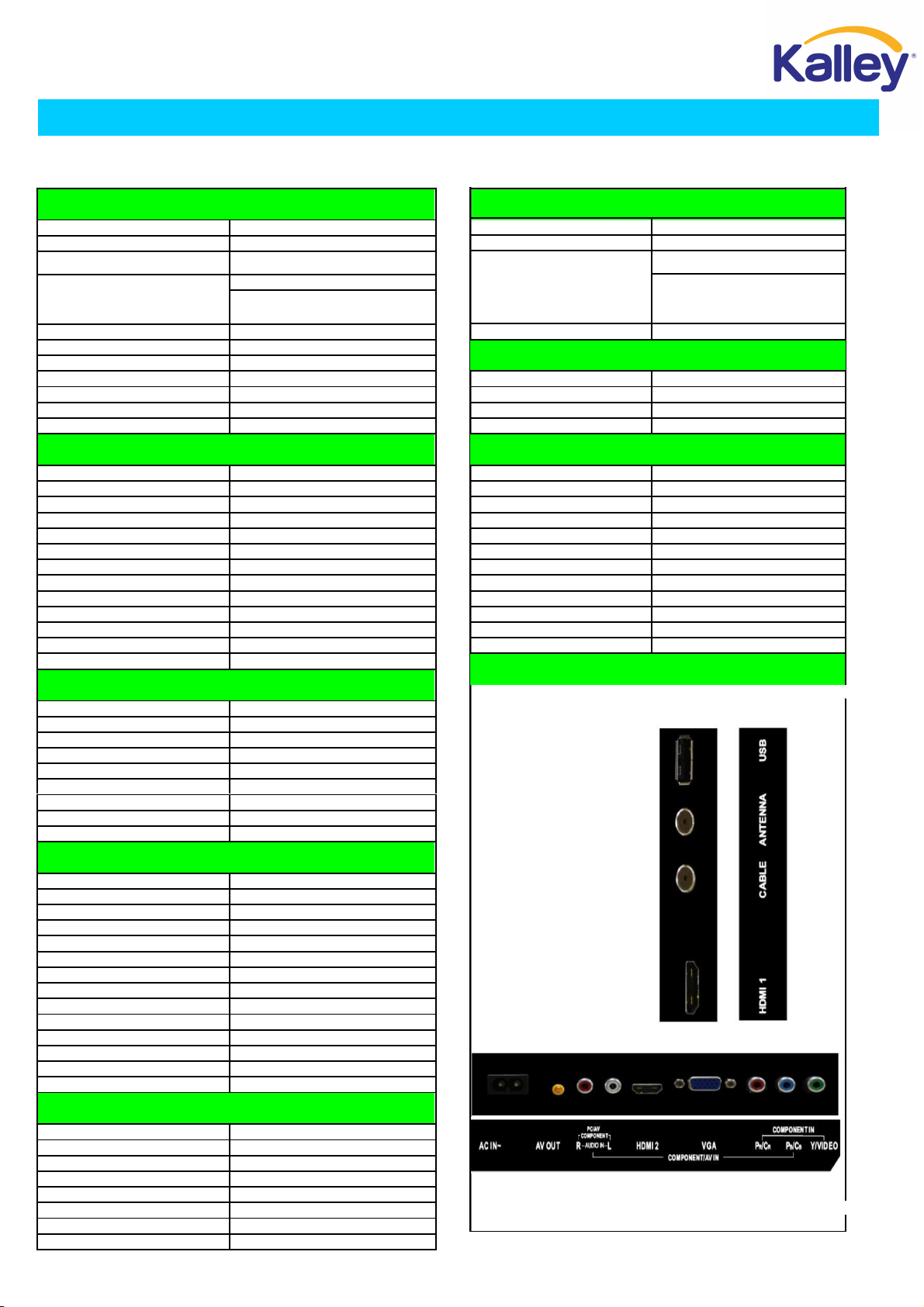

PRODUCT SPECIFICATION RELEASE
Model: L20D2710/MS306GPA/AU1GTA
Version：1.0
Basic Information
Product Type
LCD TV
Chassis
MS306GPA
OSD Language
English/Portuguese/Spanish
NTSC-M,PAL M/N
TV System
DVB-T2
AV System
PAL、NTSC
Channels(Analog)
Antenna：2～69；CATV：1～125
DTV Channels(Digital)
Antenna：14～69
Power Supply
AC 110V-240V 50/60Hz
Power Consumption（TV On）
25W
Power Consumption（Standby）
≤0.5W
Certification
CB
Basic Function
EPG
Yes(at DTV)
Subtitle
---
Parental Control
Yes(at DTV)
Lock
Yes
V-Chip
---
CCD (Closed Caption)
Yes
Sleep Timer
Yes
Teletext
---
Nicam
---
MTS
Yes
Screen Saver
Yes
System Update
Yes
Hotel Mode
Optional(In factory mode)
Special Function
Natura Light Technology
---
REC (PVR)
Yes(at DTV)
GINGA
---
Analog / Digital Signal Receiver
Yes
MHL
---
Game
Yes
Startup Setting
---
Card Reader
---
On/Off Timers
Yes
DCC（Dynamic Contrast Control）
---
Backlight Adjustable
Yes (0~100)
Color Temperature
Medium/Warm/Cool
Picture Mode
Standard/Dynamic/Mild/User
Picture Size
Auto/4:3/16:9 /Zoom1/Zoom2/Panorama
DLTI
Yes
DCTI
Yes
Comb Filter
3D
Dynamic noise Reduction
Yes
Adaptive Deinterlacing
3D
Motion Compensation
Yes
Dynamic Skin Correction
Yes
Black Stretch
Yes
Blue Stretch
Yes
Sound
Speakers
Integrated speakers (Bottom side)
Audio Power Output（THD=7%）
2×5W
Smart Volume
Yes(ON/OFF)
Smart Audio
Movie/Sports/Standard/Music/User
Sound Control
Volume, Balance,5 Band EQ
Surround Sound
Yes
Sound Scene
---
DD (Dolby Digital )
Yes
Issued On: 2015-05-12
Media Format
Music
MP3
JPEG、BMP、PNG
H.264、MPEG4、MPEG2
Video
Note:For coding files,there are many kinds
non-standard coding method,so this system
can not be guaranteed to support the file
formats using any coding method.
File
TXT
Signal Format Capability
Component Video Format
YPBPR：up to 1080P
DVI Video Format
Up to XGA for HDMI-PC
HDMI Video Format
up to 1080P
PC Compatibility
Up to SXGA
Panel Specification
Backlight Unit
LED
Panel supplier
AU1(T195XVN01.0)
Aspect Ratio
16:9
Panel Size (inch)
19.5"
Display Resolution
1366*768
Brightness (cd/m2)(typ.)
200
Contrast Ratio
3000:1
Response Time (G to G)
12ms
Viewing Angle (H/V)
178°/178°
Life Time(Typ.)
＞30,000hrs
Color
16.7M(8bit)
Refresh Rate
60Hz
Terminals
Side
Down

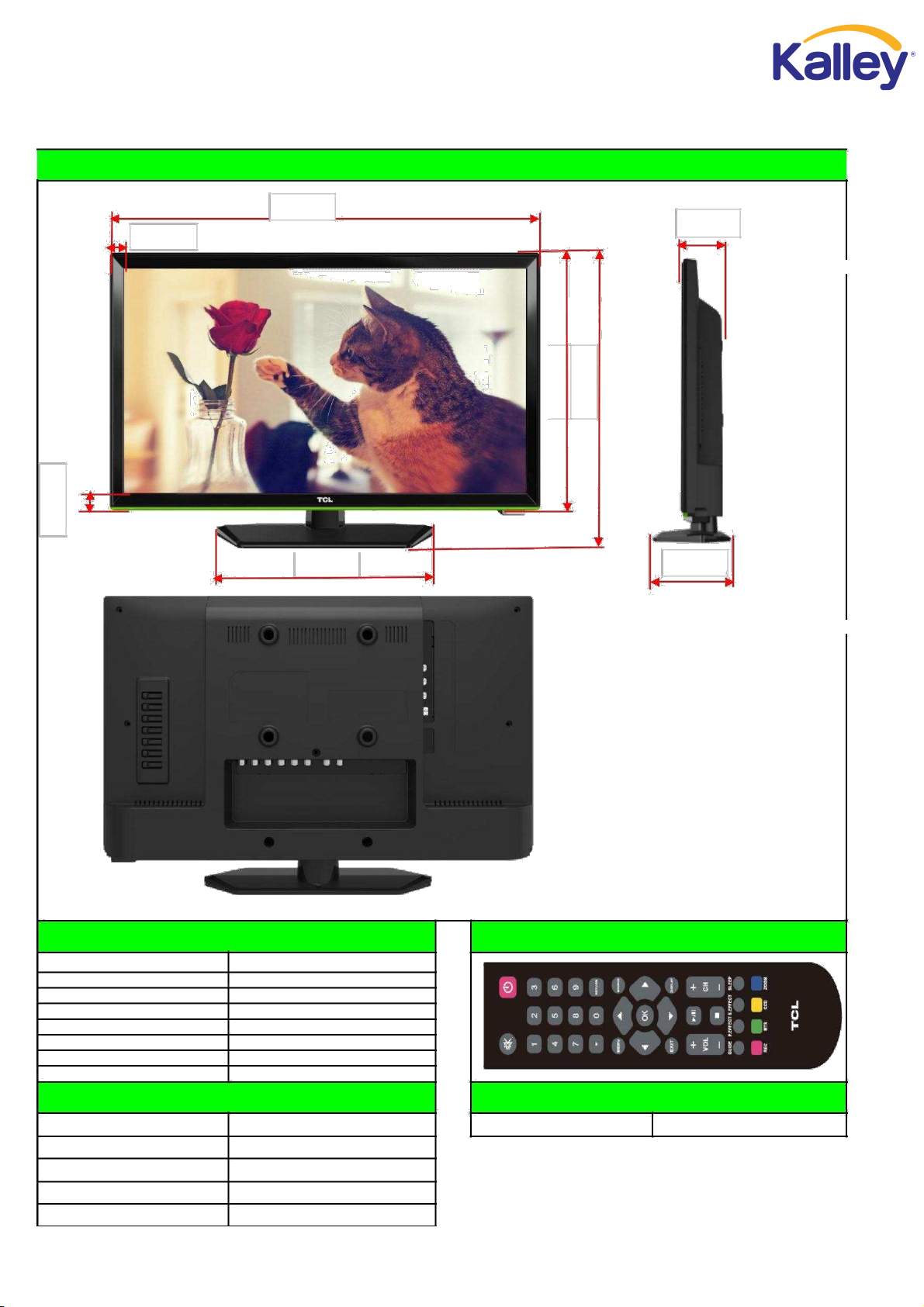

Mechanical ID Picture
Unit: mm
465.8
56.5
15
271.9
305.7
17.5
274.7
117.8
Mechanical Key Specification
Remote ID Picture
Carton Dimensions LxWxH（mm）
539*110*350
Container Loading---20 feet（pcs）
1460
Container Loading---40 feet（pcs）
3036
Container Loading--40 feet High（pcs）
3498
Net Weight With Stand（Kg）
2.43
Net Weight Without Stand（Kg）
2.3
Gross Weight With Packaging（Kg）
2.91
VESA Mounting Dimensions LxH（mm）
100*100
Essential Accessories（Default）
Optional Accessories
Operation Manual
English(Default)
Wall Mount
WMB233
Remote Control and batteries
RC200(TCL LOGO,with two batteries)
Base Stand
Integrated Packaging
AC power cord
1 pc
Adapt Cable Wire For AV Or YPBPR
---

Alignment Procedure
MS306 Series
MODEL：MS306/MS306B/MS306C/MS306D/MS306G
MS306P/MS306BP/MS306CP/MS306DP
VERSION：V3.0
PREPARED BY : DATE : 2014-1-24
APPROVED BY : DATE :

History
Description of major changes
Release
Changed by
Date
V1.0
2013-04-28
V2.0
Add usb update table on Page 10
2013-12-28
Zhangjin
V3.0
Add USB port number set on Page 7
2014-1-24
Gongjunzan
1.Overview
MS306 series chassis is designed for Asia Pacific/South America
market. Both Full HD panel and HD panel can be compatible. The signal
sources includeTV,AV,YPBPR/YCBCR,VGA,HDMI and USB. For YPBPR,HDMI
source ,Format up to 1080p can be supported; USB support image, audio
and video(up to H.264)playing; The whole process of alignment includes
ADC calibration and White Balance adjustments.
2.Factory Menu
1、Methods of Entering
Method 1：Using the remote ,enter the “Picture” submenu in the OSD;
choosing the “contrast” item and press the 9,7,3 and 5 in series,
Factory Menu will appear in the left top of screen
Method 2：Press RETURN button when FACTORY HOTKEY is enabled(ON).
2. General introduction
FACTORY MENU
ITEMS
Default
Description
Status
Setting
Factory
hotkey
Switch
1-FAC HOTKEY
OFF
(OFF/ON).Should be OFF after factory
OK
alignment

OFF：The set would enter standby mode
after 15 minutes without input
2-WARM UP
OFF
signal；
OK
ON ：Aging mode.
Aging time
will
display on the left bottom of screen.
3-ADC
ADC calibration（refer as follow）
OK
4-WHITE BALANCE
White Balance data adjustment（refer
OK
as follow）
The balance data is set by PE before
the mass production. Do not need
adjust.
5-SHOP
DO
Reset the set after production
OK
alignment;(This
operation
will
remove all unnecessary factory value;
The factory hotkey will be turn off)
6-NVM reset
DO
System initialization. Restore
all
OK
data except the White Balance and ADC
data ;Only for R&D.
7-SET FAC CH
DO
Preset specific factory channels for
OK
specific factory. Press left and
right button to select the factory,
and then press OK to confirm.
8-POWER ON
LAST
ON: Always turns on TV when AC power
OK
on
STB：Always goes to standby mode when
AC power on
LAST：Restore the status before the
last AC power off
9-USB UPDATE
USB update， （refer
as follow）
OK
10
This item only factory used，
ReloadEFBItem…
Note: Below the factory menu, some model information are showed, including
software version, Project Name, SIACP Version, and SW release time.
ADC Submenu:
ITEMS
Default
Description
Status
Setting

Source
RGB/YPbP
Sources need calibration. RGB means PC and
OK
r
YPbPr(HD) means YPbPr
(HD)
R-GAIN
4478
R-GAIN
OK
G-GAIN
4478
R-GAIN
OK
B-GAIN
4478
R-GAIN
OK
R-OFFSET
2048
B-OFFSET
OK
G-OFFSET
2048
B-OFFSET
OK
B-OFFSET
2048
B-OFFSET
OK
AUTO ADC
WAIT/OK
With appropriate pattern (mentioned below)
OK
inputted, press left or right key to start auto
calibration.
WHITE BALANCE Submenu
ITEMS
Default
Description
Statu
Setting
s
Source
Current
Current Source( TV,AV1/AV2/YPbPr, HDMI need
OK
Source
adjustment)
COLOR TEMP
NORMAL
Medium/Cool/Ware
OK
R-GAIN
128
R-GAIN
OK
G-GAIN
128
G-GAIN
OK
B-GAIN
128
B-GAIN
OK
R-OFFSET
128
R-OFFSET
OK
G-OFFSET
128
G-OFFSET
OK
B-OFFSET
128
B-OFFSET
OK
WB INIT
DO
ONLY FOR TCL R&D
OK
The first step is to adjust HDMI.
3.Design Menu
1、Methods of Entering：
Method 1：Using the remote, enter the “Picture” submenu in the OSD;
choosing the “contrast” item and press the 1,9,5,and 0 in series
,Design Menu will appear in the left top of screen.
Method 2: Press RETURN button when DESIGN HOTKEY is enabled (ON).
2、General introduction
DESIGN MENU

ITEMS
Default
Description
Status
Setting
1-DESIGN
OFF
ON/OFF
OK
HOTKEY
2-FACTORY
ON/OFF
OK
MENU
3-SHOP INIT
Default setting submenu after production
OK
alignment refer to **
4-OTHER
Other set .Only for TCL R&D
OK
5-SERVICE
After service menu description
OK
MENU
6-PARAM
Parameter setting submenu
OK
SETTING
7-HOTEL
Hotel submenu（not adjust）
OK
MENU
SHOP INIT submenu
ITEMS
Default
Description
Status
Setting
Volume
30
0-100 adjustable
OK
PIC MODE
STANDARD
Standard/Bright/Mild/User
OK
SOUND MODE
STEREO
Movie/Sports/Standard/Music/User
OK
Channel
---
---
OK
Language
English
Up to 10 languages optional
OK
COLOR SYS
AUTO
AUTO、PAL、SECAM
OK
SOUND SYS
DK
DK、BG、I、MN
OK
PRESET CH
1
0-199 adjustable
OK
COLOR TEMP
NORMAL
Medium/Cool/Ware
OK
Other
ITEMS
Default
Description
Status
Setting
VIF1
VIF adjust （not adjust）
OK

VIF2
VIF adjust （not
adjust）
OK
VIF3
VIF adjust （not
adjust）
OK
QMAP ADJUST
>>>
PQ debug
（not
adjust）
OK
SSC
>>>
SSC adjust
OK
DBC ENABLE
DBC adjust（not
adjust）
OK
BP
（not
adjust）
OK
CP
（not
adjust）
OK
DBC MODE
（not
adjust）
OK
MIU DQS0
11 （not
adjust）
MIU DQS1
10（not
adjust）
PARAM SET SETTING
ITEMS
Default
Description
Status
Setting
Brightness
Brightness curve. Exclusively used by R&D
OK
Curve
Contrast
Contrast curve. Exclusively used by R&D
OK
Curve
Saturation
Saturation curve. Exclusively used by R&D
OK
Curve
Hue Curve
Hue curve. Exclusively used by R&D
OK
Sharpness
Sharpness curve. Exclusively used by R&D
OK
Curve
Volume
Volume curve. Exclusively used by R&D
OK
Curve
BackLight
BackLight curve. Exclusively used by R&D
OK
Curve
OverScan
Exclusively used by R&D
4、Service Menu
1、Methods of Entering
Using the remote, enter the “Picture” submenu in the OSD; choosing the
“contrast” item and press the 9,7,0 and 5 in series, Service Menu will appear
in the left top of screen
SERVICE MENU：

ITEM
Defau
Description
Status
lt
Setti
ng
SW NO
Software Version
OK
DATE
Date and time of software releasing
OK
Project Name
Module name
OK
SIACP VERSION
SIACP VERSION
OK
Chassis
MS306
Chassis name
OK
PANEL NAME
P/N of panel
OK
NG
PROJECT ID
>>>
Select panel ID Number
OK
CONFIG
>>>
Project Select submenu
USB UPDATE
>>>
USB UPDATE
ok
HOTEL ENABLE
HOTEL MENU SWITCH
NOT
OFF
USE
ReloadEFBItem
Do
Only for factory adjust
OK
CONFIG submenu
ITEM
Default
Description
Status
Setting
Erase HDCP Key
Do
Only for R&D
OK
Reset HDCP Key
Do
Only for R&D
OK
UsbHdcpkey
Do
Only for R&D
OK
Update
USBPortNumset
1
USB port number set (1 or 2)
OK
5. Debugging
5.1. General Steps of debugging
According to the requirement of the order, below steps are needed
for appropriate setting.
1) Enter the Factory Menu, enable FAC HOTKEY.
2) Check Project ID and the version of software, release date
displayed at the bottom of Factory Menu.
3) Enter Design Menu, choose SERVICE MENU->Project ID, choose
corresponding Project ID number of the product (Refer to the
“V6-PROJECT -ID0**”in the BOM list).

4) Return to Factory Menu, check the Product model.
5) Choose Factory Menu->NVM RESET and press the right button of
the remote and wait until prompt OK appears.
6) Restart the set
7) According to the requirement of the order, Set the items of
SHOP INIT and Hotel Menu etc.
8) After aging under normal temperature, calibrate ADC and adjust
white balance.
9) Choose Factory Menu ->SHOP and press the button of remote to
initialize the set.
Note: After step 9, Hotel Menu will be disabled by default. Therefore,
if the order requires hotel function, it is necessary to enable hotel
function by set Design MENU->Service Menu->HOTEL ENABLE to ON.

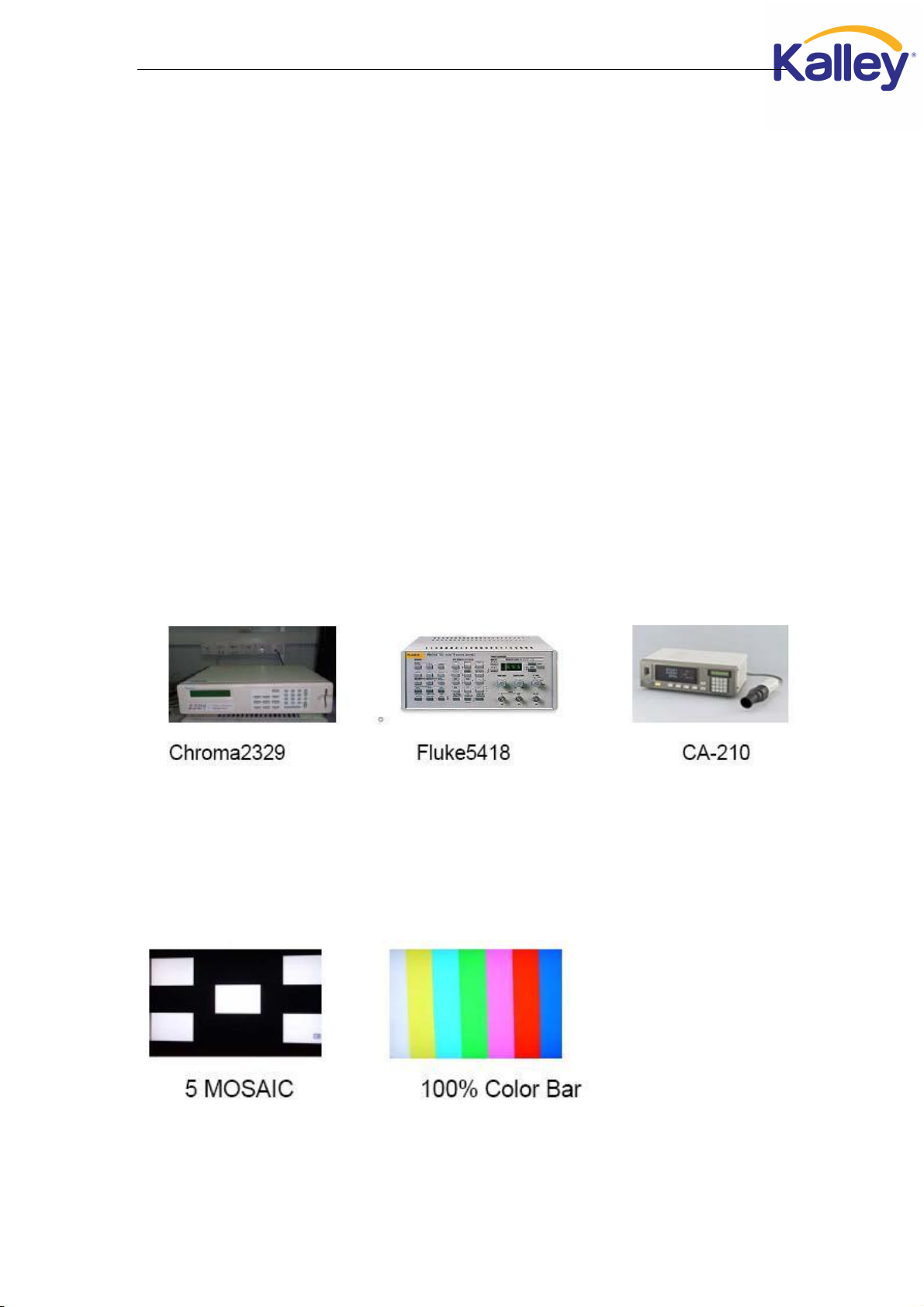

5.2. Equipments
·Color Analyzer CA-210.
·Video Pattern Generator Chroma2329.
·Color TV Pattern Generator PM5418/Fluke5418.
·VGA cable , AV(RCA) cable ,YPBPB (RCA) cable, HDMI cable etc.
5.3. ADC Calibration
5.3.1. Signal and generator
PC: Chroma2329 Pattern 42,Timing 14(1024X768@60Hz 5 MOSAIC)
YPBPR: Chroma2329 pattern 103, Timing 79(100% Color Bar,720p)

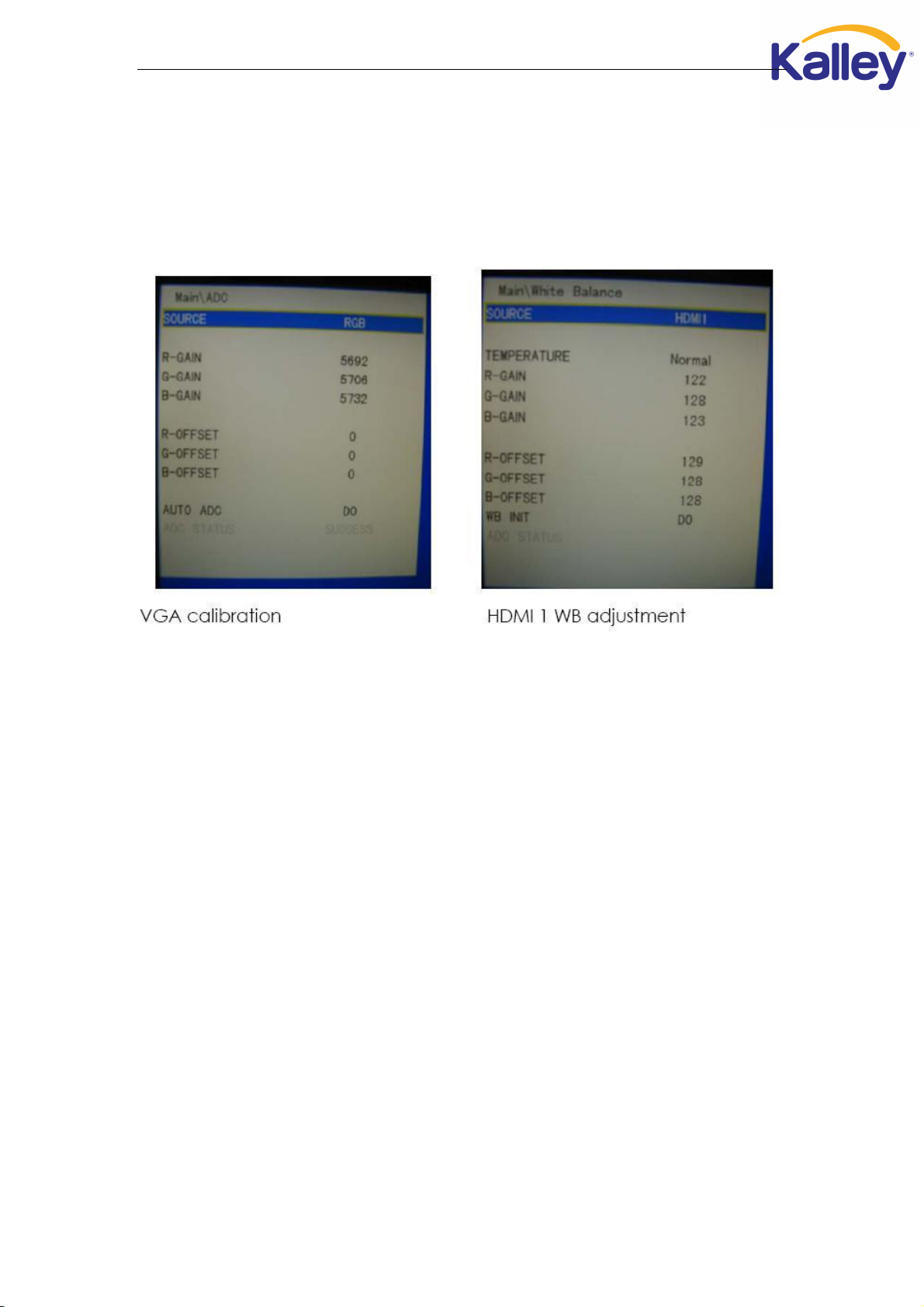

5.3.2. Steps of Calibration:
1). Access to the Factory menu->ADC

2). select RGB source and see the 5 MOSAIC appear on the screen
3). Select AUTO ADC , Press the right button on the your remote to
calibrate the ADC automatically.
4). Select YPBPR source and Repeat step 5.3 .
When the OK appears the calibration has been finished successfully.
5.4. White Balance adjustments (Manual)
Before adjustment ,you must make sure the ADC status(only PC and
YPbPr) is “success”and Color Analyzer has been calibrated .Only
AV1,YPbPr,PC,HDMI1 need to be adjusted. HDMI1 should be the first.
5.4.1. Signal and generator
The pattern of the signal should be used are White (Chroma2329
pattern 113) and Grey (pattern 114).
The format of signal are respectively 720P for HDMI1 (Chroma2329
Timing 69),PAL (Chroma2329 Timing38) for AV1,1024X768@60Hz(Chroma2329
Timing14) for VGA and 720P(Chroma2329 Timing79) for YPbPr.
5.4.2. Steps of adjustment
1).Enter the factory menu-> White Balance, select source HDMI 1
and Normal Temperature.
2).Input grey signal in 720p format.
3).Change R-OFFSET and B-OFFSET to make sure the value of color
coordination equal to (X=0.280 +/-0.015;Y=0.290 +/-0.015).
4).Input white signal in 720p format.
5). Change R-GAIN and B-GAIN to make sure the value of color
coordination equal to (X=0.280 +/-0.015;Y=0.290 +/-0.015).

6).Repeat step 2—5 until both of the value of color coordination
of white and grey equal to (X=0.280 +/-0.015;Y=0.290 +/-0.015).
For COOL and WARM color temperature, just repeat step 2—5.The
color coordination we recommend for COOL and WARM color temperature
is respectively(X=0.270 +/-0.015;Y=0.270 +/-0.015) and
(X=0.300 +/-0.015;Y=0.305 +/-0.015).
After the adjustment of HDMI1, you can switch to other source AV,
PC and YPbPr and repeat step 1—6 to do the WB adjustment.
Note: For some small size LED panel,the color coordination of
specifications is not X=0.280/Y=0.290,and we recommend you adopt the
values from panel specifications.
5.5. ADC Calibration and White Balance Adjustment (automatic)
The process of adjusting ADC and White Balance automatically is
out of the range of this file, Please refer to the relevant technical
file of HuiZhou factory of TCL.
6.Chip list of software programming before SMT
Following chips must be programmed before SMT by tools
Position
Chip type
Software description
U202
EN25Q32
HDMI HDCP Key, System Software etc.
7.Software update
Method of SW update:
1）Download the bin file to the root directory of your USB device (Do
not change the file name); Then insert the USB device to USB
interface of TV set.
MS306 Series with its upgrade file corresponding relation as
thetable below show:
Chassis Name
Sales
Upgrade filename
Remark
area
MS306/MS306P
AP
MS306_AP_TCL.bin
LA
MS306_LA_TCL.bin
MS306B/MS306BP
AP
MS306B_TCL.bin
DVB-T2
MS306C/MS306CP
AP
MS306C_TCL.bin
DVB-T
ISDB-T(Name of Brazil
MS306D/MS306DP
LA
MS306D_TCL.bin
version will be changed
after its updating )
MS306G
LA
MS306G_TCL.bin
DVB-T2

2）Upgrading method 1
1，using the remote, enter the “Picture” submenu of the OSD;
choosing the “contrast” item and press 9,7,3 and 5 in series,
Factory Menu will appear in the left top of screen.
2,Select the “USB UPDATE” item , press left or right key to enter
the update box;
3,Select “YES” of the dialog box and press OK button to start the update,

you will see a progress box on the screen.
4,After updating , the set will reset automatically.
3）Upgrading method 2
1，Press the “MEUN”button of Remote Control, then select
the“Software Update(U..>” item in “Option”sub-menu, press left or
right key to enter the update box.

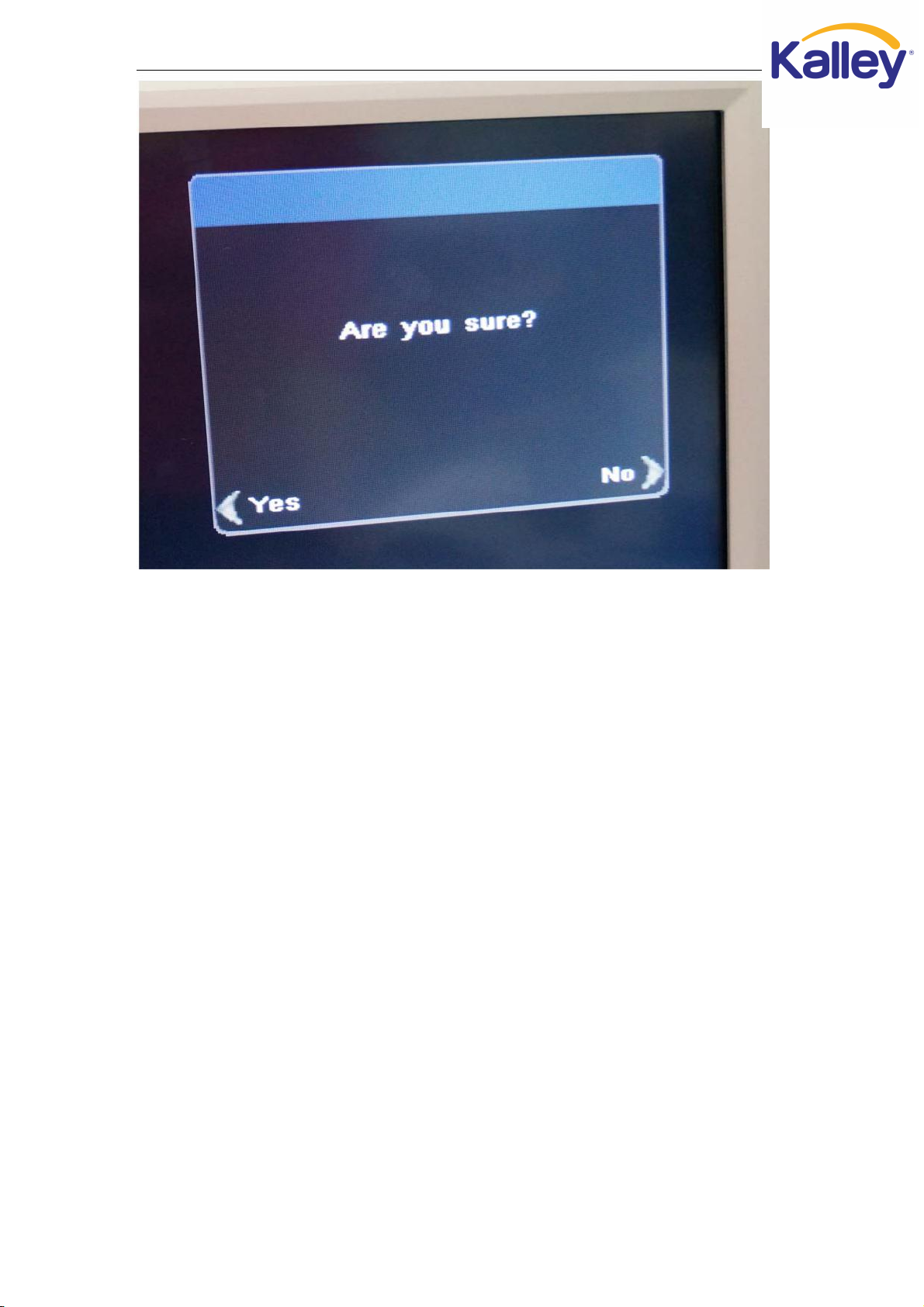

2，Press left button Select “YES” of the dialog box and to start
the update, you will see a progress box on the screen.

3，After updating , the set will reset automatically.
8, Project ID selecting
1) Press the Menu button of remote control, then select Contrast
item of Picture submenu; press 1,9,5,0 consecutively, there you
go the Design Menu.
2) Select the SERVICE MENU item, press OK and RIGHT button of the
remote to enter submenu,
3) Select the PROJECT ID item, press OK or RIGHT button of the
remote to enter the submenu;
4) Press the right or left button of the remote to select the ID you want;
5) After ID selection, press MENU button of the remote to exit
DESIGN MENU.
6) Finally, do AC power on/off.
