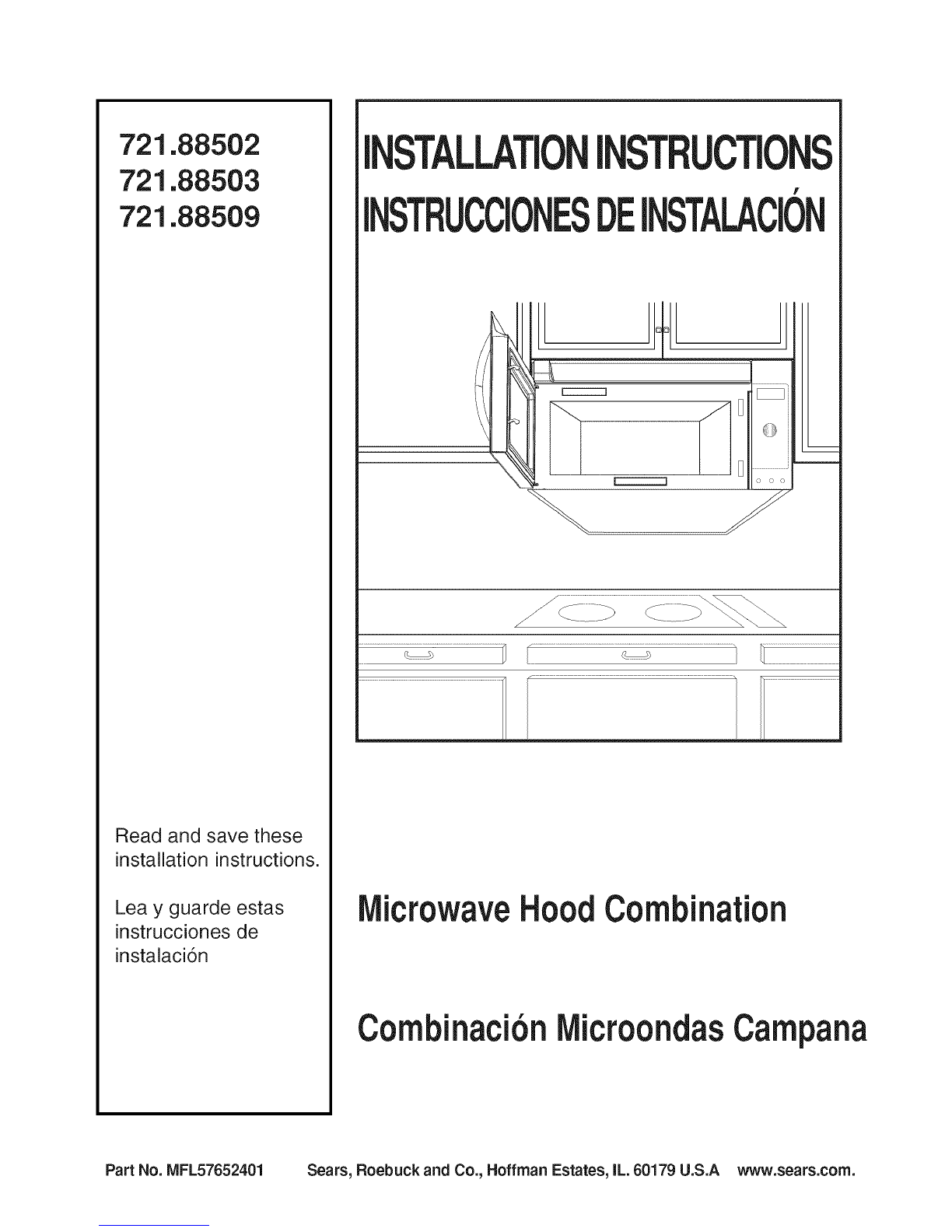

Kenmore 721.88502 User manual

721.88502
721.88503
721.88509
Read and save these
installation instructions.
Lea y guarde estas
instrucciones de
instalaci6n
r-------q J
MicrowaveHood Combination
Combinaci6nMicroondasCampana
Part No. MFL57652401 Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A www.sears.com.

YOUR SAFETY FIRST
BEFORE YOU START
• Proper installation is the installer's responsibility!
- Read the entire manual before you begin.
- The model number label is located on the oven front. See Figure 1.
- Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
m
Z
r"
m
Z
Model and Serial
Number Plate
c co
Cooking Guide
Figure 1
Mounting Plate
or
Mounti
Figure 2
Ak WARNING Ak
FOR YOUR SAFETY:
o You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled
properly. The dimensions of the oven are as follows:
Height : 16-7/16 inches
Width "29-15/16 inches
Depth "15-3/8 inches
=AVOID ELECTRICAL SHOCK!
- Before you drill into the wall, note where electrical outlets are and where electrical wires might be
concealed behind the wall.
YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires with your drill bit.
- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
o ELECTRICAL RATING OF THIS OVEN : 120V, 60Hz.
- You need a 120V, 60Hz, AC only, 20A, fused electrical supply (located in the cabinet above the
microwave as close as possible to the microwave circuit) serving only the microwave.

YOUR SAFETY FIRST
•THIS APPLIANCE MUST BE GROUNDED!
- If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape
wire for the electric current. This appliance is equipped with a cord having a grounding wire with a
grounding plug. PROPERLY POLARIZEDAND
• Place the plug into a properly installed and grounded GROUNDEDOUTLET
outlet. See Figure 3.
• Do not use an extension cord.
• Keep the power cord dry and do not pinch or crush it.
•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE
THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
For best operation, plug this appliance into its
own electrical outlet to prevent flickering of lights,
blowing of fuse or tripping of circuit breaker.
Three-Pronged (Grounding) plug
Figure 3
_, WARNING
If you use the grounding plug improperly, you risk electric shock!
- Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do
not completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
¢1
gl
WARNING
Improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
•DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
- DO NOT try to operate the microwave oven with the door open.
- DO NOT tamper with or defeat the safety interlocks.
- DO NOT place objects between the microwave oven front face and the door.
- DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
- DO NOT operate the microwave oven if it is damaged.
- The microwave oven door must close properly to operate safely.
- DO NOT use the microwave oven:
• If the door is bent.
• If the hinges or latches are broken or loose.
• If the door seals, sealing surfaces or glass is broken.
- DO NOT attempt to adjust or repair the oven yourself!
It should be adjusted and repaired by a qualified technician who can check for microwave leakage after
repairing the oven.
_, WARNING A
If you do not use the microwave oven as instructed, you could be exposed
to excessive microwave energy.

YOUR SAFETY FIRST

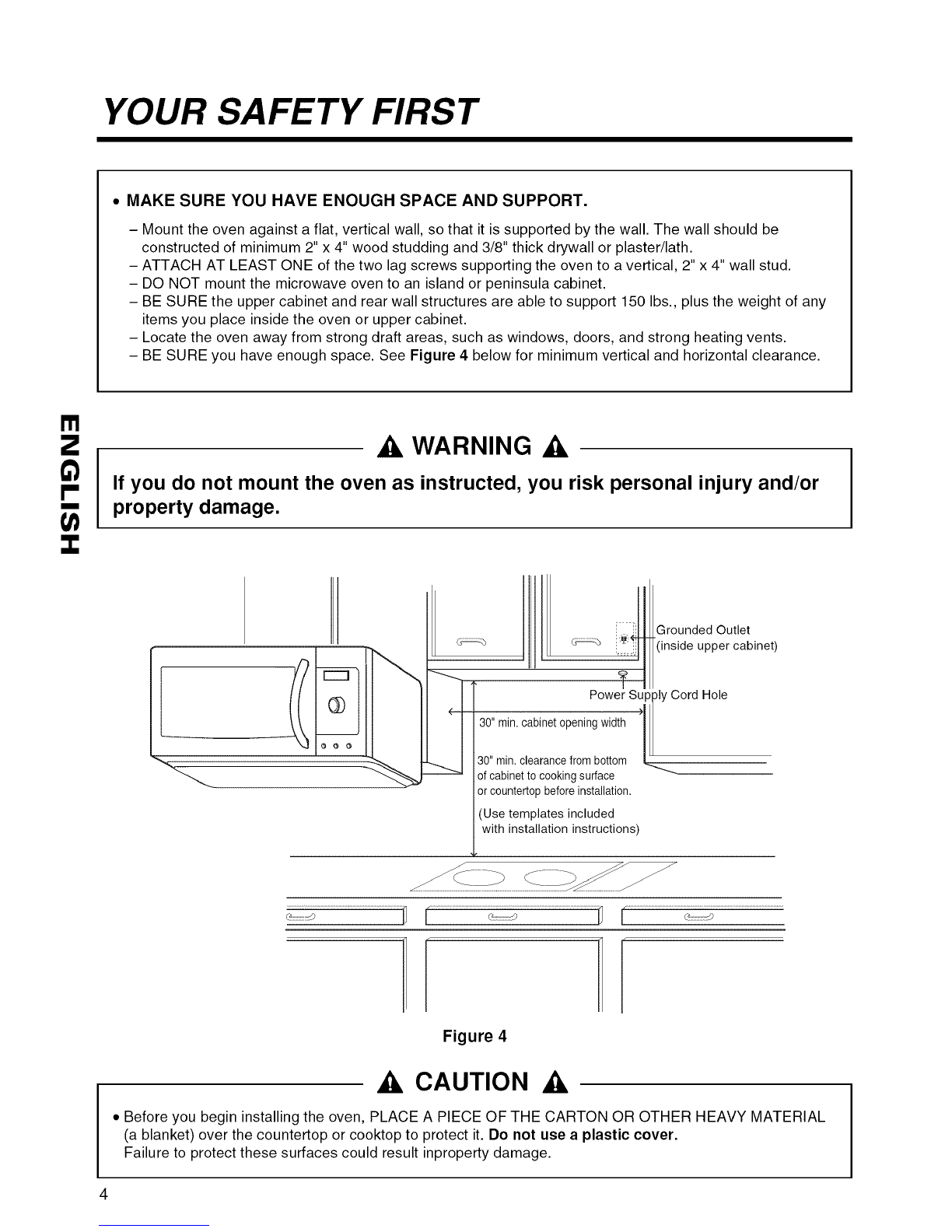

•MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
- Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be
constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
- DO NOT mount the microwave oven to an island or peninsula cabinet.
- BE SURE the upper cabinet and rear wall structures are able to support 150 Ibs., plus the weight of any
items you place inside the oven or upper cabinet.
- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
- BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.
WARNING A
If you do not mount the oven as instructed, you risk personal injury and/or
property damage.
'i.'ll Grounded Outlet
_( ns de upper cab net)
Power Hole
SupplyCord
30"min.cabinetopeningwidth *_
L_._
30"min.clearancefrombottom
ofcabinettocookingsurface
or countertop beforeinstallation.
(Use templates included
with installation instructions)
[..............................................................................................................................._ I.......................................................................................................................
Figure 4
A CAUTION A
• Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL
(a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.
Failure to protect these surfaces could result inproperty damage.

PARTS, TOOLS, MATERIALS
THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
Damper/duct connector
(for roof vented or wall vented installation) One power cord clamp and One dark-colored mounting screw
(to hold the power cord)
One power cord clamp bushing (for the cord hole in a metal upper cabinet)
Four 1/4" x 2" lag screws
(for wall stud holes) Four 1/4" x 3" toggle bolts (for drywall holes)
61
01
=
Two 1/4" x3" bolts
(for securing to the upper cabinet) Two tapping screws
(for attaching the damper duct connector)
Four spring toggle heads
(for the toggle bolts)
One rear wall template
(3 pieces mounting plate only)
REAR WALL TEMPLATE
One upper cabinet template
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall,
and the mounting area must meet the 150 Ibs. weight requirement.

PAR TS, TO0 LS, MATER IALS
YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE
INSTALLATION:
Carton or other heavy material for covering the counter top.
Clear Tape Stud Finder or Thin Nail
(for taping the templates to the wall)
01
Saber Saw (for cutting vent holes for roof
or wall vending)
Phillips Screwdriver (for the screws)
Pencil
Flat Blade Screwdriver (for the bolts)
Measuring Tape (metal preferred)
Keyhole Saw (for the power cord hole)
Electric drill
3/8" and 3/4" wood drill bits
1/2" and 3/16" ,.,,,,..,:._
drill bits
Plumb Line
Duct Tape
Small Side Cutters or Tin Snips
._)
Gloves
Caulking gun
*Ifyou have brick or masonry walls, you need special hardware and tools.
*The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft
damper.
6

STEP 1: PREPARE THE
ELECTRICAL CONNECTIONS
WARNING A
AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!
1. Locate the grounded electric outlet for this oven in the
cabinet above the oven, as shown in Figure 4 Detail.
NOTE: The outlet should be on a circuit dedicated to the
microwave oven 120V, 60Hz., AC only, with a
20ampere fused electrical supply.
IMPORTANT: If you do not have the proper wall outlet,
you MUST have one installed by a qualified
electrician.
2. You will cut the power-supply-cord hole (shown in
Figure 4 Detail) later when you prepare the wall and
upper cabinet in Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
Upper I
Cabinet ::
Grounded Outlet
o(Inside Cabinet)
T
Power-Supply-Cord Hole
Figure 4 Detail
AWARNING A
Improper grounding could result in electric shock or other personal injury.
•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY
CORD GROUNDING PRONG!
•This appliance MUST be grounded!

STEP 2:

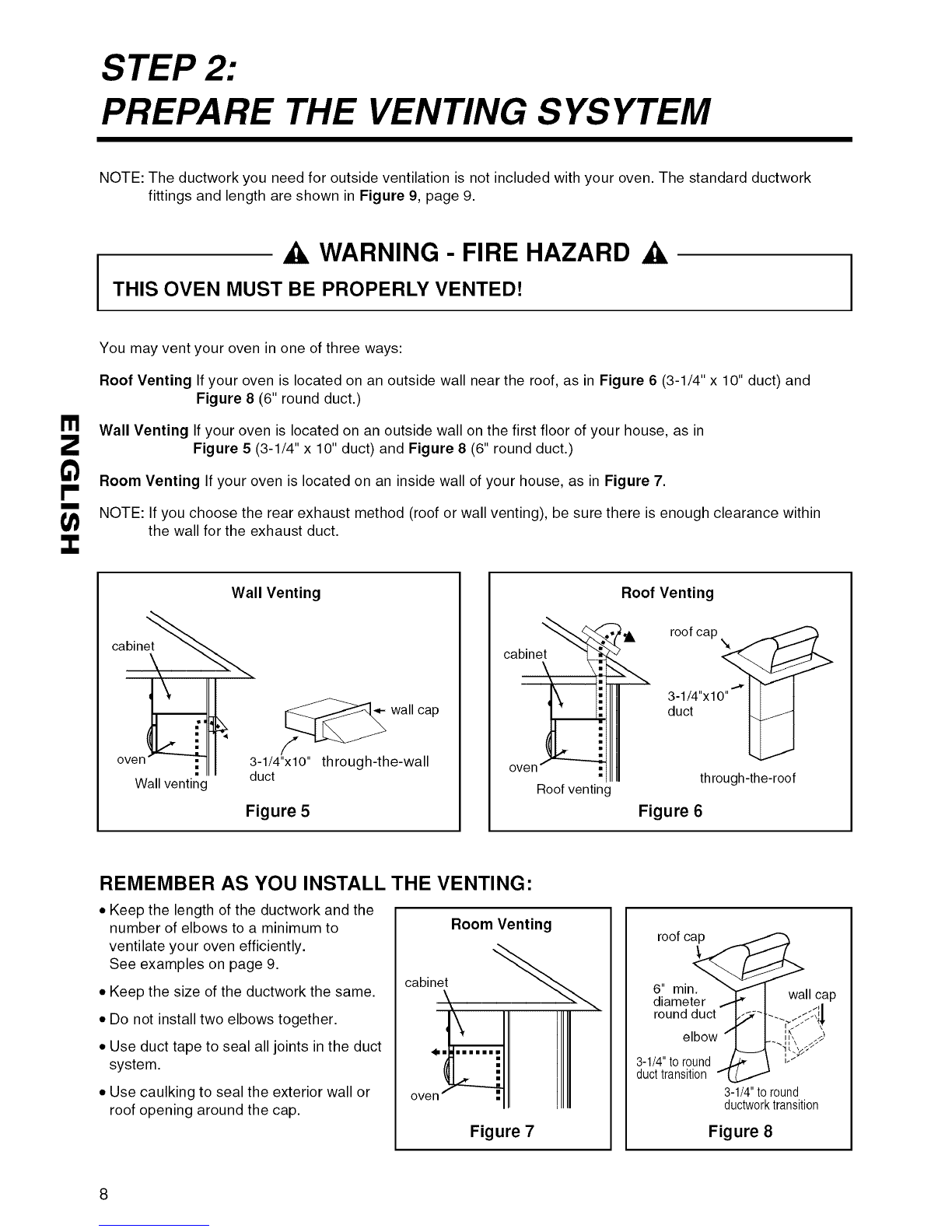

PREPARE THE VENTING S YSYTEM
NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork
fittings and length are shown in Figure 9, page 9.
WARNING - FIRE HAZARD
THIS OVEN MUST BE PROPERLY VENTED!
You may vent your oven in one of three ways:
Roof Venting If your oven is located on an outside wall near the roof, as in Figure 6 (3-1/4" x 10" duct) and
Figure 8 (6" round duct.)
Wall Venting If your oven is located on an outside wall on the first floor of your house, as in
Figure 5 (3-1/4" x 10" duct) and Figure 8 (6" round duct.)
Room Venting If your oven is located on an inside wall of your house, as in Figure 7.
NOTE: If you choose the rear exhaust method (roof or wall venting), be sure there is enough clearance within
the wall for the exhaust duct.
cabinet
Wall Venting
_,
Wallventing
[__ wall cap
3-1/4"x10" through-the-wall
duct
Figure 5
cabinet
.,
Roofventing
Roof Venting
duct U
through-the-roof
Figure 6
REMEMBER AS YOU INSTALL THE VENTING:
*Keep the length of the ductwork and the
number of elbows to a minimum to
ventilate your oven efficiently.
See examples on page 9. cabinet
*Keep the size of the ductwork the same.
*Do not install two elbows together.
*Use duct tape to seal all joints in the duct
system.
*Use caulking to seal the exterior wall or
roof opening around the cap.
Room Venting
OVE
Figure 7
roof cap
6" min. wall cap
diameter
round
elbow
3-1/4" to round ,/
duct transition 3-1/4" toround
ductworktransition
Figure 8

STEP 2:
PREPARE THE VENTING SYSTEM
STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension
duct installed between the damper assembly and the adapter to prevent the exhaust damper sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
Below are the standard fittings and their equivalent length in feet.
3 1/4"x 10"to 6" = 5 ft. 3 1/4" x 10" roof cap = 24 ft 3 1/4" x 10"900elbow = 25 ft
3
90°elbow = 10 ft 3 1/4" x 10" wall cap
= 40 ft 45°elbow =5 ft
Figure 9
3-1/4" x 10" flat elbow
= lOft
61
To calculate the equivalent length of each duct piece used, see the examples below.
I
For 3-1/4" x 10" SYSTEMS Examples For 6" ROUND SYSTEMS
3-1/4"x10" _ 6ft. --_1 _[3wall cap
90"elbow _\
1,2ft.
1 3"1/4" X 10" 90 ° elbow =
1 Wall Cap =
8 feet straight duct =
TOTAL LENGTH =
25 ft.
40 ft.
8 ft.
73 ft.
90° elbows _---- 6ft. --_[_/wall cap
transi_
1transition =5ft.
2 90 °elbows = 20 ft.
1 Wall Cap = 40 ft.
8feet straight = 8 ft.
TOTAL LENGTH = 73 ft.

STEP 3:

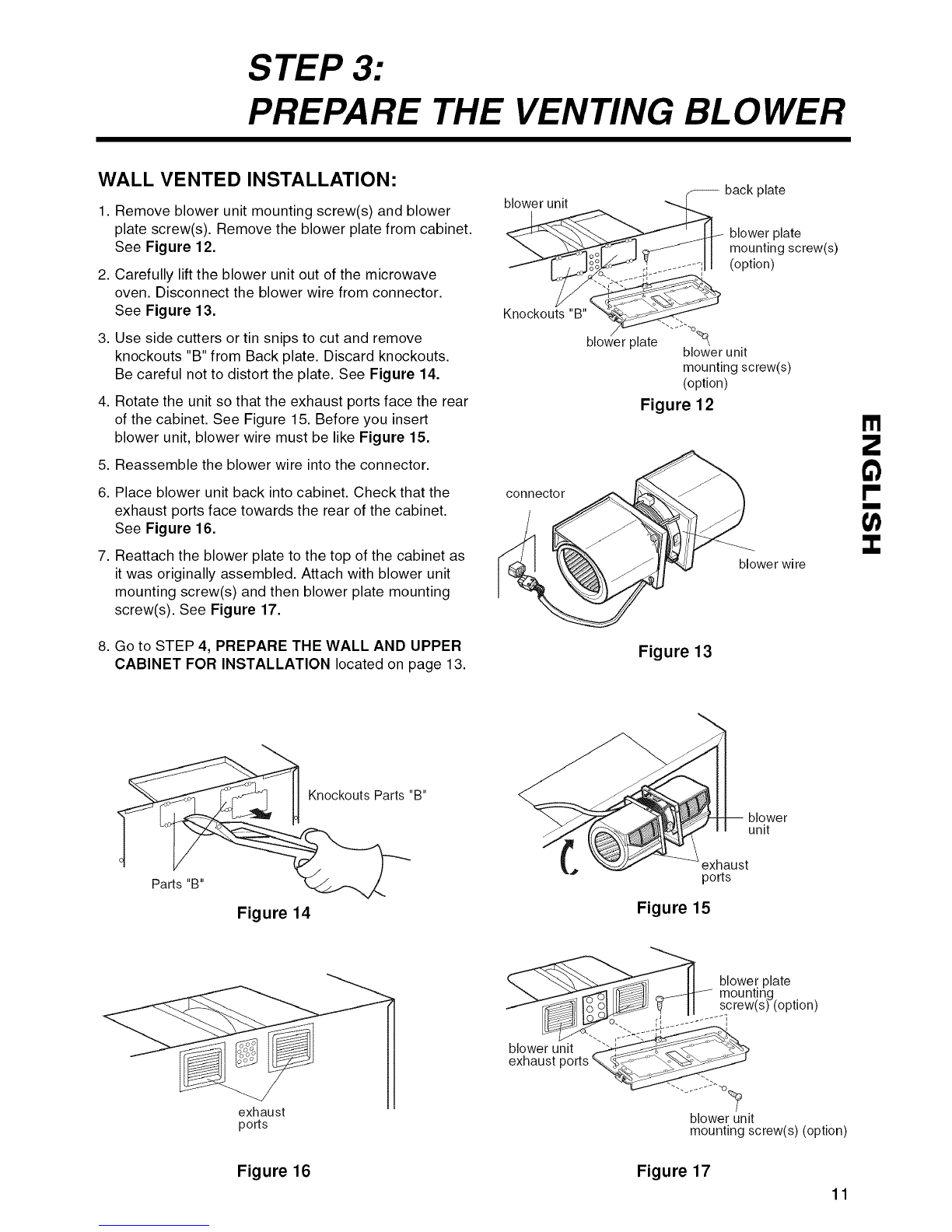

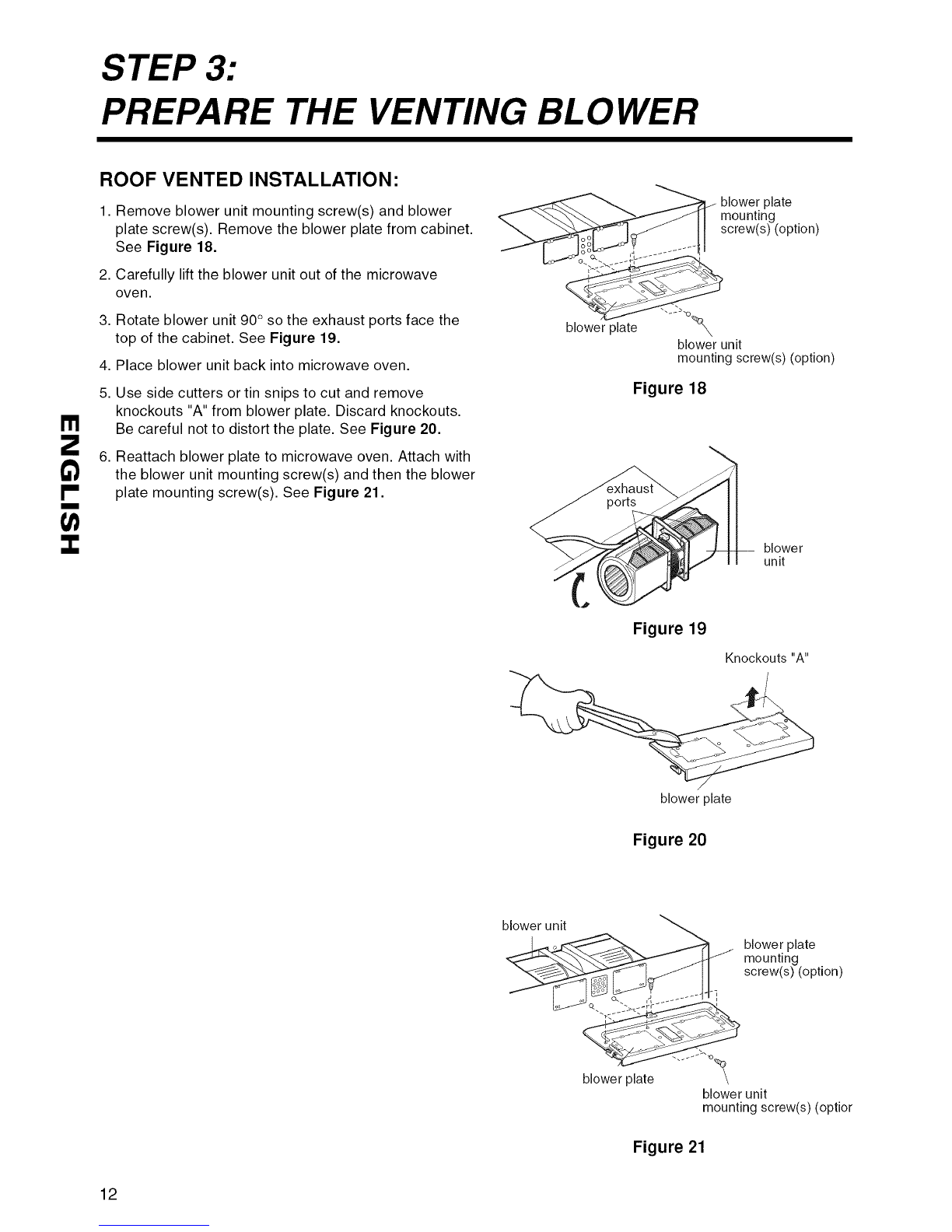

PREPARE THE VENTING BL 0 WER
Your microwave oven is shipped with the blower assembled for room venting (recirculating). You need to adjust
the blower if you want wall vented or roof vented installation.
WARNING
ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.
o DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result
in electrical shock.
REMOVE THE MOUNTING PLATE:
1. Remove any shipping materials and parts from inside
the microwave oven.
2. Cover the counter top or cooktop with a thick,
protective covering to protect it from damage and dirt.
See Figure 10.
NOTE: If you have a free-standing range, disconnect
it, move it onto a piece of cardboard or
hardboard and pull it away from the wall, so
that you can get closer to the upper cabinet
and back wall for easier measuring and
drilling.
3,
4,
5,
6,
Remove mounting plate 2 screws from the mounting
plate as shown and discard them.
(See Figure 11.)
The mounting plate will also be used to locate and
mark the mounting holes on the rear wall.
Locate exhaust adaptor, grease filters and hardware
packet.
At this point, remove any adhesive tape (if there is
any), on the exhaust adaptor, the grease filters and
the power supply cord.
ROOM VENTED INSTALLATION:
Go to STEP 4, PREPARE THE WALL AND UPPER
CABINET FOR INSTALLATION located on page 13.
A thick, protective
covering
Figure 10
__
o_ Mounting
"-_ plate
° Mounting
ill _ platescrews
_ Control panel side
Mounting Plate
rews
Mounting
plate
L_ Control panel sid_
Fig ure 11
10

STEP 3:
PREPARE THE VENTING BLOWER
WALL VENTED INSTALLATION:
1. Remove blower unit mounting screw(s) and blower
plate screw(s). Remove the blower plate from cabinet.
See Figure 12.
2. Carefully lift the blower unit out of the microwave
oven. Disconnect the blower wire from connector.
See Figure 13.
3. Use side cutters or tin snips to cut and remove
knockouts "B" from Back plate. Discard knockouts.
Be careful not to distort the plate. See Figure 14.
4. Rotate the unit so that the exhaust ports face the rear
of the cabinet. See Figure 15. Before you insert
blower unit, blower wire must be like Figure 15.
5. Reassemble the blower wire into the connector.
6. Place blower unit back into cabinet. Check that the
exhaust ports face towards the rear of the cabinet.
See Figure 16.
7. Reattach the blower plate to the top of the cabinet as
it was originally assembled. Attach with blower unit
mounting screw(s) and then blower plate mounting
screw(s). See Figure 17.
8. Go to STEP 4, PREPARE THE WALL AND UPPER
CABINET FOR INSTALLATION located on page 13.
blower unit
Knockouts "B"
connector
r plate
-- back plate
blower plate
mounting screw(s)
(option)
blower unit
mounting screw(s)
(option)
Figure 12
bIowe r wi re
Figure 13
Ul
Figure 14
Knockouts Parts "B"
blower
unit
exhaust
ports
Figure 15
exhaust
ports
Figure 16
blower unit
exhaust
blower plate
mounting
screw(s) (option)
blower unit
mounting screw(s) (option)
Figure 17 11

STEP 3:
PREPARE THE VENTING BL 0 WER
ROOF VENTED INSTALLATION:
1,
2,
Remove blower unit mounting screw(s) and blower
plate screw(s). Remove the blower plate from cabinet.
See Figure 18.
Carefully lift the blower unit out of the microwave
oveR.
3. Rotate blower unit 90 ° so the exhaust ports face the
top of the cabinet. See Figure 19.
4. Place blower unit back into microwave oven.
plate
mounting
screw(s) (option)
"_- "o
blower plate blower unit
mounting screw(s) (option)
5. Use side cutters or tin snips to cut and remove
knockouts "A" from blower plate. Discard knockouts.
Be careful not to distort the plate. See Figure 20.
6. Reattach blower plate to microwave oven. Attach with
the blower unit mounting screw(s) and then the blower
plate mounting screw(s). See Figure 21.
z
Figure 18
blower
unit
Figure 19
Knockouts "A"
blowerplate
Figure 20
blower unit
blower plate
mounting
screw(s) (option)
o. ,_ .......... i
blower plate \
blower unit
mounting screw(s) (optior
Figure 21
12

STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
MEASURE AND TACK /TAPE UP THE
TEMPLATE
1. Using a plumb line and (metal) measuring tape, find
and mark the vertical center line ,_ on the back
wall, as in Figure 22.
2. Find and mark one or two points where the studs
are on the wall (Studs are normally 16 inches apart.)
and then measure and mark the stud locations. If
you cannot find any wall stud, consult a local
building contractor.
CAUTION ,&,
DO NOT ATTEMPT TO INSTALL THE
MICROWAVE OVEN IF YOU CANNOT FIND A
WALL STUD.
3. Line up the plumb line on the wall with the center
line on the mounting plate.
NOTE: Be sure the minimum width is 30 inches and
the distance from the top of the mounting
plate to the range or counter top is at least
30 inches. See Figure 4 on page 4.
4. Center mounting plate in opening by lining up the
plumb line on wall with centerline on mounting plate.
Make sure the minimum width is 30 inches and that
the top of the mounting plate is located a minimum
of 30 inches above the cooking surface.
See Figure 23.
NOTE: If the front edge of the cabinet is lower than
the back edge, adjust the mounting plate to
be level with the cabinet front.
5. Measure the bottom of the upper cabinet frame.
Trim the edges "A", "B" and "C" on the upper
cabinet template so that the template will fit on the
bottom of the upper cabinet. If upper cabinet has a
recessed frame, trim template so that it fits inside
the recessed area. Align the centerline of the upper
cabinet template with the centerline of the mounting
plate; then securely tape or tack the upper cabinet
template in place. See Figure 23.
O O
Figure 22
(1-piece Mounting Plate)
Upper Cabinet Template oo
o _ jt c>
Mounting Plate
(3-piece Mounting Plate)
m
Figure 23
13

STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
DRILL THE HOLES IN THE WALL AND UPPER CABINET.
WARNING
BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL.
Electrical wires could be concealed behind the wall covering and if the drill hits them you
could get an electric shock.
1. Find the points on the mounting plate labeled "A", "B", "C" and "D". Drill a 3/16" diameter hole at any of
these points that are infront of a wall stud. Drill a 3/4" diameter hole at any of these points that are over
drywall.
2. Drill a 3/8" hole at points "J" and "K" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you will need 2"x2" filler blocks (not
included) to provide additional support for the bolts. See Figure 24.
• Mark the center of each filler block and drill a 3/8" diameter hole at the mark.
• Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to cabinet with
masking tape. See Figure 25.
3. Cut or drill a 2" diameter hole at the area marked "M", "power supply cord hole" on the upper cabinet template.
If the upper cabinet is metal, you will need to cover the edge of the hole with the power supply cord bushing
(supplied) to prevent damage to the cord from the rough metal edge.
WARNING
YOU MUST COVER THE EDGE OF
THE POWER SUPPLY CORD HOLE
IN A METAL CABINET WITH THE
POWER SUPPLY CORD BUSHING.
FAILURE TO DO SO COULD
RESULT IN DAMAGE TO THE CORD
AND ELECTRIC SHOCK.
cabinet front filler block
Figure 24
cabinet
bottom shelf
4. Cut out the venting areas (with the saber saw):
• Roof Venting: cut out the shaded area marked "L"
on the upper cabinet template.
• Wall or Room Venting (Recirculating): go to STEP
5, INSTALL THE MOUNTING PLATE, located on
page 15.
5. Use caulking compound to seal the exterior wall or
roof opening around the wall cap or roof cap.
filler
block
Figure 25
14

STEP 5: INSTALL THE MOUNTING
PL ATE TO THE WALL
THE OVEN MUST BE CONNECTED
TO AT LEAST ONE WALL STUD.
1. Draw a vertical line on the wall at the center of the
30" wide space.
Use the mounting plate as the template for the
rear wall. Place the mounting plate on the wall,
making sure that the tabs are against the bottom
of the cabinet. Line up the notch and center line
on the mounting plate to the center line on the
wall.
2. While holding the mounting plate with one hand,
draw circles on the wall at holes "A", "B", "C"
and "D". Four holes must be used for mounting. If
the holes are not used, the installation will not be
secure. Installer must use these holes for proper
installation. Use toggle bolts through these holes
unless one of them lines up with a stud. Use a lag
screw for studs. See Figure 26.
NOTE: Draw a fifth circle inside area "E", through
one of the holes to match the location of a
stud.
For wall vented: The oven requires a rear wall
cutout opening for the rear wall duct and the
exhaust adaptor must be attached to the mounting
plate. See the next page on how to prepare the rear
wall cutout opening and the exhaust
adaptor/mounting plate for wall vented.
3. Drill holes through the circles. Ifthere is a stud,
drill a 3/16" hole for lag screws. Two or preferably
four lag screws at holes "A" and "C", or "B" and
"D" must be used to secure mounting plate to
wall. If there is no stud, drill a 3/4" hole for toggle
bolts. Make sure to use at least 1 lag screw at
holes of area "E" in a stud, and 4 toggle bolts at
holes "A", "B", "C" and "D" in the drywall or the
plaster.
4. Attach the plate to the wall. To use spring toggle
head bolts: Remove the toggle wings from the
bolts. Insert the bolts into the mounting plate and
replace the spring toggle heads to 3/4" past the
bolt ends. Insert the spring toggle heads into the
holes in the wall to mount the bracket. You may
pull forward on the bracket to help in tightening
the toggle bolts. Tighten all bolts. See Figure 27.
Minimum 66" I I
FromtheFloorI r----
UL/IL °rwa
W nted C
I,1_'-I- - - ..... ;'_,
//)' I'_;
/I Dr%wLines
Mounting en Studs
3/16 Hole on Studs
5/8 Hole on Drywall Only
m
\
3/16 Hole on Studs
Minimum 66" ] 5/8 Hole on Drywall Only
FromtheFIoor/ III f_'- I
HIlLJ LveFntrdW_l'' I
r,[pcL_ DQ_
/ml It L
--:," \J' i'"
Draw Lines _ '_
Ion Studs _l
_ Draw _ _,
_I' _ Center Line % \[_
'_1' s Mounting _
III ' Plate ', III
IL! ;[[_CenterLine=" _ __ltJ"
Supp[rlTabl_SuppLt Tab
(3-pieceMounting Plate)
Figure 26
Space More Than Wall Thickness
I Toggle Wings
Mounting .... i _* III I
Plate'_l I:: I , ToggleBolt '!L
i_. I_11__ _ BOltEnd
Figure 27
63
=
15

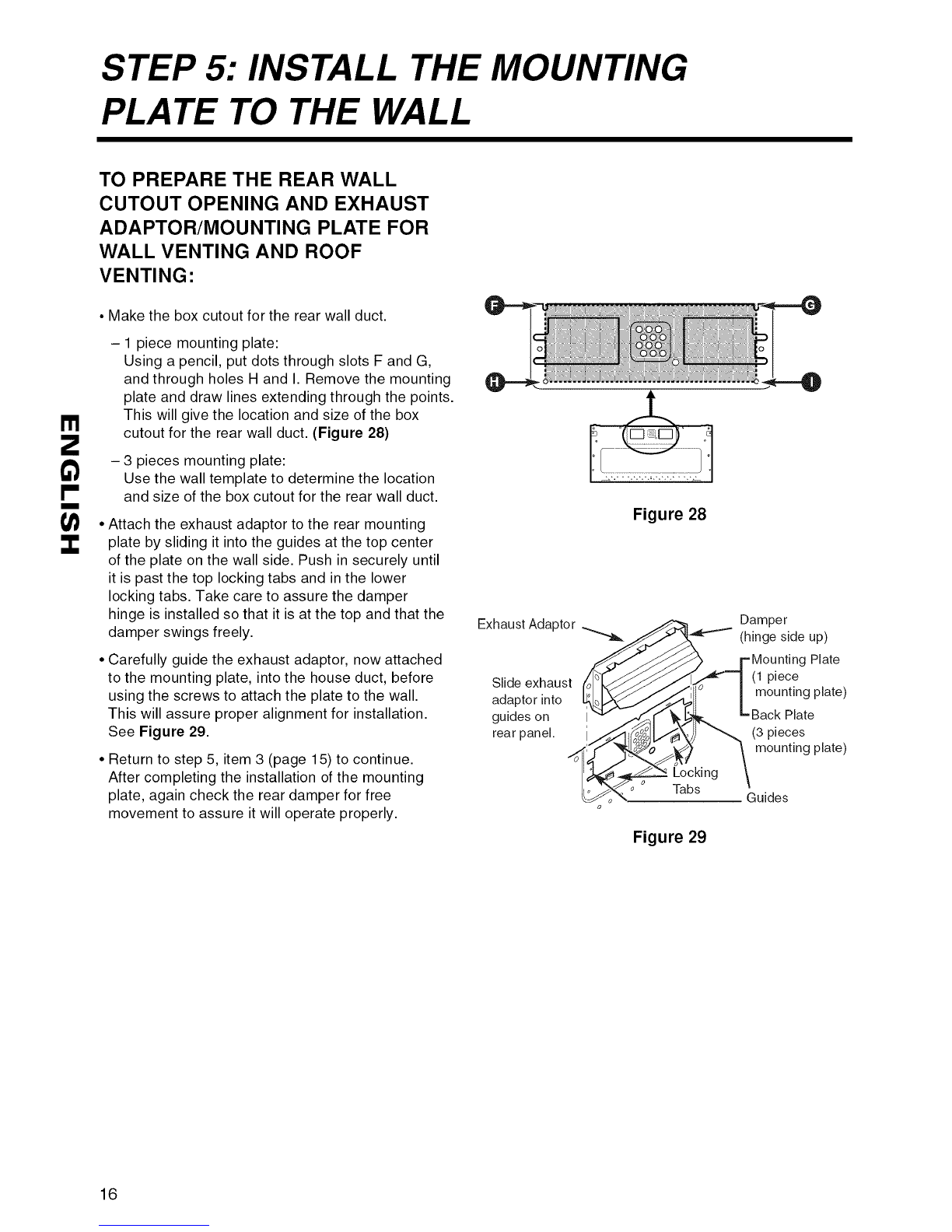

STEP 5: INSTALL THE MOUNTING
PLATE TO THE WALL
TO PREPARE THE REAR WALL
CUTOUT OPENING AND EXHAUST
ADAPTOR/MOUNTING PLATE FOR
WALL VENTING AND ROOF
VENTING:
•Make the box cutout for the rear wall duct.
- 1 piece mounting plate:
Using a pencil, put dots through slots F and G,
and through holes H and I. Remove the mounting
plate and draw lines extending through the points.
This will give the location and size of the box
cutout for the rear wall duct. (Figure 28)
- 3 pieces mounting plate:
Use the wall template to determine the location
and size of the box cutout for the rear wall duct.
•Attach the exhaust adaptor to the rear mounting
plate by sliding it into the guides at the top center
of the plate on the wall side. Push in securely until
it is past the top locking tabs and in the lower
locking tabs. Take care to assure the damper
hinge is installed so that it is at the top and that the
damper swings freely.
• Carefully guide the exhaust adaptor, now attached
to the mounting plate, into the house duct, before
using the screws to attach the plate to the wall.
This will assure proper alignment for installation.
See Figure 29.
• Return to step 5, item 3 (page 15) to continue.
After completing the installation of the mounting
plate, again check the rear damper for free
movement to assure it will operate properly.
Figure 28
Exhaust Adaptor
Slide exhaust
adaptor into
guides on I
rear panel.
Damper
(hinge side up)
=Mounting Plate
(1 piece
mounting plate)
-Back Plate
(3 pieces
mounting plate)
Locking
, ° Tabs Guides
Figure 29
16

STEP 6:
ATTACH THE 0 VEN TO THE WALL
WARNING A
You will need two people to lift this
microwave, Failure to use more
than one person could result in
personal injury,
1. Carefully lift microwave oven and hang it on support
tabs (See Figure 26) at the bottom of the mounting
plate. Reaching through upper cabinet, thread
power supply cord through the power supply cord
hole in the bottom of the upper cabinet.
See Figure 30.
2. Rotate the microwave oven upward so the top of
oven is against the bottom of the upper cabinet or
cabinet frame.
II
power cord
Figure 30
)ower cord
hole
3. Then insert a bolt down through each hole in the
upper cabinet bottom. See Figure 31.
Tighten the bolts until the gap between the upper
cabinet and microwave oven is closed.
4. If wall vented or room vented installation is used, go
to No. 7 on the next page.
Figure 31
17

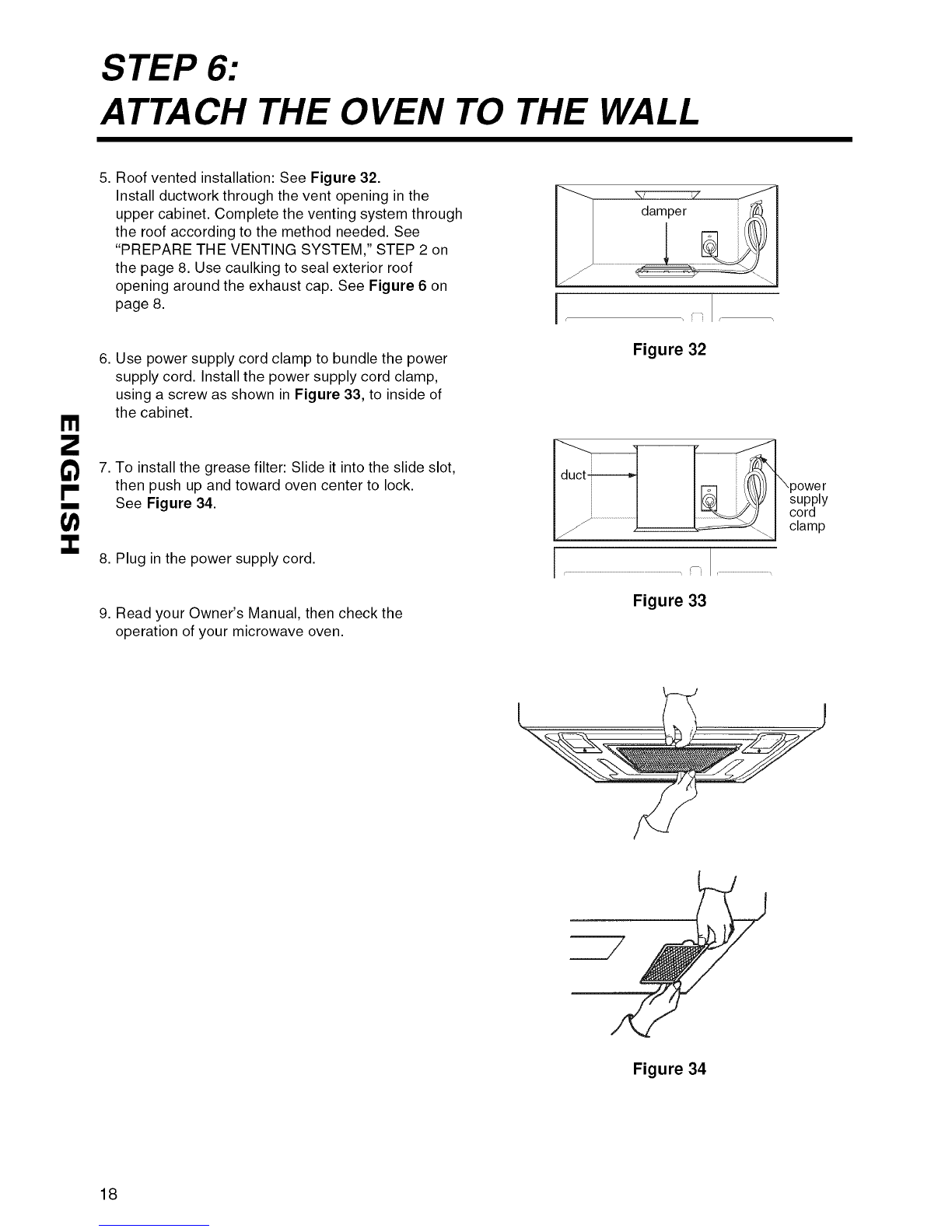

STEP 6:
ATTACH THE OVEN TO THE WALL
5. Roof vented installation: See Figure 32.
Install ductwork through the vent opening in the
upper cabinet. Complete the venting system through
the roof according to the method needed. See
"PREPARE THE VENTING SYSTEM," STEP 2 on
the page 8. Use caulking to seal exterior roof
opening around the exhaust cap. See Figure 6 on
page 8.
6. Use power supply cord clamp to bundle the power
supply cord. Install the power supply cord clamp,
using a screw as shown in Figure 33, to inside of
the cabinet.
7. To install the grease filter: Slide it into the slide slot,
then push up and toward oven center to lock.
See Figure 34.
8. Plug in the power supply cord.
9. Read your Owner's Manual, then check the
operation of your microwave oven.
Figure 32
i
duct I I I-;q '_l//\}l!I ",power
I I1©1 _\k_ I supply
I I _-'____J7/ I cord
clamp
T
. y /_.
Figure 33
Figure 34
18

MEMO
19

Printed in Korea
