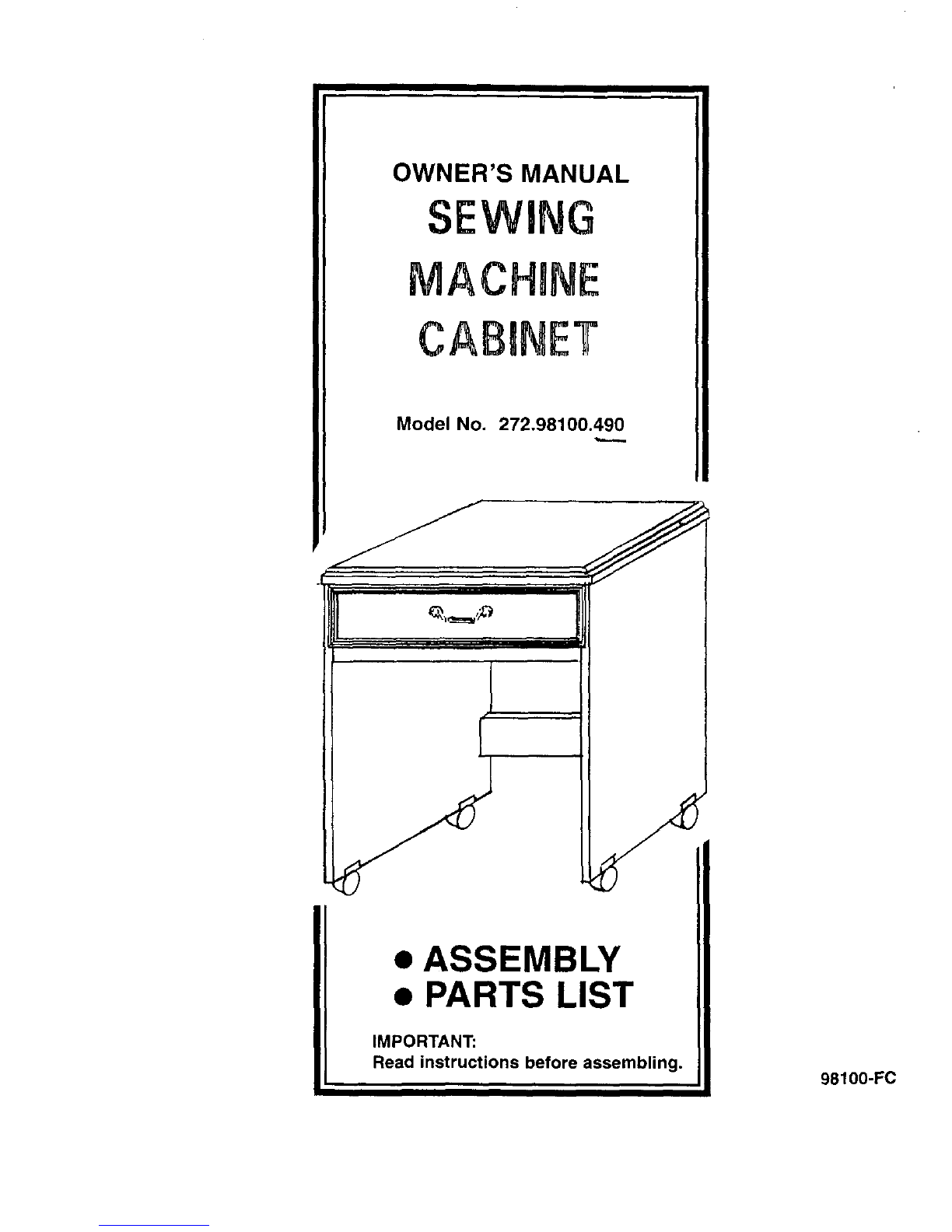

1 OWNER'S MANUAL
I SEI_'ING
I MAt;I_NE
ICAI_INET
I Model No. 272.98100.49_0
SEWING
MACHINE
CABINET
• ASSEMBLY
• PARTS LIST
IMPORTANT:
Read instructions before assembling. 98100-FC

Notice to Customer:

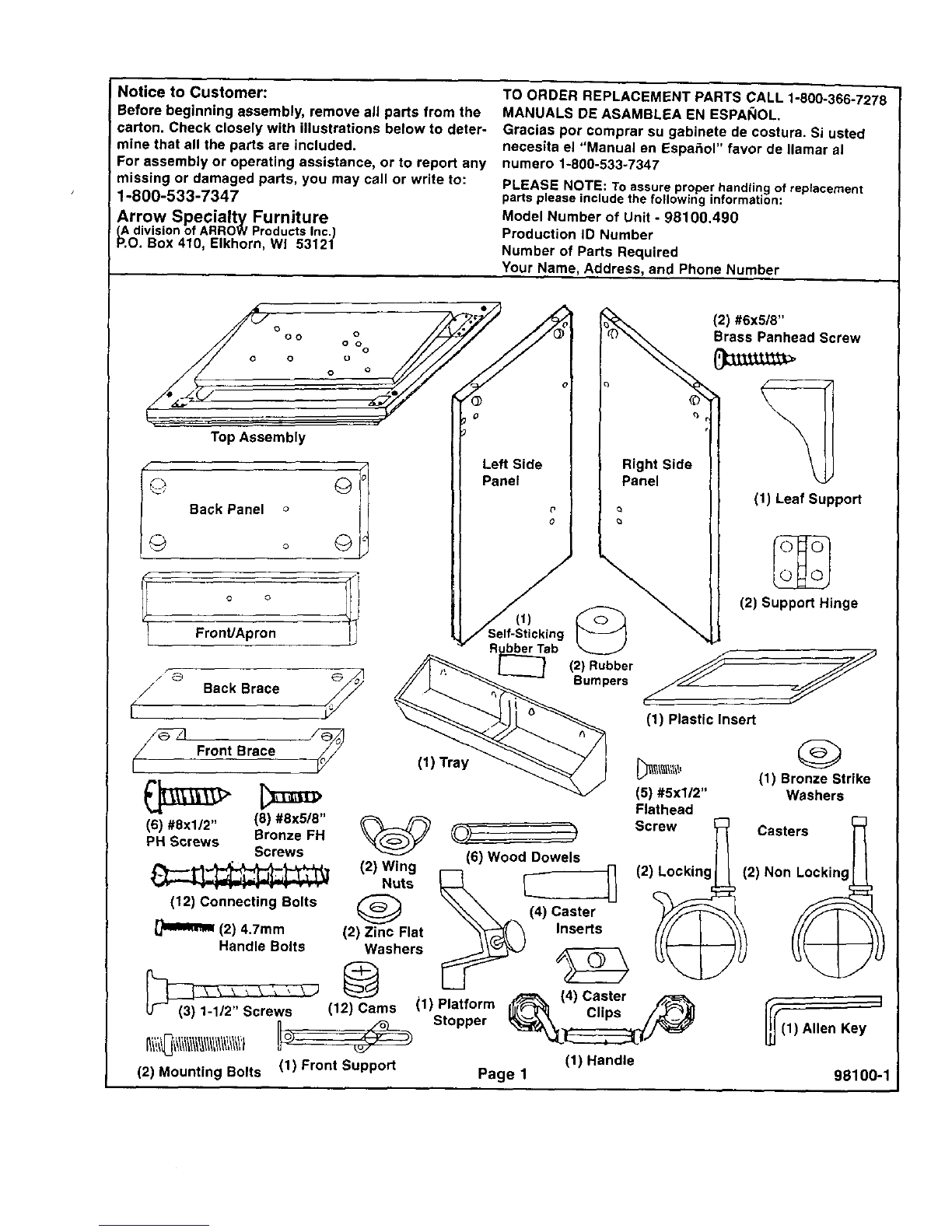

Before beginning assembly, remove all parts from the
carton. Check closely with illustrations below to deter-
mine that all the parts are included.
For assembly or operating assistance, or to report any
missing or damaged parts, you may call or write to:
1-800-533-7347
Arrow Specialty Furniture
(A division of ARROW Products Inc.)
P.O. Box 410, Elkhorn, Wl 53121
TO ORDER REPLACEMENT PARTS CALL 1-800-366-7278
MANUALS DE ASAMBLEA EN ESPAI_OL.
Gracias pot comprar su gabinete de costura. Si usted
necesita el "Manual en Espa_ol" favor de Ilamar al
numero 1-800-533-7347
PLEASE NOTE: To assure proper handling of replacement
parts please include the following information:
Model Number of Unit - 98100.490
Production ID Humber
Number of Parts Required
Your Name, Address, and Phone Number
Top Assembly
o
o O o
o
o o
©
Back Panel o
© o ©
FronUApron
• Back
I' V
Front Brace -oF_
(6) #8x1/2" (8) #8x5/8"
PH Sorews Bronze FH
Screws
(12) Connecting Bolts
(2) 4.7mm
Handle Bolts
_S _• _ , ,_
crews
(2) Mounting Bolts
Left Side
Panel Right Side
Panel
Rubber Tab G
(2) Rubber
Bumpers
(2) #6x5/8"
Brass Panhesd Screw
(1) Leaf Support
(12) Cams (1) Platform _(4) Caster
(1) Handle
(1) Front Support Page 1
(2) Support Hinge
(1) Plastic Insert
(1) Tray {_t_',t_t,
(5) #5x1/2"
Ftathead
_--_ Screw
(6} Wood Dowels
(2) WingNuts__ (2)Locking
@
(2) Zinc Flat
Washers
@
@
(1) Bronze Strike
Washers
Casters
98100-1

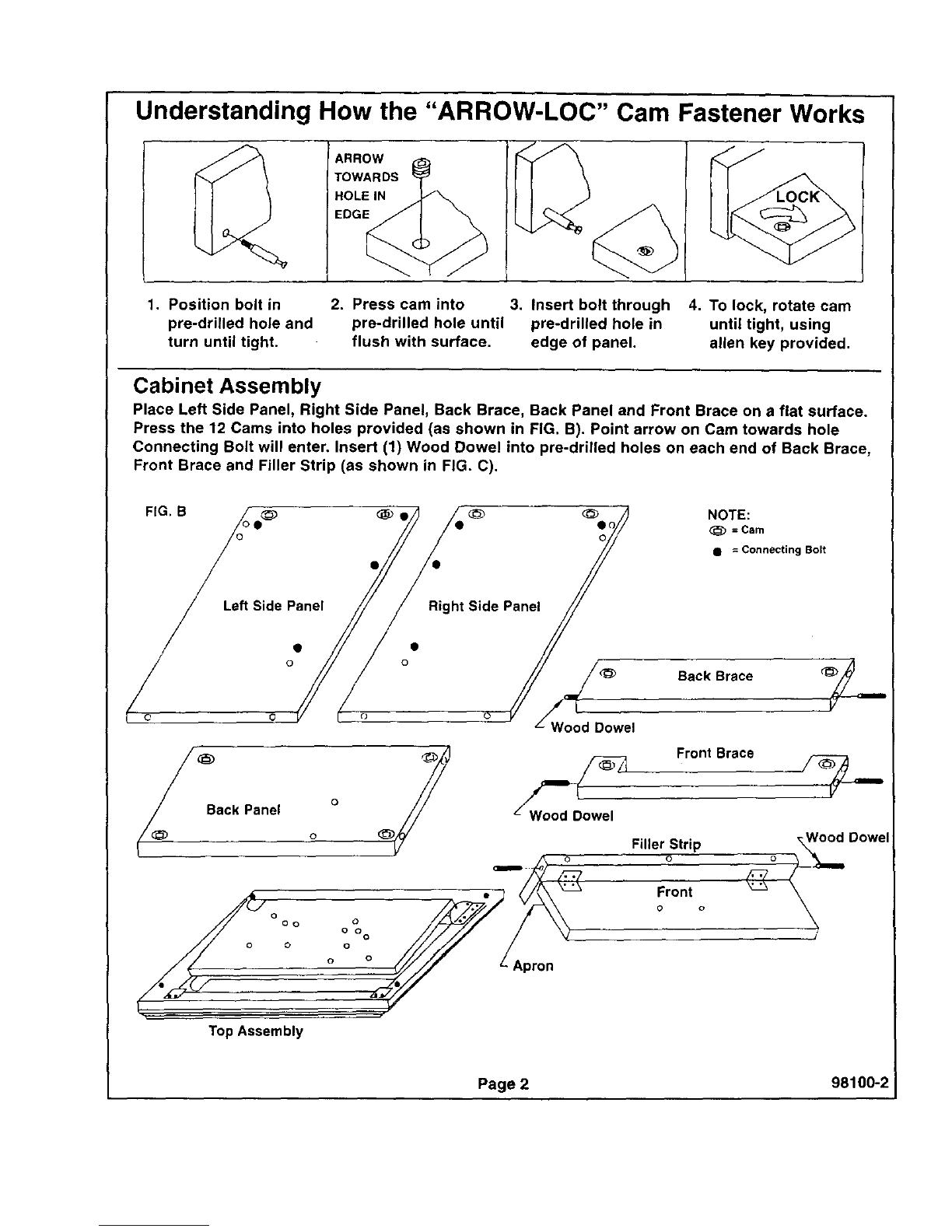

Understanding How the "ARROW-LOC" Cam Fastener Works
ARROW
TOWARDS
HOLE IN
EDG!
1. Position bolt in 2. Press cam into 3. Insert bolt through 4. To lock, rotate cam
pre-drilled hole and pre-drilled hole until pre-drilled hole in until tight, using
turn until tight, flush with surface, edge of panel, allen key provided.
Cabinet Assembly
Place Left Side Panel, Right Side Panel, Back Brace, Back Panel and Front Brace on a flat surface.
Press the 12 Cams into holes provided (as shown in FIG. B). Point arrow on Cam towards hole
Connecting Bolt will enter. Insert (1) Wood Dowel into pre-drilled holes on each end of Back Brace,
Front Brace and Filler Strip (as shown in FIG. C).
• •
Side Panel Side Panel
o o 6"_
0I
NOTE:
=Cam
•= Connecting Bolt
Back Brace
O
Back Panel
o
Front Brace
Filler Strip Wood Dowel
Front
Oo
O
O
o o o
Q
OO
Top Assembly
Page 298100-2

Assembly Instructions

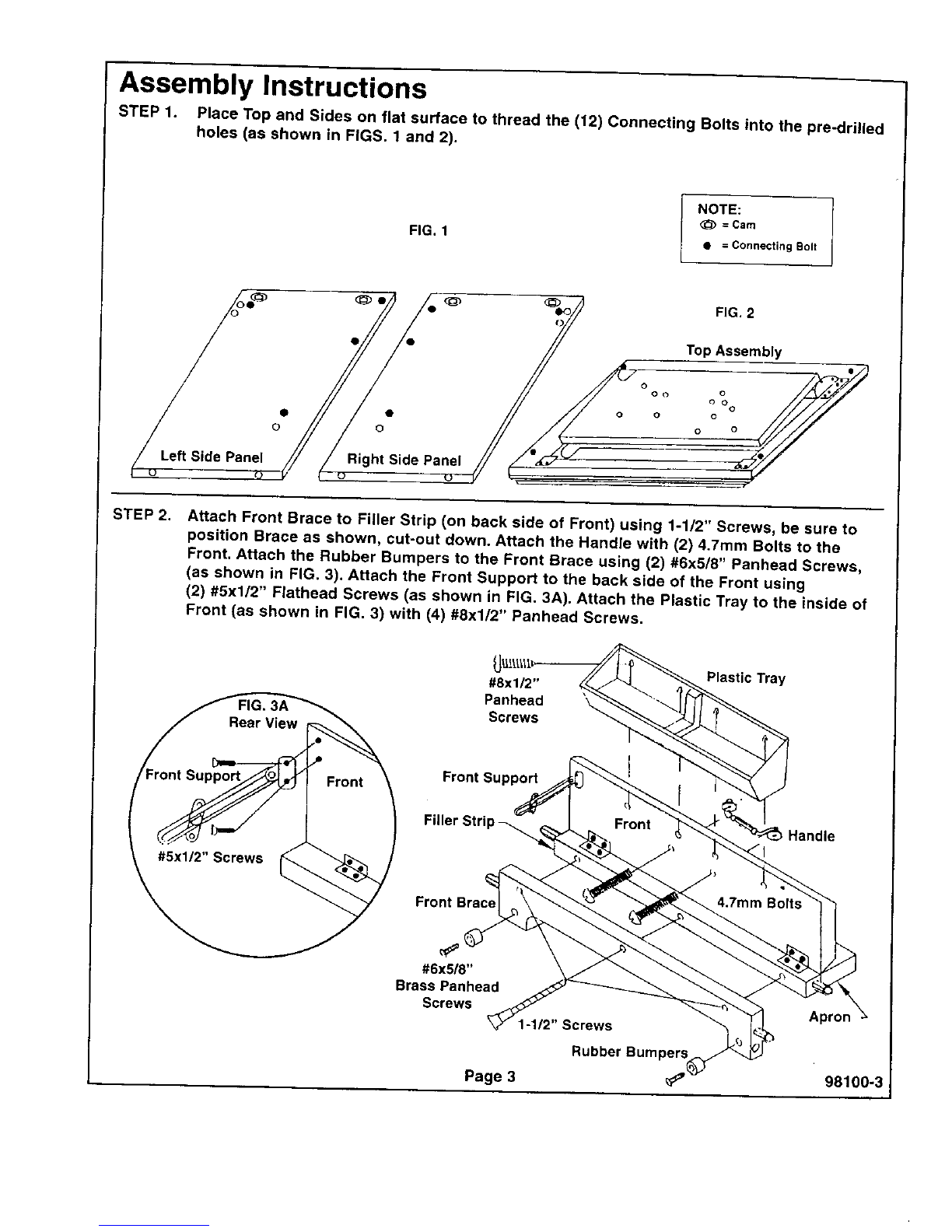

STEP 1. Place Top and Sides on flat surface to thread the (12) Connecting Bolts into the pre-drilled
holes (as shown in FIGS. 1 and 2).
FIG, 1
NOTE:
<_ = Cam
•= Connecting Bott
Left Side Panel Right Side Panel
FIG. 2
Top Assembly
o
(3 o
STEP 2. Attach Front Brace to Filler Strip (on back side of Front) using 1-112" Screws, be sure to
position Brace as shown, cut-out down. Attach the Handle with (2) 4.7mm Bolts to the
Front. Attach the Rubber Bumpers to the Front Brace using (2) #6x5/8" Panhead Screws,
(as shown in FIG. 3). Attach the Front Support to the back side of the Front using
(2) #5x1/2" Flathead Screws (as shown in FIG. 3A). Attach the Plastic Tray to the inside of
Front (as shown in FIG. 3) with (4) #8x1/2" Panhead Screws.
#8x1/2"
Panhead
Screws
Plastic Tray
Front Support
Handle
Front Brace
#6x5/8"
Brass Panhead
Screws
Page 3
Screws
Rubber Bumpers
98100-3

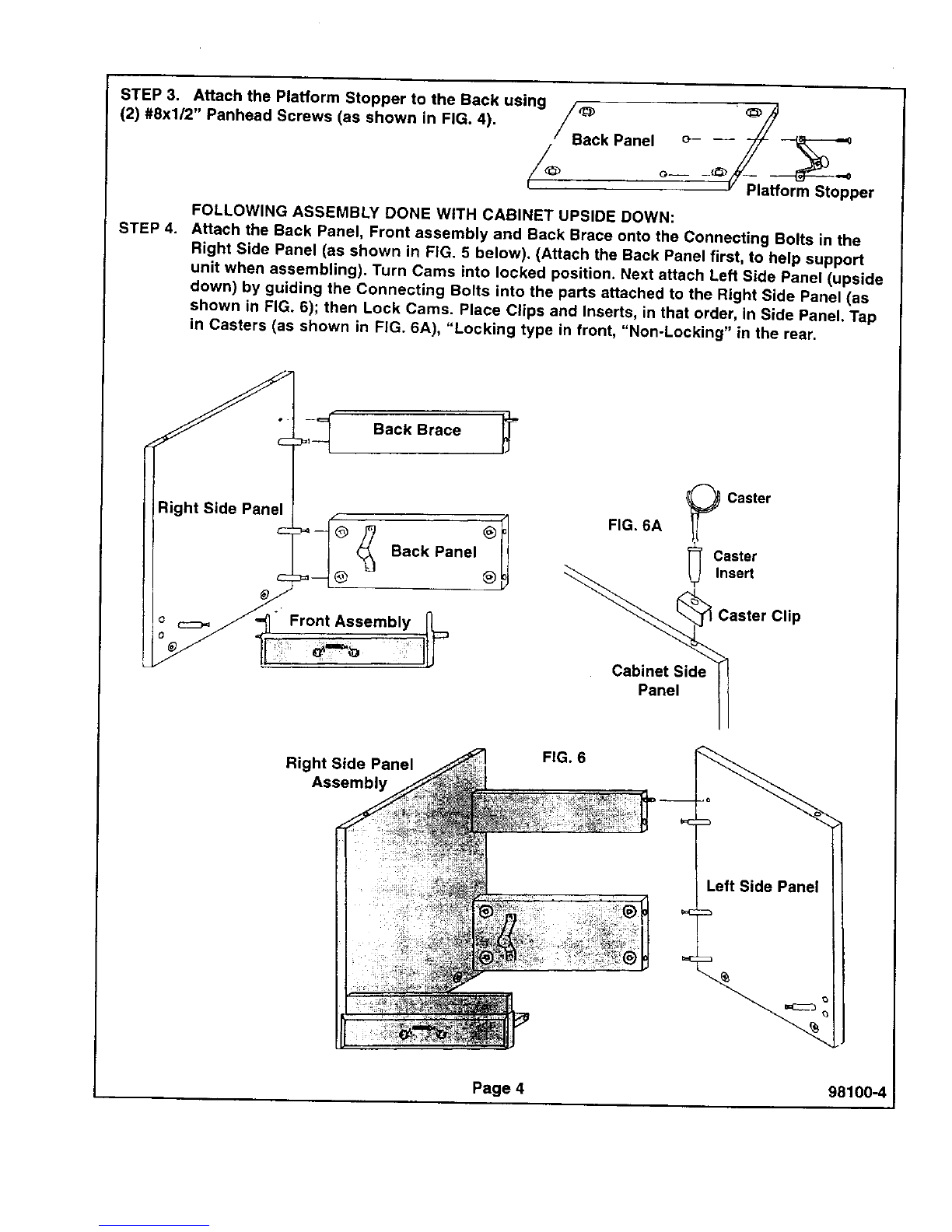

STEP3. AttachthePlatformStopperto theBackusing /B/¢_
(2) #8x1/2" Panhead Screws (as shown in FIG. 4). /_;_ "_
ack Panel _- --
/_ o-- -_'v Platform Stopper
FOLLOWING ASSEMBLY BONE WITH CABINET UPSIDE DOWN:
STEP 4. Attach the Back Panel, Front assembly and Back Brace onto the Connecting Bolts in the
Right Side Panel (as shown in FIG. 5 below). (Attach the Back Panel first, to help support
unit when assembling). Turn Cams into locked position, Next attach Left Side Panel (upside
down) by guiding the Connecting Bolts into the parts attached to the Right Side Panel (as
shown in FIG. 6); then Lock Cams. Place Clips and Inserts, in that order, in Side Panel. Tap
in Casters (as shown in FIG. 6A), "Locking type in front, "Non-Locking" in the rear.
Back Brace
Right Side Panel
Back Panel
" Front Assembly
Right Side Panel
Y
_Caster
FIG. 6A
Caster
Insert_Caster Clip
Cabinet Side_
Panel II
FIG. 6
Page 4 981004

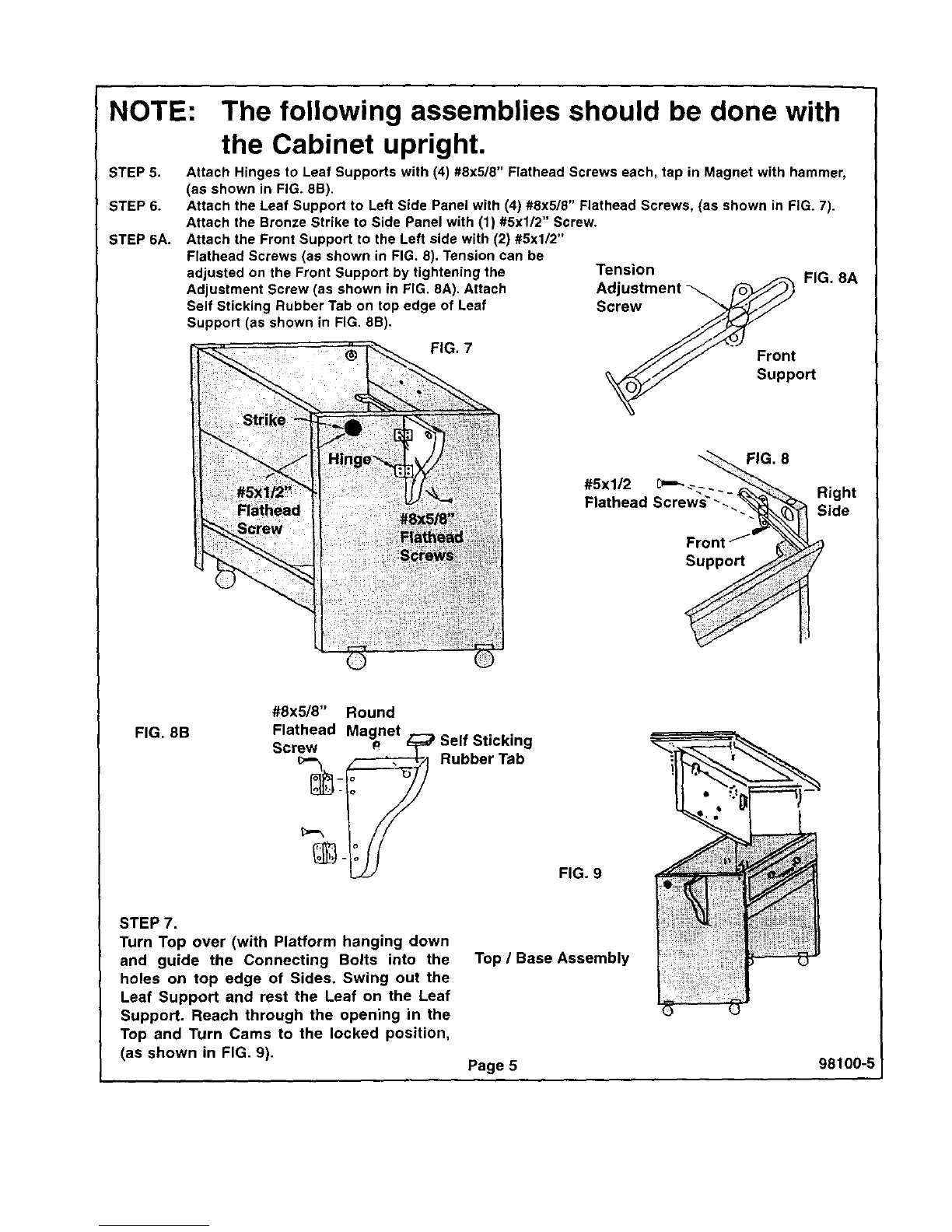

NOTE: The following assemblies should be done with
the Cabinet upright.
Attach Hinges to Leaf Supports with (4) #8x5/8" Flathead Screws each, tap in Magnet with hammer,
(as shown in FIG. 8B).
Attach the Leaf Support to Left Side Panel with (4) #8x5/8" Flathead Screws, (as shown in FIG. 7).
Attach the Bronze Strike to Side Panel with (1) #5xl/2" Screw.
Attach the Front Support to the Left side with (2) #5xl/2"
Flathead Screws (as shown in FIG. 8). Tension can be
adjusted on the Front Support by tightening the
Adjustment Screw (as shown in FIG. 8A). Attach
Self Sticking Rubber Tab on top edge of Leaf
Support (as shown in FIG. 8B).
STEP5.
STEP6.
STEP 6A.
FIG. 7
Tension
Adjustment _ _ FIG. 8A
Screw _.._"
Support
_G. 8
#5x1/2 _"_ _-_-_
Flathead Screw__
Front/_
Suppo_ _:'i
Right
Side
FIG. 8B #8x5/8" Round Flathead ignet
Screw Self Sticking
Rubber Tab
FIG. 9
STEP 7.
Turn Top over (with Platform hanging down
and guide the Connecting Bolts into the
holes on top edge of Sides. Swing out the
Leaf Support and rest the Leaf on the Leaf
Support. Reach through the opening in the
Top and Turn Cams to the locked position,
(as shown in FIG. 9).
Top /Base Assembly
Page 5 98100-_

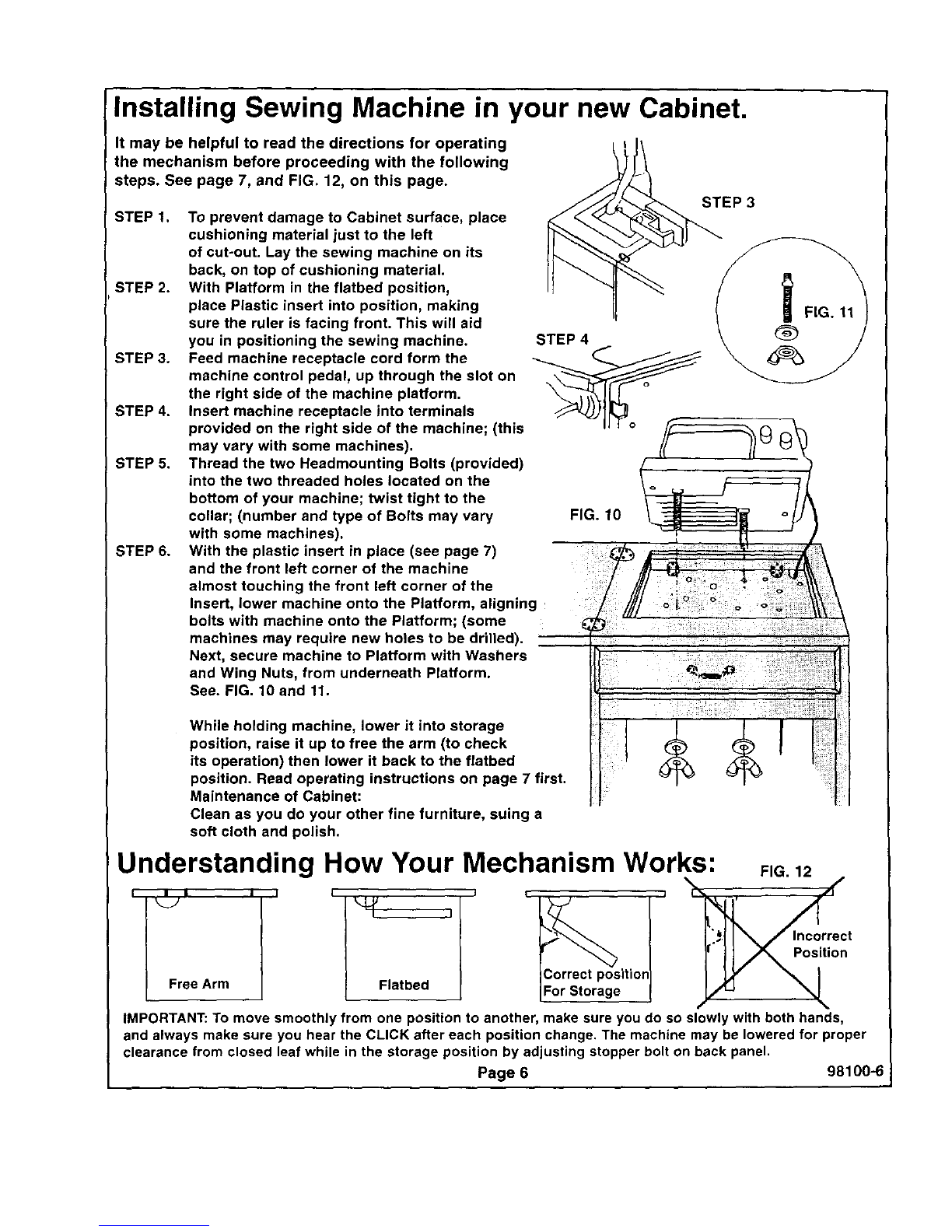

Installing Sewing Machine in your new Cabinet.
It may be helpful to read the directions for operating
the mechanism before proceeding with the following
steps. See page 7, and FIG. 12, on this page.
STEP 1.
STEP 2.
STEP3
STEP6.
FIG. 10
To prevent damage to Cabinet surface, place
cushioning material just to the left
of cut-out. Lay the sewing machine on its
back, on top of cushioning material.
With Platform in the flatbed position,
place Plastic insert into position, making
sure the ruler is facing front. This will aid
you in positioning the sewing machine. STEP 4
STEP 3. Feed machine receptacle cord form the __j
machine control pedal, up through the slot on
the right side of the machine platform.
STEP 4. Insert machine receptacle into terminals
provided on the right side of the machine; (this
may vary with some machines).
STEP 5. Thread the two Headmounting Bolts (provided)
into the two threaded holes located on the
bottom of your machine; twist tight to the
collar; (number and type of Bolts may vary
with some machines).
With the plastic insert in place (see page 7)
and the front left corner of the machine
almost touching the front left corner of the
Insert, lower machine onto the Platform, aligning
bolts with machine onto the Platform; (some
machines may require new holes to be drilled).
Next, secure machine to Platform with Washers
and Wing Nuts, from underneath Platform.
See. FIG. 10 and 11.
While holding machine, lower it into storage
position, raise it up to free the arm (to check
its operation) then lower it back to the flatbed
position. Read operating instructions on page 7 first.
Maintenance of Cabinet:
Clean as you do your other fine furniture, suing a
soft cloth and polish.
Understanding How Your Mechanism Works:
Ia d i
Free Arm Flatbed l_:' "orrritl
FIG. 12
P_jition
IMPORTANT: To move smoothly from one position to another, make sure you do so slowl rwith both hands,
and always make sure you hear the CLICK after each position change. The machine may be lowered for proper
clearance from closed leaf while in the storage position by adjusting stopper bolt on back panel.
Page 6 98100-_

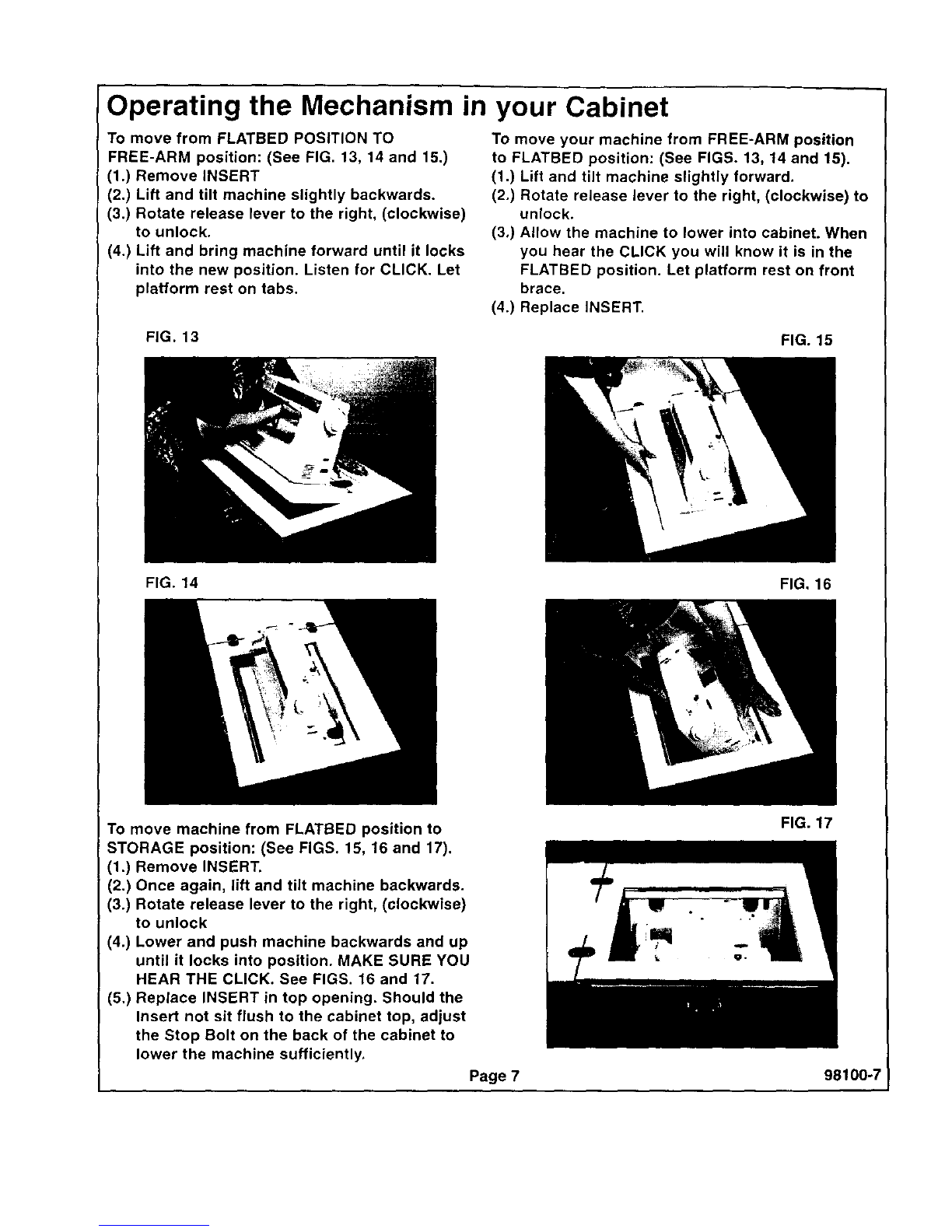

Operating the Mechanism in your Cabinet
To move from FLATBED POSITION TO
FREE-ARM position: (See FIG. 13, 14 and 15.)
(1.) Remove INSERT
(2.) Lift and tilt machine slightly backwards.
(3.) Rotate release lever to the right, (clockwise)
to unlock.
(4.) Lift and bring machine forward until it locks
into the new position. Listen for CLICK. Let
platform rest on tabs.
To move your machine from FREE-ARM position
to FLATBED position: (See FIGS. 13, 14 and 15).
(1.) Lift and tilt machine slightly forward.
(2.) Rotate release lever to the right, (clockwise) to
unlock.
(3,) Allow the machine to lower into cabinet. When
you hear the CLICK you will know it is in the
FLATBED position. Let platform rest on front
brace.
(4.) Replace INSERT.
FIG. 13 FIG. 15
FIG. 14 FIG. 16
To move machine from FLATBED position to
STORAGE position: (See FIGS. 15, 16 and 17).
(1.) Remove INSERT.
(2.) Once again, lift and tilt machine backwards.
(3.) Rotate release lever to the right, (clockwise)
to unlock
(4.) Lower and push machine backwards and up
until it locks into position. MAKE SURE YOU
HEAR THE CLICK. See FIGS. 16 and 17.
(5.) Replace INSERT in top opening. Should the
Insert not sit flush to the cabinet top, adjust
the Stop Bolt on the back of the cabinet to
lower the machine sufficiently.
Page 7
FIG. 17
98100-7

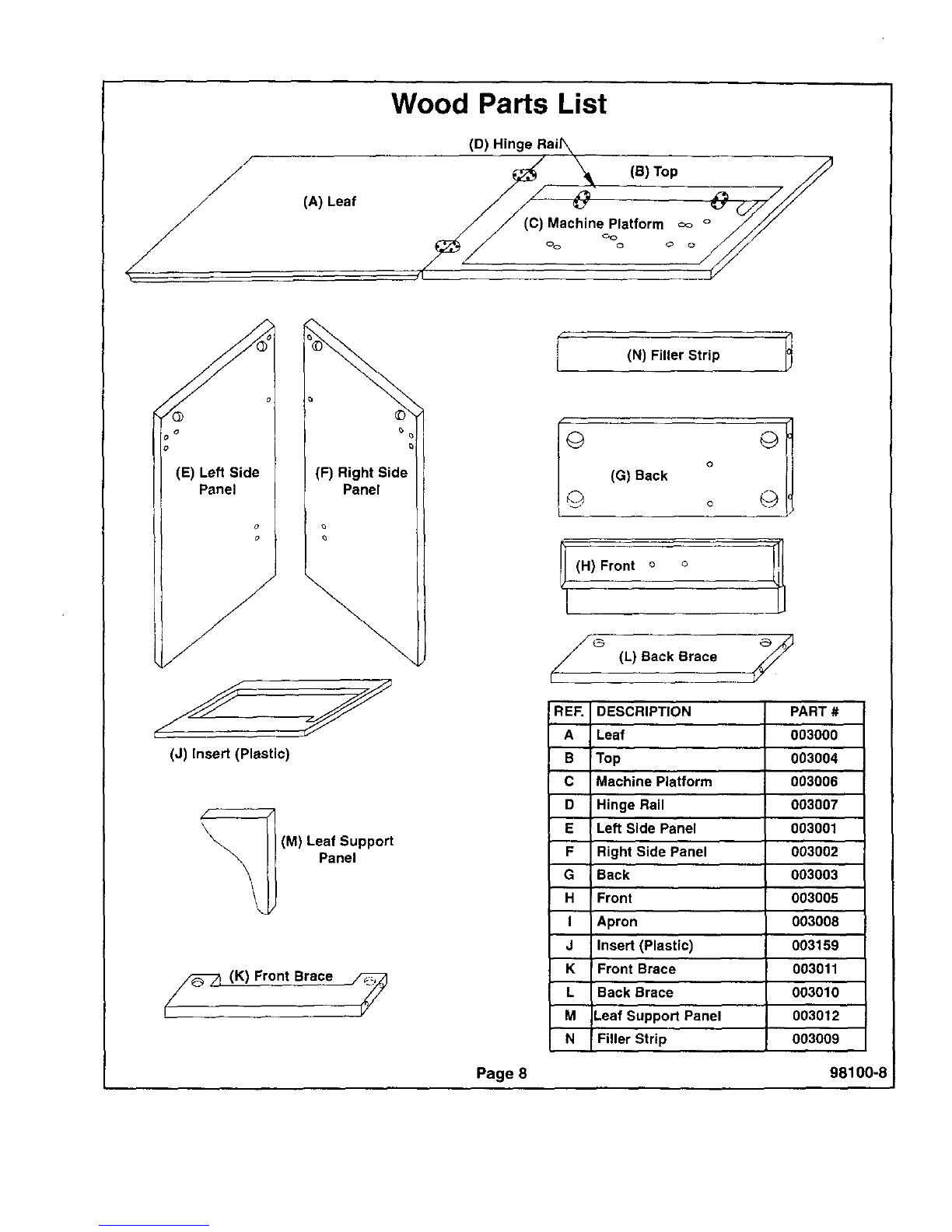

Wood Parts List
/-
/
4
(A) Leaf
(B)Top
(E) Left Side
Panel
o
o
(F) Right Side
Panel
/
(J) insert (Plastic)
_/_ (M) Leaf Support
Panel
_(K) Front Brace ?
i(N) Filler Strip
(G) Back
-- m
I
'_ (L) Back Brace /
REF. DESCRIPTION PART #
A Leaf 003000
B Top 003004
C Machine Platform 003006
D Hinge Rail 003007
ELeft Side Panel 003001
F Right Side Panel 003002
G Back 003003
H Front 003005
I Apron 003008
J Insert (Plastic) 003159
K Front Brace 003011
L Back Brace 003010
M Leaf Support Panel 003012
N Filler Strip 003009
Page 8 98100-8

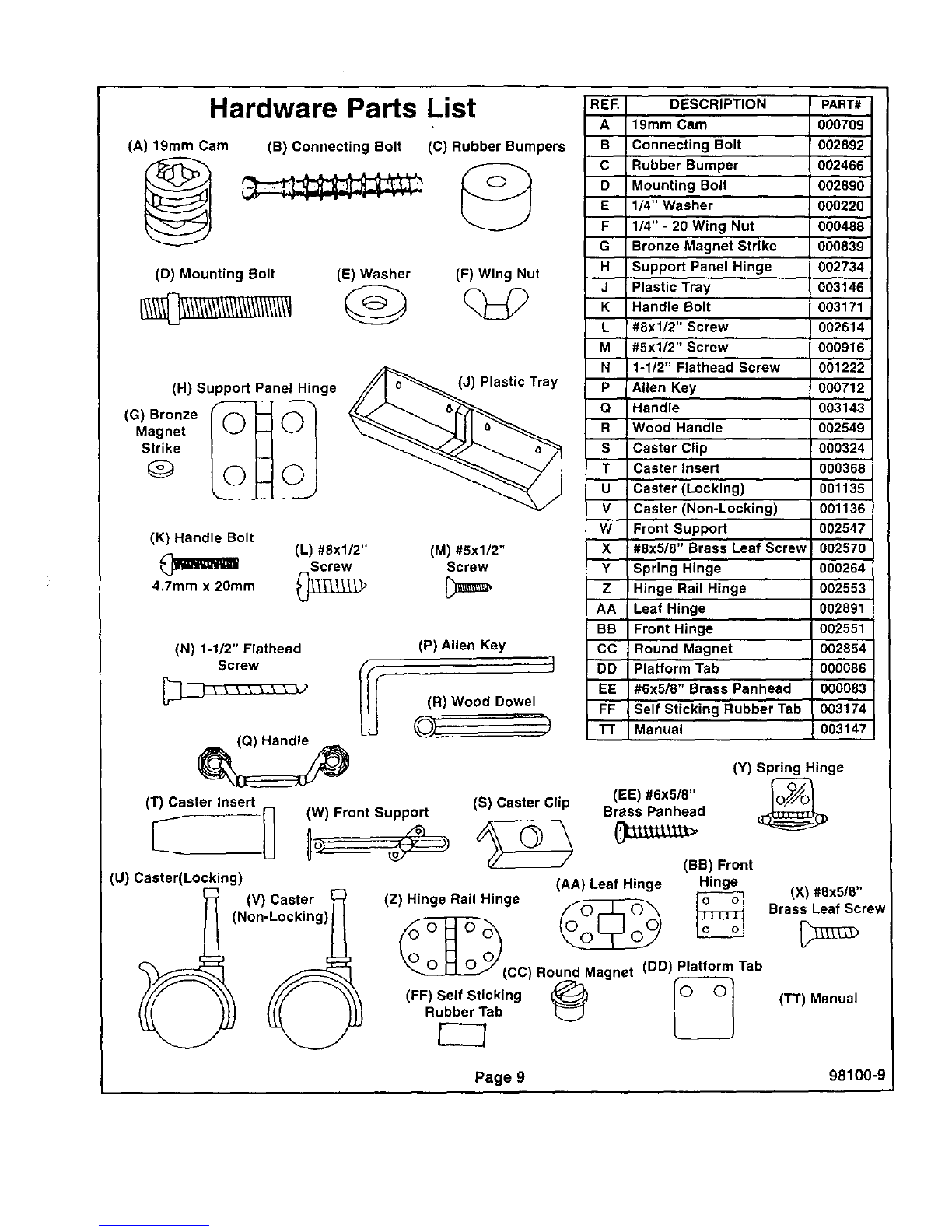

Hardware Parts List RER DESCRIPTION PART#
A 19mm Cam 000709
B Connecting Bolt 002892
C Rubber Bumper 002466
D Mounting Bolt 002890
E 1/4" Washer 000220
F 1/4" -20 Wing Nut 000488
G Bronze Magnet Strike 000839
H Support Panel Hinge 002734
J Plastic Tray 003146
K Handle Bolt 003171
L#8xl/2" Screw 002614
M#5xl/2" Screw 000916
N 1-1/2" Flathead Screw 001222
P Allen Key 000712
Q Handle 003143
R Wood Handle 002549
S Caster Clip 000324
T Caster Insert 000368
U Caster (Lock ng) 001135
V Caster (Non-Locking) 001136
W Front Support 002547
X#8x5/8" Brass Leaf Screw 002570
Y Spring Hinge 000264
Z Hinge Rail Hinge 002553
AA Leaf Hinge 002891
BB Front Hinge 002551
CC Round Magnet 002854
DD Platform Tab 000086
EE #6x5/8" Brass Panhead 000083
FF Self Sticking Rubber Tab 003174
TT Manual 003147
(A) 19mm Cam (B) Connecting Bolt
(D) Mounting Bolt (E) Washer
(C) Rubber Bumpers
@
(F) Wing Nut
(H) Support Panel Hinge
(G) Bronze _
Magnet
Strike
Q
(K} Handle Bolt (L) #8x112"
4.7ram x20ram
(N) 1-1/2" Flathead
Screw i_ F
(Q) Handle
(J) Plastic Tray
(M) #5xl/2"
Screw
(P) Allen Key ]
(R) Wood Dowel
(T) Caster Insert
(W) Front Support
(U) Caster(Locking)
J_ (V) Caster
(Non-Locking)
b
(Y) Spring Hinge
(S) Caster Clip (EE) #6x5/8" _L
Brass Panhead
(BB) Front
(AA) Leaf Hinge Hinge
(Z) Hinge Rail Hinge _(X) #6x5/8"
_Brass Leaf Screv
(CC) Round Magnet (DB) Platform Tab
(FF)RubberSelfStickingTab @ _ (TT) Manual
Page 9 98100-9
I

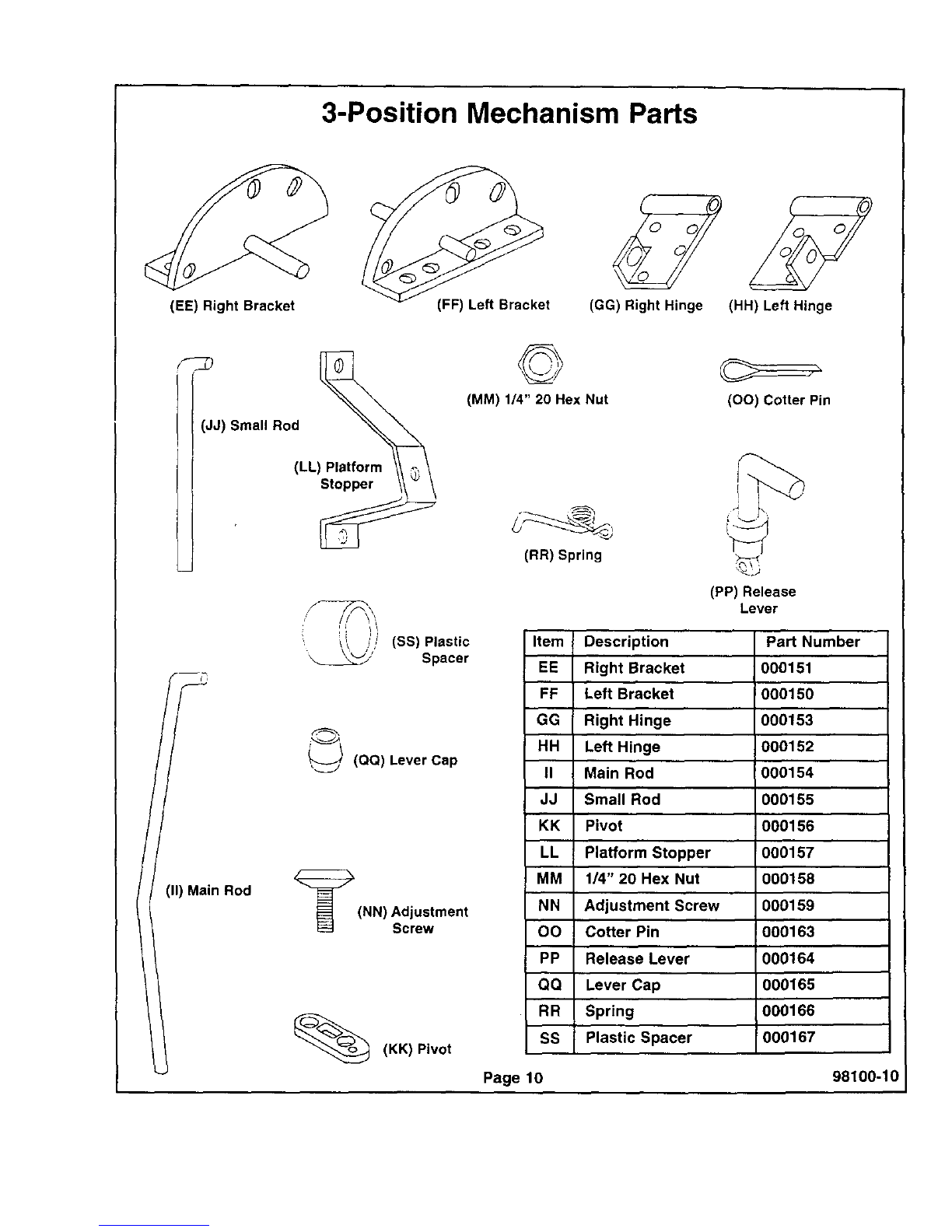

3-Position Mechanism Parts
(EE) Right Bracket (FF) Left Bracket U (GG) Right Hinge (HH) Left Hinge
(JJ) Small Rod
(LL) Platform \\ _5\
f_
(SS) Plastic
Spacer
'_t (QQ) Lever Cap
(11)Main Rod
(NN) Adjustment
Screw
(KK) Pivot
©
(MM) 1/4" 20 Hex Nut
(RR) Spring
(OO) Cotter Pin
(PP) Release
Lever
Item Description
EE Right Bracket
FF Left Bracket
GG Right Hinge
HH Left Hinge
II Main Rod
JJ Small Rod
KK Pivot
LL Platform Stopper
MM 1/4" 20 Hex Nut
NN Adjustment Screw
OO Cotter Pin
PP Release Lever
QQ Lever Cap
RR Spring
SS Plastic Spacer
Pad Number
000151
000150
000153
000152
000154
000155
000156
000157
000158
000159
000163
000164
000165
000166
000167
Page 10 98100-10

Arrow Specialty Furniture
(A Division of ARROW PRODUCTS, Inc.)
P.O. Box 410, EIkhorn, Wl 53121
1-800-533-7347
12-9_ 98100-BC
