Kenwood DNX9960 User manual

GPS NAVIGATION SYSTEM
DNX SERIES
DNX9960 DNX7160 DNX7020EX
MONITOR WITH DVD RECEIVER
DDX SERIES
DDX896 DDX8046BT
INSTRUCTION MANUAL
© B64-4673-00/00 (KW/K2W/RW)
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the
best performance from your new GPS Navigation System/DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your Kenwood dealer for information or service on the product.
Model DNX9960/DNX7160/DNX7020EX/DDX896/DDX8046BT Serial number
US Residence Only
Register Online
Register your Kenwood product at www.Kenwoodusa.com
 

2 DNX series DNX9960/ DNX7160/ DNX7020EX
Contents
Basic Operation 14
How to Display Top Menu Screen 14
Customization of Top Menu Screen 15
How to play media 16
How to Display the Source Control Screen18
Operation on the Playback Screen of Visual
Sources 19
How to Display the Navigation Screen 20
Picture in Picture function 20
Secondary window function 21
Watching DVD/Video CD 22
Playback Screen 22
Easy Control Screen 22
Source Control Screen 23
DVD-VIDEO Disc Menu 24
Video CD Zoom Control 25
Music CD/ Audio File Listening &
Video File/ Picture File Watching 26
Source Control Screen 26
List Search 28
Album artwork (USB) 29
Link search (Audio File in USB) 30
Playback Screen (Video file, Picture file) 30
Easy Control Screen (Video file, Picture file) 31
Picture Control (USB) 31
Movie Menu Control (Disc) 32
iPod Control 33
Playback Screen 33
Easy Control Screen 33
Source Control Screen 34
iPod List 35
iPod Album Artwork 36
Link search (Music file) 36
Radio Listening 37
Source Control Screen 37
Preset Select 38
Auto Memory 38
Manual Memory 39
Radio Text 39
Traffic Information 40
Search by Program Type 40
TV Watching 41
Function During TV Screen 41
Easy Control Screen 41
Source Control Screen 42
Auto Memory 43
Manual Memory 43
Preset Select 44
SIRIUS/XM Control (North American
sales area only) 45
Source Control Screen 45
Category/ Channel Search 46
Channel Memory 47
Preset Select 47
Direct Channel Search 48
HD Radio™ Control 49
Source Control Screen 49
Auto Memory 50
Manual Memory 50
Preset Select 51
Receive mode 51
Direct Search 52
iTunes Tagging 52
Bluetooth Audio Control 54
Before Use 54
Source Control Screen 54
Other Functions 55
External Device Power Supply Control 55
Muting Audio Volume upon Reception of
Phone Call 55
Voice Control (DNX9960 only) 56
Voice Control 56
Screen Control 58
Screen Control 58
Initial Setup 113
Before Use 4
Notes 5

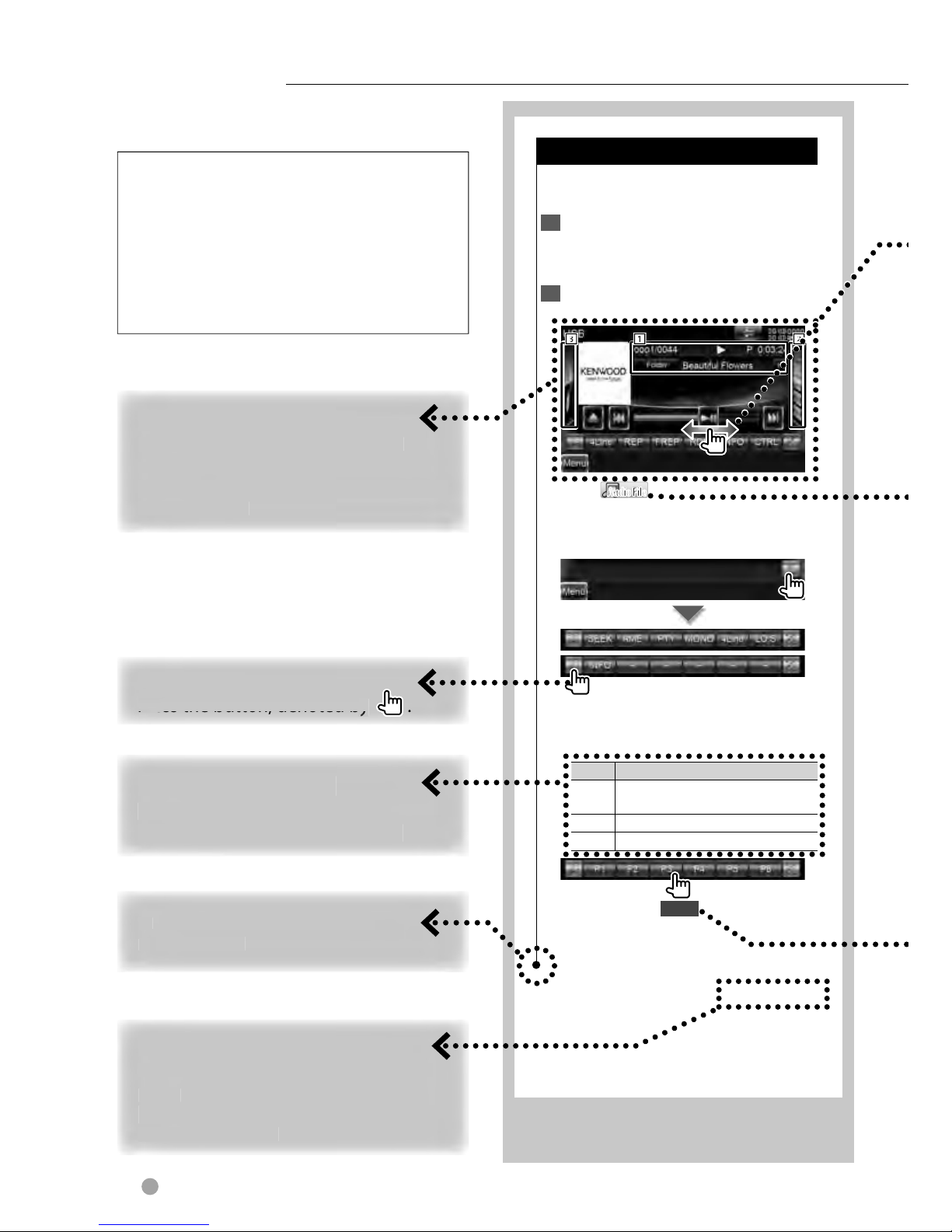

How to read this manual 10
Functions of the buttons on the front
panel 12
 

DDX series DDX896/ DDX8046BT English 3
Hands Free Unit Control 59
Before Use 59
Downloading the Phonebook 59
Receiving a Call 59
During a Call 60
Call Waiting 60
Making a Call 60
Calling by Phonebook 61
Calling by Entering a Phone Number 62
Making a Call Using Call Records 63
Calling by Voice Recognition
(DNX7/ DDX8 series) 63
Controlling Tone-based Services 65
Setting Up the Hands-Free Phone 65
Voice Registration
(DNX7/ DDX8 series) 66
Key Word Voice Registration
(DNX7/ DDX8 series) 67
Phone Number Preset 68
SMS (Short Message Service) 69
Audio Control 72
Audio Control Menu 72
Audio Control 72
Equalizer Control 73
Graphic Equalizer Setup 73
Zone Control 74
Space Enhancer (DNX7 series) 75
Listening Position 75
SRS WOW Control (DNX9/ DDX8 series) 76
Surround Control (DNX9/ DDX8 series) 77
Setup Menu 78
How to Display SETUP Menu Screen 78
DivX Setup (DNX9/ DDX8 series) 79
Software Information 79
User Interface 80
Language Setting 80
Touch Panel Adjustment 81
Clock and Date Setup 82
Security Setup 82
Monitor Angle Control 82
EXT SW Setup 83
Setup Memory 84
Changing Background image 85
Panel Color Coordinate 86
Screen Control 87
Registering Bluetooth Unit 88
Registering Bluetooth Unit PIN Code 89
Bluetooth Unit Connection 90
Bluetooth Hands-Free/Audio
Output Setup 90
AV Input Setup 91
AV Output Interface Setup 91
Camera Setup 92
Navigation Setup 93
DSP Bypass Control (DNX7 series) 93
Speaker Setup 94
Car Type (DTA) Setup 95
Channel Level (DNX9/ DDX8 series) 97
DVD Setup 98
DVD Language Setup 99
DVD Parental Level Setup 99
Disc Setup 100
USB Setup 101
iPod Setup 101
SIRIUS Parental Code Setup 102
SIRIUS Parental Lock Setup 103
SIRIUS Skip Channel Select 104
TV Setup 104
Remote Controller 105
Battery installation 105
Remote Controller mode switch 105
Common operations (AUD mode) 106
DVD/VCD (DVD mode) 107
Music CD/Audio file/Video file/ Picture file
(AUD mode) 109
iPod (AUD mode) 109
Radio (AUD mode) 110
Navigation (NAV mode) 111
TV (TV mode) 112
Status bar Indicator items 114
DVD Language Codes 115
Help? Troubleshooting 116
Help? Error 117
Specifications 119
 

4 DNX series DNX9960/ DNX7160/ DNX7020EX
Before Use
2WARNING
To prevent injury or fire, take the
following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the
unit’s display when you are driving for any
extended period.

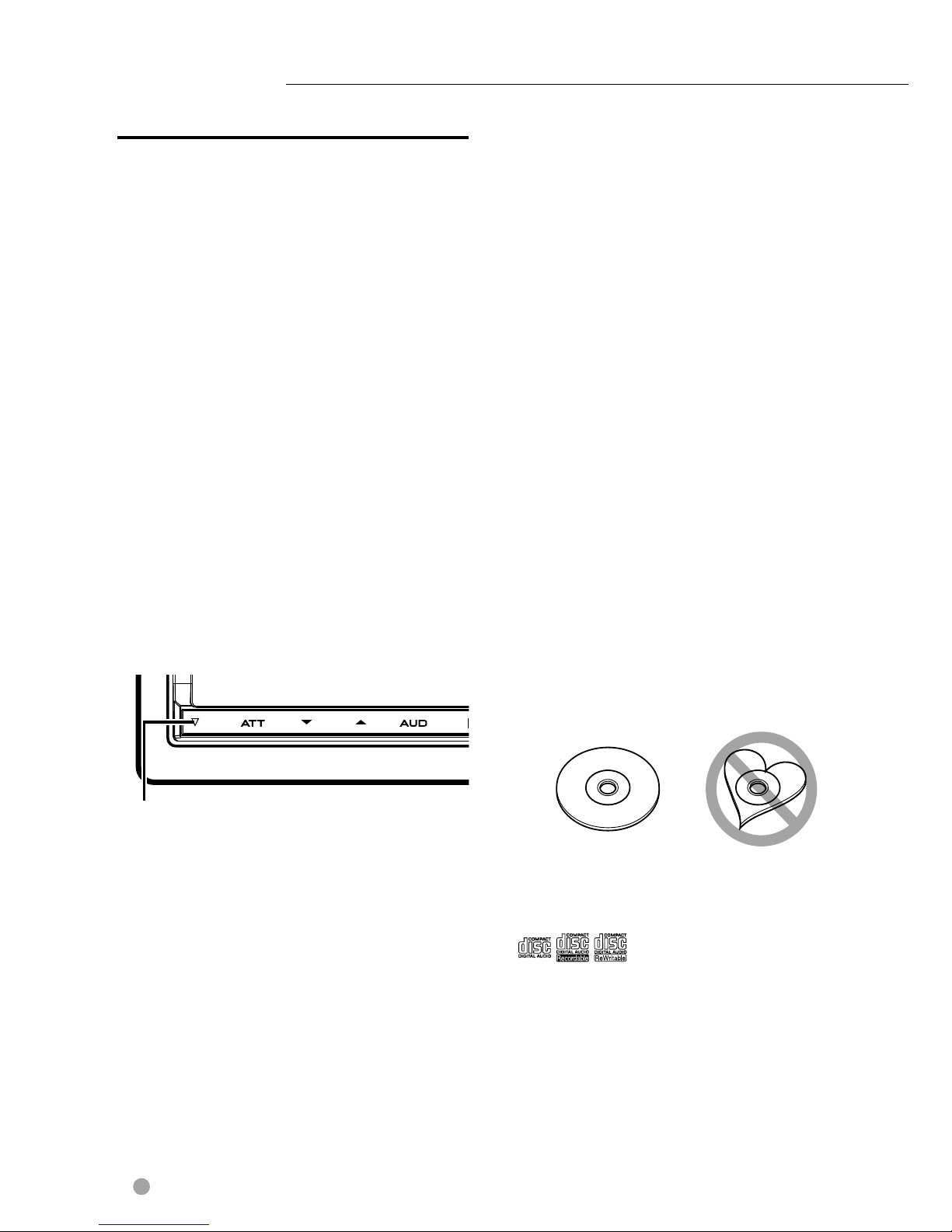

How to reset your unit
• If the unit or the connected unit fails to
operate properly, press the Reset button.
The unit returns to factory settings when
the Reset button is pressed.
• Remove the USB device before pressing
the Reset button. Pressing the Reset button
with the USB device installed can damage
the data contained in the USB device. For
how to remove the USB device, see <How
to play media> (page 16).
• When the unit is turned on after pressing
the Reset button, the Initial SETUP screen is
displayed. Refer to <Initial Setup> (page 113).
Reset button
Cleaning the Unit
If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with neutral
cleaner, then wipe it again with a clean soft
dry cloth.
¤
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erases characters.
Lens Fogging
When you turn on the car heater in cold
weather, dew or condensation may form
on the lens in the disc player of the unit.
Called lens fogging, this condensation on
the lens may not allow discs to play. In such
a situation, remove the disc and wait for
the condensation to evaporate. If the unit
still does not operate normally after a while,
consult your Kenwood dealer.
Handling discs
• Do not touch the recording surface of the
disc.
• Do not stick tape etc. on the disc, or use a
disc with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull
them out horizontally.
• If the disc center hole or outside rim has
burrs, use the disc only after removing the
burrs with a ballpoint pen etc.
Discs that cannot be used
• Discs that are not round cannot be used.
• Discs with coloring on the recording surface
or discs that are dirty cannot be used.
• This unit can only play the CDs with
.
This unit may not correctly play discs which
do not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process refer
to your writing software, and your recorder
instruction manual.)
• If you try to load a 3-inch-disc with its
adapter into the unit, the adapter might
 

DDX series DDX896/ DDX8046BT English 5
Next page 3
Notes
List of playable discs
Disc types Support
Standard Remark
DVD
DVD Video ‡
DVD Audio ×
DVD-VR ×
DVD-R ‡MP3/WMA/AAC/MPEG1/
MPEG2/DivX*1Playback
Multi-border/Multisession/
(Playback depends on
authoring conditions)
Compatible with 8-cm (3
inch) discs
DVD-RW ‡
DVD+R ‡
DVD+RW ‡
DVD-R DL (Dual layer) ‡
Only video format
DVD+R DL (Double
layer)
‡
DVD-RAM ×
CD
Music CD ‡CD-TEXT/8-cm (3 inch)
discs supported.
CD-ROM ‡MP3/WMA/AAC/DivX*1
playback
Multisession supported
Packet write not supported.
CD-R ‡
CD-RW ‡
DTS-CD ‡
Video CD (VCD) ‡
Super video CD ×
Photo CD ×
CD-EXTRA %Only music CD session can
be played.
HDCD ×
CCCD ×
Others
Dualdisc ×
Super audio CD %Only CD layer can be
played.
‡: Playback is possible.
%: Playback is partly possible.
× : Playback is impossible.
⁄
*1DNX9960, DDX896, DDX8046BT only
• When buying DRM enabled contents, check the
Registration Code in the <DivX Setup> (page 79).
Registration Code changes each time a file with
the displayed Registration Code is played to
protect against copying.
separate from the disc and damage the
unit.
Other notes
• If you experience problems during
installation, consult your Kenwood dealer.
• When you purchase optional accessories,
check with your Kenwood dealer to make
sure that they work with your model and in
your area.
• Select a language used to display menus,
audio file tags, etc. See <Language Setting>
(page 80).
• The RDS or RBDS feature won’t work
where the service is not supported by any
broadcasting station.
Protecting the monitor
To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
 

6 DNX series DNX9960/ DNX7160/ DNX7020EX
Notes
Use of "DualDisc"
When playing a "DualDisc" on this unit, the
surface of the disc that is not played may
be scratched while the disc is inserted or
ejected. Since the music CD surface does not
conform to the CD standard, playback may be
impossible.
(A "DualDisc" is a disc with one surface
containing DVD standard signals and the
other surface containing music CD signals.)
About Audio files
• Playable Audio file
AAC-LC (.m4a)
MP3 (.mp3)
WMA (.wma)
Linear PCM (WAVE) (.wav) *1
⁄
*1Mass-storage-class USB device only
• If music of normal CD and other playback systems
are recorded in the same disc, only the playback
system recorded at the first setout is played.
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-
class USB device, iPod with KCA-iP301V
• Playable disc file format
ISO 9660 Level 1/2, Joliet, Romeo, Long file
name.
• Playable USB device file system
FAT16, FAT32
Although the audio files are complied with
the standards listed above, the play maybe
impossible depending on the types or
conditions of media or device.

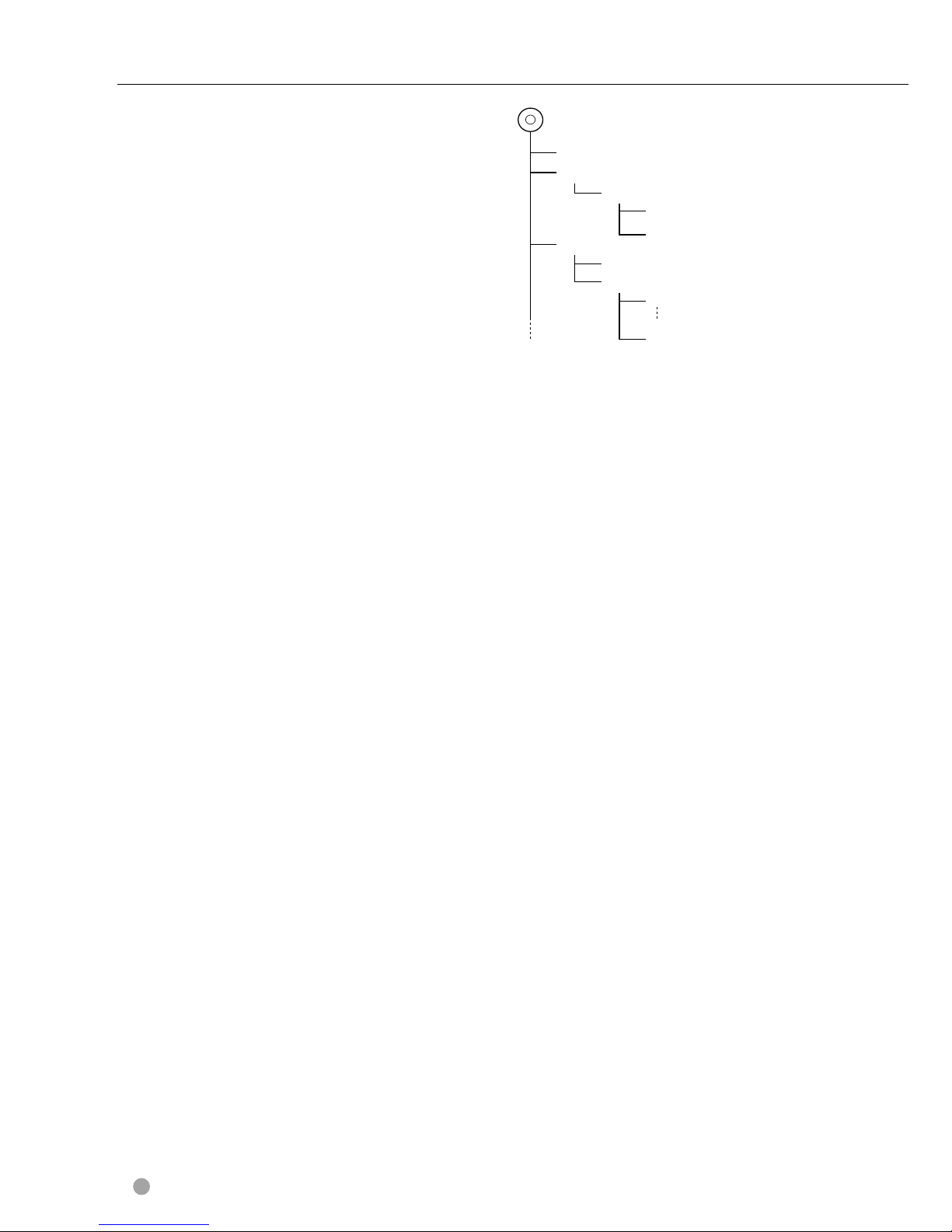

• Playing order of the Audio file
In the example of folder/file tree shown
below, the files are played in the order from
①to ⑩.
Root
¡!
2
(1)
^ :
¡ :
3
¡$
4
¡"
¡#
¡P
5 ¡%
Folder
Audio file
An online manual about audio files is put
on the site, www.kenwood.com/cs/ce/
audiofile/. On this online manual, detailed
information and notes which are not
written in this manual are provided. Make
sure to read through the online manual as
well.
About Video files
• Acceptable video files
MPEG1 (.mpg, .mpeg, .m1v)
MPEG2 (.mpg, .mpeg, .m2v)
DivX (.divx, .div, .avi) *1
H.264/MPEG-4 AVC (.mp4, .m4v) *2
WMV 9 (.wmv, .m2ts) *2
⁄
*1DNX9960, DDX896, DDX8046BT only
*1CD-R/RW/ROM, DVD±R/RW only
*2Mass-storage-class USB device only
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-
class USB device, iPod with KCA-iP301V
Acceptable discs, disc formats, USB device
file system, file and folder names and playing
order are the same as those for audio files.
See <About Audio files>.
About Picture files
• Acceptable picture files
JPEG (.jpg, .jpeg)
PNG (.png)
BMP (.bmp)
 

DDX series DDX896/ DDX8046BT English 7
Next page 3Next page 3
• Acceptable media
Mass-storage-class USB device
Acceptable discs, disc formats, USB device
file system, file and folder names and playing
order are the same as those for audio files.
See <About Audio files>.
iPod/iPhone that can be connected
to this unit
Made for
• iPod nano (1st generation)
• iPod nano (2nd generation)
• iPod nano (3rd generation)
• iPod nano (4th generation)
• iPod nano (5th generation)
• iPod with video
• iPod classic
• iPod touch (1st generation)
• iPod touch (2nd generation)
Works with
• iPhone
• iPhone 3G
• iPhone 3GS
• Update iPod/iPhone software to the latest
version.
• You can control an iPod/iPhone from
this unit by connecting an iPod/iPhone
(commercial product) with Dock connector
using an optional accessory iPod
connection cable (KCA-iP301V). The word
"iPod" appearing in this manual indicates
the iPod/iPhone connected with the KCA-
iP301V (optional accessory).
• By connecting your iPod/iPhone to this unit
with an optional accessory iPod connection
cable (KCA-iP301V), you can supply power
to your iPod/iPhone as well as charge it
while playing music. However, the power of
this unit must be on.
⁄
• If you start playback after connecting the
iPod, the music that has been played by the
iPod is played first.
In this case, "RESUMING" is displayed
without displaying a folder name, etc.
Changing the browse item will display a
correct title, etc.
• When the iPod is connected to this unit,
"KENWOOD" or "✓" is displayed on the iPod
to indicate that you cannot operate the
iPod.
About USB device
• In this manual, the word "USB device" is
used for a flash memory device and digital
audio players can be recognized as mass-
storage.
• When the USB device is connected to this
unit, it can be charged up provided that this
unit is powered.
• Install the USB device in the place where it
will not affect driving safely.
• You cannot connect a USB device via a USB
hub and Multi Card Reader.
• Take backups of the audio files used with
this unit. The files can be erased depending
on the operating conditions of the USB
device.
We shall have no compensation for any
damage arising from any erased data.
• No USB device comes with this unit. You
need to purchase a commercially available
USB device.
• When connecting the USB device, usage of
the CA-U1EX (option) is recommended.
Normal playback is not guaranteed when
a cable other than the USB compatible
cable is used. Connecting a cable whose
total length is longer than 5 m can result in
abnormal playback.
 

8 DNX series DNX9960/ DNX7160/ DNX7020EX
Navigation units that can be
connected to this unit (DDX series
only)
• KNA-G610 • KNA-G630
• Update the navigation software to the latest
version. For how to update the software,
refer to the instruction manual of the
navigation unit.
For the latest information on connectable
navigation units, access www.kenwood.
com/cs/ce/.
About Satellite Radio tuner
This unit supports Satellite Radio tuners
which are released by SIRIUS and XM.
Optional accessories below are necessary for
connection.
SIRIUS tuner : Conversion cable CA-SR20V
XM tuner : XM interface Box KCA-XM100V
Refer to the instruction manual of Satellite
radio tuner.
HD Radio™ Tuners that can be
connected to this unit
• KTC-HR300 • KTC-HR200
When you connect an HD Radio, Tuner
features of the unit are disabled and changed
to HD Radio tuner features.
TV tuner that can be connected to
this unit
Analog TV tuner
• KTC-V300N
About the Cell-Phone
This unit conforms to the following Bluetooth
specifications:
Version Bluetooth Standard Ver. 2.1 + EDR
Profile HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phonebook Access Profile)
SYNC (Synchronization Profile)
For the cell-phones verified for compatibility,
access the following URL:
http://www.kenwood.com/cs/ce/bt/
⁄
• The units supporting the Bluetooth
function have been certified for conformity
with the Bluetooth Standard following the
procedure prescribed by Bluetooth SIG.
However, it may be impossible for such
units to communicate with your cell-phone
depending on its type.
• HFP is a profile used to make a hands-free
call.
• OPP is a profile used to transfer data such as
a phone book between units.
About the Bluetooth Audio player
This unit conforms to the following Bluetooth
specifications:
Version Bluetooth Standard Ver. 2.1 + EDR
Profile A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
⁄
• A2DP is a profile designed to transfer the
music from an audio player.
• AVRCP is a profile designed to control
playback and selection of music by an
audio player.
Notes
 

DDX series DDX896/ DDX8046BT English 9

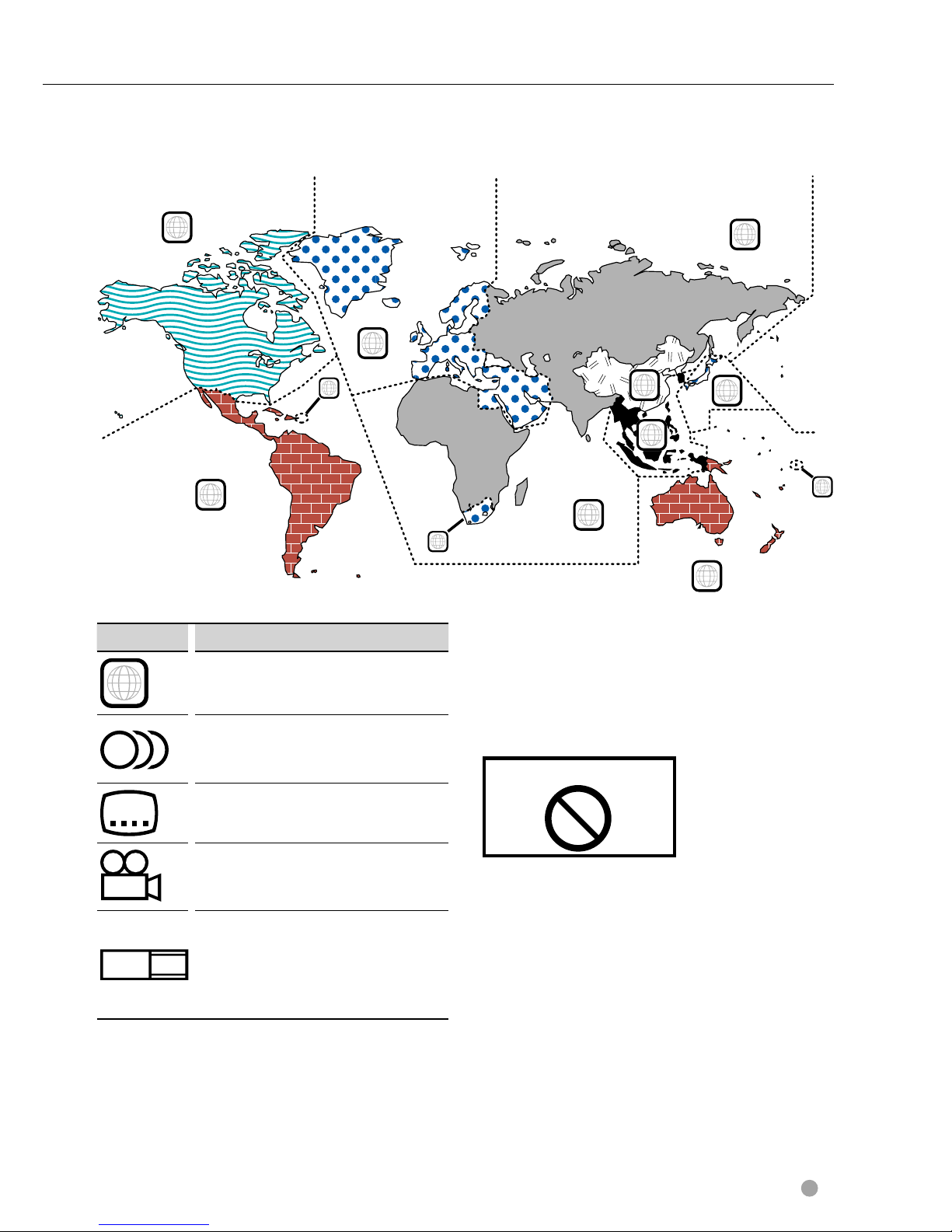

Region codes in the world
The DVD players are given a region code according to the country or area it is marketed, as
shown in the following map.
Operation regulatory marks
With this DVD, some functions of this unit
such as the play function may be restricted
depending on the location where the DVD is
playing. In this case, the following marks will
appear on the screen. For more information,
refer to the disc manual.
Prohibition Mark
Discs with limited period of use
Do not leave discs with a limited period of
use in this unit. If you load an already expired
disc, you may not be able to remove it from
this unit.
1
2
4
1
5
4
5
2
1
2
6
3
DVD disc marks
Symbol Description
ALL
Indicates a region number. The discs with this
mark can be played with any DVD player.
8
Indicates the number of audio languages
recorded. Up to 8 languages can be recorded
in a movie.You can select a favorite language.
32
Indicates the number of subtitled languages
recorded. Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple
angles, you can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The
left mark indicates that a wide image picture
(16:9) is displayed on a standard TV set screen
(4:3) with a black band at both the top and
bottom of the screen (letter box).
 

Next page 3

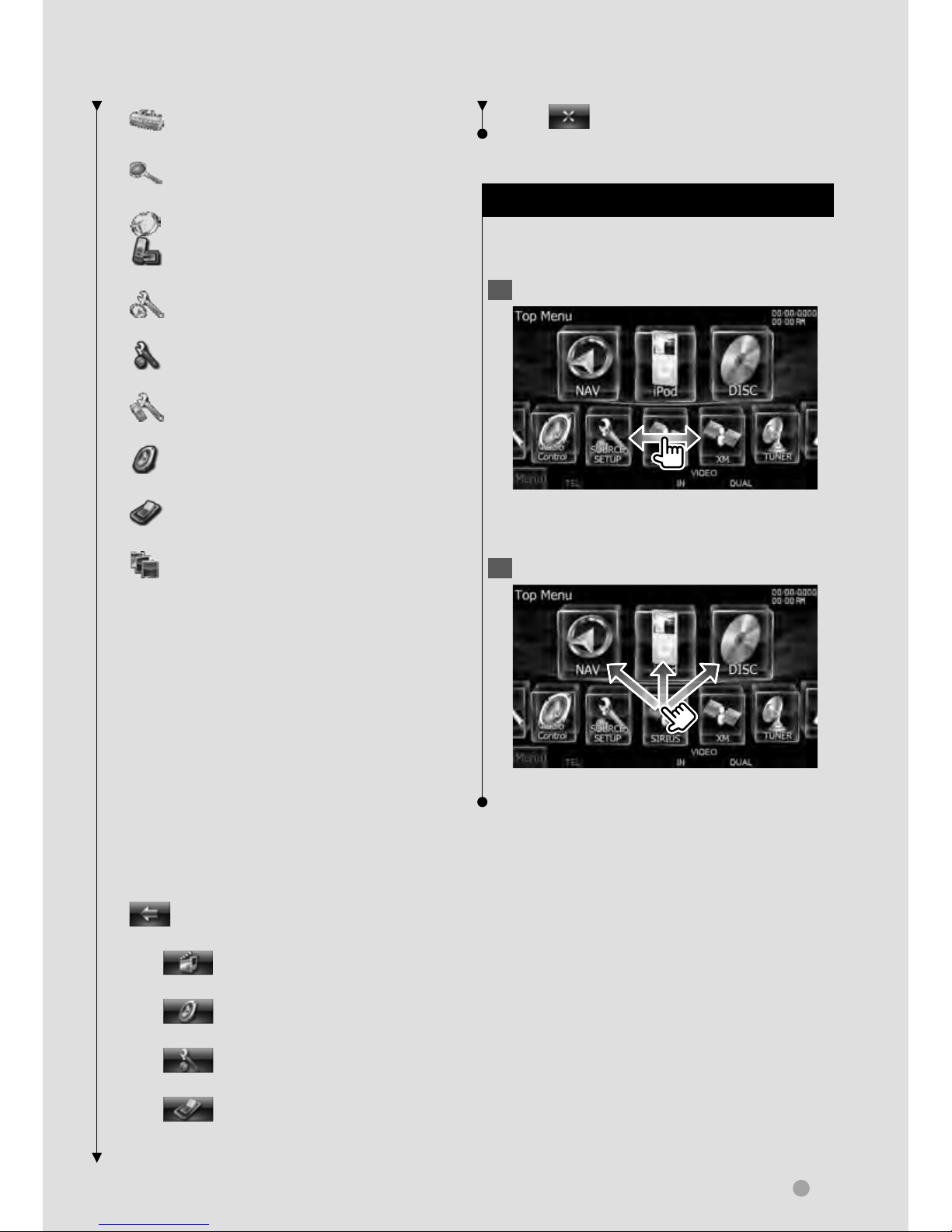

Source Control Screen
Switches to the source control screen to
use various playback functions.
1 Display the Source Control Screen
See <How to Display the Source Control
Screen> (page 27).
2 Operation on the Source Control
screen
1
1
1
2
2
2
3
3
3
[38] Audio FileAudio File Plays or pauses.
Dragging [38] left or right changes the
playing position.
Multi Function
[SEEK] Switches the Seek mode.
The mode is switched in the following
order each time you touch the button
Display Setting
"AUTO1" Tunes in a station with good reception
automatically.
"AUTO2" Tunes in stations in memory one after another.
"MANU" Switches to the next frequency manually.
2 sec.
Continue to touch until the memory
number appears.
10 DNX series DNX9960/ DNX7160/ DNX7020EX
How to read this manual
The above operation example with the mark
differs from the actual operation.
S
h
ort Pres
s
Pre
Pre
ss
ss
the
the
bu
bu
tto
tto
n,
n,
,
,
den
den
ote
ote
d b
y
y
y
y
y
y
.
.
Change in the screen
Wit
h
eac
h
operation, t
h
e screen
changes in the order shown here.
Continue to the next page
The
in
struct
ion
co
nti
nues to t
he
next
page.
Make sure to flip the page for the rest
of
the
in
struct
ion
.
Selecting a screen item
Select an
d
choose an item on t
he
screen
.
Select the item by touching the button
on the screen
.
∞
: C
ontinues to
the
next
lin
e
.
¶
: E
nds
he
re
.
This manual uses illustrations to explain its
operations.
The displays and panels shown in this
manual are examples used to provide
clear explanations of the operations.
For this reason, they may be different
from the actual displays or panels
used, or some display patterns may be
different.
 

DDX series DDX896/ DDX8046BT English 11
Press 2 seconds or more
Press the button, denoted by
2sec.,
f
or 2 seconds or more.
Indicates to press and hold down the
button until operation starts or the
screen changes.
The left example indicates to press the
button for 2 seconds.
Ot
he
r
ma
rk
s
Imp
ortant
pr
ecautions are described
to prevent injuries etc.
Specia
l
instructions, supp
l
ementary
exp
lanations, limitations, and
reference pages are described.
General precautions and reference
pages are shown on the item
.
The initial value of each setu
p i
s
shown
.
About the model groups
If different functions are used i
n
d
ifferent model groups, the model
groups are
d
escri
b
e
d
as s
h
own
b
e
l
ow.
Names of series included in each
model group are as follows:
DNX series
DNX
996
0
,
DNX
716
0
,
DNX
702
0EX
DD
X
se
ri
es
DDX89
6
,
D
DX804
6BT
Fu
nc
ti
on
I
con
Icons representing available functions
are shown below.
EO
E
EO
EO
:
F
u
n
ct
i
o
n
o
f DVD-VIDE
O
pla
y
back
.
o
V eo
V
V
V
i
eo
eo
eo
D
:
F
u
n
ct
i
o
n
o
f Vi
deo
C
D
pla
y
back
.
CD
C
CC
CC
DD
C
D
C
D
:Function of CD
(
CD-DA
)
pla
y
back
.
F
Fi
A
di
ilil
il
Fi
le
le
:
F
u
n
ct
i
o
n
o
f A
ud
i
o
Fil
e
pla
y
back
.
EG
EG
E
EG
:
F
u
n
ct
i
o
n
o
f MPEG f
ile
pla
y
back
.
:Function of DivX file pla
y
back
.
Function of JPEG file playback
.
Function of Disc (DVD
,
CD)
F
u
n
ct
i
o
n
o
f
US
B
de
vi
ce.
Function of FM rec
ept
ion.
F
u
n
ct
i
o
n
o
f
S
IRI
US
sou
r
c
e.
M
X
XMXM
XX
XX
XM
X
X
M
X
M
X
XM
:
F
u
n
ct
i
o
n
o
f XM
sou
r
ce.
Drag or Flick operation
Press the button, denoted b
y
It indicates that
y
ou scroll icons or
list items left and right b
y
flicking or
d
ra
ggi
ng
them and touch to select the
d
esired one.
T
h
e rig
h
t mar
k
in
d
icates t
h
at t
h
ey
can be scrolled
up
and down
.
 

12 DNX series DNX9960/ DNX7160/ DNX7020EX
Functions of the buttons on the front panel
AE BCDFG
For DDX series
1 sec. : Press for longer than 1 second
AAttenuation of the volume On/Off.
1 sec. Store the tag data of the current music from HD Radio. (page 52)
BVolume adjustment.
CDisplays Graphic Equalizer screen. *1(page 73)
1 sec. Camera view display On/Off. *2
D
DNX series and DDX series with navigation unit
DNX series and DDX series with navigation unit
Displays the navigation screen.
When the navigation screen has already been displayed, it switches to the navigation
screen with Split Screen Control window.
1 sec. While watching the navigation screen
Picture in Picture function On/Off. *3(page 20)
DDX series without navigation unit
DDX series without navigation unit
Displays the Top Menu screen. (page 14)
Security indicator (page 82)
Reset button (page 4)
Remote control
sensor
 

DDX series DDX896/ DDX8046BT English 13
Functions of the buttons on the front panel
ETurns the power On. *5
Displays the Source Control screen. (page 18)
In case of visual sources, the playback screen is first displayed and changed to the source
control screen by pressing the button again.
1 sec. Turns the power Off.
FDisplays the Hands Free Control screen.
1 sec. While watching the Source Control screen
Secondary window function On/Off. *4(page 21)
1 sec. While watching the navigation screen
Displays the Screen Control screen. (page 58)
1 sec. While watching the playback screen of a visual source
Displays the Easy Control screen.
GOpens the panel and ejects the disc.
Closes the panel.
1 sec. Opens the panel fully.
⁄
*1The display may not switch to Graphic Equalizer screen in some conditions.
*2The function of the [AUD] button can be changed to the display off function. See <User Interface> (page
80).
*3When the Secondary window function (page 21) is activated, this function is disabled.
*4When the Picture in Picture function (page 20) is activated, this function is disabled.
*5When the unit is powered off, pressing any one of Î, ¯and Ïturns it on.
 

14 DNX series DNX9960/ DNX7160/ DNX7020EX
Basic Operation
Touch the [MENU] button on any screen.
The Top Menu Screen appears.
DDX series without
DDX series without
navigation unit
navigation unit
The Top Menu Screen appears.
Buttons on the Top Menu screen
For how to operate each source or setup,
see the following pages.
[] DVD-VIDEO/ Video CD disc (page 22)
[] CD disc (page 26)
[] Audio file/ Video file disc (page 26)
[] iPod (page 33)
[] USB (page 26)
[] TUNER (page 37)
[] SIRIUS/ XM (page 45)
[] HD Radio (page 49)
[] TV (page 41)
[] Bluetooth Audio (page 54)
[] Video
[] Standby
How to Display Top Menu Screen
Top Menu Screen is the entrance to all
the functions. You can select sources and
various setup menus from this screen.
Top Menu screen
How to display the Top Menu screen
DNX series and DDX
DNX series and DDX
series with navigation
series with navigation
unit
unit
When a video screen is displayed
 

DDX series DDX896/ DDX8046BT English 15
Next page 3
Basic Operation
[]*1Displays Tools screen of
navigation.
[]*1Displays Where To ? screen of
navigation.
[] Switches to the navigation screen.
[] Switches to the Hands Free Main
screen.
[]*1Displays Navigation Settings
screen.
[] Displays SETUP Menu screen.
(page 78)
[] Displays Hands Free SETUP screen.
(page 88)
[] Displays Audio Control Menu
screen. (page 72)
[] Displays the EXT SW (External
Switch) Control screen. (page 55)
[] Changes the screen skin each time
it is pressed. (DNX9/ DDX series only)
⁄
• *1Instruction manual of the Navigation part.
(DNX series and DDX series with navigation
unit only)
• For Disc media, iPod, and USB, the input is
switched to the source as the media or the
device is set.
The buttons listed below are common
for many screens.
[MENU] Displays Top Menu screen.
[] Opens the function bar. The
buttons shown below appear.
[] Displays the currently
selected source screen.
[] Displays Audio Control
Menu screen. (page 72)
[] Displays SETUP Menu screen.
(page 78)
[] Displays the EXT SW
(External Switch) Control screen.
(page 55)
[] Closes the function bar.
Customization of Top Menu Screen
Up to 3 sources or setups frequently used
on the Top Menu screen can be registered.
1 Display the icon you want to register
Scroll icons left or right by flicking or
dragging to display the desired icon.
2 Register the icon
Drag the icon to the desired place.
 

16 DNX series DNX9960/ DNX7160/ DNX7020EX
Basic Operation
How to play media
7Disc media
0
Press the [0] button to open/close the
front panel.
If a disc is already inserted, it is ejected
by pressing the [0] button.
7iPod
To disconnect the iPod, stop the
playback by touching the [0] button
on the source control screen, and then
disconnect the iPod. See <Source
Control Screen> (page 34).
7USB device
To disconnect the USB device, touch the
[0] button on the source control screen,
and then disconnect the USB device. See
<Source Control Screen> (page 26).
7SD card (DNX series only)
This SD card slot is used to upgrade the
Navigation System.
For how to upgrade the Navigation
System, refer to the instruction manual of
the navigation system.
0
1 sec.
Press the [0] button for longer than 1
second to open the front panel.
Inserting the SD card
Hold the SD card with the label side up
and the notched section on the right,
and insert it into the slot until it clicks.
Removing the SD card
Push the SD card until it clicks and
then remove your finger from the card.
The card pops up so that you can pull
it out with your fingers.
Press the [0] button to close the front
panel.
⁄
• The playback starts automatically after loading
the media or connecting the device.
 

DDX series DDX896/ DDX8046BT English 17
Next page 3
Basic Operation
 

18 DNX series DNX9960/ DNX7160/ DNX7020EX
Basic Operation
How to Display the Source Control
Screen
On the Source Control screen you can find
all the control buttons for the selected
source.
Source Control Screen
• For how to use each button, see the
operation pages of each source.
How to display the Source Control
screen
When a video screen is displayed
The Source Control Screen appears.
While watching the navigation screen
with secondary window
The Source Control Screen appears.
⁄
• The screen will return to the navigation screen
by touching the same part of the Source Control
screen.
While watching the Easy Control Screen
The Source Control Screen appears.
 

DDX series DDX896/ DDX8046BT English 19
Next page 3
Basic Operation
Operation on the Playback Screen
of Visual Sources
While watching visual sources, basic
operation is possible by touching the
screen.
The screen has 4 function areas. The
function of each area is different
depending on the sources. (Some areas are
unavailable for some sources.)
Playback screen of a visual source
1
1
1
2
2
2
3
3
3
4
4
4
Basic operation of each area
1 Displays Menu control screen (DVD-
VIDEO source), Picture control buttons
(sources with picture files), or Zoom
control buttons (Video CD).
Switches TV band.
2 Displays Easy Control Screen. *1
3 Reverse search.
4 Forward search.
\ Fast Forwards when flicked from 1
to 4.
| Fast Backwards when flicked from 1
to 3.
• For the function of each touch control area,
see the pages of each source.
How to display the playback screen
The Playback screen of a visual source
appears.
While watching the Source Control
Screen
The Playback screen of a visual source
appears.
*1Easy Control Screen
Buttons on the Easy Control Screen
[∞] Changes the function as follows by
touching the [∞] button.
[SCRN] Displays Screen Control
screen (page 58).
[TEL] Switches to the Hands Free
Main screen (page 60).
[EXT SW] Switches to the EXT SW
Control screen (page 55).
[1], [¡], [4], [¢], [7], [£8]
Buttons for source control. The buttons
are different depending on the source.
See the operation pages of each
source.
 

20 DNX series DNX9960/ DNX7160/ DNX7020EX
How to Display the Navigation
Screen
DNX series
DNX series
The navigation screen appears.
DDX series with
DDX series with
navigation unit
navigation unit
The navigation screen appears.
• For how to set up and use the navigation
function, see the Navigation Instruction
Manual.
⁄
• For DDX series, an optional navigation system
needs to be connected. See <Navigation units
that can be connected to this unit> (page 8) for
connectable navigation units.
Basic Operation
Picture in Picture function
Two screens, the navigation screen and
source screen, are displayed. When Picture
in Picture function is on, touching the
source screen switches between the
camera image and source image.
1 sec.
Pressing the button for longer than 1
second while the navigation screen is
displayed switches the Picture in Picture
function on/off.
The screen switches between visual
source's playback screen and camera view
screen each time the small window is
touched.
 
