KIDKEN 710D User manual

User Manual of KIDKEN 4 in 1 Pet Grooming Kit & Vacuum
4 in 1 Pet Grooming Kit & Vacuum
Please read this manual carefully before the first use.
Please keep this manual for further reference.

Table of Contents
1. Safety Information .................................1
2. Package Includes .................................3
3. Get Started ...........................................6
4. Care and Maintenance .......................12
5. Clean of The Filters ............................15
6. Specifications .....................................17
7. Troubleshooting .................................17
8. Warranty ............................................18

1.Safety Information
Warning
To reduce the risk of fire, electric shock, or injury, basic
precautions should be followed when using electrical appliances.
1.1 Precautions
» Keep the appliance out of the reach of children, do not let children or pets play with the product
or the battery. Please pay special attention when using it near children, especially do not put the
battery into your mouth.
» Do not use the hose to vacuum large amount of densely clustered hair at one time, which may
cause the hose to be blocked. In this case, turn off the appliance, remove the hose, and dredge
it with a slender rod.
» Do not use the appliance before installing the dust bin or filter.
» Place the appliance on a flat surface, prevent it from dropping or shaking.
» Check that the plug is disconnected from the socket and the power cord is stored before moving
the appliance.
If the hose is connected, please also store the hose before moving the appliance.
» Do not use it when the suction mouth is blocked. Keep the suction mouth free of dust, lint, hair,
or any substance that may obstruct the airflow.
» People (including children) with limited physical, sensory, or mental abilities, or in absence of
experience and knowledge may fail to use this product safely without the supervision or
guidance of adults. Please ensure the safety of usage.
» After installation, please keep the product packaging materials out of the reach of children to
avoid unintentional injury.
1.2 Safety Instructions
» Do not damage the power plug, do not damage, stretch, bend, twist the power cord or place the
power cord near objects that are hot, and do not bind or lift heavy objects with the power cord.
» If there is moisture or dust on the power plug, completely unplug it for cleaning and firmly insert
it into the socket.
» Turn off the appliance and disconnect the plug before cleaning or servicing. Turn off the appliance
before disconnecting the power plug.
» To unplug, press the socket and hold the plug, do not directly pull the power cord.
» Do not touch the power plug or the appliance with wet hands.
» Do not use when the power cord or power plug is damaged or the power socket has holes.
If the power cord is damaged, it must be replaced with the power cord provided by the
manufacturer or its service agent or someone with similar qualifications.
» Do not suck anything that burns or smokes with this appliance, such as a burning cigarette,
matches, or hot ashes.
» Do not use this appliance to suck flammable materials (lighter oil, gasoline, etc.), and do not use
it in an environment with explosive liquids or volatile gases.
» Use this appliance only on dry hair or other surfaces.
1

» Do not suck toxic substances (chlorine bleach, ammonia, drainage detergent, etc.) with
this appliance.
» Do not use this appliance in a confined space filled with volatile gases (especially paint thinner
released from oil-based paints, moth-proof substance, flammable dust or other explosive or
toxic gas).
» Do not overheat the appliance.When the appliance overheats, please turn off the appliance
and disconnect the power for cooling down.
» Do not modify or attempt to repair the appliance unless otherwise stated. Damaged or modified
appliance may have unexpected conditions that may cause fire, explosion or personal injury.
» Do not use this product where it may fall (furniture, stairs, railings, sloping floors, etc.).
» Do not insert metal objects such as awls into the holes or gaps of the product.
» Do not burn the appliance even if it is seriously damaged, which is harmful to environment.
Please put it into the trash bin after correct classification.
1.3 Safety Instructions of the AA battery
The clipper uses 2 AA batteries, pay attention to the precautions.
» Do not attempt to regenerate the disposable battery by heating, charging, shaking, etc.,
to avoid danger.
» Please do not throw the battery into the fire to avoid danger. Please discard the used battery
separately from other garbage.
» Do not mix the old battery with the new one or combine batteries of different types.
» Do not use deformed or damaged battery.
» Do not swallow the battery.
» Do not let children replace the battery alone without adult supervision.
» Before replacing the battery of clipper, please check whether the clipper and battery terminals
are clean, clean them with a soft cloth when necessary.
» If the battery leaks, be careful not to let the liquid come into contact with your skin or eyes. If
the liquid comes into contact with your skin or eyes, rinse immediately with plenty of water
and follow the doctor's instructions.
» Do not let water, drink or detergent enter the product or battery.
» When the clipper is not used for a long time, please remove the battery and keep it in a cool
and dry place.
» Keep the alternative battery in a cool and dry place without direct sunlight.
2

2. Package Includes
105F
Deshedding
Reel
Accessory
Rack
Power Cord
Detacheable
Hose
Dust Bin
Base
Main Body
Cleaning Brush ClipperCrevice Tool
3

Locker
Comb Swinger
PD-35 Comb Head For Loose Hair RB2735 Soft Head
RK29 Rake RK-42 Flea Comb
4

Blade
Switch
Battey
Case
Guide Guards*4
2 AA Batteries
(Buy separately required)
2.2 Buttons
Dust Bin Release
Power Regulator
On/Off Switch
5

3. Get Started
Tips:
Put vacuum far away for a lower noise.
.
3.1 Get vacuum and pets prepared before use.
3.2 Select speed
The Standard and Boost speeds are necessary for stronger suction.
press power regulator
Eco
Standard
Boost
Eco Mode For Trimming
Standard Mode For Deshedding
Boost Mode For Flea and Sand
Warning
Used for dry pets only.
6

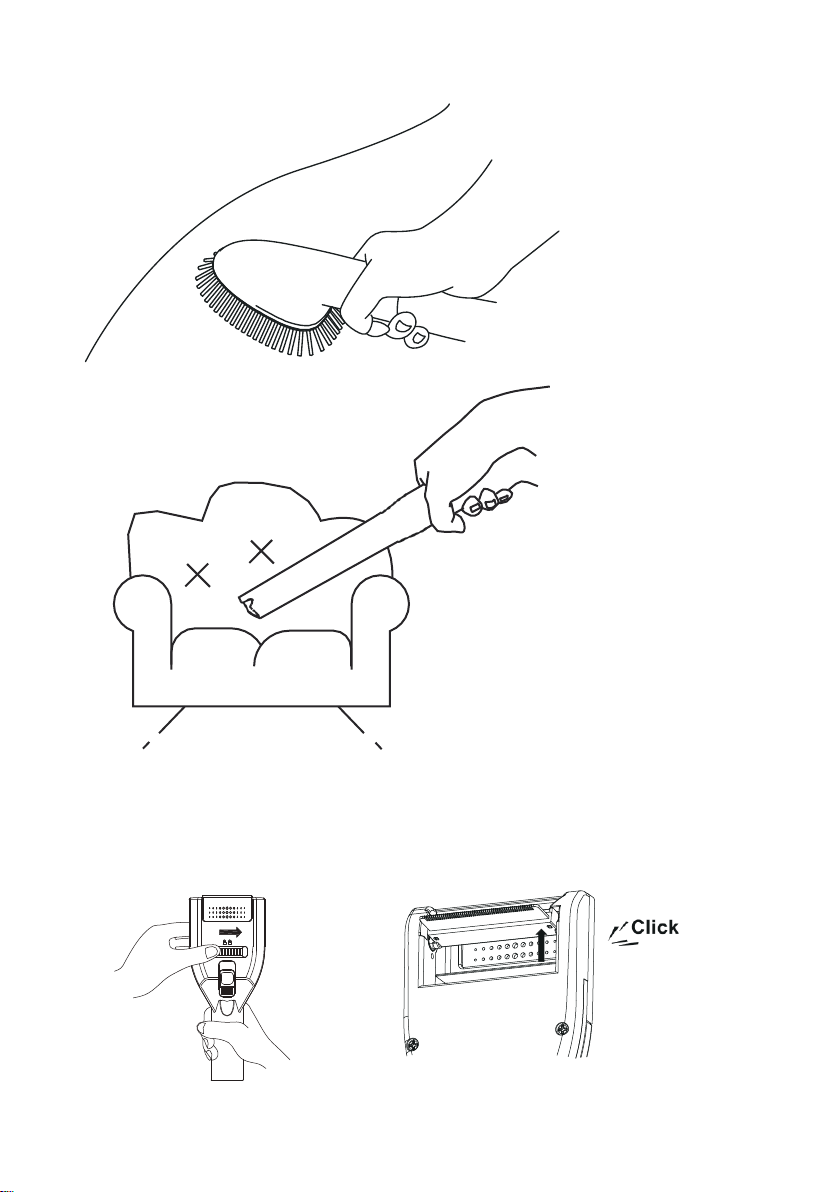

3.3 Cleaning Brush
3.4 Crevice Tool
3.5 Deshedding
(1) Release the lock
Push the locker to the right to unlock. Ready:
7

(2) Deshedding
Quickly and easily remove loose hair for long and short haired dogs and
cats. Effectively reduce shedding by up to 95% of dead hair and tangles.
Note:
During use, please pay attention to the cutting edge and sharp position, do not use
excessive force to cause the skin scratches.
Note: Push comb swinger regularly during use.
Note: Lock to retract comb head after use.
8

(3) Replacement
A spring inside the yellow panel.
step 1
step 2 step 3
9

Replace with different heads.
Hold the head and press against the right yellow panel. Turn from down to upward
until safely locked.
step 1 step2
step3 step4
10

3.6 Clipper
Put batteries inside before use.
Note: Do not touch the blade when
guide guard is not installed.
It can shave your pet's hair and suck it into the dust bin to prevent it from falling elsewhere.
Note: Please be careful on the soft parts of the pet's skin and do not use excessive
force to cause skin scratches.
11

4. Care and Maintenance
4.1 Replace with new batteries for clipper when necessary.

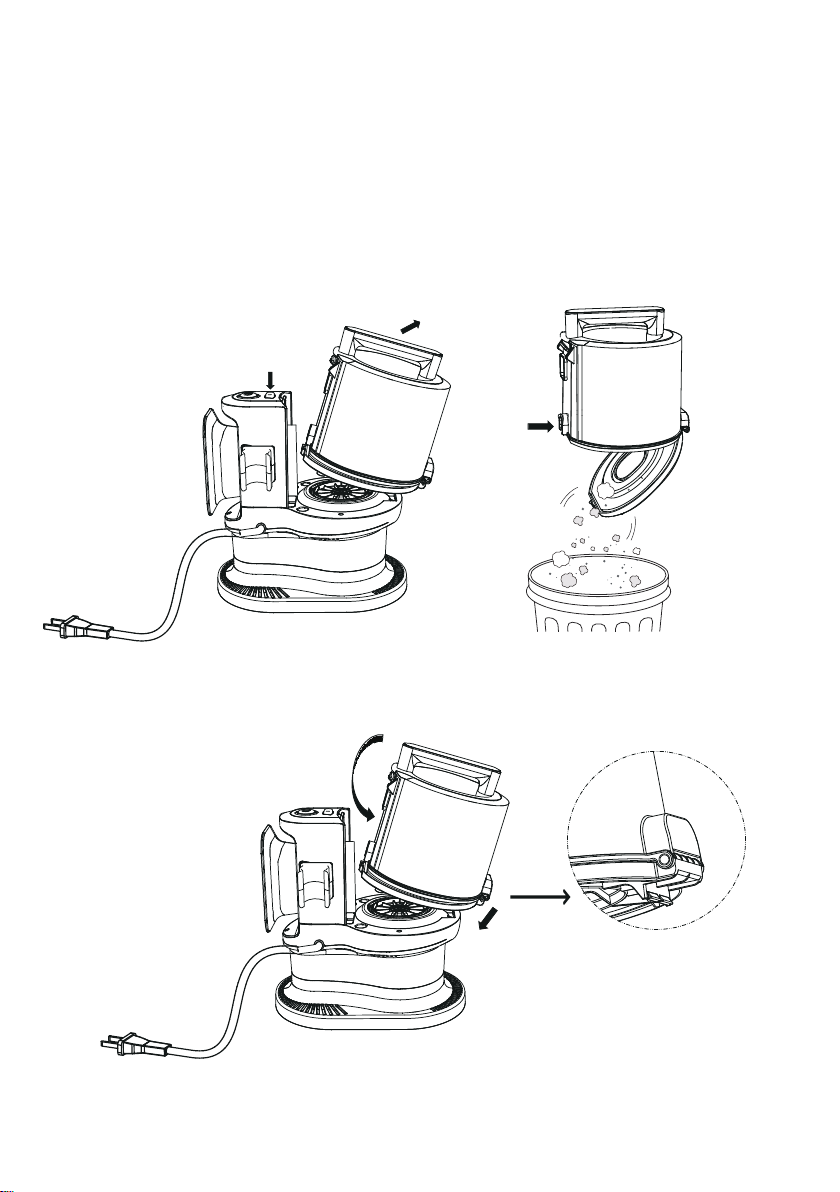

4.2 Dust bin clearance
Release the dust bin from main body and clean it.
step 1
step 2
step 3
4.3 Assembly
Hook
Step 1: Fit hook into slot.
Step 2: Assemble dust bin
until there is a click.
12

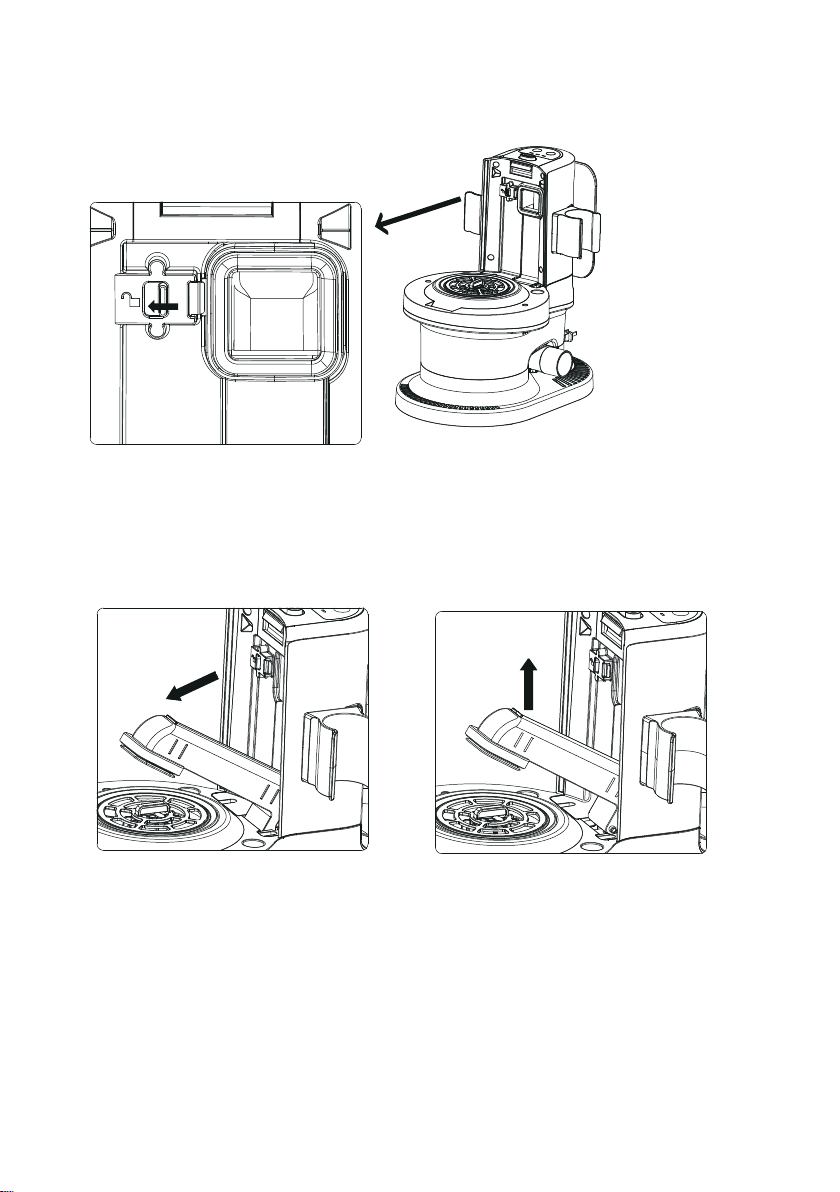

4.4 Clean air channel regularly.
Step 1: Push to left side.
Step 2: Follow arrow to turn. Step 3: Take it upward.
13

4.5 Store power cord and hose like this .
In storage
14

5.Clean The Filters
step 1 step 2
step 3 step 4
click
step 5 step 6
15

Deep cleaning filters when necessary.
step 1 step 2
24H
Warning
Make sure filters properly assembled and dust bin is locked before use.
Do not use it without filters .
16

6.Specifications
Main Machine:
Model
Overall Dimension
Machine Weight
Operating Voltage
Operating Gear
Motor Power
Dust Bin Volume
Power Cord Length
Hose Length
710D
308*195*350MM / 12.12*7.68*13.78inch
3.64KG / 8Pound
120V 60HZ
Eco / Standard / Boost
100W / 250W / 400W
3.3L / 0.87gallon(US)
3M / 118.11inch
2.1M / 82.68inch
Clipper:
Dimension
Voltage
Battery Life
Power
Battery Model
197*52*47MM / 7.76*2.04*1.8inch
3V
2.5H-3.5H
4.5W
2 AA Batteries (Buy separately required)
7.Troubleshooting
Issue Possible Causes Corrective Measures
The hose is blocked.
Check if there is any blockage of hairballs
inside the hose. If there is any blockage,
remove the hose and poke the hairballs out
with a thin stick. (Refer to Article 1 of 1.1)
The filter is too dirty. Remove the filter for cleaning.
(Refer to 5.Clean The Filters)
Internal air channel Clean the internal air channel and install it
properly.(refer to 4.4)
Dust bin is not installed Remove the dust bin and reinstall it properly.
(Refer to 4.3)
Cleaner stop
working
Air channel is blocked.
Clean the hose, dust bin and internal air
channel. Let the vacuum cool down and restart
it after a few minutes. (Refer to 1.1, 4.2, 4.4 )
is blocked.
Loose suction
in place.
The motor is damaged
or wire is loosen. Contact us for help.
17

8. Warranty
2.Free warranty is available for damage or failure during normal use. If that damage cannot
be repaired up to different area or damage reasons, it shall be replaced with a new product.
After replacement, the warranty period of the original product shall be valid for the new one.
3.In case it falls out of the range of warranty, the freight will be charged for returning the product.
4.The warranty content shall be limited to free maintenance of this product.
5.The following conditions shall be out of warranty even within the warranty period:
(1)Failure and damage caused by misuse or inattention.
(2)Damage caused by improper protection or other negligence during transportation.
(3)Product damage caused by scratching, biting, flapping, pressing of the pet,etc.
(4)Failure and damage caused by fire, earthquake and other natural disasters.
(5)Failure and damage during use other than normal domestic use (long-term use
for business purposes, etc.).
6.Repair will be refused in the following cases regardless of whether they are within the
warranty period or not:
(1)The customer reconstructed or modified the product.
(2)Consumables and attachments of the product.
7.Regulations may be changed without notice. KIDKEN reserves the right to up date warranty
when needed. All repairs and request will be handled accoridng to the most udpated warranty.
1.The warranty period is 12 months from the date of ordering the product.
18
