KING IPOD-SBS2IRV Quick start guide

IPOD-SBS2IRV
1080p
Resolution
3yr
Warranty
View From
Anywhere

Notes on Safety
Please use the specified power supply to connect.
Do not attempt to disassemble the camera; in order to prevent electric shock, do not
remove screws or covers.
There are no user-serviceable parts inside. Please contact the nearest service center as
soon as possible if there is any failure.
Avoid from incorrect operation, shock vibration, heavy pressing which can cause
damage to product.
Do not use corrosive detergent to clean main body of the camera. If necessary, please
use soft dry cloth to wipe dirt; for hard contamination, use neutral detergent. Any
cleanser for high grade furniture is applicable.
Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this
may damage the image sensor.
Please follow the instructions to install the camera. Do not reverse the camera, or the
reversing image will be received.
Do not operate it incase temperature, humidity and power supply are beyond the limited
stipulations.
Keep away from heat sources such as radiators, heat registers, stove, etc.
Do not expose the product to the direct airflow from an air conditioner.
This is product instructions not quality warranty. We may reserve the rights of amending
the typographical errors, inconsistencies with the latest version, software upgrades and
product improvements, interpretation and modification. These changes will be published
in the latest version without special notification.
When this product is in use, the relevant contents of Microsoft, Apple and Google will
be involved in. The pictures and screenshots in this manual are only used to explain the
usage of our product. The ownerships of trademarks, logos and other intellectual
properties related to Microsoft, Apple and Google belong to the above-mentioned
companies.
This manual is suitable for IR water-proof network camera. All pictures and examples
used in the manual are for reference only.

Table of Contents
1Introduction ...................................................................................................................1
2IE Remote Access...........................................................................................................2
2.1 LAN........................................................................................................................2
2.1.1 Access through IP-Tool ............................................................................2
2.1.2 Directly Access through IE.......................................................................3
2.2 WAN.......................................................................................................................5
3Remote Preview .............................................................................................................8
4Remote Live Surveillance..............................................................................................9
4.1 System Configuration.............................................................................................9
4.1.1 Basic Information .....................................................................................9
4.1.2 Date and Time ..........................................................................................9
4.1.3 Local Config...........................................................................................10
4.2 Image Configuration.............................................................................................10
4.2.1 Display Configuration ............................................................................10
4.2.2 Video Configuration...............................................................................11
4.2.3 OSD Configuration.................................................................................12
4.2.4 Video Mask ............................................................................................12
4.2.5 ROI Configuration..................................................................................13
4.3 Alarm Configuration ............................................................................................14
4.3.1 Motion Detection....................................................................................14
4.3.2 Alarm Server ..........................................................................................16
4.4 Network Configuration.........................................................................................17
4.4.1 TCP/IP....................................................................................................17
4.4.2 Port .........................................................................................................18
4.4.3 Server Configuration ..............................................................................18
4.4.4 DDNS.....................................................................................................18
4.4.5 RTSP.......................................................................................................20
4.4.6 UPNP......................................................................................................20
4.4.7 Email ......................................................................................................21
4.5 Security Configuration .........................................................................................21
4.5.1 User Configuration .................................................................................21
4.5.2 Online User.............................................................................................23
4.5.3 Block and Allow Lists ............................................................................23
4.6 Maintenance Configuration..................................................................................24
4.6.1 Backup and Restore................................................................................24
4.6.2 Reboot ....................................................................................................25
4.6.3 Upgrade ..................................................................................................25
4.6.4 Operation Log.........................................................................................26
5Record Search..............................................................................................................27
Appendix................................................................................................................................28

Network Camera User Manual
Appendix 1 Q& A..................................................................................................................28
Appendix 2 Specifications ....................................................................................................30

1
Network Camera User Manual
1Introduction
This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state of the art video processing chips. It utilizes most advanced technologies, such as
video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to
ensure this system more stable and reliable.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks.
Main Features
ICR auto switch, true day/night
3D DNR, digital WDR
ROI coding
Support smart phone, iPad, remote monitoring
Surveillance Application

2
Network Camera User Manual
2IE Remote Access
You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example.
The details are as follows:
2.1 LAN
In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access
through IE browser.
2.1.1 Access through IP-Tool
Network connection:
①Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the
PC from the CD.
②Double click the IP-Tool icon on the desktop to run this software as shown below:
③Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information on the
right hand. Modify the IP address and gateway of the camera and make sure its network
address is in the same local network segment as that of the computer. Please modify the IP
address of your device according to the practical situation.

3
Network Camera User Manual
For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera
shall be changed to 192.168.1.X. After modification, please input the password of the
administrator and click “Modify” button to modify the setting.

④Double click the IP address and then the system will pop up the IE browser to connect
IP-CAM. IE browser will auto download the Active X control. After downloading, a login
window will pop up as shown below.
Input the username and password to log in.

2.1.2 DirectlyAccess through IE
The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
The default password of the administrator is “123456”.
The default username is “admin”; the default password is “123456”.

4
Network Camera User Manual

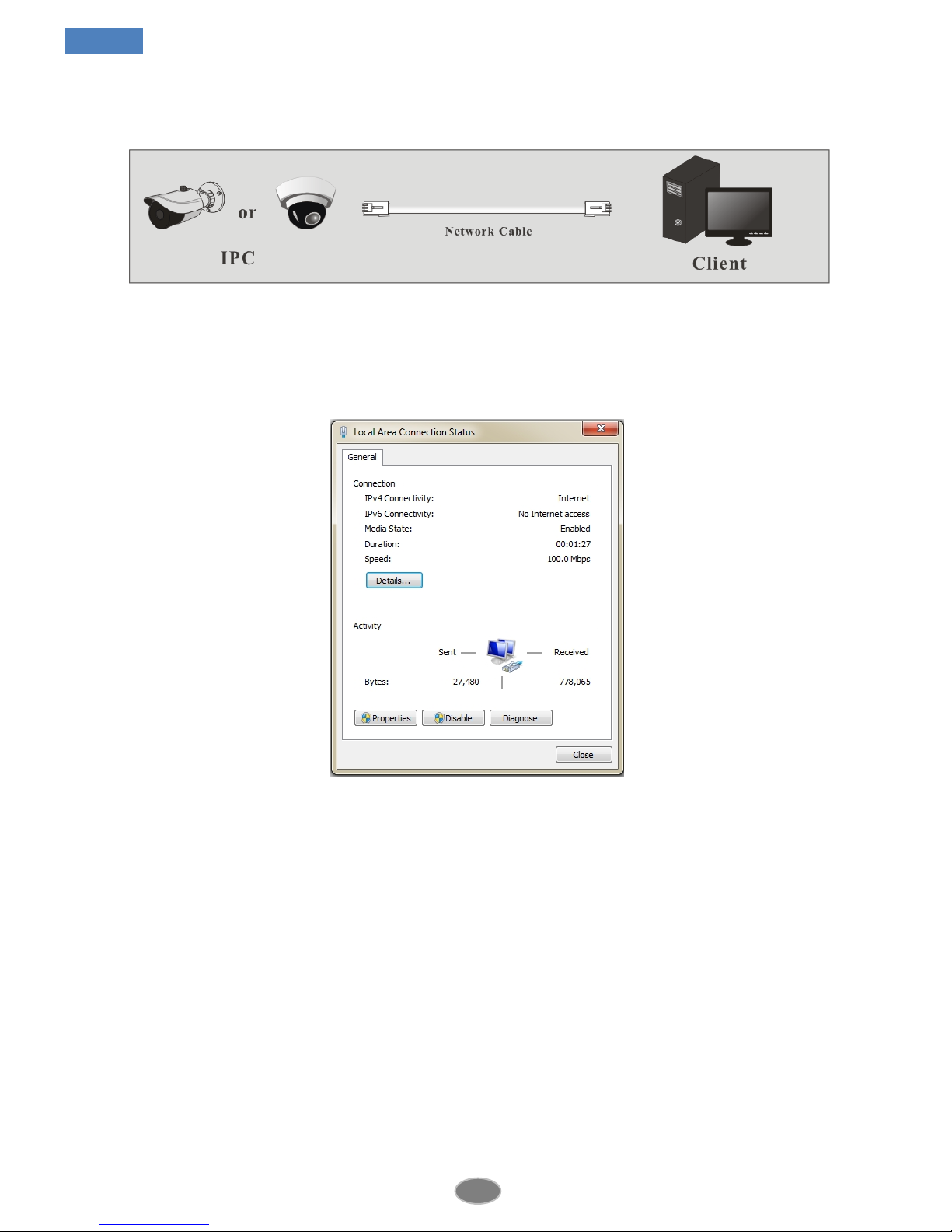

You may use the above default settings when you log in the camera for the first time. You may
directly connect the camera to the computer through network cable.
①Manually set the IP address of the PC and the network segment should be as the same as
the default settings of the IP camera. Open the network and share center. Click “Local Area
Connection” to pop up the following window.
Select “Properties” and then select internet protocol according to the actual situation (for
example: IPv4). Next, click “Properties” button to set the network of the PC.

5
Network Camera User Manual
②Open the IE browser and input the default address of IP-CAM and confirm. The IE
browser will download Active X control automatically.
③After downloading Active X control, the login dialog box will pop up.
④Input the default username and password and then enter to view.
2.2 WAN
Access through the router or virtual server
①Make sure the camera is well connected via LAN and then log in the camera via LAN and
go to ConfigNetworkPort menu to set the port number.
Port Setup

6
Network Camera User Manual

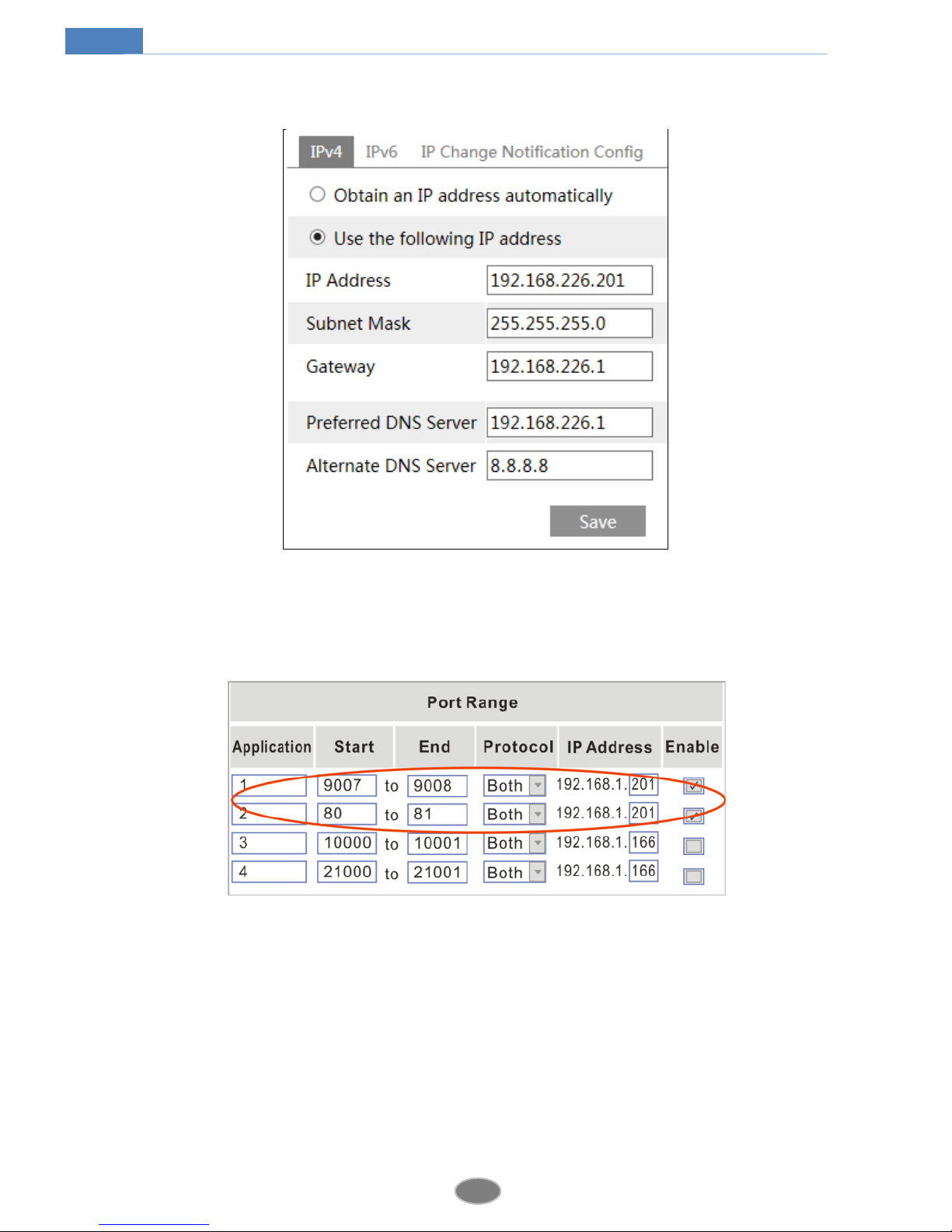

②Go to ConfigNetworkTCP/IP menu to modify the IP address.
IP Setup
③Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.
Router Setup
④Open the IE browser and input its WAN IP and http port to access.
Access through static IP
Network connection
