KingsBottle ULT FREEZER KBU86L108 User manual

EN
Warning:
USER MANUAL
ULT FREEZER
[MODEL]
KBU86L108
Before using this product,please read this manual carefully and keep it for
future reference.The design and specifications are subject to change
without prior notice for product improvement. Consult with your dealer or
manufacturer for details.

013
Table of Contents Product Features
This product is mainly used to keep drugs, vaccines, and reagents.
research institutes and electronic chemical industry enterprise labs.
Product Functions
Precision Temperature Control Data Traceability
Computer temperature control, with a display accuracy of 0.1°C
The temperature in the ULT freezer is uniform and controllable, with an adjustable
temperature range as low as -86°C, and the temperature control is accurate
Standard USB port and traceable temperature data; query and save temperature
data at any time
Imported compressor, auto-cascade refrigeration, strong refrigeration capacity,
high safety and reliability
frosting
Multiple Alarms Safety and Stability
Perfect acoustic and optical alarm function, allowing high- and low-temperature
demand
Design of safety door lock improves the safety level of sample management
Humanized Design
Adjustable rack design ensures storage space available as required
ULT freezer and ambient temperature, and setting the high and low temperature
alarm values and the ULT freezer temperature values as required, with the function
of fault warning and early warning.
Note: The above features are not available for all models of products, and the detailed
Due to the continuous optimization of the product, the product you obtained may
not be exactly consistent with the instructions. We sincerely apologize for this.
The contents of the manual are subject to change without prior notice.
1. Product Features ............................................01
2. Safety Warnings .............................................02
3. Precautions for Use ........................................06
4. Product Installation .........................................07

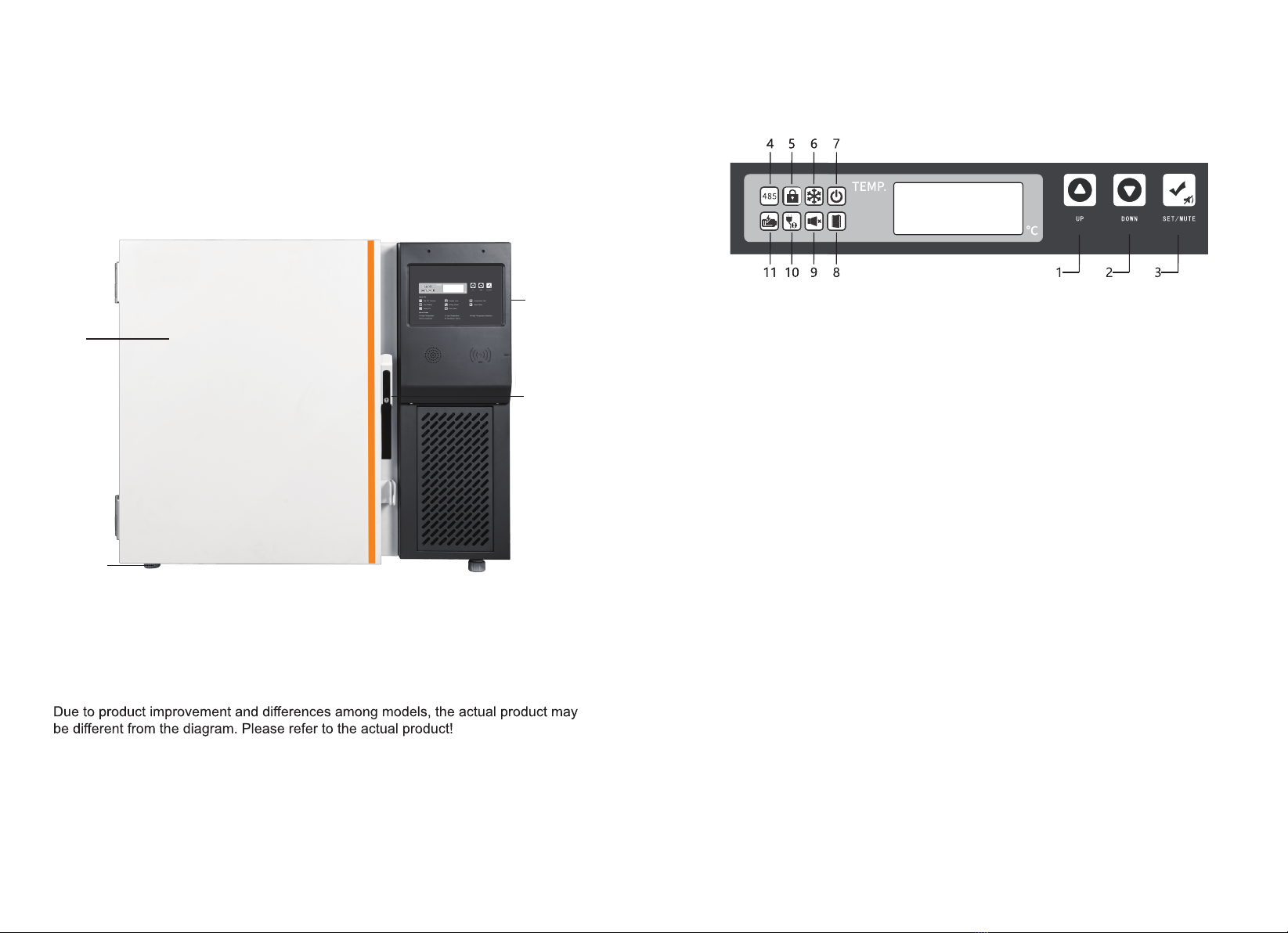

5. Product Components and Overview ...............10
6. Operating Instructions ....................................11
7. Alarm Description ...........................................12
8. Maintenance ...................................................13
9. Troubleshooting and Repair Service ..............15
10. ...............................................16
11. Packing List ..................................................17

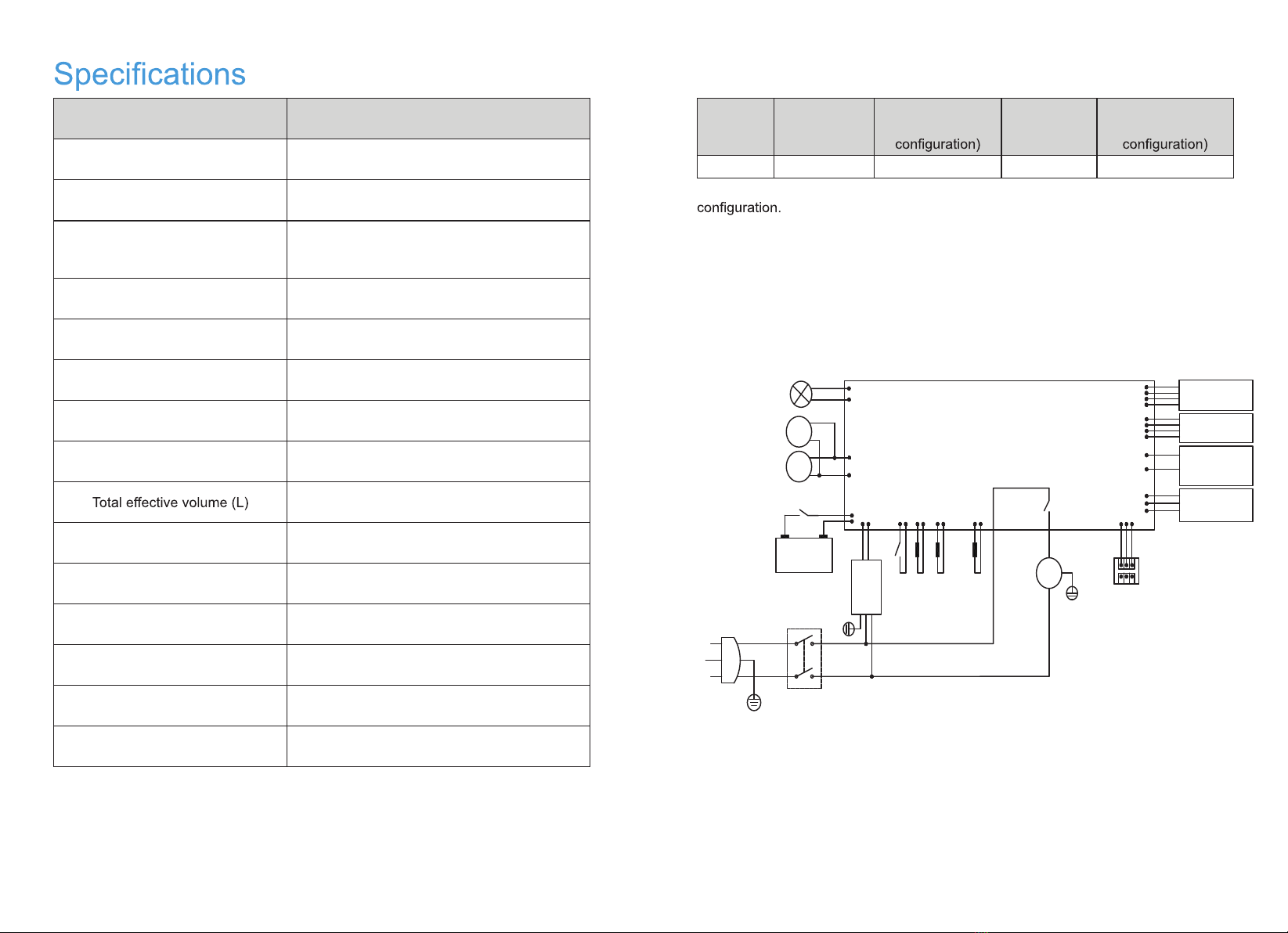

12. Electrical Schematic Diagram.......................17
13. Warranty Information ................................... 18

0302

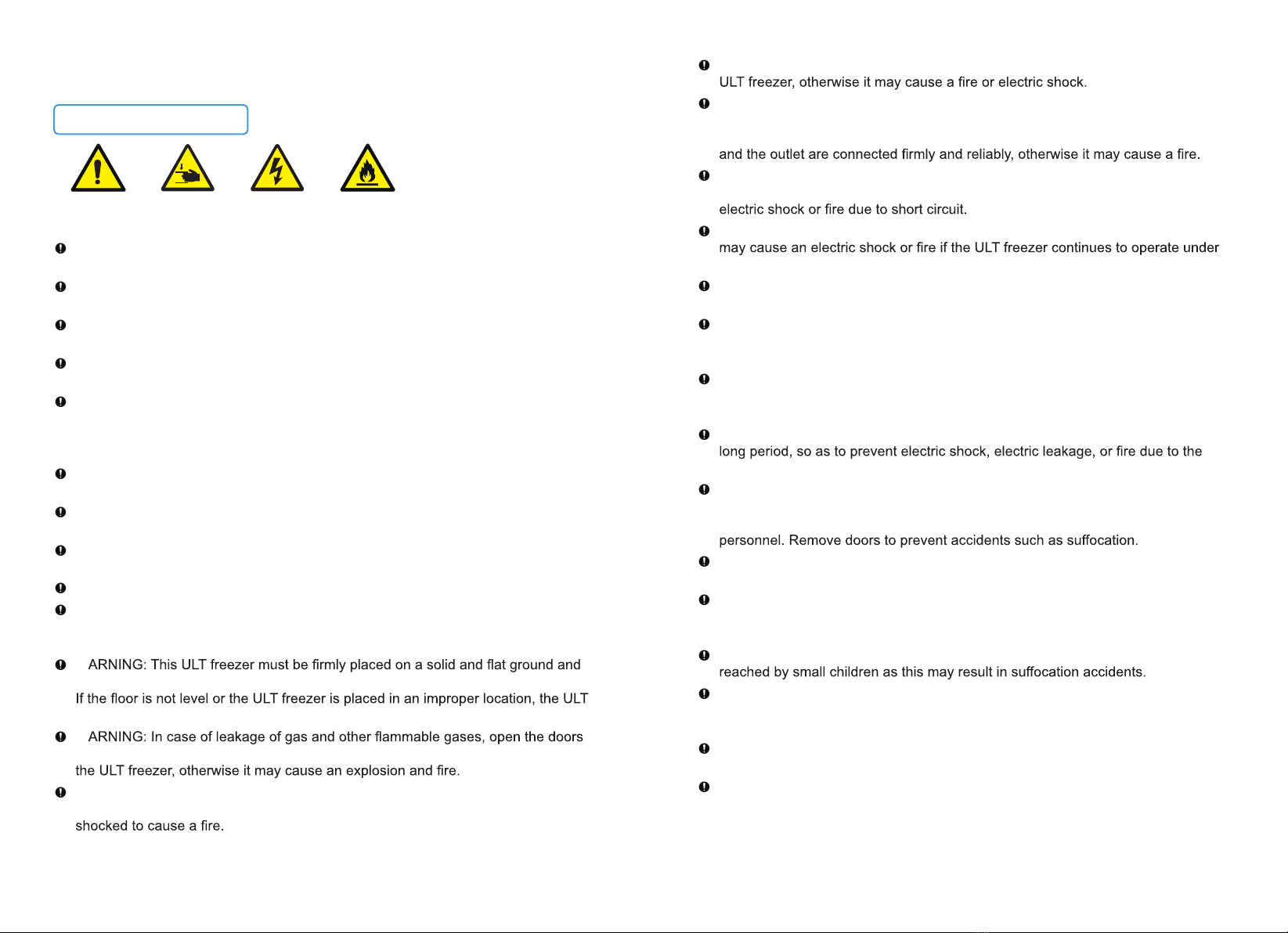

Safety Warnings
Safety Warning Signs
Warning Watch Your
Hand
Electrocution
Hazard!
Combustible
Material
WARNING: The packaging base at the bottom of this series of products must be
removed before use.
WARNING: When moving this series of products, take care that the bottom foot
does not touch the power cord.
WARNING: The bottom front wheel brake of this series of products need to be
locked after moving to the designated position.
WARNING: This series of products need to be left to stand for 24 hours before
initial power-up.
WARNING: When this series of products are just connected to the power supply,
do not immediately put the items in to it. After running for a period of time, when
the temperature inside the ULT freezer drops to the set temperature, then put the
items in batches.
Note: A single batch of items put into the ULT freezer can not exceed 1/3 of the
volume.
WARNING: Keep all ventilation openings in the enclosure or, in the structure for
building-in, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Please use grounded power outlets to prevent electric shocks.
Ungrounded power outlets must be connected with grounding wires by
professional technicians.
W
proper care is taken to prevent overturning.
freezer may fall down and cause injuries.
W
and windows to ventilate and exhaust gas. Do not plug or unplug the power plug of
WARNING: Only professional technicians or maintenance personnel for after-sales
support can disassemble and assemble the ULT freezer. Otherwise, it may electric
WARNING: Please use the special power supply indicated on the nameplate of the
WARNING: The power cord of this ULT freezer is equipped with a three-prong
(grounded) plug to mate with a standard three-prong (grounded) outlet of 10A.
Never remove the grounding pin of the power cord. Make sure that the power plug
WARNING: When removing the plug from the power socket, you should hold the
power plug instead of pulling the wire of the power plug. Otherwise, it may cause
WARNING: If the ULT freezer is not operating properly, unplug the power plug. It
abnormal conditions.
WARNING: Before any repair or maintenance of the ULT freezer, always disconnect
the ULT freezer from the power supply to prevent electric shocks or personal injuries.
WARNING: Make sure that the drugs or suspended particles inside and around
the ULT freezer will not be inhaled during repairs and maintenance, otherwise it
may cause harm to human health.
WARNING: When storing toxic, harmful, or radioactive substances, please use the
ULT freezer in a safe area. Improper use may cause harm to human health or the
environment.
WARNING: Disconnect the power plug when the ULT freezer is not in use for a
deterioration of the power cord.
WARNING: If the ULT freezer is to be stored unused in an unsupervised area for a
long period, ensure that children do not have access to the ULT freezer.
The disposal of the ULT freezer shall be accomplished by the appropriate
WARNING: If CO2/LN2 standby system is used, a good ventilation environment
must be provided at the installation and use site.
WARNING: Increased carbon dioxide concentrations in the air can asphyxiate and
endanger life safety. In case of poor ventilation, other methods must be considered
to ensure a safe environment.
WARNING: Do not leave the plastic packing bags in a place where they can be
WARNING: Do not climb on the ULT freezer or put any objects on the ULT freezer,
otherwise the ULT freezer may fall and cause injuries or cause damage to the ULT
freezer.
WARNING: Do not use the ULT freezer outdoors. Exposure to rain may cause an
electric leakage or electric shock.
WARNING: Do not place the ULT freezer in a humid location or a place where the
ULT freezer is easy to be splashed with water. Otherwise, an electric leakage or
electric shocks may be caused by the deterioration of insulation.

0504
WARNING: Do not pour water directly onto the ULT freezer, otherwise it may
cause an electric shock or a short circuit.
WARNING: Never disassemble, repair, or modify the ULT freezer yourself.
Otherwise, re or personal injuries may be caused by improper operation.
WARNING: Do not connect the grounding wire to a gas pipe, power supply pip,
telephone line, or lightning rod when grounding the ULT freezer. The above
grounding methods will cause electric shocks or other hazards.
WARNING: Do not touch any electrical parts such as the power plug or operate
any switch with a wet hand, otherwise it may cause an electric shock.
WARNING: Do not put water containers or heavy objects on the ULT freezer.
Falling objects may cause personal injuries and spilled water may cause the
insulation to be reduced and result in an electric leakage or electric shock.
WARNING: Never insert metal objects such as iron nails and wires into any vent,
gap, or air outlet on the ULT freezer. This may cause electric shocks or injuries by
accidental contact of these objects with moving parts.
WARNING: It is not allowed to tie, drag, pull, wind and bind the power cord, or
damage the power cord plug. Damaged power cords or plugs may cause re or
electric shock.
WARNING: The power cord with a loose plug is not allowed, because it may cause
re or electric shock.
WARNING: It is not allowed to put glass bottles or canned items in the ULT freezer,
which may be frozen and cracked, causing injury to personnel.
Refrigerant and cyclopentane foaming material used for the appliance are
ammable. Therefore, when the appliance is scrapped, it shall be kept away
from any re source and be recovered by a special recovering company with
corresponding a qualication other than being disposed of by combustion, so as to
prevent damage to the environment or any other harm.
IMPORTANT:
Flammable gas and refrigerant used. It is the consumer’s responsibility to comply
with Federal and Local regulations when disposing of this product. Suggestion:
Cut o󰀨 the pipeline and drain the refrigerant without any open re around.
The product with the symbol reads “warning terms”;
The product with this symbol reads “prevent re, stay away
from re sources”;
The product with this symbol reads “cyclopentane blowing”
yPower supply voltage: This series of products use 220V-240V/50Hz AC power
supply, if the use of voltage lower than 198V or higher than 264V, need to add a
suitable automatic voltage stabilizer with the use(5kVA).
yUse of this series of products requires a low-voltage air circuit breaker and earth
leakage protection device for the power supply.
yA special power socket must be used and reliable grounding must be carried out,
and the length of the power line must not be arbitrarily extended. If extensions are
required, copper-core conductors with a cross-sectional area of 2.5mm2 or more
must be used, and copper-core conductors in the wall connected to the power
socket must also have a cross-sectional area of 4mm2 or more.
yThis series of products are strictly prohibited to put into ammable, explosive
dangerous goods and strong corrosive acid, alkali and other items;
yThe keys of this series of products need to be properly stored to avoid accidents
when children get them and open the door to play;
yDo not connect the neutral wire (N terminal) and the ground wire (E terminal) of the
power socket together, otherwise it can cause the shell of this series of products to
be charged and an electric shock accident can occur;
yThe power cord cannot be bundled and used, cannot be pressed under heavy
objects, and cannot be close to heat sources such as compressors.
yWhen it needs to restart the ULT freezer after the ULT freezer is unplugged or the
power to the ULT freezer is interrupted, check the settings of the ULT freezer.
Items stored inside the ULT freezer may be adversely a󰀨ected if the operation of
the ULT freezer is resumed with changed settings.
yIf the ULT freezer is unplugged or the power to the ULT freezer is interrupted,
do not restart the ULT freezer for at least 5 minutes to avoid damage to the
compressor or system.
yThe lter screen shall be checked in time and cleaned. Dust-laden lter screens
can cause temperature rise or failure in the ULT freezer.
yIf the power plug has dust, it needs to be cleaned in time. Improper connection or
plug lled with dust may cause heating or ignition.
yAfter the power is cut o󰀨 or the power switch is o󰀨, the set point shall be checked
when the power switch is restarted; otherwise, the stored items may be damaged
due to setting change.
yWear gloves during maintenance to avoid personal injuries caused by touching
sharp edges or corners.
yThe stored items shall not be contacted directly by hand. Direct contact with
the frozen items or the inner wall of the ULT freezer without gloves may cause
frostbite.
yClose the door by holding the handle to prevent ngers from being pinched.
yTilt the ULT freezer for 45° when handling or moving it.
yBe careful not to trip over the ULT freezer when handling the ULT freezer, so as to
prevent damage to the ULT freezer or personnel injuries.
yDo not use door handles to lift or carry equipment to prevent damage to the ULT
freezer or personnel injuries.
yDo not use electrical appliances inside the storage compartment of the ULT
freezer, unless they are of the type recommended by the manufacturer.
C
Y
C
L
O
PENTANE

0706
Product Installation
Installation Environment
Ambient temperature: 10 °C~32 °C; ideal temperature: 18 °C~25 °C; air
conditioning system shall be used if necessary.
Ambient humidity: below 80%Rh. The humidity shall be less than 60% Rh if the
maximum operating temperature is 32 °C.
Avoid exposure to large amounts of dust.
Avoid mechanical swinging or vibration.
Altitude of working position of ULT freezer: lower than 2000m.
Input voltage: within 115V±10%.
The ULT freezer is sensitive to ambient temperature. If installed in an environment
other than the above, the ULT freezer cannot operate normally. Please use it after
improving the environment.
Do not install the ULT freezer outdoors. Exposure to rain may cause an electric
leakage or electric shock.
Installation Site
It shall not be installed in a narrow and closed space. The door body of the room
where the ULT freezer is placed shall not be smaller than or lower than the ULT
freezer, or at least the normal access of the equipment shall be ensured, so as
damage to the stored items due to failure of repairing the equipment in time.
withstand the weight of the equipment during operation.
Good ventilation, no exposure to direct sunlight.
Each freezer shall be provided with an independent power socket. Please ensure
that the power socket is capable of bearing a current of ≥ 16 A and that the plug is
Check the working voltage before use. A voltage stabilizer suitable for the
equipment load shall be considered for use in areas with unstable voltage. The
voltage stabilizer power shall be more than 4,000 W to ensure that the input
voltage requirements in the installation environment are met.
The equipment shall be grounded securely. If the power cord socket is equipped
with a grounding wire, check that the grounding is good before use. If the socket
is not equipped with a grounding wire, be sure to have a professional engineer
install the grounding wire.
Precautions for Use
When the ULT freezer is running, the contact part between the front of the ULT
freezer and the outer door may be heated, which is not a fault. In order to prevent
condensation around the ULT freezer housing, the heating condensate pipe is installed.
Before storing items in the equipment, check that the temperature in the storage
compartment reaches the set temperature and then store the items in batches. The
volume of each batch of items to be placed in the ULT freezer shall not exceed 1/3
of the volume inside the ULT freezer to prevent excessive temperature rise.
The displayed equipment temperature is the temperature at the temperature
temperature displayed at the beginning of the operation of the equipment and
the actual tem-perature in the center of the equipment, but as the equipment
enters a stable state, the displayed temperature will gradually approach the actual
temperature.
An inspection hole is installed on the enclosure of the equipment to pull out the
testing line in the ULT freezer during the testing. After the testing line is pulled out,
it is necessary to plug the testing hole again with thermal insulation material, oth-
erwise the temperature in the ULT freezer may not reach the set temperature and
cause condensation around the outside of the hole (applicable to ULT freezers with
testing holes).
Please clean the equipment with a diluted neutral detergent.Do not use brushes,
acids, gasoline, soap powder, polishing agents, or hot water for cleaning, otherwise
the painted surface and plastic rubber parts may be damaged. Pay extra attention
to not wipe plastic and rubber parts with volatile solvents such as gasoline.
If the ULT freezer is not started again for a long time, a low battery level may occur.
After the battery switch is placed at “ON”, the battery can be charged, and the ULT
freezer can run continuously for about one week to charge the battery (applicable
to models with batteries).
Please minimize the time of opening the door during each access to the items, so as
in the ULT freezer.
After the door is opened, the temperature in the ULT freezer will rise sharply in a
short time, which is normal, and it will return to set temperature of normal operation
after the door is closed.
After the ULT freezer has been running for a period of time, a layer of frost is
formed on the inner wall and inner door of the ULT freezer. If the frost layer is too
power consumption. Therefore, after the frost layer reaches 5 mm, the attached
shovel shall be used to defrost.
Before defrosting, the frozen items in the ULT freezer shall be taken out with ice
shovel and put in an suitable environment for storage, to not demage the items
due to teperature rise in the ULT freezer.
There are many refrigerating coils behind and on the side of the inner wall. The
frost from the inner wall shall not be removed by sharp tools such as knife, ice
chisel or screwdriver. The inner wall shall not be scratched during defrosting, or
the ULT freezer will fail.
Over-voltage lever:
Ⅱ，IPX0, Pollution level:2

0908
Operation after Power-o󰀨
The set value is memorized by the equipment. After recovery from a power failure, the
equipment will resume operation with the setting parameters before the power failure.
WARNING
ÌIf the ULT freezer is unplugged or the power to the ULT freezer
is interrupted, do not restart the ULT freezer for at least 5
minutes to avoid damage to the compressor or system.
WARNING
ÌWhen the ULT freezer is not in use for a long period, unplug the
power plug and turn o󰀨 the battery switch (applicable to ULT
freezers with batteries) to prevent electric shock, electric leakage,
or re due to the deterioration of the power cord.
ÌIf the ULT freezer is to be stored unused in an unsupervised
area for a long period, ensure that children do not have access
to the ULT freezer and that doors cannot be closed completely.
yThe product shall be managed by a specially-assigned person to check
the operation and make records every day (it is recommended to record
the inspection once every 2~4 hours). In case of failure or shutdown,
the temperature in the ULT freezer will rise. If it cannot be repaired in a
short time, the articles shall be transferred to other places that meet the
temperature requirements for storage to avoid damage to the articles.
yThis product is a ULT freezer. Please conrm in advance that the
temperature required for the stored articles is consistent with the
temperature range of the ULT freezer to avoid damage to the stored
articles due to mismatch of the temperature range.
yDue to the inertia of refrigeration, the temperature and humidity displayed
on this product may di󰀨er from the actual temperature and humidity inside
the freezer, which is normal.
ySince all ULT freezers are storage equipment, it is strictly prohibited
to put too many relatively hot items at one time, which will cause the
compressor to not stop for a long time, the temperature will drop slowly
and a󰀨ect the service life of the compressor. The items must be put in
batches to allow the temperature to decrease by steps until the required
temperature is reached!
yDo not damage the refrigeration circuit.
yDo not use electrical appliances without production permits inside the
ULT freezer.
yNo mechanical tools or other means without the manufacturer's
permission shall be used to accelerate the defrosting process.
WARNING
ÌDo not connect the grounding wire to a gas pipe, water pipe,
telephone line, or lightning rod when grounding the ULT freezer,
otherwise it may cause an electric shock.
ÌThe power plug must be accessible after installation to facilitate
timely unplugging of the power cord in case of an emergency.
Do not block the vent of the ULT freezer.
CAUTION
ÌSince the ambient temperature has a large impact on the
equipment, the equipment may not operate normally if the above
environmental requirements cannot be met. Please improve the
environment before using the equipment, and please note that
the equipment has an intermittent operation system.
Preparations before Use
1. Remove all transport packaging materials and belts.
2. Count the accompanying accessories. Check the items in the box against the
contents of the packing list. If there is any discrepancy, please contact after-sales
service personnel in time.
3. The placement conditions shall be such that clearances of at least 30cm are
reserved around the ULT freezer for ventilation and heat dissipation.
4. Rotate the horizontal supporting feet clockwise with a wrench or manually to extend
downward so that they are supported on the ground to ensure that the ULT freezer
does not move when used.
5. Open the outer door by more than 90°, take out the rack from the bottom of the
freezer, remove the rack protective lm, and place the rack one by one on the rack
support strip.
WARNING
ÌPlace the plastic packing bag in a place not accessible to
children to avoid su󰀨ocation accidents.
Initial Start
Follow the steps below when using the equipment for the rst time:
1. After the equipment is placed, leveled and cleaned, it shall be left to stand for more
than 24 hours before it is powered on to ensure normal operation.
2. Connect the power cord to a dedicated socket of appropriate specications under
no-load conditions.
3. After the power supply is turned on, turn on the power switch of the equipment rst;
if the equipment is equipped with a battery, turn on the battery switch again (at the
bottom of the rear side of the freezer).
4. Set the required temperature, do not put anything in the empty ULT freezer,
power on and start up, check whether the operating temperature of the equipment
reaches the required temperature, observe the normal startup and shutdown of the
equipment for more than 24 hours, and demonstrate that the performance of the
ULT freezer is normal.
5. Put items in batches, not exceeding 1/3 of the freezer volume at a time. Ensure that
the equipment is shut down and operates normally after being switched on and o󰀨
for more than 8 hours before placing the next batch of items.
6. Avoid opening the door during the cooling process whenever possible; otherwise,
the temperature may rise.

1110
Operating Instructions
Display Panel
Description of Buttons and Icons
Button 1 - Up; Button 2 - Down; Button 3 - Setup/Mute.
Icon 4 - 485 communication; Icon 5 - Button locking; Icon 6 - Compressor startup; Icon
7 - Power-on; Icon 8 - Door opening; Icon 9 - Alarm silence; Icon 10 - Abnormal power
supply; Icon 11 - Low battery level (all above are on)
Operation Instructions
1. Check the ambient temperature
In the lock status of the keypad, press the “Setting/ Mute Multi-function Key” to display
the ambient temperature on the LED segment display. Wait for 5 seconds without any
keypad operation or press the “Up” or “Down” keys to return to the normal display.
In the unlock status of the keypad, press the “Setting/ Mute Multi-function Key” to
display the ambient temperature on the LED segment display. Wait for 5 seconds
without any keypad operation to return to the normal display.
2. Mute the alarm
When the alarm sounds, you can press the “Setting/ Mute Multi-function Key” to mute
the alarm; then it will enter the status for checking the ambient tem-perature.
When the alarm is muted, you can press the “Setting/ Mute Multi-function Key”
to restore the alarm sound; then it will enter the status for checking the ambient
temperature.
In the unlock status of the keypad and the status for checking the ambient
temperature, you can press the “Setting/ Mute Multi-function Key” to mute or restore
the alarm sound.
3. Function of keypad lock
When the button is not locked, if there is no button operation for 60s or the Up and
Down buttons are pressed at the same time for 3s (the buzzer sounds twice when
the button is locked), the button is locked. In the button locked state, the ambient
temperature and mute can be viewed, the rest of the button functions are locked, and
the buzzer sounds twice during operation;
After pressing the Up and Down buttons at the same time for 3s, the digital tube will
display “0000′′. Adjust the password to “5′′ through the Up and Down buttons. After the
password is correct, return to the normal display, and the buzzer will sound once.
Product Components and Overview
Appearance Diagram
The schematic diagrams are only for brief description of functional parts.
Exterior
door
handle
Control
panel
Door
Foot

1312
Maintenance
WARNING
ÌIn order to prevent electric shocks or injuries, the power supply must be cut o󰀨
before any repair and maintenance of the equipment.
ÌMake sure that drugs or suspended particles from the surrounding environment
will not be inhaled during equipment maintenance. Otherwise it may cause harm
to human health.
CAUTION
ÌDo not spill water directly on the freezer body to avoid reduced insulation
performance of electrical components and rusting of metal parts.
ÌDo not use hot water and corrosive cleaners or organic solvents to clean the
freezer body.
ÌDo not put heavy objects on top of the equipment to avoid deformation of the
equipment due to pressure.
Cleaning of ULT Freezer
6The ULT freezer should be cleaned once a month. Regular cleaning keeps the
ULT freezer a brand-new appearance.
6Wipe the dust o󰀨 the ULT freezer's shell, inner chamber, and all accessories with
a dry cloth. If the ULT freezer is dirty, wipe it with a cleaning cloth soaked with a
neutral detergent to remove the dirt and wipe o󰀨 the residual detergent with a wet
cloth. Then, wipe it with a dry cloth again.
6Do not pour water onto the ULT freezer shell or into the ULT freezer. Otherwise, it
may damage the electrical insulation, leading to a failure.
6The compressor and other mechanical parts are completely sealed and do not
require lubrication.
6Clean the frost or ice on the inner wall and the condenser lter screen once a
month.
Cleaning of Condenser Filter Screen
The lter screen shall be cleaned once a month under normal use. If the lter screen
is blocked, the refrigeration e󰀨ect of the freezer will be a󰀨ected and the service life of
the product will be reduced. Please clean the lter screen as follows.
1. Remove the front bottom hood and the lter screen.
2. Clean the lter screen with water.
3. Blow o󰀨 the dust on the condenser with compressed air.
4. After the lter screen is dried, put it back to its original position and install the hood.
Note: The conguration of di󰀨erent product models is di󰀨erent, which is subject to the
physical object.
4. Parameter setting
When the button is not locked, press and hold the Setting/Mute button for 3s, and
the digital tube displays "PS1". Press the Setting/Mute button to switch the menu and
corresponding parameters, and press the Up and Down buttons to select the menu
or adjust the parameters. Save the parameters after no button operation for 60s or by
pressing and holding the Setting/Mute button for 3s, and exit with the buzzer sounding
once.
Menu Menu Description Setting Range Default Unit
Set Temperature setting -86.0 ~-40.0 -81.0 °C
HUpper deviation of high
temperature alarm 0.0~10.0; 0: Cancel the alarm 10.0 °C
LLower deviation of low
temperature alarm 0.0~10.0; 0: Cancel the alarm 10.0 °C
n Set current date - year -- -- /
y Set current date - month -- -- /
r Set current date - day -- -- /
S Set current date - hour -- -- /
F Set current date - minute -- /
PT Printing interval 0~240 20 min
tH1 High ambient temperature
alarm value 20.0~80.0 36.0 °C
Ps1 User menu password setting 0~9999 5 /
b1 Hardware version -- 2.0 /
b2 Software version -- 2.1 /
5. Export of USB temperature data
When the USB ash disk is connected to the USB port, the buzzer will buzz once, and
the digital tube will display the code "on" of data upload. PDF les with the data of the
current and the last months will be generated and imported into the USB ash disk.
After the data transmission is completed, the buzzer will buzz once, the digital tube
will display "End" and return to normal display after 6s.
Alarm Description
S/N Alarm Code Meaning
1 H1 Alarm for high temperature inside the freezer
2 L1 Alarm for low temperature inside the freezer
3 H2 High ambient temperature alarm
4 H3 Alarm for high condenser temperature
5 Do Door opening alarm
6 PF Power failure alarm
7 bL Low battery alarm
8 E1~E4 Sensor fault alarm
9 Er USB data recorder fault alarm

1514
Troubleshooting and Repair Service
Any product may fail. Please observe the operation of the equipment in time during
use. If there is any abnormality, please check and handle it according to the table
below. If the problem cannot be solved, inform our Service Center in time, and we will
do our best to help you and avoid any loss.
Fault Troubleshooting Method
ULT freezer does
not work
Is the power circuit breaker normal?
Is the power voltage too low?
Is the power switch o󰀨?
Is the fuse blown?
Poor cooling
Is the ambient temperature too high?
Is the inner door closed tightly? Is the outer door closed tightly?
(The frost between the ULT freezer and the door sealing strip
may damage the door sealing performance)
Is the air inlet dirty and blocked?
Are the condenser and lter screen dirty and blocked?
Is the temperature set correctly?
Is the ULT freezer away from direct sunlight?
Is the ULT freezer close to the heat source?
Are the rubber hole cover and insulation material of the test
through hole properly placed?
Are a large amount of high temperature articles placed in the
ULT freezer for a short time?
Excessive noise
Is the ULT freezer installed on a solid and at ground?
Are other items contacted to the ULT freezer housing?
Is the base of the ULT freezer leveled?
Note: If the fault cannot be eliminated after the above items are checked, or the fault is
di󰀨erent from the above list, please contact the after-sales personnel.
Inner Wall Defrosting
Frosting may cause a gap between the ULT freezer and the door sealing strip,
resulting in poor refrigeration. The inner door shall be defrosted with an ice shovel
attached to the ULT freezer. The following steps are natural defrosting.
1. Shut down the auxiliary cooling device if any.
2. Remove items from the ULT freezer and transfer them to an environment
suitable for storage.
3. Turn o󰀨 the power switch
4. Open the outer and inner doors to allow the ULT freezer to open naturally
for a period of time for defrosting.
5. Dry the accumulated water at the bottom of the ULT freezer with a piece of
dry cloth.
6. After cleaning the ULT freezer and inner door, restart the ULT freezer.
7. Put the items back into the fully cooled ULT freezer.
8. If there is an auxiliary cooling device, restart the device.
CAUTION Do not use knife, screwdriver or any other tool with a sharp edge to
defrost.
Equipment Out of Service
Out of service: If the ULT freezer is to be stored unused in an unsupervised area for a
long period, ensure that children do not have access to the ULT freezer and that doors
cannot be closed completely.
Scrap: The scrapping disposal of the ULT freezer shall be carried out by corresponding
professionals. In order to prevent something like su󰀨ocation, the ULT freezer doors
must be removed.
Optional Accessories
Temperature Recorder
Please refer to the Temperature Recorder Instructions provided by the temperature
recorder for use.
CAUTION Please install the temperature recorder by professional technicians
or after-sales personnel.
WARNING Please cut o󰀨 the power supply before installing the temperature
recorder; otherwise, electric shock or re may occur.
Freezer Rack and Box
When the freezer stores small specications of materials, freezer rack and box can
make more e󰀩cient use of space. The height of the rack may need to be properly
adjusted.

16
Packing List
Name Manual
Key
(Based on Defrosting
Shovel
Handle
(Based on
Quantity 1 2 1 1
Note: External padlock and handle optional accessories shall be subject to physical
Electrical Schematic Diagram
Name ULT Freezer
Model KBU86L108
Climate type N
Type of protection against electric
shock Class I
Power supply 97-127V~/60Hz
Temperature inside the freezer (-86~-40) °C
Refrigerant R600a,40g R170,10g R1150,13g
Cooling mode Direct cooling
Foam material Cyclopentane
108
Rated current (A) 8.5
Input power (W) 750
Power consumption (kW·h/24h) 5.5
Weight (lbs) 249.1
Product dimensions (W * D * H) inch 37.6*26.6*32.1
PS(High/Low)(MPa) 3.8/1.5
Description of technical parameters: The technical parameters in this table are
measured under standard conditions. After the parameters are changed due to
product improvement and technical update, no further notice will be given, which shall
be subject to the nameplate attached to the ULT freezer.
17
Main control panel
Battery
Power
adapter
Door switch Ambient temperature sensor Condenser temperature sensor
Display
panel
M
~
Compressor
PT1000
Temperature sensor
LED indicator
USB memory
board
Battery switch
M
-
M
-
Condenser fan
Alarm terminal block
Common
NC NO
5V power
supply
(Optional)
485
communication
(Optional)
Circuit Breaker
Circuit Breaker

18
Warranty Information
Please speak to your retailer before calling us if you did not purchase your refrigerator
directly from KingsBottle.
WHO IS COVERED: This warranty is extended only to the original end-user purchaser
or the person receiving the product as a gift, and shall not be extended to any other
person or transferee.
LIMITED WARRANTY – If your refrigerator is not operating properly, KingsBottle
reserves the right to repair or replace the refrigerator. KingsBottle may request the
consumer to contact a local refrigeration company to service the refrigerator. All cost for
labor and materials is covered for 2-year from the date of receipt. If KingsBottle deems
the unit not repairable, KingsBottle will use the value of your original order toward a
replacement (Any replacement unit will follow the warranty terms of the initial purchase).
For customer service, please e-mail us via [email protected].
THE LIMITED WARRANTY DOES NOT COVER: Damage due to such things as
an accident, misuse, abuse, mishandling, neglect, unauthorized repair or any other
cause beyond the control of the seller whether similar or dissimilar to the foregoing.
Purchaser understands and acknowledges that goods sold here are biomedical freezers,
which house drugs, vaccines, and reagents, they are applicable to hospitals, epidemic
prevention stations, universities, scientific research institutes and electronic chemical
industry enterprise labs. Purchaser assumes all the risk of using these units, including
the risk of spoilage, humidity variations, temperature variations, leaks, fires, water
damage, mold, mildew, dryness and similar perils that may occur.
SPECIAL NOTE: Warranty is only honored for the unit which is used in the countries
where the unit was initially purchased. And, if your product was purchased at any 3rd
party retailer and not directly from KingsBottle, we do not offer an extended warranty
policy. You MUST contact the retailer of purchase directly. In the event your retailer does
not offer an extended warranty plan, we recommend you contact a third party warranty
provider. However, regardless of point of purchase, all KingsBottle coolers are backed
by a TWO YEAR manufacturer's warranty from date of sale.
