Kingsman PVH58FM User manual

Installation Instructions
WARNING
Improper installation, adjustment, alteration, service, or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
appliance. For assistance or additional information,
consult with a qualified installer, service agency, or the
gas supplier.
Model PVH58FM
FLUSH MOUNT HORIZONTAL POWER VENT
WARNING
If the information in these instructions is not followed
exactly, a fire or explosion may result causing property
damage, personal injury, or loss of life.
KINGSMAN FIREPLACES
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, MB R2R 2V3
Canada
Ph: [phone]
Recognized
Component
READ THIS COMPLETE MANUAL BEFORE BEGINNING INSTALLATION.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE .
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER.
The PVH58FM Horizontal Flush Mount Power Vent is intended
for use where standard venting configurations are not possible.
Printed in Canada November 13, 2019 Part No. 58PVHFM-MAN
MILLIVOLT/STANDING PILOT NOTE:
Downward vertical vent runs are NOT permitted for models that
are equipped with millivolt / standing pilot ignition.
INTERMITTENT PILOT NOTE:
For units equipped with Proflame 1 or Proflame 2 ignition
system, downward vertical vent runs are permitted provided that
the Cold Climate Switch (Standing Pilot Mode) is NOT used.
All electrical installations much be performed by a qualified
electrician to the latest Canadian Electrical Code (CSA C22.1 for
Canada), and/or U.S. National Electrical Code (ANSI/NFPA 70 for
the USA).
ELECTRICAL SPECIFICATIONS
VOLTS: 120VAC 60Hz 1 Phase
AMPS: 1A

Table of Contents
Warnings, Installations, and Operations......................................................................................................................................................................................... 3
Installation Regulations.................................................................................................................................................................................................................. 3
Operations and Maintenance Instructions ................................................................................................................................................................................ 4
Installation Requirements for the Commonwealth of Massachusetts ................................................................................................................................. 4
PVH58FM Installation Overview....................................................................................................................................................................................................... 5
PVH58FM Horizontal Power Vent Installation Procedure...................................................................................................................................................... 5

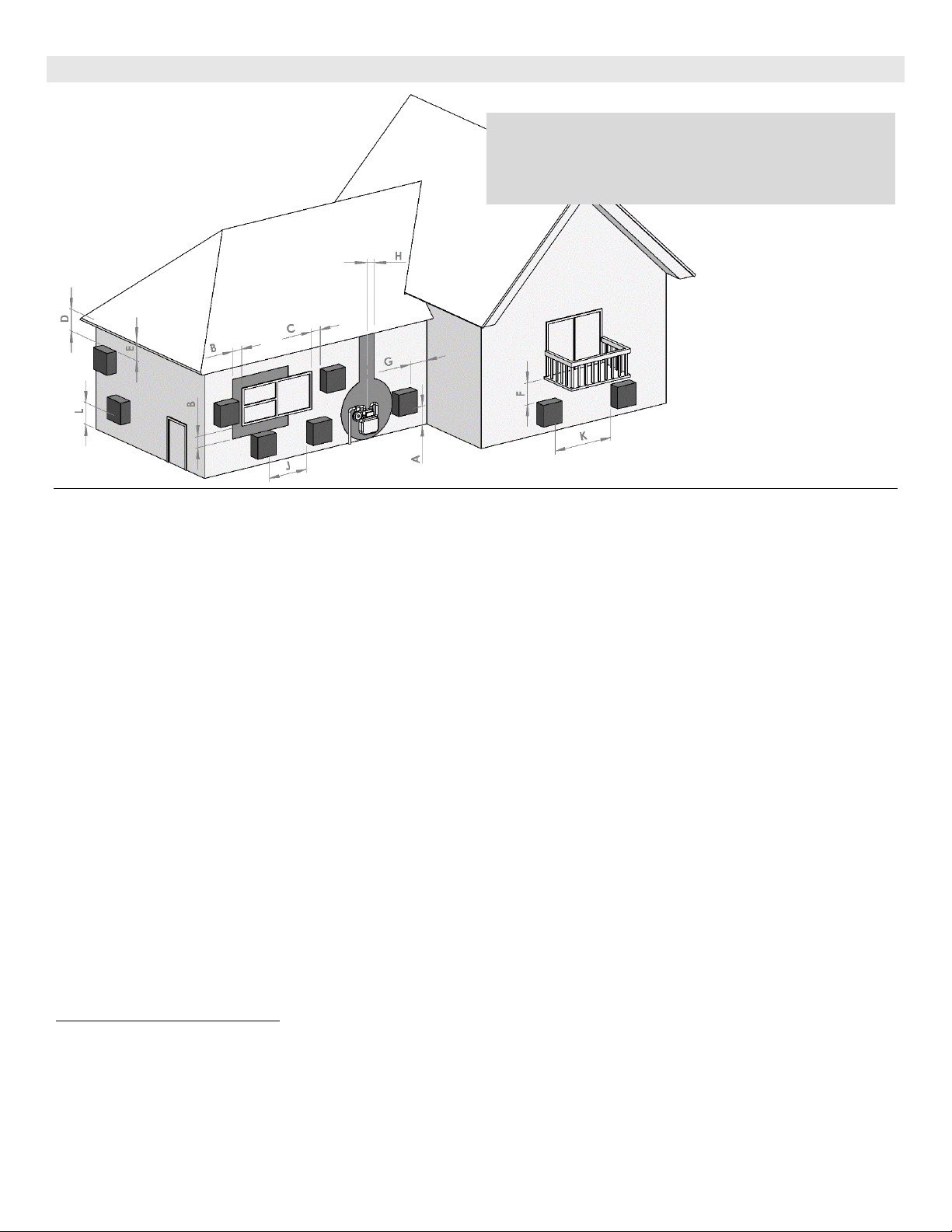

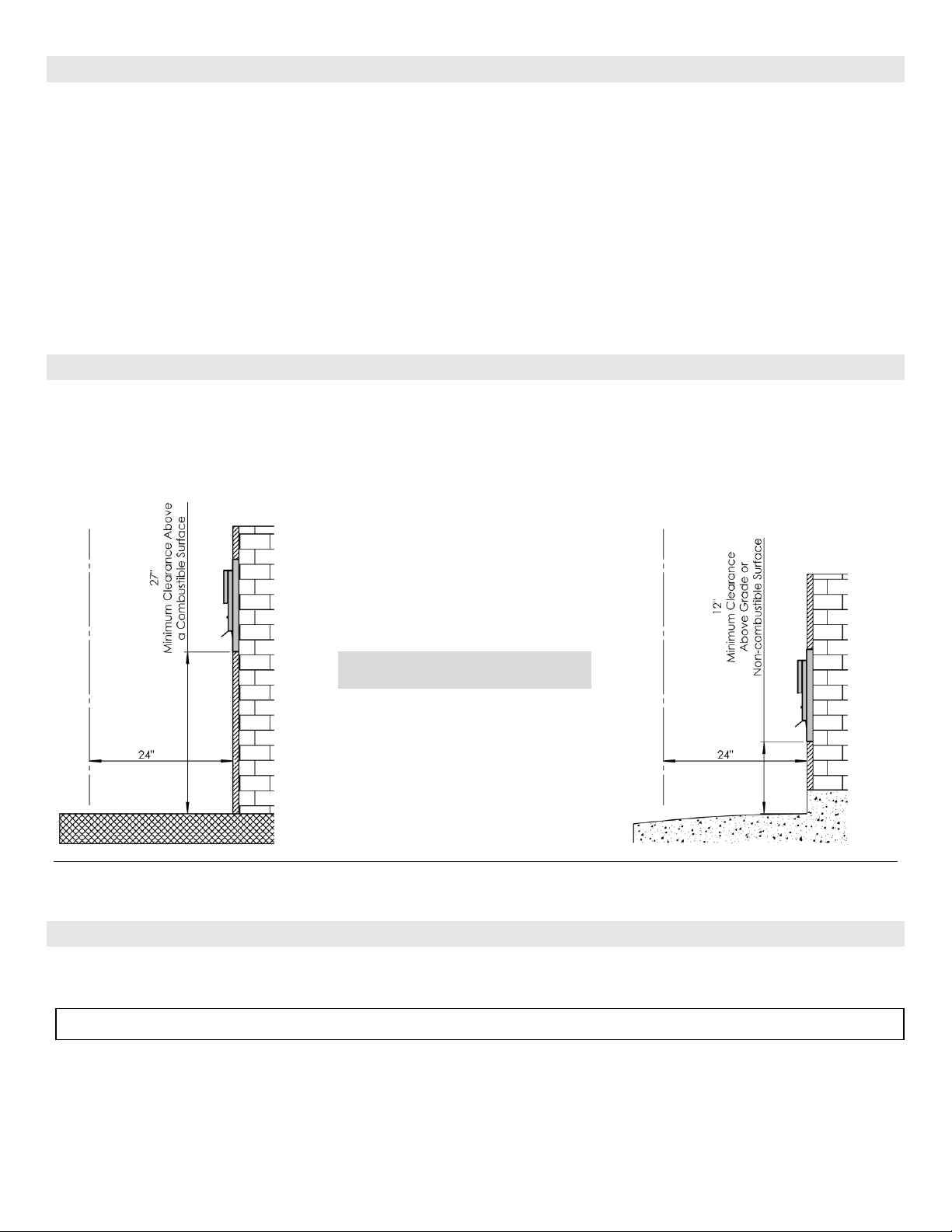

PVH58FM Termination Clearances.................................................................................................................................................................................................. 5
Carbon Monoxide (CO) Detector .................................................................................................................................................................................................... 5
Venting Clearances............................................................................................................................................................................................................................. 6
Venting Hard Pipe or Flex ................................................................................................................................................................................................................. 7

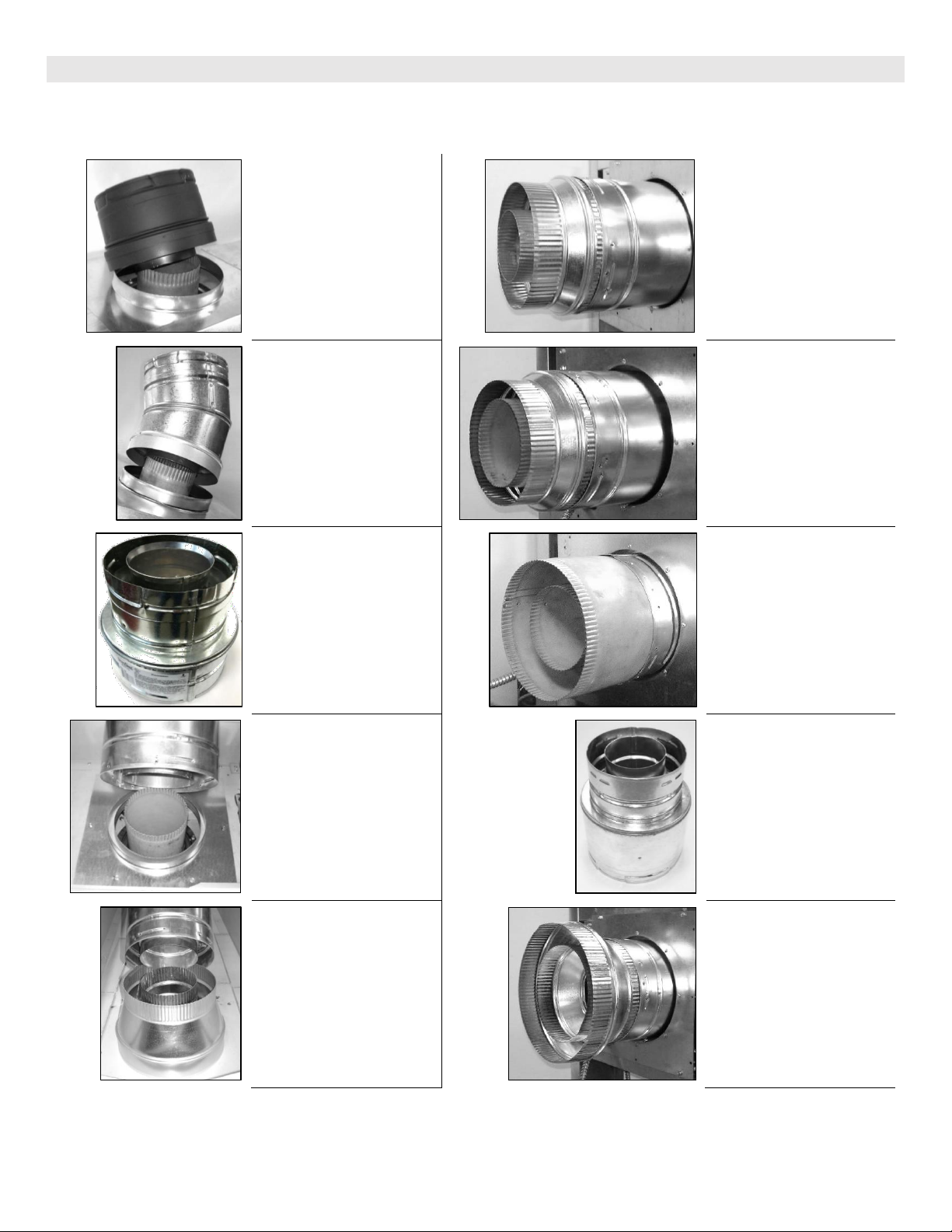

Adapters and Adapter Kits................................................................................................................................................................................................................ 8
Adapters at Fireplace ..................................................................................................................................................................................................................... 8
Adapters at Termination ............................................................................................................................................................................................................... 8
Venting Configurations...................................................................................................................................................................................................................... 9
Maximum.......................................................................................................................................................................................................................................... 9
Minimum........................................................................................................................................................................................................................................... 9
PVH58FM Dimensions.......................................................................................................................................................................................................................10
Openings and Wall Thimble Installation ........................................................................................................................................................................................11
Power Vent Mounting........................................................................................................................................................................................................................11
PVH58FM Recess Installation...........................................................................................................................................................................................................12
PVH58FM Front Cover and Trim Removal ...................................................................................................................................................................................12
Cover Removal...............................................................................................................................................................................................................................12
Trim Removal..................................................................................................................................................................................................................................12
PVH20H Main Wiring Harness Extension......................................................................................................................................................................................13
58PVH-P124 Double Pole Switch (Millivolt Systems Only) ........................................................................................................................................................13
PVH58FM Millivolt System Connections........................................................................................................................................................................................14
PVH58FM Power Vent Control Module (PVCM) Schematics - Millivolt .................................................................................................................................15

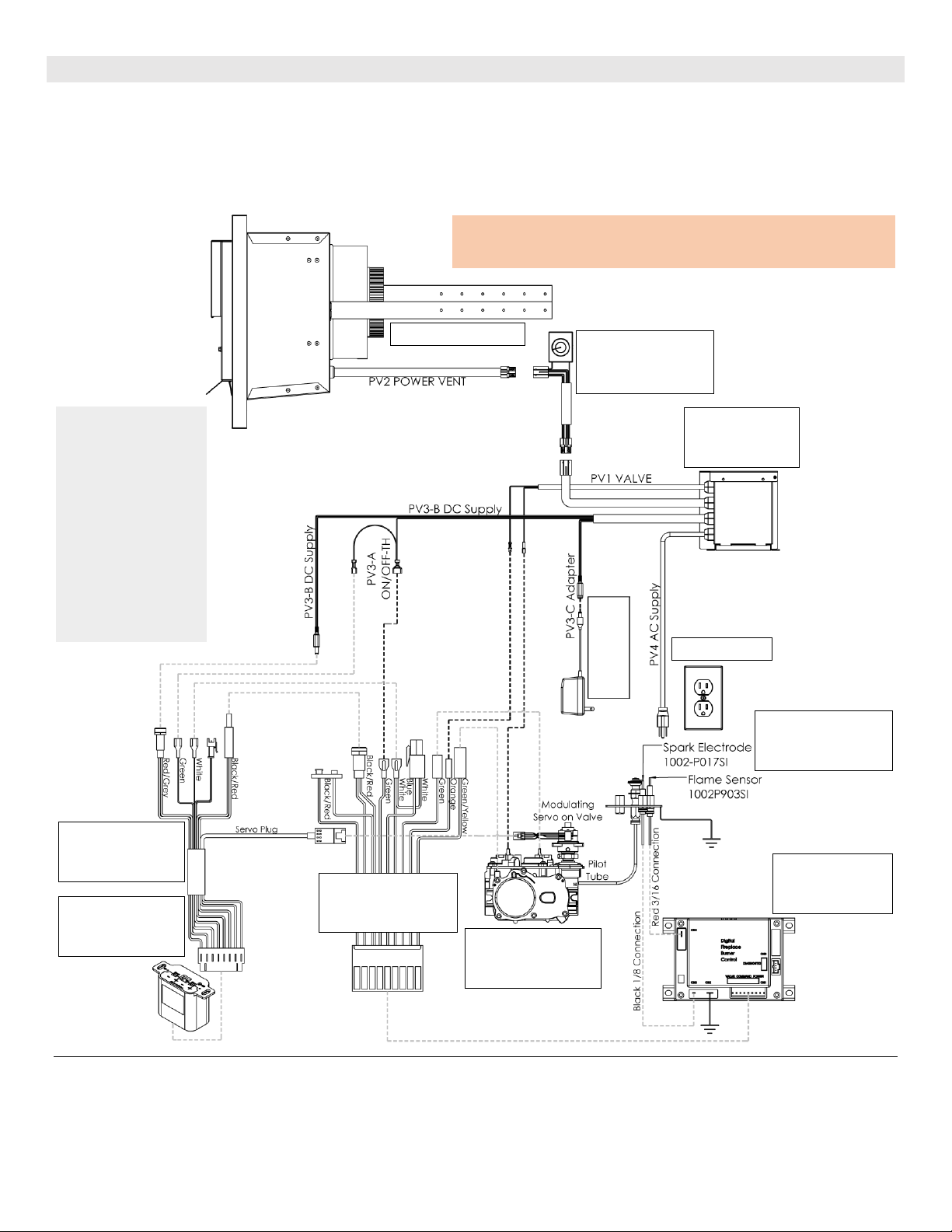

PVH58FM Intermittent Pilot Ignition (IPI) System Connections (Basic) ...................................................................................................................................16
Recommended Method of Connection....................................................................................................................................................................................16
PVH58FM Operating the Receiver without Batteries for EGT / EGTM Remote Controls ...................................................................................................17
Recommended Method of Connection....................................................................................................................................................................................17

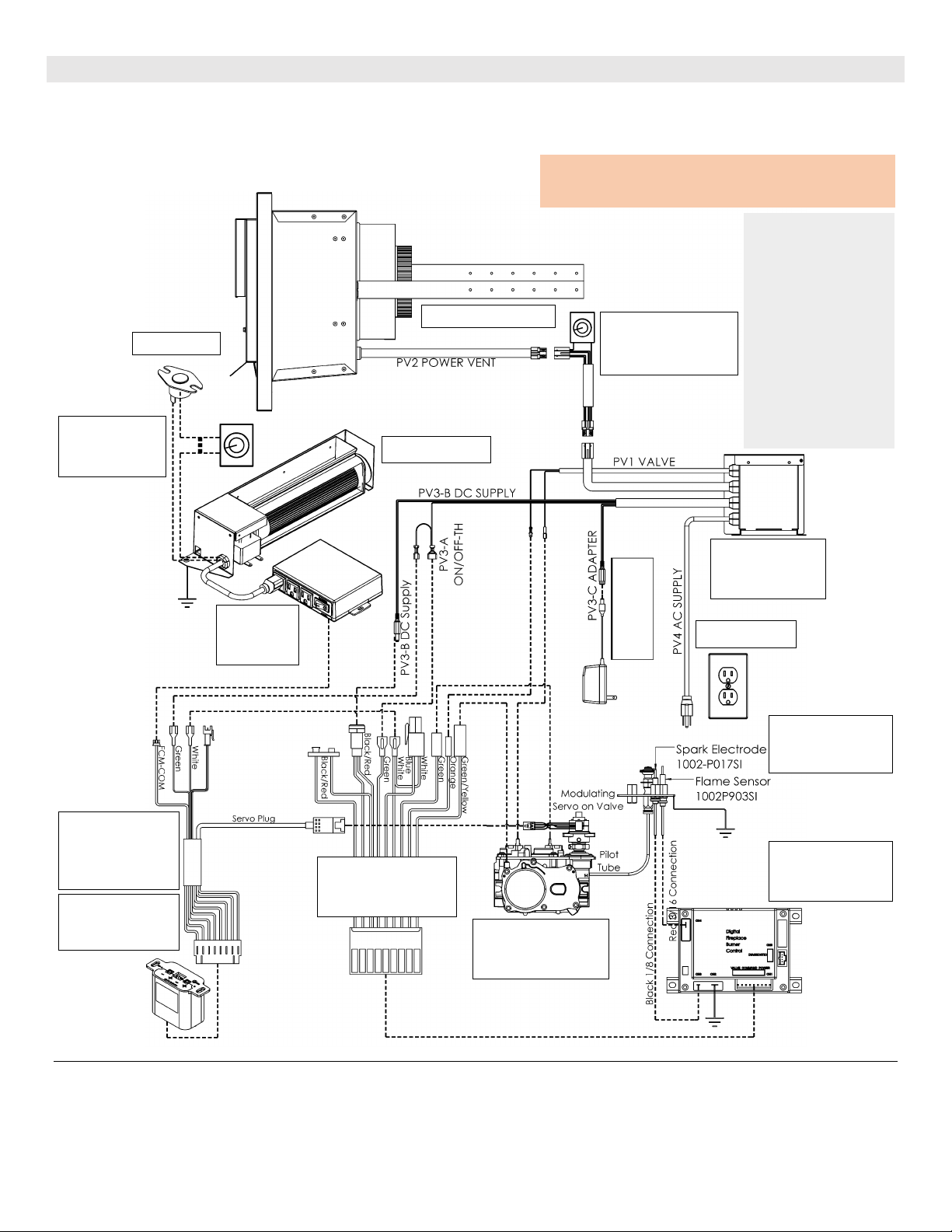

PVH58FM Intermittent Pilot Ignition (IPI) System Connections (with Accessories) ..............................................................................................................18
Recommended Method of Connection....................................................................................................................................................................................18

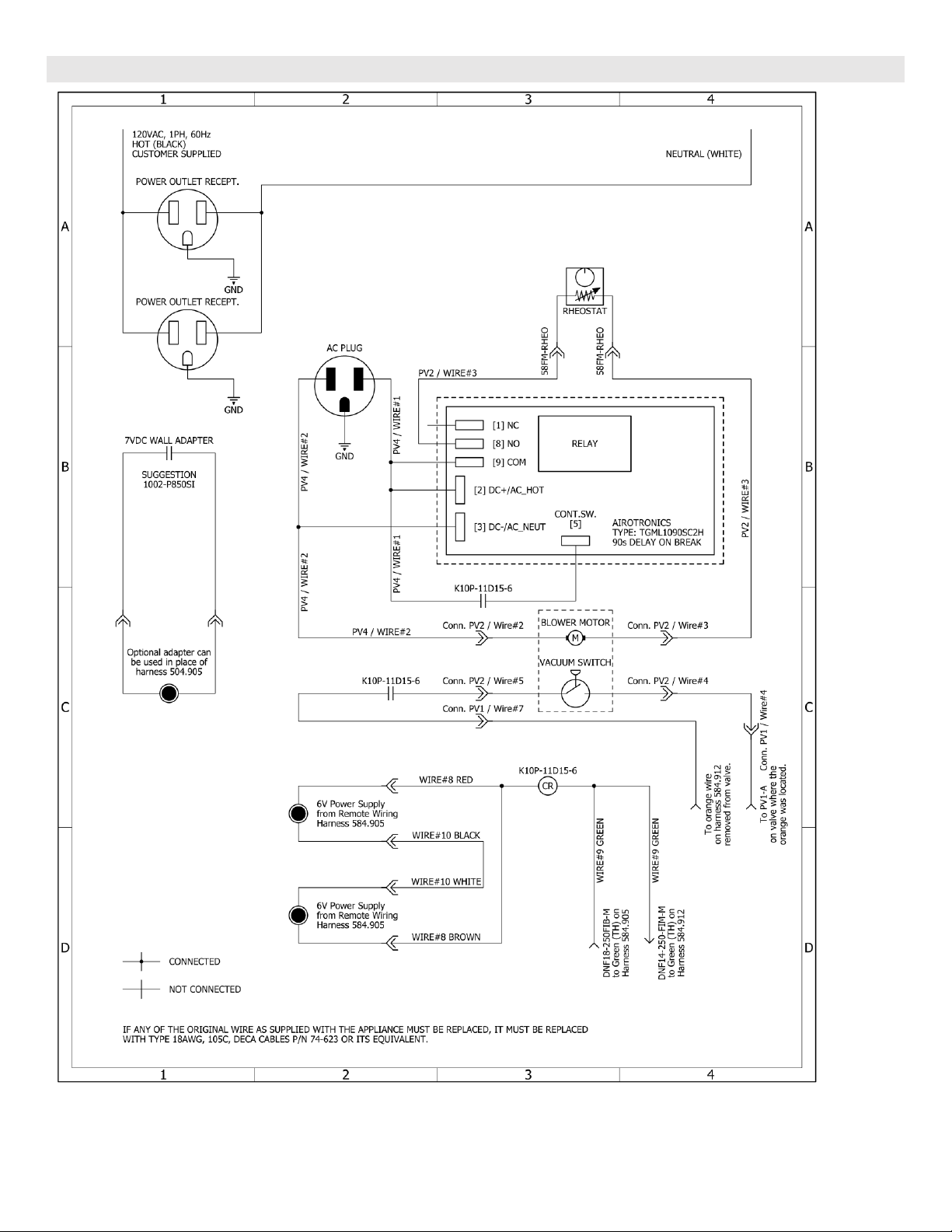

PVH58FM Power Vent Control Module (PVCM) Schematics –Intermittent Pilot Ignition (IPI) .........................................................................................19
PVH58FM Proflame 2 (PF2) System Connections (with Accessories)..................................................................................................................................... 20
PVH58FM Proflame 2 (PF2) Power Vent Preparations...............................................................................................................................................................21
Remove Internal Jumper ..............................................................................................................................................................................................................21
Cut and Crimp APS Wire..............................................................................................................................................................................................................21
PVH58FM Power Vent Control Module (PVCM) Schematics –Proflame 2 (PF2)................................................................................................................ 22
PVH58FM Power Vent Air Flow Adjustment ...............................................................................................................................................................................23
Lazy Sooty Flame.......................................................................................................................................................................................................................... 23
Flame too Fast............................................................................................................................................................................................................................... 23
Wind Gusts ..................................................................................................................................................................................................................................... 23
Dialing Discharge Flowrate Intensity......................................................................................................................................................................................... 23
Discharge Air Flow Check (For Diagnostics Purpose Only) .................................................................................................................................................23
PVH58FM Troubleshooting.............................................................................................................................................................................................................24
PVH58FM Parts List........................................................................................................................................................................................................................... 25

Page 3
WARNINGS,INSTALLATIONS,AND OPERATIONS
Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or—in the absence of local codes—with the
current CAN/CSA-B149.1 or .2 Installation Code (in Canada), or the current National Fuel Gas Code Z223.1- NFPA 54 (in the USA).
All electrical installations much be performed by a qualified electrician to the latest Canadian Electrical Code CSA C22.1 (for Canada), and/or
U.S. National Electrical Code ANSI/NFPA 70 (for the USA).
Thermostats are NOT permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative) in the USA.
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be removed.
6. Do not strike or abuse glass. Take care to avoid breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than factory supplied components.
9. This appliance gives off high temperatures and should be located out of heavy
traffic areas and away from furniture and draperies.
10. Children and adults should be alerted to the hazards of the high surface
temperatures of this appliance and should stay away to avoid burns or ignition
of clothing.
11. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict
access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and other at-risk individuals out of the
room and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood, paper, etc.) be used in this appliance.
13. Under no circumstances should this appliance be modified. Any parts removed for servicing should be replaced prior to operating this
appliance.
14. Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to operating the appliance.
15. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually
by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It
is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean. Make sure that the gas
valve and pilot light are turned off before you attempt to clean this unit.
16. Clothing or other flammable material should not be placed on or near the appliance. This appliance should not be used as a drying rack
for clothing nor should Christmas stockings or decorations be hung from it.
17. Do not use this heater if any part has been under water. Immediately call a qualified service technician to inspect the heater and to
replace any part of the control system and any gas control which has been under water.
18. Do not operate appliance unless completely installed as per installation instructions.
19. Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may
result in property damage or personal injury.
20. WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass should be done by a
licensed or qualified service person.
21. The appliance area must be kept clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
22. The front of the fireplace gives off high temperatures that could ignite combustible materials that are close to the front of the unit.
23. Ensure that power to the Fireplace is turned off before servicing.
24. Do not operate this Fireplace without the glass front or with a broken glass.
25. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner's
information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency, or
the gas supplier.
26. Operation of this appliance when not connected to a properly installed and maintained venting system or tampering with the blocked
vent shutoff system can result in carbon monoxide (CO) poisoning and possible death.
27. This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.

Page 4
Gas fired appliances may be used only for supplemental heat and/or decorative purposes, and under no circumstances shall they provide a
primary heat source.
This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home. Place a
detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
Thermostats are not permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative) in the USA. In USA see local codes.
Operations and Maintenance Instructions
For safe installation and operation note the following:
1. Venting systems should be periodically examined by a qualified agency.
2. The flow of combustion and ventilation air must not be obstructed.
3. The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
4. Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner areas. See Log Placement
page to remove logs. Vacuum burner parts and replace logs.
5. Never use your gas fireplace as a cooking device.
6. Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper
operation after servicing.
Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When
installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements
listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the vent terminal
and the air intake is installed below four feet above grade the following requirements must be satisfied:
a. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm shall
be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720.
b. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
i. Be powered by the same electrical circuit as the appliance or equipment such that only one service switch services both
the appliance and the carbon monoxide detector;
ii. Have battery back-up power;
iii. Meet ANSI/UL 2034 Standards and comply with NFPA 720; and
iv. Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527 CMR.
c. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall
be in strict compliance with the manufacturer’s instructions. A copy of the installation instructions shall remain with the appliance
or equipment at the completion of the installation.
d. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above the location of vent
terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet away, and read "Gas Vent Directly
Below".
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of the vent terminal
and the air intake is installed above four feet above grade the following requirements must be satisfied:
a. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm shall
be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720.
b. A carbon monoxide detector shall:
i. Be located in the room that houses the appliance or equipment;
ii. Be either hard-wired or battery powered or both; and
iii. Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall be in strict
compliance with the manufacturer instructions. A copy of the installation instructions shall remain with the appliance or equipment at the
completion of the installation.
For the state of Massachusetts, a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-off valve must be
listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts state code CMR238.

Page 5
PVH58FM INSTALLATION OVERVIEW
Either Hard Pipe or Flex Pipe can be used, along with the appropriate adapter kit.
PVH58FM Horizontal Power Vent Installation Procedure
1. Install fireplace as per manual instructions.
2. Choose suitable location for PVH58FM Power Vent Termination. Refer to PVH58FM Termination Clearances and Venting Clearances
sections of this manual.
3. Determine venting configuration to be used (i.e. hard pipe or flex, and routing). Install venting with appropriate adapter kits. See Venting
Hard Pipe or Flex (page 7), and Venting Configurations (page 9) sections of this manual.
4. Install PVH58FM Wall Thimble if mounting in a combustible wall. Refer to Openings and Wall Thimble Installation section on page 11.
5. Install PVH58FM Power Vent (refer to Power Vent Mounting section) and venting.
6. Install Power Vent Control Module in fireplace. Refer to Power Vent Control Module Installation sections.
7. For electrical connections refer to PVH58FM Wiring Harness Connections and Millivolt/IPI/Proflame 2 System Connections sections.
8. Air Intake Adjustment & Troubleshooting (refer to these sections).
PVH58FM TERMINATION CLEARANCES
It is imperative that the vent termination be located observing the minimum clearances as shown. There must not be any obstruction such as
bushes, garden sheds, fences, decks or utility buildings within 24" from the front of the termination plate. Do not locate termination where
excessive snow or ice build-up may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of
venting system. When using snow blowers, make sure snow is not directed towards vent termination area. Venting terminal shall not be
recessed into a wall or siding, except for mounting flange. Also refer to VENTING CLEARANCES section.
Figure 1 - Exterior discharge clearances.
CARBON MONOXIDE (CO) DETECTOR
It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home. Place a detector
about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat. In USA see local codes.
FOLLOW ALL LOCAL CODES

Page 6
VENTING CLEARANCES
Figure 2 - General clearances.
A. Clearance above a veranda, porch, deck, or balcony or other combustible surface is 27”. Clearance above grade is 12in [30cm] min
1
2
.
B. Clearance to window or door that may be opened. 12in [30cm] min. for appliances 100,000 BTU/h [30kW] and lower, in Canada. 9in
[23cm]2for appliances 50,000 BTU/h and lower, in USA.
C. Clearance to permanently closed window min. 12in [30cm] recommended to prevent condensation on window, in Canada. 9in [23cm] 2 for
appliances 50,000 BTU/h and lower, in USA.
D. Vertical clearance to ventilated soffit located above the termination within a horizontal distance of 2ft [60cm] from the center line of the
termination. 18in [46cm] min4.
E. Clearance to unventilated soffit 12in [30cm] min.
F. Clearance under veranda, porch, deck or balcony 12in [30cm] min.
3
(US
4
)
G. Clearance from a perpendicular inside wall or outer corner to the edge of the vent terminal plate is 3in [7.6cm] min.
H. Clearance to each side of center line extended above meter/regulator assembly 3ft [91cm] within a height 15ft [4.5m] above the
meter/regulator assembly.
I. Clearance to service regulator vent outlet 3ft [91cm] min1. (US4)
J. Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance: In Canada, 6in [15cm] for
appliances ≤10,000 BTU/h [3kW], 12in [30cm] 1 minimum for BTU/h [30kW], 36in [91cm] for appliances >100,000 BTU/h [30kW]. In the USA,
6in [15cm] 2 for appliances ≤10,000 BTU/h [3kW], 9in [23cm] for appliances >10,000 BTU/h [3kW] and ≤50,000 BTU/h [15kW], 12in [30cm]
for appliances >50,000 BTU/h [15kW].
K. Clearance to a mechanical air supply inlet 6ft [1.8m] min1. in Canada. In USA, 3ft [91cm] above if within 10ft [3m] 2 horizontally.
L. Clearance above paved sidewalk or a paved driveway located on public property 7ft [2.1m] min
5
.
M. Clearance above highest point of exit on roof 18in [45cm].
N. A moisture-exhaust duct shall not terminate within 3ft [1m] in any direction of a service regulator or fresh-air intake.
1
In accordance with the current CSA B149.1, Natural Gas and Propane Code.
2
In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
3
Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
4
Clearance in accordance with local installation codes and the requirements of the gas supplier.
5
A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both
dwellings.
NOTES
1) Clearances are to the edge of terminal plate, add 5-1/2” to
clearances to arrive at center line.
2) Local Codes or Regulations may require different clearances.

Page 7
VENTING HARD PIPE OR FLEX
The PVH58FM Power Vent is approved for use with M&G
DuraVent DirectVent Pro Direct Vent system (Model DV-GS Series),
and AmeriVent Direct Vent Pipe System, ICC Excel Direct, Metal
Fab Sure-Seal DV and Selkirk Direct Temp. Follow installation
instructions provided by the appropriate manufacturer for
installation of pipe, and adhere to the Clearance to Combustibles
provided in this manual. Apply a bead of Mill-Pac High Temp
sealant to all joints of pipes, adapters and termination as
recommended. WARNING: DO NOT MIX PARTS FROM DIFFERENT
SYSTEMS UNLESS STATED IN THE MANUAL.
Flex Pipe Venting - Approved For 4/7”, 5/7” And 7/10” Kingsman
Flex (Z-Flex) Pipe
Kingsman Flex Pipe is shipped in unexpanded length. When
installing Flex Pipe be sure to stretch to the stated length and cut
off excess. Be sure to use approved couplers and connectors to
join flex pipe.
Place the spring spaces provided approximately every two feet to
stabilize inner flex in the center of the outer flex. When forming
bends place spring in bend or before and after. Horizontal runs
require support metal straps every 2 feet. In offset installation
support straps should be used to stabilize pipe.
Expand inner and outer flex pipe to the point that the inner flex
protrudes approximately 2 to 3 inches past the outer flex. Attach
the inner flex to the adapter first and secure with sealant and
screws then attach the outer flex to the adapter with caulking and
screws. Silicone around termination to waterproof.
Use Hi Temp Sealant
Apply a bead of Mill-Pac High Temp sealant to all joints and use
four screws to secure each pipe at fireplace, termination and any
joint if joining any sections of pipe.
ONLY VENTING COMPONENTS SPECIFICALLY APPROVED AND
LABELED FOR YOUR FIREPLACE MAY BE USED.
4/7
VENTING
Choose venting to be used:
Section 1 –Hard Pipe, Section 2 –Flex Vent
SECTION 1
DIRECT VENT HARD PIPE 4x6-5/8"
(For entire installation)
NOTE: Two adapters needed; one at flue and one at termination.
At Flue of Fireplace
ZDVDFA
DuraVent Adapter –for Sloped Flue
ZDVDKA
DuraVent Adapter –for Flat Flue
At Termination End
ZDVDIA
DuraVent Hard Pipe Adapter
(Used to connect 4x6-5/8" to 5/8 Hard Pipe)
SECTION 2
FLEX VENT
(For entire installation –Order Z47PVA)
At Termination End
Z47PVA
Flex Pipe Adapter Kit
(To adapt flex pipe to Power Vent to Hard Pipe)
5/7
VENTING
Choose venting to be used:
Section 1 –5/8 Hard Pipe, Section 2 –4x6-5/8” Hard Pipe,
Section 3 –Flex Vent
SECTION 1
DIRECT VENT HARD PIPE 5/8
(For entire installation –Order Z57DFA)
At Flue of Fireplace
Z57DFA
DuraVent Hard Pipe Adapter
(5/7” to 5/8”at Flue of Fireplace)
SECTION 2
DIRECT VENT HARD PIPE 4 x 6-5/8”
(For entire installation –Order Z57DFA, ZDVDRA, ZDVDIA)
Z57DFA
DuraVent Hard Pipe Adapter
(5/8” at Flue of Fireplace)
ZDVDRA
DuraVent Reducer- 5/8” to 4x6-5/8” Adapter
(Used at Flue of Fireplace)
At Termination End
ZDVDIA
DuraVent Hard Pipe Adapter
(Used to connect 4x6-5/8” to 5/8 Hard Pipe)
SECTION 3
FLEX VENT
(For entire installation –Order Z57PVA)
Z57PVA
Flex Pipe Adapter Kit
(Used to adapt flex 5/7” to power vent to hard pipe 5/8”)
5/8
VENTING
Choose venting to be used:
Section 1 –5/8 Hard Pipe, Section 2 –4x6-5/8” Hard Pipe,
Section 3 –Flex Vent
SECTION 1
DIRECT VENT HARD PIPE 5/8”
(For entire installation –Order Z58DFA)
Z58DFA
DuraVent Hard Pipe Adapter –5/8” (Sloped Flue)
NOTE: Only sloped flues require Z58DFA adapter.
SECTION 2
DIRECT VENT HARD PIPE 4 x 6-5/8”
(For entire installation –Order ZDVDRA, ZDVDIA)
Z58DFA
DuraVent Hard Pipe Adapter –5/8” (Sloped Flue)
NOTE: Only sloped flues require Z58DFA adapter.
ZDVDRA
DuraVent Reducer –5/8” to 4x6-5/8” Adapter
(Used at flue of fireplace)
NOTE: Models MQVL48/60 and ZCVRB60 will require a one-
foot section of MG Hard Pipe at flue before using ZDVDRA.
At Termination End
ZDVDIA
DuraVent Pipe Increaser (at Power Vent)
SECTION 3
FLEX VENT
(For entire installation –Order Z58PVA)
Z58PVA
Flex Pipe Adapter Kit
(To adapt flex pipe to Power Vent to Hard Pipe)
7/10
VENTING
Choose venting to be used:
Section 1 –5/8 Hard Pipe, Section 2 –4x6-5/8” Hard Pipe,
Section 3 –Flex Vent
SECTION 1
DIRECT VENT HARD PIPE
(For entire installation –Order Z69DFA)
At Flue of Fireplace
Z69DFA
DuraVent Hard Pipe Adapter –5/8”
SECTION 2
DIRECT VENT HARD PIPE 4 x 6-5/8”
(For entire installation –Order Z69DFA, ZDVDRA, ZDVDIA)
At Flue of Fireplace
Z69DFA
DuraVent Hard Pipe Adapter –5/8”
NOTE: Will require 1ft section of 5/8” DuraVent attached to Z69DFA.
ZDVDRA
DuraVent Reducer –5/8” to 4x6-5/8” Adapter
At Termination End
ZDVDIA
DuraVent Hard Pipe Adapter
(Used to connect 4x6-5/8” to 5/8” Hard Pipe)
SECTION 3
FLEX VENT 7/10”
(For entire installation –Order Z69PVA)
At Termination End
Z69PVA
Flex Pipe Adapter Kit
(Used to adapt flex pipe to Power Vent to Hard Pipe)
NOTE: Must use a one-foot section of 5/8 DV hard pipe (not supplied)
to connect to the Power Vent Termination on all installations.

Page 8
ADAPTERS AND ADAPTER KITS
Adapters at Fireplace
Adapters at Termination
ZDVDKA
DuraVent Fireplace Adapter
Z47PVA
Flex Pipe Adapter Kit
ZDVDFA & Z58DFA
DuraVent Fireplace Adapter
Z57PVA
Flex Pipe Adapter Kit
ZDVDRA
DuraVent Reducer
Z58PVA
Flex Pipe Adapter Kit
Z57DFA
DuraVent Hard Pipe Adapter
ZDVDIA
DuraVent Hard Pipe Adapter
Z69DFA
DuraVent Hard Pipe Adapter
Z69PVA
Flex Pipe Adapter Kit

Page 9
Figure 4 - Maximum elbows.
VENTING CONFIGURATIONS
Figure 3 - Vent pipe configurations.
MAX Venting
125ft [38.1m] Plus
size 90°Elbows
Minimum Vent Lengths
NOTES
FOR FIREPLACES EQUIPPED WITH MILLIVOLT/STANDING PILOT IGNITION:
Downward vertical runs are NOT PERMITTED.
FOR FIREPLACES EQUIPPED WITH INTERMITTENT PILOT IGNITION (IPI):
Downward vertical runs are permitted AS LONG AS THE COLD CLIMATE SWITCH IS
DISABLED OR NOT USED.
REFER TO FIREPLACE MANUAL FOR PROPER INSTALLATION OF YOUR FIREPLACE.
Minimum clearance to combustibles on venting is as stated in fireplace manual, except
after 30ft [9.1m] of venting where clearances can be reduced to 1in [31cm] clearance
from combustibles.
Seven 90 elbows are possible if the
total horizontal is LESS THAN 25ft
[7.6m] and the vertical DOES NOT
EXCEED 15ft [4.5m]
Maximum
Maximum vent length is 125ft [38.1m] plus six 90°elbows with Air Intake setting at
LOW. Termination MUST NOT be below unit. Refer to the Air Intake Adjustment
section of this manual to adjust Air Intake.
This Power Vent can be installed up to 8ft [2.4m] below the installed fireplace on
runs less than 100ft [30.4m] and not more than four 90°elbows.
Minimum
Minimum vent length is 1ft [31cm] vertical x 3ft [92cm] horizontal x 3ft [92cm]
vertical x 3ft [92cm] horizontal. Please refer to the illustration below.

Page 10
PVH58FM DIMENSIONS
Figure 5 –PVH58FM unit general dimensions.
Figure 6 - PVH58FM Wall Thimble general dimensions.
BEND OUT SIX (6) STANDOFF TABS
