Kingsun GALAXY PL1F1012 User manual

Arm

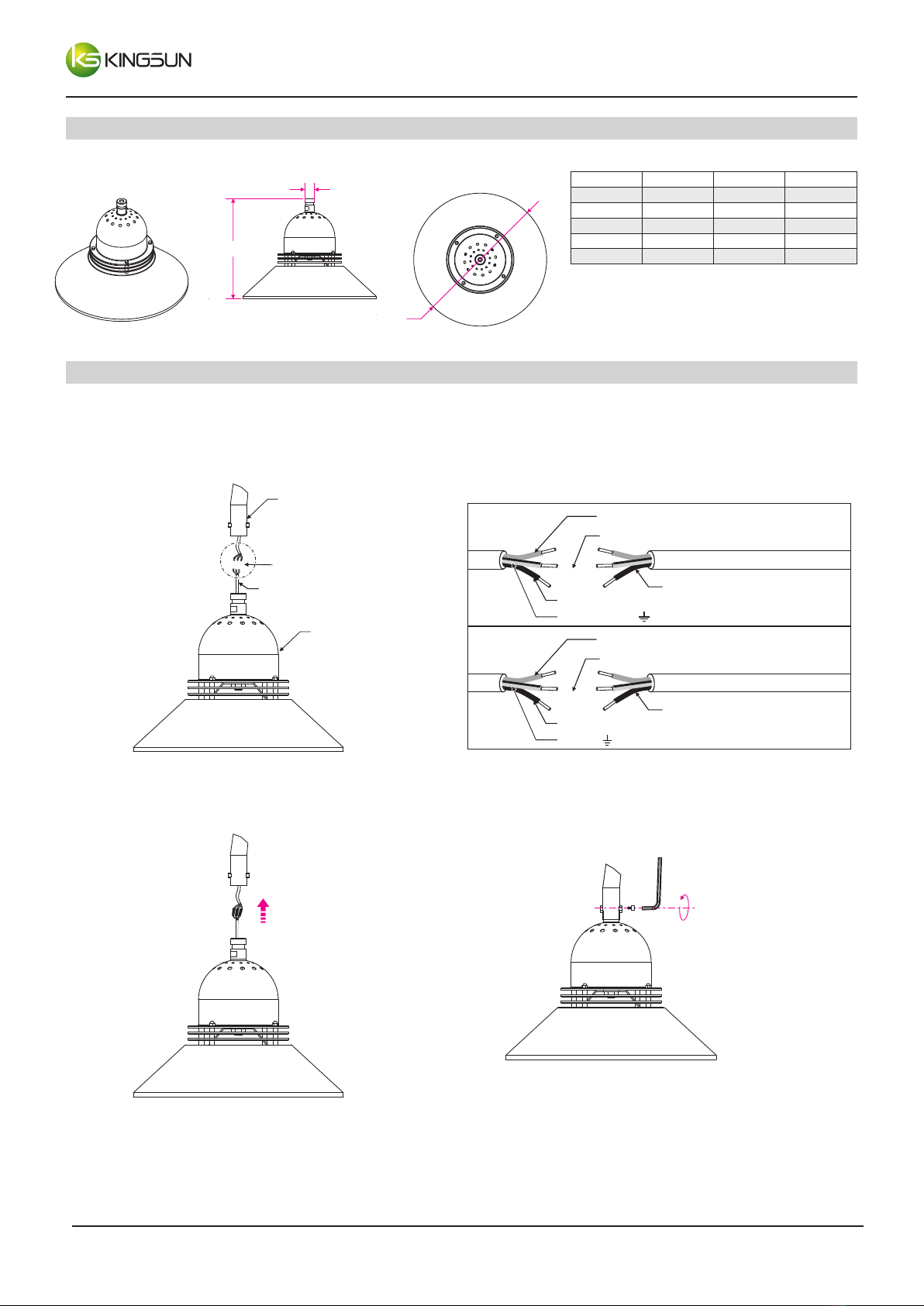

PL1F GALAXY GARDEN LIGHT MANUAL
PL1F GALAXY GARDEN LIGHT MANUAL
Step 1: Connect the power wire and make insulation and water-proof processing. Please look at detail A/B at the wiring place.
(please connect wires as per appropriate color of power cords as shown in A/B diagram. )
Ø500.0mm
377.0mm
Ø37.0mm
Cautions:
Ensure safety and firmness of wiring junction.
Protect power supply cables against scuff during installation.
Not to cleaning the lens with strong acid and any marked corrosive solution.
Step 2: Put the light into the arm. Step 3: Tighten the light with screw by wrench and make sure the light is firm.
Warning: Luminaire can not be directly installed on the surface of ordinary flammable material in any circumstance
If outer flexible cable or cord of luminaire are damaged,only manufacturer，its agent or eligible people can replace them
to avoid accident
Warning:
Installation Instruction
Note: take PL1F1048 garden light for example
Product Size
PL1F1024
PL1F1036
PL1F1048
PL1F1012
PL1F1060
Product Specification
Product Spec
500.0 500.0 377.0
500.0 500.0 377.0
500.0 500.0 377.0
500.0 500.0 377.0
500.0 500.0 377.0
L W H
unit: mm
lamp pole
power supply wire
Please connect the same color or same
polar wires together.
Brown“L”
Black“L”
White “N”
Green “ ”
Retention wire
Retention wire
Please connect the same color or same
polar wires together.
Blue“N”
A Diagram
B Diagram
Yellow green" "
Please look at detail A/B on
the wiring place.
Please look at detail A/B on
the wiring place.

www.kingsun-china.com
www: kslights.com
E-mail: [email protected]
Global Customer Service line: 400 880 0816
Statement: The details in this book have been checked carefully, Kingsun reserves the right of explication for any errors caused by printing and translation. Specifications are subject to change without notice Kingsun Optoelctronics Co., Ltd All rights reserved
3306-PL1F-0007 (A)
Material
Rated Power
Product Specifcation
Input Voltage
Frequency Range
Power Factor(PF)
Working Voltage
Working Environment
IP Rating
Symbol of power types
The temperature of LED Module Shell
Technical Parameters
Working temp.Ta:50°C; Working humidity:10%-95%;
Size
Thickness
Protective
Covering
lamp body
Net Weight
50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
0.95 0.95 0.95 0.95 0.95
DC53V DC53V DC53V DC53V DC53V
Tc:65°C Tc:65°C Tc:65°C Tc:65°C Tc:65°C
TypeⅠTypeⅠTypeⅠTypeⅠTypeⅠ
100V-240V~ 100V-240V~ 100V-240V~ 100V-240V~ 100V-240V~
IP65 IP65 IP65 IP65 IP65
PL1F1024 PL1F1036 PL1F1048 PL1F1060PL1F1012
3mm 3mm 3mm 3mm 3mm
PC PC PC PC PC
Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Ø300xH33.5mm Ø300xH33.5mm Ø300xH33.5mm Ø300xH33.5mm Ø300xH33.5mm
≈7.5KG ≈7.5KG ≈7.5KG ≈7.5KG ≈7.5KG
