PPC-6101All-in-One CPU Board Series User’s Manual
Introduction 1
C h a p t e r 1
Introduction
1.1 General Description
The PPC-6101is a featured-pack CPU Board designed for industrial
purpose. It provides reliable high performance and function-rich
capability.
The onboard CPU incorporates the VIA VT8606 chipset and the
VT82C686B with built-in AGP-4x VGA controller; the PC/104 bus is
available for further expansions. Its 8-layer structure reduces signal
noise and meets ACPI function with its built-in power management
feature.
Designed for the professional embedded developers, this PPC-6101
is virtually an ultimate one-step solution to various applications. It
provides fanless possibility for critical application environments with
low power consumption design to improve system MTBF.

PPC-6101All-in-One CPU Board Series User’s Manual
Introduction
2
1.2 Specifications
 Processor:
 VIA EDEN 400MHz, 667MHZ,or C3 800MHz (C3 1GHz CPU or other
frequency processors are manufacturer optional)
 L2 Cache:
 Integrated in CPU
 Chipset:
 VT8606 (Twister-T) + VT82C686B
 System Memory:
 One 144-pin DIMM socket
 Maximum up to 512MB SDRAM
 BIOS:
 AWARD BIOS, Plug-and-Play 4Mbit Flash ROM with SmartView VGA
BIOS Function and integrated Ethernet Novell RPL and Windows
PXE Boot ROM functions
 Watchdog Timer:
 Generates a system reset or NMI by jumper selectable
 Software programmable time interval
 64 levels, 0.5~8/5~80/50~800/100~1600 seconds
 Standard I/O:
 Four serial ports, including three RS-232 and one RS-232/422/485
 One parallel port, SPP/EPP/ECP
 One HDD Interface
 One FDD Interface
 One PS/2 Keyboard & Mouse Interface
 One IrDA interface for wireless communication
 USB Interface: 2 USB ports with USB Spec. Rev. 1.1a compliant
 Ethernet:
 Realtek 8139C PCI Bus 10/100M Base-T
 Wake On LAN (via ATX power supply)
 Onboard RJ-45 connector

PPC-6101All-in-One CPU Board Series User’s Manual
Introduction 3
 Digital I/O: 8-channel TTL/DTL compatible input and output
 Board ID: Dallas DS2401 Board unique ID support
 Solid State Disk Interface:
 One CompactFlash Type II Socket
 Expansion Slot: one 16-bit pc/104 connector
 AC97 Link: AC97 Link interface for external audio Codec Kit
(AX93102)
 Drivers:
 VIA Chipset Driver
 Ethernet Utility and Drivers
 VGA Drivers

PPC-6101All-in-One CPU Board Series User’s Manual
Introduction
4
This page does not contain any information.

PPC-6101All-in-One CPU Board Series User’s Manual
Installation 5
C h a p t e r 2
Installation
2.1 Installation Steps
Follow the steps listed below to install the PPC-6101in the system.
1. Make sure the power is OFF.
2. Set the configuration jumpers according to the jumper settings in
Chapter 3.
3. Connect the I/O cables and peripherals, i.e. floppy disk, hard disk,
monitor, keyboard, power supply and etc. to the CPU board.
NOTE: The color of pin one is usually red or blue, while others are
gray.
2.2 Peripherals for a Minimum System
The following is a list of typical peripherals required to build a minimum
system:
 AT or ATX Power supply
 IBMTM PS/2 keyboard And Mouse
 Display monitor
 Floppy or hard disk with MS-DOS or Flash Disk emulator

PPC-6101All-in-One CPU Board Series User’s Manual
Installation
6
2.3 Installation of PPC-6101into a Chassis
Please follow the steps below to install the PPC-6101onto a chassis:

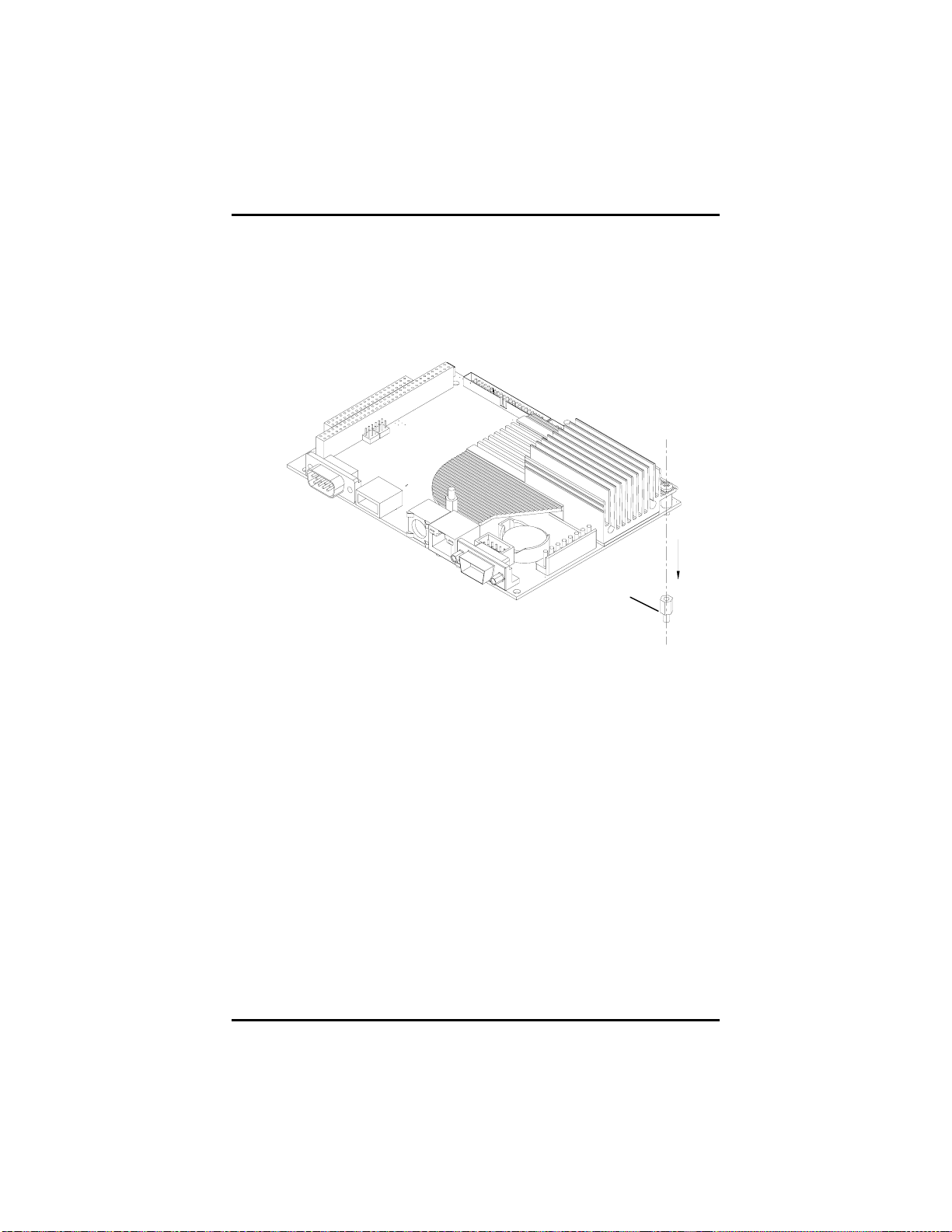

1. Remove the pillar (a) from the PPC-6101as shown in Figure 1.
Figure 1.

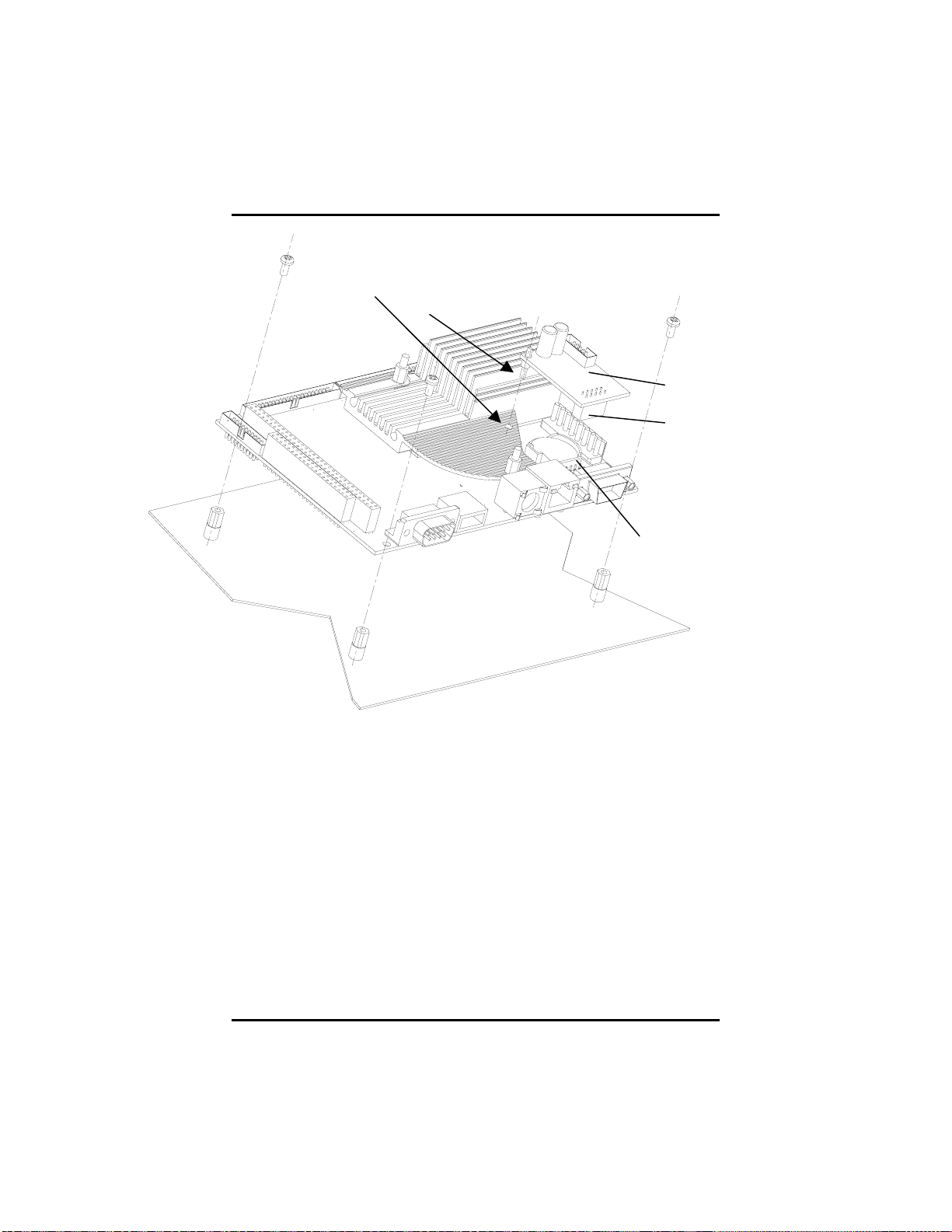

2. Screw the pillar (a) removed from the PPC-6101 and another
three pillars (c), which have same height with the pillar (a), to the
chassis as shown in the Figure 2.
3. Use the bolt (b) on the PPC-6101 module to screw the module
with the pillar (a) on the chassis.
4. Screw three proper bolts (d) to the other three pillars (c) to secure
the board with the chassis.
(a)

PPC-6101 All-in-One CPU Board Series User’s Manual
Installation 7
Figure 2.
5. If the Audio kit, AX93102, is used, plug the 10-pin female
box-header of the AX93102 onto the 10-pin male box-header of
the PPC-6101 as shown on Figure 3.
6. Make sure the spacer support (e) fit into the hole (f) on the PPC-6101
.
(d)
(b)
(a)
(c)

PPC-6101 All-in-One CPU Board Series User’s Manual
Installation
8
Figure 3
(e)
(f)
AX93102
10-pin female
box-header
10-pin male
box-header

PPC-6101 All-in-One CPU Board Series User’s Manual
Jumpers and Connectors 9
C h a p t e r 3
Jumpers and Connectors
3.1 Jumpers and Connectors Layout

PPC-6101 All-in-One CPU Board Series User’s Manual
Jumpers and Connectors
10
3.2 Jumpers and Connectors Dimensions
9.14
93.60
84.84
68.58
17.40
91.06
72.90
73.66
8.89
143.05
98.37
128.52
39.88
27.66
51.90
100.00
124.00
146.05
104.65
98.37
3.18
143.05
87.25
84.00
68.58
8.89
3.18
0.00
0.00
HeatSink Zone

PPC-6101 All-in-One CPU Board Series User’s Manual
Jumpers and Connectors 11
3.3 Jumper Settings
Making the proper jumper settings configure the PPC-6101 to match
the needs of your application.
The following table shows the default jumper settings for the onboard
devices.
Jumper Default Setting Jumper Setting
JP1 Watchdog Trigger Mode: Disabled Open
JP2 Flat Panel Power Selection: VDDM at 5V Short 1-2
JP3 Clear CMOS Setting: Normal Short 1-2
JP4 COM2 Port Setting: RS-232 Short 1-2
JP5 COM2 Port Setting: RS-232 Short 3-5, 4-6
JP6 COM2 Port Setting: RS-232 Short 3-5, 4-6
JP7 Power Supply Selection: AT power supply Short 1-2
JP8 COM1: Pin 1=Signal/+5V Selection
Default: COM Signal Short 2-3
JP9 COM2: Pin1=Signal/+5V Selection
Default: COM Signal Short 2-3
JP10 COM4: Pin 1=Signal/+5V Selection
Default: COM Signal Short 2-3
JP11 COM3: Pin 1=Signal/+5V Selection
Default: COM Signal Short 2-3
JP12 Compact Flash Voltage Selection
Default: 3.3V Short 1-2

PPC-6101 All-in-One CPU Board Series User’s Manual
Jumpers and Connectors
12
3.3.1 Watchdog Timer Trigger Mode Setting: JP1
The watchdog timer is an indispensable feature of the PPC-6101. It
has a sensitive error detection function and a report function. When
the CPU processing comes to a halt, the watchdog either generates a
NMI or resets the CPU.
Options Setting
NMI Short 1-2
RESET Short 2-3
Disabled
(default) Open
123
3.3.2 Power Selection of Flat Panel Connector
(VDDM of LCD1 and LCD2): JP2
PPC-6101 supports +5V flat panel displays. Configure the jumper JP2
to the appropriate voltage of the flat panel
VDDM Settings
5V Short 1-2
1
2
3
.
3.3.3 CMOS Clear Jumper: JP3
Options Settings
Clear CMOS Short 2-3
Normal (default) Short 1-2
123

PPC-6101 All-in-One CPU Board Series User’s Manual
Jumpers and Connectors 13
3.3.4 COM2 RS232/422/485 Settings: JP4, JP5, JP6
COM2 JP4 JP5 JP6
RS-232 (default) Short 1-2 Short 3-5, 4-6 Short 3-5, 4-6
RS-422 Short 3-4 Short 1-3, 2-4 Short 1-3, 2-4
RS-485 Short 5-6, 7-8 Short 1-3, 2-4 Short 1-3, 2-4
JP4
2
4
6
1
3
5
7
8
JP5 and JP6
246
135
3.3.5 Power Supply Type Selection: JP7
Options Settings
AT P/S Short 1-2(default)
ATX P/S Short 2-3
1
2
3
3.3.6 COM2 Signal/+5V Selection: JP8
Options Setting
Pin 1=+5V Short 1-2
Pin 1=DCD Short 2-3 (default)
JP8
1
2
3

PPC-6101 All-in-One CPU Board Series User’s Manual
Jumpers and Connectors
14
3.3.7 COM1 Signal/+5V Selection: JP9
Options Setting
Pin 1=+5V Short 1-2
Pin 1=DCD Short 2-3(default)
JP9
1
2
3
3.3.8 COM4 Signal/+5V Selection: JP10
Options Setting
Pin 1=+5V Short 1-2
Pin 1=DCD Short 2-3 (default)
JP10
1
2
3
3.3.9 COM3 Signal/+5V Selection: JP11
Options Setting
Pin 1=+5V Short 1-2
Pin 1=DCD Short 2-3 (default)
JP11
1
2
3
3.3.10 Compact Flash Voltage Selection: JP12
Options Setting
5V Short 2-3
3.3V Short 1-2(default)
JP12
1
2
3
