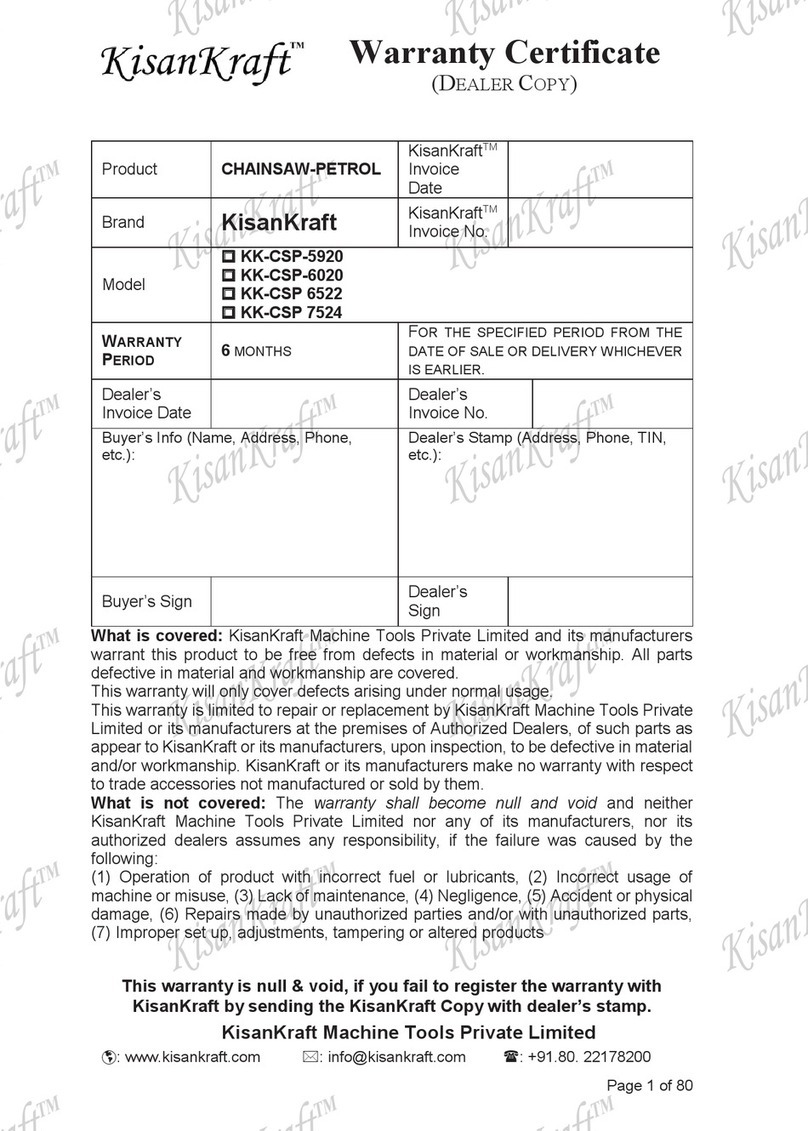

KISANKRAFT KK-CSP-5720 User manual

KisanKraft®
Warranty Certificate
(DEALER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Limited (formerly known as KisanKraft Machine Tools P Ltd)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 1 of 52
Product
HEAVY DUTY
Petrol Chainsaw
KisanKraft
Invoice
Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-CSP-5720
KK-CSP-8650
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER
IS EARLIER.
Dealer’s
Invoice Date
Dealer’s
Invoice No.
Buyer’s Info (Name, Address, Phone,
etc.):
Dealer’s Stamp (Address, Phone, TIN,
etc.):
Buyer’s Sign
Dealer’s
Sign
What is covered: KisanKraft Limited and its manufacturers warrant this product to
be free from defects in material or workmanship. All parts defective in material and
workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its
manufacturers at the premises of Authorized Dealers, of such parts as appear to
KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to trade
accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither
KisanKraft Limited nor any of its manufacturers, nor its authorized dealers assumes
any responsibility, if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of
machine or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical
damage, (6) Repairs made by unauthorized parties and/or with unauthorized parts,
(7) Improper set up, adjustments, tampering or altered products

KisanKraft®
Warranty Certificate
(DEALER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Limited (formerly known as KisanKraft Machine Tools P Ltd)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 2 of 52
Important: (1) Normal maintenance and adjustments to the product is the
responsibility of the customer. (2) Normal wear and tear is not covered under
warranty(3) Rubber/plastic parts and consumables such as blades, clutch and clutch-
bell, spark-plugs, nylon line, air-filters, fuel-filters, oil seals etc. are not covered under
the warranty.
No Warranty On Electrical Motor / Electrical Parts / Battery Etc.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be
liable for general damages, including bodily injuries, or for incidental or consequential
damages including, but not limited to, loss of use, loss of profits, loss of production,
expense of substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations or liabilities, including,
but not limited to, any implied warranty of merchantability shall be limited in duration
to the applicable warranty period. Any action for breach of any warranty hereunder,
including, but not limited to, any implied warranty of merchantability must be brought
within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of
KisanKraft Limited or any of its manufacturers has the authority to increase or alter
the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended
to the first end user (original purchaser), and no warranty is made, nor authorized to
be made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of
any obligation under this warranty for failure during the applicable warranty period,
deliver the defective product, to the nearest Authorized Dealer. KisanKraft Limited, its
manufacturers and its dealers reserve the right to inspect theclaimeddefective part(s)
to determine if the malfunction is the result of a defect covered by this warranty.
Please note that the decision of KisanKraft Limited with respect to any warranty claim
is final.
Receipt is required for availing warranty services
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Our
Products
ChainsawsBrush Cutters and AccessoriesHarvesters
Engines and Water PumpsHand ToolsGardenTools
Cultivators and AccessoriesSprayers and Accessories
Transplanter and Post Hole Digger Milking Machines

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 3 of 52
User Manual
KisanKraft Limited
(Formerly known as KisanKraft Machine Tools Pvt. Ltd)
Sri Huchhanna Tower, #4,1st Main,7-A Cross, Maruthi Layout, Dasarahalli,
HAF Post, Hebbal, Bangalore 560024,Karnataka, INDIA
♦Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦
♦Jammu ♦ Guwahati ♦ Shimla ♦ Hubli ♦ Hyderabad ♦
♦Jaipur ♦ Karnal ♦ Kolkata ♦ Lucknow ♦ Pune ♦ Raipur ♦

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 4 of 52

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 5 of 52
CONTENTS
BEFORE GETTING STARTED...........................................................................8
SAFETY SYMBOLS .........................................................................................8
SAFETY PRECAUTIONS................................................................................10
PARTS OVERVIEW ......................................................................................15
INSTALLING GUIDE BAR AND SAW CHAIN ..................................................16
FUEL AND CHAIN OIL..................................................................................17
STARTING AND STOPPING..........................................................................20
SAWING .....................................................................................................21
MAINTENANCE...........................................................................................24
TROUBLESHOOTING ...................................................................................28
TECHNICAL SPECIFICATIONS.......................................................................31
PARTS DIAGRAM & LIST- BODY ..................................................................32
2 - STROKE PETROL ENGINE- MANUAL .......................................................35
PARTS DIAGRAM & LIST- ENGINE ...............................................................46

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Limited (formerly known as KisanKraft Machine Tools P Ltd)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 6 of 52
Product
HEAVY DUTY
Petrol Chainsaw
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-CSP-5720
KK-CSP-8650
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER
IS EARLIER.
Dealer’s
Invoice
Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone,
etc.):
Dealer’s Stamp (Address, Phone, TIN,
etc.):
Buyer’s
Sign
Dealer’s Sign
What is covered: KisanKraft Limited and its manufacturers warrant this product to
be free from defects in material or workmanship. All parts defective in material and
workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its
manufacturers at the premises of Authorized Dealers, of such parts as appear to
KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to trade
accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither
KisanKraft Limited nor any of its manufacturers, nor its authorized dealers assumes
any responsibility, if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of
machine or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical
damage, (6) Repairs made by unauthorized parties and/or with unauthorized parts,
(7) Improper set up, adjustments, tampering or altered products

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Limited (formerly known as KisanKraft Machine Tools P Ltd)
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 7 of 52
Important: (1) Normal maintenance and adjustments to the product is the
responsibility of the customer. (2) Normal wear and tear is not covered under
warranty.
(3) Rubber/plastic parts and consumables such as blades, clutch and clutch-bell,
spark-plugs, nylon line, air-filters, fuel-filters, oil seals etc. are not covered under the
warranty.
No Warranty On Electrical Motor / Electrical Parts / Battery Etc.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be
liable for general damages, including bodily injuries, or for incidental or consequential
damages including, but not limited to, loss of use, loss of profits, loss of production,
expense of substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations or liabilities, including,
but not limited to, any implied warranty of merchantability shall be limited in duration
to the applicable warranty period. Any action for breach of any warranty hereunder,
including, but not limited to, any implied warranty of merchantability must be brought
within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of
KisanKraft Limited or any of its manufacturers has the authority to increase or alter
the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended
to the first end user (original purchaser), and no warranty is made, nor authorized to
be made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of
any obligation under this warranty for failure during the applicable warranty period,
deliver the defective product, to the nearest Authorized Dealer. KisanKraft Limited, its
manufacturers and its dealers reservethe right toinspect the claimeddefective part(s)
to determine if the malfunction is the result of a defect covered by this warranty.
Please note that the decision of KisanKraft Limited with respect to any warranty claim
is final.
Receipt is required for availing warranty services
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Our
Products
ChainsawsBrush Cutters and AccessoriesHarvesters
Engines and Water PumpsHand ToolsGardenTools
Cultivators and AccessoriesSprayers and Accessories
Transplanter and Post Hole Digger Milking Machines 

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 8 of 52
BEFORE GETTING STARTED
We wish to thank you for choosing our product. We are confident that the high quality of our
product will meet your requirement and will give you long-lasting service. In order to avoid
accidents or injury, please read this manual carefully before using the machine. After reading,
preserve this manual for further reference.
SAFETY SYMBOLS
Types of Warning Used In the Manual:
WARNING
This mark indicates instructions which must be followed in order to prevent accidents which
could lead to serious bodily injury or death.
IMPORTANT
This mark indicates instructions which must be followed, or it leads to mechanical failure,
breakdown, or damage.
NOTE
This mark indicates hints or directions useful in the use of the product.
Explanation of Symbols and Safety Warnings:
Read operation manual before using this machine
Wear head, eye and ear protection.
Warning! Kickback is danger.
Warning / Attention

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 9 of 52
IMPORTANT
If warning seals peel off or become soiled and is impossible to read, you should contact the
dealer from which you purchased the product to order new seals and affix the new seal(s) in the
required location(s).
Symbols on the Machine:
For safe operation and maintenance, symbols are carved on the machine. Follow these
indications and please be careful not to make any mistake.
The port to refuel the“ MIX PETROL”
The port to refuel the “CHAIN OIL”
The indication regarding the choke. Pulling out the choke knob, the
choke closes.
The indication regarding the switch. Flipping the engine switch to
the “O” (OFF) direction, the engine stops.
The indication regarding the chain oil adjuster nut.
“-” direction-the oil flow decrease
“+” direction-the oil flow increase.
H: The High-speed adjustment screw.
L: The Slow-speed adjustment screw.

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 10 of 52
Chain brake, activated (right) Chain brake, not activated (left)
SAFETY PRECAUTIONS
Before Using the Machine:
a) Read this operation manual carefully to understand how to
operate this properly
b) You should never use the product when under the
influence of alcohol, when suffering from exhaustion or
lack of sleep, when suffering from drowsiness as a result of
having taken cold medicine. or at any other time when a
possibility exists that your judgment be might be impaired
or that you might not be able to operate the machine
properly and in a safe manner
c) Avoid running the engine indoors. The exhaust gases
contain harmful carbon monoxide.
d) Never use the product under circumstances like those described below:
1. When the ground is slippery or when other conditions exist which might make it
not possible to maintain a steady posture.
2. At night, at times of heavy fog, or at any other times when your field of vision
might be limited and it would be difficult to gain a clear view of the area.
3. During rainstorms, during lightning storms, at times of strong or gale-force winds,
or at any other times weather conditions might make it unsafe to use this product.
e) When using this product for the first time, before beginning actual work learn to handle
it from a skilled worker.
f) Lack of sleep, tiredness, or physical exhaustion results in lower attention spans, and
this in turn leads to accidents and injury.
g) Limit the amount of time of using the machine continuously to somewhere around 10
minutes per session, and take 10-20minutes of rest between work sessions. Also try
to keep the total amount of work performed in a single day under 2 hours or less.
h) Be sure to keep this manual handy so that you may refer to it later whenever any
questions arise.
i) Always be sure to include this manual when selling, lending, or otherwise transferring
the ownership of the product.
j) Never allow children or anyone unable to fully understand the directions given in this
manual to use this product.
Working Gear and Clothing:
a) When using the product, you should wear proper clothing and protective equipments

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 11 of 52
as follows.
(1) Helmet
(2) Protection goggles or face Protector
(3) Thick work gloves
(4) Non-slip-sole work boots
(5) Ear protectors
b) And you should carry with you the below given things:
(1) Attached tools and files.
(2) Properly reserved fuel and chain oil.
(3) Things to notify your working area (Rope, warning signs)
(4) Whistle (for collaboration or emergency)
(5) Hatchet or saw (for removal of obstacles)
c) Never use the product when wearing pants with loose cuffs, when wearing sandals,
or when barefoot.
Warning Considering Handling of Fuel:
a) The engine of this product is designed to run on a mixed fuel
which contains highly flammable petrol. Never store cans of
fuel or refill the fuel tank in any place where there is a boiler
stove, wood fire, electrical sparks, welding sparks, or any
other source of heat or fire which might ignite the fuel.
b) Smoking while operating the product or refilling its fuel tank is extremely dangerous.
Always be sure to keep lit cigarettes away from the product at all times.
c) When refilling the tank always turn off the engine first and take a careful look round
to make sure that there are no sparks or open flames anywhere nearby before
refueling.
d) If any fuel spillage occurs during refueling, use a dry rag to wipe up spills before
turning the engine back on again.
e) After refueling, screw the fuel cap back tightly onto the fuel tank and then carry the
product to a spot 3m or more away from where it was refueled before turning on the
engine.
Before Starting Engine:
a) Check working place, the cutting object and cutting direction. If there is obstacle,
remove it.
b) Never start cutting until you have a clear work area, secure footing and a planned
retreat path from the failing tree.

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 12 of 52
c) Use caution and keep by standers and animals out of the working area whose
diameter is 2.5 times of the cutting object.
d) Inspect the machine for worn, loose, or damaged parts .Never operate the machine
that is damaged, improperly adjusted, or is not completely and securely assembled,
Make sure that the saw chain stops moving when the throttle control trigger is
released.
When Starting the Engine:
a) Always hold the machine firmly with both hands when the engine is running .Use a
firm grip with thumb and fingers encircling the handles.
b) Keep all parts of your body from the machine when the engine running.
c) Before staring the engine, make sure the saw chain is not contacting anything.
Operation:
a) Keep the handle dry, clean and free of oil or fuel mixture.
b) Never touch the muffler, spark plug or other metallic parts of the engine while the
engine is in operate or immediately after stopping the engine. Doing so could result
in serious burns or electrical shock.
c) Use extreme caution when cutting small size brush and saplings because slender
material may catch the saw chain and be whipped toward your off balance.
d) When cutting a limb that is under tension in the wood fibers is released
e) Check the tree for dead branches that could fall during the felling operate.
f) Always shut the engine off, before setting it down.
Kickback Safety Precautions for Chain Saw Users
WARNING
Take care when using your saw and make sure the
kickback zone of the bar never touches any object.
1. Kickback may occur when the nose or tip of the guide bar touches an object, or
when the wood closes may cause a lightning fast reverse reaction, kicking the guide
bar up and back towards the operator. Pinching the saw chain along the top of the
guide bar may push the guide bar rapidly back towards the operator. Either of these
reactions may cause you to lose control of the saw which could result in serious
personal injury.
2. Do not rely exclusively on the safety devices built into your saw. As a chain saw
user you should take several steps to keep cutting jobs free from accident or injury.
With a basic understanding of kickback you can reduce or eliminate the element
of surprise. Sudden surprise contributes to accidents.
Keep a good grip on the saw with both hands. the right hand on the rear handle,
and the left hand on the front handle, when the engines is running. Use a firm grip

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 13 of 52
with thumbs and fingers encircling the chain saw handles. A firm grip will help you
reduce kickback and maintain control of the saw.
Make certain that the area in which you are cutting is free from obstructions Do
not let the nose of the guide bar contact a log, branch, or any other obstruction
which could be hit while you are operating the saw.
Cut at high engine speeds.
Do not overreach or cut above shoulder height.
Follow manufactures sharpening and maintenance instructions for saw chain.
Only use replacement bars and chains specified by the manufacturer or the
equivalent.
Chain Brake and Front Hand Guard
Your chain saw is equipped with a chain brake that is designed to stop the chain if you get a
kickback. The chain brake reduces the risk of accidents, but only you can prevent them.
The chain brake (A) can either be
activated manually (by your left hand) or
automatically by the inertia release
mechanism.
The brake is applied when the front hand
guard (B) is pushed forwards.
To release the chain brake pull the front
hand guard backwards, towards the front
handle.
In the felling position the left hand is in a
position that makes manual activation of
the chain brake impossible. With this
type of grip, that is when the left hand is
placed so that it cannot affect the
movement of the front hand guard, the
chain brake can only be activated by the
inertia action.

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 14 of 52
The way the chain brake is activated,
either manually or automatically by the
inertia release mechanism, depends on
the force of the kickback and the position
of the chain saw in relation to the object
that the kickback zone of the bar strikes.
If you get a violent kickback while the
kickback zone of the bar is farthest away
from you the chain brake is designed to
be activated by the inertia in the kickback
direction.
If the kickback is less violent or the
kickback zone of the bar is closer to you
the chain brake is designed to be
activated manually by the movement of
your left hand.
Chain Catcher:
The chain catcher is designed to catch the chain if it
snaps or jumps off. This should not happen if the
chain is properly tensioned and if the bar and chain
are properly serviced and maintained
Maintenance:
In order to maintain your product in proper working order, perform the maintenance
and checking operations described in the manual at regular intervals.
Always be sure to turn off the engine before performing any maintenance or
checking procedures.
WARNING
The metallic parts reach high temperatures
immediately after stopping the engine.
Leave all maintenance other that the items listed in the Owner＇s Manual to your
competent servicing dealer.
Transport:
For longer periods of transport of the chain saw, the fuel and chain oil tanks should
be emptied.
The guide bar cover must always be fitted to the cutting attachment when the
machine is being transported or in storage, in order to prevent accident contact with

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 15 of 52
the sharp chain. Even a non-moving chain can cause serious cuts to yourself or
persons you bump into with an exposed chain.
Secure the machine during transport.
PARTS OVERVIEW
1.
Front handle
12.
Bar protector
2.
Oil cup
13.
Chain tensioning screw
3.
Gland
14.
Clutch cover
4.
Stop switch
15.
Oil pump adjustment screw
5.
Cylinder cover
16.
Choke knob
6.
Throttle control latch
17.
Throttle control
7.
Rear handle
18.
Front hand guard
8.
Fuel tank
19.
Muffler
9.
Starter handle
20.
Bumper spike
10.
Starter
21.
Chain
11.
Chain oil tank
22.
Bar

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 16 of 52
INSTALLING GUIDE BAR AND SAW CHAIN
WARNING
The saw chain has very sharp edges. Use thick protective gloves for safety.
1) Pull the guard towards the front handle to
check that the chain brake is not on.
2) Loosen the nuts and remove the chain
cover.
3) Install the bar over the bar bolts .Place the
bar in its rearmost position. Place the chain
the drive sprocket locate it in the groove on
the bar. Begin on the top edge of the bar
WARNING
Make sure that the edges of the cutting links are facing forward on the top edge of the
bar.
4) Fit the chain cover and locate the chain
adjuster pin in the hole in the bar. Check
that the drive links of the chain fit correctly
over the drive sprocket and that the chain
is correctly located in the groove in the
bar. Tighten the bar nuts finger tight.
5) Tension the chain by turning the chain
tensioning screw clockwise using the
combination spanner.

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 17 of 52
6) The chain is correctly tensioned when it
does not sag from the underside of the
bar, but can still be turned easily by hand.
Hold up the bar tip and tighten the bar
nuts with the plug wrench.
7) When fitting a new chain, the chain
tension has to be checked frequently until
the chain is run-in. Check the chain
tension regularly. A correctly tensioned
chain ensures good cutting performance
and long life.
NOTE
A new chain will expand its length in the beginning of use. Check and readjust the
tension frequently as a loose chain can easily derail or cause rapid wear of itself and
the guide bar.
FUEL AND CHAIN OIL
FUEL
The machine is equipped with a two-stroke engine and must always be run using a mixture of
petrol and two-stroke oil. It is important to accurately measure the amount of oil to be mixed to
ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small
inaccuracies can drastically affect the ratio of the mixture.
Petrol
Use good quality petrol.
The lowest recommended octane grade is 90.
Two-stroke oil
Use two-stroke engine oil, which is specially formulated for our air-cooled two
stroke-engines
Never use oil intended for four-stroke engines
Recommended Mixing Ratio:
Condition
Petrol: oil
Up to 100 hours use
25:1
After 100hours use
30:1

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 18 of 52
25:1 Mix Chart
Petrol(L)
1
2
3
4
5
2-cycle oil (ml)
40
80
120
160
200
30:1 Mix Chart
Petrol(L)
300
600
900
1200
1500
2-cycle oil (ml)
10
20
30
40
50
WARNING
Keep open flames away from the area where fuel is handle or stored.
Mix and store fuel only in an approved gasoline container.
NOTE
Most engine troubles are caused, directly or indirectly, by the fuel used in the machine.
Take special care not to mix engine oil used for 4 stroke engines.
CHAIN OIL
Use motor oil SAE＃30- SAE＃40 in summer and SAE＃20 in winter.
NOTE
Do not use wasted or regenerated oil that can cause damage to the oil pump.
FUELING
Never refuel the machine while the engine is running.
Make sure there is plenty of ventilation when refueling or mixing fuel (gasoline and
2-stroke oil).
Move the machine at least 3m from the refueling point before starting it.
If you have spilled fuel or chain oil on the machine, wipe off the spillage and allow
remaining fuel to evaporate.
If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel
lines

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 19 of 52
1. Untwist and remove fuel cap. Rest the cap
on a dustless place.
2. Put fuel into the tank to 95% of the full
capacity.
3. Fasten the fuel cap securely and wipe up
any fuel spillage around the unit.
CHECKING OIL SUPPLY
Check the chain lubrication each time you
refuel. After starting the engine, run the
chain at medium speed and see if chain oil
is scattered off as shown in the figure.
ADJUSTMENT OF THE OIL PUMP
NOTE
The saw chain oil tank and the fuel tank are designed so that the fuel runs out before
the saw chain oil.
Adjustments are made by turning the oil
pump adjustment screw using a screwdriver
or combination spanner. The machine is
supplied from the factory with the screw set
to middle position. Turning the screw
clockwise will reduce the oil flow and turning
the screw anti-clockwise will increase the oil
flow.
NOTE
Be sure to refill the chain oil tank every time when refueling the unit.

KisanKraft®
HEAVY DUTY Petrol Chainsaw
KK-CSP-5720-8650
: www.kisankraft.com
: [e-mail]
: +91.80. 22178200
Page 20 of 52
STARTING AND STOPPING
Starting the Engine:
1. The chain brake should be activated
when starting the chain saw. Activate
the chain brake by pushing the front
hand guard forwards.
2. Press the oil cup repeatedly until fuel
begins to fill the diaphragm (about 3~6
times). The oil cup need not be
completely filled.
3. Move the switch to “ON “position.
4. Pulling out the chock knob, the chock is closed.
5. Grip the front handle with your left hand. Put your right foot into the boot grip through the
lower section of the rear handle pressing the machine against the ground.
6. Pull the starter handle with your right
hand and pull out the starter cord slowly
(about 3~4 times) until you hear a "puff"
sound.
7. By disengaging the throttle latch in
order to the chock is opened. Pull the
starter handle with your right hand and
pull out the starter cord rapidly until the
engine starts.
8. Pull the front hand guard back towards
the front handle. The chain saw is now
ready for use.
