Klus PDS-4-PLUS User manual

PDS-4-PLUS mounting instructions
1
www.KlusDesign.com
NOTE! All LED strips must be connected to a 12 V or 24 V power supply.
IMPORTANT: The manual does not present all methods of montage. Other related accessories with
instructions of their mounting procedures available at www.KlusDesign.com. Drawings of extrusions
and accessories in this manual are simplied and only approximately represent the real shapes.
Turn o LED lights during peak day light hours in outdoor applications to avoid excessive
heat buildup which will result in diminished LED life.
*The selection of electronics and types of accesories available on www.KlusDesign.com
1.
3.
4.

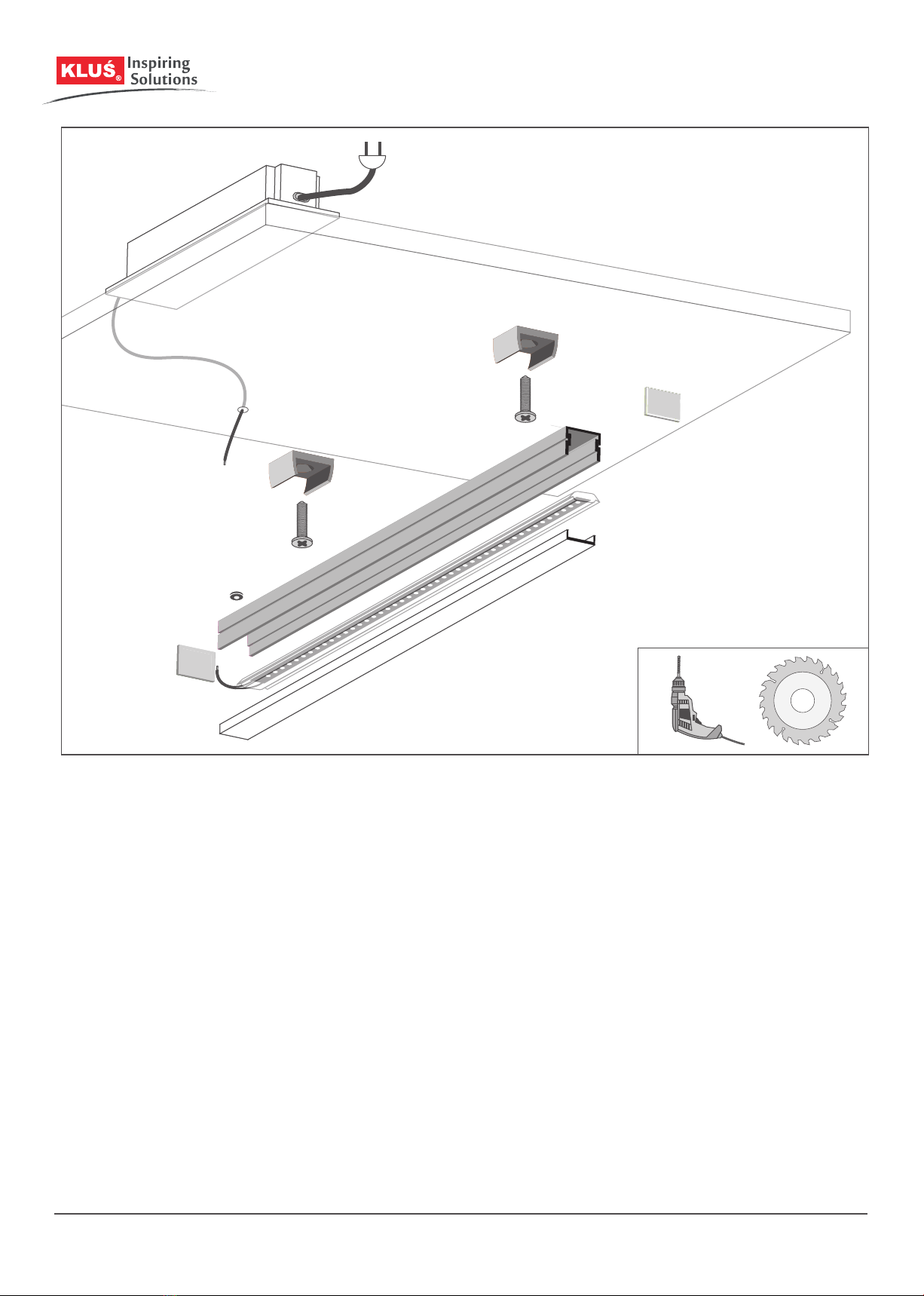

1. PDS-4-PLUS extrusion (Ref. C1263)
2. End cap*
3. LED strip*
4. Cover*
5. Mounting bracket*
6. Countersunk screw (6-8 mm / 0.24-0.31”)
7. Gland*
8. Power supply (12 V / 24 V)*
2.
2.
5.
5.
8.
6.
6.
7.

2
PDS-4-PLUS mounting instructions
www.KlusDesign.com
I
III
II
Screw the mounting brackets (5) to
the surface.
Drill a hole for the power cord in the
PDS-4-PLUS extrusion (1).
Mount the gland (7) and run the
power cord through the drilled hole.
Insert the 8-KLIK sleeve (3) into the
extrusion.
5.
5.
1.
7.
3.
ø 6-8 mm / 0.24-0.31’’

3
PDS-4-PLUS mounting instructions
www.KlusDesign.com
CLICK!
VI
VConnect the power and insert the
lighting xture into the mounting
brackets.
LED strip must be connected to
a 12 V or 24 V power supply.
2.
2.
4.
Attach the end caps (2) and the
cover.
