KoelschMo-Tec Mini USB Charger WIFI Camera User manual

Mini USB Ladegerät WIFI Kamera
Bedienungsanleitung

Size: 48x48x48mm
Mini USB Ladegerät WIFI Kamera

Overview:
The wireless Wi-Fi security camera comes with HD 1080P high
resolution camera for live video streaming worldwide from anywhere
by smartphone APP TinyCam;
The AC Charger is plug and play, and with a functional USB output
(600mA); It also equipped with 16pcs invisible leds for around 4
meters night vision.
Usages: Nanny camera, Home/ Shop/ Ofce/ Warehouse surveillance
camera......
Warning : " illegal use is not allowed! Or, there will be consequences
to bear! "
In the box:
1 x Camera Unit 1 x User Manual 1 x Reset pin 1 x Card reader
1

Product structure of AC Charger
Camera
Reset hole / Power indicator
USB port
Micro SD card slot
Night vision leds
2
5
3
1
4
1
4
5
2
3
2

Wi-Fi Camera Connection Setting
Scan below QR code or search and download free APP named
<TinyCam> in Apple APP store, Google play or Electronic market,
and install it;
Tips: Please allow “ TinyCam” to access your location while you are using the
app(for syncing local weather info).
Step1: Download and install APP
3

Step 2: Insert micro SD card -->Plug in devices with power -->
wait for 1 minute(Power indicator is solid green.);
4

1.Open smartphone settings, search and connect the device's
wireless signal named"HCAM……” ,wait Wi-Fi connected, and
phone status bar appear Wi-Fi symbol.
Step 3:Connect Wi-Fi
AT&T
aisales
5

Tips: 1.Please select 【Change】to change device password for security
【default: 888888】;
2.This step = P2P mode, can check video locally when without Wi-Fi.
2. Enter APP, press right corner “ ” icon --> LAN search device
—> Press Add —> Camera Online then;
6

3.Press icon on the right corner of camera —> WiFi Cong
—>Select local Wi-Fi (SSID) —> Input password —> Press Conrm;
7

4.Quit APP , wait 30 seconds (device restart automatically)and
connected with set Wi-Fi(Wi-Fi indicator ash regularly) ;
5.Enter APP and check live video locally or remotely anywhere.
8

Set camera name and private code
Set name:Press the after the camera, select Device name -->
Input needed name or select sample names like Ofce...
Set new password: Press the after the camera, select Change
Password --> Old password = 888888.
9

APP introduction:
Add devices
Quick device search
Photo and video recorded
les on APP
Photo and video recorded
les on TF card
Alerts notication
N/A
Tips: 1. Please conrm phone setting has allowed TinyCam App to access the
location services;
2. A TF card(Micro SD card) must be inserted for saving alerts pictures.
Setting
10

Resolution（1080P/720P/
640P/480P,1080P=Highest
resolution）
Alerts notication
Full screen
Snapshoot Record Videos
Talk
Listen
11

Share camera with others
by QR code

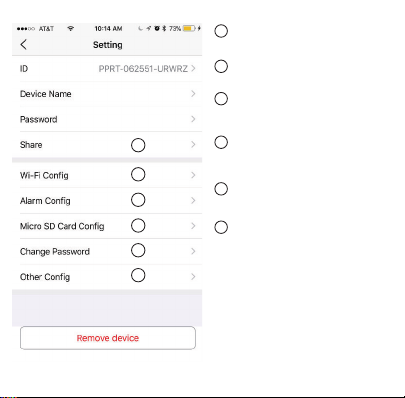

Wi-Fi Cong: Set camera to
connect to local Wi-Fi
Alarm Cong: Set motion
detection sensitivity /Alarm
interval
Change password: Set camera
new password
Other Cong: Time Cong,
Device reset, FTP or Mail
setting...
Micro SD Card Record
Cong: Set SD card record
mode / Resolution /File length…
1
2
3
4
5
6
1
2
3
4
5
6
12

Watch by PC in LAN network
Watch by PC remotely (WAN)
Once camera connected well with Wi-Fi, press the after the
camera, Wi-Fi Cong --> nd out IP address --> Input this IP
address info into browser.
User name: admin Password: your set password (default 888888)
Once camera connected well with Wi-Fi,download PC driver from
below QR code.
Input UID, User name: admin Password: your set password
(default 888888) for checking live streaming video remotely.
13

Specication
Resolution 1 Mega CMOS
Video pixel in phone Max 1920*1080
Video pixel in card 1080*720
Frames Max 25fps
Compressed format H.264
View angle 120 Degree
Type of memory card
TF card>=Class 4/10 and HC marked
Maximum capacity of memory card 128GB
PC operation system Windows 7, 8 / Mac OS X
Play software VLCPlayer/SMPlayer
Mobile phone operation system Android/iOS
Web browser IE7 and above,chrome,refox
Power consumption 300MA/3.7V
Recording 1 minute/ around 20MB
14

FAQ
2. Q: Live video not smooth and clear?
A: Select suitable resolution according to the real time network
environment.
3. Q: Motion detect set and alarm?
A: 1). Set motion detect sensitivity in Alarm Cong, and press
1. Q: Can’t get device Wi-Fi signal?
A:Press reset key for 10 seconds and wait 1 minute.
right corner Conrm to save the setting;
2). When motion detected, camera will push a alarm message
to your phone and take one picture for checking in the APP
[ Page 11 - Alert notication ]. (A micro sd card MUST be
inserted for saving alarm pictures)
15

5. Q: How to play micro SD card video?
A: 1). Use a card reader to read and play;
2). Use APP to play back [ Page 10 - TF card recorded les ];
3). Play back in good speed network.
7. Q: Any operation video demo of the camera for setting up?
A: Please contact local dealer for video guide.
6. Q: Forget camera password, or item goes abnormal?
A: Turn on camera and wait for 1 minute, press reset key
around 10 seconds till back indicators off to restore factory
default. Camera restarts and get ready again in 1 minute.
4. Q: Micro SD card instruction?
A: 1). Format card before inserting;
2). When backside switch is on, every time you insert micro
SD card, it will record automatically;
3). Once connected, can set SD management in app
[ Micro SD Card Record Cong ].
4). If Micro SD card detected and recording, the Wi-Fi
indicator will ash slowly.
16

The end!
