Dash Mount Remote Gain Control

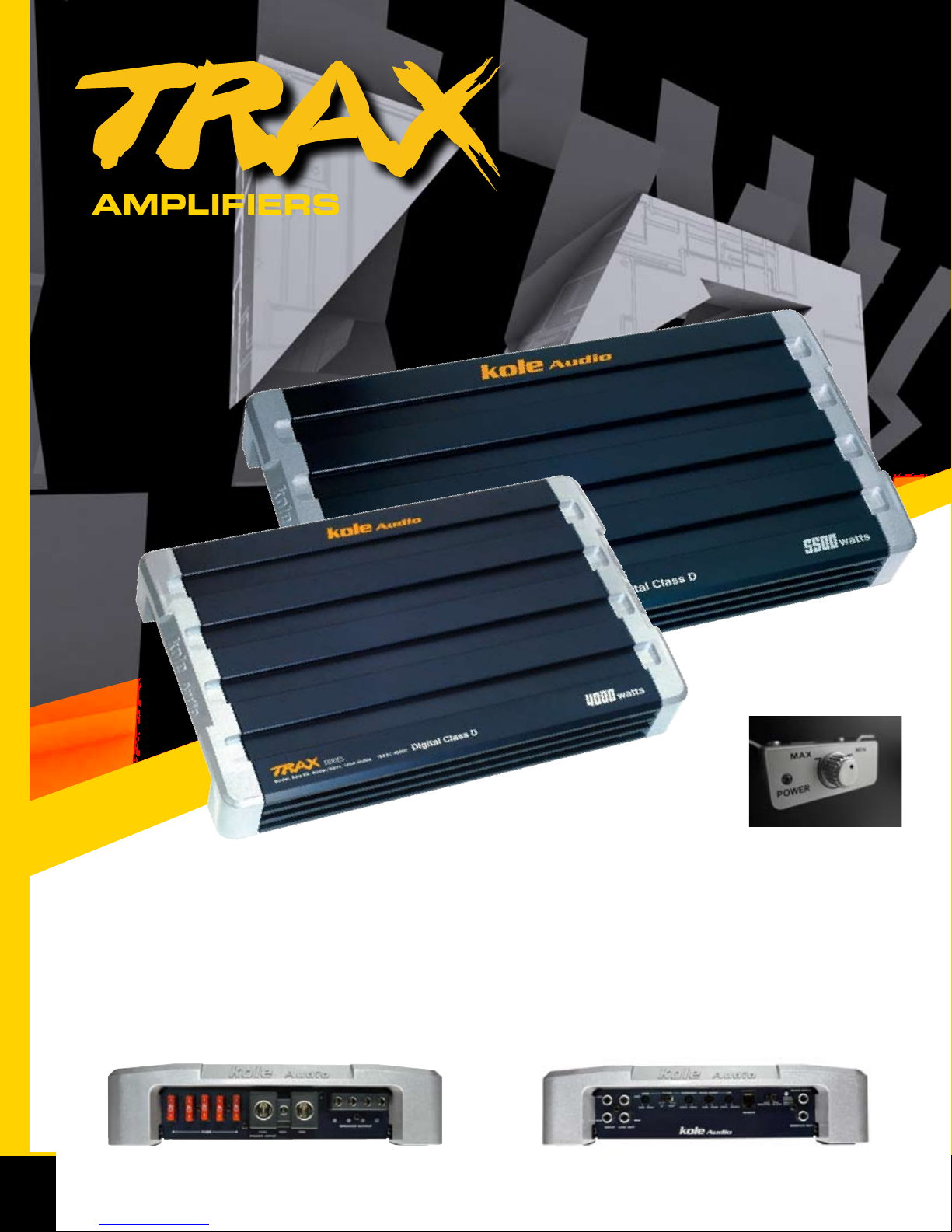

AMPLIFIERS
SERIES
Some people like the “bling”, some like the stealthy approach… And some like to be different. For those who strive to
be different, the new 2009 TRAX amplifiers will fill your craving. The new heatsink has huge, wide, aggressive fins for
extreme cooling, requirement for the monster 7000 watt model. And while the hairline finish has become so popu-
lar in recent years, most are boring black. TRAX amps boast a killer Midnight Blue finish with bright silver end caps,
for simple yet powerful aesthetics. Be different, get TRAX!
Class D Common Features
2/4 Channel Common Features
3
WWW.KOLEAUDIO.COM
• Midnight Blue Anodized Finish w/ Silver End Caps
• MOSFET Power Supply
• Pulse Width Modualtion Circuitry
• Three-Way Protection Circuitry (short, thermal & overload)
• 2 Ohm Stereo, 4 Ohm Bridged Stabl;e
• Tri-Mode Capable
• Selectable Variable 12dB Hi/Full/Low Pass Crossovers
• 200mV - 6V Low Level Input Sensitivity (4 ch. models)
• 200mV - 3V Low Level Input Sensitivity (2 ch. models)
• Pre-Amp Outputs
• Dash Mount Remote Gain Control (2 ch. models)
• Input Selector (4 ch. models)
• 30-500Hz LPF (2 ch. models)
• 40-250Hz LPF (600 & 4 ch. models)
• 50-500Hz HPF (2 ch. models)
• 40-250Hz HPF (600 & 4 ch. models)
• Variable 0-24dB 45Hz Bass Boost (2 ch. models)
• Selectable 18dB 45Hz Bass Boost (600 & 4 ch. models)
• Variable 12 dB 30-175Hz Subsonic Filter (2 ch. models)
• Frequency Response: 10Hz - 30kHz
• Signal-to-Noise Ratio: 97dB
• Total Harmonic Distortion: .02%
• 4 ga. Power & 8 ga. Speaker Terminals
• Midnight Blue Anodized Finish w/ Silver End Caps
• Hi-Speed Digital Circuitry
• Regulated PWM Power Supply
• Three-way Protection Circuitry (short, thermal & overload)
• 1 Ohm Load Stable
• Bridged Synchronization (strap amps together for double power!)
• 200mV-6V Low Level Inputs
• Pre-Amp Outputs
• Variable 12dB 40-200Hz LPF
• Variable 12dB 20-50Hz Subsonic Filter
• Variable 0-18dB 45Hz Bass Boost
• Frequency Response: 15-150Hz
• Signal-to-Noise Ratio: 100dB
• Total Harmonic Distortion: .5%
• 1800 Phase Switch
• Direct Input 4 ga. Power & 8 ga. Speaker Terminals
• Direct Input 0 ga. Power Terminal (5500D & 7000D)
RMS @ 4Ω RMS @ 2Ω Bridged @ 4Ω MAX Power Length: (in) Bass
(watts) (watts) (watts) (watts) (2.25" h x 10" w) Knob
TRAX2-600 2 x 95 2 x 120 1 x 240 600 9.5 No
TRAX2-800 2 x 150 2 x 180 1 x 360 800 12.25 No
TRAX2-1250 2 x 220 2 x 280 1 x 560 1250 14.125 Yes
TRAX2-1800 2 x 300 2 x 380 1 x 760 1800 19.25 Yes
TRAX2-2200 2 x 370 2 x 450 1 x 900 2200 21.625 Yes
TRAX4-840 4 x 80 4 x 95 2 x 190 840 12.25 No
TRAX4-1200 4 x 100 4 x 125 2 x 280 1200 14.125 No
TRAX4-1600 4 x 150 4 x 180 2 x 360 1600 16.125 No
RMS @ 4Ω RMS @ 2Ω RMS @ 1Ω Max Power Length: (in) Bass
(watts) (watts) (watts) (watts) (2.25" h x 10" w) Knob
TRAX1-1800D 1 x 550 1 x 820 1 x 1100 1800 12.25 Yes
TRAX1-4000D 1 x 1200 1 x 1700 1 x 2200 4000 16.125 Yes
TRAX1-5500D 1 x 1700 1 x 2500 1 x 3200 5500 20.5 Yes
TRAX1-7000D 1 x 2200 1 x 3200 1 x 4100 7000 21.625 Yes
4
KOLEAUDIO 2010

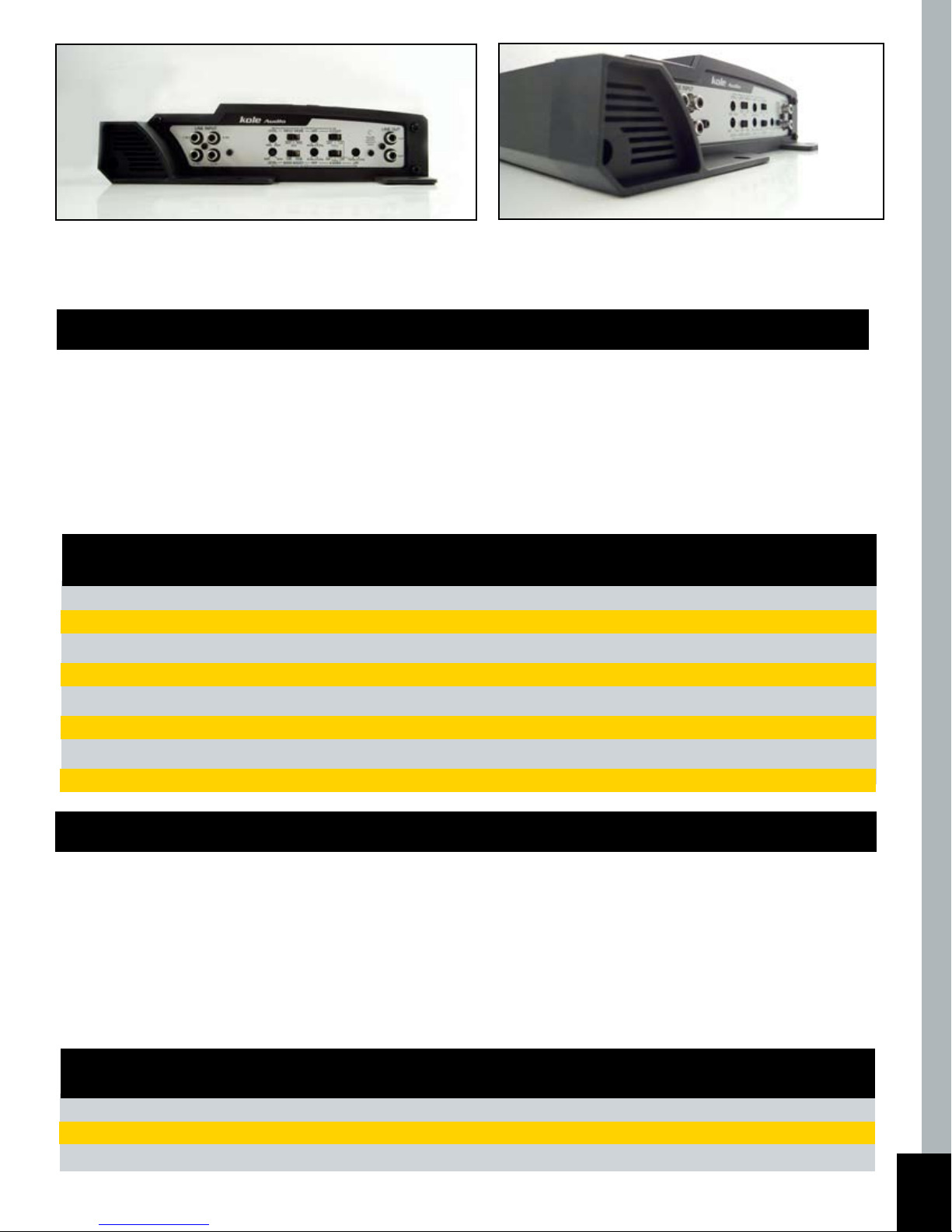

PHAnATIK
SERIES
AMPLIFIERS
Yes it a play on words! But the meaning is the same “Intense Uncritical Devotion” you won’t believe your eyes and ears
when you power this bad boy up! The stunning good looks with Diamond Cut heat sink and Ebony color will bring you
back to the trunk time and again!
Dash Mount Remote Gain Control
Jet Black Finish with
Diamond Cut Heatsink
2/4 Channel Common Features
5
WWW.KOLEAUDIO.COM
RMS @ 4Ω RMS @ 2Ω Bridged @ 4Ω MAX Power Length: (in) Bass
(watts) (watts) (watts) (watts) (2.5" h x 10.25" w) Knob
PH2-700 2 x 150 2 x 180 1 x 360 700 12 Yes
PH2-1000 2 x 220 2 x 280 1 x 560 1000 14 Yes
PH2-1500 2 x 300 2 x 380 1 x 760 1500 20.25 Yes
PH2-2000 2 x 370 2 x 450 1 x 900 2000 21.5 Yes
PH2-2400 2 x 450 2 x 540 1 x 1080 2400 22.25 Yes
PH4-800 4 x 80 4 x 95 2 x 190 800 12 No
PH4-1000 4 x 100 4 x 125 2 x 250 1000 14 No
PH4-1400 4 x 150 4 x 180 2 x 360 1400 16 No
New Hyper Bass boost Stylized Sloping End Panels
• Sloping End Caps
• MOSFET Power Supply Transistors
• Pulse Width Modulation Circutry
• The-way Protection Circuitry
• 2-ohm Stereo, 4-ohm Bridged Stable
• Tri-Mode Capable
• Selectable Crossovers (HPF/Full/LPF)
• 200mV-8V Low Level Inputs
• Pre-Amp Outputs
• Dash Mount Remote Gain Control (2 ch. models)
• Variable 12dB 30-500Hz LPF (2 ch. models)
• Variable 12 dB 40-250Hz LPF (4 ch. models)
• Variable 12 dB 50-500Hz HPF (2 ch. models)
• Variable 12 dB 40-250Hz HPF (4 ch. models)
• Variable 0-24dB Bass Boost (2 ch. models)
• Variable 0-18dB Bass Boost (4 ch. models)
• Variable 12 dB 30-175Hz Subsonic Filter (2 ch. models)
• Frequency Response: 10Hz - 30kHz
• Signal-to-Noise Ratio: 97dB
• Total Harmonic Distortion: .02%
• 4 ga. Power & 8 ga. Speaker Terminals
Class D Common Features
• Jet Black Finish w/ Diamond Cut Heatsink
• Hi-Speed Digital Circuitry
• Regulated PWM Power Supply
• Three-way Protection Circuitry
• 1-ohm Stable
• Bridged Synchronization
• 200mV-8V Low Level Inputs
• Pre-Amp Outputs
• Dash Mount Remote Gain Control
• Variable 40-200Hz LPF
• Variable 30-175Hz Subsonic Filter
• Variable 0-18dB 45Hz Bass Boost
• Frequency Response: 15-150Hz
• Signal-to-Noise Ratio: 100dB
• Total Harmonic Distortion: .5%
• 1800 Phase Switch
• Direct Input 4 ga. Power & 8 ga. Speaker Terminals
• Direct Input 0 ga. Power Terminal (PH1-5500D)
Jet Black Finish with
Diamond Cut Heatsink
RMS @ 4Ω RMS @ 2Ω RMS @ 1Ω MAX Power Length: (in) Bass
(watts) (watts) (watts) (watts) (2.5" h x 10.25" w) Knob
PH1-2000D 1 x 600 1 x 900 1 x 1200 2000 12 Yes
PH1-4000D 1 x 1200 1 x 1700 1 x 2200 4000 16 Yes
PH1-5500D 1 x 1700 1 x 2500 1 x 3200 5500 19.125 Yes
6
KOLEAUDIO 2010
MFW MAXPower RMSPower Magnet Fs Qms Vas Xmax Qes Qts Efciency Mounting Cutout Sealed Ported Port
Subwoofers (watts) (watts) Weight(oz) (Hz) (ft3) (mm) (dB) Depth(in) Diameter(in) Enclosure(ft3) Enclosure(ft3) (diameterxlength)
MFW-10 800 400 160 38.75 6.027 0.520 17.00 0.747 0.665 89 3.375 9.125 0.75 1.25 3"x12"
MFW-12 1000 500 200 36.62 5.080 1.258 17.00 1.600 1.217 91 3.875 11.125 1.25 2.00 4"x14"
KMX MAXPower RMSPower Magnet Fs Qms Vas Xmax Qes Qts Efciency Mounting Cutout Sealed Ported Port
Subwoofers (watts) (watts) Weight(oz) (Hz) (ft3) (mm) (dB) Depth(in) Diameter(in) Enclosure(ft3) Enclosure(ft3) (diameterxlength)
KMX-10 1400 700 170 35.24 5.270 0.481 18.00 0.479 0.439 82.80 6.250 9.375 - 1.25 3"x8.25"
KMX-12 1600 800 270 39.69 4.518 1.091 18.00 0.384 0.354 89.10 7.000 11.250 - 2.00 4"x12.75"
KMX-15 2000 1000 270 29.66 4.685 1.794 28.50 0.484 0.439 86.40 8.000 14.000 - 3.00 4"x11"

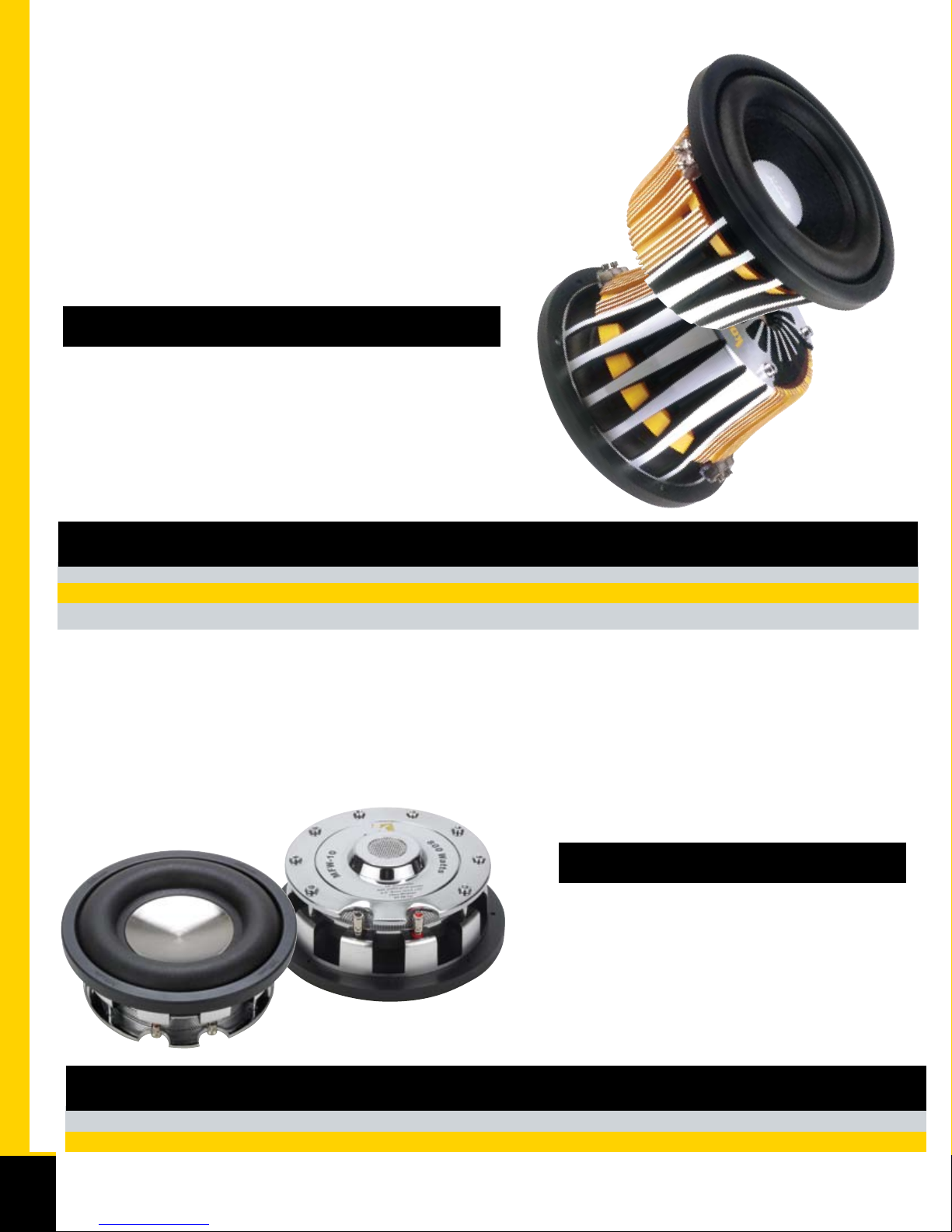

MFWSERIES The MFW Series of subwoofers are designed
especially for those who want big sound in a little
space. The flat, compact construction of the MFW's
means less volume displacement by the speaker
itself, allowing these speakers to operate in spaces
as small as 1.0 cubic feet, with a flat response down
to around 35 Hz, and delivering tremendous punch
from a sealed enclosure. It doesn't get any better
than this.
Common Features:
• Die Cast Aluminum Slim Frame
• Titanium/Aluminum Cone
• Wide Roll UV Coated Foam Surround
• Single 4 Ohm ASV 2.5” Voice Coil
• Suspension Intergrated Tinsel Leads
• Dual Black Poly/Cotton Spiders
• Rubber Gasket
• 8 ga. Compression Terminals
SUBWOOFERS
SUBWOOFERS
KMXSERIES
What's cool? The Kole Audio KMX subwoofers. A revolutionary design in a
direct-coupled aluminum dust cap increases thermal transfer from the voice coil
by 50%. At the same time, the newly designed dust cap lowers the resonant
frequency of the subwoofer, thereby extending the low-end. Our acoustical
engineers achieved their goal in making these woofers handle 56% more
power over conventional designs without sacrificing sensitivity.
• 2-piece Diecast Aluminum Basket
• Non-Pressed Paper Cone & Aluminum Dust Cap
• Wide Roll UV Coated FoamSurround
• Suspension Intergrated Tinsel Leads
• Dual CONEX Spiders
• Dual 2 Ohm 3” Voice Coils
• BASV/Kapton Coil Former
• Rubber Gasket
• Black & Yellow Texture Coat w/ Diamond Cut Accents
• 8 ga. Direct Wire Terminals
Common Features:
7
WWW.KOLEAUDIO.COM
MAXPower RMSPower Magnet Fs Qms Vas Xmax Qes Qts Efciency Mounting Cutout Sealed Ported Port
Subwoofers (watts) (watts) Weight(oz) (Hz) (ft3) (mm) (dB) Depth(in) Diameter(in) Enclosure(ft3) Enclosure(ft3) (diameterxlength)
KW2-10M 1100 450 100 43.10 5.226 0.753 16.40 0.725 0.636 85.60 6.000 9.000 1.00 1.50 3"x6"
KW2-12M 1200 500 100 37.60 5.453 1.649 16.40 1.093 0.911 85.40 6.250 10.750 1.50 2.00 4"x12.5"
KW2-15M 1300 550 110 26.40 6.237 5.311 16.40 1.605 1.276 84.30 7.125 13.750 2.00 4.00 (3)3"x15"
MFW MAXPower RMSPower Magnet Fs Qms Vas Xmax Qes Qts Efciency Mounting Cutout Sealed Ported Port
Subwoofers (watts) (watts) Weight(oz) (Hz) (ft3) (mm) (dB) Depth(in) Diameter(in) Enclosure(ft3) Enclosure(ft3) (diameterxlength)
MFW-10 800 400 160 38.75 6.027 0.520 17.00 0.747 0.665 89 3.375 9.125 0.75 1.25 3"x12"
MFW-12 1000 500 200 36.62 5.080 1.258 17.00 1.600 1.217 91 3.875 11.125 1.25 2.00 4"x14"
KMX MAXPower RMSPower Magnet Fs Qms Vas Xmax Qes Qts Efciency Mounting Cutout Sealed Ported Port
Subwoofers (watts) (watts) Weight(oz) (Hz) (ft3) (mm) (dB) Depth(in) Diameter(in) Enclosure(ft3) Enclosure(ft3) (diameterxlength)
KMX-10 1400 700 170 35.24 5.270 0.481 18.00 0.479 0.439 82.80 6.250 9.375 - 1.25 3"x8.25"
KMX-12 1600 800 270 39.69 4.518 1.091 18.00 0.384 0.354 89.10 7.000 11.250 - 2.00 4"x12.75"
KMX-15 2000 1000 270 29.66 4.685 1.794 28.50 0.484 0.439 86.40 8.000 14.000 - 3.00 4"x11"
SUBWOOFERS

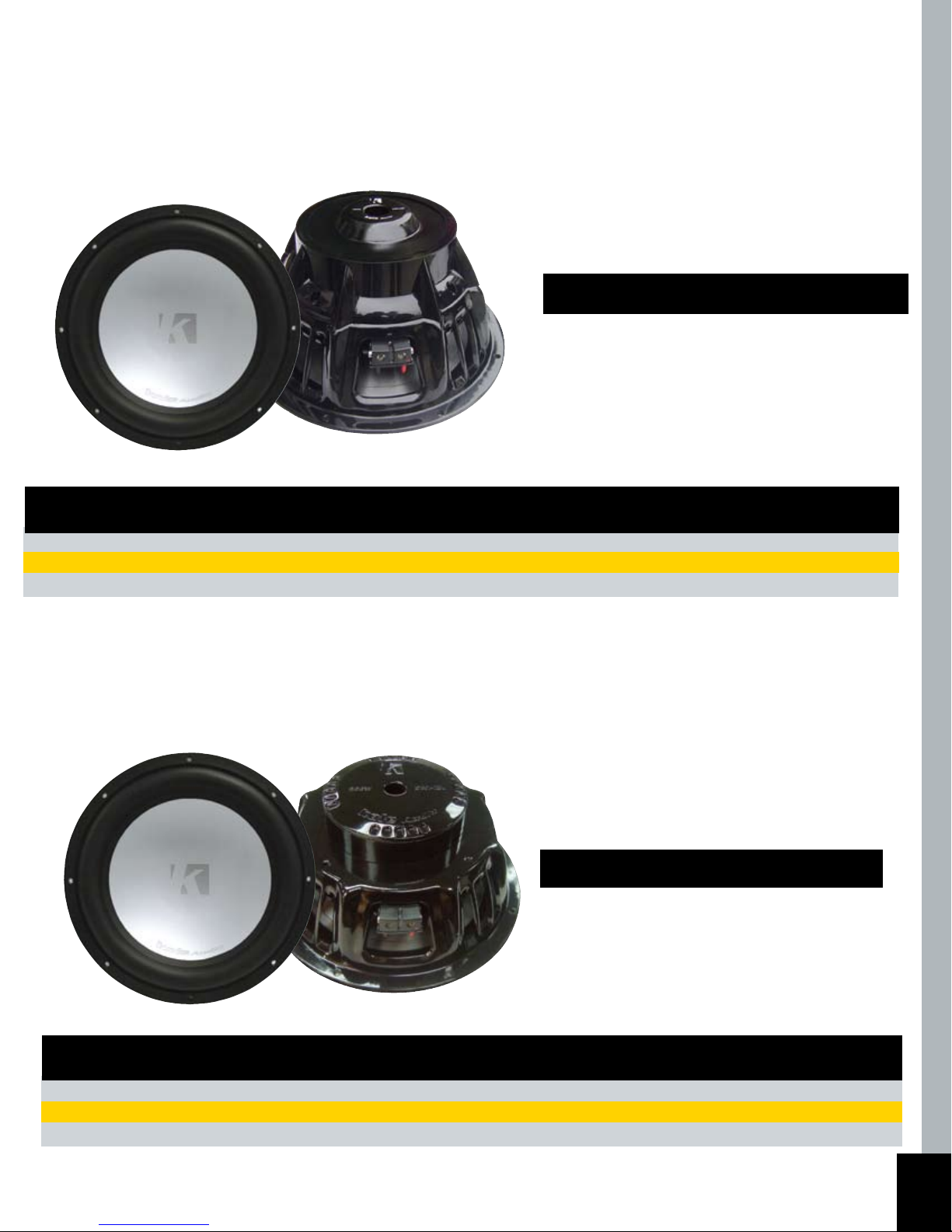

KW1SERIES A new woofer with out this world curves and
performance. The KW1 series of woofers are perfect
for that budget minded person, but still offers great
performance factors. Excellent bang for the buck
theory with a large 70 oz motor structure and
awesome PP injected cone with laser etched logo.
Stun the visual senses and surprise them with equal
loudness sensation.
Common Features:
• Gloss Black Stamped Steel Frame
• PP Injected Cone & Dust Cap
• Dual 4 Ohm 2” Aluminum Voice Coils
• Wide Roll Rubber Surround
• Suspension Intergrated Tinsel Leads
• Black CONEX Linear Spider
• ABS Trim Gasket
• 8 ga. Direct Wire Terminals
• ABS Plastic Gasket
SUBWOOFERS
KW2SERIES Need some serious BASS, you want the edge in
looks compared to your competition? And you’re on
a budget…look no further, the KW2 series woofers
bring you everything in a complete woofer to show
and tell. Check out the sleek basket and massive
motor structure, all encased by a smooth black
contemporary color finish. Does your competition
look that good??
Common Features:
• Gloss Black Stamped Steel Frame
• PP Injected Cone & Dust Cap
• Dual 4 Ohm 2” Aluminum Voice Coil
• Wide Roll Rubber Surround
• Suspension Intergrated Tinsel Leads
• Black CONEX Linear Spider
• ABS Trim Gasket
• 8 ga. Direct Wire Terminals
KW1 MAXPower RMSPower Magnet Fs Qms Vas Xmax Qes Qts Efciency Mounting Cutout Sealed Ported Port
Subwoofers (watts) (watts) Weight(oz) (Hz) (ft3) (mm) (dB) Depth(in) Diameter(in) Enclosure(ft3) Enclosure(ft3) (diameterxlength)
KW1-10L 700 300 70 46.80 5.423 0.753 14.30 0.844 0.731 86.00 4.500 9.000 1.00 1.50 3"x6"
KW1-12L 800 350 70 34.30 6.022 1.878 14.30 0.899 0.782 85.70 5.000 10.750 1.50 2.00 4"x12.5"
KW1-15L 900 400 80 26.80 5.388 5.647 16.40 1.123 0.930 86.30 6.125 13.875 2.00 4.00 (3)3"x15"
8
KOLEAUDIO 2010
KB-1
2-Way Mount Tweeter 200 W
KB-4
4-way Mount Tweeter 250W
• Niobium Rare Earth Ferroelectric Transducer Magnet
• Polypropylene Diaphragm
• 125 Watts R.M.S.
• Freq. Resp. 5KHz-25KHz
• Imp. 4 Ohm
• Surface/Angle Mount
• SPL 97dB
• Built in Crossover
• Niobium Rare Earth Ferroelectric Transducer Magnet
• Polypropylene Diaphragm
• 100 Watts R.M.S.
• Freq. Resp. 5KHz-25KHz
• Imp. 4 Ohm
• Surface/Angle Mount
• SPL 97dB
• Built in Crossover
• 4 Gain Controls ± 18dB
• Isolated PWM Power Supply
• Max Output Voltage: 8 Volts
• Selcetable Radio/CD (Aux) Input
• Master Volume (Gain) Control
• Seperate Bass Volume (Gain) Control
• Front to Rear Fader Control
• Front To Rear Inputs
• Crossover Slopes 12dB per Octave
• Selectable Subwoofer Crossover Frequency 43/60Hz
• THD: 0.05%
• Remote Turn-On Lead
• Full Night Illumination
KEQ-19
4 Band Pre-amp Equalizer
TWEETERS
EQUALIZER
9
WWW.KOLEAUDIO.COM
SPEAKERS
KPSSERIES
KPS-683N
6x8” 3 Way Speakers 260 Watts
KPS-694N
6x9” 4 Way Speakers 380 Watts
• 40 oz Magnet
KPS-653N
6.5” 3 Way Speakers 220 Watts
KPS-502N
5.25” 2 Way Speakers 180 Watts
KPS-402N
4” 2 Way Speakers 160 Watts
KPS-462N
4x6” 2 Way Speakers 180 Watts
KPS-573N
5x7” or 6x8” 3 Way Speakers 240 Watts
Poly Propylene Injection Molded Cone•
Butyl Rubber Surround•
Flush Rubber Magnet Trim•
Stamped Steel Frame•
4-ohm Impedance•
2” Mylar Midrange (694N)•
1.5” Mylar Tweeter•
.5” Mylar Super Tweeter (573N, 653N, 683N, 694N)•
KPS-694N KPS-683N KPS-653N KPS-573N KPS-502N KPS-462N KPS-402N
Size&Type 6”x9”4-way 6”x8”3-way 6.5”3-way 5”x7”3-way 5.25”2-way 4”x6”2-way 4”2-way
PowerHandling(watts) 380 260 220 240 180 180 160
MagnetWeight(oz) 40 20 18 20 13 10 10
FrequencyResponse(Hz) 50-20k 50-20k 60-20k 60-20k 65-60k 65-20k 90-20k
Efciency(dB) 92 91 91 91 90 90 90
VoiceCoilDiameter(in) 1.5 1.25 1.25 1.25 1 1 0.75
TopMountDepth(in) 3.375 2.375 2 2.25 1.875 1.625 1.75
BottomMountDepth(in) 3.5 2.5 2.25 2.625 2 1.75 1.875
CutoutDimension(in) 5.875x8.625 5.125x7.375 4.875 5x7 4.625 3.5x5.625 3.625
OverallDiomension(in) 6.375x9.25 5.75x8 6.25 5.5x7.5 5 3.75x6 4.125
GrillDimension(in) 7.125x10.375 6.5x9 6.75 6.25x9.875 6.125 4.625x7.125 5.375
Common Features:
10
KOLEAUDIO 2010
10
CAPCELL
KCEL-300
300 Amp CAPCELL
KCEL-400
400 Amp CAPCELL
KCEL-800
800 Amp CAPCELL
• Piano Black Finish
• 16 Volts DC
• 3-6 Year Cycle Life
• Digital Volt Meter
• LED Display
• ¼” Bolt Terminal
• 4.5 Milliohm Int. Resistance
• 2.5 Amp/Hour
• Surge 300 amp x 3 seconds
• 3.5“h x 5”w x 6.75”l
• Piano Black Finish
• 16 Volts DC
• 3-6 Year Cycle Life
• Digital Volt Meter
• LED Display
• ¼” Bolt Terminal
• 4.5 Milliohm Int. Resistance
• 5 Amp/Hour
• Surge 400 amp x 3 seconds
• 4“h x 7.75”l x 5.5”w
TO CAP OR TO CELL… THAT IS THE QUESTION!
Often called a “power cap” or “stiffening cap”, some people prefer caps over secondary batteries. A second battery is great for high power systems,
but should be accompanied by an upgraded alternator that can efficiently charge both batteries. This gets expensive. A cap stores power too, but
can charge and discharge in a fraction of a second, depending on size. While great for transient peaks in music, it does not have the stamina that
a battery has and is not an equivalent substitute.
Our Cap Cells are a fusion of both products. The Cap Cell offers auxiliary power with the ability to enhance the transient notes, often suppressed in
car audio systems with an OEM battery, while being able to reinforce the battery during long, intense bass notes. A second alternator is not neces-
sary, making the Cap Cell a perfect addition and an affordable way to supply the necessary power for a system.
• Piano Black & Aluminum Finish
• 16 Volts DC
• 3-6 Year Cycle Life
• Digital Volt Meter
• LED Display
• Battery Posts
• 5 Milliohm Int. Resistance
• 8 Amp/Hour
• Surge 800 amp x 3 seconds
• 7.25“h x 8.25”w x 6.5”d
11
WWW.KOLEAUDIO.COM
C-4D 4 Farad Power Capacitor
C-6D 6 Farad Power Capacitor C-8D 8 Farad Power Capacitor
C-20D High Power 20 Farad Capacitor
C-30D High Power 30 Farad Capacitor
C1.6R 1.6 Farad Power Capacitor
• Current Sensing Circuitry for Auto on/o
• 24 Volt DC MAX Output
• Digital Voltage Display
• Chrome Finish
• Ring Terminal Connection Post
• Dimension: 3.625”h x 5.5”w x 9.5”L
• Current Sensing Circuitry for Auto on/o
• 24 Volt DC MAX Output
• Digital Voltage Display
• Blue Accent Lighting
• Black Chrome Finish
• Low E.S.R. and ≤ 5% Capacity Tollerence
• Ring Terminal Connection Post
• Dimensions: (3.625”h x 5.56”w)
• C-4D 9.5”L, C-6D 10.25”L, C-8D 10.75”L
CAPACITORS
• Hybrid Power Capacitor
• 24 DC Volt Internally Stacked Foil/Carbon Capacitors
• Blue Digital Amperage and Voltage Displays
• Blue LED Accent Lighting
• Chrome Plated Chassis
• Low E.S.R. and ≤ 5% Capacity Tollerence
• 0 ga. Direct Connection Terminals
• Turn-on Signal Distribution Terminals
• Dimensions: 2.875”h x 5.375”w x 10.5”L
12
KOLEAUDIO 2010
This manual suits for next models
11
Table of contents
Other Kole Audio Car Amplifier manuals
