KRAFTWERK 32107 User manual

DO NOT attempt to operate the tool until you have read and
understood all instructions and safety rules contained in this
manual. Failure to comply may result in accidents involving fire,
electric shock, or serious personal injury. Save this owner’s
manual for future reference and review it frequently for safe
operation.
Art. 32107
Instruction Manual
Cordless drill/driver 10.8 V
EN
WARNING:
1.5 h
Li-Ion
10.8 V
2000 mAh
25 1000
g
0-400/
0-1400
1 min.
1/4"

2

3

4

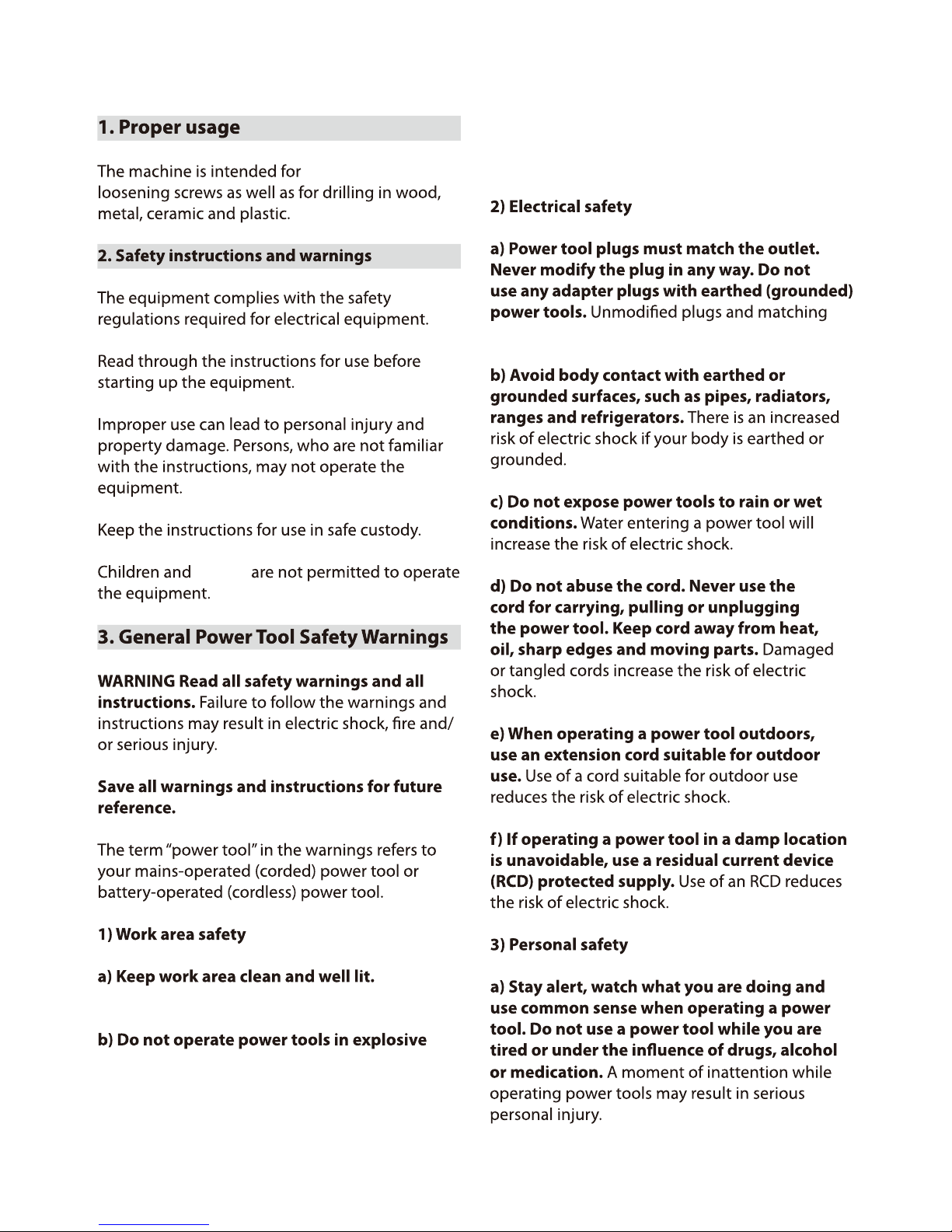

tightening and
minors
Disordered
or dark areas can lead to accidents.
environments with ammable liquids, gases
or dust. Power tools create sparks which may
ignite dust or fumes.
c) Keep children and other persons away while
operating a power tool. Distractions can cause
you to lose control.
outlets will reduce the risk of electric shock.

5
a) Do not overload the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch
is out of function. Any power tool that
cannot be controlled by the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or placing power tools. Such
preventive safety measures reduce the risk of
starting the power tool unintentionally.
d) Store unused power tools out of reach of
children and do not allow persons not familiar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of inexperienced users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may aect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Use the power tool, accessories and drill
bits etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations dierent from those
intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specied
by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of
re when used with another battery pack.
b) Use power tools only with specically
designated battery packs. Use of any other
battery packs may create a risk of injury and re.
c) When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the
battery terminals together may cause burns or
re.

6
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
6) Service
a) let your power tool be repaired by a qualied
service person using only original service/spare
parts. This will ensure that the safety of the
power tool is maintained.
4. Special safety instructions
• Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory or fastener may
contact hidden power lines. Cutting accessory
and fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live”
and could give the operator an electric shock.
• Use appropriate detectors to determine if
utility lines are hidden in the work area or
call the local electric company for assistance.
Contact with electric lines can lead to re and
electric shock. Damaging a gas line can lead
to explosion. Penetrating a water line causes
property damage or may cause an electric shock.
• Switch o the power tool immediately
when the inserted tool jams and blocks. Be
prepared for high reaction torque that can cause
a kickback.
The inserted tool jams when:
— the power tool is subject to overload or
— it becomes wedged in the workpiece.
• Hold the machine with a rm grip. High
reaction torque can briey occur while
tightening in and loosening screws.
• Secure the workpiece. A workpiece xed
with clamping devices or in a vice is held
more securely than by hand.
• Keep your workplace clean. Mixing of
materials is particularly dangerous. Light
metal dusts easily can burn or explode.
• Always wait until the machine has come to
a complete stop before placing it down. The
inserted tool can jam and lead to loss of control
over the power tool.
• Do not open the battery. Danger of
shortcircuiting. Protect the battery against heat,
e. g., also against continuous sun exposure
and re. There is danger of explosion.
• In case of damage and improper use of the
battery, vapours may be emitted. Provide
for fresh air and seek medical help in case
of complaints. The vapours can irritate the
respiratory system.
• When the battery is defective, liquid can
escape and come into contact with adjacent
components. Check any parts concerned.
Clean such parts or replace them, if required.

7
1. Torque selector
2. Rotation selector switch
3. On/O switch
4. Li-ion battery pack
5. Battery holder
6. Selector switch for 1st/2nd gear
7. Quick-change drill chuck
8. Battery charger
9. LED lamp
10. Integrated magnetic bit holder
11. Battery capacity indicator
8.1 Charging the battery pack (B2-B3)
The battery is protected against total discharge.
The integrated protective system will automati-
cally switch o the machine when the battery is
completely discharged. In this case the bit holder
is not turning anymore.
Warning!
Don’t use the ON/OFF switch any longer if the
integrated protective system switched o the
machine. This could lead to damage the battery.
1. Remove the battery pack (4) from the handle
pressing the pushlock buttons (5) on the left and
the right side.

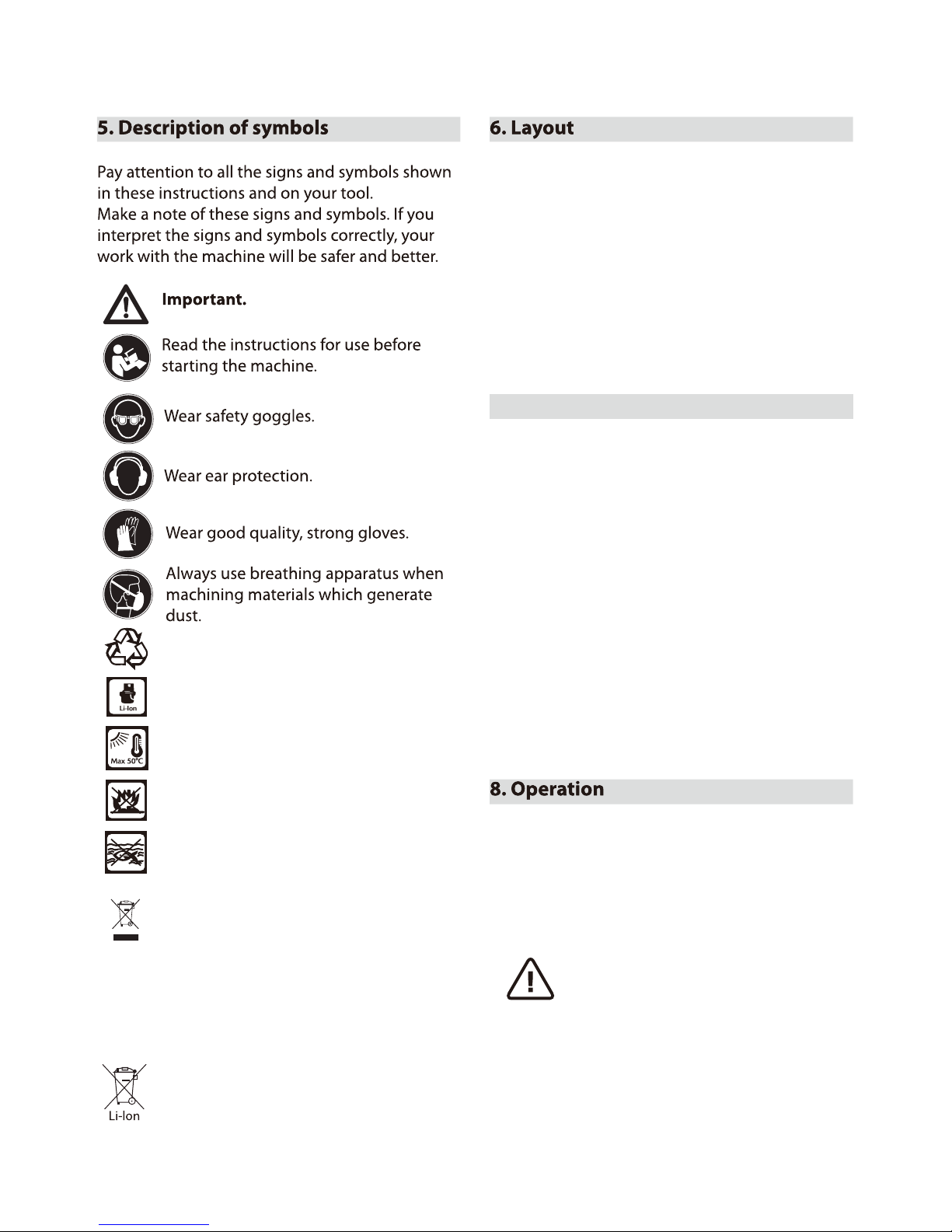

Battery-packs are resuable resources
Li-Ion battery
Avoid continous sun exposure
Do not throw into re
Do not throw into water
Waste electrical equipment contains
valuable materials and they do not
belong to household waste.
We kindly ask you to help to protect the
environment by returning this machine
to a return point (if available) after
reaching the end of its life.
Used batteries do not belong to
household waste. There is the legal
obligation to return batteries to
appropriate recycling points.
7. Before starting the equipment
Be sure to read the following information before
you use your cordless screwdriver for the rst
time:
1. Charge the battery pack with the supplied
charger. An empty battery pack requires a
charging time of approximately 100 min.
2. Only ever use sharp drill bits and driver
bits which are suitable for the purpose and in
awless condition.
3. Always check for concealed electric cables and
gas and water pipes when drilling and screwing
in walls.

8
2. Check that your mains voltage is the same as
marked on the rating plate of the battery
charger. Plug the mains plug of the charger (8)
into the mains socket outlet. The green LED
starts to ash.
3. Insert the battery (4) on the charger (8).
4. Under point 8.10 „ Indication of charger“ you
nd a table with the meanings of the LED-indica-
tion for the charger.
If the battery pack fails to become charged,
please check whether there is voltage at the
socket-outlet - whether there is proper contact
at the charging contacts on the charger (8).
If the battery still fails to become charged, please
deliver the charger and the battery pack to our
Customer Service Department. To ensure that
the battery pack provides long service you
should take care to recharge it promptly. You
must recharge the battery pack when you notice
that the power of the cordless screwdriver drops.
Never fully discharge the battery pack. This will
lead the battery pack to damage.
Attention! Recharge the battery at regular
intervals (for example every 6 months).
8.2 Torque setting (B4)
The cordless screwdriver is fitted with a
mechanical torque selector. The torque for a
specific size of screw is selected with the
set-collar (1). The correct torque depends on
several factors:
- the type and hardness of material in question
- the type and length of the used screws
- the requirements to be applied on the screw
connection.
The clutch disengages with a grating sound to
indicate when the set torque is reached.
Important! The tool must be at a standstill when
you set the torque with the setting ring.
8.3 Drilling (B4)
For drilling purposes, move the set-collar to the
last step ,,Drill". In this setting the slip clutch is
inactive. The maximum torque is available in
drilling mode.
8.4 Forward/Reverse switch (B5)
With the slide switch above the ON/OFF switch
you can select the direction of rotation of the
battery powered drill/screwdriver and secure it
against being switched on unintentionally. You
can choose between clockwise and anticlock-
wise rotation. To avoid causing damage to the
gear box change the direction of rotation only
when the tool is at standstill.
The ON/OFF switch is blocked when the slide
switch is in centre position.
8.5 On/O switch (B5)
Variable speed control is possible with the
On/O switch. More you press the switch, higher
gets the speed of the battery powered
drill/screwdriver.
Power up:
Press for starting the machine the ON/OFF
switch (3) and hold down the button. The
LED-light (9) lights up with slightly or completely
pressed ON/OFF switch (3) and enables to
illuminate the work area.
Power down:
Release the ON/OFF switch (3) for turning o the
machine.
8.6 Battery capacity indicator (B1)
The 3 color LEDs are indicating the status of the
battery capacity as soon as you press the
ON/OFF switch (3).
All LEDs illuminate: The battery is fully charged.
The yellow and red LED illuminate: The battery
has an adequate remaining charge. Red LED: The
battery is empty, recharge the battery.
8.7 LED lamp (B5)
The LED lamp (9) can be used in poor lighting
conditions to illuminate the area to drill or screw.
The LED lamp (9) will be lit
automatically as soon as you press the ON/OFF
switch (3).

9
9. Technical data
Voltage supply: 10.8 V d.c. / 2.0 Ah Li-Ion
Idle speed: 0-400/0-1400 rpm
Torque settings: 18+1
Max. torque: 25 Nm
Forward and reverse rotation: yes
Chuck clamping capacity: 0.8-10 mm
Battery charging voltage: 12.5 V d.c.
Battery charging current: 1500 mA
Mains voltage for charger: 100-240 V~/50-60 Hz
Charging time: 100 min
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745-1, EN 60745-2-1,
EN 60745-2-2.
LpA sound pressure level 61.8 dB(A)
KpA uncertainty 3 dB
LWA sound power level 72.8 dB(A)
KWA uncertainty 3 dB
Wear ear-mus.
The impact of noise can cause hearing loss.
Total vibration values (vector sum of three
directions) determined in accordance with
EN 60745-1, EN 60745-2-1, EN 60745-2-2.
Drilling in metal
Vibration emission value ah= 0.495 m/s2
K uncertainty = 1.5 m/s2
Screwing without hammer action
Vibration emission value ah <2.5 m/s2
K uncertainty = 1.5 m/s2
8.8 Changing the tool (B6)
Important! Set the rotation selectorswitch (2) to
its centre position whenever you carry out any
work (for example changing the tool, mainte-
nance work, etc.) on the cordless screwdriver.
- The cordless screwdriver is fitted with a
quick change chuck (7) with an automatic
spindle stop.
- Open the chuck (7). The chuck opening (a) must
be big enough to hold the tool (drill bit or
screwdriver bit).
- Select the suitable tool. Push the tool as deep
as possible into the chuck opening (a).
- Tighten the chuck (7) and then check that the
tool is secure.
8.9 Screwdriving
We recommend using self-centering screws (e.g.
Torx screws, recessed head screws) designed for
reliable working. Be sure to use a bit that
matches the screw in shape and size. Set the
torque, as described in these operating
instructions, to suit the size of screw.
8.10 Indication on battery charger
Slide the battery on the charger. The red LED
signalized that the battery is fully charged.
If the charge status is terminated the red LED
goes out and the green LED then lights
constantly.
8.11 Changing from 1st gear to 2nd gear
(B4/Pos.6)
Information: Push the gear switch 6 only when
the machine is at stillstand. In rst gear (gear
switch 6 in position 1) you obtain a speed of
about 400 rpm and a high torque. This setting is
ideal for all screwing actions. In the second gear
(gear switch 6 in position 2) you obtain a speed
of about 1400 rpm for drilling operations.
8.12 Integrated magnetic bit holder (B.7-8)
The cordless drill/driver has an integrated
magnetic bit holder (10) for ¼“ (6.35 mm) bits.
To use them you have to remove the
quick-change drill chuck (7) by pressing the rear
drill chuck sleveve (b) to the drill chuck.
Now you can put the appropriate bit into the
integrated magnetic bit holder (10).
In order to mount the drill chuck again you have
to put it on the bit holder and turn it a little until
it can be defered completely. Lock the drill chuck
by pushing the drill chuck sleeve (b) to the
direction of the machine.

10
12. Cleaning and maintenance
Always pull out the mains power plug before
starting any cleaning work.
12.1 Cleaning
• Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
out with compressed air at low pressure.
• We recommend that you clean the device
immediately each time you have nished using it.
10. Repairs
Only use accessories and spare parts
recommended by the manufacturer.
If the equipment should fail some day in spite of
our quality controls and your maintenance, only
let it repair by an authorized electrical specialist.
If the supply cord of the appliance is damaged,
this has to be done by the manufacturer or his
agent or electrician in order to avoid a safety
hazard.
11. Environmental protection
• Clean the equipment regularly with a moist
cloth and some soft soap. Do not use cleaning
agents or solvents; these could attack the
plastic parts of the equipment. Ensure that no
water can seep into the device.
12.2 Maintenance
There are no parts inside the equipment which
require additional maintenance.
Important!
The vibration value changes according to the area
of application of the electric tool and may exceed
the specied value in exceptional circumstances.
Waste electrical equipment contains
valuable materials and they do not
belong to household waste.
We kindly ask you to help to protect the
environment by returning this machine
to a return point (if available) after
reaching the end of its life.
Used batteries do not belong to
household waste. There is the legal
obligation to return batteries to
appropriate recycling points.
