TABLE OF CONTENTS
Introduction.......................................................................................................................................8
Safety Instructions.............................................................................................................................9
Component List...............................................................................................................................13
Specications..................................................................................................................................13
Assembly.........................................................................................................................................14
Operation.........................................................................................................................................15
Maintenance....................................................................................................................................17
Environmental Protection...............................................................................................................17
Troubleshooting...............................................................................................................................18
Declaration of Conformity...............................................................................................................18
INTRODUCTION
Dear Customer,
Thank you for buying this Kress product. We are dedicated to developing high quality products
to meet your lawn & garden requirements.
The Kress brand is synonymous with premium quality service. Over the years of your products
life, if you have any questions or concerns about your product, please contact your location of
purchase or our Customer Service Team for assistance.
We are condent you will enjoy working with your Kress product for years to come.
INTENDED USE OF PRUNING SAW
The mini pruning saw is intended for cutting only wood and branches up to a diameter
corresponding to the length of the pruning saw guide bar.
The mini pruning saw must be used at ground level or from a suitable platform that is
completely stable and secure.
The mini pruning saw is intended for outdoor use only.
The mini pruning saw is not intended for any other use.
Mounting of parts on the mini pruning saw is authorized only for original or manufacturer-
approved spare parts (chain guides or saw chains for example) as well as for authorized
chain guide / saw chain combinations as indicated in the manual.
The user is responsible for any accident resulting from improper use or unauthorized
modication of the mini pruning saw.

9
EN
ORIGINAL INSTRUCTIONS
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body
is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your nger on the
switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair and clothing
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that may affect the power

10
EN
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different
from those intended could result in a hazardous
situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
re.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the
battery terminals together may cause burns or a
re.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside
the temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specied range may
damage the battery and increase the risk of re.
6) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
b) Never service damaged battery packs.
Service of battery packs should only be
performed by the manufacturer or authorized
service providers.
1) General pruning saw safety warnings:
a) Keep all parts of the body away from
the saw chain when the pruning saw is
operating. Before you start the pruning
saw, make sure the saw chain is not
contacting anything. A moment of inattention
while operating pruning saws may cause
entanglement of your clothing or body with the
saw chain.
b) Hold the pruning saw by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring. Saw chains contacting
a live wire may make exposed metal parts
of the pruning saw live and could give the
operator an electric shock.
c) Wear safety glasses protection. Further
protective equipment for hearing, head,
hands, legs and feet is recommended.
Adequate protective clothing will reduce
personal injury by ying debris or accidental
contact with the saw chain.
d) Do not operate a pruning saw in a tree, on
a ladder, from a rooftop, or any unstable
support. Operation of a pruning saw in this
manner could result in serious personal injury.
e) Always keep proper footing and operate
the pruning saw only when standing on
fixed, secure and level surface. Slippery or
unstable surfaces may cause a loss of balance
or control of the pruning saw.
f) When cutting a limb that is under tension ,
be alert for spring back. When the tension in
the wood bres is released , the spring loaded
limb may strike the operator and/or throw the
pruning saw out of control.
g) Use extreme caution when cutting brush
and saplings. The slender material may catch
the saw chain and be whipped toward you or
pull you off balance.
h) Carry the pruning saw by the front handle
with the pruning saw switched off and
away from your body. When transporting
or storing the pruning saw , always fit
the guide bar cover. Proper handling of
the pruning saw will reduce the likelihood of
accidental contact with the moving saw chain.
i) Follow instructions for lubricating, chain
tensioning and changing the bar and chain.
Improperly tensioned or lubricated chain
may either break or increase the chance for
kickback.
j) Cut wood only. Do not use pruning saw for
purposes not intended. For example: do not
use pruning saw for cutting metal, plastic,
masonry or non-wood building materials.
Use of the pruning saw for operations different
than intended could result in a hazardous
situation.
k) This pruning saw is not intended for tree
felling. Use of the pruning saw for operations
different than intended could result in serious
injury to the operator or bystanders.

11
EN
l) Follow all instructions when clearing
jammed material, storing or servicing
the pruning saw. Make sure the switch
is off and the battery pack is removed.
Unexpected actuation of the pruning saw while
clearing jammed material or servicing may
result in serious personal injury.
m) Recommendation that the first-time user
should, as a minimum, practise cutting logs
on a saw-horse or cradle.
n) Recommendation to have sharpening and
maintenance of the saw chain performed
by authorised service centres.
2) Causes and operator prevention of
kickback:
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and
back towards the operator.
Pinching the saw chain along the top of the guide
bar may push the guide bar rapidly back towards
the operator.
Either of these reactions may cause you to lose
control of the saw which could result in serious
personal injury. Do not rely exclusively upon the
safety devices built into your saw. As a pruning
saw user, you should take several steps to keep
your cutting jobs free from accident or injury.
Kickback is the result of pruning saw misuse and/
or incorrect operating procedures or conditions
and can be avoided by taking proper precautions
as given below:
a) Maintain a firm grip, with thumbs and
fingers encircling the pruning saw
handles, and position your body and arm
to allow you to resist kickback forces.
Kickback forces can be controlled by the
operator, if proper precautions are taken. Do
not let go of the pruning saw.
b) Do not overreach and do not cut above
shoulder height. This helps prevent
unintended tip contact and enables better
control of the pruning saw in unexpected
situations.
c) Only use replacement bars and chains
specified by the manufacturer. Incorrect
replacement guide bars and saw chains may
cause chain breakage and/or kickback.
d) Follow the manufacturer’s sharpening
and maintenance instructions for the saw
chain. Decreasing the depth gauge height can
lead to increased kickback.
Residual risks
Even with the intended use of the appliance there
is always a residual risk, which can not prevented.
According to the type and construction of the
appliance the following potential hazards might
apply:
- Contact with exposed saw teeth of the saw
chain (cutting hazards)
- Access to the rotating saw chain (cutting
hazards)
- Unforeseen, abrupt movement of the guide bar
(cutting hazards)
- Flung out of parts from the saw chain (Cutting /
injection hazards)
- Flung out of parts of the work piece
- Skin contact with the oil
- Loss of hearing, if no required ear protection
used during work
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use,
keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a re.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow
the liquid to come into contact with the
skin or eyes. If contact has been made,
wash the affected area with copious
amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
h) Battery pack needs to be charged before
use. Always refer to this instruction and
use the correct charging procedure.
i) Do not maintain battery pack on charge
when not in use.
j) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
k) Recharge only with the charger specified
by Kress. Do not use any charger other
than that specifically provided for use with
the equipment.
l) Do not use any battery pack which is not
designed for use with the equipment.
m) Keep battery pack out of the reach of
children.
n) Retain the original product literature for
future reference.
o) Remove the battery from the equipment
when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture,

12
EN
capacity, size or type within a device.
r) Keep the battery away from microwaves
and high pressure.
INSTRUCTIONS / GUIDELINES
FOR OPERATION
Instructions concerning the proper techniques
for limbing and cross-cutting

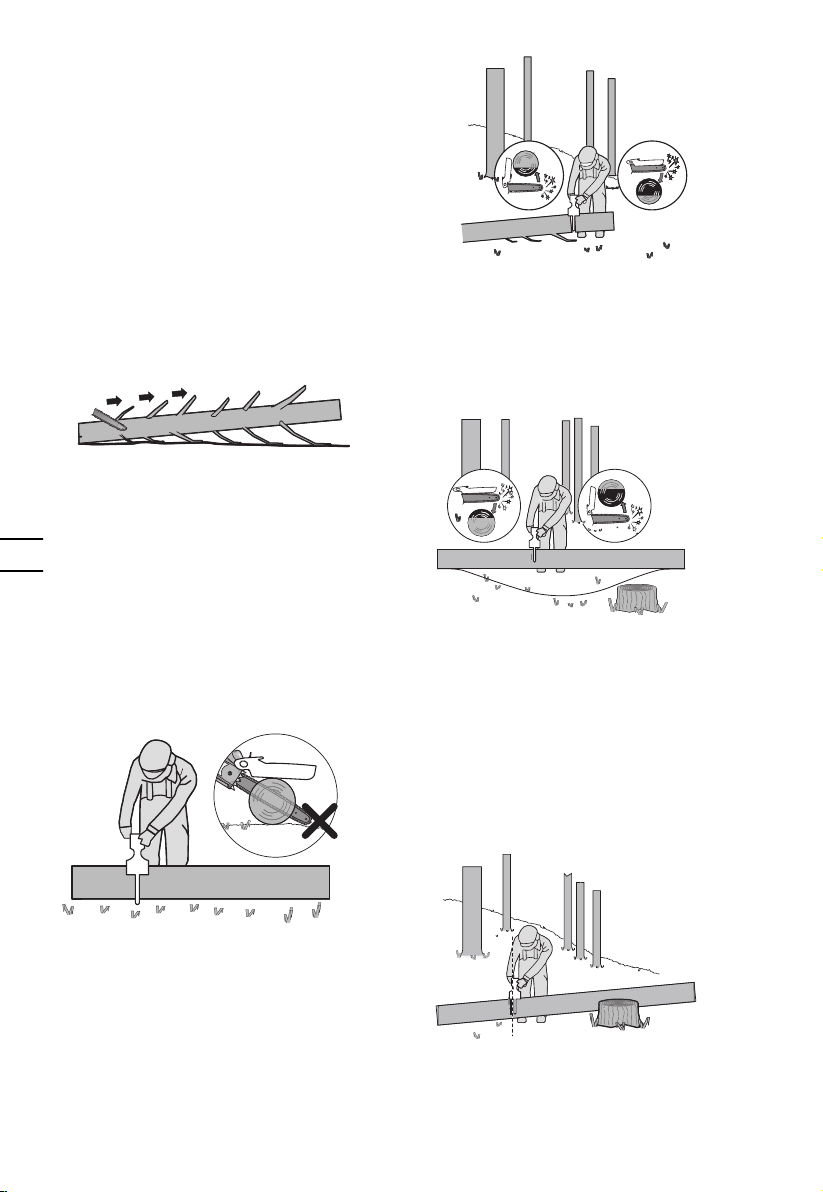

1. Limbing a tree
Limbing is removing the branches from a fallen
tree. When limbing leave larger lower limbs to
support the log off the ground. Remove the small
limbs in one cut as illustrated in Figure 1. Branches
under tension should be cut from the bottom up to
avoid binding the pruning saw.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 1
2. Bucking a log
Bucking is cutting a log into lengths. It is important
to make sure your footing is rm and your weight
is evenly distributed on both feet. When possible,
the log should be raised and supported by the
use of limbs, logs or chocks. Follow the simple
directions for easy cutting.
When the log is supported along its entire length
as illustrated in Figure 2, it is cut from the top
(overbuck), avoid contacting ground as this will
greatly reduce the chain sharpness.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 2
When the log is supported on one end, as
illustrated in Figure 3, cut 1/3 the diameter from
the underside ( underbuck) (1). Then make the
nished cut by overbucking (2) to meet the rst
cut.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 3
When the log is supported on both ends, as
illustrated in Figure 4, cut 1/3 the diameter from
the top (overbuck) (1). Then make the nished cut
by underbucking (2) the lower 2/3 to meet the rst
cut.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 4
When bucking on a slope always stand on the
uphill side of the log, as illustrated in Figure 5.
When “cutting through”, to maintain complete
control release the cutting pressure near the
end of the cut without relaxing your grip on the
pruning saw handles. Don’t let the chain contact
the ground. After completing the cut, wait for the
saw chain to stop before you move the pruning
saw. Always stop the motor before moving from
tree to tree.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 5

13
EN
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Beware of pruning saw kickback and
avoid contact with bar tip
Do not expose to rain
Wear protective gloves
Do not burn
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
Waste electrical products must
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your local
authorities or retailer for recycling
advice.
Li-Ion battery. This product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will
then be recycled or dismantled in
order to reduce the impact on the
environment. Battery packs can be
hazardous for the environment and
for human health since they contain
hazardous substances.
Lock
Unlock
COMPONENT LIST
1. CHAIN GUARD
2. HOUSING-COVER KNOB
3. LOCK-OUT BUTTON
4. ON/OFF SWITCH
5. GRIP AREA
6. BATTERY PACK *
7. BATTERY PACK RELEASE BUTTON *
8. HAND GUARD
9. HOUSING-COVER
10. CHAIN
11. GUIDE BAR
12. BASE PLATE
13. OIL FILLER CAP
14. BAR PAD
15. DRIVE SPROCKET
16. FASTENING BAR BOLT
17. BAR LOCATING TAB
18. BAR AND CHAIN SHEATH/SCABBARD
* Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
Type KG343E KG343E.X (3 - designation of
machinery, representative of battery-operated
pruning saw)
KG343E KG343E.X ***
Voltage 20 V Max.**
Bar length 12 cm
Chain speed 10 m/s
Chain pitch 7.6 mm
Number of chain drive
links 28
Chain gauge 1.1 mm
Adaptive chain type KA2632
Adaptive guide bar type KA2612

14
EN
Machine weight (chain &
bar included) (bare tool)
1.1 kg
** Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
*** X=1-999, A-Z, M1-M9 there are only used for
different customers, there are no safe relevant
changes between these models.
SUGGESTED BATTERIES
AND CHARGERS
Category Type Capacity
20V Battery KAB02 2.0 Ah
20V Charger KAC02 2.0 A
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.
NOISE INFORMATION
A weighted sound pressure LpA = 80.3 dB(A)
KpA 3 dB(A)
A weighted sound power LwA = 91.3 dB(A)
KpA 3 dB(A)
Wear ear protection.
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined
according to EN 62841:
Vibration emission value: ah= 2.9 m/s2
Uncertainty K = 1.5 m/s
The declared vibration total value and the declared
noise emission value have been measured in
accordance with a standard test method and may
be used for comparing one tool with another.
The declared vibration total value and the declared
noise emission value may also be used in a
preliminary assessment of exposure.
WARNING: The vibration and noise emissions
during actual use of the power tool can differ
from the declared value depending on the ways in
which the tool is used especially what kind of
workpiece is processed dependant on the following
examples and other variations on how the tool is
used:
How the tool is used and the materials being cut or
drilled.
The tool being in good condition and well
maintained.
The use of the correct accessory for the tool and
ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any
anti vibration and noise accessories are used.
And the tool is being used as intended by its design
and these instructions.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of
exposure level in the actual conditions of use
should also take account of all parts of the operating
cycle such as the times when the tool is switched off
and when it is running idle but not actually doing the
job. This may signicantly reduce the exposure level
over the total working period.
Helping to minimise your vibration and noise
exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these
instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti
vibration and noise accessories.
Plan your work schedule to spread any high vibration
tool use across a number of days.
ASSEMBLY
WARNING! Do not install the battery pack
before it has been completely assembled.
Always use gloves when handling the chain.
Maintain proper chain tension always. A loose
chain will increase the risk of kickback. A loose
chain may jump out of guide bar groove. This
may injure operator and damage chain. A loose
chain will cause chain, bar, and sprocket to
wear rapidly.

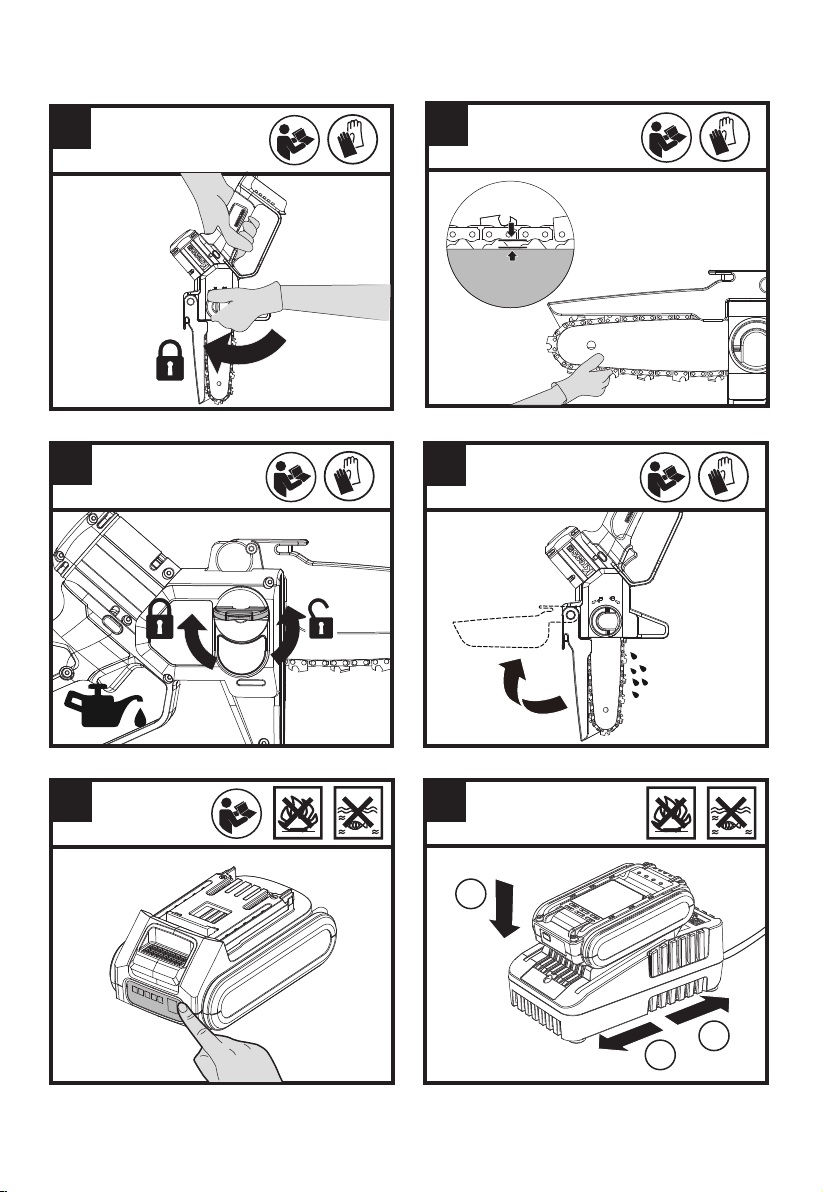

MOUNTING THE SAW CHAIN
1. Unpack all parts carefully. Remove the Housing-
Cover by turning the Housing-Cover Knob in a
counterclockwise direction. (See Fig. A1)
2. Place the pruning saw on a solid, level surface.
3. Use only genuine Kress Chains or those
recommended for Guide Bar.
4. Slide the Chain in the slot around the Guide Bar.
Ensure the Chain is in correct running direction
by comparing it to the chain icon on the Guide
Bar, or referring to the chain direction symbol
found on the saw body. (See Fig. A2)
5. Fit the Chain onto the Drive Sprocket, so that
the Fastening Bar Bolt and the Bar Locating Tab
on the Bar Pad t into the keyway of the opening
on the Guide Bar. (See Fig. B1, B2)
6. Assure all parts are seated properly. Make
sure the drive links are fully seated in the Drive
Sprocket (See Fig. C1), avoiding a kink as shown
in Fig. C2. If kink occurs, pick up the Chain at

15
EN
the Guide Bar just ahead of the kink and then
pull the kink out.
NOTE: Chain should rotate freely and be free
of kinks.
7. Fit the Chain Cover. Tilt the guide bar forward
where the guide bar tip is pushed in an vertically
downward direction. This will remove slack from
the chain. The correct chain tension is reached
when the chain can be raised approx. Half the
drivelink depth from the guide bar in the center.
This should be done by using one hand to raise
the chain against the weight of the machine.
Then tighten the Chain Cover by turning the
Housing-Cover Knob clockwise until it is tight.
(See Fig. D)
NOTE: The chain is properly tensioned when
it can be lifted off of the Guide Bar and the
drivelink is within the rail of the Guide Bar. (See
Fig. E)
NOTE: The chain will stretch while cutting and
lose proper tension. When the chain becomes
loose, completely unscrew the Housing-Cover
Knob or turn the knob around three full turns in
a counter-clockwise direction, then retighten the
Housing-Cover Knob to properly reset the chain
tension by repeating Steps 1-7 listed above.
NOTE: New saw chains will stretch. Check the
chain tension frequently when rst used and
tighten when the Chain becomes loose around
the Guide Bar.
LUBRICATION (See Fig. F1, F2)
Important: The Pruning Saw is not filled with oil.
It is essential to fill with oil before use. Never
operate the Pruning Saw without chain oil or
at an empty oil tank level, as this will result in
extensive damage to the product.
NOTE: Chain life and cutting capacity depend
on optimum lubrication. Therefore, the chain
should be oiled before operation.
FILLING OIL TANK:
WARNING: Removing the battery pack
before filling the oil tank.
1. Set Pruning Saw on any suitable surface with oil
ller cap facing upward.
2. Clean area around the oil ller cap with cloth
and unscrew the cap by turning it counter-
clockwise.
3. Add bar and chain oil until tank is full.
4. Avoid dirt or debris entering oil tank, ret oil ller
cap and tighten by turning clockwise until hand
tight.
IMPORTANT: To allow venting of the oil tank,
small breather channels are provided
between the oil filler cap and the strainer, to
prevent leakage, and ensure machine is left in a
horizontal position when not in use.
It is important to use bar and chain lubricant (not
provided) that is formulated to perform over a
wide temperature range with no dilution required.
This can be found at the location where you
purchased this saw or your local hardware store.
Do not use dirty, used or otherwise contaminated
oils. Damage may occur to the bar or chain.Use
of non approved oil will void the warranty.
Do not swallow. If swallowed, call a physician
immediately. Keep out of reach of children. Store
away from heat or open flame.
CHECKING THE AUTOMATIC OILER
WARNING:Cutting edges on chain are
sharp. Use protective gloves.
Put downward the chain saw and lift the Chain
Guard to the maximum position for lubrication
after lling up the oil tank. (See Fig. F2) Proper
functioning of the automatic oiler can be checked
by running the Pruning Saw and pointing the tip of
the guide chain bar towards a piece of cardboard
or paper on the ground. If an increasing oil pattern
develops on the cardboard, the automatic oiler is
operating ne. If there is no oil pattern, despite a full
oil reservoir, contact Kress customer service agent
or Kress approved service agent.
Caution: Do not touch the ground with the
chain. Ensure safety clearance of 40cm.
OPERATION
1. BEFORE USING YOUR CORDLESS
TOOL
WARNING! The charger and battery pack are
specially designed to work together so do not
attempt to use any other devices. Never insert or
allow metallic objects into your charger or battery
pack connections because of an electrical failure and
hazard will occur.
NOTE: Your battery pack is UNCHARGED and you
must charge once before use.
The battery charger supplied is matched to the
Li-ion battery installed in the machine. Do not use
another battery charger.
(1) CHARGING YOUR BATTERY PACK (See
Fig. G1, G2)
The Li-ion battery is protected against deep
discharging. When the battery is empty, the
machine is switched off by means of a protective
circuit.
In a warm environment or after heavy use, the
battery pack may become too hot to permit
charging. Allow time for the battery to cool down
before recharging.

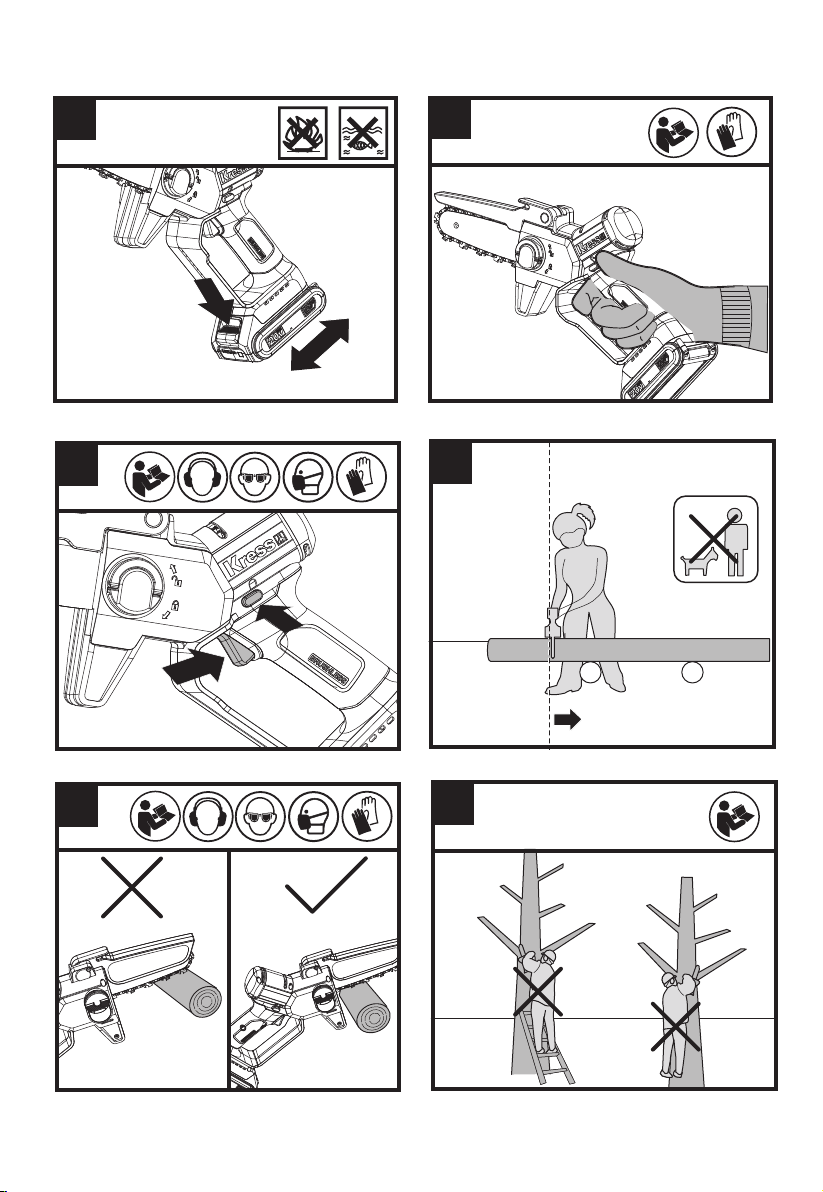

(2) TO REMOVE OR INSTALL BATTERY
PACK (See Fig. H)
Depress the Battery Pack Release Button to
remove the Battery Pack from your tool. After
recharging, insert the Battery Pack into the battery
port. A simple push and slight pressure will be
sufcient until a click is heard. Check to see if the
battery is fully secured.

16
EN
NOTE: When removing the battery pack, hold it
firmly to avoid dropping and injury.
(3) HOLDING AND CONTROLLING THE
PRUNING SAW (See Fig. I)
Hold and control the pruning saw with one hand on
the Grip Area – wrap your thumb around the Grip
Area.
2. SWITCHING ON AND OFF (See Fig. J)
ATTENTION: Check the battery pack before
using your cordless tool. Only use the battery
pack listed in the accessories section.
For switching on the tool, press the Lock-Out
Button, then fully press the On/Off Switch and hold
in this position. The Lock-Out Button can now be
released.
For switching off, release the On/Off Switch.
3. CUTTING
IMPORTANT: Check recent replaced chain
tension about every 10 minutes during
operation.
(1) Installing the battery pack into the machine.
(2) Make sure section of log to be cut is not laying
on the ground. This will keep the chain from
touching the ground as it cuts through the log.
Touching the ground while the Chain is moving
is dangerous and will dull the Chain.
(3) When ready to make a cut, push the Lock-
Out Button completely in with the right thumb
and squeeze the trigger. This will turn saw on.
Releasing the trigger will turn the saw off. Make
sure the saw is running at full speed before
starting a cut.
(4) When starting a cut, slowly place moving chain
against the wood. The wood should be as close
to the saw body as possible. Hold saw rmly
in place to avoid possible bouncing or skating
(sideways movement) of saw.
(5) Guide the saw using light pressure and do not
put excessive force on the saw, letting the saw
do its work. The motor will overload and can
burn out. It will do the job better and safer at the
rate for which it was intended.
(6) Remove the saw from a cut with the saw running
at full speed. Stop the saw by releasing the On/
off Switch. Make sure the chain has stopped
before setting the saw down.
(7) Keep practicing on scrap logs in a secure
working area until you are comfortable, using a
uid motion and a steady cutting rate.
KICKBACK SAFETY DEVICES ON THIS
SAW
This saw has a low-kickback chain and reduced
kickback Guide Bar. Both items reduce the chance
of kickback. However, kickback can still occur with
this saw.
The following steps will reduce the risk of kickback.
• Keep all safety items in place on saw. Make sure
they work properly.
• Do not overreach or cut above shoulder height.
• Keep solid footing and balance at all times.
• Stand slightly to the left side of saw. This keeps
your body from being in direct line with chain.
• Do not let Guide Bar nose touch anything when
chain is moving.
• Never try cutting through two logs at same time.
Only cut one log at a time.
• Do not bury the Guide Bar nose or try plunge
cut (boring into wood using Guide Bar nose).
• Watch for shifting of wood or other forces that
may pinch chain.
• Use extreme caution when reentering a previous
cut.
• Use only the low-kickback chain and Guide
Bar that were supplied with this pruning saw or
recommended.
• Never use a dull or loose chain. Keep chain
sharp with proper tension.
HOW TO USE SAW SAFELY
1. Use the pruning saw only with secure footing.
2. Hold the pruning saw at the right-hand side of
your body (See Fig. K).
3. The Chain must be running at full speed before
it makes contact with the wood.
4. Use the Base Plate to secure the saw onto the
wood before starting to cut.
5. Use the Base Plate as a leverage point while
cutting. (See Fig. L)
6. Do not operate the saw with arms fully
extended, attempt to saw areas which are
difcult to reach, or stand on a ladder while
sawing. (See Fig. M)
Never use the pruning saw above shoulder
height.
CUTTING WOOD UNDER TENSION (SEE
FIG. N)
WARNING: When cutting a limb that is under
tension, use extreme caution. Be alert for
wood springing back. When wood tension is
released, limb could spring back and strike
operator causing severe injury or death.
When sawing logs supported on both ends, start
the cut from above(Y) about 1/3 of the diameter into
the log (overbuck) and then nish the cut (Z) from
below, in order to avoid contact of the pruning saw
with the ground. When sawing logs supported on
only one end, start the cut from below (Y) about 1/3
of the diameter into the log (underbuck) and nish
the cut from above (Z) in order to avoid log splitting
or jamming of the pruning saw.
CLEAN RESIDUAL OIL AFTER OPERATION
Lift the Chain Guard to the maximum position for 3
to 5 times. (See Fig.F2)
NOTE: The Oil Outlet cannot be faced towards
people. The Chain and Guide bar should be
faced down.

17
EN
SAW MAINTENANCE
Follow maintenance instructions in this manual.
Proper cleaning of saw and chain and Guide Bar
maintenance can reduce chances of kickback.
Inspect and maintain saw after each use. This will
increase the service life of your saw.
NOTE: Even with proper sharpening, risk of
kickback can increase with each sharpening.
MAINTENANCE AND STORAGE OF
PRUNING SAW
1. Remove the battery pack
• When not in use
• Before moving from one place to another
• Before servicing
• Before changing accessories or attachments,
such as saw chain and guard
2. Inspect pruning saw before and after each
use. Check saw closely if guard or other part
has been damaged. Check for any damage
that may affect operator safety or operation of
saw. Check for alignment or binding of moving
parts. Check for broken or damaged parts. Do
not use pruning saw if damage affects safety or
operation. Have damage repaired by authorized
service center.
3. Maintain pruning saw with care.
• Never expose saw to rain or direct moisture.
• Keep chain sharp, clean, and lubricated for
better and safer performance.
• Follow steps outlined in this manual to sharpen
chain.
• Keep handles dry, clean, and free of oil and
grease.
• Keep all screws and nuts tight.
4. When servicing, use only identical replacement
parts.
5. When not in use, always store pruning saw
• in a high or locked place, out of children’s reach
• in a dry place
• with Bar and Chain Cover in place
BAR MAINTENANCE
To maximize bar life, the following bar maintenance
is recommended.
The bar rails that carry the chain should be cleaned
before storing the tool or if the bar or chain appear
to be dirty.
The rails should be cleaned every time the chain is
removed.
TO CLEAN THE BAR RAILS.
1. Remove Housing-Cover, Bar and Chain. (see
section ASSEMBLY)
2. Using a wire brush, screwdriver or similar tool,
clear the residue from the inner groove of the
bar. (See Fig. O)
3. Make sure to clean oil passages thoroughly.
Conditions which require Chain and Guide Bar
maintenance:
• Saw cuts to one side or at an angle.
• Saw has to be forced through the cut.
• Inadequate supply of oil to the bar and chain.
Check the condition of the Guide Bar each time the
chain is sharpened. A worn Guide Bar will damage
the chain and make cutting difcult.
After each use, remove the battery pack, clean all
sawdust from the Guide Bar and sprocket hole.
When rail top is uneven, use a at le to restore
square edges and sides.
File Rail Edges
and Sides
Square
Worn Groove Correct Groove
Replace the Guide Bar when the groove is
worn, the Guide Bar is bent or cracked, or when
excess heating or burring of the rails occurs. If
replacement is necessary, use only the Guide Bar
specied for your saw in the repair parts list or on
the decal located on the pruning saw.
REPLACING BAR & CHAIN
Replace chain when cutters are too worn
to sharpen or when chain stops. Only use
replacement chain noted in this manual.
Inspect Guide Bar before sharpening chain. A
worn or damaged Guide Bar is unsafe. A worn or
damaged Guide Bar will damage chain. It will also
make cutting harder.
SHARPENING SAW CHAIN
WARNING:
Remove the battery pack before servicing.
Severe injury or death could occur from
electrical shock or body contact with moving
chain.
Cutting edges on chain are sharp. Use
protective gloves when handling chain.
Select a diameter of 3mm round le to suit the
chain pitch. The le is held at the correct ling
angle of 30° to the guide bar.
Keep chain sharp. Your saw will cut faster and
more safely. A dull chain will cause undue sprocket,
Guide Bar, chain, and motor wear. If you must force
chain into wood and cutting creates only sawdust
with few large chips, chain is dull.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authorities or retailer for recycling
advice.

18
EN
FOR BATTERY TOOLS
The ambient temperature range for the use and storage of tool and battery is 0°C-45°C.
The recommended ambient temperature range for the charging system during charging is 0°C-40°C.
TROUBLESHOOTING TABLE
The following table gives checks and actions that you can perform if your machine does not operate
correctly. If these do not identify/remedy the problem, contact your service agent.
WARNING: Switch off and remove the battery pack before investigating fault.
Symptom Possible Cause Remedy
Pruning saw fails to
operate Out of battery. Fuse faulty. Charge the battery pack. Replace fuse.
Pruning saw
operates
intermittently
Over heating
Applying too much pressure
while cutting.
Loose connection.
Internal wiring defective.
On/Off switch defective.
Place the machine in a cool, ventilated
place to cool it down
Applying relatively less pressure while
cutting
Contact service agent.
Chain/chain bar
over-heats Chain is over tensioned Dull chain Adjust chain tension Sharpen chain or replace
Pruning saw rips,
vibrates, does not
saw properly
Chain tension too loose
Dull chain
Chain worn out
Chain teeth are facing in the
wrong direction
Adjust chain tension
Sharpen chain or replace
Replace chain
Reassemble with chain in correct
direction
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Battery-powered pruning saw
Type KG343E KG343E.X (3-designation of
machinery, representative of battery-operated
pruning saw)
Function Cutting wood
Complies with the following Directives:
2006/42/EC, 2014/30/EU,
2011/65/EU&(EU)2015/863,
2000/14/EC amended by 2005/88/EC
The notied body involved
Name: SGS Fimko Ltd
Address: Takomotie 8, FI-00380 Helsinki,
Finland
Certification No.: MD-347
2000/14/EC amended by 2005/88/EC:
- Conformity Assessment Procedure as per
Annex V
- Measured Sound Power Level 94 dB(A)
- Declared Guaranteed Sound Power Level
97 dB(A)
Standards conform to
EN 62841-1, EN 12100, EN ISO 3744, EN 55014-1,
EN 55014-2
The person authorized to compile the technical le,
Name Marcel Filz
Address Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
2022/07/19
Allen Ding
Deputy Chief Engineer, Testing & Certication
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

19
D
INHALTSVERZEICHNIS
Einführung.......................................................................................................................................19
Sicherheitshinweise........................................................................................................................20
Komponenten.................................................................................................................................25
Spezikationen...............................................................................................................................25
Montage ........................................................................................................................................26
Bedienung......................................................................................................................................28
Wartung..........................................................................................................................................29
Umweltschutz................................................................................................................................30
Problemlösung...............................................................................................................................31
Konformitätserklärung....................................................................................................................31
EINFÜHRUNG
Sehr geehrter Kunde,
Vielen Dank, dass Sie dieses Kress-Produkt gekauft haben. Wir sind bestrebt, qualitativ
hochwertige Produkte zu entwickeln, um Ihren Anforderungen im Bereich Rasen und Garten
gerecht zu werden.
Die Marke Kress steht für erstklassigen Service. Wenn Sie im Laufe der Jahre Fragen oder
Bedenken zu Ihrem Produkt haben, wenden Sie sich bitte an Ihren Einkaufsstandort oder an
unseren Kundenservice.
Wir sind zuversichtlich, dass Sie in den kommenden Jahren die Arbeit mit Ihrem Kress-Produkt
genießen werden.
BESTIMMUNGSGEMÄSSER GEBRAUCH
Die Mini-Kettensäge ist nur zum Schneiden von Holz und Ästen bis zu einem
Durchmesser vorgesehen, der der Länge der Kettensägenführungsstange entspricht.
Die Mini-Kettensäge muss in Bodennähe oder von einer geeigneten Plattform aus
verwendet werden, die absolut stabil und sicher ist.
Die Mini-Kettensäge ist nur für den Außenbereich gedacht.
Die Mini-Kettensäge ist nicht für andere Zwecke vorgesehen.
Die Montage von Teilen an der Mini-Kettensäge ist nur für Original- oder vom Hersteller
zugelassene Ersatzteile (z. B. Kettenführungen oder Sägeketten) sowie für autorisierte
Kombinationen aus Kettenführung und Sägekette gemäß den Angaben im Handbuch
zulässig.
Der Benutzer ist für alle Unfälle verantwortlich, die auf unsachgemäße Verwendung oder
unbefugte Modikationen an der Mini-Kettensäge zurückzuführen sind.

20
D
ORIGINALBETRIEBSANLEITUNG
PRODUKTSICHERHEIT
ALLGEMEINE
SICHERHEITSHINWEISE
FÜR ELEKTROWERKZEUGE
WARNUNG! Machen Sie sich mit allen
Sicherheitswarnungen, Anweisungen,
Abbildungen und Spezifikationen vertraut, die
mit diesem Elektrowerkzeug geliefert werden.
Die Nichtbeachtung der unten aufgeführten
Anweisungen kann in elektrischen Schlägen, Feuer
und/oder schweren Verletzungen resultieren.
Bewahren Sie alle Sicherheitshinweise und
Anweisungen für die Zukunft auf.
Der in den Sicherheitshinweisen verwendete Begriff
„Elektrowerkzeug“ bezieht sich auf akkubetriebene
Elektrowerkzeuge (ohne Netzkabel).
1) Arbeitsplatzsicherheit
a) Halten Sie Ihren Arbeitsbereich sauber und
gut beleuchtet. Unordnung oder unbeleuchtete
Arbeitsbereiche können zu Unfällen führen.
b) Arbeiten Sie mit dem Elektrowerkzeug nicht
in explosionsgefährdeter Umgebung, in der
sich brennbare Flüssigkeiten, Gase oder
Stäube befinden. Elektrowerkzeuge erzeugen
Funken, die den Staub oder die Dämpfe
entzünden können.
c) Halten Sie Kinder und andere
Personen während der Benutzung des
Elektrowerkzeugs fern. Bei Ablenkung können
Sie die Kontrolle über das Gerät verlieren.
2) Elektrische Sicherheit
a) Der Anschlussstecker des
Elektrowerkzeuges muss in die Steckdose
passen. Der Stecker darf in keiner
Weise verändert werden. Verwenden Sie
keine Adapterstecker gemeinsam mit
schutzgeerdeten Elektrowerkzeugen.
Unveränderte Stecker und passende
Steckdosen verringern das Risiko eines
elektrischen Schlages.
b) Vermeiden Sie Körperkontakt mit geerdeten
Oberflächen wie von Rohren, Heizungen,
Herden und Kühlschränken. Es besteht ein
erhöhtes Risiko durch elektrischen Schlag,
wenn Ihr Körper geerdet ist.
c) Halten Sie Elektrowerkzeuge von Regen
oder Nässe fern. Das Eindringen von Wasser
in ein Elektrowerkzeug erhöht das Risiko eines
elektrischen Schlages.
d) Zweckentfremden Sie das Kabel nicht,
um das Elektrowerkzeug zu tragen,
aufzuhängen oder um den Stecker aus der
Steckdose zu ziehen. Halten Sie das Kabel
fern von Hitze, Öl, scharfen Kanten oder sich
bewegenden Geräteteilen. Beschädigte oder
verwickelte Kabel erhöhen das Risiko eines
elektrischen Schlages.
e) Wenn Sie mit einem Elektrowerkzeug
im Freien arbeiten, verwenden Sie nur
Verlängerungskabel, die auch für den
Außenbereich geeignet sind. Die Anwendung
eines für den Außenbereich geeigneten
Verlängerungskabels verringert das Risiko eines
elektrischen Schlages.
f) Wenn der Betrieb des Elektrowerkzeuges
in feuchter Umgebung nicht
vermeidbar ist, verwenden Sie einen
Fehlerstromschutzschalter. Der Einsatz eines
Fehlerstromschutzschalters vermindert das
Risiko eines elektrischen Schlages.
3) Sicherheit von Personen
a) Seien Sie aufmerksam, Achten Sie darauf,
was Sie tun, und gehen Sie mit Vernunft
an die Arbeit mit einem Elektrowerkzeug.
Benutzen Sie kein Elektrowerkzeug, wenn
Sie müde sind oder unter dem Einfluss von
Drogen, Alkohol oder Medikamenten stehen.
Ein Moment der Unachtsamkeit beim Gebrauch
des Elektrowerkzeuges kann zu ernsthaften
Verletzungen führen.
b) Tragen Sie persönliche Schutzausrüstung
und immer eine Schutzbrille. Das Tragen
persönlicher Schutzausrüstung, wie
Staubmaske, rutschfeste Sicherheitsschuhe,
Schutzhelm oder Gehörschutz, je nach Art und
Einsatz des Elektrowerkzeuges, verringert das
Risiko von Verletzungen.
c) Vermeiden Sie eine unbeabsichtigte
Inbetriebnahme. Vergewissern Sie sich,
dass das Elektrowerkzeug ausgeschaltet
ist, bevor Sie es an den Akku anschließen,
es aufnehmen oder tragen. Wenn Sie beim
Tragen des Elektrowerkzeuges den Finger am
Schalter haben oder das Gerät eingeschaltet an
die Stromversorgung anschließen, kann dies zu
Unfällen führen.
d) Entfernen Sie Einstellwerkzeuge oder
Schraubenschlüssel, bevor Sie das
Elektrowerkzeug einschalten. Ein Werkzeug
oder Schlüssel, der sich in einem drehenden
Geräteteil bendet, kann zu Verletzungen
führen.
e) Vermeiden Sie eine abnormale
Körperhaltung. Sorgen Sie für einen
sicheren Stand und halten Sie jederzeit
das Gleichgewicht. Dadurch können Sie das
Elektrowerkzeug in unerwarteten Situationen
besser kontrollieren.
f) Tragen Sie geeignete Kleidung. Tragen
Sie keine weite Kleidung oder Schmuck.
Halten Sie Haare und Kleidung fern von
sich bewegenden Teilen. Lockere Kleidung,
Schmuck oder lange Haare können von sich
bewegenden Teilen erfasst werden.
g) Wenn Staubabsaug- und
-auffangeinrichtungen montiert werden
können, vergewissern Sie sich, dass diese
angeschlossen sind und richtig verwendet
werden. Verwendung einer Staubabsaugung
kann Gefährdungen durch Staub verringern.
