KS Tools 150.1035 User manual

150.1035
Kunststoffreparatur-Satz (kabellos), 302-tlg.
Plastic repair kit (wireless), 302 pcs
Kit de reparation pour plastique (sans fil), 302 pièces
Set cucitrice a caldo per plastiche (cordless), 302 pz.
BEDIENUNGSANLEITUNG - OPERATING INSTRUCTIONS - NOTICE D‘UTILISATION
KS Tools Italia s.r.l.
Via Fabio Filzi, 14
I - 20021 Barazante (MI)
ITALIA
e-mail [email protected]
URL www.kstools.com
KS TOOLS
Werkzeuge-Maschinen GmbH
Seligenstädter Grund 10 - 12
D - 63150 Heusenstamm
DEUTSCHLAND
e-mail [e-mail]
URL www.kstools.com
KS Tools
PDA Région de Brumath
1 rue de Londres
F - 67670 MOMMENHEIM
FRANCE
e-mail [e-mail]
URL www.kstools.com

Introduction
Dear customer!
Thank you for buying one of our products.
You can find all the information you need in these operating instructions.
Please read the instructions completely with care and observe the advice given.
The operating instructions are part of the plastic repair kit and should be kept intact.
The manufacturer is not liable for personal injuries and material damages which result from improper use.
1. Safety instructions
1.1 General safety and operating instructions
- Always wear during operating the prescribed personal protective equipment as laid down by the UVV or national
legislation such as for example safety shoes, helmet, protective glasses, safety gloves etc.
- Devices with revolving or movable parts can get caught up in hair, clothing, jewellery or other loose its, which can
lead to severe injury. For this reason never wear clothing that is too loose and/or fitted with bands or bows etc.
Remove jewellery, wristwatches, bracelets, necklaces etc. Never touch -device parts that are moving. Long hair
should be tied up or protected by a hair net.
- Take care that when working with the device that you have a correct and secure standing position.
- Never use the device whilst under the influence of alcohol or drugs or when tired.
- Never point the device at other persons.
- Children and third parties must always be kept away from the working area when operating the device.
- Labelling on the device must always be easily readable. The operator is responsible for the fact that the identification
plate with technical data, safety, warning, operating instructions, serial and article numbers are easily readable and
never removed.
- Protective devices and/or housing parts may not be removed or modified.
- Never operate the device if any protective cover is missing or if all safety devices do not exist and are in a
perfect condition.
- Devices may generally only be utilized for the correct purpose, under the laid down conditions and within the
utilization limitations. Also always take note of the manufacturers instructions of the object to be processed
(for example: vehicle, machine, plant etc.).
- Ensure that the working area is orderly, well ventilated and has adequate lighting.
- Devices can cause electric shocks, which can lead to combustible materials catching fire. For this reason devices
should never be operated in the proximity of combustible substances, cleaning mediums etc.
- Keep electric cables and compressed air pipelines away from heat sources, oil, aggressive chemicals and protect
them from unintentional mechanical influences.
- Secure revolving parts against unintentional loosening.
- Only utilise spare parts, attachments and accessories recommended by the manufacturer.
- Store devices not in use securely and correctly.
- If there is the smallest uncertainty concerning any point in the operating instructions exists, then operating
recommendations should be obtained from the factory to clear any uncertainty
1.2 Operator responsibilities
- Inform yourself of the correct method of utilization of the device prior to its utilization taking the required necessary
safety measures into consideration.
- The operating instructions are a subject matter of the device and must be stored in close proximity.
- The legal accident prevention regulations as well as the generally recognised safety and work medicinal rule must be
complied with.
- Prior to utilization ensure that the device is in perfect condition and if necessary exchange damaged and/or
work parts.

1. Intended use
Hot plastic stapler enables metal staplers to be pressed into plastic in a quick and simple process, so lugs on lighting
and splits in platic parts can be stapled together, often saving them from scrap heap.
2. Technical features
Power rating: 100 - 240V
Max: Up to 20W
3. Replacement parts
KS-No. 150.1051 150.1052 150.1053 150.1055 150.1057 150.1058 150.1059 150.1061
Wire strenght Ø 0,6 mm Ø 0,6 mm Ø 0,6 mm Ø 0,6 mm Ø 0,8 mm Ø 0,8 mm Ø 0,8 mm Ø 0,8 mm
Format U-Format V-Format W-Format angled
U-Format U-Format V-Format W-Format angled U-Format
Staple insert
LED Lamp:
red: charging
green: charged
LED Lamp:
red: low battery
Power insert
Control switch
LED Flashlight

3. Safety instructions
CAUTION: This product has specially been developed for platic repairing!
For your security, please read this manual carefully!
- Electrical energy can cause serious injuries.
In order to avoid electrical shock, injuries or fire the following safety instructions have to be observed and
respected:
- Check all components before use. Please make sure that lead and housing are not damaged. Tools that have been
dropped or that are damaged must be checked by qualified personnel before restarting operation.
- Service and repair work should be carried out by qualified technical personnel only In order to ensure the working
reliability in the long term, always use original spare parts.
- The staple inserted in the electrodes during the soldering phase, the temperature can rise to over 200°C!
- Pay close attention; An incorrect handling can cause serious burns and initiate a fire!
- Use appropiate heat resistance gloves during the work time!
- Before introduce the staple, be sure that the electrodes are cold!
- Do not touch the staple during the warm-up phase!
- Do not use in presence of flammable liquids!
- Do not use with wet hands!
- Do not use in wet environment!
- Restrict unauthorized access. Make sure that no one, in particular children, can get near the hot plastic stapler
without your permission.
4. Maintenance
- Specialist personnel must only carry out service- or repair work.
- Only original spare parts or spare parts released by the manufacturer may be utilized so that operational safety can
be guaranteed in the long run.
- Always keep the device in a clean condition!
If non-released spare parts are utilized then all guarantees, service, compensation and liability claims
vis-a-vis the manufacturer, his representatives, dealers and agents are null and void.
5. Disposal
- Disposal or recycling must be carried out according to the respective country legislation.
- Prior to separation parts must be cleaned and disassembled according to the current working and environmental
regulations.
- Lowering of environmental pollution and the preservation of the environment should be the middle point of all
activities.

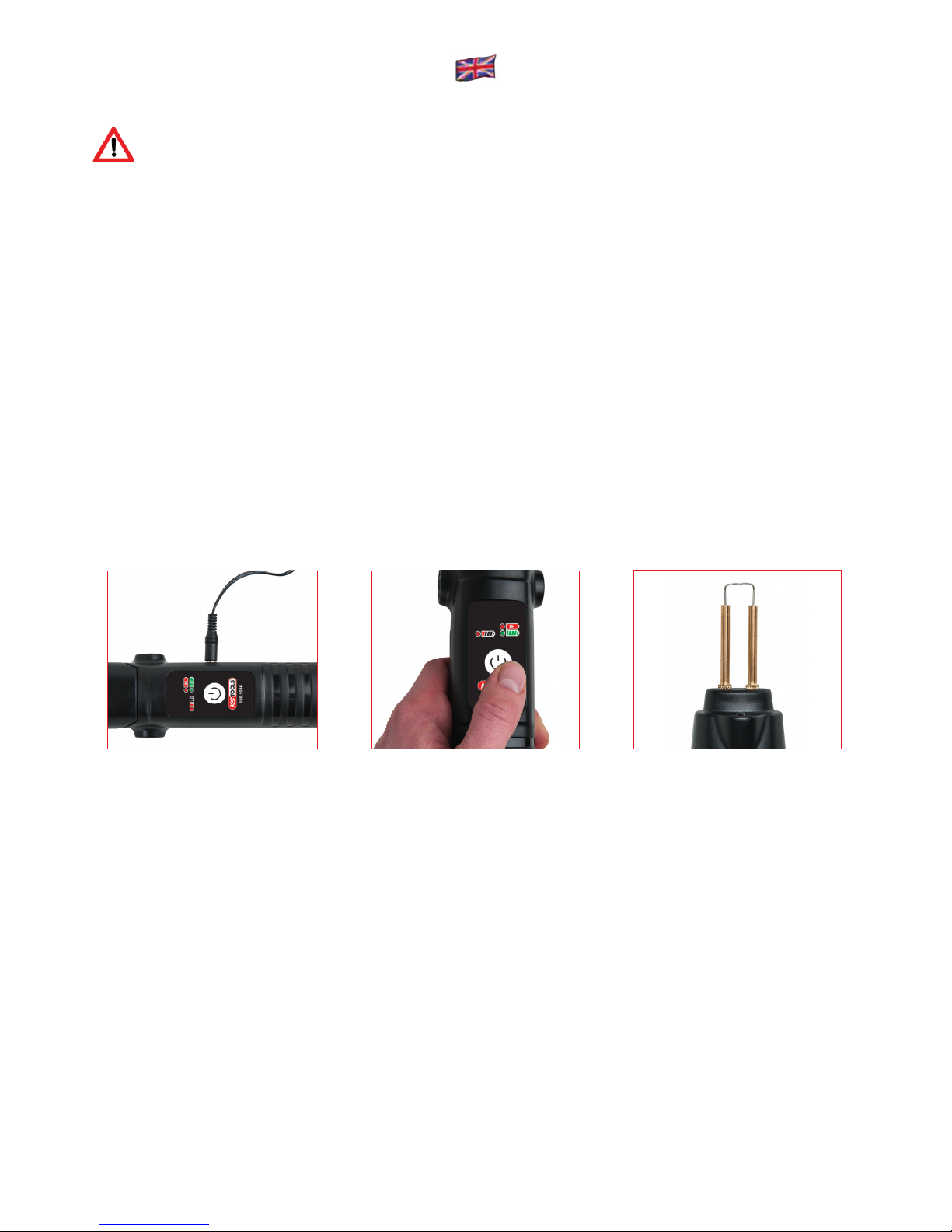

1. Insert the power cord and turn on
power for using
2. Insert the staple and push
control switch for repair
3. After 3 seconds, push down the
staple for repair
