SETUP INSTRUCTIONS 2016
125 EXC
200 EXC
200 XC‑W
250 EXC
250 XC‑W
300 EXC
300 XC‑W
Art. no. 3213437en

INTRODUCTION 1
*3213437en*
3213437en
11/2015
INTRODUCTION
The work described in these setup instructions must be performed before the vehicle is delivered to the customer.
Read the setup instructions in their entirety before beginning work.
These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the interest
of technical advancement without at the same time updating this manual.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here. It
is assumed that the work will be performed by a fully trained mechanic.
All specifications are non-binding. KTM Sportmotorcycle GmbH specifically reserves the right to modify or delete technical specifications,
prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt these to
local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery options, devi-
ations from illustrations and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not
belong to the regular scope of supply.
© 2015 KTM Sportmotorcycle GmbH, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead to
the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM Sportmotorcycle GmbH
5230 Mattighofen, Austria
This document is valid for the following models:
125 EXC EU (F7103P6)
125 EXC Six Days EU (F7103P2)
200 EXC EU (F7203P6)
200 EXC AU (F7260P6)
200 XC‑W US (F7275P3)
250 EXC EU (F7303P6)
250 EXC AU (F7360P6)
250 EXC Six Days EU (F7303P2)
250 XC‑W US (F7375P3)
300 EXC EU (F7403P6)
300 EXC AU (F7460P6)
300 EXC BR (F7440P6)
300 EXC Six Days EU (F7403P2)
300 XC‑W US (F7475P3)
300 XC‑W Six Days US (F7475P2)

1 MEANS OF REPRESENTATION 2
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Denotes a voltage measurement.
Denotes a current measurement.
Denotes a resistance measurement.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Identifies a proprietary name.
Name®Identifies a protected name.
Brand™ Identifies a trademark.
Underlined terms Refer to technical details of the vehicle or indicate technical terms, which are explained
in the glossary.

2 SETUP 3
2.1 Unpacking and setting up the vehicle
B02176-10
Package 2
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (78129955100)
–Carefully loosen and remove the tension belt of the footrest mount.
Info
An assistant prevents the motorcycle from falling over.
402050-01
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
B02008-10
Package 12
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (78129955100)
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
402051-01
–Install the shock absorber. ( p. 11)

2 SETUP 4
B02183-01
–Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
V00037-01
(XC-W, 300 EXC BR)
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
Info
Grooves are milled into the side of the upper end of the fork legs.
The second milled groove (from the top) must be flush with the top
edge of the upper triple clamp.
Position the bleeder screws toward the front.
V00036-01
(Six Days, EXC EU/AU)
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
Info
The rebound damping is located in right fork leg REB (red adjusting
screw). The compression damping is located in left fork leg COMP
(white adjusting screw).
Grooves are milled into the side of the upper end of the fork legs.
The topmost milled groove must be flush with the top edge of the
upper triple clamp.
Position the bleeder screws toward the front.
M00993-11
(XC-W, 300 EXC BR)
–Remove screws . Take off the handlebar clamps.
–Remove screws . Take off the handlebar supports.
–Place the handlebar supports in the required position. Mount and tighten
screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar supports evenly.

2 SETUP 5
M00987-11
(Six Days, EXC EU/AU)
–Remove screws . Take off the handlebar clamps.
–Remove screws . Take off the handlebar supports.
–Place the handlebar supports in the required position. Mount and tighten
screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar supports evenly.
B02184-01
–Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–Position the handlebar clamps. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
–Position the speedometer and connector board. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B02185-01
(XC-W, Six Days, EXC EU, 300 EXC BR)
–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.
V00042-01
(EXC AU)
–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.

2 SETUP 6
V00040-01
(All EXC models)
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
V00041-01
(XC-W, 300 XC‑W Six Days US)
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
B01750-01
(All EXC models)
–Remove the fuel tank. ( p. 10)
–Disconnect the plug-in connector on the main wiring harness.
–Connect the plug-in connector of the turn signal wiring harness with the plug-in
connector of the main wiring harness.
–Position the turn signal wiring harness against the main wiring harness and
secure with cable ties.
–Install the fuel tank. ( p. 11)
–Position the turn signal indicator lamp in the speedometer holder.
B02188-10
–Insert the black and violet cables of bulb included in the separate enclosure
into the socket and position it in the turn signal indicator lamp.
–Secure turn signal relay with a cable tie and plug in the connector.
–Position the turn signal on each side and mount and tighten nuts .
–Connect the plug-in connector of the right turn signal with the connector
marked green on the wiring harness.
–Connect plug-in connector of the left turn signal with the connector marked
red on the wiring harness.
402148-01
(All EXC models)
–Mount the turn signal switch and connect the plug-in connector on the wiring
harness.

2 SETUP 7
B01747-11
(XC-W, 300 XC‑W Six Days US)
–Connect pull switch with the yellow and white cables.
–Install the front fender. ( p. 14)
–Mount the fuel tank breather correctly.
–Install the front wheel. ( p. 12)
–Refit the headlight mask with the headlight. ( p. 15)
B02187-01
–Mount the handlebar cushion.
101019-01
–Mount the footrests with the springs and pins. Secure the pins using the washers
and cotter pins.
Pliers for footrest spring (58429083000)
B00908-01
(All EXC models)
–Mount the license plate holder with the license plate lamp, turn signals, and
reflector.
–Connect the electrical components.
–Connect the connector of the right turn signal with the connector that is marked
green.
–Connect the connector of the left turn signal with the connector that is marked
red.
800035-10
(All 200/250/300 models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical
burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in
well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If
battery acid gets in the eyes, rinse with water for at least 15 minutes
and contact a physician.
–Fill the battery.
Info
Read the notes in the battery package.
–Recharge the battery. ( p. 13)
–Install the battery. ( p. 14)

2 SETUP 8

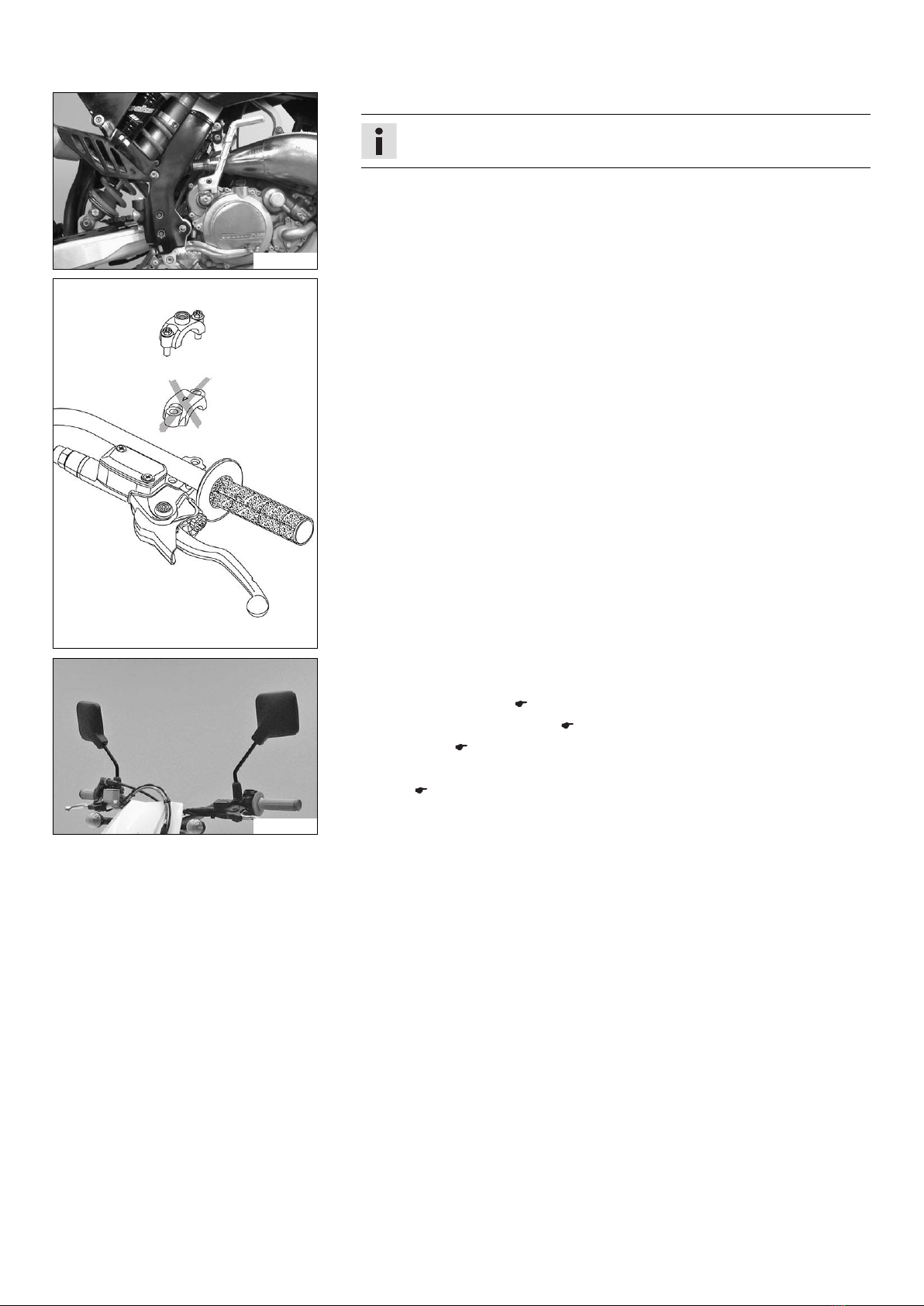

B00097-01
–Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts fitting instructions.
–Apply the label included in the delivery (optional).
H01060-01
(All EXC models)
–Mount the mirror clamps on both sides.
B00909-01
–Mount and tighten the rear mirror on both sides.
–Mount the reflector.
–Set kilometers or miles. ( p. 17)
–Set the speedometer functions. ( p. 18)
–Set the clock. ( p. 18)
–Position all controls in their exact positions on the handlebar. Tighten all screws.
–Refuel. ( p. 17)
–Prepare the vehicle according to the specifications in the KTM Dealer.net for han-
dover to the customer.

3 WORK 9
3.1 Raising the motorcycle with a lift stand
401942-01
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
–Raise the motorcycle at the frame underneath the engine.
Lift stand (78129955100)
Neither wheel is in contact with the ground.
–Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
401943-10
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand to the ground with your foot and lean
the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with the
rubber band.
3.3 Removing the seat
B00817-10
–Remove screw . Lift up the seat at the rear, pull it back and then remove from
above.
3.4 Mounting the seat
602715-01
–Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear
and simultaneously push forward.
–Make sure that the seat is correctly locked in.

3 WORK 10
B00817-10
–Mount and tighten screw of the seat fixation.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.5 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that has been contaminated with
fuel. Store fuel properly in a suitable canister and keep away from children.
Preparatory work
–Remove the seat. ( p. 9)
602742-10
Main work
–Turn handle of the fuel tap to the OFF position.
–Pull off the fuel hose.
Info
Remaining fuel may run out of the fuel hose.
–Remove screws with the collar sleeve.
(All EXC models)
–Hang the horn and horn bracket to one side.
602720-11
–Remove screw with the rubber bushing.
–Remove the tube from the fuel tank vent line.
602721-10
–Pull both spoilers off of the sides of the radiator bracket and lift off the fuel
tank.

3 WORK 11
3.6 Installing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
602721-01
Main work
–Check the routing of the throttle cable.
–Position the fuel tank and fit the two spoilers to the sides of the radiator bracket.
–Make sure that no cables are trapped or damaged.
602720-10
–Mount the fuel tank vent hose.
–Mount and tighten screw with the rubber bushing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
(All EXC models)
–Position the horn with the horn bracket.
602742-11
–Mount and tighten screws with the collar sleeve.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–Connect the fuel hose.
Finishing work
–Mount the seat. ( p. 9)
3.7 Installing the shock absorber
102281-10
Main work
(All 125/200 models)
–Push splash protector to the side and position the shock absorber. Mount
and tighten screw .
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
–Mount and tighten screw .
Guideline
Screw, bottom shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™

3 WORK 12
Info
The heim joint for the shock absorber at the swing arm is Teflon
coated. It must not be lubricated with grease or with other lubricants.
Lubricants dissolve the Teflon coating, thereby drastically reducing the
service life.
102282-10

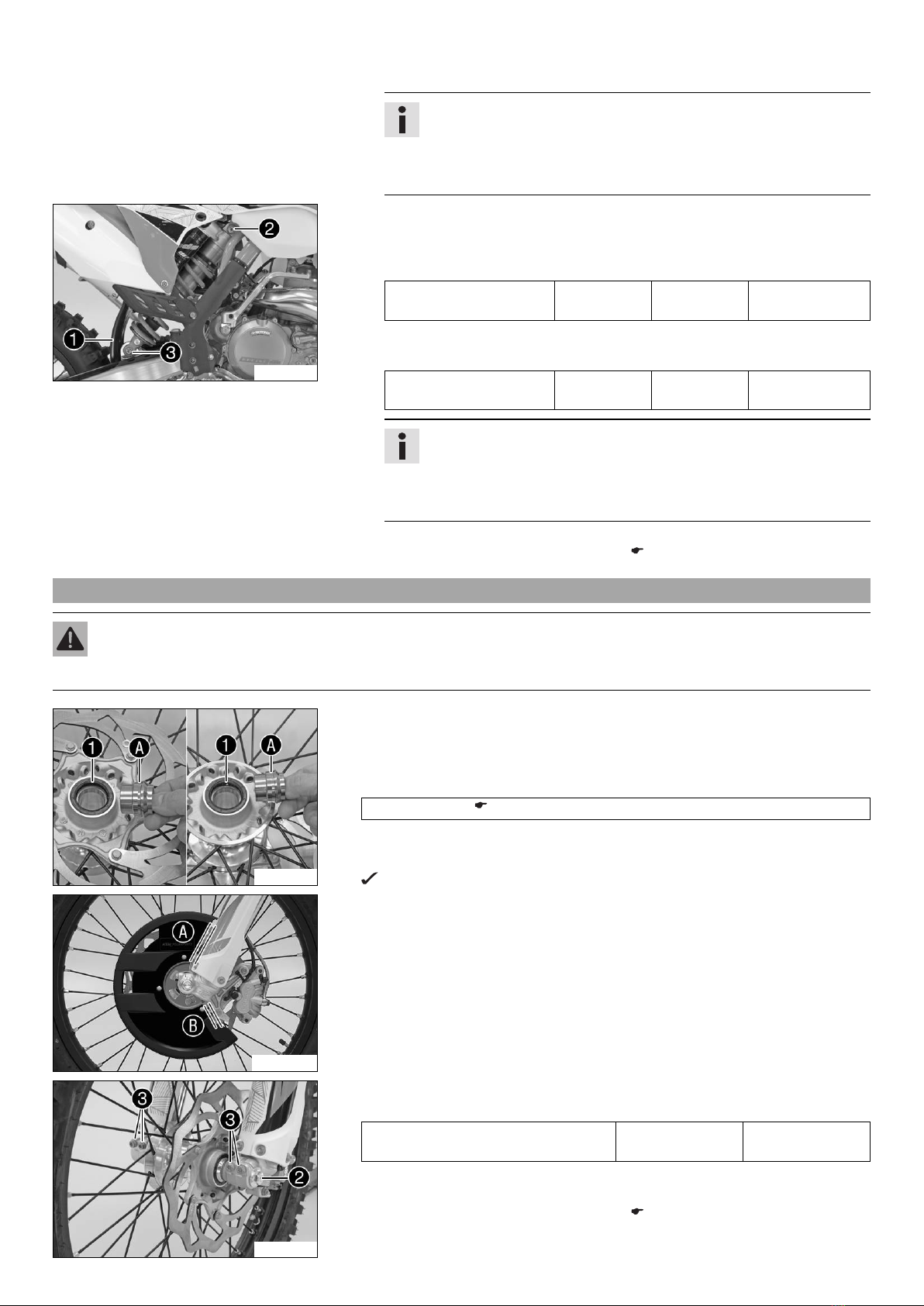

(All 250/300 models)
–Push splash protector to the side and position the shock absorber. Mount
and tighten screw .
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
–Mount and tighten screw .
Guideline
Screw, bottom shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
Info
The heim joint for the shock absorber at the swing arm is Teflon
coated. It must not be lubricated with grease or with other lubricants.
Lubricants dissolve the Teflon coating, thereby drastically reducing the
service life.
Finishing work
–Remove the motorcycle from the lift stand. ( p. 9)
3.8 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
102293-11
–Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–Change the front wheel bearing.
–Clean and grease shaft seal rings and bearing surface of the spacers.
Long-life grease ( p. 21)
–Insert the spacers.
–Lift the front wheel into the fork, position it, and insert the wheel spindle.
The brake linings are correctly positioned.
M01022-10
(Six Days)
–Align the brake disc guard so that gaps and are the same size.
102291-11
–Mount and tighten screw .
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
–Operate the hand brake lever several times until the brake linings are lying correctly
against the brake disc.
–Remove the motorcycle from the lift stand. ( p. 9)

3 WORK 13
–Activate the front brake and compress the fork a number of times forcefully to align
the fork legs.
–Tighten screws .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
3.9 Recharging the battery (All 200/250/300 models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard The battery contains elements that are harmful to the environment.
–Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner.
Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
–Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it still loses power steadily.
The charge state and the type of charge are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, i.e., the acid level does not have to be checked.
Preparatory work
–Switch off all power consumers and the engine.
–Remove the seat. ( p. 9)
–Disconnect the negative cable from the battery to avoid damage to the onboard
electronics.
400240-10
Main work
–Connect the battery charger with the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.
Info
Never remove the lid .
Charge the battery with at most 10% of the capacity specified on the bat-
tery .
–Switch off the charger after charging. Connect the negative cable with the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months

3 WORK 14
Finishing work
–Mount the seat. ( p. 9)
3.10 Installing the battery (All 200/250/300 models)
H00383-10
Main work
–Insert the battery into the battery compartment with the terminals facing forward.
(All 200/250/300 EU/AU/US models)
Battery (YTX4L-BS)
(300 EXC BR)
Battery (YTX5L-BS)
–Reconnect rubber band .
–Position positive cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disks must be mounted under screws and cable sockets 
with the claws toward the battery terminal.
–Slide positive terminal cover over the positive terminal.
–Position negative cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Finishing work
–Mount the seat. ( p. 9)
3.11 Installing the front fender
B02156-10
Main work
–Position the front fender. Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B02155-11
–Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
–Refit the headlight mask with the headlight. ( p. 15)
–Check the headlight setting. ( p. 15)

3 WORK 15

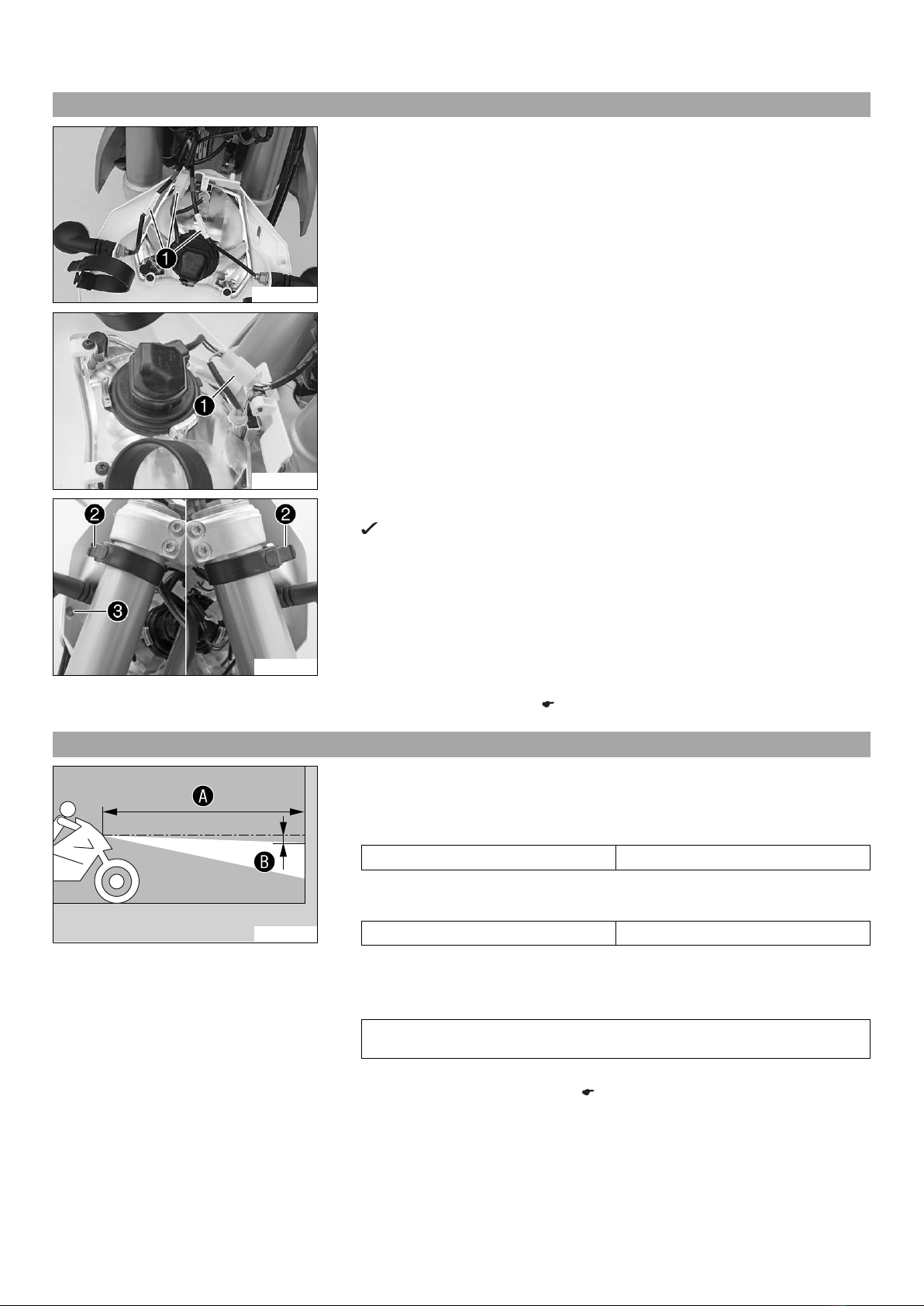

3.12 Refitting the headlight mask with the headlight
M00589-11
Main work
(All EXC models)
–Connect plug-in connectors .
M00590-11
(XC-W, 300 XC‑W Six Days US)
–Connect plug-in connector .
602762-11
–Position the headlight mask and fix it with rubber straps .
The holding lugs engage.
–Position the brake line and wiring harness. Put the clamp on and mount and
tighten screw .
Finishing work
–Check the headlight setting. ( p. 15)
3.13 Checking the headlight setting
400726-10
–Position the vehicle upright on a horizontal surface in front of a light wall and make
a mark at the height of the center of the low beam headlight.
–Make another mark a distance under the first mark.
Guideline
Distance 5 cm (2 in)
–Position the vehicle vertically a distance away from the wall.
Guideline
Distance 5 m (16 ft)
–The rider now sits down on the motorcycle.
–Switch on the low beam.
–Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.
» If the light-dark border does not meet specifications:
–Adjust the headlight range. ( p. 16)

3 WORK 16
3.14 Adjusting the headlight range
Preparatory work
–Check the headlight setting. ( p. 15)
602764-10
Main work
–Loosen screw .
–Adjust the headlight range by swiveling the headlight.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver (instructions on how to apply the mark: Checking the
headlight setting).
Info
The headlight range may need to be corrected if luggage is carried on the
vehicle.
–Tighten screw .
3.15 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that has been contaminated with
fuel. Store fuel properly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
102253-10
–Press release button , turn the filler cap counterclockwise and lift it free.
3.16 Closing the filler cap
102253-11
–Replace the filler cap and turn clockwise until the release button locks in
place.
Info
Run the fuel tank breather hose without kinks.

3 WORK 17
3.17 Refueling
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
–Switch off the engine.
–Open the filler cap. ( p. 16)
400382-10
–Fill the fuel tank with fuel up to measurement .
Guideline
Measurement of 35 mm (1.38 in)
Total fuel tank
capacity, approx.
(EXC EU,
EXC Six Days EU,
300 EXC BR)
9.5 l
(2.51 US gal)
Super unleaded (95 octane) mixed
with 2-stroke engine oil (1:60)
( p. 20) (EXC EU, EXC Six Days EU)
Super unleaded, type C (ROZ 95/RON
95/PON 91 mixed with 2-stroke engine
oil, 1:60) ( p. 20) (300 EXC BR)
Total fuel tank
capacity, approx.
(XC-W, EXC AU,
300 XC‑W Six Days US)
10 l (2.6 US gal) Super unleaded (95 octane) mixed
with 2-stroke engine oil (1:60)
( p. 20)
Engine oil, 2-stroke ( p. 20)
–Close the filler cap. ( p. 16)
3.18 Setting kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1 ,TR2 ,A1 ,A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
400329-01
–Repeatedly press the button briefly until Happears at the bottom right of the
display.
–Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are shown.
–Repeatedly press the button briefly until Km/h/Mph flashes.
Setting the Km/h
–Press the button .
Setting the Mph
–Press the button .
–Wait 3–5 seconds
The settings are stored.

3 WORK 18
Info
If no button is pressed for 10 -12 seconds, or if an impulse comes from
the wheel speed sensor, the settings are automatically saved and the setup
menu is closed.
3.19 Setting the speedometer functions
Info
When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated.
Condition
The motorcycle is stationary.
400318-01
–Repeatedly press the button briefly until Happears at the bottom right of the
display.
–Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are shown.
Info
If no button is pressed for 10–12 seconds, the settings are automatically
saved.
If no button is pressed for 20 seconds, or if an impulse comes from the
wheel speed sensor, the settings are automatically saved and the setup
menu is closed.
–Repeatedly press the button briefly until the desired function flashes.
The selected function flashes.
Activating the function
–Press the button .
The symbol continues to appear in the display and the next function
appears.
Deactivating a function
–Press the button .
The symbol disappears in the display and the next function appears.
3.20 Setting the clock
Condition
The motorcycle is stationary.
400330-01
–Repeatedly press the button briefly until CLK appears at the bottom right of the
display.
–Press the button for 2–3 seconds.
The hour display flashes.
–Set the hour display with the button and/or button .
–Wait 3–5 seconds
The next segment of the display flashes and can be set.
–You can set the following segments in the same way as the hours by pressing
the button and the button .
Info
The seconds can only be set to zero.
If no button is pressed for 15 -20 seconds, or if an impulse comes from
the wheel speed sensor, the settings are automatically saved and the setup
menu is closed.
