OWNER'S MANUAL

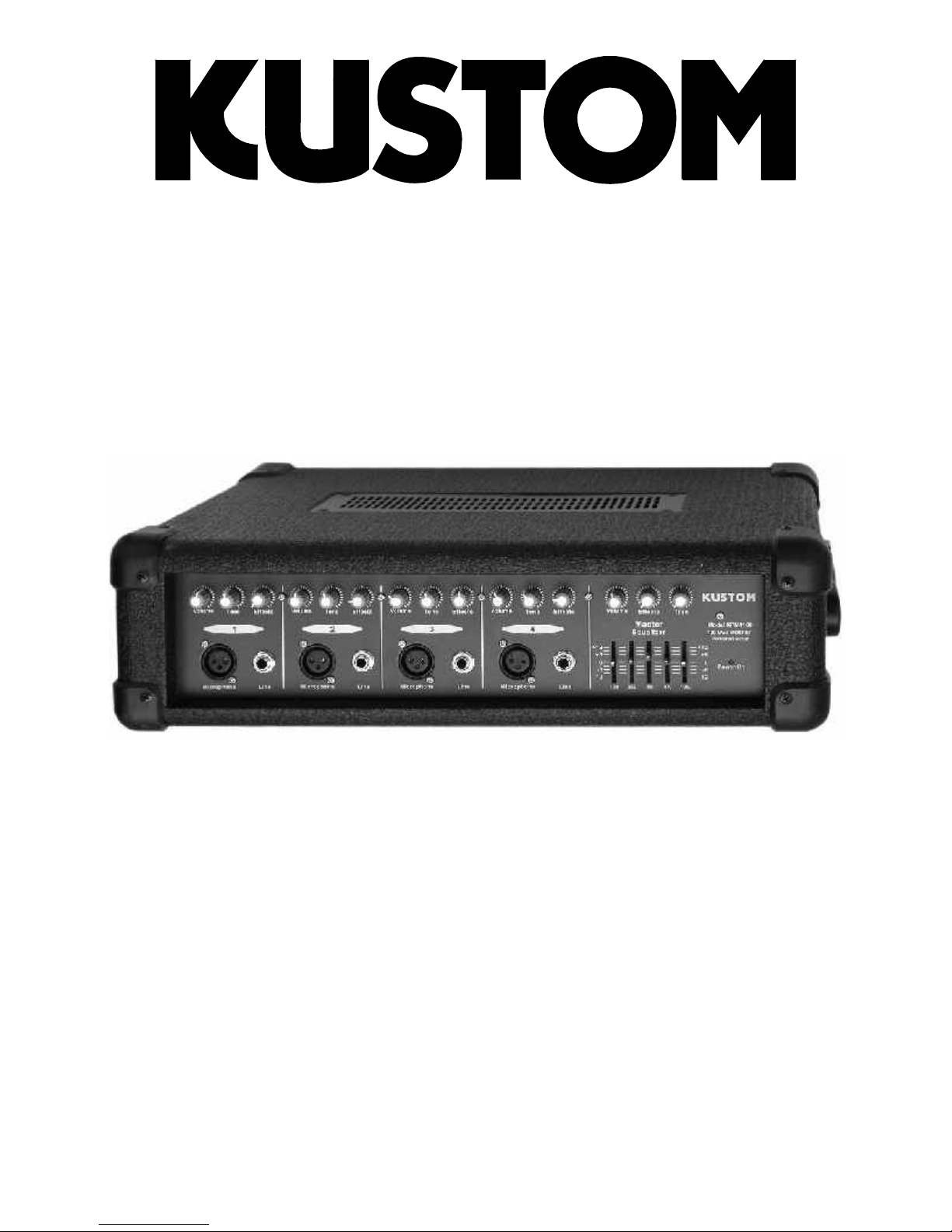

KPM4100
FEATURES AT A GLANCE:
·100 Watts RMS
·9 Total inputs including 4 Balanced microphone inputs
·4 high impedance microphone inputs and a Tape/CD input
·All inputs may be used simultaneously
·Built in Effects with individual control on each channel
·Line Out for connection to external amplifiers
·Record Out jack for taping performances
·RF interference protection on all inputs and outputs
Congratulations on the purchase of your new Kustom amp! Your new KPM4100 Powered mixer
successfully draws on more than 30 years of amplifier design and manufacturing experience at
Kustom. This amp was planned from the ground up by our engineers to offer top-notch tone and
dependable performance. Inside this manual, you'll find handy information about the amp's features.
We wish you many years of enjoyment with your Kustom KPM4100 Powered Mixer.

ENGLISH
Danger
Exposure to extremely high noise levels may cause a permanent hearing loss.
Individuals vary considerably to noise induced hearing loss but nearly everyone will
lose some hearing if exposed to sufficiently intense noise for a sufficient time.
The U.S. Government's Occupational Safety and Health Administration (OSHA) has
specified the following permissible noise level exposures:
According to OSHA, any exposure in the above permissible limits could
result in some hearing loss. Ear plugs or protectors in the ear canal or over
the ears must be worn when operating this amplification system in order to
prevent a permanent hearing loss. If exposure in excess of the limits as
put forth above, to insure against potentially harmful exposure to high
sound pressure levels, it is recommended that all persons exposed to
equipment capable of inducing high sound pressure levels, such as this
amplification system, be protected by hearing protectors while this unit is in
operation.
DURATION PER DAY (HOURS) 8 6 4 3 2 1
SOUND LEVEL (dB) 90 93 95 97 100 103
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF NON-INSULATED
"DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING THE UNIT.
1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be kept for future
reference.
3. Read and understand all warnings listed on the operating
instructions.
4 . Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e. Bathtub,
sink,swimming pool, wet basement, etc.
6. Only use dry cloth to clean this product.
7. Do not block any ventilation openings, It should not be placed flat
against a wall or placed in a built-in enclosure that will impede the
flow of cooling air.
8. Do not install this product near any heat sources ;such as,radiators,
heat registers, stove or other apparatus (including heat producing
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the 0ther.A
grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord being walked on or pinched, particularly at
Plugs, convenience receptacles and the point where they exit from
the apparatus. Do not break the ground pin of the power supply cord.
11 . Only use attachments specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer or sold with the apparatus. When a cart is used, use
caution when moving cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Care should be taken so that objects do not fall and liquids are not
spilled into the unit through the ventilation ports or any other
openings.
15. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way; such
as, power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally or has been
dropped.
16. WARNING: To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE CHASSIS. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
CAUTION

FRENCH
DURE EN HEURES PAR JOUR 8 6 4 3 2 1
INIVEAU SONORE CONTINU EN dB 90 93 95 97 100 103
Danger
L‘exposition a des niveaux eleves de bruit peut provoquer une perte permanente
de l’audition, Chaque organisme humain reagit differemment quant a la perte de
l’audition, mais quasiment tout le monde subit une diminution de I’acuite auditive
lors d’une exposition suffisamment longue au bruit intense. Les autorites
competentes en reglementation de bruit ont defini les expositions tolerees aux
niveaux de bruits:
Selon les autorites, toute exposition dans les limites citees ci-dessus, peuvent
provoquer certaines pertes d’audition. Des bouchons ou protections dans
l’appareil auditif ou sur l’oreille doivent etre portes lors de l’utilisation de ce
systeme d’amplification afin de prevenir le risque de perte permanente de
l’audition, Dans le cas d’expositions superieures aux limites precitees il est
recommande, afin de se premunir contre les expositions aux pressions
acoustiquese I evees potentielIement dangeure u ses, aux personnes exposees
aux equipements capables de delivrer de telles puissances, tels ce systeme
d’amplification en fonctionnement, de proteger l’appareil auditif.
ATTENTION: AFIN DE LlMlTER LE RISQUE DE CHO ELECTR/QUE, NE
PAS ENLEVER LE CHASSIS. NE CONTIENT PAS DE
PIECES POUVANT ETRE REPAREE PAR L’UTILISATEUR.
CONFER LE SERVICE APRES-VENTE AUX
REPARATEURS
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR.
CE SYMBOLE A POUR BUT D'AVERTIR L'UTILISATEUR DE LA PRESENCE
DE VOLTAGE DANGEREUX NON-ISOLE A L'INTERIEUR DE CE PRODUIT QUI
PEUT ETRE DE PUISSANCE SUFFISAMMENT IMPORTANTE POUR
PROVOQUER UN CHOC ELECTRIQUE AUX PERSONNES.
CE SYMBOLE A POUR BUT D'AVERTIR L'UTILISATEUR DE LA PRESENCE
D'INSTRUCTIONS D'UTILISATION ET DE MAINTENANCE DANS LES
DOCUMENTS FOURNIS AVEC CE PRODUIT.
IMPORTANTES INSTRUCTIONS DE SECURITE
1. Lire avec attention toutes les recommandations et précautions
d'emploi avant d'utiliser ce produit.
2. Toutes les recommandations et précautions d'emploi doivent être
conservées afin de pouvoir s'y reporter si nécessaire.
3. Lire et comprendre tous les avertissements énumérés dans les
précautions d'emploi.
4. Suivre toutes les précautions d'emploi pour utiliser ce produit.
5. Ce produit ne doit pas être utilisé près d'eau, comme par
exemple baignoires, éviers, piscine, sous-sol humides ... Etc.
6. Utiliser exclusivement un chiffon sec pour nettoyer ce produit.
7. Ne bloquér aucune ouverture de ventilation. Ne pas placer le
produit tout contre un mur ou dans une enceinte fernée, cela
gênerait le flux d'air nécessaire au refroidissement.
8. Ne pas placer le produit près de toute source de chaeur telle que
radiateurs, arrivées d'air chaud, fourneaux ou autres appareils
générant de la chaleur (incluant les amplificateurs producteurs
de chaleur) .
9. Ne pas négliger la sécurité que procure un branchement polarisé
ou avec raccordement à la terre, Un branchement polarisé
comprend deux fiches dont l'une est plus large que l'autre. Un
branchement à la terre comprend deux fiches plus une troisième
reliée à la terre. Si la fiche secteur fournie ne s'insert pas dans
votre prise de courant. consulter un 'électricien afin de remplacer
votre prise obsolète.
10. Protéger le cordon d'alimentation de tout écrasement ou
pincement, particulièrement au niveau des fiches, des
réceptacles utilisés et à l'endroit de sortie de l'appareil. Ne pas
casser la fiche de terre du cordon d'alimentation.
11. Utiliser uniquement les accessoires spécifiés par le constructeur.
12. Utiliser uniquement avec le chariot de transport, le support, le
trépied, la console ou la table spécifiés par le constructeur ou
vendus avec l'appareil. Lors de l'utilisation d'un chariot, bouger
avec précaution l'ensemble chariotlappareil afin d'éviter les
dommages d'un renversement.
13 Débrancher cet appareil lors d'orages ou s'il n'est pas utilisé
pendant une longue période.
14. Des précautions doivent être prises afin qu'aucun objet ne tombe
et qu'aucun liquide ne se répande à l'intérieur de l'appareil par
les orifics de ventilation ou n'importe quelle autre ouverture.
15. Pour toutes interventions techniques s'adresser à un technicien
qualifié.L'intervention technique est nécessaire lorsque l'appareil
a été endommagé de n'importe quelle façon, comme par
exemple si le cordon secteur ou sa fiche sont détériorés,si du
liquide a coulé ou si des objets sont tombés à l'intérieur de
l'apparei1,si l'appareil a été exposé à la pluie ou à l'humidité, s'il
ne fonctionne pas normalement ou s'il est tombé.
16. ATTENTI0N:Pour réduire le risque d'incendie ou de choc
electrique ne pas exposer l'appareil à la pluie ou à l'humidité.

The Kustom KPM4100 Powered Mixer delivers true versatility, performance, and power- all in a compact and
economical package. It houses its high technology electronics in a rugged steel chassis and is protected by a
vinyl covered wooden cabinet. All of the features you would expect to find in more expensive mixers are
incorporated right here: Balanced microphone inputs with low noise pre-amplifiers, carbon film potentiometers,
tape inputs and outputs, high-quality Digital Effects with an 80 Watt power amplifier.
The typical uses for powered mixers can be strenuous. With setup, tear down, packing and unpacking,
patching and un-patching, it can take its toll on a mixer. Since 1966, Kustom has been building the most
rugged amplifiers in the industry and the KPM4100 has been designed to carry on that tradition. Today, world-
class design means using the most rugged connectors and reliable components and housing them in a rugged
cabinet. Many manufacturers design products for the perfect world rather than the real world. In reality, the real
world has shorted speaker cables, defective speakers, mis-connections, and improper impedances. The
KPM4100 is designed to be tolerant of that imperfect world. With this product, we are able to deliver to you an
amplifier that will ramp up to power within 4 seconds and check itself over to make sure there are no problems
before it allows power to be delivered to the outputs. Also, it will check to see if there are thermal (heat) or
short circuits. If it detects a thermal situation, the unit will shut itself off until the heat dissipates. If it detects a
short circuit, it will continue to pass signal but it will cause the short circuit protection to engage so that the unit
will shut down until the problem is corrected.
Volume Volume Volume Volume Volume
Tone Tone Tone Tone Effects
Master
Equalizer
Effects
LineLine Line Line Line
Microphone Microphone Microphone Microphone
Effects Effects Effects Tape
+12
+6
-6
-12
0
+12
+6
-6
-12
0
Model KPM4100
100 Watt MOSFET
Powered Mixer
Power On
100 350 1K 4K 10K
INPUT SECTION FEATURES:
3 Pin Low Impedance Microphone Input - This input is for balanced low-impedance microphones.
Phantom power (15 volts) for condenser microphones is always on and available. It has an input
impedance of 1 K ohm. The connector is wired as: Pin 1 = shield; Pin 2 = positive (hot); Pin 3 = negative
(cold)
1/4" Line High Impedance Input - This may be used as either a high-impedance microphone input or a line
level device such as tape players, CD players, effects returns or radios. It will also allow connection from
an electric guitar, bass, or keyboard. It is a 2-conductor input with an impedance of 10K ohms. Both the
high and low impedance inputs may be used simultaneously.
Volume Control - This is the volume control for each channel. It sends the signal to the master mix buss.
Typical operation is between 4 and 8, dependent upon the device(s) on that channel. Please remember
that it acts like a preamp, so if you are using a device that has a volume output control (i.e.: a tape or CD
player) you will need to do some level matching by adjusting the level controls on each unit.
Tone Control - This is to adjust the overall tone of the individual inputs. It is set at 5Khz. Since it is a cut or
boost control, (+/- 15 dB) it will add or diminish presence frequencies.
Effects Control - This is a send control to the effects buss. It controls the amount of effects added to the
input signals.
21
3 4 5 678
9

MASTER SECTION:
Master Volume - This controls the overall volume level of the entire amplifier. Typical operation is
between 4 and 8.
Master Effects - This controls the level of internal effects added back to the mix.
Tape Volume - This controls the level of the playback inputs (RCA jacks on rear panel).
Master EQ Section - These five slide controls are designed to tailor the overall sound
100Hz This control adjusts the amount of low bass frequencies.
350Hz This control adjusts the amount of low mid-range frequencies.
1KHz This control adjusts the amount of mid-range frequencies.
4KHz This control adjusts the amount of high mid-rangefrequencies.
10KHz This control adjusts the amount of high frequencies.

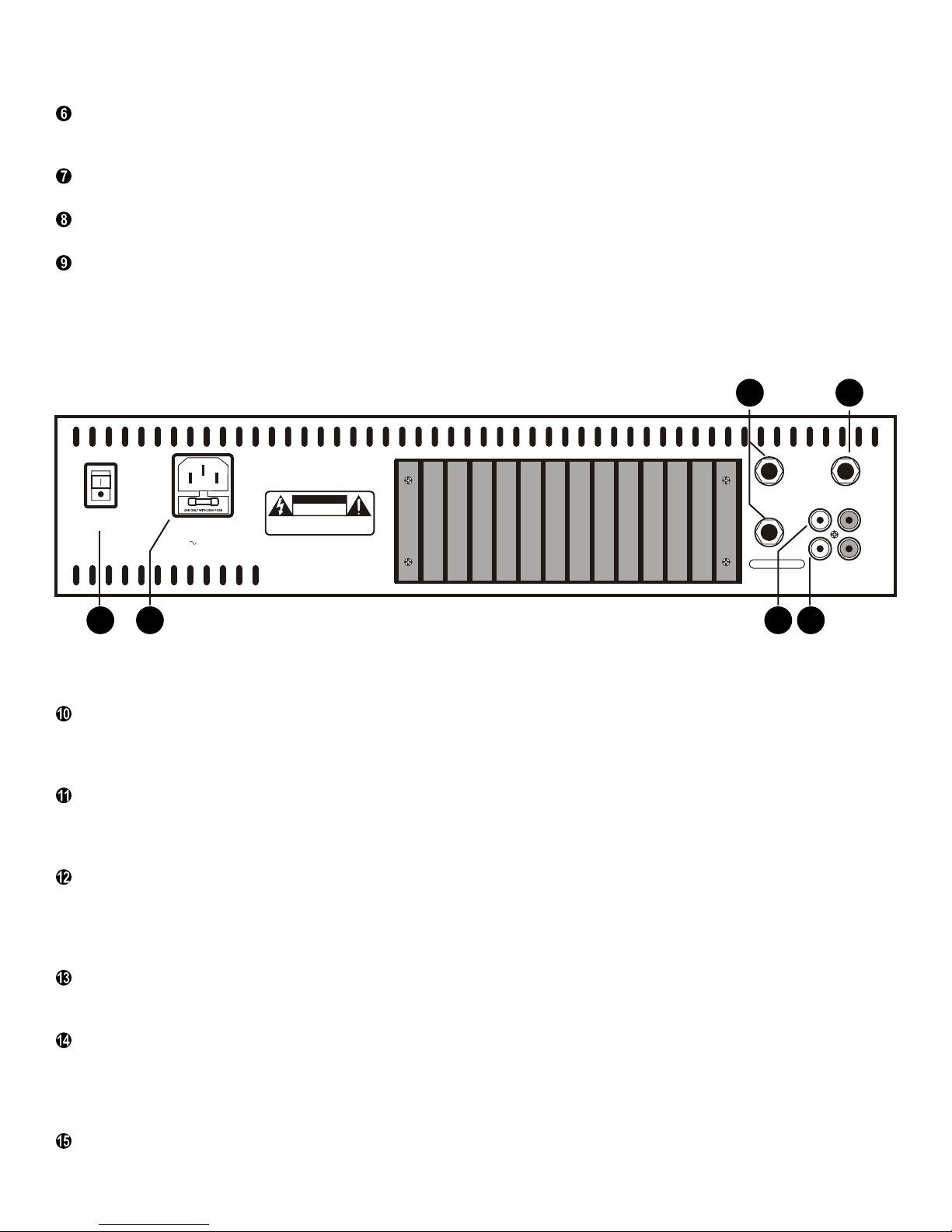

BACK PANEL:
Speaker Out - These are 2 conductor 1/4" speaker outputs. Each one is rated at 8 ohm minimum
impedance. Total minimum load for the amplifier is 4 ohms. You may connect either one 4 ohm, one8
ohm or two 8 ohm speaker cabinets. Do not go below rated minimum impedance.
Line Out - This is a 1/4" 2-conductor line level output. The impedance is 1 K ohm @ -1 0 dBv. It is used
to connect the KPM4100 to either additional power amplifiers or as an additional recording device. This
line level signal is a mirror image of the main outputs.
Tape Record (L/R) - These RCA jacks are for hooking up a tape deck to record from the mixer. Both
channels are summed into mono for compatibility. The signals are taken pre-master section, meaning
that they are without effects or the master tone section, and do not include the Tape In signal. The
impedance is 1 K ohms @ -1 0 dBv.
Tape Play (L/R) - These RCA jacks are for playing a tape deck, CD player or other line level source
through the mixer. The impedance is 10K ohms @ -1 0 dBv.
AC Inlet/Fuse - This is a standard IEC inlet for use with standard voltages from AC wall outlets. It is
grounded and should NEVER have the ground pin removed for any reason. The fuse is located in a
housing just below the receptacle. Replace only with same type and value. To remove the fuse, pull the
tab located above the fuse symbol away from the fuse housing.
Power Switch - This switches the unit on or off. When the unit is powered up, a red LED on the front
panel will come on.
10
ON
OFF
A
8Ohm Line
Out
Playback
Left
Left
Record Output
Right
Right
B
8Ohm
SPEAKER
POWER
FUSE: T2A / 250V
120V 60Hz 160W
AC FUSE ATTENTION
CAUTION
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CHASSIS SURFACE HOT
SUPERFICE DE CHASSIS CHAUDE
DESIGNED IN USA MADE IN CHINA SERIAL NUMBER
11
13 12
14
15

MIX AMP MIX AMP
CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4
Phantom Power Phantom Power Phantom Power Phantom Power
Microphone Microphone Microphone Microphone Line Line Line Line
TONE
CIRCUIT
TONE
CIRCUIT
TONE
CIRCUIT
TONE
CIRCUIT
Effects Effects Effects Effects
MIC
PRE
MIC
PRE
MIC
PRE
MIC
PRE
GAIN
AMP
GAIN
AMP
GAIN
AMP
GAIN
AMP
Volume Volume Volume Volume
TONE TONE TONE TONE
SIGNAL FLOW DIAGRAM
DIGITAL
EFFECTS
Effects
Master
EQ
100
500
1K
4K
10K
MIX AMP GAIN
AMP
Main
Master
MAIN BUSS
EFFECTS BUSS
Record
Output
Playback
Fault
Sensor
POWER
AMP
POWER
LIMITER
Playback
Speaker
Protection
Line
Output
MIX AMP
Speaker
A
Speaker
B

EC Declaration of Conformity
We: Kustom Musical Amplification Inc.
4940 Delhi Pike
Cincinnati, OH 45238
Tel: [phone] Fax: [phone]
Declare that the product
Product name: Kustom
Product model number: KPM4100
to which this declaration relates is in conformity with the following standards;
EN55013 (A12) : 1995 Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and
associated equipment.
EN55020: 1995 Electromagnetic immunity of broadcast receivers and associated equipment.
EN61000-3-2: 1995 Limits for harmonic current emissions (equipment input current < 16A per phase).
EN61000-3-3: 1995 Limitation of voltage fluctuations and flicker in low voltage supply systems for equipment with rated
currents < 16A.
EN55103-1: 1995 Electromagnetic Compatibility - Product family standard for Audio, Video Audio-visual and
entertainment Lighting Control Apparatus.
EN60065: 1994 Safety requirements for main operated electronic and related apparatus for household and similar
general use.
Following the provisions of EU Council Directive(s): 72/73 EEC and 89/336/EEC.
We the undersigned, hereby declare that the equipment specified above conforms to the aforementioned directive(s).
Name of authorized person: Rick Kukulies, VP Engineering
Signature:______________________ Date: 26 February 2003
Kustom Musical Amplification Inc. (BC Rich)
4940 Delhi Pike
Cincinnati, OH 45238
Tel: [phone] Fax: [phone]

TECHNICAL SPECIFICATIONS:
Maximum Power: 100 Watts/4 Ohms
75 Watts/8 Ohms
Input Impedance: Lo-Z Mic 1K Ohms
Hi-Z Mic 10K Ohms
Tape Playback 10K Ohms
Maximum Gain: Lo-Z Mic-Speaker 76dB
Hi-Z Mic-Speaker 56dB
Tape In-Speaker 42dB
Protection Circuit: Relay- Power On, DC, Short circuit
Power Consumption (max.): 120 VAC 60Hz, 120 Watts
Dimensions and Weight:
Width: 18.25" (464mm)
Height: 4.75" (121 mm)
Depth: 9.75" (248mm)
Weight: 22 Ibs. (10 kg.)
Kustom Inc., 4940 Delhi Pike, Cincinnati, OH • USA
[phone] Fax: [phone] / www.kustom.com
