KUULAIRE 366169 User manual

If you have any questions regarding this product, call 1-800-642-2112 and ask for our product
specialists (Mon.-Fri. 9:00 am –5:00 pm EST) or email: [e-mail]
See many more products on the Internet! www.improvementscatalog.com
To order, call 1-800-642-2112
Owner ’ s Manual
Manual de Operación
Manuel du Propriétaire
CAUTION
SAVE AND READ THESE IMPORTANT INSTRUCTIONS
Read all instructions carefully before setting up and operating this unit. This manual was
designed to provide you with important information needed to setup, operate, maintain,
and troubleshoot your cooler. Failure to follow these instructions may damage and/or
impair its operation and void the warranty .
PRECAUCIÓN
LEA Y CONSERVE ESTE MANUAL
Lea todas las instrucciones cuidadosamente antes de montar y operar este aparato.
Este manual fue diseñado para proveerle información importante necesaria para instalar ,
operar, mantener y detectar problemas en su enfriador. La falla en seguir estas
instrucciones puede dañar y/o afectar la operación del enfriador y anular la garantía.
A TTENTION
LIRE ET CONSERVER CES IMPORTANTES INSTRUCTIONS
Lire attentivement toutes les instructions avant d‟installer et de faire fonctionner cette
unité. Ce manuel est conçu pour fournir des informations importantes pour l‟installation,
le fonctionnement, l‟entretien et le dépannage de votre refroidisseur. Le défaut d‟observer
ces instructions pourrait causer des dommages ou nuire au fonctionnement de l‟unité et
provoquer l‟annulation de la garantie.
US - Model KA45
México - Modelo KA45
É - U - Modèle K A 45
Thanks for shopping with Improvements!

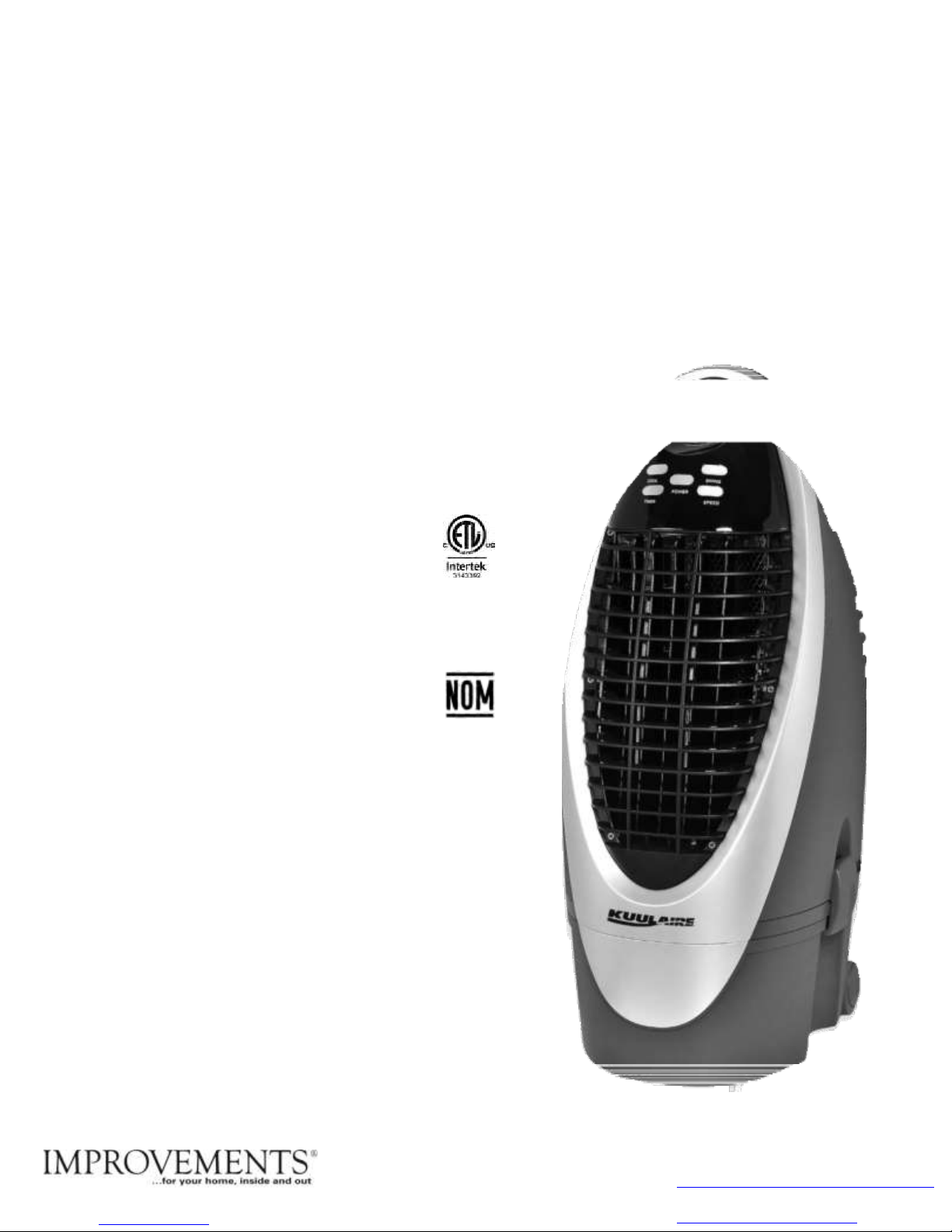

Evaporative Air Cooler
Item # 366169

If you have any questions regarding this product, call 1-800-642-2112 and ask for our product
specialists (Mon.-Fri. 9:00 am –5:00 pm EST) or email: [e-mail]
See many more products on the Internet! www.improvementscatalog.com
To order, call 1-800-642-2112
2
Introduction
The KA45 features a 3-speed fan and automatic timer that can
be programmed for 0.5 to 7.5 hours. The automatic louver
swing function provides directional control and the remote
control (Battery CR2032 – included), provides convenience.
The KA45 also features a low water warning system that shuts
off pump when the water level is below minimum to give you
peace of mind. The KA45 portable evaporative cooler is the
latest in evaporative cooling technology from Port-A-Cool,
LLC, manufacturer of world-class portable cooling units, for
industrial and commercial applications. The new KuulAire™
line of portable evaporative cooling units are the new definition
of kuul.
Port-A-Cool, LLC reserves the right to change design and/
or specifications without notice. To view the most current
information, please v i s i t us at www . K uu l A i r e . c o m.
▲
!
WARNINGS AND SAFETY RULES
Basic safety precautions should always be followed when using any electrical appliance.
1. This unit is intended for indoor use. Any other use is not
recommended and may cause fire, electric hazard, or
injury to persons or property, and may void the warranty.
2. Unplug the unit from power outlet when filling or draining
water tank.
3. Unplug the unit from power outlet when moving the unit.
4. Unplug the unit from power outlet when cleaning or
ser vicing.
5. Do not detach water tank while unit is plugged into a power
outlet
6. Do not detach water tank while unit is running
7. Do not use the unit in areas where gasoline, paint or any
other flammable chemicals are stored.
8. Extreme caution should be taken when used near children
and the elderly. The unit should not be left unattended for
any extended period of time while in operation.
9. Do not let children play with any packaging material.
10. Do not operate the unit with a damaged power cord. If
the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
11. Do not attempt to repair or adjust any electrical or
mechanical functions of the unit.
ASSEMBLY INS TR UCTIONS
12. The unit should run on 120V 60Hz AC only .
13. Do not cover unit air inlet or air outlet openings.
14. This product is not intended for use in wet or damp
locations.
15. When not in use, drain the water from the tank and store
the unit in a dry location.
16. Do not run power cord under carpeting or cover with rugs
or runners. Arrange the cord away from areas where it
may be tripped over .
17. Do not use the unit with an extension cable.
18. Do not insert or allow objects to enter the air outlet opening,
as this may cause damage to the blower and may void the
warranty.
19. Use only fresh water to fill the water tank. Use of air
fresheners or cleaners is not recommended as it may
damage the unit and void the warranty.
20. Drain the tank once every week to reduce calcium
saturation.
21. Do not use this appliance with any solid-state speed control
device.
22. If the unit is damaged or malfunctioning, discontinue
operation and refer to the troubleshooting section and/
or contact a service technician via 1-800-695-2942.
(México - 01 800 821 7804)
The KA45 requires no assembly; simply plug it in and start
enjoying the kuul aire.

If you have any questions regarding this product, call 1-800-642-2112 and ask for our product
specialists (Mon.-Fri. 9:00 am –5:00 pm EST) or email: [e-mail]
See many more products on the Internet! www.improvementscatalog.com
To order, call 1-800-642-2112
3
�
�

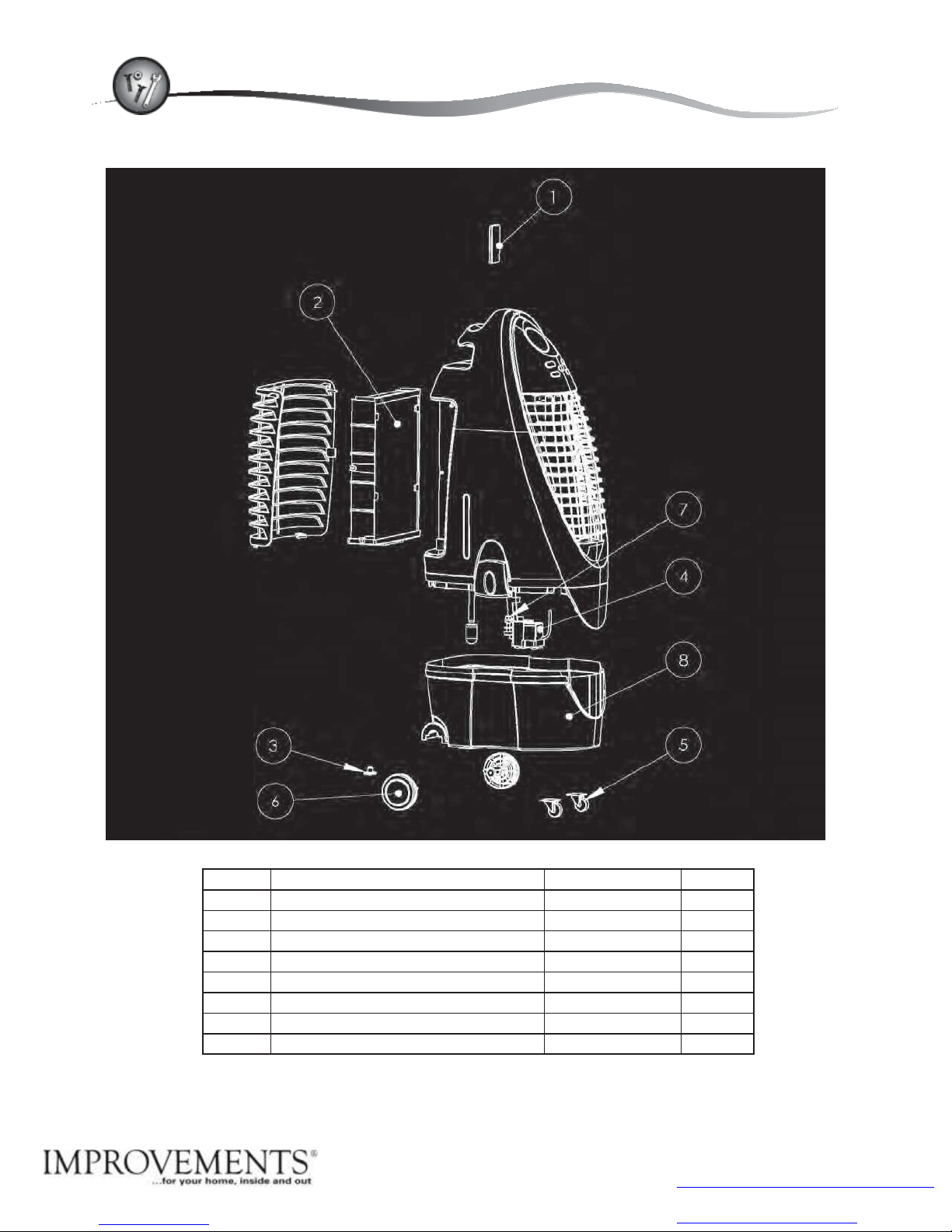

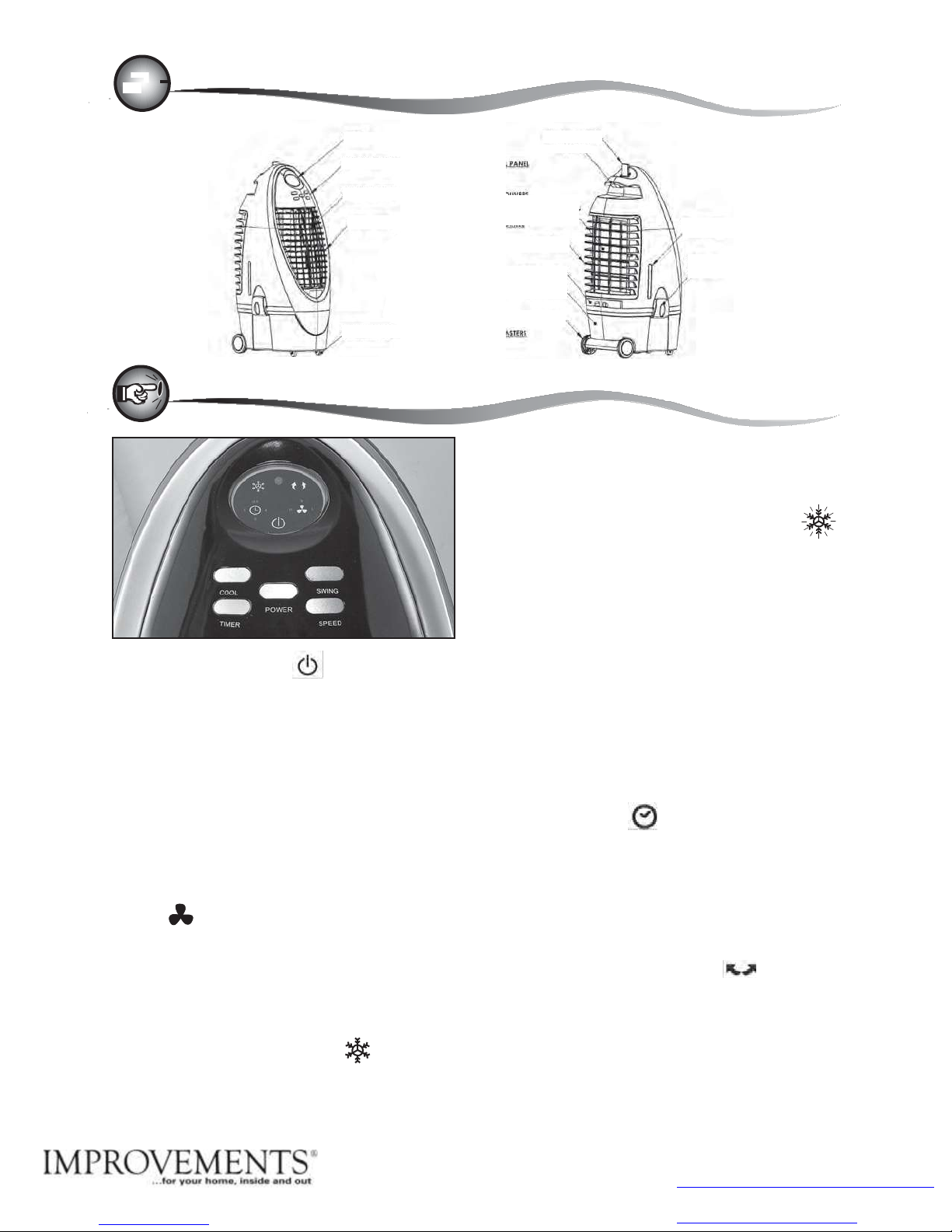

PA RT S DESCRIPTION
USE AND OPERAT ION
POWER
1. Connect the cord to a power outlet. The Power LED icon will
glow in amber indicating the power source is connected.
2. Press the POWER button to turn on the unit. To turn off
the unit, press the POWER button again. When the POWER
button is pressed, the Power LED icon will change color from
amber to red and the blue fan LED icon will come on. The
cooler will start in fan mode at medium speed then drop to
the low speed setting.
SPEED
Press the SPEED button to select the desired fan speed. The
selected fan speed indicator LED will come on.
H = High speed
M = Medium speed
L = Low speed
COOL
To use the unit as an evaporative cooler, press the COOL button,
the pump will turn on and distribute water to wet out the cellulose
cooling pad located in the rear of the unit. The indicator LED
light will come on. After approximately three minutes, as the
pad becomes saturated, the air from the outlet should be cool.
LOW WATER ALARM FUNCTION
The KA45 is equipped with a low water sensor alarm. When
water in the tank is below minimum level, you will hear 10
beeps and COOL LED indicator will flash continuously. At the
same time the power to the pump will be cut off to protect the
life of the pump. In order to disengage the alarm function, turn
off and unplug the unit from the power outlet, and fill the tank
with water above the minimum level. In order to turn off the
alarm function and continue to use it in FAN mode, turn off the
unit and turn the unit back on. If COOL button is pressed again
without filling the tank with water, low water alarm will go off
again.
TIMER
The unit comes with a maximum 7.5-Hour timer. Each time TIMER
button is pressed 0.5 hour of operation time is added. The sum
of all illuminated LED indicates the remaining operation time.
EX: „2‟ and „4‟ lights illuminated meaning there are 6 hours
remaining before unit shuts off.
SWING
Press the SWING button to direct the air stream. The louvers will
begin to move automatically from side to side. The indicator
LED will come on.
UP-DOWN AIR FLOW
To adjust the vertical direction of air flow, adjust the horizontal
louvers located behind the front grille manually .

If you have any questions regarding this product, call 1-800-642-2112 and ask for our product
specialists (Mon.-Fri. 9:00 am –5:00 pm EST) or email: [e-mail]
See many more products on the Internet! www.improvementscatalog.com
To order, call 1-800-642-2112
▲
▲
4

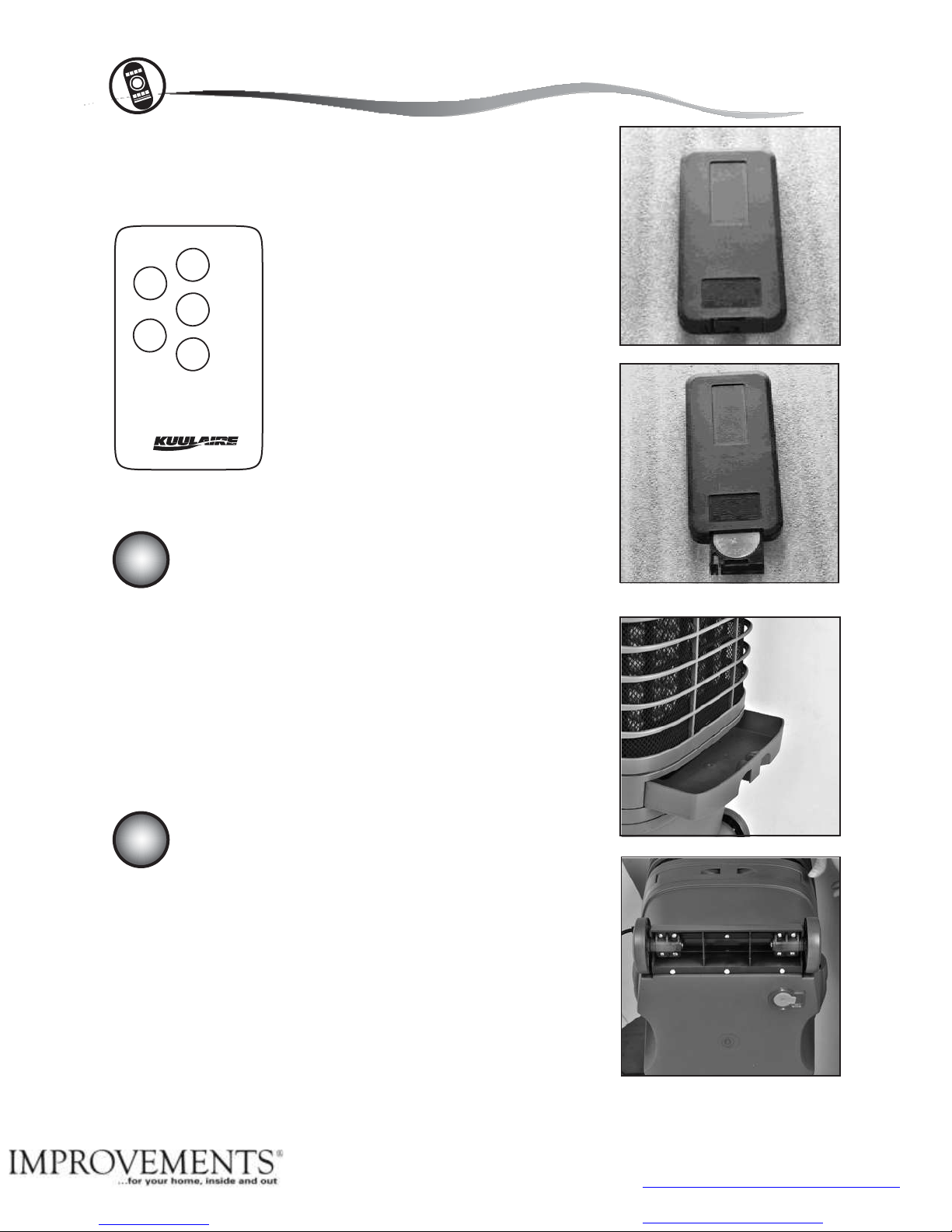

REMOTE CONTROL
The KA45 comes with a remote control with a battery included
for your convenience. The remote control requires a CR2032
(1 X 3V) coin-type or equivalent replacement batter y .
TIMER
COOL
POWER
SPEED
SWING
POWER – ON/OFF
SPEED – Fan Speed
COOL – Pump ON/OFF
SWING – Automatic swing of louvers
TIMER – T imer function of 0.5 to 7.5 hours
!
WARNING: Unplug the unit from power outlet
prior to moving, servicing, filling or draining the
water tank.
Filling the Tank with W ater
The water fill tray is located in the rear of the unit. Pull the
water fill tray out and pour water carefully into the tank. Pay
attention to the water level indicator to avoid overfilling the unit.
The capacity of the tank is 3 gallons. When used at maximum
cooling, a full tank should last 4 to 5 hours depending on the
humidity and temperature.
!
WARNING: Unplug the unit from power outlet
prior to moving, servicing, filling or draining the
water tank.
Draining the Tank
Move the unit to a location where water can be disposed of
safely. Pull out the drain plug to release the water from the
tank. Once it is completely drained, replace the drain plug. The
unit is now ready to be filled with fresh water .

If you have any questions regarding this product, call 1-800-642-2112 and ask for our product
specialists (Mon.-Fri. 9:00 am –5:00 pm EST) or email: [e-mail]
See many more products on the Internet! www.improvementscatalog.com
To order, call 1-800-642-2112
▲
5
CLEANING AND MAINTEN ANCE
!
WARNING: Unplug the unit from power outlet prior to
moving, servicing, filling or draining the water tank.
Cleaning: Dampen a clean cloth with water and use it on the exterior
of the unit to remove any dust or dirt. Never use harsh detergents,
solvents, or corrosive cleaners to clean the unit. When not in use, drain
the water tank and store the unit in an area where it is dry and out of
sunlight.
Maintenance: Regular draining, at least once each week, will decrease
the water mineral build up and extend the life of the pad. A damp cloth
can be used to remove calcium build-up inside and outside of the unit.
When operating the unit, turn off pump pressing the COOL button until
indicator light goes off, to dr y out the pad before shutting off. The inside
of the water tank should be cleaned once or twice in a season to maintain
air quality.

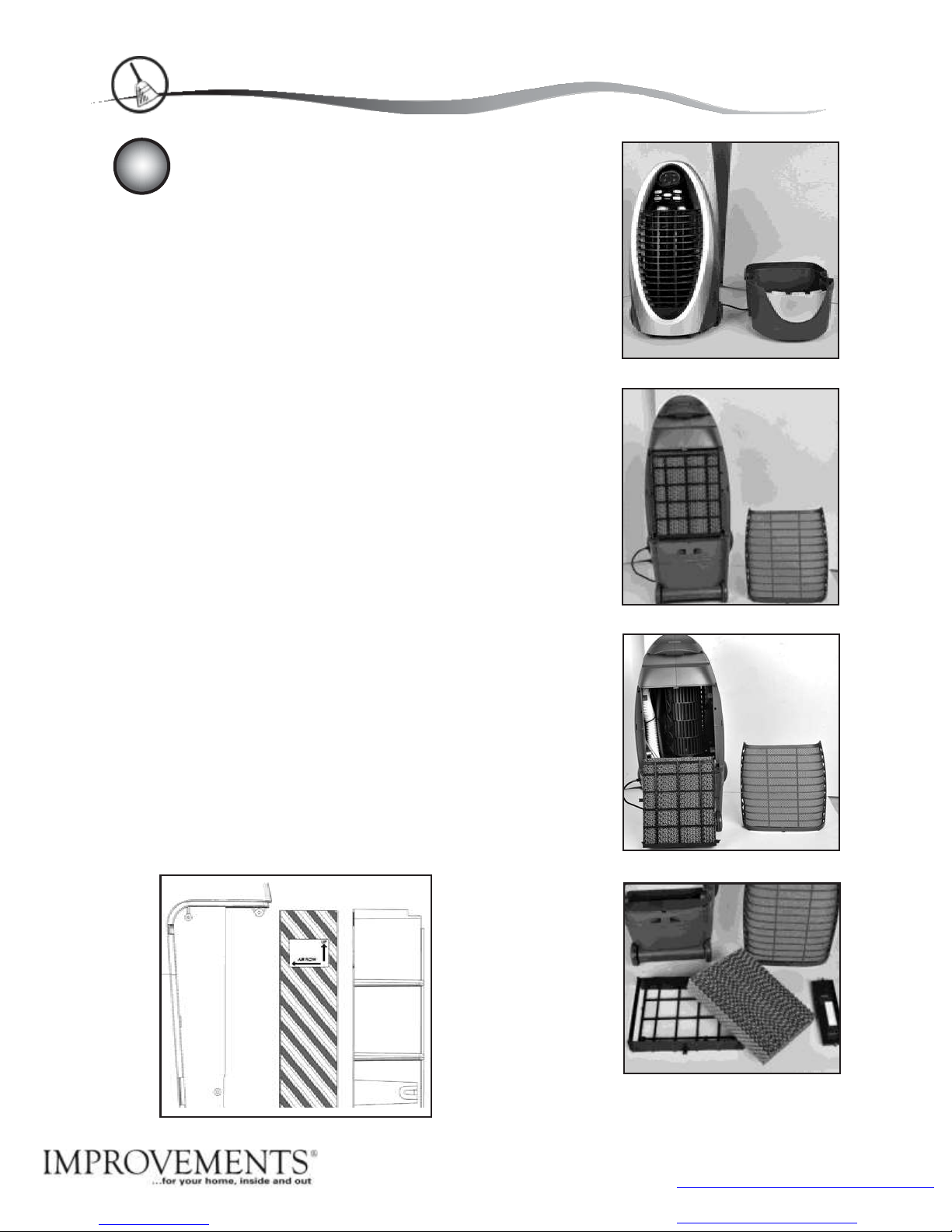

Deep C lea n:
Removing Water Tank: The KA45 comes with an e a s il y r emo v able
water tank. Make sure the unit i s unplugged from the power ou t le t .
Unclip the water tank lo c k i ng c li p s on both sids. L i f t up the body of the
unit and lay it gently on the floor. Be cautious of the pump swing a r m
and make sure the pump swing arm f o l d s horizontally. C lean the tan k
with water and s o f t c lo t h. You may use mild soap or d e t er gen t .
Removing the Cooling Pad: Remove two sc r e w s holding the r e ar
grille assembly and remove the rear grille. Remove two sc r e w s ho l di ng
the c oo li ng pad f r am e . Pull out the c oo li ng pad
f r am e . Remove two sc r e w s at the bottom of the pad f r am e to r emo v e
the water catch pan. Pad will slide out at the bottom of the pad f r am e .
Using water and s o f t b r u s h clean the c oo li ng pad of d eb r i s , dirt, and
mineral build up s .
Be sure to clean the top of the c oo li ng pad. Do not use any c lean i ng
agen t . W h e n r eas s e m b li n g t h e c ool i n g pad , m a k e s u r e t h e d e sc e nd i n g
fl u t e s in the c ool i n g pad f a c e o u t s i d e .
