lassele LRB-771PC User manual

1
Commercial
Upright Refrigerator & Freezer
Service Manual

2
TABLE OF CONTENS
1. ASSEMBLY ……………………………………………………… 4~15
2. PARTS …………………………………………………………… 16~37
3. WIRING DIAGRAM ………………………………………… 38~40
4. PART DETAILS ………………………………………………… 41~45
5. MAIN COMPONENTS ………………………………………… 46~58
6. ELECTRONIC CONTROL INSTRUCTIONS ……………… 49~64
7. REPLACEMENT OF MAIN COMPONENTS ……………… 65~81
8. PART LIST ……………………………………………………… 82~84
.

3
Safety cautions during service
ㆍWhen exchanging or repairing electric parts, pull the plug out before
exchanging and repairing.
ㆍWhen exchanging electric parts, use a rating part.
- Be sure to check marks such as MODEL name, rating voltage,
rating currents, movement temperature etc.
ㆍDuring repairing, make sure wirings such as HARNESS, WIRE JOINT are
sturdy
so that it is free of danger due to disclosure of core wire.
- Don’t let it derail when certain strength is put on.
ㆍWhen repairing, take out the dust or foreign body (Housing part, wiring part,
contact point part).
- It prevents danger of fire such as TRACKING, SHORT.
ㆍCheck whether water has gone into the electric parts.
- When there are traces of water, exchange the parts or enact the TRACKING
prevention device.
ㆍAfter repairing, check the assembly status of the parts.
- Keep the status as it was before the repairing. .
ㆍAfter checking the usage environment of the product and if the installation is
unstable, change the usage location.
- For installations in places with moisture, water and for heat devices, prevent
placing products near igniting materials etc.
ㆍWhen earthing is needed, earth it.
- For cases when electric leakage is concerned due to moisture or water,
be sure to earth it.
ㆍFor products that consumes power such as electric products, make sure
numerous plugs are not used in a single outlet.

4
1.ASSEMBLY (LRB-771PC)

5
1-1. PART LIST : LRB-771PC
NO.
CODE-No
Title
Subject
Q'TY
1
R8279-210
ASSY CABI FOAM
R23
1
2
R2103-445
COMPRESSOR PULL OUT
CU-PIPE. OD9.52*T0.6*1716
1
3
R8613-355
EVAPORATOR ASSY
AL W330*D246*H105 BM23R
1
4
R3044-050
DOOR HINGE SHAFT UPP
SM45C. ￠12*51.5
1
5
R3084-010
SUPPORT PCB
NYLON NO.66. M4*8
4
6
R3212-231
FRAME ASSY 23
WELDING 600LT
1
7
R3314-282
TOP FRAME B/K
GI. T1.0*30*59.6
2
8
R371A-110
SHELF 23
MSWR10 W545*D580
3
9
R3313-151
SHELF CLIP
POM. WHT
12
10
R3313-271
EVAPORATOR B/K LF
STS304-2B. T1.0*408*37.5
1
11
R3313-291
GRILL BRACKET
GI. T1.0*219*78.1
2
12
R3323-230
CASTER 4"
4" MOVE
2
13
R3313-274
EVAP COVER B/K
STS304-2B, T1.0*408*35.5
1
14
R3323-230
CASTER 4"
4" STOP
2
15
R3373-630
SHELF STANDARD L
AL. T1.2*930
4
16
R3393-440
DOOR HINGE TOP
ZDC 2. T10*42*64*63
1
17
R3393-560
DOOR STOP HINGE BOTTOM
ZDC 2. T10*42*63
1
18
R3393-530
LOW SHAFT RH
￠24*31
1
19
R3813-351
COVER CAPACITOR
GI. T0.8*255.2*135
1
20
R3853-110
EVAPORATOR AIR GUIDE LF
AL WHITE,T0.5*162*247
1
21
R3853-390
EVAPORATOR AIR GUIDE REAR
STS430-2B. T0.5*125*155
1
22
R3853-090
EVAPORATOR AIR GUIDE RH
AL WHITE,T0.5*162*247
1
23
R3854-210
EVAPORATOR DRAIN HOSE GUIDE
GI. T1.0*225*60
1
24
R8272-480
DOOR ASSY 23
R23
1
25
R8329-060
EVAPORATOR FAN MOTOR ASSY
115V 60HZ
1
26
R725A-312
MAIN PCB (115V, ℃)
FR1 BM 115V ℃ 냉장 BMR115C-04
1
27
R7504-060
POWER TRANS
120V 60HZ. DT-1213
1
28
R8139-110
EVAPORATOR HOUSING ASSY
R23
1
29
R815A-010
ASSY UNIT
R23
1
30
R8182-081
GRILL ASSY
1
31
R8199-080
EVAPORATOR DRAIN WATER S ASSY
R/F23
1
32
R7204-070
POWER SWITCH
SL112A. 125V 15A
1
33
R8182-121
TOP GRILL ASSEMBLY
SL112A. 125V 15A
1
34
R3734-030
DOOR LOCKING ASSY
ZDC. ZCR
1
35
R5133-160
MASCOT
POLYURT T1.5*205*38
1
36
R7203-020
DOOR SWITCH
WHT. SP201R-9D
1
37
R8359-490
ASSY CONTROL BOARD 23
R/F 23
1
38
R7213-112
TEMP-DISPLAY SENSOR. REF
R23
1

6
1. ASSEMBLY (LFB-771PC)

7
1-2. PART LIST : LFB-771PC
NO.
CODE-No
Title
Subject
Q'TY
1
R8279-100
ASSY CABI FOAM
F23
1
2
R2103-445
COMPRESSOR PULL OUT
CU-PIPE. OD9.52*T0.6*1716
1
3
R2263-038
EVAPORATOR
CU+AL. 23F
1
4
R3044-050
DOOR HINGE SHAFT UPP
SM45C. ￠12*51.5
1
5
R3084-010
SUPPORT PCB
NYLON NO.66. M4*8
4
6
R3212-231
FRAME ASSY 23
WELDING 600LT
1
7
R3314-282
TOP FRAME B/K
GI. T1.0*30*59.6
2
8
R371A-110
SHELF 23
MSWR10. NSF
3
9
R3313-151
SHELF CLIP
POM. WHT
12
10
R3313-271
EVAPORATOR B/K LF
STS304-2B. T1.0*408*37.5
1
11
R315A-160
GRILL BRACKET
GI. T1.0*219*78.1
2
12
R3323-230
CASTER 4"
4" MOVE
2
13
R3313-274
EVAP COVER B/K
STS304-2B. T1.0*408*37.5
1
14
R3323-230
CASTER 4"
4" STOP
2
15
R3373-630
SHELF STANDARD L
AL. T1.2*930
4
16
R3393-440
DOOR HINGE TOP
ZDC 2. T10*42*64*63
1
17
R375A-010
STOPPER HINGE RH
POM(FW700S) 45.5*31*8
1
18
R3393-530
LOW SHAFT RH
￠24*31
1
19
R3813-351
COVER CAPACITOR
GI. T0.8*255.2*135
1
20
R3853-110
EVAPORATOR AIR GUIDE LF
STS443CT-2B. T0.5*161.8*269
1
21
R3853-390
EVAPORATOR AIR GUIDE REAR
STS430-2B. T0.5*125*155
1
22
R3853-090
EVAPORATOR AIR GUIDE RH
STS443CT. T0.5*161.8*269
1
23
R3854-210
EVAPORATOR DRAIN HOSE GUIDE
GI. T1.0*225*60
1
24
R8272-480
DOOR ASSY 23
R23
1
25
R8329-060
EVAPORATOR FAN MOTOR ASSY
115V 60HZ
1
26
R725A-321
MAIN PCB (115V. ℃)
FR1 BM 115V ℃ 냉동 BMF115C-03
1
27
R7504-060
POWER TRANS
120V 60HZ. DT-1213
1
28
R8139-090
EVAPORATOR HOUSING ASSY
F23
1
29
R815A-020
ASSY UNIT
F23
1
30
R8182-081
GRILL ASSY
1
31
R8199-080
EVAPORATOR DRAIN WATER S ASSY
R/F23
1
32
R7204-070
POWER SWITCH
SL112A. 125V 15A
1
33
R8182-121
TOP GRILL ASSEMBLY
SL112A. 125V 15A
1
34
R3734-030
DOOR LOCKING ASSY
ZDC. ZCR
1
35
R5133-160
MASCOT
POLYURT T1.5*205*38
1
36
R7203-020
DOOR SWITCH
WHT. SP201R-9D
1
37
R8359-490
ASSY CONTROL BOARD 23
R/F 23
1
38
R7303-402
DEFROST HEATER
F23
1
39
R7213-082
TEMP-THERMISTOR,FRE
F23
1
40
R7213-210
D-SENSOR
F23
1
41
R7253-052
EVAPORATOR THERMAL FUSE
F23
1

8
1. ASSEMBLY (LRB-771PCG)

9
1-2. PART LIST : LRB-771PCG
NO.
CODE-No
Title
Subject
Q'TY
1
R8279-100
ASSY CABI FOAM
F23
1
2
R2103-445
COMPRESSOR PULL OUT
CU-PIPE. OD9.52*T0.6*1716
1
3
R2263-038
EVAPORATOR
CU+AL. 23F
1
4
R3044-050
DOOR HINGE SHAFT UPP
SM45C. ￠12*51.5
1
5
R3084-010
SUPPORT PCB
NYLON NO.66. M4*8
4
6
R3212-231
FRAME ASSY 23
WELDING 600LT
1
7
R3314-282
TOP FRAME B/K
GI. T1.0*30*59.6
2
8
R3233-182
SHELF 23
MSWR10. NSF
3
9
R8429-022
ASSY SHELF CLIP
POM. WHT 14SET
12
10
R3313-271
EVAPORATOR B/K LF
STS304-2B. T1.0*408*37.5
1
11
R315A-160
BRACKET GRILLE
GI. T1.0*219*78.1
2
12
R3323-230
CASTER 4"
4" MOVE
2
13
R3313-440
EVAP COVER B/K RH
STS304-2B. T1.0*408*37.5
1
14
R3323-240
CASTER 4"
4" STOP
2
15
R3373-630
SHELF STANDARD L
AL. T1.2*930
4
16
R3393-440
DOOR HINGE TOP
ZDC 2. T10*42*64*63
1
17
R3393-343
DOOR HINGE BOTTOM RH
T10*48*65.6*63 ZNDC2
1
18
R3393-530
LOW SHAFT RH
￠24*31
1
19
R3813-351
COVER CAPACITOR
GI. T0.8*255.2*135
1
20
R3853-110
EVAPORATOR AIR GUIDE LF
STS443CT-2B. T0.5*161.8*269
1
21
R3853-390
EVAPORATOR AIR GUIDE REAR
STS430-2B. T0.5*125*155
1
22
R3853-090
EVAPORATOR AIR GUIDE RH
STS443CT. T0.5*161.8*269
1
23
R3854-210
EVAPORATOR DRAIN HOSE GUIDE
GI. T1.0*225*60
1
24
R8272-480
DOOR ASSY 23
R23
1
25
R8329-060
EVAPORATOR FAN MOTOR ASSY
115V 60HZ
1
26
R725A-312
MAIN PCB (115. ℉)
115V. FRE
1
27
R7504-060
POWER TRANS
120V 60HZ. DT-1213
1
28
R8139-151
EVAPORATOR HOUSING ASSY
F23
1
29
R815A-050
ASSY UNIT
F23
1
30
R8182-081
GRILL ASSY
1
31
R8199-080
EVAPORATOR DRAIN WATER S ASSY
R/F23
1
32
R7204-070
POWER SWITCH
SL112A. 125V 15A
1
33
R8182-121
TOP GRILL ASSEMBLY
SL112A. 125V 15A
1
34
R3734-030
DOOR LOCKING ASSY
ZDC. ZCR
1
35
R5133-160
MASCOT
POLYURT T1.5*205*38
1
36
R7203-020
DOOR SWITCH
WHT. SP201R-9D
1
37
R8359-490
ASSY CONTROL BOARD 23
R/F 23
1
38
R7303-402
DEFROST HEATER
F23
1
39
R7213-082
TEMP-THERMISTOR,FRE
F23
1
40
R7213-210
D-SENSOR
F23
1
41
R7259-070
EVAPORATOR THERMAL FUSE
F23
1

10

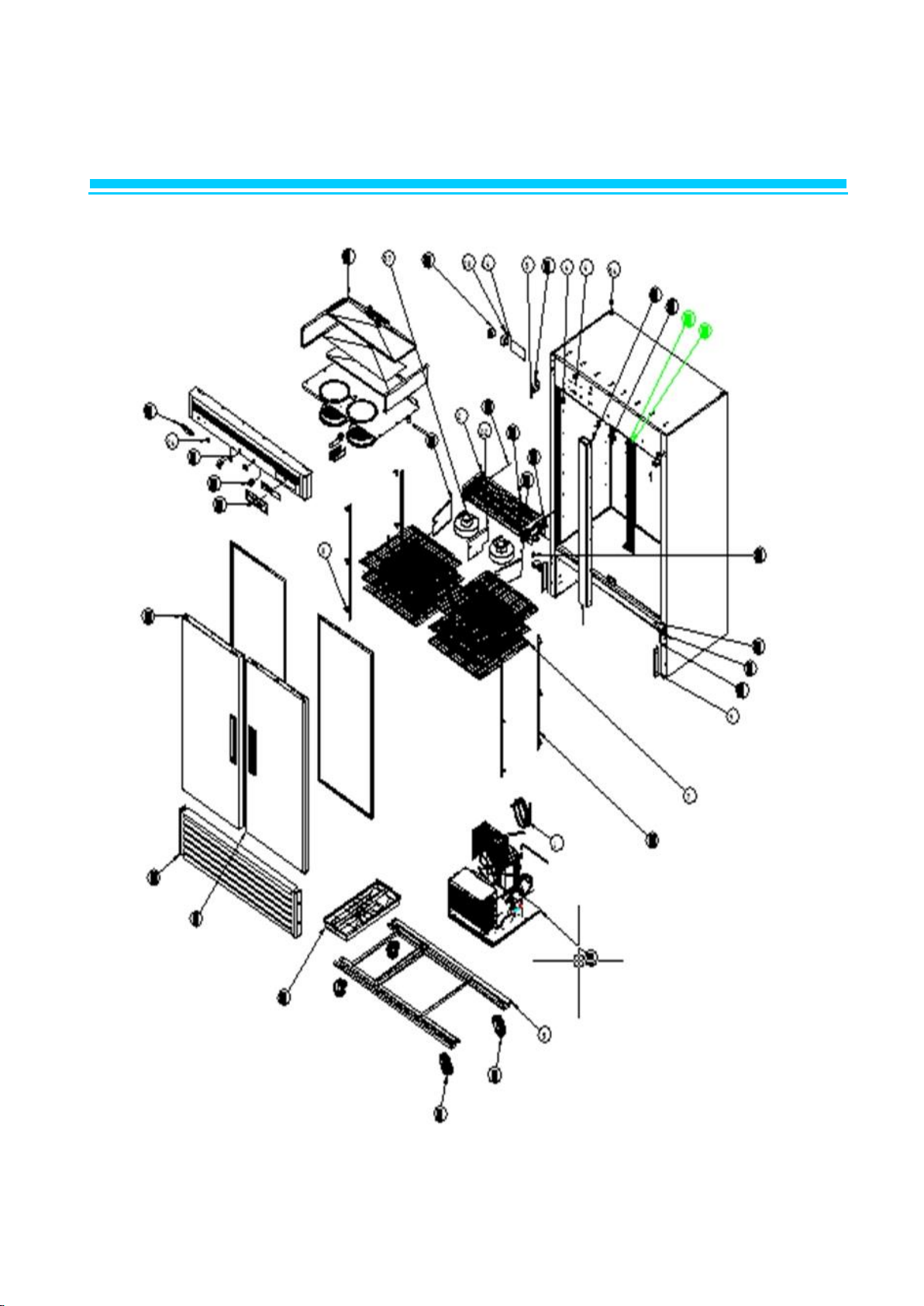

1. ASSEMBLY (LRB-1471PC)

11
1-2. PART LIST : LRB-1471PC
NO.
CODE-No
Title
Subject
Q'TY
1
R2103-942
COMPRESSOR PULL OUT
CU-PIPE. T0.7*OD9.52*1930
1
2
R8163-345
EVAPORATOR ASSY
AL W506*D246*H105 BM49R
1
3
R3393-313
DOOR HINGE TOP
T10*48*65.6*63 ZNDC2
2
4
R3084-010
SUPPORT PCB
NYLON NO.66. M4*8
4
5
R3212-250
FRAME ASSY (49)
717.5*1408
1
6
R3214-282
TOP FRAME B/K
GI. T1.0*30*59.6
3
7
R3233-210
ASSY SHELF-49
609*580
6
8
R8429-012
ASSY SHELF CLIP
POM. WHT 26SET
20
8
R315A-160
GRILL BRACKET
GI T1.0*10.6*102.7
2
9
R3314-241
SUPPORT FRONT B/K
STS304-2B. T1.0*80*34
2
10
R3323-230
CASTER 4"
4" MOVE
2
11
R3323-240
CASTER 4"
4" STOP
2
12
R3373-630
SHELF STANDARD L
AL. T1.2*930
6
13
R375A-010
STOPPER HINGE RH
AL. T10*42*64*63
2
14
R375A-020
STOPPER HINGE LF
ZDC 2. T10*42*63
2
15
R3393-530
LOW SHAFT RH
￠24*31
1
16
R3393-550
LOW SHAFT LF
￠24*31
1
17
R3734-030
DOOR LOCKING ASSY
ZDC. ZCR
2
18
R3813-351
COVER CAPACITOR
GI. T0.8*255.2*135
1
19
R3853-120
EVAPORATOR AIR GUIDE RH
AL WHITE,T0.5*162*269
1
20
R3853-210
EVAPORATOR AIR GUIDE LF
AL WHITE,T0.5*162*269
1
21
R8359-510
ASSY CONTROL BOARD
BM 49 ℃ TYPE SOLID
1
22
R5133-160
MASCOT
POLYURT T1.5*205*38
1
23
R725A-312
MAIN PCB (115V. ℉)
REF
1
24
R7203-020
DOOR SWITCH
WHT. SP201R-9D
2
25
R7204-070
POWER SWITCH
SL112A. 125V 15A
1
26
R8329-060
EVAPORATOR FAN MOTOR ASSY
UL. 115V 60HZ
1
27
R7504-060
POWER TRANS
120V 60HZ. DT-1213
1
28
R8139-140
EVAPORATOR HOUSING ASSY
1
29
R815A-030
ASSY UNIT
1220LE 115(SK1A1C-L2W)
1
30
R8163-031
CROSS BAR SOLID ASSY
R49
1
31
R817A-130
DOOR ASSY LF (49)
R/F49
1
32
R817A-140
DOOR ASSY RH (49)
R/F49
1
33
R818A-300
ASSY GRILL BOTTOM_49
R/F49
1
34
R8199-070
EVAPORATOR DRAIN WATER-L
ASSY
R/F49
1
35
R8279-200
CABI FOAM ASSY 49
R49
1
36
R8329-060
EVAPORATOR FAN MOTOR ASSY
115V 60HZ
1
37
R7213-112
TEMP-DISPLAY SENSOR. REF
49R
1

12
1. ASSEMBLY (LFB-1471PC)

13
1-3. PART LIST : LFB-1471PC
1-4.
NO.
CODE-No
Title
Subject
Q'TY
1
R2113-580
COMPRESSOR PULL OUT. A
CU-PIPE OD9.52*T0.7*1900
1
2
R2263-048
EVAPORATOR
F49
1
3
R370A-030
SHAFT TOP HINGE
SUM24L ￠15*45L
2
4
R3084-010
SUPPORT PCB
NYLON NO.66. M4*8
4
5
R3212-310
FRAME ASSY 49F
717.5*1408
1
6
R3214-282
TOP FRAME B/K
GI. T1.0*30*59.6
3
7
R3233-210
ASSY SHELF 49
609*580
6
R8429-012
ASSY SHELF CLIP
POM. WHT, 26SET
20
8
R315A-160
GRILL BRACKET
GI T1.0*10.6*102.7
2
9
R3314-241
SUPPORT FRONT B/K
STS304-2B. T1.0*80*34
2
10
R3323-230
CASTER 4"
4" MOVE
2
11
R3323-240
CASTER 4"
4" STOP
2
12
R3373-630
SHELF STANDARD L
AL. T1.2*930
6
13
R828A-065
ASSY HINGE TOP RH
STS304 T=4.0
2
14
R828A-055
ASSY HINGE TOP LF
STS304 T=4.0
15
R828A-022
ASSY HINGE BOTTOM RH
STS304 T=4.0
2
17
R828A-032
ASSY HINGE BOTTOM LF
STS304 T=4.0
18
R3393-530
LOW SHAFT RH
￠24*31
1
19
R3393-550
LOW SHAFT LF
￠24*31
1
20
R3734-030
DOOR LOCKING ASSY
ZDC. ZCR
2
21
R3813-351
COVER CAPACITOR
GI. T0.8*255.2*135
1
22
R3853-110
EVAPORATOR AIR GUIDE LF
AL WHITE,T0.5*162*247
1
23
R3853-090
EVAPORATOR AIR GUIDE RH
AL WHITE,T0.5*162*247
1
24
R3853-101
EVAPORATOR AIR GUIDE MID
AL WHITE,T0.5*161.8*243
1
25
R5133-160
MASCOT
POLYURT T1.5*205*38
1
26
R725B-250
PCB MAIN (115V CELSIUS)
FR1 BM 115V ℃ 냉동 BMR115C-01
1
27
R7203-020
DOOR SWITCH
WHT. SP201R-9D
2
28
R7204-070
POWER SWITCH
SL112A. 125V 15A
1
29
R748A-020
POWER RELAY
PANASONIC HE1AN-Q-DC-12V 30A
1
30
R7504-060
POWER TRANS
120V 60HZ. DT-1213
1
31
R8139-100
EVAPORATOR HOUSING ASSY
1
32
R8159-940
ASSY UNIT
F49. 115V. FRE
1
33
R8163-021
CROSS BAR SOLID ASSY
F49
1
34
R8272-490
DOOR ASSY LF (49)
R/F49
1
35
R8272-500
DOOR ASSY RH (49)
R/F49
1
36
R818A-300
BOTTOM GRILL ASSY
R/F49
1
37
R8199-070
EVAPORATOR DRAIN WATER-L ASSY
R/F49
1
38
R8279-090
CABI FOAM ASSY 49
F49
1
39
R8329-060
EVAPORATOR FAN MOTOR ASSY
115V 60HZ
2
40
R8359-510
ASSY CONTROL BOARD 49
R/F49
1
41
R7213-210
D-SENSOR
F23
1
42
R7259-070
EVAPORATOR THERMAL FUSE
F23
1
43
R7253-052
TEMP-THERMISTOR. FRE
MAX 72±5℃
1

14
1. ASSEMBLY (LRB-1471PCG)

15
1-5. PART LIST : LRB-1471PCG
NO.
CODE-No
Title
Subject
Q'TY
1
R2263-048
EVAPORATOR
F49
1
2
R370A-030
SHAFT TOP HINGE
SUM24L ￠15*45L
2
3
R3084-010
SUPPORT PCB
NYLON NO.66. M4*8
4
4
R3212-310
FRAME ASSY 49F
717.5*1408
1
5
R3214-282
TOP FRAME B/K
GI. T1.0*30*59.6
3
6
R3233-162
SHELF-LF(49G)
LF(49G) 609*580
6
7
R3233-172
SHELF-RH(49G)
RH(49G) 609*580
R8429-012
ASSY SHELF CLIP
POM. WHT, 26SET
20
8
R315A-160
GRILL BRACKET
GI T1.0*10.6*102.7
2
9
R3314-241
SUPPORT FRONT B/K
STS304-2B. T1.0*80*34
2
10
R3323-230
CASTER 4"
4" MOVE
2
11
R3323-240
CASTER 4"
4" STOP
2
12
R3373-630
SHELF STANDARD L
AL. T1.2*930
6
13
R3393-313
DOOR HINGE TOP
T10*48*65.6*63 ZNDC2
2
14
R3393-343
DOOR HINGE BOTTOM RH
T10*48*65.6*63 ZNDC2
15
R3393-353
DOOR HINGE BOTTOM LF
T10*48*65.6*63 ZNDC2
2
17
R3393-530
LOW SHAFT RH
￠24*31
1
18
R3393-550
LOW SHAFT LF
￠24*31
1
19
R3734-030
DOOR LOCKING ASSY
ZDC. ZCR
2
20
R3813-351
COVER CAPACITOR
GI. T0.8*255.2*135
1
21
R3853-110
EVAPORATOR AIR GUIDE LF
AL WHITE,T0.5*162*247
1
22
R3853-090
EVAPORATOR AIR GUIDE RH
AL WHITE,T0.5*162*247
1
23
R3853-101
EVAPORATOR AIR GUIDE MID
AL WHITE,T0.5*161.8*243
1
24
R5133-160
MASCOT
POLYURT T1.5*205*38
1
25
R725B-242
PCB MAIN (115V CELSIUS)
FR1 BM 115V ℃ 냉동 BMR115C-01
1
26
R7203-020
DOOR SWITCH
WHT. SP201R-9D
2
27
R7204-070
POWER SWITCH
SL112A. 125V 15A
1
28
R748A-020
POWER RELAY
PANASONIC HE1AN-Q-DC-12V 30A
1
29
R7504-060
POWER TRANS
120V 60HZ. DT-1213
1
30
R8139-140
EVAPORATOR HOUSING ASSY
1
31
R815A-310
ASSY UNIT
F49. 115V. FRE
1
32
R8163-021
CROSS BAR SOLID ASSY
F49
1
33
R817B-070
ASSY DOOR GLASS LF_115V
669* 115V/20W 661Ω BM 23/49RG
1
34
R817B-080
ASSY DOOR GLASS RH_115V
669* 115V/20W 661Ω BM 23/49RG
1
35
R818A-560
BOTTOM GRILL ASSY
R/F49
1
36
R8199-070
EVAPORATOR DRAIN WATER-L ASSY
R/F49
1
37
R8279-090
CABI FOAM ASSY 49
F49
1
38
R8329-060
EVAPORATOR FAN MOTOR ASSY
115V 60HZ
2
39
R8359-510
ASSY CONTROL BOARD 49
R/F49
1
40
R7213-210
D-SENSOR
F23
1
41
R7213-112
TEMP-THERMISTOR. FRE
MAX 72±5℃
1

16
2. PARTS
2-1. UNIT ASSY (LRB-771PC)
NO.
CODE-No
Title
Subject
Q'TY
1
R7439-110
COMPRESSOR
SK1A1C-L2W
1
2
R2202-033
CONDENSER COIL
SWST. ￠4.76*13190
1
3
R2114-350
DICHARGE PIPE
CU. T0.6*￠6.35*130
1
4
R2104-421
CONDENSER DRYER PIPE
CU. ￠4.76*321
1
5
R2183-032
DRYER (R-134A. 36G)
36G
1
6
R3202-386
BASE COMP
GI. T1.2*359*605
1
7
R3313-260
CONDENSER FAN MOTOR BRACKET
GI
1
8
R3723-070
CONDENSER FAN BLADE
AL. ￠225. 9" CCW
1
9
R3813-121
CONDENSER COIL COVER
GI. T0.8*265*187
1
10
R3813-150
CONDENSER FAN COVER WIRE
MSWR10. ￠2.5
1
11
R3884-060
GROMMET
NY-6 . ￠12.6*25
4
12
R7423-311
CONDENSER FAN MOTOR
115V 60HZ. DAI-8204DYCA. CW
1
13
R719A-680
HARNESS RELAY B
UL
1
14
R7519-070
O.L.P
4TM783SHBZZ-52
1
15
R7539-190
POSISTOR
SO68-CSR
1
16
R7549-260
RUNNING CAPACITOR
230VAC 50/60HZ 10 ㎌
1
17
R7549-270
CAPACITOR STARTING
200VAC 100 ㎌
1

17
2. PARTS
2-1. UNIT ASSY (LFB-771PC)
NO.
CODE-No
Title
Subject
Q'TY
1
R7439-110
COMPRESSOR
SK1A1C-L2W
1
2
R2202-033
CONDENSER COIL
SWST. ￠4.76*13190
1
3
R2104-492
COMPRESSOR PIPE
CU. T0.7*￠6.35*462
1
4
R319A-420
PIPE DRYER INLET BM
CU OD4.76*T0.7*L456.2
1
5
R2183-032
DRYER (R-134A. 36G)
36G
1
6
R3202-385
BASE COMP
GI. T1.2*359*605
1
7
R3313-260
CONDENSER FAN MOTOR BRACKET
GI
1
8
R3729-050
CONDENSER FAN MOTOR BLADE
115V FAN MOTOR AL 9" C.W
1
9
R3813-121
CONDENSER COIL COVER
GI. T0.8*265*187
1
10
R3813-150
CONDENSER FAN COVER WIRE
MSWR10. ￠2.5
1
11
R3884-062
GROMMET
PP(DS-5) OD ￠50*25
4
12
R7423-311
CONDENSER FAN MOTOR
115V 60HZ. DAI-8204DYCA. CW
1
13
R719A-680
HARNESS RELAY B23 R/F
115V NEW LED LAMP TYPE
1
14
R7519-070
O.L.P
4TM795TFB-53
1
15
R7539-110
PTC RELAY
J531Q34E220M3503
1
16
R7549-270
CAPACITOR RUNNING
250VAC 12 ㎌. 2P
1
17
R7549-270
CAPACITOR STARTING
125VAC 125 ㎌. 2P
1

18
2. PARTS
2-1. UNIT ASSY (LRB-1471PC)
NO.
CODE-No
Title
Subject
Q'TY
1
R7439-110
COMPRESSOR
SK1A1C-L2W
1
2
R2202-033
CONDENSER COIL
SWST. ￠4.76*13190
1
3
R2104-421
CONDENSER DRYER PIPE
CU. ￠4.76*321
1
4
R2183-032
DRYER (R-134A. 36G)
36G
1
5
R3004-270
COMPRESSOR BOLT
STS. M6*30Y. ￠10
4
6
R3202-422
BASE COMP
GI. T1.2*645*574
1
7
R2103-930
CONDENSER PIPE
T0.7*OD4.86*654. CU
1
8
R3313-260
CONDENSER FAN MOTOR BRACKET
GI
1
9
R3723-050
CONDENSER FAN MOTOR BLADE
115V FAN MOTOR AL 9" C.W
1
10
R3813-121
CONDENSER COIL COVER
GI. T0.8*265*187
1
11
R3813-150
CONDENSER FAN COVER WIRE
MSWR10. ￠2.5
1
12
R300A-020
GROMMET COMP
NR-RUBBER. BLK
4
13
R7423-311
CONDENSER FAN MOTOR
115V 60HZ. DAI-8204DYCA. CW
1
14
R719A-690
HARNESS RELAY B49R
115V NEW LED LAMP TYPE
1
15
R7519-070
O.L.P
4TM795TFB-53
1
16
R7539-110
PTC RELAY
J531Q34E220M3503
1
17
R7543-260
CAPACITOR RUNNING
250VAC 12 ㎌. 2P
1
18
R7543-270
CAPACITOR STARTING
125VAC 125 ㎌. 2P
1

19

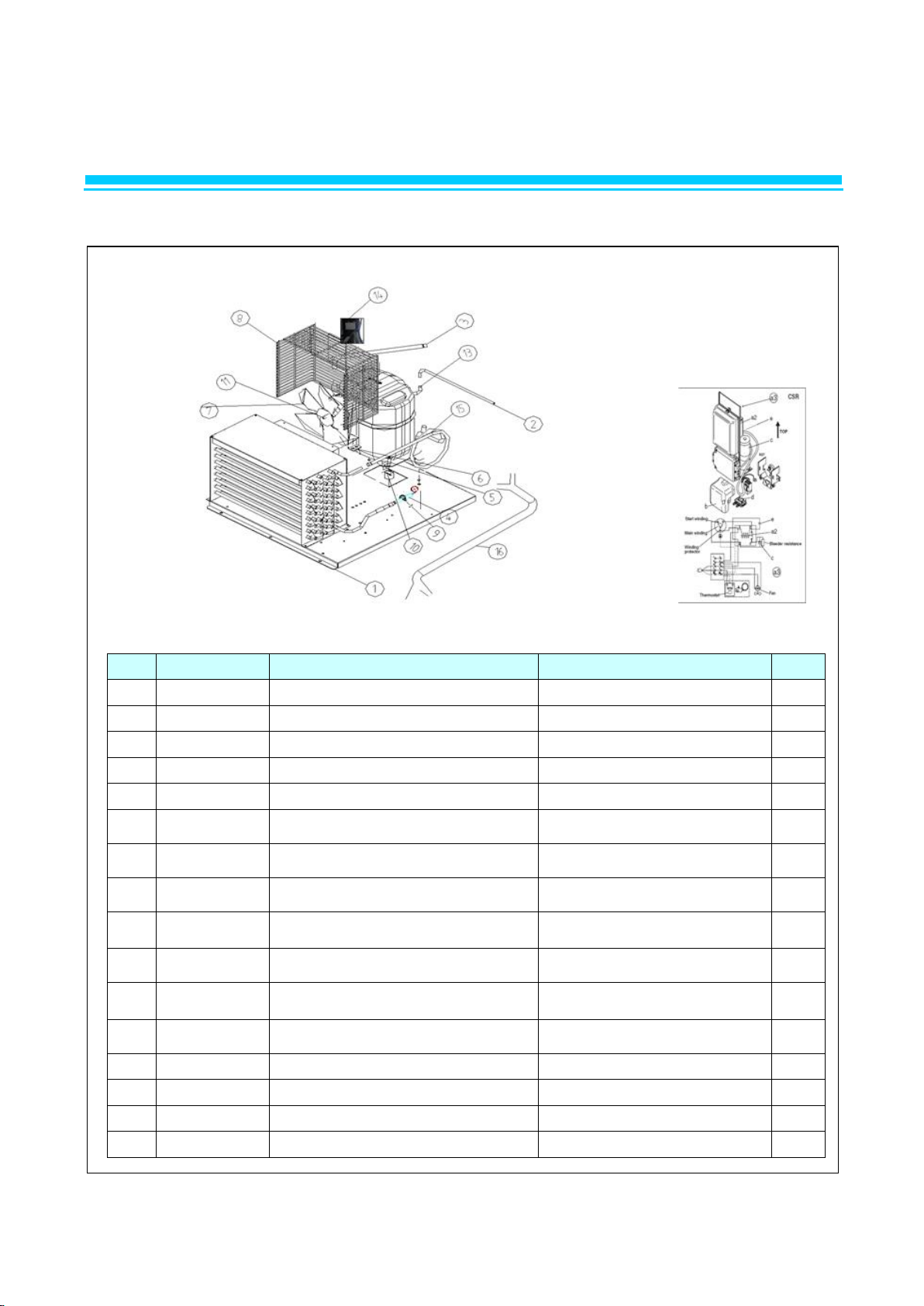

2. PARTS
2-1. UNIT ASSY (LRB-1471PCG)
NO.
CODE-No
Title
Subject
Q'TY
1
R3202-512
BASE COMP
GI. T1.2*555*614
1
2
R2104-492
COMPRESSOR PIPE
T0.7*￠6.35*462
1
3
R2113-580
COMPRESSOR PULL OUT
1
4
R8623-030
HARD CORE DRIER ASSY
UL
1
5
R3004-270
COMPRESSOR BOLT
STS. M6*30Y. ￠10
4
6
R3313-260
CONDENSER FAN MOTOR BRACKET
GI
1
7
R3723-050
CONDENSER FAN MOTOR BLADE
115V FAN MOTOR AL 9" C.W
1
8
R3813-160
CONDENSER FAN COVER WIRE
MSWR. ￠2.5
1
9
R3834-350
BAND HARD DRYER
0.6*30
1
10
R3884-062
GROMMET
PP(DS-5) OD ￠50*25
4
11
R7423-311
CONDENSER FAN MOTOR
115V60HZ DAI-8204DYCA
CW.절연
1
12
R714A-010
COMPRESSOR
SC18G
1
13
CAPACITOR
SC18CLX.2 115V 60HZ
1
14
R867A-020
ASSY RELAY BOX
SC18G 115V60HZ 117-7053 72R
1
15
R2103-474
CONDENSER CONNECTOR
UL. OD9.52*T0.7*795
1
16
R719A-730
HARNESS RELAY
UL
1

20
2. PARTS
2-1. UNIT ASSY (LFB-1471PC)
NO.
CODE-No
Title
Subject
Q'TY
1
R3313-461
BASE COMP B/K
SBHGI, T1.0*33.5*501
1
2
R2104-460
COMPRESSOR CHARGING PIPE
CU-PIPE. OD6.35*T0.7*200
1
3
R2113-580
COMPRESSOR PULL OUT
1
4
R8623-030
HARD CORE DRIER ASSY
UL
1
5
R3004-270
COMPRESSOR BOLT
STS. M6*30Y. ￠10
4
6
R3313-260
CONDENSER FAN MOTOR BRACKET
GI
1
7
R3723-050
CONDENSER FAN MOTOR BLADE
115V FAN MOTOR AL 9" C.W
1
8
R3813-160
CONDENSER FAN COVER WIRE
MSWR. ￠2.5
1
9
R3834-350
BAND HARD DRYER
0.6*30
1
10
R300A-020
GROMMET COMP
NR-RUBBER. BLK
4
11
R7423-311
CONDENSER FAN MOTOR
UL
1
12
R7439-600
COMPRESSOR
SC18CLX2
1
13
R7549-280
CAPACITOR STARTING
117U5043 125~165V/410 ㎌
1
14
R7549-290
CAPACITOR RUNNING
117-7114 280V/23.5 ㎌
SC18CLX.2
1
15
R867A-010
RELAY BOX (SC18CLX.2)
115V 117-7045
1
16
R2103-474
CONDENSER CONNECTOR
UL. OD9.52*T0.7*795
1
17
R719A-700
HARNESS RELAY
115V NEW LED LAMP TYPE
1
