LAWN STAR LSM 3648 MA User manual

M-850-36
BATTERY LAWNMOWER
OPERATING INSTRUCTIONS
MODELS: LSM 3648 MA

Thank you for purchasing the Lawn Star Lawnmower which is one of the finest and most advanced
lawnmowers today’s technology can produce. Before you begin using it, please read this manual
carefully and familiarise yourself with the control and the proper use of this product to ensure you get
the best possible performance from it. The operator or user is responsible for accidents or hazards
occurring to other people or their property.
SAFETY PRECAUTIONS
Inspect your lawnmower before each operation. If any part is damaged or worn, repair or replace before
operation. Use only genuine Lawn Star (Pty) Ltd. replacement parts when servicing or repairing the
unit. These parts are available from your supplying dealer or service agent. Use only genuine Lawn Star
replacement cutting blade Part No. M-256-20 or mulching blade Part No. M-255-10.
WARNING : Remove the safety key from the socket whenever you leave the machine unattended.
Remove safety plug(Fig.9-4) and batteries before clearing a blockage, before checking, before cleaning
or working on the appliance, before changing parts such as the blades, after striking a foreign object
(inspect the appliance for damage and make repairs as necessary) or if the appliance starts to vibrate
abnormally (check immediately).
The operator must wear protective clothing, long trousers and sturdy, non-slip footwear.
Do not operate the mower when barefoot or wearing open sandals.
Do not use your lawnmower for any jobs other than those for which it was intended.
Do not use unless the entire grass catcher is attached or the rear guard is in place.
Do not switch on mower unless all four wheels are resting squarely on the lawn being mowed. Do not
tilt or lift mower while switched on. Switch off mower before pushing over surfaces other than grass.
Do not force your lawnmower. If motor labours, mow in multiple passes at different height settings.
Keep hands and feet well clear of rotating blades while the mower is in use. Cutting blades continue to
rotate for a few seconds after switch-off. Never pick up or carry mower while the motor is running.
Inspect the area to be cut and remove all debris that could be entangled in the cutting blades. Also
remove any solid objects, e.g. stones, sticks, wires and bones that the unit may sling during cutting.
Exercise extreme caution when mowing and changing direction. Always walk, never run. Never cut
grass by pulling the mower towards yourself. Do not walk backwards while mowing, you may trip.
Avoid dangerous environments. Do not use the unit in poor light or in damp or wet locations. Do not
use in the rain. Do not use on steep slopes, especially if damp. Work across slope faces, not up and
down. Do not over-reach. Ensure good footing and balance are maintained.
Never operate the lawnmower when you are tired, ill or under the influence of alcohol or drugs.
Do not allow children or people unfamiliar with these instructions to use the lawnmower. Local
regulations may restrict the age of the operator. Children, pets and onlookers should be kept at least 15
meters away from the work area, unless shielded by an effective solid barrier.
When not in use, remove batteries and safety plug and store the unit indoors in a dry and locked place,
out of reach of children.

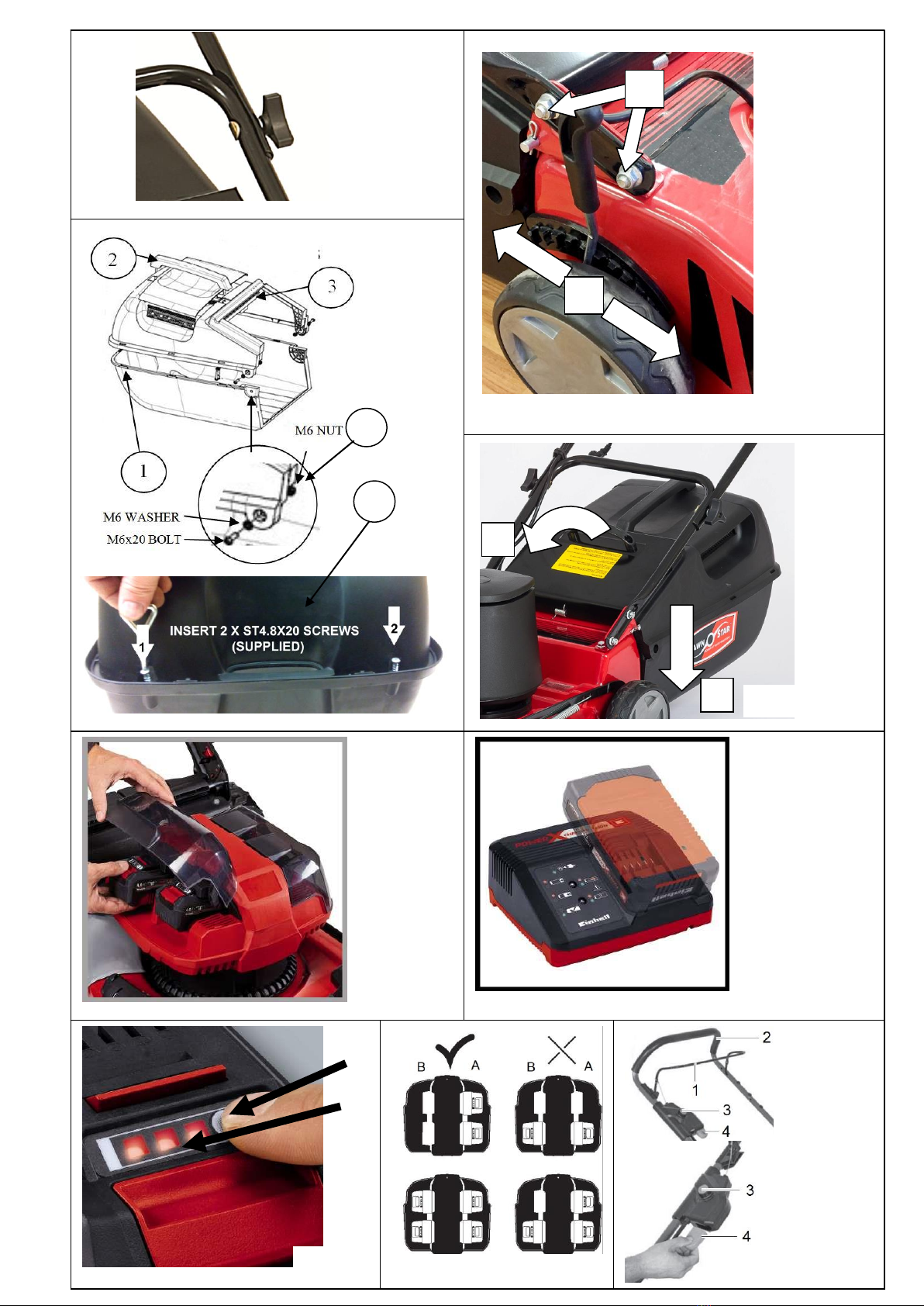

PREPARATIONS FOR USE
Remove the lawnmower, handles, grass catcher and all other contents from the packaging. Remove the
spanner, bolts and nuts supplied from the bag. Assemble the handles and tighten the knobs
(Fig.1).Attach the handle ends to the lawnmower chassis, insert the four bolts provided and tighten the
nuts using the spanner (Fig.2 No.1). Note: ensure the nuts are on the outside. Assemble the grass
catcher (Fig.3) by pressing the grass filter (Fig.3 No.3) into position and screwing the handle (Fig.3
No.2) on with the four 4.8 x 50 self-tapping screws and M5 washers provided. Fit the M6 bolt, washer
and nut in the two positions shown in (Fig.3 No.5.). Fold closed the two halves of the grass catcher
(Fig.3 No.1) making sure that all the clips are fully aligned and clicked into position. Fit the 2 x ST
4.8X20 screws to secure both rear halves of the grass catcher (Fig.3 No.4). Lift the rear guard flap
(Fig.4 No.1) and attach the grass catcher to the mower (Fig.4 No.2) ensuring that the grass catcher is
hooked onto chassis hooks. Lower the guard flap to secure grass catcher. Check that all blade bolts,
screws, knobs, nuts are securely tightened.
THE USE OF THIS LAWNMOWER FOR COMMERCIAL OR RENTAL PURPOSES WILL
INVALIDATE THE WARRANTY.

Fig. 1
Fig. 2
Fig. 6
4
Fig. 3
1
2
5
1
2
Fig. 4
Fig. 5
Fig. 7
A
B
Fig. 8
Fig. 9

CHARGING BATTERIES
1. Take the battery pack out of the equipment.
1. Do this by pressing the push-lock button and pulling the battery out (Fig.5).
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger.
Insert the power plug of the charger into the socket outlet. The green LED will then begin to flash.
3. Insert the battery pack into the battery charger (Fig.6).
4. In the section entitled “Battery capacity indicator” you will find a table with an explanation of the
LED indicator on the batteries.
5. See Table 1 for explanation of LED indicators on charger unit.
The battery pack may become a little warm during charging. This is normal.
If the battery pack fails to charge, check:
If the battery pack is warm, let it cool and try again
whether there is voltage at the socket outlet
whether the battery is correctly fitted to charger and the charging contacts are clean.
If the battery pack still fails to charge, contact our customer service centre for assistance.
To ensure that the battery pack provides long service, you should take care to recharge it promptly. You
must recharge the battery pack when you notice that the performance of the device drops. Always store
the battery in the fully charged state. Never allow the battery pack to become fully discharged. This will
cause it to develop a defect!
INSTALLING THE BATTERY (Fig. 5)
Open the battery cover. Then insert the batteries in the mounts as shown in (Fig. 5).
For optimum mowing results and battery power performance it is always best to use
batteries with the same capacity of 3.0 Ah or higher. There is also the option of using
batteries with different capacities in the two battery mounts A and B (Fig.8) which are
opposite each other.
Always make sure, however, that you only use batteries of the same capacity in each
separate battery bank (Fig. 8).
For example, you could use 2 x 4.0Ah batteries in one battery bank(A) while using 2 x
3.0Ah batteries in the opposite battery bank(B).
Important!
Use only batteries which are charged to the same level. Never combine full and half-full
batteries. Always charge the two/all batteries simultaneously. The equipment‘s operating
time depends on the battery with the lower charge level. The two/all batteries must always
be fully charged before use. Close the battery cover by swinging it down, and make sure that
it latches in place correctly.

BATTERY CAPACITY INDICATOR (Fig. 7)
Press the switch for the battery capacity indicator (Fig. 7-A) . The battery capacity indicator
(Fig. 7-B) shows the charge status of the battery using 3 LEDs.
All 3 LEDs are lit:
The battery is fully charged.
2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.
1 LED blinks:
The battery is empty, recharge the battery.
All LEDs flash:
The battery pack has undergone exhaustive di- scharge and is defective. Do not use or
charge a defective battery pack!
Caution!
Do not park the lawn mower in the sun. Batteries which have been inserted could heat up to in-
admissible levels.
CARE, MAINTAINANCE, STORAGE AND TRANSPORT
Hazard!
Pull out the safety plug and remove all the battery packs before transporting, storing or starting
any maintenance work on the mower.
Do not oil –this is unnecessary.
Do not clean the lawn mower with running water, particularly with high-pressure water.
We recommend cleaning the equipment immediately each time after use.
Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or
solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into
the interior of the equipment.
Keep air intake vents, in plastic motor housing, free of grass cuttings and dirt to ensure unobstructed
cooling air-flow through the motor. Clogged-up air intake vents cause the motor to overheat and can
result in failure.
Keep all nuts, bolts and screws tightened to ensure that the appliance is in a safe working condition.
Replace worn or damaged parts for safety.
The blade is subjected to more wear and tear than any other component. Therefore, routinely check the
condition of the blade and make sure that it is tightly fastened. If the blade is worn, it must be
immediately replaced with genuine Lawn Star replacement blades.
Low energy bar blade Part No. M-256-20
Mulching blade Part No. M-255-10.
An excessively vibrating mower means that the blade is not properly balanced or has become deformed
from striking an object. In this case, the blade must be replaced.
Check the grass catcher box regularly for damage and replace if necessary.
Store in a cool dry place out of reach of children and unauthorised persons.

OPERATING INSTRUCTIONS
Caution!
The lawn mower is equipped with a safety switch to prevent unauthorized use. Directly before
starting up the lawn mower insert the safety plug (Fig.9-4) and remove the safety plug again
when interrupting or terminating your work.
Important!
For safety reasons this mower is fitted with an angle sensor. It will not be possible to start the
cordless lawn mower if the pitch angle is over ~70° ± 10°.
To prevent the equipment switching on accidentally, the lawn mower is equipped with a safety switch
(Fig. 9-3) which must be pressed before the switching bar (Fig. 9-1) can be activated.
Note: It will take a few second for the motor to start once the switching bar has been activated.
To begin mowing your lawn, continue to grip the switching bar (Fig. 9-1) and release the safety
switch (Fig. 9-3). The lawn mower switches itself off when the switching bar is released. After the
motor starts the speed will drop after a few seconds when in idle mode and will rise again when in
working mode. Repeat this process several times so that you are sure that the machine functions
properly. Do not use the switch lever intermittently as this will damage it.
Tilt the mower slightly over backwards when starting the mower in long grass this reduces the load on
the motor during start-up.
Warning! Never open the chute flap or remove the grass box when engine is still running. A
rotating blade can cause serious injuries!
Always remove the safety plug (Fig. 9-4) first before removing the grass box.
Before you perform any repair or maintenance work on the equipment, ensure that the blade is not
rotating, that the safety plug is disconnected and that the batteries have been removed.
MOWING PROCEDURES
The ideal time to mow your lawn is in the cooler late afternoon. The grass is dry and the sensitive new
cut area is not exposed to direct sun.
Cut your lawn at the same height most of the time. Adjust the cutting height (Fig.2 No.2) based on the
weather. If your lawn is getting a lot of water you can cut a little closer. If the temperature is high and
things are dry, allow the grass to grow a little longer so that the soil retains more moisture and the roots
Tall and thick grass should be cut in multiple passes with the mower set at different heights.
Best results are achieved with regular mowing. Do not let the grass grow too long between mowings
and do not set the cutting height too low as this will scalp the lawn.
Avoid cutting wet grass as this will overload the motor and will block the discharge chute.
Ensure that the blades are sharp. A sharp blade makes a nice clean cut. A dull blade shatters the leaf
and impairs the healthy growth of your lawn.
To improve the appearance of your lawn, alternate your cutting pattern.
CAUTION
Avoid excessive intermittent switch operation during mowing as this will damage the switch.
Allow the motor to run for 5 seconds before cutting grass. Starting the motor in tall grass will overload
it push down on the handle to slightly lift the front of the mower out of the grass when starting the
mower. Periodically clean the underside of the mower chassis with a brush. Built–up grass cuttings
become corrosive when they decompose and will promote rust. Do not use water to clean. Wear gloves.

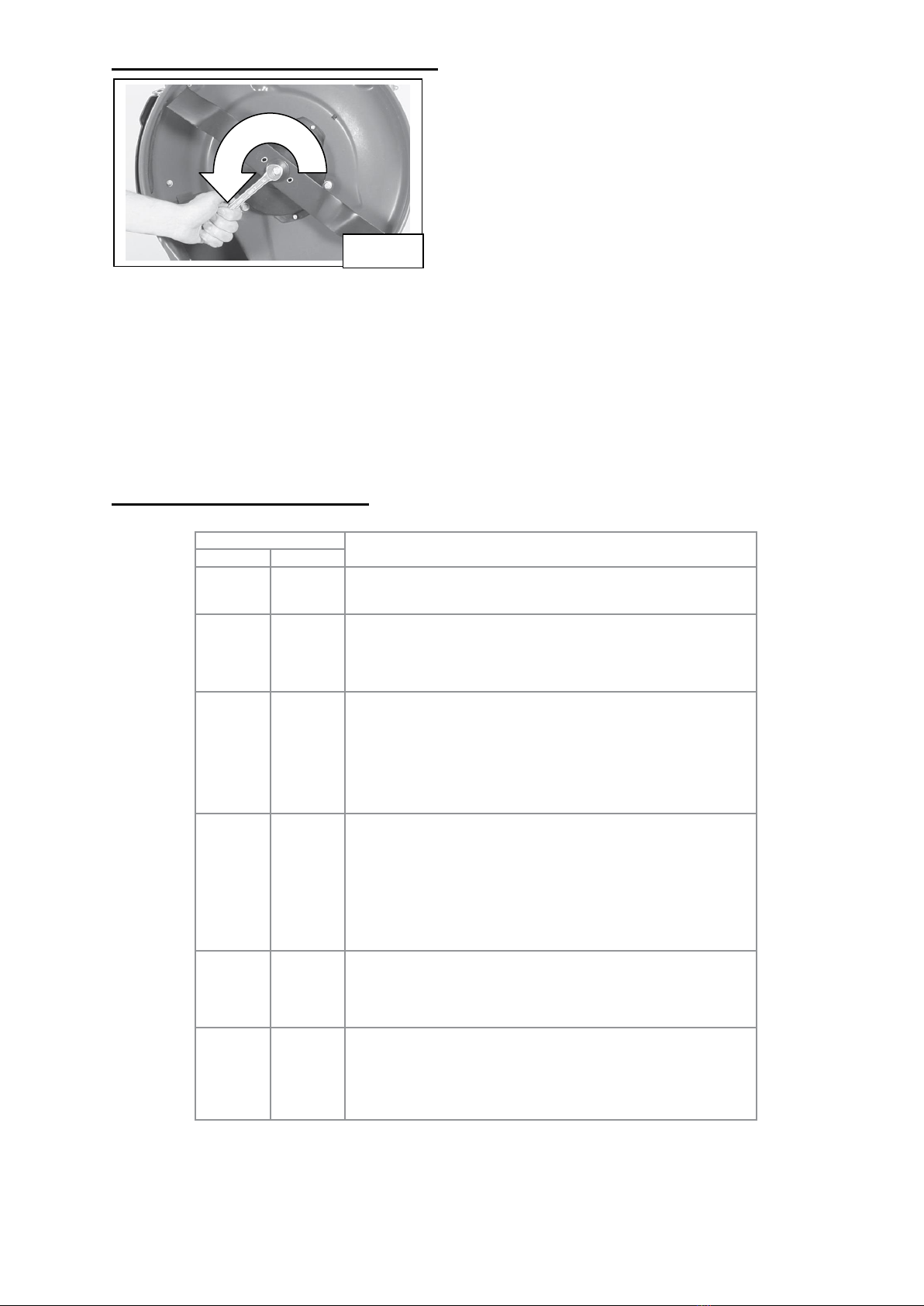

REPLACING THE CUTTING BLADES
Disconnect the lawnmower safety plug and remove all the batteries and turn the mower on its side.
Hold the cutting blade firmly with one hand and loosen the centre bolt with the spanner provided, by
turning it in an anti-clockwise direction (Fig.10). Tit new blade and Re-assemble in the reverse order
and ensure all bolts and nuts are securely tightened.
ENSURE BLADES IS CORRECTLY ASSEMBLED AND TIGHTENED BEFORE USING.
Charger indicator (Table 1)
Indicator status
Explanations and actions
Red LED
Green LED
Off
Flashing
Ready for use
The charger is connected to the mains and is ready for use;there is no battery
pack in the charger
On
Off
Charging
The charger is charging the battery pack in quick charge mode.The char- ging
times are shown directly on the charger.
Important! The actual charging times may vary slightlyfrom the stated
charging times depending on the existing battery charge.
Off
On
The battery is charged and ready for use.
The unit then changes over to gentle charging mode until the battery is fully
charged.
To do this, leave the rechargeablebattery on the charger for approx.15 minutes
longer.
Action:
Take the battery pack out of the charger. Disconnect the charger from the mains
supply.
Flashing
Off
Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes more time.
The reasons can be:
- The rechargeablebatteryhas not been used for a very long time.
- The battery temperatureis outside the ideal range.
Action:
Wait for the charging to be completed;you can still continue to charge the battery
pack.
Flashing
Flashing
F ault
Charging is no longer possible.The battery pack is de f ectiv e .
Action:
Never charge a defective battery pack. Take
the battery pack out of the charger.
On
On
Temperature f ault
The battery pack is too hot (e.g.due to direct sunshine)or too cold
(below 0° C).
Action:
Removethe batterypack and keep it at room temperature(approx. 20° C)
for one day .
Fig. 10

TROUBLE SHOOTING GUIDE
PROBLEM
PROBABLE CAUSE
CORRECTIVE ACTION
Motor does not start
Machine standing in high
grass
The mower housing is
clogged
Safety plug is not inserted
Battery is not correctly
inserted
Start motor on shorter grass or al-
ready mowed area; change cutting
height if necessary
Clean housing so that the blade can
run freely
Insert the safety plug
Remove the battery and reinsert
Motor performance
drops
Grass too tall or damp
The mower housing is
clogged
Blade badly worn
Battery performance
decreasing
Correct the cutting height
Clean the housing
Replace the blade
Check the battery performance
and charge the battery if necessary
Unclean cuts
Blade worn
Wrong cutting height
Replace the blade
Correct the cutting height
Excessive vibration
Blades incorrectly
assembled
Remove safety plug and batteries and
check blade assembly
Blades damaged
Remove safety plug and batteries and
replace with new blades
Blades clogged with
dirt
Remove safety plug and batteries,
remove, clean and replace
Poor grass collection
Blades dull or damaged
Remove safety plug and batteries and
replace with new blades
Mower clogged with
dirt
Remove safety plug and batteries,
clean underside of chassis, fan and
grass collection chute
Grass catcher clogged
with dirt
Remove safety plug and batteries,
clean grass collection box or replace if
necessary

LAWN STAR ( PTY ) LTD
WARRANTY CARD
LSM 3648 MA
Please read carefully
This card is required for warranty repair claims. Please fill in this card and keep it in a safe place,
stapled to the original proof of purchase. The original proof of purchase (i.e. receipt, invoice, docket,
etc.) must show the original date of purchase and clearly identify the product.
WITHOUT THIS CARD AND ORIGINAL PROOF OF PURCHASE, ANY WARRANTY
BECOMES NULL AND VOID.
Make:………………..Serial No:……………….Date of Purchase:………………….
Model:……………….
PURCHASER PURCHASED FROM
NAME: NAME:
ADDRESS: ADDRESS:
PHONE: PHONE:
LIMITED DOMESTIC USE WARRANTY
Lawn Star (Pty) Ltd. guarantees this unit to be free from defects in material and workmanship. If any
such defect should become apparent during a period of
12 MONTHS
from the date of the original purchase, we undertake to repair this unit free of charge or replace this unit
with a factory reconditioned unit at our discretion. This does not prejudice your rights in terms of the
Consumer Protection Act.
Transport costs to our service centre and back to the owner, should such costs occur, will be carried by
the owner of the unit.
The repaired or replaced unit will be covered by this warranty for the remainder of the original
warranty period.
This warranty covers only the original purchaser of this unit.
This warranty becomes invalid if:
- the unit has been used commercially or for rental purposes;
- damage has been caused by misuse, abuse, accident or normal wear and tear;
- spares and accessories other than specified by us are used with this unit;
- the unit has been opened, altered or otherwise tampered with;
Lawnmower blades and grass collection box and batteries are wearing parts and are not covered
by Warranty.
PLEASE READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE YOU
OPERATE THIS UNIT.

LAWN STAR ( PTY ) LTD.
For service and warranty repairs please contact your nearest Service Agent
listed below:
CUSTOMER CARE : 0860-LAWNSTAR
HEAD OFFICE : 98 Bofors Circle, Epping 2 South, Cape Town
PO Box 496, Parow, 7499
Tel: [phone] Fax: [phone]
NAMIBIA : Tel: [phone] Fax: [phone]
BOTSWANA : [phone]
ZIMBABWE : [phone]/646
For more information visit: www.lawnstar.co.za
