Leadway LDW-TKW19G User manual

- 1 -
GPS Personal Tracker
(GPS+GSM+SMS/GPRS)
LDW-TKW19G
Version 1.6
Quick Start Guide
(In order to get the correct installation and quick operation, please kindly read the
installation guide before use. If there are any changes in product appearance and
color, please in kind prevail.)
1. KEY/BUTTON pictures

- 2 -
Product Features
*GSM Quad-band global using worldwide
*GPS continuous locating, GPRS report regularly
*Support SMS query location information
*Three SOS specific number can be set up for remote monitoring and alarm
*Can realize remote voice monitoring function
*Low battery alarm function
3. Appearance of the terminal
4. Technical parameters
GSM Frequency
850/900/1800/1900MHZ
GSM/GPS
MTK6252/MTK3326
GPRS
Class 12,TCP/IP build in GSM MODULE
GPS sensitivity
-159dBm
GPS location accuracy
10m (2D RM)
LBS location accuracy
50-200m
Speed accuracy
0.1m/Second

- 3 -
GPS cold start
<38 second
GPS warm start
<32 second
GPS hot start
<2 second
Maximum Elev
18,000m
battery capacity
3.7V 450mA
maximum speed
515m/second
external dimension
38.0(L)x35.0(W)x15.0(H)mm
Weight
15g
Working temperature
- 20°C - +70°C
Working humidity
20%~80%RH
voltage
4.2V
Average standby current
<10mA
5. Get ready for the use
5.1 Open the box, and check equipment model is correct, accessories is complete or
not, otherwise, please contact your dealer.
5.2 SIM card choice, terminal need to insert a GSM SIM card, the choice of SIM card
please refer the the opinion of dealer.
Notice:
Please use GSM Network SIM Card;
Please power off before install or remove the SIM card;
Terminal SIM card need to open the GPRS function;
Terminal SIM card need to open the Caller Identification function.
5.3 Installation Instructions:

- 4 -
6. Working mode
There are four work modes for this device:
Mode 1 (Standard Mode)
Terminal GPS work all the time, and upload data regularly .
Mode 2 (Power Saving Mode, defaults mode for the terminal)
The terminal immediately report data after GPS positioning, and then go to sleep
situation. 10 minutes (The Minimum time of this mode is 5 minutes) later Automatic
open GPS. Such a cycle working (If not position successfully will upload base station
location data, and need platform to support)
Mode 3 (Base Station Location Mode)
GPS do not work, gain base station positioning data and report (Need platform to
support)
GPS will be wake up when Centre number dial in or send SMS to the terminal,
working 2 minutes and then sleep.
Mode 4 (No Platform Mode, The Minimum Power Consumption)
This mode do not need platform, only reply in the use of url# SMS command queries
google the map link.
Change Working mode commands are: m1,20# m2,620# m3,20# m4#
Instructions described: m1 is Mode 1, 20 is upload interval time. The upload interval
time of Mode 1 and Mode 3 are 10- 65535 Seconds.
The upload interval time of Mode 2 is 300-65535 Seconds. (Details about the upload
interval please check command sheet)
7. Terminal operation

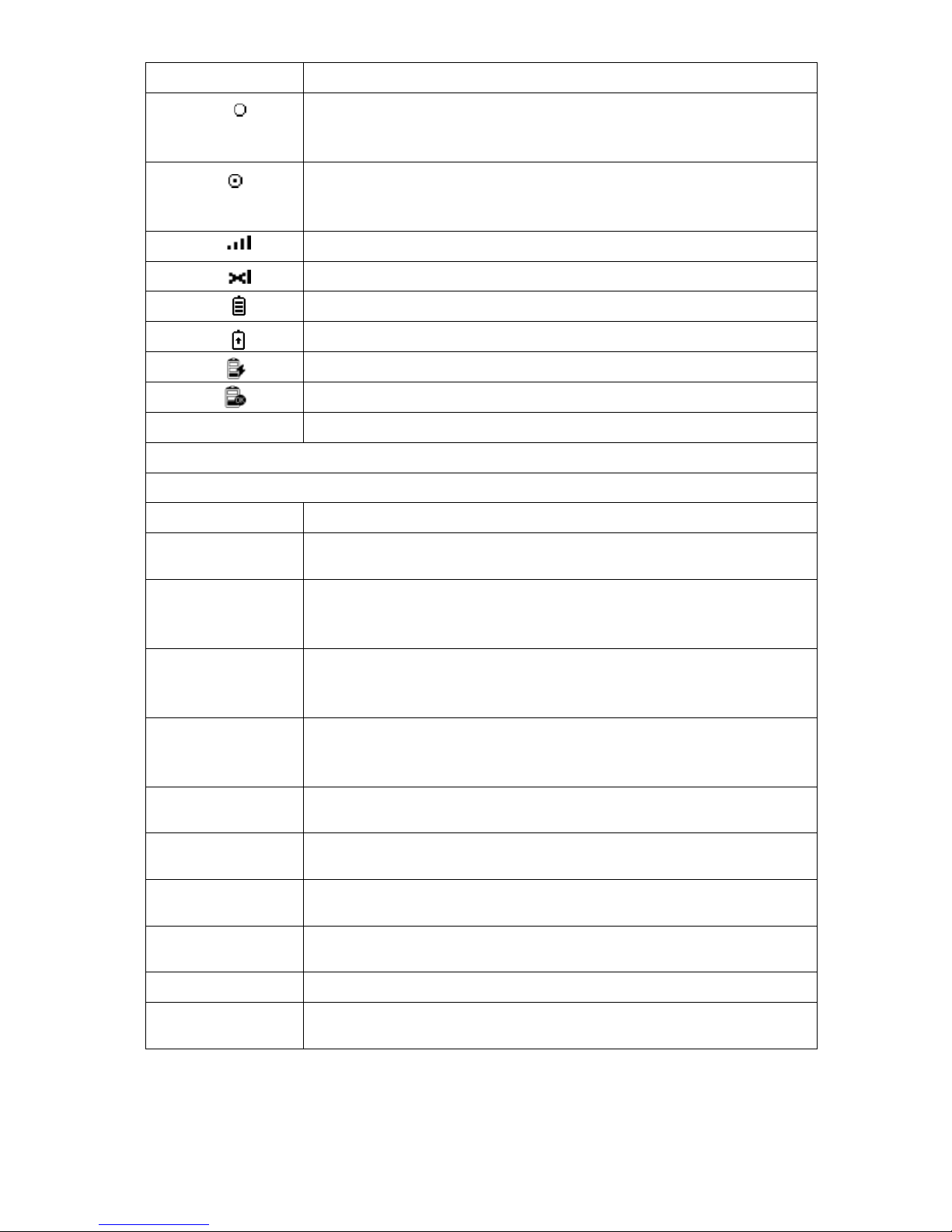

7.1 LED and device screen display declaration
TKW19G screen display declaration

- 5 -
Label
declaration
It means GPS module has been opened, but did not locate (if
the position without any display indicates the GPS module does
not open)
It means GPS module has been opened and located (if the
position without any display indicates the GPS module is not
open)
It means GSM signal strength, divided into 0, 1, 2, 3, 4.
It means no SIM card inserted
It means battery level, divided into 1, 2, 3 levels
It means power on charging status
It means power off charging status
It means power off charging full status
SOS
It means SOS dial-up state
LED flashing instructions
Meaning
flashing
GPS module shut
down
GPS lights turn off
GPS module has
been opened, but
did not locate
GPS lamp flashes per second
GPS module has
been opened and
located
GPS lamp always ON
GSM not
registered to the
network
GSM lamp flashes per second
GSM registered to
the network
GSM lamp flashes every five second
GPRS log in to
the platform
GSM lamp turn off
GPRS sending
datas
GSM lamp flashes every 50ms second
Rechargeable
light effect
Lamp of GPS and GSM lamp alternating flashing, recovery work
light showing after charging full
Shutdown lighting
GPS and GSM lights are all OFF
Remote upgrade
GPS and GSM two lights are normal ON, both are OFF after the
upgrade.
7.2 Power ON/OFF
Power ON: Insert effective SlM Card to the terminal. Long press the power switch,
power on status please see "light indication".

- 6 -
Power OFF: When power on, turn off the terminal power switch. Terminal will be
power off in soon. As long as effective SlM CARD be inserted in terminal(GPRS
function is opened already), it will be normally working after startup. Terminal will
upload the location information to server as the time interval setting. GPS working
period, the terminal will upload the location data regularly to server.
7.3 SOS call for help and remove the alarm
When in an emergency need for help, press the SOS button for more than 3 seconds
long, will trigger SOS emergency alarm for help. Terminal will loop calling pre-set
three numbers, under the condition of no one answered, maximum circulation call
twice. At SOS information to the platform, also can use platform issued instructions to
remove alarm or edit text SMS alarm# to remove alarm.
Note: Phone alarm function should be set up SOS specific number first !
7.4 Low battery alarm
Battery level divided into 4 levels, when the power level is less than or equal to 1, the
device will send SMS a low power alarm to the center number.
8. Online checking global service platform
Service platform webpage: http://www.track188.com
If you already have a log in account information in the platform, you can directly login
the server. Otherwise, please contact your dealer and ask them to open the accounts
for you. Provide login account and password.
1..singal unit login:
2.Management account Login:

- 7 -
Enter the user login platform, fill in the access to log in to your account and password
are presented after entering the service platform.
As for the operating instructions of the service platform please contact your dealer to
get "service platform operation guide".
9. Troubleshooting
1, The terminal for the first time boot unable to connect to the server, server show
offline. Please check：
1) If the SIM card is properly installed, please refer to installation instructions.
2)Check the LED indicator light condition, when it’s normal,GSM status indicator
bright every 0.1 seconds and go out for 2 seconds, GPS status indicator bright every
0.1 seconds and go out for 2 seconds.
3)Check if the GPS is located successful or not, if not please go to the outdoor at
open air place to locate for the first time.
2, If the terminal show offline on server
First observation if the 2 indicator lights of the equipment is normal, first check the
status of a card, the steps are as follows:
1) The SIM card is overdue bills
2) Whether GPRS business was canceled (at the end of each month date offline).
3) Check the parameter setting of the device. Check the equipment serial number,
GPRS transmission time interval is correct or not.

- 8 -
Comparision List of GPS Watch Tracker commands (Model: LDW-TKW19G)
Note:
1, All commands as below are by SMS. (default device password: 123456)
2, All the commands letter in lower case format.
3, All the setting or checking commands will be replied with related content by SMS.
4, If successful, it will reply: Set successfully! If not you need to re-set it.
Settings as below:
Commands
Example
1
Service
Center Number
pw,device
password,center,number#
pw,123456,center, 18688751382#
2
Slave
Center Number
pw,device
password,slave,numbers#
pw,123456,slave, 18688751392#
3
Delete
Center Number
1.pw,device password,center,d#
2.pw,device password,slave,d#
pw,123456,center, d#
4
SOS Number
Setting
1.sos1,numbers#
2.sos2,numbers#
3.sos3,numbers#
1.sos1, 18688751382#
2.sos2, 18688751392#
3.sos3,13800138000#
5
Delete SOS
Number
1.sos1#
2.sos2#
3.sos3#
1.sos1#
2.sos2#
3.sos3#
6
APN Setting
apn,apn name,,,#
1.apn,cmnet,,,#
apn,cmnet
7
Server Setting
ip,IP Adress,port,Port Number#
ip,124.232.150.158,port,9500#
8
Work Mode
Setting
1: m1,t# (GPS has been working)
2: m2,t# (Power Saving Mode)
3: m3,t# (LBS Mode)
4, m4# (Disable GPRS Mode)
(”t” GPRS upload time interval)
1. m1,20#
2. m2,600#
3. m3,120#
4. m4#
9
Reboot Device
reset#
reset#
10
Modify User
Password
pw,New Password( 6 digits)#
pw,888888#
11
GPRS upload
time interval
setting
upload,t#
15<t<65535
upload,300#
12
Back to Factory
setting
factory#
factory#
13
Language and
time zone
setting
langx,zone,n#
(x=0,is English;x=1,is Chinese;
”n”is time zone
Western Time Zone=-n
Eastern Time Zone=+n
1.lang0,zone,-3#
2.lang1,zone,+8#

- 9 -
14
Monitor Number
Setting
monitor,numbers#
(When the set number, dial in, can
be monitored)
monitor,13800138000#
Note:
1, Need to set the monitor NO. in advance.
2,Terminal Sim card need to open
Dialer-Identification function at first.
Checking
15
Location
checking
(Get Google
Map link)
url#
url#
Feedback:
location:Course:000,Speed:000.00,2013-09-30
02:58:21,
http://maps.google.com/maps?q=N22.540062,E1
14.077652
16
Address
tracking
Where#
The device will reply you a address,if not will
reply you”unable to get GPS data correctly,
pls try again!”
This function need support by platform
17
Check
parameter
test#
Feedback:
id:1308080030
ip:124.232.150.158
port:9500
AGPS:9
GPS:3
GPS fixed:0
GSM singal:100
battery:0
GPRS:1
18
Hardware
remotely
upgrade
upgrade,address#
Note: Address means download the
upgrading file address.
Please consult the downloading address
from your dealer!
