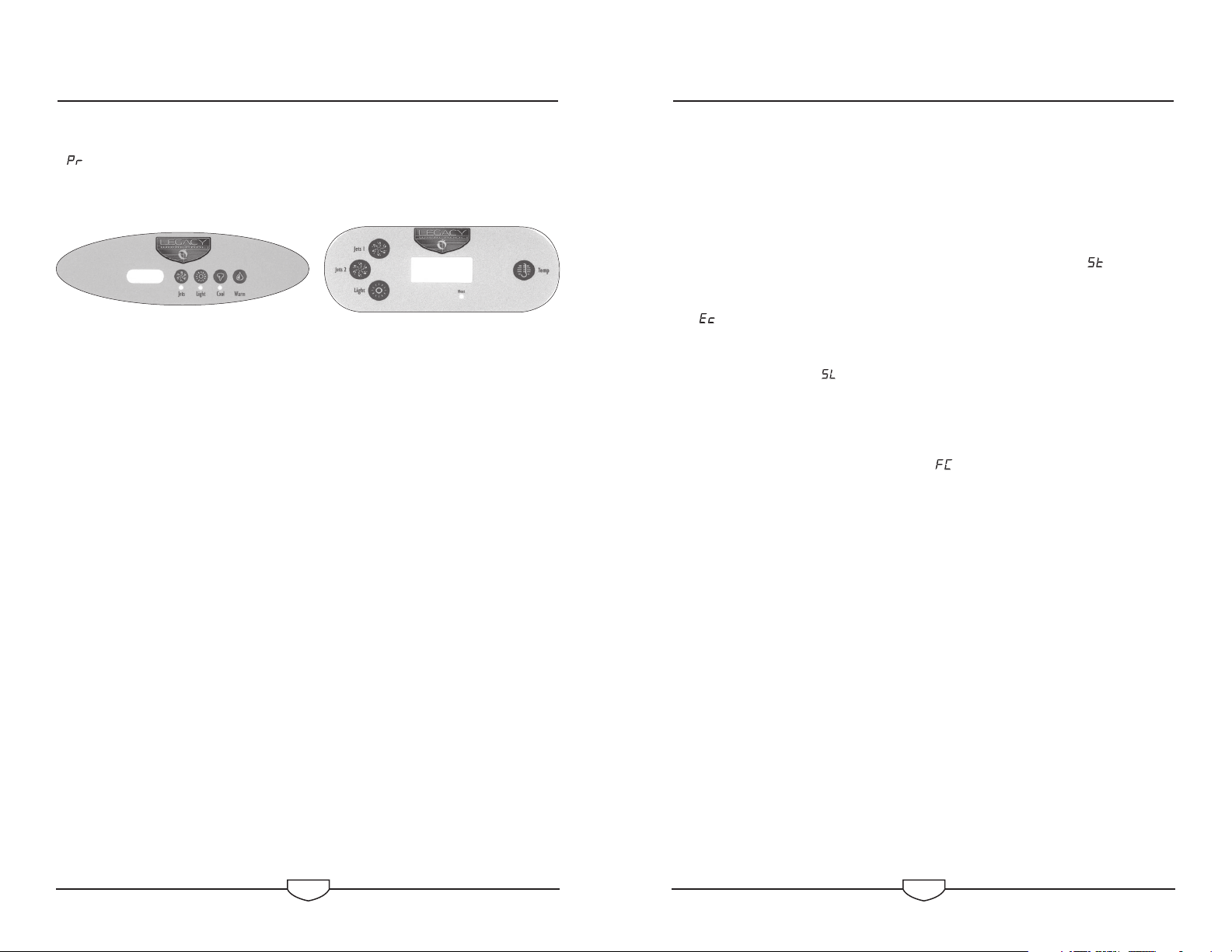

LEGACY SPA - CONTROLS
Enterprise SE & Inspire SE
1
INITIAL START-UP
When your spa is first actuated, it will go into Priming mode, indicated by
“” The Priming mode will last for less than 5 minutes (press “Warm” or
“Cool” to skip Priming mode) the spa will begin to heat and maintain the
water temperature in the Standard mode.
Warm / Cool (80˚F-104˚F / 26˚C-40˚C)
The start-up temperature is set at 100 degrees F / 37 degrees C. The last
measured temperature is constantly displayed on the LCD display.
1 Pump System
To display the set temperature, press the “Warm” or “Cool” button once.
To change the set temperature, press the button a second time before the
LCD stops flashing. Each press of the “Warm” or “Cool” button will continue
to either raise or lower the set temperature.
2 Pump System
To display the set temperature, press the “Temp” pad once. To change
temperature, press the pad a second time before the LCD stops flashing.
Each press of the “Temp” pad will continue to either raise or lower the set
temperature.
If the opposite direction is desired, release the pad and let the
display revert to the current water temperature. Press the pad to display
the set temperature, and again to make the temperature change in the
desired direction.
After three seconds, the LCD will stop flashing and display the current
spa temperature.
Jets
Press the jets button once to activate the pump on low speed. Press the jets
button again to turn the pump on high speed. If left running on low speed
the pump will automatically turn off after 4 hours, and the high speed will
automatically turn off after 15 minutes.
LEGACY SPA - CONTROLS
Enterprise SE & Inspire SE
2
Light
Press the “Light” button to turn the light on and off. If left on, the light
automatically turns off after 4 hours.
Mode
Mode is changed by pressing the “Temperature” button (Warm or Cool on some
models) and then the “Light” button to cycle through the different modes.
Standard Mode is programmed to maintain the desired temperature. Note
that the last measured spa temperature displayed is current only when the
low speed of pump 1 has been running for at least 2 minutes. “ ” will be
displayed momentarily when you switch into the Standard Mode.
Economy Mode heats the spa to the set temperature only during filter cycles.
“” will display solid when temperature is not current, and will alternate
with temperature when temperature is current.
Sleep Mode heats the spa to within 20°F/10°C of the set temperature only
during filter cycles. “ ” will display solid when temperature is not current,
and will alternate with temperature when temperature is current.
Preset Filter Cycles
The first filter cycle begins 6 minutes after the spa is energized. The second filter
cycle begins 12 hours later. Filter duration is programmable for 2, 4, 6, 8 hours
or for continuous filtration (indicated by “ ”). The default filter time is 2
hours.
To program press the “temperature” button (Warm or Cool button on some
models) then the “Jets” button to adjust. Press “Jets” to exit programming.
At the beginning of each filter cycle the pump(s) purge for 30 seconds. The only
effect filter duration has is: 1) During the filter cycle, the low speed of pump 1
never turns off. 2) In Economy and Sleep modes, heating only occurs during the
filter cycle.
Freeze Protection
If the temperature sensors detect a drop to below 44°F/6.7°C within the
heater, the pump will automatically activate to provide freeze protection.
The equipment stays on until 4 minutes after the sensors detect that the spa
temperature has risen to 45°F/7.2°C or higher. In colder climates, an optional
additional freeze sensor may be added to protect against freeze conditions
that may not be sensed by the standard sensors. Aux freeze sensor protection
acts similarly except with the temperature thresholds determined by the switch
and without a 4-minute delay in turnoff. See your dealer for details.

LEGACY SPA - DIAGNOSTIC MESSAGES
Enterprise SE & Inspire SE
3
ACTION REQUIRED
The control panel will be disabled until
power returns. Spa settings will be
preserved until next power up.
After the pump has been running
for 2 minutes, the temperature will
be displayed.
DO NOT ENTER THE WATER. Remove the
spa cover and allow water to cool. Once
the heater has cooled, reset by pushing
any button. If spa does not reset, shut
off the power to the spa and call your
dealer or service organization.
DO NOT ENTER THE WATER. Remove the
spa cover and allow water to cool. At
107°F/42°C, the spa should automatically
reset. If spa does not reset, shut off the
power to the spa and call your dealer
or service organization.
No action required. The pump(s) will
automatically activate regardless of
spa status.
If the problem persists, contact your
dealer or service organization. (May
appear temporarily in an overheat
situation and disappear when the
heater cools.)
If the problem persists, contact your
dealer or service organization. (May
appear temporarily in an overheat
situation and disappear when the
heater cools.)
MEANING
No message on display.
Power has been cut off
to the spa.
Temperature
unknown.
“Overheat” - The spa
has shut down. One
of the sensors has
detected 118°F/48°C at
the heater.
“Overheat” - The spa
has shut down. One of
the sensors has detected
that the spa water is
110°F/43°C.
“Ice” - Potential freeze
condition detected.
Spa is shut down. The
sensor that is plugged
into the Sensor “A”
jack is not working.
Spa is shut down. The
sensor that is plugged
into the Sensor “B”
jack is not working.
MESSAGE
LEGACY SPA - DIAGNOSTIC MESSAGES
Enterprise SE & Inspire SE
4
ACTION REQUIRED
If the problem persists, contact your
dealer or service organization.
Check water level in spa. Refill if
necessary. If the water level is okay,
make sure the pumps have been primed.
If problem persists, contact your dealer
or service organization.
Follow action required for “ ”
message. Heating capability of the spa
will not reset automatically; you may
press any button to reset.
Check water level in spa. Refill if
necessary. If water level is okay, make
sure the pump(s) have been primed.
Press any button to reset, or this message
will automatically reset within 15 minutes.
If problem persists, contact your dealer
or service organization.
Follow action required for “ ”
message. Spa will not automatically
reset. Press any button to reset.
MEANING
Sensors are out of
balance. If alternating
with spa temperature,
it may just be a
temporary condition.
If flashing by itself,
spa is shut down.
A significant difference
between tempera-
ture sensors has been
detected. This could
indicate a flow
problem.
Persistent low flow
problems. (Displays on
the fifth occurrence of
“” message within
24 hours.) Heater is
shut down, but other
spa functions continue
to run normally.
Possible inadequate
water, poor flow, or air
bubbles in detected in
the heater. Spa is shut
down for 15 minutes.
Inadequate water
detected in heater.
(Displays on third
occurrence of “ ”
message.) Spa is
shut down.
MESSAGE
Warning! Shock Hazard! No User Serviceable Parts. Do not attempt service of this
control system. Contact your dealer or service organization for assistance. Follow all
owner’s manual power connection instructions. Installation must be performed by
a licensed electrician and all grounding connections must be properly installed.
