Leisure PMDL 251 FES User manual

Kullanma Kılavuzu
01M-8899971600-2422-03
PMDL 251 FES
Mikrodalga Fırın
EN - TR

Microwave Oven / User Manual2 / EN
CONTENTS
1 Important safety and
environmental instructions 4
1.1 Safety warnings.....................................4
1.2 Compliance with the WEEE Directive and
Disposing of the Waste Product: ...................9
1.3 Compliance with RoHS Directive .............9
1.4 Package information ..............................9
2 Your microwave oven 10
2.1 Overview ............................................... 10
2.2 Technical data........................................10
2.3 Installing the turntable............................11
3 Installation and connection 11
3.1 Installation and connection .....................11
3.2 Built-in installation .................................12

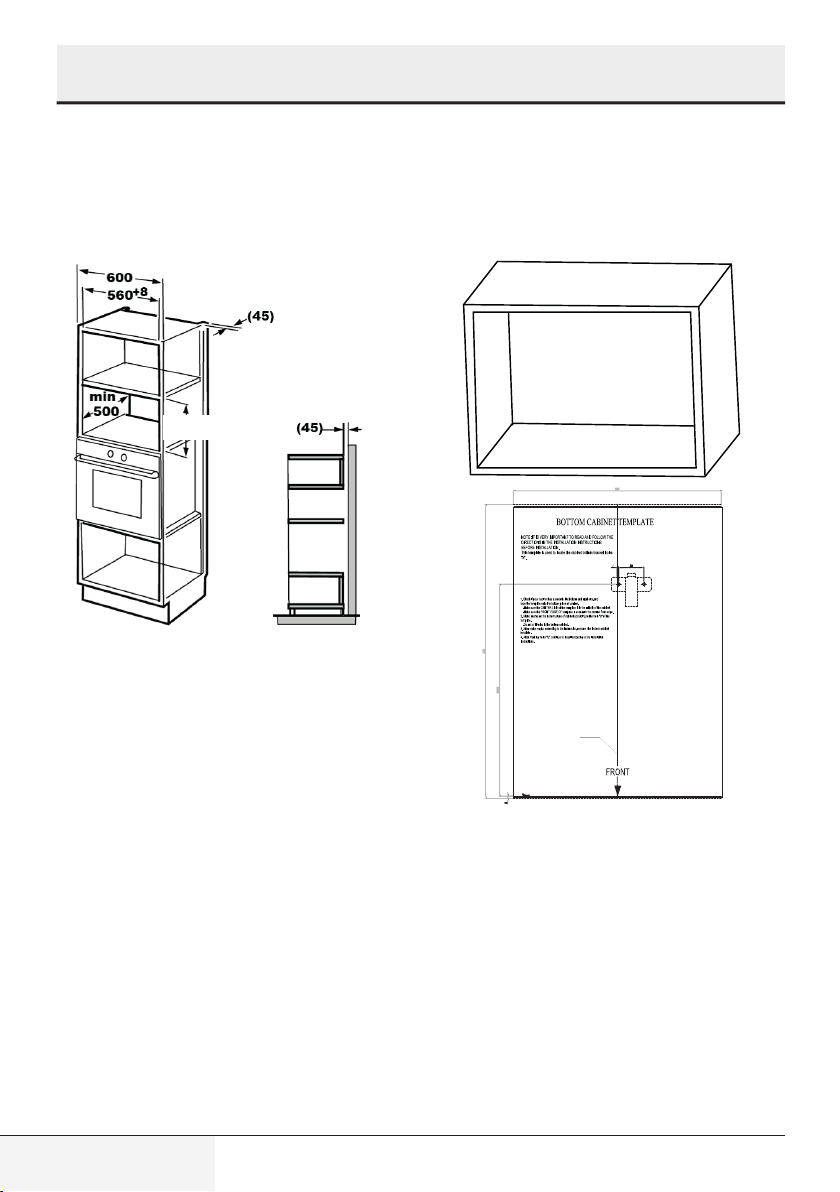

3.2.1 Furniture dimensions for built-in
installation...................................................12
3.2.2 Preparing the cabinet..........................12
3.2.3 Fixing the oven ...................................13
3.3 Radio interference..................................14
3.4 Microwave cooking principles .................14
3.5 Grounding instructions ...........................14
3.6 Utensil test ............................................15
4 Operation 16
4.1 Control panel.........................................16
4.2 Setting the time .....................................16
4.3 Cooking with microwave oven.................16
4.4 Cooking with grill or combination mode...17
4.5 Quick start.............................................17
4.6 Defrost by time ......................................18
4.7 Defrost by weight...................................18
4.8 Kitchen timer (counter)...........................18
4.9 Auto menu.............................................18
4.10 Multi-step cooking ...............................19
4.11 Query function.....................................19
4.12 Child lock ............................................19
4.13 Opening the oven door .........................19
5 Cleaning and maintenance 20
5.1 Cleaning and care..................................20
5.2 Storage .................................................20
5.3 Handling and transportation....................21
6 Troubleshooting 21

Please read this manual first!
Dear Customer,
Thank you for selecting a Leisure product. We hope that you get the best results
from your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well. Follow all
warnings and information in the user manual.
Remember that this user manual may also apply to other models. Differences between
models are explicitly described in the manual.
Meanings of the symbols
Following symbols are used in the various section of this user manual:
CImportant information and useful
hints about usage.
AWARNING: Warnings for dangerous
situations concerning the safety of life
and property.
Warning for hot surfaces.
BWarning for electric shock.
This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

Microwave Oven / User Manual
4 / EN
1 Important safety and environmental
instructions
Important Safety Instructions
Read Carefully And Keep For
Future Reference
1.1 Safety warnings
This section contains safety ins-
tructions that will help protect
from risk of fire, electric shock,
exposure to leak microwave
energy, personal injury or pro-
perty damage. Failure to follow
these instructions shall void any
warranty.
•Leisure Microwave Ovens
comply with the applicable safety
standards; therefore, in case of
any damage on the appliance or
power cable, it should be repa-
ired or replaced by the dealer,
service center or a specialist and
authorized service alike to avoid
any danger. Faulty or unqualified
repair work may be dangerous
and cause risk to the user.
•This appliance is intended to be
used in household and similar
applications such as:
– Staff kitchen areas in shops,
offices and other working en-
vironments;
– Farm houses
– By clients in hotels, and
other residential type envi-
ronments;
– Bed and Breakfast type envi-
ronments.
•It is not intended for industrial or
laboratory use.
•Do not attempt to start the oven
when its door is open; otherwise
you may be exposed to harmful
microwave energy. Safety locks
should not be disabled or tam-
pered with.
•The microwave oven is intended
for heating food and beverages.
Drying of food or clothing and
heating of warming pads, slip-
pers, sponges, damp cloth and
similar may lead to risk of injury,
ignition or fire.
•Do not place any object between
the front side and the door of the
oven. Do not allow dirt or clea-
ning agent remnants to build up
on the closure surfaces.
•Any service works involving re-
moval of the cover that provides
protection against exposure to
microwave energy must be per-

Microwave Oven / User Manual 5 / EN
1 Important safety and environmental
instructions
formed by authorized persons/
service. Any other approach is
dangerous.
•Your product is intended for co-
oking, heating and defrost food
at home. It must not be used for
commercial purposes.
•Your oven is not designed to dry
any living being.
•Do not use your appliance to dry
clothes or kitchen towels.
•Do not use this appliance outdo-
ors, bathrooms, humid environ-
ments or in places where the it
can get wet.
•No responsibility or warranty claim
shall be assumed for damages
arising from misuse or improper
handling of the appliance.
•Never attempt to dismantle the
appliance. No warranty claims
are accepted for damage caused
by improper handling.
•Only use the original parts or
parts recommended by the ma-
nufacturer.
•Do not leave this appliance unat-
tended while it is in use.
•Always use the appliance on a
stable, flat, clean dry, and non-
slip surface.
•The appliance should not be
operated with an external clock
timer or separate remote control
system.
•Before using the appliance for
the first time, clean all parts.
Please see the details given in
the “Cleaning and Maintenance”
section.
•Operate the appliance for its in-
tended purpose only as descri-
bed in this manual.
•Appliance becomes very hot
while it is in use. Pay attention
not to touch the hot parts inside
the oven.
•Do not operate the oven empty.
•Cooking utensil may get hot due
to the heat transferred from the
heated food to the utensil. You
may need oven gloves to hold
the utensil.
•Utensils shall be checked to en-
sure that they are suitable for
use in microwave ovens.
•Do not place the oven on stoves or
other heat generating appliances.

Microwave Oven / User Manual
6 / EN
Otherwise, it may be damaged
and the warranty becomes void.
•Steam may come out while ope-
ning the covers or the foil after
cooking the food.
•The appliance and its accessible
surfaces may be very hot when
the appliance is in use.
•Door and outer glass may be
very hot when the appliance is
in use.
•Make sure that your mains
power supply complies with the
information supplied on the ra-
ting plate of the appliance.
•The only way to disconnect the
appliance from the power supply
is to remove the power plug from
the power outlet.
•Use the appliance with a groun-
ded outlet only.
•Never use the appliance if the
power cable or the appliance it-
self is damaged.
•Do not use this appliance with an
extension cord.
•Never touch the appliance or its
plug with damp or wet hands.
•Place the appliance in a way so
that the plug is always accessible.
•Prevent damage to the power
cable by not squeezing, bending,
or rubbing it on sharp edges.
Keep the power cable away from
hot surfaces and naked flame.
•Make sure that there is no dan-
ger that the power cable could
be accidentally pulled or that
someone could trip over it when
the appliance is in use.
•Unplug the appliance before
each cleaning and when the
appliance is not in use.
•Do not pull the power cable of
the appliance to disconnect it
from its power supply and never
wrap its power cable around the
appliance.
•Do not immerse the appliance,
power cable, or power plug in
water or any other liquids. Do not
hold it under running water.
•When heating food in plastic or
paper containers, keep an eye
on the oven due to the possibility
of ignition.
•Remove the wire strings and/or
metal handles of paper or plastic
bags before placing bags to the
oven.
1 Important safety and environmental
instructions

Microwave Oven / User Manual 7 / EN
•If smoke is observed, switch off
or unplug the appliance if safe to
do so and keep the door closed
in order to stifle any flames.
•Do not use microwave oven
for storage. Do not leave paper
items, cooking material or food
inside the oven when it is not
being used.
•The contents of feeding bottles
and baby food jars should be
stirred or shaken and the tempe-
rature checked before consump-
tion, in order to avoid burns.
•This appliance is a Group 2 Class
B ISM equipment. Group 2 con-
tains all ISM (Industrial, Scientific
and Medical) equipment in which
radio-frequency energy is inten-
tionally generated and/or used
in the form of electromagnetic
radiation for the treatment of
material, and spark erosion equ-
ipment.
•Class B equipment is suitable for
use in domestic establishments
and establishments directly con-
nected to a low voltage power
supply network.
•Do not use cooking oil in the
oven. Hot oil may damage the
components and materials of the
oven, and it may even cause skin
burns.
•Pierce food with thick crust such
as potatoes, courgettes, apples
and chestnuts.
•Appliance must be placed so that
the rear side is facing the wall.
•Before moving the appliance,
please secure the turntable to
prevent damage.
•Eggs in their shell and whole
hard-boiled eggs must not be
heated in microwave ovens since
they may explode, even after
microwave heating has ended.
WARNING: If the door or door se-
als are damaged, the oven must
not be operated until it has been
repaired by a competent person.
WARNING: It is hazardous for
anyone other than a competent
person to carry out any service
or repair operation which invol-
ves the removal of a cover which
gives protection against exposure
to microwave energy.
1 Important safety and environmental
instructions

Microwave Oven / User Manual
8 / EN
WARNING: Liquids and other fo-
ods must not be heated in sealed
containers since they are liable to
explode.
•The oven should be cleaned re-
gularly and any food deposits
removed.
•There should be min 20 cm free
space above the top surface of
the oven.
•Do not over-cook foods; other-
wise, you may cause a fire.
•Do not use chemicals and steam
assisted cleaners to clean the
appliance.
•Extreme caution is advised when
being used near children and
persons who are restricted in
their physical, sensory or mental
abilities.
•This appliance can be used by
the children who are at the age
of 8 or over and by the people
who have limited physical, sen-
sory or mental capacity or who
do not have knowledge and ex-
perience, as long as they are
supervised with regard to safe
use of the product or they are
instructed accordingly or un-
derstand the risks of using the
product. Children should not play
with the appliance. Cleaning and
user maintenance shall not be
made by children unless they are
older than 8 and supervised.
•Microwave heating of beverages
can result in delayed eruptive boi-
ling, therefore care must be taken
when handling the container.
•Danger of choking! Keep all
the packaging materials away
from children.
•Due to excessive heat that arises
in grill and combination modes,
children should only be allowed
to use these modes under su-
pervision of an adult.
•Keep the product and its power
cable so that they are inacces-
sible by children under 8 years
old.
•Do not cook food directly on the
glass tray. Put the food in / on
appropriate kitchen utensils be-
fore placing them in the oven.
•Metallic containers for food and
beverages are not allowed du-
ring microwave cooking. Other-
wise, sparking may occur.
1 Important safety and environmental
instructions

Microwave Oven / User Manual 9 / EN
•Microwave oven must not be
placed in a cabinet that is not in
compliance with the installation
instructions.
•Microwave oven is intended for
built-in use only.
•If built-in appliances being used
equal or higher than 900 mm
above the floor, care should be
taken not to displace the turn-
table when removing containers
from the appliance.
•If the built-in product is in a cabi-
net with a door, the product must
be operated with the cabinet
door open.
•Failure to maintain the oven in
a clean condition could lead to
deterioration of the surface that
could adversely affect the life of
the appliance and possibly result
in a hazardous situation.
•The appliance shall not be clea-
ned with a steam cleaner.
1.2 Compliance with the WEEE
Directive and Disposing of the
Waste Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equip-
ment (WEEE).
1 Important safety and environmental
instructions
This symbol indicates that this product
shall not be disposed with other hou-
sehold wastes at the end of its service
life. Used device must be returned to
offical collection point for recycling of
electrical and electronic devices. To find these col-
lection systems please contact to your local autho-
rities or retailer where the product was puchased.
Each household performs important role in reco-
vering and recycling of old appliance. Appropriate
disposal of used appliance helps prevent potential
negative consequences for the environment and
human health.
1.3 Compliance with RoHS
Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.4 Package information
Packaging materials of the product are
manufactured from recyclable materi-
als in accordance with our National
Environment Regulations. Do not dispo-
se of the packaging materials together with the
domestic or other wastes.Take them to the packa-
ging material collection points designated by the
local authorities.

Microwave Oven / User Manual
10 / EN
Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory
conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.
Power values are tested at 230V.
2 Your microwave oven
2.1 Overview
Controls and parts
1. Control panel
2. Turntable shaft
3. Turntable support
4. Glass tray
5. Oven window
6. Door safety interlock system
7. Grill rack (only to be used in grill function
and placed on the glass tray)
8. Vacuum lifter for manual door opening
2.2 Technical data
Power consumption 230 V~50 Hz,
1450 W (Microwave)
1000 W (Grill)
Output 900 W
Operating frequency 2450 MHz
External dimensions
(H*W*D)
388*595*400 mm
Oven capacity 25 litres
Net weight 18.5 kg
Technical and design modification rights are
reserved.
6
1
235 4
78

Microwave Oven / User Manual 11 / EN
2.3 Installing the turntable
•Never place the glass tray upside down. The
glass tray should never be restricted.
•Both glass tray and turntable support must al-
ways be used during cooking.
•All food and containers of food must always
place on the glass tray for cooking.
•If glass tray or turntable support crack or break,
contact your nearest authorized service center.
2 Your microwave oven
Göbek (alt kısım)
Cam tabla
Döner tabla desteği
Döner tabla mili
Hub (underside)
Glass tray
Turntable shaft
Turntable support
3 Installation and connection
3.1 Installation and connection
•Remove all packing material and accessories.
Examine the oven for any damage such as dents
or broken door. Do not install if oven is dama-
ged.
•Remove any protective film found on the micro-
wave oven cabinet surface.
•Do not remove the light brown Mica cover that is
attached to the oven cavity to protect the mag-
netron.
•This appliance has been designed for domestic
use only.
•This oven is intended for built-in use only. It is
not intended for counter-top use or for use in-
side a cabinet.
•Please observe the special installation instruc-
tions.
•The appliance can be installed in a 60cm wide
wall-mounted cabinet (at least 55 cm deep and
85 cm off the floor).
•The appliance is fitted with a plug and must only
be connected to a properly installed grounded
socket.
•The mains voltage must correspond to the vol-
tage specified on the rating plate.
•If the plug is no longer accessible after installa-
tion, an all-pole isolating switch must be present
on the installation side with a contact gap of at
least 3 mm.
•Adapters, multi-way sockets and extension
cords must not be used. Overloading can result
with a risk of fire.
The accessible surface may be hot
during operation.
BDo not trap or bend the power cable.

Microwave Oven / User Manual
12 / EN
3.2 Built-in installation
3.2.1 Furniture dimensions for built-in
installation
380+2
3 Installation and connection
3.2.2 Preparing the cabinet
1. Read the instruction on the bottom cabinet
template and put the template on the bottom
plane of cabinet.
aa
CENTE R LINE
FRONT EDGE
LEFT EDGE
T EDGERIGH

Microwave Oven / User Manual 13 / EN
3 Installation and connection
2. Make the marks on the bottom plane of cabinet
according to marks "a" of the template.
aa
Vida
Braket
Merkez çizgi
Screw
Centre line
Bracket
3. Remove the bottom cabinet template and fix the
bracket with screw.
Braket
Vida
Screw
Bracket
3.2.3 Fixing the oven
1. Install the oven into the cabinet.
AMake sure the back of the oven is
locked by bracket.
BDo not trap or bend the power cable.
braket
Bracket

Microwave Oven / User Manual
14 / EN
3 Installation and connection
3.4 Microwave cooking principles
•Prepare the food carefully. Place the remaining
parts to the outside of the dish.
•Pay attention to the cooking time. Cook in the
shortest time specified and add some more time
if required. Overcooked food may cause smoke
or may be burnt.
•Cover the food while cooking. Covering the food
prevents any splashing and helps to ensure that
food is cooked evenly.
•Turn over food such as poultry and hamburgers
while cooking them in a microwave oven in
order to accelerate cooking of this kind of food.
Larger food such as roast must be turned over
at least once.
•Turn food such as meatballs upside down in the
middle of the cooking and replace them with
each other from the center of the dish to the
outside.
3.5 Grounding instructions
This appliance must be grounded. This oven has a
grounding cable with a grounded plug. Appliance
must be plugged to a wall outlet installed and gro-
unded correctly. Grounding system allows a leak
wire for the electrical current in case of a short
circuit and reduces the risk of electric shock. We
recommend using an electrical circuit dedicated to
the oven. Operating with high voltage is dangerous
and may cause fire or other accidents that would
cause damage to the oven.
AWARNING: Misuse of grounding
plug may cause electric shock.
BIf you have any questions on gro-
unding and electrical instructions,
please consult a qualified electric
technician or service personnel.
2. Open the door, fix the oven to the cabinet with
Screw through the installation hole. Then fix the
trim-kit plastic cover to the installation hole.
Montaj deliği
Vida
Screw
Installation hole
3.3 Radio interference
COperation of the microwave oven
may cause interference on radios,
TVs and similar appliances.
•Place the oven as far away from radios and TVs
as possible. Operation of microwave oven may
cause interference to your radio or TV reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the frequency is
the same as the voltage and the frequency on
the rating plate.
•In case of interference, it may be reduced or eli-
minated by taking the precautions given below:
•Clean the door and sealing surface of the oven.
•Set the antenna direction of the radio or TV
again.
•Reposition the oven based on the location of the
receiver.
•Place microwave oven away from the receiver.
•Plug the microwave oven to another outlet, thus
microwave oven and receiver shall be on diffe-
rent lines.

Microwave Oven / User Manual 15 / EN
CManufacturer and/or dealer would not accept any responsibility for injuries or damages on
the oven that may occur when electrical connection procedures are not followed.
3.6 Utensil test
Never operate the microwave oven empty. The only exception is the utensil test described in the follo-
wing section. Some certain non-metal utensils may not be suitable for using in microwave. If you are not
sure whether your utensil is suitable for microwave, you can perform the following test.
1. Place the empty utensil to be tested into the microwave oven together with a microwave-compatible
glass filled with 250 ml water.
2. Operate the microwave oven at max power for 1 minute.
3. Check carefully the temperature of the utensil being tested. If it is warmed up, it is not suitable for
use in microwave.
4. Never exceed the operating time limit of 1 minute. If you notice arcing during 1 minute of operation,
stop the microwave. Utensils causing arcing are not suitable for use in microwave.
Following list is a general guide that would help you in selecting the right utensil.
Cooking utensil Microwave Grill Combination
Heat-resistant glass Yes Yes Yes
Non-heat-resistant glass No No No
Heat-resistant ceramics Yes Yes Yes
Plastic dish suitable for microwave oven Yes No No
Paper kitchenware Yes No No
Metal tray No Yes No
Metal rack No Yes No
Aluminum foil and foil covers No Yes No
Foam materials No No No
3 Installation and connection

Microwave Oven / User Manual
16 / EN
4.2 Setting the time
When the microwave oven is energized, “0:00”
will be displayed in LED screen and buzzer will
ring once.
1. Press “ ” twice and the figures for hours will
start flashing.
2. Turn “ ” to adjust the hour; the input value
should be between 0 and 23.
3. Press “ ” and the figures for minutes will start
flashing.
4. Turn “ ” to adjust the minutes; the input value
should be between 0 and 59.
5. Press “ ” to finish time setting. “:” symbol will
flash, and the time will light.
CIf you press “ ” during time setting,
oven will automatically return back
to previous mode.
4.3 Cooking with microwave oven
1. Press “ ” and “P100” will be displayed in LED
screen.
2. Press “ ” again or turn “ ” to select the desi-
red power. Each time you press the key, “P100,
P80, P50, P30 or P10” will be displayed res-
pectively.
3. Press “ ” to confirm and turn “ ” to set the
cooking time to a value between 0:05 and
95:00.
4. Press “ ” again to start cooking.
CExample: If you want to use 80%
microwave power to cook for 20 mi-
nutes, you can operate the oven with
the following steps.
5. Press “ ” once and “P100” will be displayed
in the screen.
4 Operation
4.1 Control panel
Microwave
Grill/Combination
Defrost by time
Defrost by weight
Kitchen Timer/Clock
Start/+30 sec./
Confirm
Stop/Cancel
Door open key

Microwave Oven / User Manual 17 / EN
6. Press “ ” once again or turn “ ” to set 80%
microwave power.
7. Press “ ” to confirm and “P 80” will be displa-
yed in the screen.
8. Turn “ ” to adjust the cooking time until the
oven displays “20:00”.
9. Press “ ” to start cooking.
The steps for adjusting the time in coding
button are as below:
Setting the duration Increment amount
0-1 minute 5 seconds
1-5 minutes 10 seconds
5-10 minutes 30 seconds
10-30 minutes 1 minute
30-95 minutes 5 minutes
Microwave keypad instructions
Order Screen Microwave Power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%
4.4 Cooking with grill or
combination mode
1. Press “ ” and “G” will be displayed in LED
screen. Press “ ” repeatedly or turn “ ” to
select the desired power. Each time you press
the key, “G, C-1 or C-2” will be displayed
respectively.
2. Press “ ” to confirm and turn “ ” to set the
cooking time to a value between 0:05 and
95:00.
3. Press “ ” again to start cooking.
C
Example: If you want to use 55%
microwave power and 45% grill po-
wer (C-1) to cook for 10 minutes,
you can operate the oven with the
following steps.
1. Press “ ” once and “G” will be displayed in
the screen.
2. Press “ ” once again or turn “ ” to select the
Combination 1 mode.
3. Press “ ” to confirm and “C-1” will be displa-
yed in the screen.
4. Turn “ ” to adjust the cooking time until the
oven displays “10:00”.
5. Press “ ” to start cooking.
(Grill/Combination) Keypad instructions
Order Screen Microwave
Power Grill Power
1 G 0% 100%
2 C-1 55% 45%
3 C-2 36% 64%
C
When half the grill time passes, the
oven sounds twice, and this is nor-
mal. In order to have a better grilling
effect, you should turn the food over,
close the door, and then press “ ”
to continue cooking. If no operation
is performed, the oven will continue
cooking.
4.5 Quick start
1. In standby mode, press “ ” to start cooking
with 100% microwave power. Each time you
press the key, cooking time will increase until
95 minutes with steps of 30 seconds.
4 Operation

Microwave Oven / User Manual
18 / EN
2. In microwave oven cooking, grill and combi-
nation cooking or defrost by time modes, the
cooking time will increase by 30 seconds each
time you press “ ”.
3. In standby mode, turn “ ” counterclockwise to
set the cooking time in order to start cooking
with 100% microwave power and press “ ” to
start cooking.
CIn auto menu and defrost by weight
modes, pressing “ ” will not incre-
ase the cooking time.
4.6 Defrost by time
1. Press “ ” for once.
2. Turn “ ” to select the defrost time. The maxi-
mum time is 95 minutes.
3. Press “ ” to start defrost. Defrost power is P30
and cannot be changed.
4.7 Defrost by weight
1. Press “ ” for once.
2. Turn “ ” to select the weight of food from 100
to 2000 g.
3. Press “ ” to start defrost.
4.8 Kitchen timer (counter)
Your oven is equipped with an automatic counter
which is not linked with the oven functions and
can be used separately at the kitchen ( it can be
set to max. 95 minutes.)
1. Press “ ” for once and 00:00 will be displayed
in LED screen.
2. Turn “ ” to enter the correct time.
3. Press “ ” to confirm the setting.
4. When the countdown from the entered time re-
aches to 00:00, the buzzer will ring for 5 times.
If the time is set (24-hour system), current time
will be displayed in LED screen.
Press “ ” to abort the timer at anytime.
CKitchen timer functions different
than 24-hours system. Kitchen ti-
mer is just a timer.
4.9 Auto menu
1. Turn “ ” clockwise to select the desired menu.
Menus between “A-1” and “A-8”, namely pizza,
meat, vegetable, pasta, potato, fish, beverage
and popcorn, will be displayed.
2. Press “ ” to confirm.
3. Turn “ ” to choose the default weight in accor-
dance with the menu chart.
4. Press “ ” to start cooking.
CExample: If you want to use “Auto
Menu” to cook 350 g fish:
1. Turn “ ” clockwise until "A-6" is displayed in
the screen.
2. Press “ ” to confirm.
3. Turn “ ” to select the weight of fish until “350”
is displayed in the screen.
4. Press “ ” to start cooking.
Auto cooking menu
Menu Weight Screen
A-1 Pizza 200 g 200
400 g 400
A-2 Meat 250 g 250
350 g 350
450 g 450
4 Operation

Microwave Oven / User Manual 19 / EN
A-3 Vege-
table 200 g 200
300 g 300
400 g 400
A-4 Pasta 50 g (with 450 ml cold
water) 50
100 g (with 800 ml
cold water) 100
A-5 Potato 200 g 200
400 g 400
600 g 600
A-6 Fish 250 g 250
350 g 350
450 g 450
A-7 Beverage 1 glass (120 ml) 1
2 glasses (240 ml) 2
3 glasses (360 ml) 3
A-8 Popcorn 50 g 50
100 g 100
4.10 Multi-step cooking
At most 2 steps can be set for cooking. In multi-
step cooking, if one step is defrosting, then def-
rosting must be placed in the first step.
CIf you want to thaw food for 5 minu-
tes and then cook with 80% micro-
wave power for 7 minutes, perform
the following steps:
1. Press “ ” for once.
2. Turn “ ” to select the defrost time until “5:00”
is displayed in the screen.
3. Press “ ” once and “P100” will be displayed
in the screen.
4. Press “ ” once again or turn “ ” to set 80%
microwave power.
5. Press “ ” to confirm and “P 80” will be displa-
yed in the screen.
4 Operation
6. Turn “ ” to adjust the cooking time until the
oven displays “7:00”.
7. Press “ ” to start cooking. Buzzer will sound
once for the first step and defrost time count-
down will start. Buzzer will sound once again
when entering the second cooking step. Buzzer
will sound for 5 times at the end of cooking.
4.11 Query function
1. In microwave, grill and combination modes,
press “ ” or “ ” and the current power level
will be displayed for 3 seconds.After 3 seconds,
the oven will return to the previous mode.
2. While cooking, press “ ” and the current time
will be displayed for 3 seconds.
4.12 Child lock
1. Locking: In standby mode, press “ ” for 3
seconds and a buzzer will sound indicating
that the child lock is activated. If the time is
already set, current time will also be displayed;
otherwise “ ” will be displayed in the LED
screen.
2. Unlocking: To disable the child lock, press
“” for 3 seconds and a long ”beep” will sound
indicating that the child lock is disabled.
4.13 Opening the oven door
Press “ ” and the oven door will be opened.

Microwave Oven / User Manual
20 / EN
5.1 Cleaning and care
AWARNING: Never use gasoline, sol-
vent, abrasive cleaning agents, me-
tal objects or hard brushes to clean
the appliance.
BWARNING: Never immerse the app-
liance or its power cable in water or
in any other liquid.
1. Turn off the oven and remove the power plug
from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food
splatters or spilled liquids adhere to oven walls,
wipe with a damp cloth. Mild detergent may be
used if the oven gets very dirty. Avoid the use
of spray and other harsh cleaners as they may
stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a
damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allo-
wed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the
door seals and adjacent parts frequently with a
damp cloth to remove any spills or spatters. Do
not use abrasive cleaner.
6. A steam cleaner is not be used.
7. Do not allow the control panel to become wet.
Clean with a soft, damp cloth. When cleaning
the control panel, leave oven door open to pre-
vent oven from accidentally turning on.
8. If steam accumulates inside or around the out-
side of the oven door, wipe with a soft cloth.
This may occur when the microwave oven is
operated under high humidity condition. And it
is normal.
9. It is occasionally necessary to remove the glass
tray for cleaning. Wash the tray in warm sudsy
water or in a dishwasher.
5 Cleaning and maintenance
10.The roller ring and oven floor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven
with mild detergent. The roller ring may be
washed in mild sudsy water or dishwasher.
When removing the roller ring from cavity floor
for cleaning, be sure to replace in the proper
position.
11.Remove odors from your oven by combining
a cup of water with the juice and skin of
one lemon in a deep microwaveable bowl,
microwave for 5 minutes. Wipe thoroughly and
dry with a soft cloth.
12.When it becomes necessary to replace the
oven light, please consult a dealer to have it
replaced.
13.The oven should be cleaned regularly and any
food deposits removed. Failure to maintain
the oven in a clean condition could lead
to deterioration of the surface that could
adversely affect the life of the appliance and
possibly result in a hazardous situation.
14.Please do not dispose this appliance into the
domestic rubbish bin; it should be disposed to
the particular disposal center provided by the
municipalities.
15.When the microwave oven with grill function
is first used, it may produce slight smoke and
smell. This is a normal phenomenon because
the oven is made of a steel plate coated with
lubricating oil, and the new oven will produce
fumes and odor generated by burning the
lubricating oil.This phenomenon will disappear
after a period of using.
5.2 Storage
•If you do not intend to use the appliance for a
long time, please store it carefully.
•Please make sure that the appliance is unplug-
ged, cooled down and totally dry.
•Store the appliance in a cool and dry place.
•Keep the appliance out of the reach of children.
