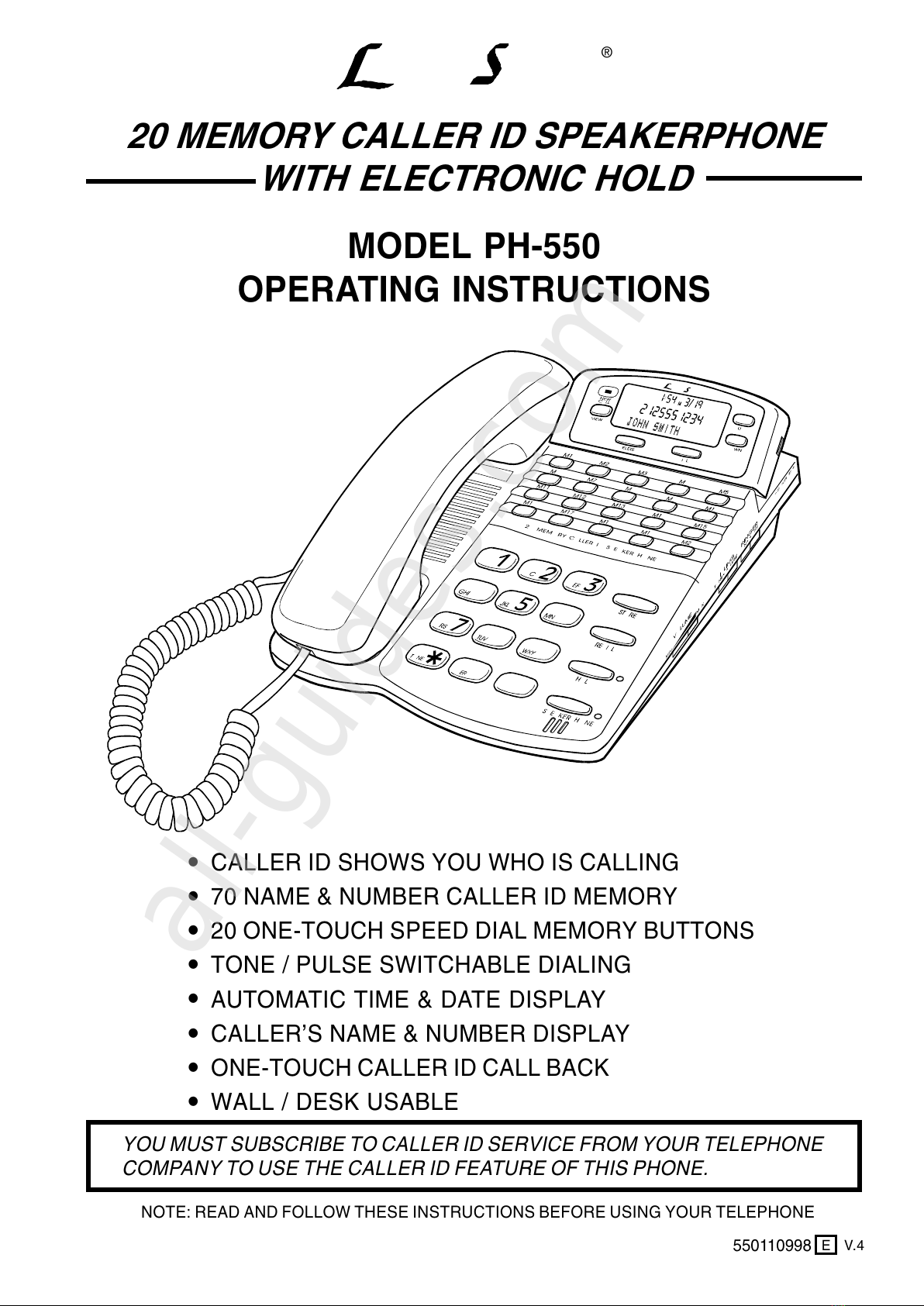

Lenoxx Sound PH-550 User manual

YOU MUST SUBSCRIBE TO CALLER ID SERVICE FROM YOUR TELEPHONE
COMPANY TO USE THE CALLER ID FEATURE OF THIS PHONE.
20 MEMORY CALLER ID SPEAKERPHONE
WITH ELECTRONIC HOLD
CALLER ID SHOWS YOU WHO IS CALLING
70 NAME & NUMBER CALLER ID MEMORY
20 ONE-TOUCH SPEED DIAL MEMORY BUTTONS
TONE / PULSE SWITCHABLE DIALING
AUTOMATIC TIME & DATE DISPLAY
CALLERS NAME & NUMBER DISPLAY
ONE-TOUCH CALLER ID CALL BACK
WALL / DESK USABLE
MODEL PH-550
OPERATING INSTRUCTIONS
NOTE: READ AND FOLLOW THESE INSTRUCTIONS BEFORE USING YOUR TELEPHONE
550 0998 E V.4
®
All manuals and user guides at all-guides.com
all-guides.com

Important Safety Instructions
Battery Safety Instructions 2
Location of Controls 3
Introduction 4
What is Caller ID ? 6
Telephone Installation Instructions 7
Getting Started 7
Installing Batteries 7
Connecting Phone Cords 8
Connecting to an Answering Machine 8
Ringer On / Off Switch 8
Tone / Pulse Switch 8
Caller ID Installation Instructions 9
Setting up Language, Area Code, Time and Date 9
Quick Instructions to Set up Area Code 0
Reset Your Phone
Wall Mounting 2
Telephone Operation 5
Receiving Calls as a Normal Telephone 5
Making Calls as a Normal Telephone 5
Call Waiting 5
Last Number Redial / Pause 5
Hands-Free (Speakerphone) Operation 5
Special Considerations for Hands-Free (Speakerphone) Operation 6
Hold Button 6
Temporary Tone Dialing 6
Memory Dialing 6
Storing Telephone Numbers into Memory (M to M20) 6
Making Calls from the 20 One-Touch Memories 8
Caller ID Operation 8
What Your Caller ID Phone Displays and What the Buttons Do ? 8
Using Your Caller ID Phone 9
Error Messages 9
Storing Numbers from the Caller ID Display 20
Dialing Numbers from the Caller ID Memory 20
Call Timer 20
New Calls 2
Using Message Waiting / Mailbox 2
Manual Reset of the Message Waiting Indicator 2
Using Chain Dialing 2
Deleting an Individual Caller ID Record from Memory 2
Deleting all Caller ID Records from Memory 2
AC Power Adaptor Operation 22
Care and Maintenance 22
Trouble Shooting 23
FCC Requirements 25
Warranty Information 26
CONTENTS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○
○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○
550 0998 E V.4
All manuals and user guides at all-guides.com

IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and personal injury, including the following:
. Read and follow all instructions and warnings.
2. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a slightly dampened cloth only.
3. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool.
4. Do not place this product on an unstable cart, stand or table. The product may fall, causing
serious damage to itself.
5. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to
protect it from overheating, these openings must not be blocked or covered. The openings
should never be blocked by placing the product on the bed, sofa, rug, or other similar
surface. This product should never be placed near or over a radiator, heat register or a
built-in installation such as a bookcase or cabinet unless proper ventilation is provided.
6. Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on the product.
7. To reduce the risk of electric shock, do not disassemble this product, but take it to a
qualified serviceman, when some service or repair work is required. Opening or removing
covers may expose you to dangerous voltages or other risks. Incorrect re-assembly can
cause electric shock when the appliance is subsequently used.
8. Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions because improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
9. Avoid using a telephone (other than a cordless type) during an electrical storm. There may
be a remote risk of electric shock from lightning.
0. Do not use the telephone to report a gas leak in the vicinity of the leak.
. Do not allow anything to rest on the telephone cord. Do not locate this product where the
cord will be abused by persons walking on it.
2. Never install telephone wiring during a lightning storm.
3. Never install telephone jacks in wet locations unless the jack is specially designed for wet
locations.
4. Never touch uninsulated telephone wires or terminals, unless the telephone line has been
disconnected at the network interface.
5. Be careful when installing or modifying telephone lines.
SAVE THESE INSTRUCTIONS
HELP LINE 1-800-315-5885
550 0998 E V.4
All manuals and user guides at all-guides.com

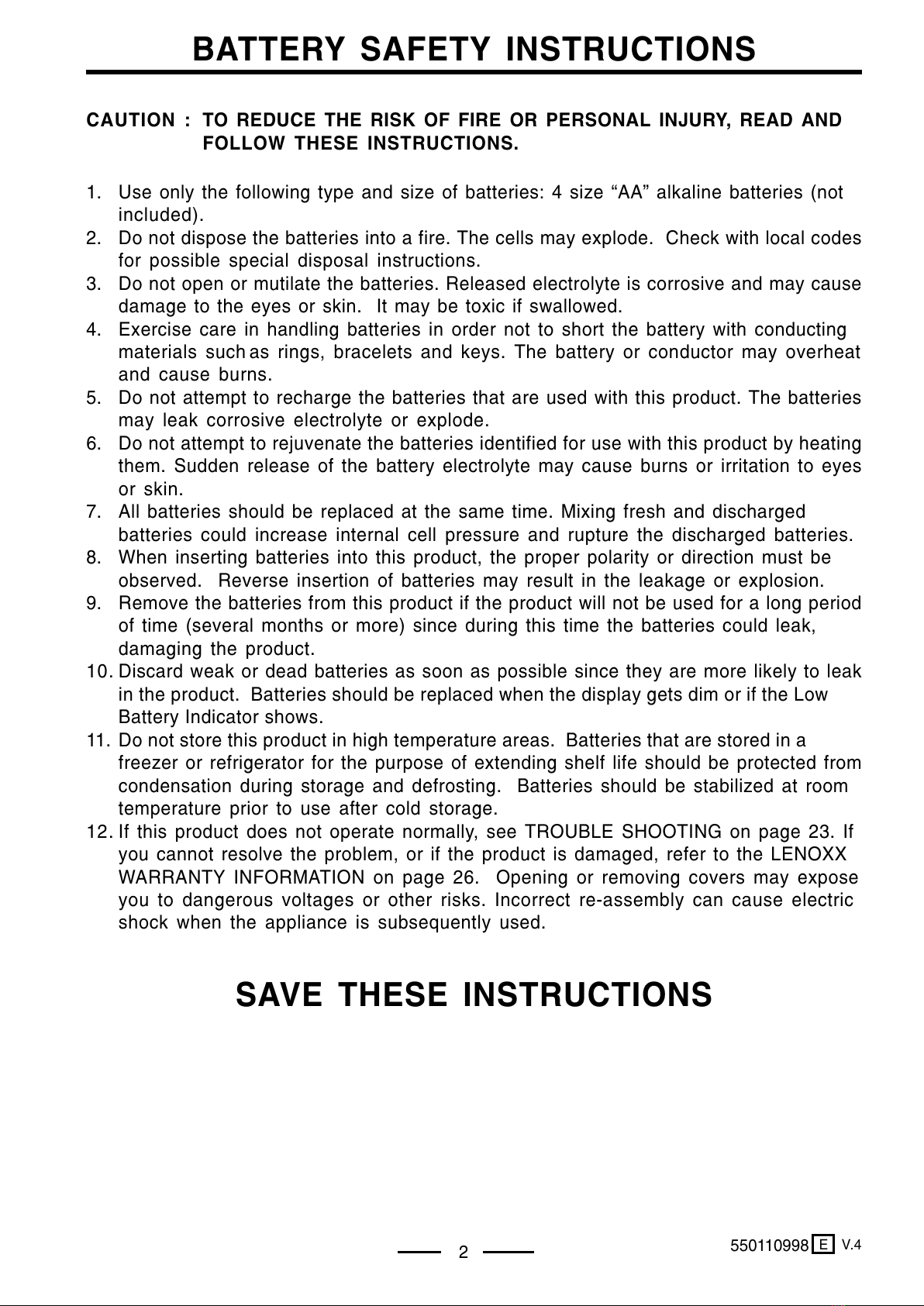

BATTERY SAFETY INSTRUCTIONS
CAUTION : TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY READ AND
FOLLOW THESE INSTRUCTIONS.
. Use only the following type and size of batteries: 4 size AA alkaline batteries (not
included).
2. Do not dispose the batteries into a fire. The cells may explode. Check with local codes
for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may overheat
and cause burns.
5. Do not attempt to recharge the batteries that are used with this product. The batteries
may leak corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries identified for use with this product by heating
them. Sudden release of the battery electrolyte may cause burns or irritation to eyes
or skin.
7. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the discharged batteries.
8. When inserting batteries into this product, the proper polarity or direction must be
observed. Reverse insertion of batteries may result in the leakage or explosion.
9. Remove the batteries from this product if the product will not be used for a long period
of time (several months or more) since during this time the batteries could leak,
damaging the product.
0. Discard weak or dead batteries as soon as possible since they are more likely to leak
in the product. Batteries should be replaced when the display gets dim or if the Low
Battery Indicator shows.
. Do not store this product in high temperature areas. Batteries that are stored in a
freezer or refrigerator for the purpose of extending shelf life should be protected from
condensation during storage and defrosting. Batteries should be stabilized at room
temperature prior to use after cold storage.
2. If this product does not operate normally, see TROUBLE SHOOTING on page 23. If
you cannot resolve the problem, or if the product is damaged, refer to the LENOXX
WARRANTY INFORMATION on page 26. Opening or removing covers may expose
you to dangerous voltages or other risks. Incorrect re-assembly can cause electric
shock when the appliance is subsequently used.
SAVE THESE INSTRUCTIONS
2 550 0998 E V.4
All manuals and user guides at all-guides.com

LOCATION OF CONTROLS
. Comfortable Rounded Handset - for comfortable use during long calls.
2. View Button - shows you the new calls only.
3. New Call Indicator - flashes when new calls have come in.
4. Reset Hole - to reset your phone (behind the Display Panel).
5. Delete Button - erases an individual record or all records from the Caller ID Memory, also used to accept
time, date, area code during initial setup.
6. Dial Button - calls the number currently displayed.
7. Visual Display Panel - shows the callers name and/or number, incoming calling time & date, and call
counter.
8. Up / Down Buttons - press to review all calls received.
9. Contrast Control - allows you to adjust the contrast of the display.
0. One-touch Speed Dial Memory Buttons - to store numbers into memory.
. Ringer On / Off Switch - turns off ringer for undisturbed privacy.
2. Tone / Pulse Switch - select the desired dialing mode.
3. Store Button - used for storing numbers in the Speed Dial Memory locations.
4. Speakerphone Volume Control - adjusts volume of speaker on Speakerphone.
5. Redial (Pause) Button - get a new dial tone, then press this button to dial the last phone number (useful if
line is busy).
6. Hold Button - with indicator allows you to put line on hold.
7. Speakerphone Indicator - lights during Speakerphone use.
8. Speakerphone Button - uses for hands-free dialing and answering.
9. Speakerphone Microphone
20. Telephone Number Index - write down numbers that you stored into memory.
2 . Dialing Buttons - to dial numbers manually or to dial numbers to be stored in memory.
22. Battery Compartment - place 4 size AA alkaline batteries inside.
23. Line Cord Jack - insert one end of the telephone line cord here when connecting the telephone.
24. DC Jack - used with an optional AC adaptor (not included).
25. Hook Switch - press down to release the line, hold it down and then release it to get a new dial tone or for
call waiting.
26. Coiled Cord Jack - Insert Coiled Cord from Handset here.
27. Handset Clip - holds the Handset in place when the telephone is mounted on a wall.
3
25
24
23
27
22
26
45
367
8
4
2
20
3
0
8
2
2
5
7 6
9
9
550 0998 E V.4
All manuals and user guides at all-guides.com

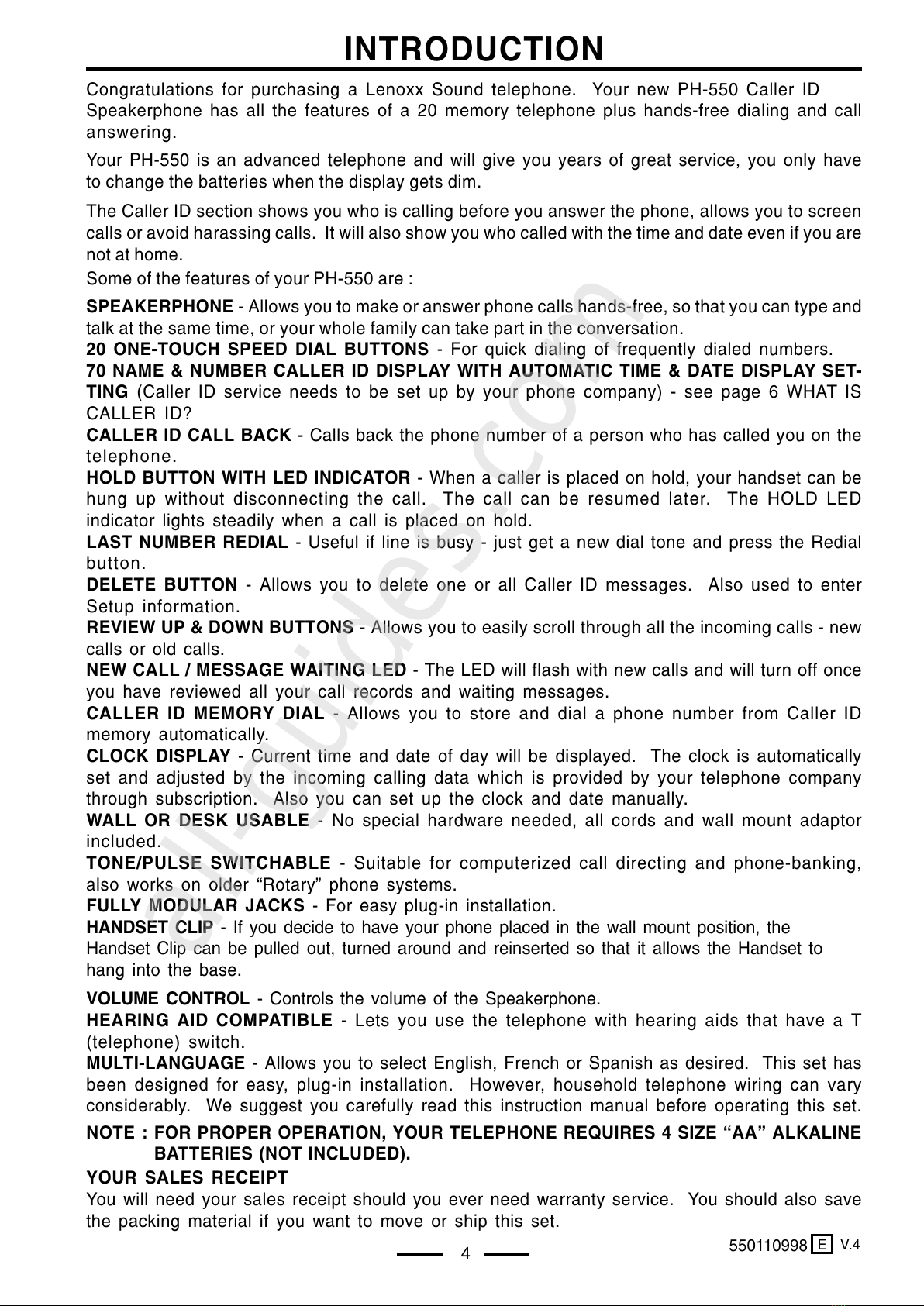

INTRODUCTION
Congratulations for purchasing a Lenoxx Sound telephone. Your new PH-550 Caller ID
Speakerphone has all the features of a 20 memory telephone plus hands-free dialing and call
answering.
VOLUME CONTROL - Controls the volume of the Speakerphone.
HEARING AID COMPATIBLE - Lets you use the telephone with hearing aids that have a T
(telephone) switch.
MULTI-LANGUAGE - Allows you to select English, French or Spanish as desired. This set has
been designed for easy, plug-in installation. However, household telephone wiring can vary
considerably. We suggest you carefully read this instruction manual before operating this set.
NOTE : FOR PROPER OPERATION YOUR TELEPHONE REQUIRES 4 SIZE AA ALKALINE
BATTERIES (NOT INCLUDED).
YOUR SALES RECEIPT
You will need your sales receipt should you ever need warranty service. You should also save
the packing material if you want to move or ship this set.
Your PH-550 is an advanced telephone and will give you years of great service, you only have
to change the batteries when the display gets dim.
Some of the features of your PH-550 are :
The Caller ID section shows you who is calling before you answer the phone, allows you to screen
calls or avoid harassing calls. It will also show you who called with the time and date even if you are
not at home.
SPEAKERPHONE - Allows you to make or answer phone calls hands-free, so that you can type and
talk at the same time, or your whole family can take part in the conversation.
20 ONE-TOUCH SPEED DIAL BUTTONS - For quick dialing of frequently dialed numbers.
70 NAME & NUMBER CALLER ID DISPLAY WITH AUTOMATIC TIME & DATE DISPLAY SET-
TING (Caller ID service needs to be set up by your phone company) - see page 6 WHAT IS
CALLER ID?
CALLER ID CALL BACK - Calls back the phone number of a person who has called you on the
telephone.
HOLD BUTTON WITH LED INDICATOR - When a caller is placed on hold, your handset can be
hung up without disconnecting the call. The call can be resumed later. The HOLD LED
indicator lights steadily when a call is placed on hold.
LAST NUMBER REDIAL - Useful if line is busy - just get a new dial tone and press the Redial
button.
DELETE BUTTON - Allows you to delete one or all Caller ID messages. Also used to enter
Setup information.
REVIEW UP & DOWN BUTTONS - Allows you to easily scroll through all the incoming calls - new
calls or old calls.
NEW CALL / MESSAGE WAITING LED - The LED will flash with new calls and will turn off once
you have reviewed all your call records and waiting messages.
CALLER ID MEMORY DIAL - Allows you to store and dial a phone number from Caller ID
memory automatically.
CLOCK DISPLAY - Current time and date of day will be displayed. The clock is automatically
set and adjusted by the incoming calling data which is provided by your telephone company
through subscription. Also you can set up the clock and date manually.
WALL OR DESK USABLE - No special hardware needed, all cords and wall mount adaptor
included.
TONE/PULSE SWITCHABLE - Suitable for computerized call directing and phone-banking,
also works on older Rotary phone systems.
FULLY MODULAR JACKS - For easy plug-in installation.
HANDSET CLIP - If you decide to have your phone placed in the wall mount position, the
Handset Clip can be pulled out, turned around and reinserted so that it allows the Handset to
hang into the base.
4550 0998 E V.4
All manuals and user guides at all-guides.com
all-guides.com

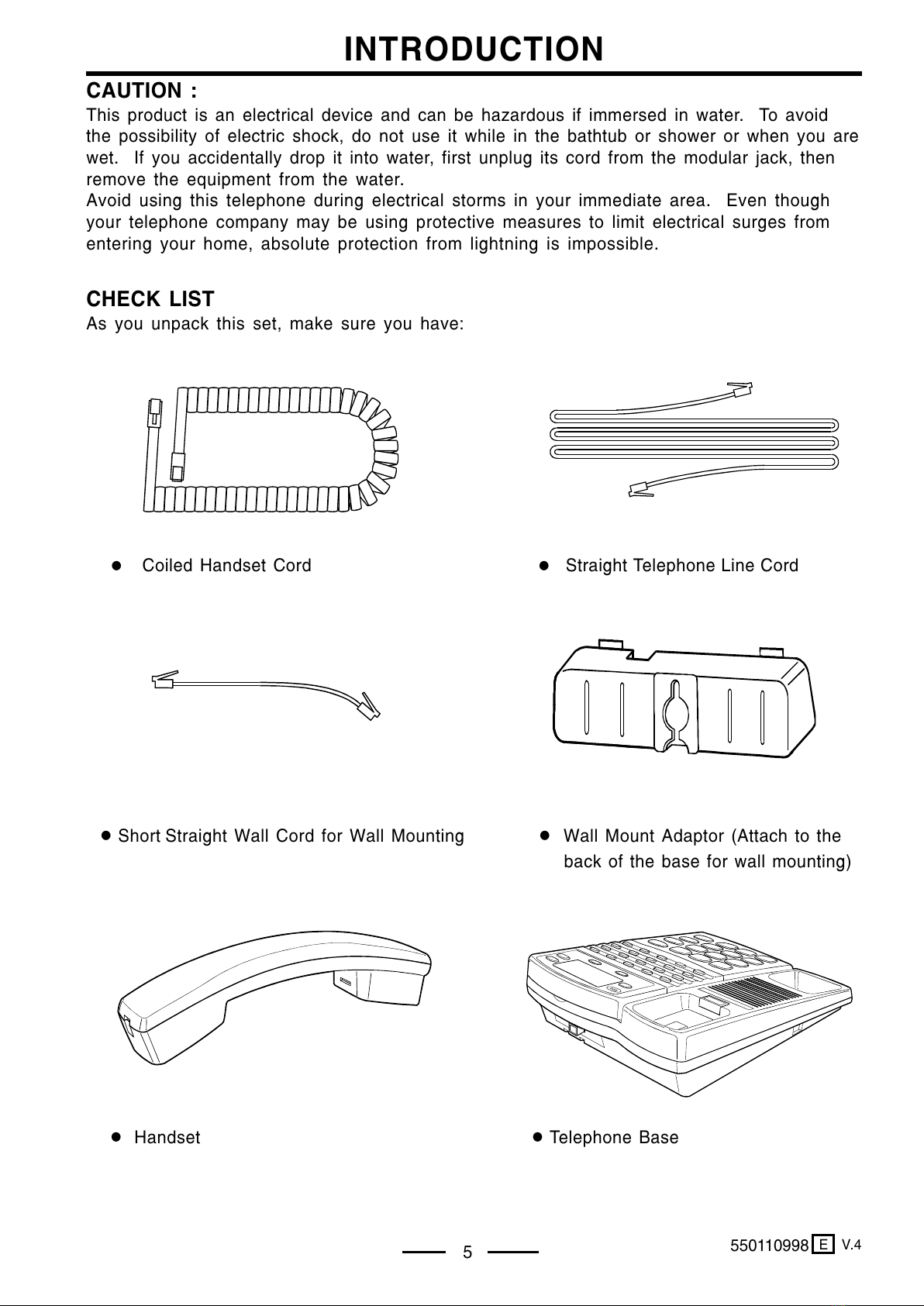

INTRODUCTION
CAUTION :
This product is an electrical device and can be hazardous if immersed in water. To avoid
the possibility of electric shock, do not use it while in the bathtub or shower or when you are
wet. If you accidentally drop it into water, first unplug its cord from the modular jack, then
remove the equipment from the water.
Avoid using this telephone during electrical storms in your immediate area. Even though
your telephone company may be using protective measures to limit electrical surges from
entering your home, absolute protection from lightning is impossible.
 Coiled Handset Cord  Straight Telephone Line Cord
CHECK LIST
As you unpack this set, make sure you have:
 Handset  Telephone Base
 Short Straight Wall Cord for Wall Mounting  Wall Mount Adaptor (Attach to the
back of the base for wall mounting)
5 550 0998 E V.4
All manuals and user guides at all-guides.com
