Lenoxx Sound PH-549 User manual

13 MEMORY CALL WAITING CALLER ID
SPEAKER TELEPHONE
MODEL PH-549
CALL WAITING CALLER ID FUNCTION*
70 NAME & NUMBER CALLER ID MEMORY
HANDS-FREE SPEAKERPHONE
TONE/PULSE SWITCHABLE DIALING
AUTOMATIC TIME & DATE DISPLAY
ONE-TOUCH CALLER ID CALL BACK
3 ONE-TOUCH SPEED DIAL BUTTONS
10 TWO-TOUCH SPEED DIAL MEMORY LOCATIONS
WALL/DESK USABLE
REQUIRES AA BATTERIES OR AC ADAPTOR
(BOTH NOT INCLUDED)
OPERATING INSTRUCTIONS
®
NOTE: READ AND FOLLOW THESE INSTRUCTIONS BEFORE USING YOUR TELEPHONE
PH-5 90 2100RTTv.2 E
TO USE THE CALLER ID AND CALL WAITING FEATURES OF THIS PHONE,
YOU MUST SUBSCRIBE TO CALL WAITING CALLER ID SERVICE FROM
YOUR PHONE COMPANY, AND REMEMBER TO INSTALL BATTERIES
*
All manuals and user guides at all-guides.com
all-guides.com

Important Safet Instructions 1
Batter Safet Instructions 2
Important Telephone Compan & FCC Information 3
Location of Controls

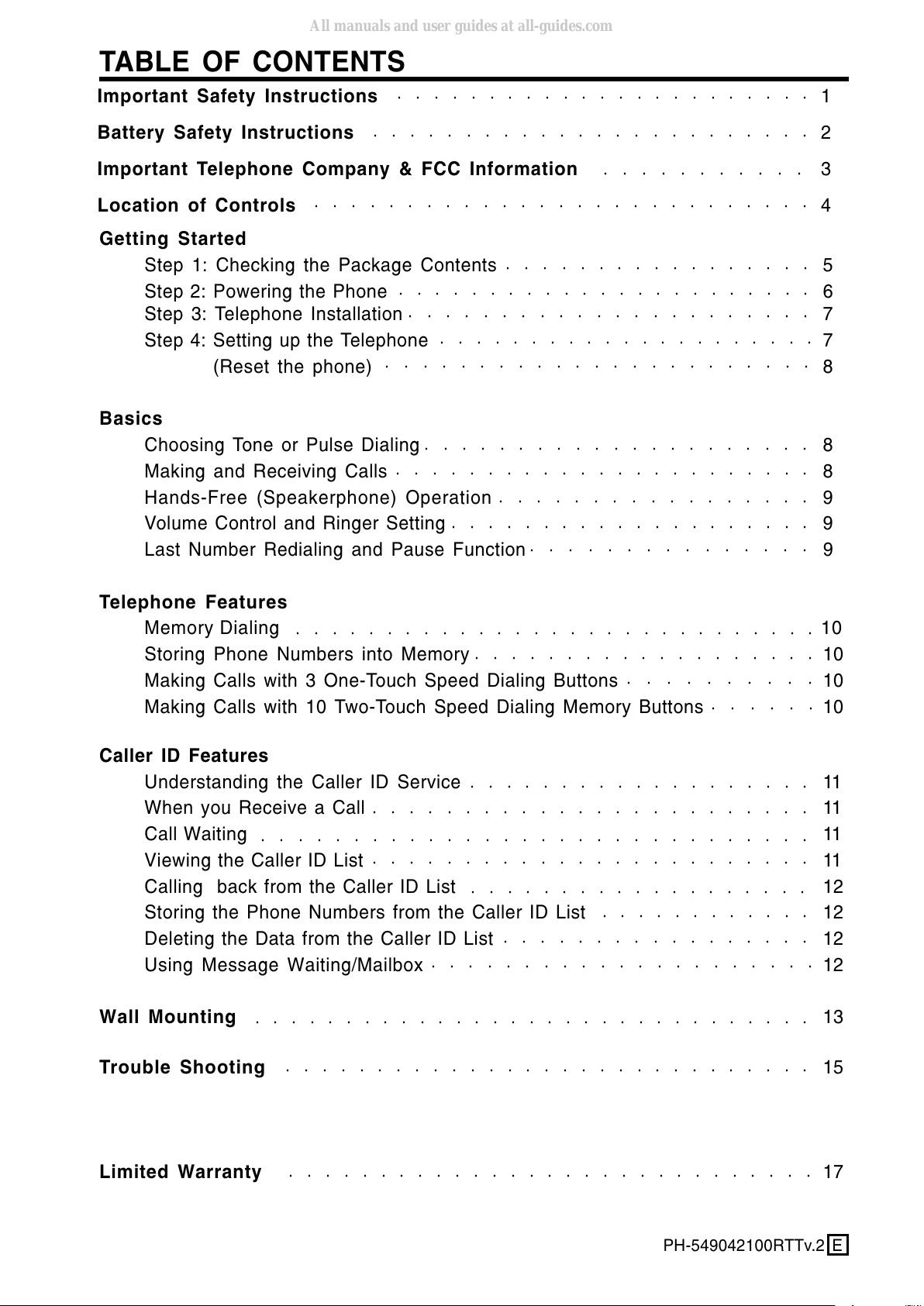

TABLE OF CONTENTS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○
○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○
Getting Started

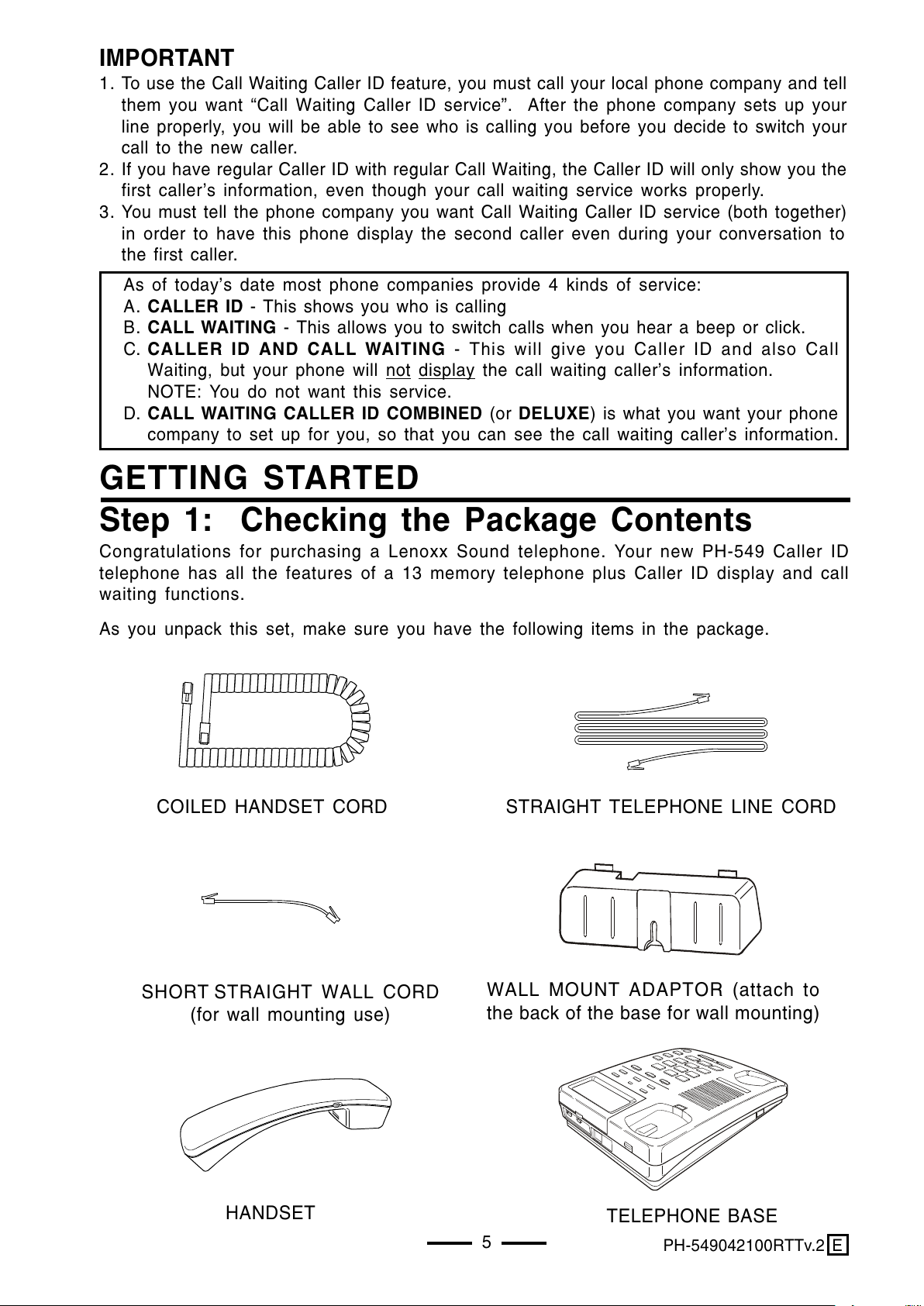

Step 1: Checking the Package Contents 5

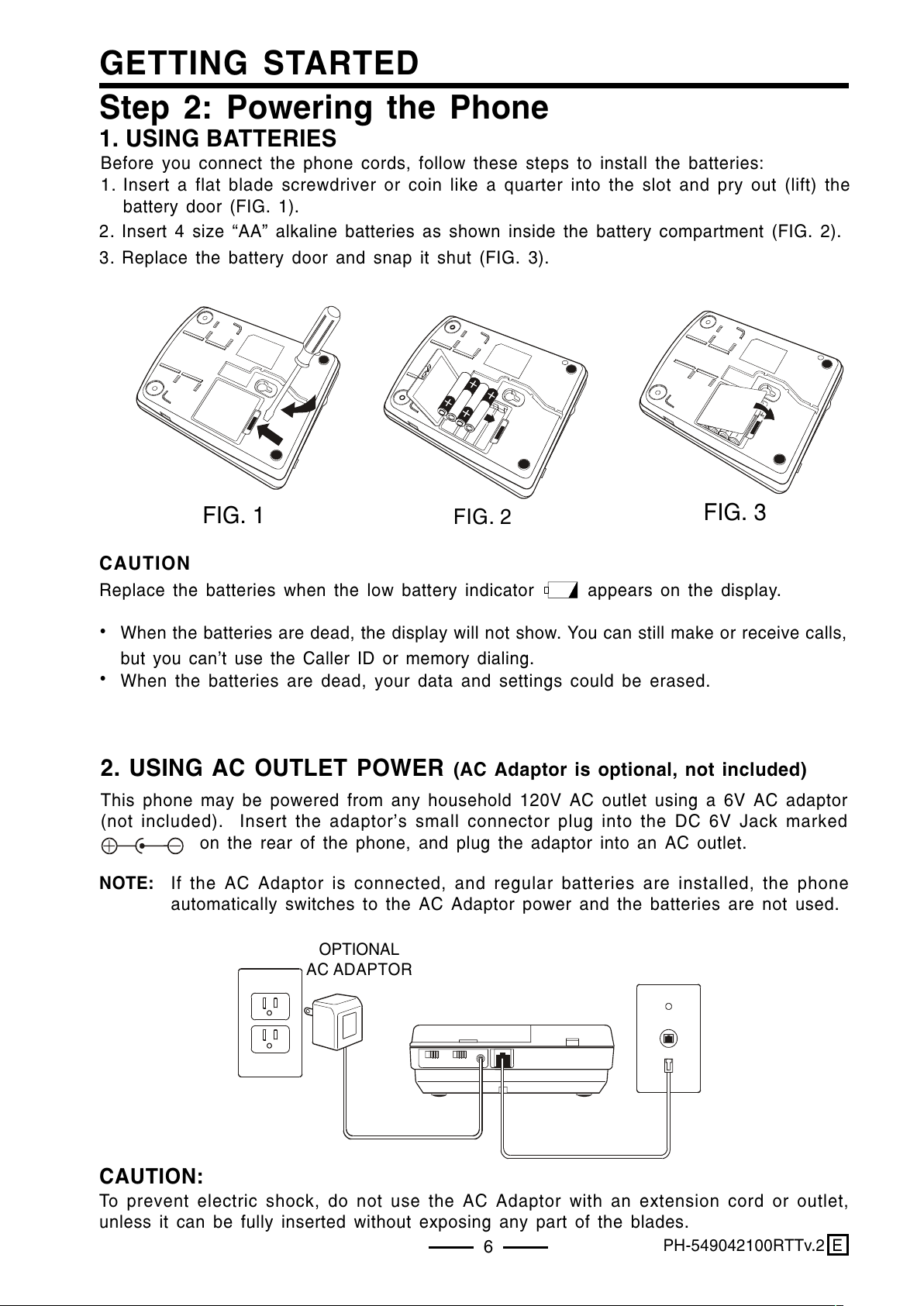

Step 2: Powering the Phone 6

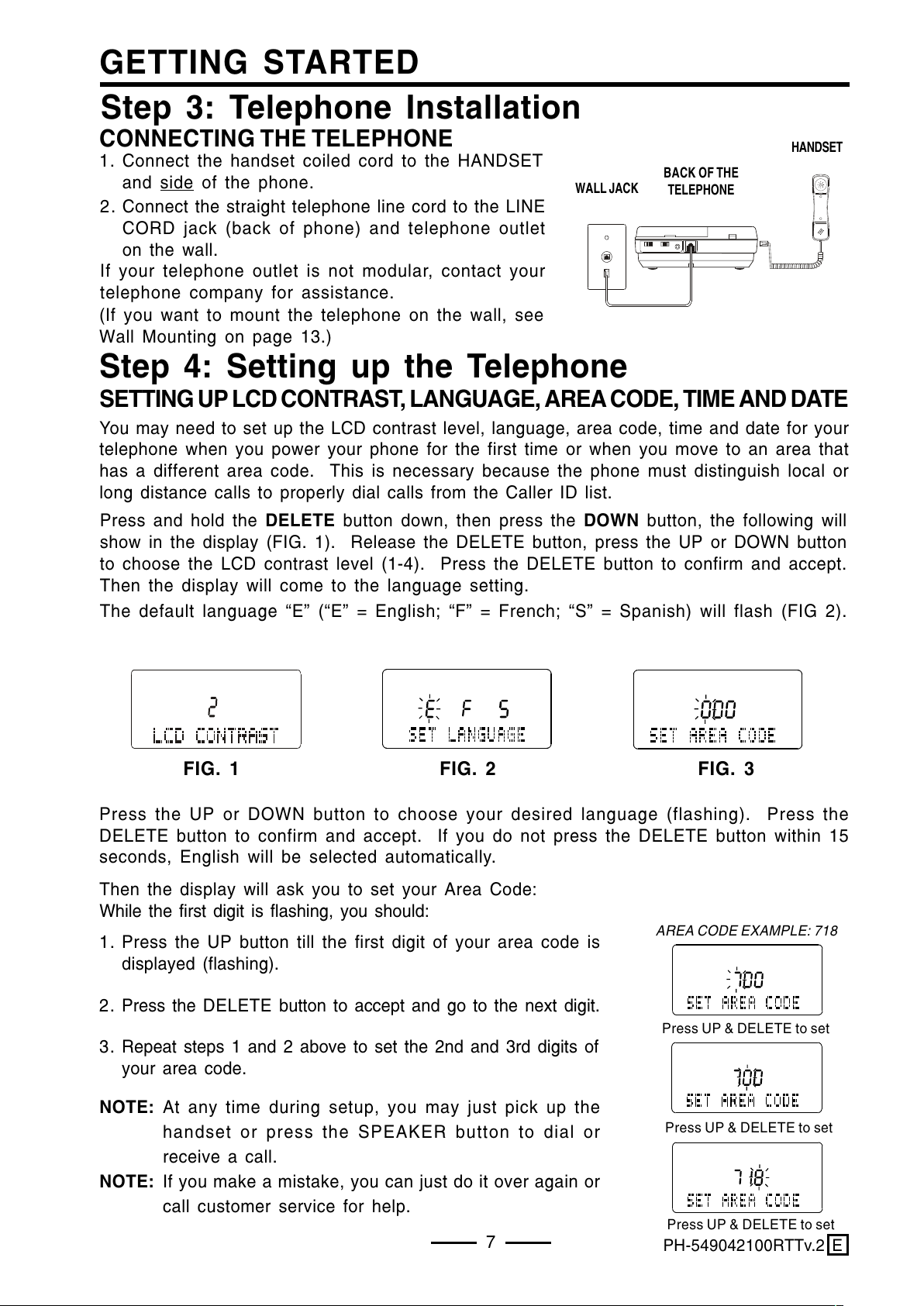

Step 3: Telephone Installation 7
Step : Setting up the Telephone 7
(Reset the phone) 8
Basics
Choosing Tone or Pulse Dialing 8
Making and Receiving Calls 8

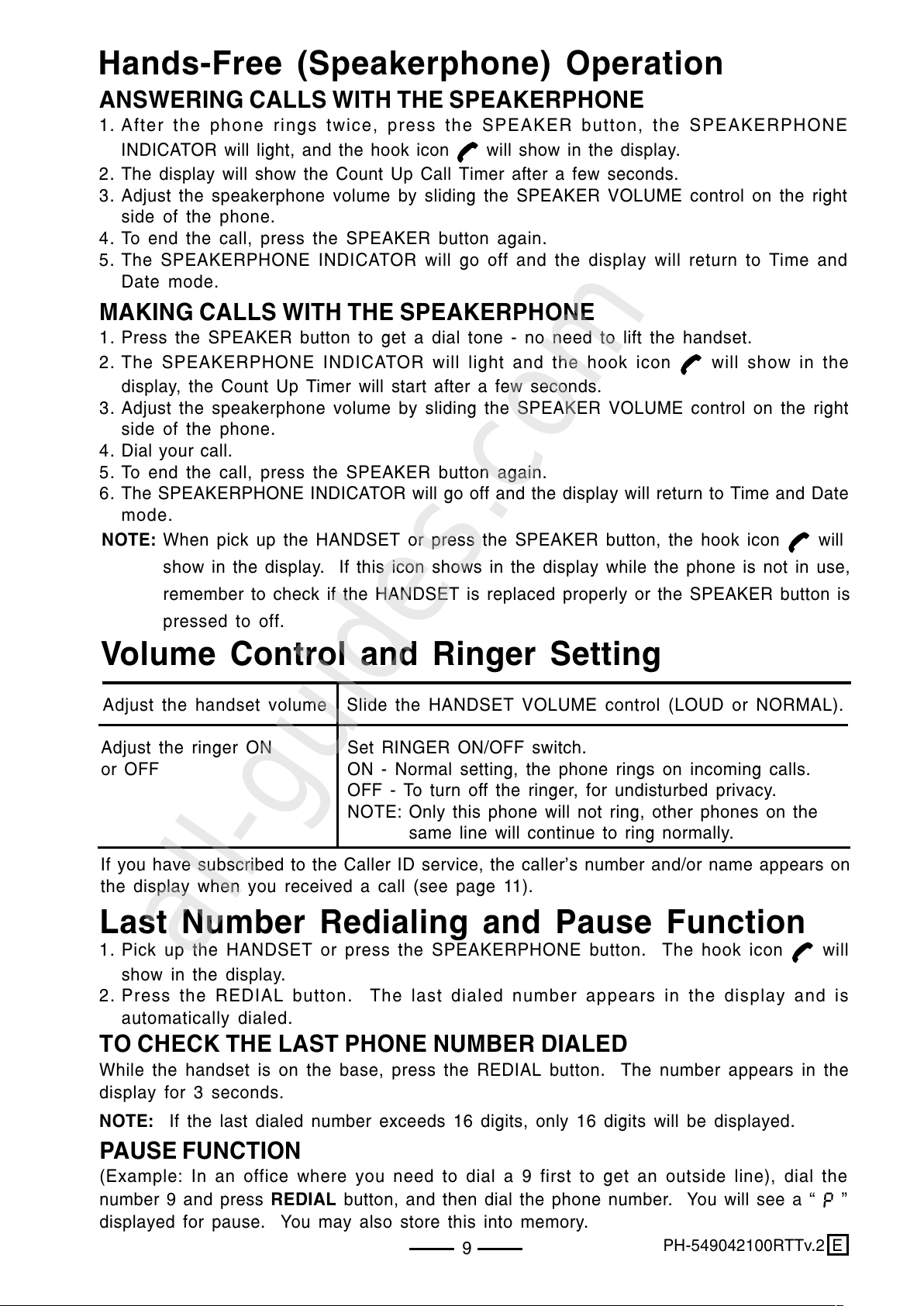

Hands-Free (Speakerphone) Operation 9
Volume Control and Ringer Setting 9
Last Number Redialing and Pause Function 9
Telephone Features
Memory Dialing 10
Storing Phone Numbers into Memory 10
Making Calls with 3 One-Touch Speed Dialing Buttons 10
Making Calls with 10 Two-Touch Speed Dialing Memory Buttons 10
Caller ID Features

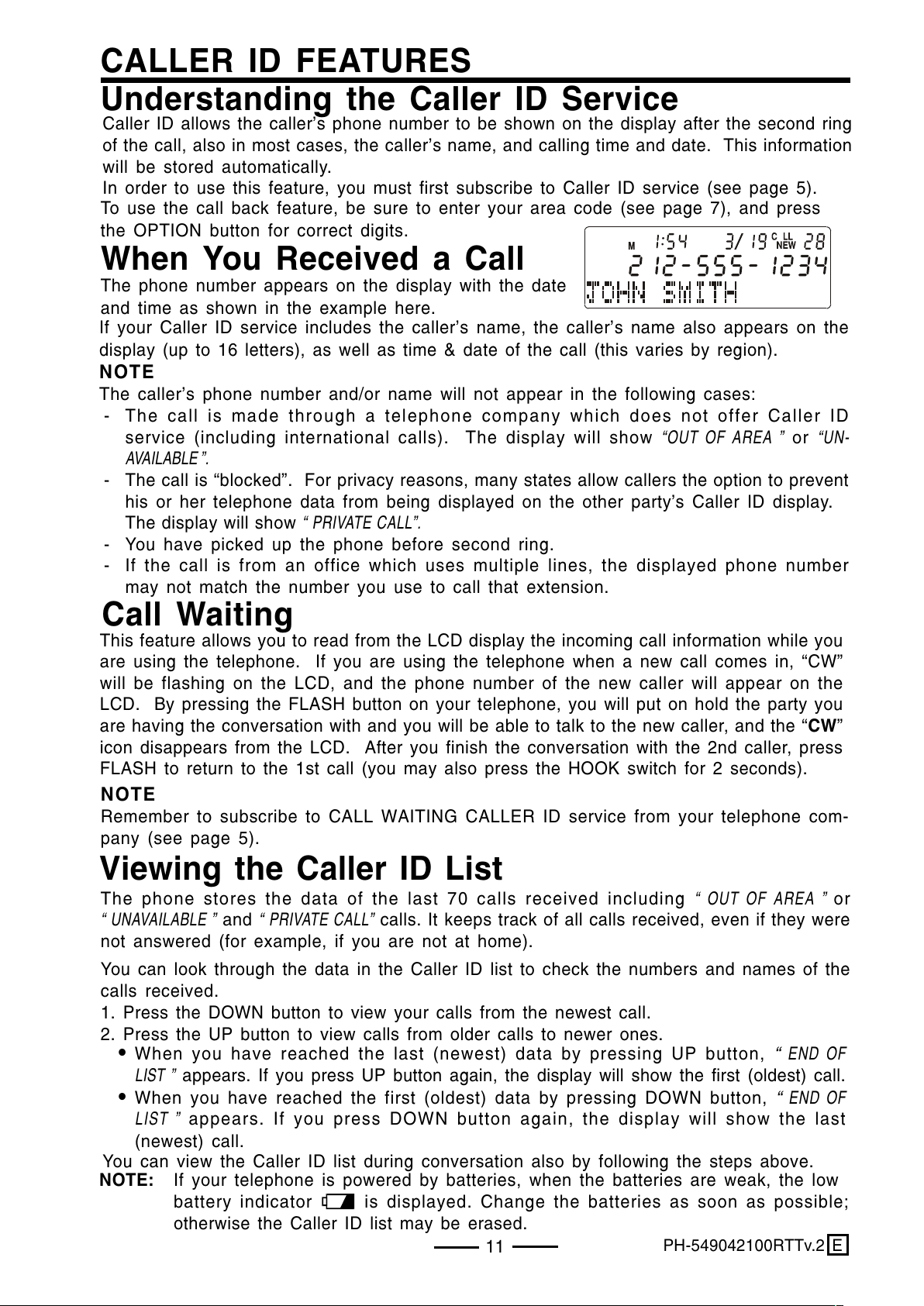

Understanding the Caller ID Service 11
When you Receive a Call 11
Call Waiting 11
Viewing the Caller ID List 11

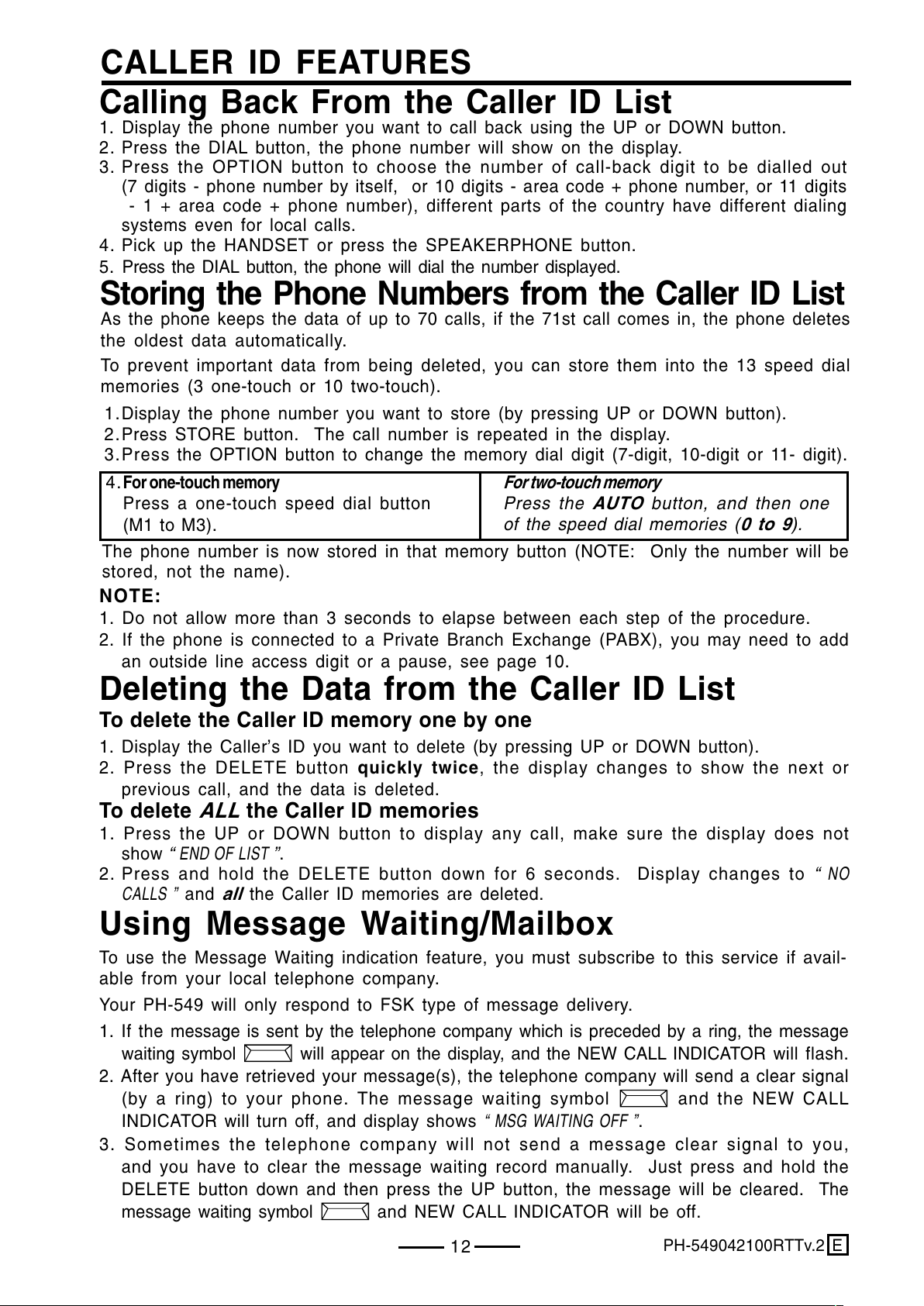

Calling back from the Caller ID List 12
Storing the Phone Numbers from the Caller ID List 12
Deleting the Data from the Caller ID List 12
Using Message Waiting/Mailbox 12

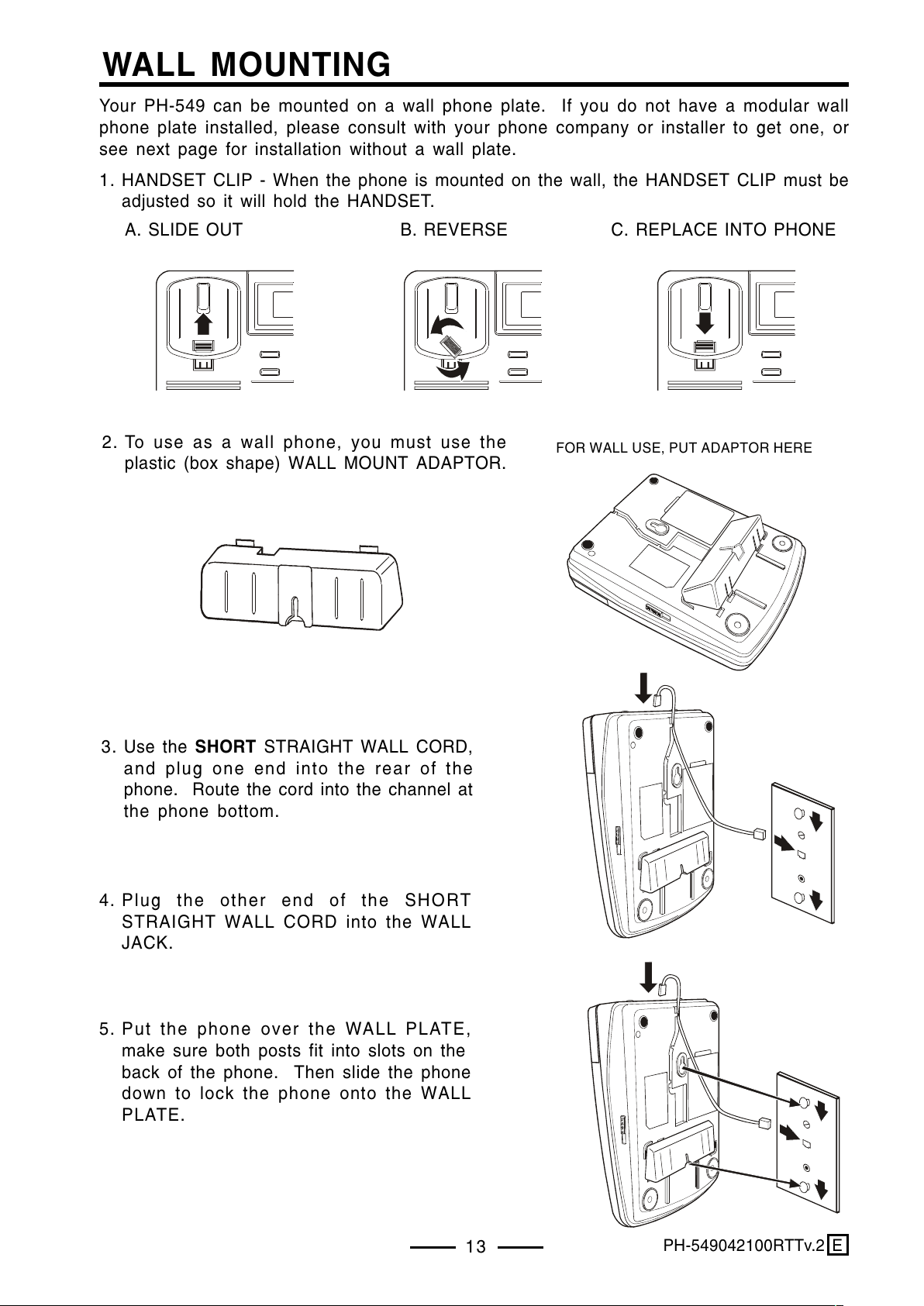

Wall Mounting 13

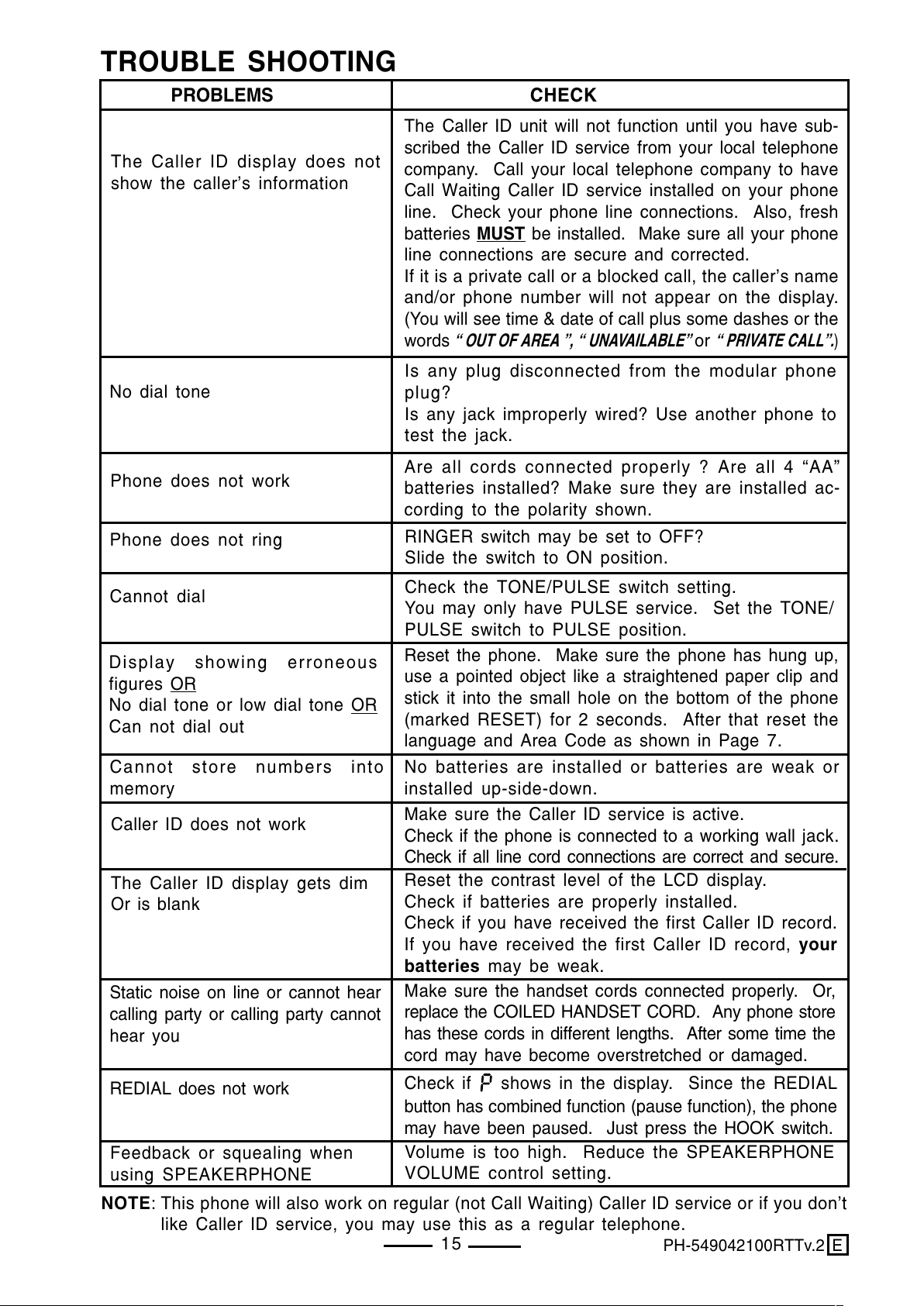

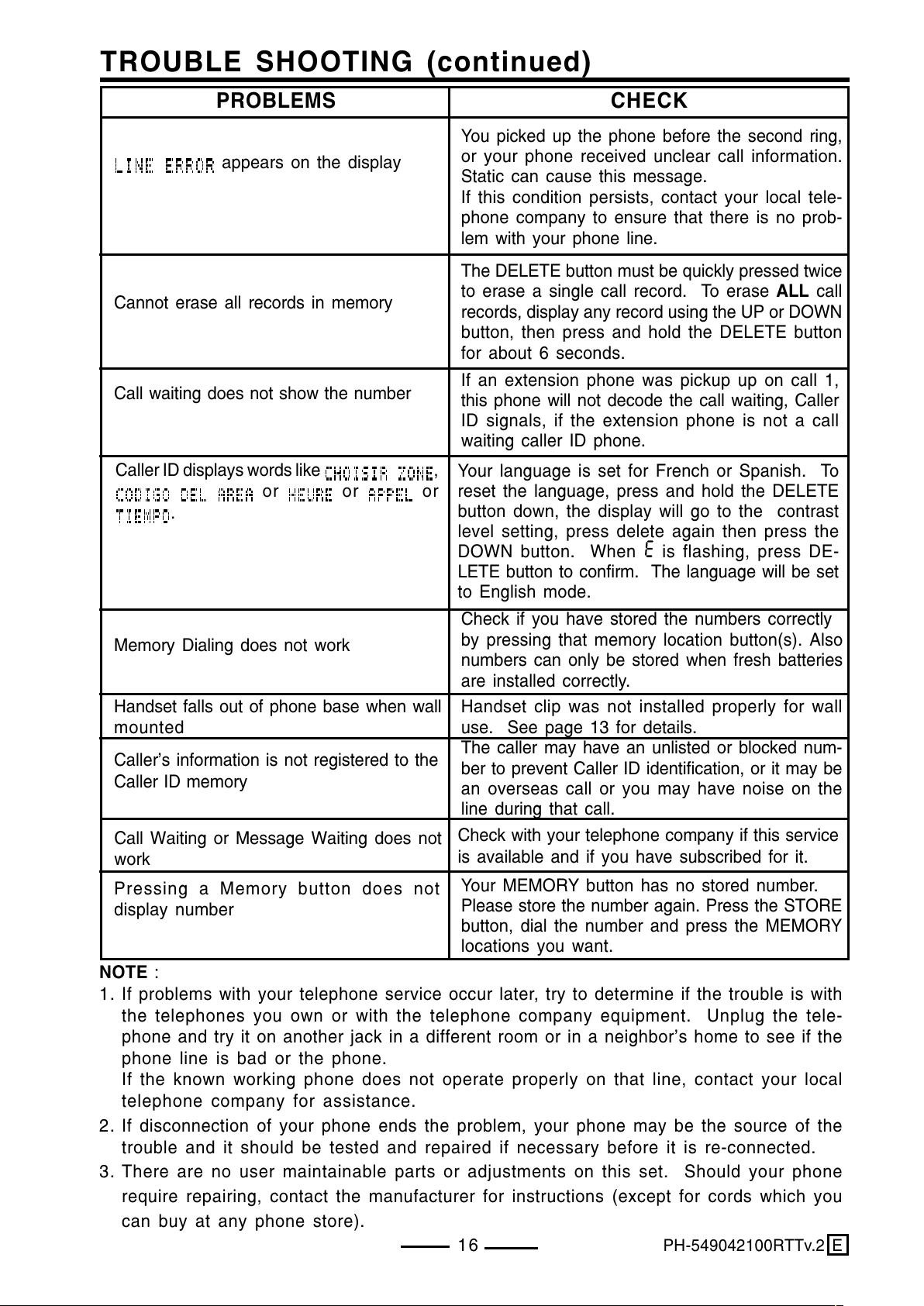

Trouble Shooting 15

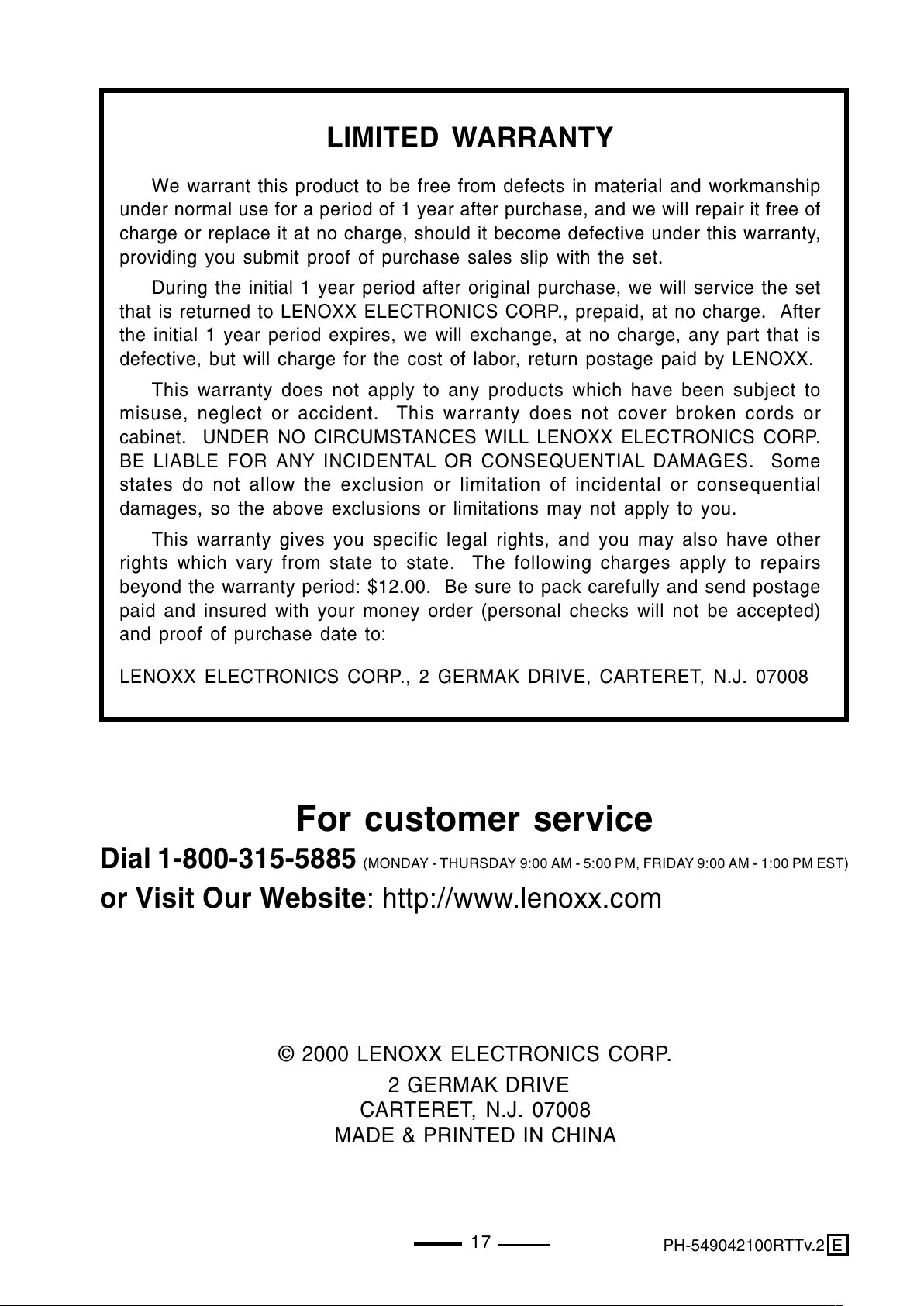

Limited Warrant 17
○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○
PH-5 90 2100RTTv.2 E
All manuals and user guides at all-guides.com

IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed
to reduce the risk of fire, electric shock and personal injury, including the following:
1. Read and follow all instructions and warnings.
2. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a slightly dampened cloth only.
3. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool.
. Do not place this product on an unstable cart, stand or table. The product may fall,
causing serious damage to the phone.
5. Slots and openings in back or bottom of the phone are for ventilation, and should not
be blocked or covered. The openings should never be blocked by placing the product
on the bed, sofa, rug, or other similar surface. This product should never be placed near
or over a radiator, heat register or a built-in installation such as a bookcase or cabinet
unless proper ventilation is provided.
6. Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in risk of fire or
electric shock. Never spill liquid of any kind on the product.
7. To reduce the risk of electric shock, do not take this telephone apart. When service or
repair work is required, take it to a qualified service representative, Opening or
removing covers may expose you to dangerous voltage or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
8. Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
A. When the cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions because
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
9. Avoid using a telephone (other than a cordless type) during an electrical storm. There
may be a remote risk of electric shock from lightning.
10. Do not use the telephone to report a gas leak in the vicinity of the leak.
11. Do not allow anything to rest on the telephone cord. Do not locate this product where
the cord will be damaged by persons walking on it.
12. Never install telephone wiring during a lightning storm.
13. Never install telephone jacks in wet locations unless the jack is specially designed for
wet locations.
1 . Never touch uninsulated telephone wires or terminals, unless the telephone line has
been disconnected at the network interface.
15. Be careful when installing or modifying telephone lines.
SAVE THESE INSTRUCTIONS
For customer service
Dial 1-800-315-5885 (MONDAY - THURSDAY 9:00 AM - 5:00 PM, FRIDAY 9:00 AM - 1:00 PM EST)
or Visit Our Website: http://www.lenoxx.com
1PH-5 90 2100RTTv.2 E
All manuals and user guides at all-guides.com

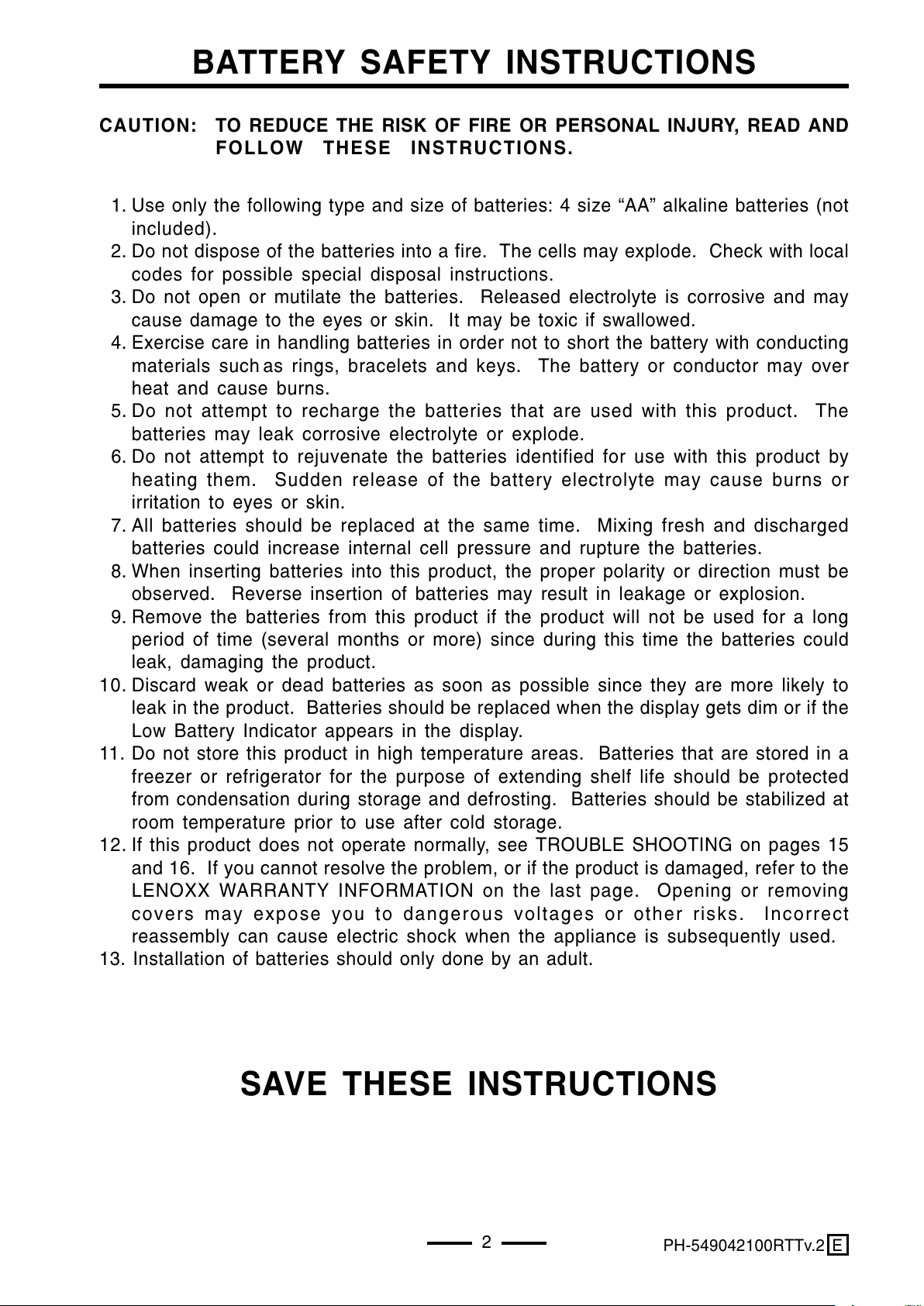

BATTERY SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY, READ AND
FOLLOW THESE INSTRUCTIONS.
1. Use only the following type and size of batteries: size AA alkaline batteries (not
included).
2. Do not dispose of the batteries into a fire. The cells may explode. Check with local
codes for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
. Exercise care in handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may over
heat and cause burns.
5. Do not attempt to recharge the batteries that are used with this product. The
batteries may leak corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries identified for use with this product by
heating them. Sudden release of the battery electrolyte may cause burns or
irritation to eyes or skin.
7. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the batteries.
8. When inserting batteries into this product, the proper polarity or direction must be
observed. Reverse insertion of batteries may result in leakage or explosion.
9. Remove the batteries from this product if the product will not be used for a long
period of time (several months or more) since during this time the batteries could
leak, damaging the product.
10. Discard weak or dead batteries as soon as possible since they are more likely to
leak in the product. Batteries should be replaced when the display gets dim or if the
Low Battery Indicator appears in the display.
11. Do not store this product in high temperature areas. Batteries that are stored in a
freezer or refrigerator for the purpose of extending shelf life should be protected
from condensation during storage and defrosting. Batteries should be stabilized at
room temperature prior to use after cold storage.
12. If this product does not operate normally, see TROUBLE SHOOTING on pages 15
and 16. If you cannot resolve the problem, or if the product is damaged, refer to the
LENOXX WARRANTY INFORMATION on the last page. Opening or removing
covers may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
13. Installation of batteries should only done by an adult.
SAVE THESE INSTRUCTIONS
2PH-5 90 2100RTTv.2 E
All manuals and user guides at all-guides.com

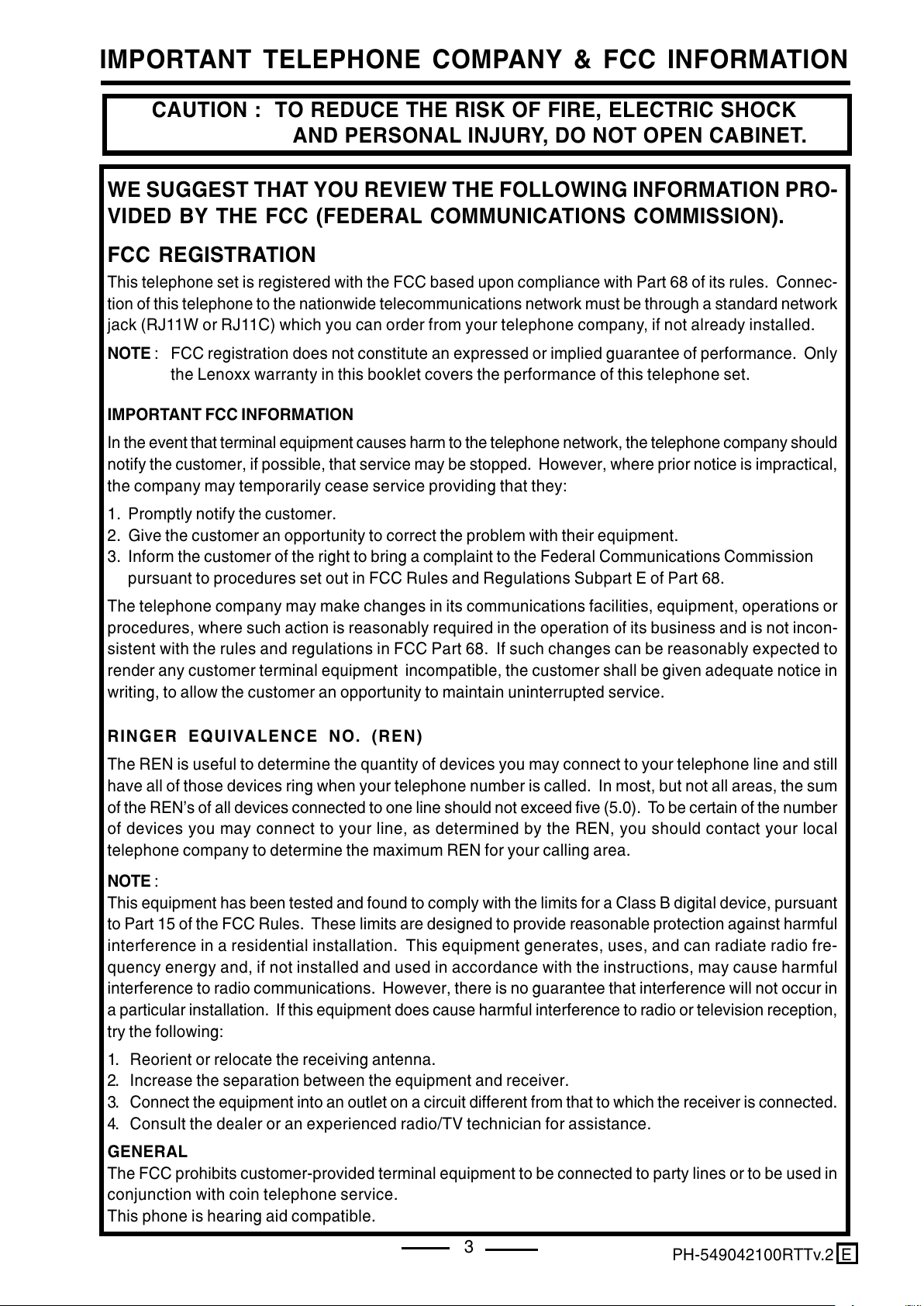

IMPORTANT TELEPHONE COMPANY & FCC INFORMATION
CAUTION : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND PERSONAL INJURY, DO NOT OPEN CABINET.
WE SUGGEST THAT YOU REVIEW THE FOLLOWING INFORMATION PRO-
VIDED BY THE FCC (FEDERAL COMMUNICATIONS COMMISSION).
IMPORTANT FCC INFORMATION
In the event that terminal equipment causes harm to the telephone network, the telephone company should
notify the customer, if possible, that service may be stopped. However, where prior notice is impractical,
the company may temporarily cease service providing that they:
1. Promptly notify the customer.
2. Give the customer an opportunity to correct the problem with their equipment.
3. Inform the customer of the right to bring a complaint to the Federal Communications Commission
pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68.
The telephone company may make changes in its communications facilities, equipment, operations or
procedures, where such action is reasonably required in the operation of its business and is not incon-
sistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to
render any customer terminal equipment incompatible, the customer shall be given adequate notice in
writing, to allow the customer an opportunity to maintain uninterrupted service.
RINGER EQUIVALENCE NO. (REN)
The REN is useful to determine the quantity of devices you may connect to your telephone line and still
have all of those devices ring when your telephone number is called. In most, but not all areas, the sum
of the RENs of all devices connected to one line should not exceed five (5.0). To be certain of the number
of devices you may connect to your line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your calling area.
NOTE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
try the following:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for assistance.
GENERAL
The FCC prohibits customer-provided terminal equipment to be connected to party lines or to be used in
conjunction with coin telephone service.
This phone is hearing aid compatible.
3
FCC REGISTRATION
This telephone set is registered with the FCC based upon compliance with Part 68 of its rules. Connec-
tion of this telephone to the nationwide telecommunications network must be through a standard network
jack (RJ11W or RJ11C) which you can order from your telephone company, if not already installed.
NOTE : FCC registration does not constitute an expressed or implied guarantee of performance. Only
the Lenoxx warranty in this booklet covers the performance of this telephone set.
PH-5 90 2100RTTv.2 E
