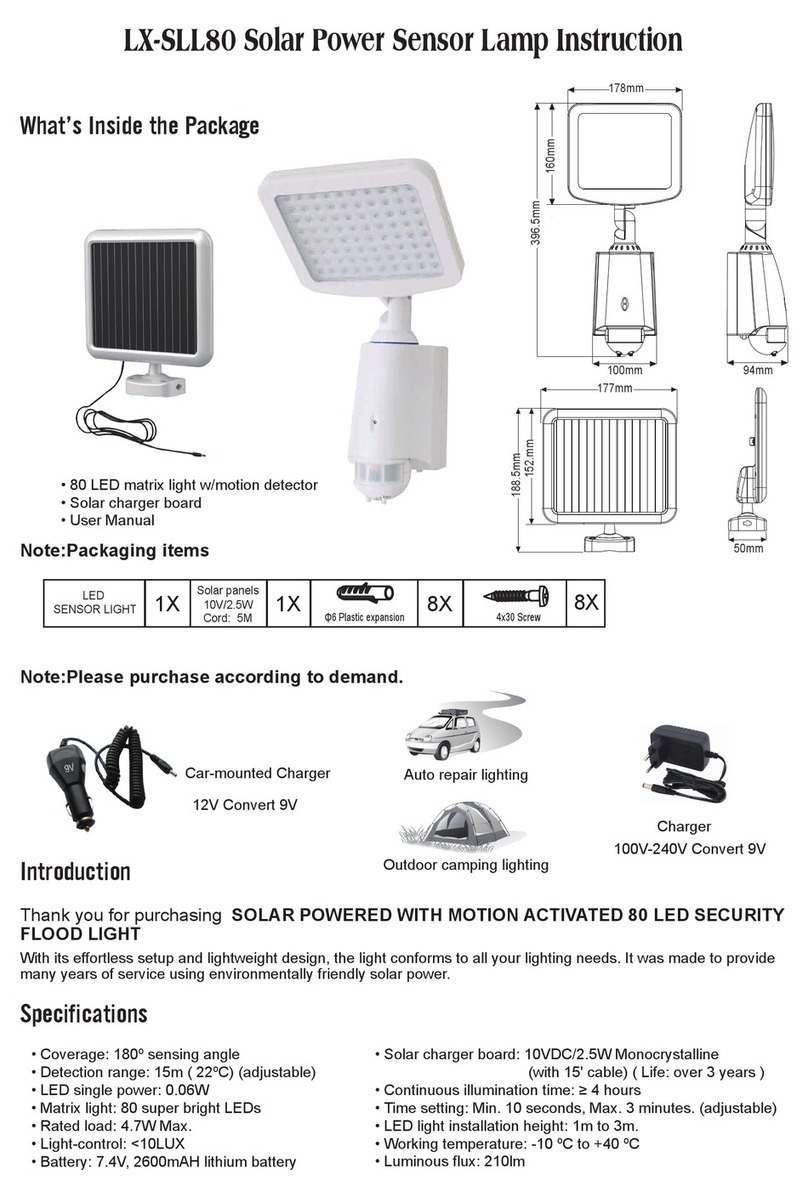

Lexing PD-SLL80 User manual

What’s Inside the Package
• 80 LED matrix light w/motion detector
• Solar charger board
• User Manual
Introduction
Thank you for purchasing SOLAR POWERED WITH MOTION ACTIVATED 80 LED
SECURITY FLOOD LIGHT
With its effortless setup and lightweight design, the light conforms to all your lighting needs. It was made to provide
many years of service using environmentally friendly solar power.
• Coverage: 180º sensing angle
• Detection range:15M ( 25ºC)
• LED single power: 0.06W
• Matrix light: 80 super bright LEDs
• Rated load: 4.7W Max.
• Light-control:<10LUX
• Battery: 7.4V 2000mAH lithium battery
• Solar charger board: 10VDC/2.5W Monocrystalline
(with 15' cable) ( Life: over 3 years )
• Continuous illumination time: ≥4 hours
• Time delay: Min. 10 seconds, Max. 3 min.
• LED light installation height: 1-3m
• Operation temp.: -10 ºC to +40 ºc
100V-240V Convert 9V
12V Convert 9V
Outdoor camping lighting
Charger
Car-mounted Charger
Note：Please according to demand a purchase.
Note：Packaging items
Auto repair lighting
8X1X1X 8X
Φ6 Expand screw 4x30 Screw
LED
SENSOR LIGHT
Solar panels
10V/2.5W
Cord: 5M
• luminous flux: 210lm
Solar Power Sensor Lamp
PD-SLL80 instruction
www.pdlux.com Tel: [phone](20 lines)
50mm
177mm
188.5mm
152mm
100mm 94mm
396.5mm
160mm
178mm
SPECIFICATIONS

Important Safety Information
• Do not dispose of battery in fire. This may result in an explosion.
• Do not expose the light to fire or intense heat as the battery may explode.
• Do not immerse in water.
• Never look directly into the light or shine it into another person’s eyes.
• Follow proper safety tips to prevent from falling off a ladder.
• Consult your local construction safety guide if needed for installing the light fixture on a building.
One Year Limited Warranty
Installation Guide
• This warranty does not apply to damage from misuse or incorrect installation/ connection.
• This warranty does not cover accessories, bulbs, batteries, accidents, alterations, unauthorized use or repair, neglect,
misuse, abuse, damages or defects resulting from normal wear and tear (including chips, fading scratches, abrasions
or discoloration due to usage or sun exposure), or failure to follow instructions for care and maintenance, fire, flood,
and Acts of God.
• This warranty does not include liability for incidental or consequential damages.
• The light fixture should be installed on a flat and stable surface.
• Avoid placing objects in front of the motion detector that may affect detecting performance.
• Avoid installing the light near an air conditioner, a central heater, or high voltage system.
• Avoid placing the motion detector head toward street traffic or other movements. This will result in a false trigger that
will prompt the light to illuminate excessively and drain the battery life.
• Motion detection is most sensitive to movement across the device and less sensitive to motion moving towards or away
from it (see pictures below).
• The solar charger board should be set in a sunny area where maximum sunlight can be collected. Typically, the solar
board should face a direction (south) where sunlight can charge the board for at least 3 hours per day (5 hours per
day if behind glass). It is suggested to charge the light for 24 hours before first use.
• Use a soft wet cloth to periodically (at least once a year) clean the charger board to avoid the reduction of power output
due to accumulated dust.
HIGH SENSITIVITY from motion activity coming across the detector.
+45°
-45°
Fluctuation Angle adjustment
LOW SENSITIVITY from motion activity coming towards the detector.
15°
Angle adjustment around
Solar Power Sensor Lamp
PD-SLL80 instruction
www.pdlux.com Tel: [phone](20 lines)

Quick Setup Procedure
Pencil Electric drill Hammer Screwdriver
Note:Please bring the following tools
Warning!
1. Please keep it away from the children.
2.This product can installed for outdoor, but we suggest
that against for the rain/storm & High lights.
Solar Power Sensor Lamp
PD-SLL80 instruction
www.pdlux.com Tel: [phone](20 lines)
SPECTROGRAM
SENSOR INFORMATION
Correct moving orientation Detection angle
15m 180°

44.5mm
26.5mm
6. Place solar board at a sunny location.5. Mount solar board with screws. Adjust the direction.
4. Slide the light into the mount, then screw in the bottom bolt.
66mm
60mm
95mm
1. Mark the wall where you wish to mount the light.
2. Drill all four holes.
Place the mount on the wall with nylon anchors ( if needed) and screws.
3. Please connect the battery according to diagram in the warning part of the instruction book,
and assemble the battery cover as it was.
Solar Power Sensor Lamp
PD-SLL80 instruction
www.pdlux.com Tel: [phone](20 lines)

9. Insert the wire plug from the solar board into the
bottom of the light.
Make sure the wire plug is completely connected.
8. Adjust the direction of light head.
7. Adjust the motion detector direction.
+45°
-45°
15°
It can be set at the range of 8second (counterclockwise rotation to the end) to
3minute(clockwise rotation to the end) .The timer will recount when the sensor detect a
moving signal before the end of the last time, so we advise that you’d better set the time
to minimum when you make the detection range testing or the walking testing.
Note: The sensor need to wait 1secend to re-work after the light going off. Only after the
end of the time, the light will lighten again when detecting the signal.
-100°
+30°
This range refers to the radii of the circular region that appears on the ground when the
light is installed in the 2.5 m height. A minimum detection range (nearly 4 m in radii)
rotating a counterclockwise rotation to the end. A maximum detection range (nearly 15 m
in radii) rotating a clockwise rotation to the end.
+90°
-90°
1. Battery Installation
2. Testing Mode:
Solar LED light, battery voltage 7.4V, 2000MA / H, sensing angle> 150 º, in full lit, continuous working time≥ 4 hours.
Before testing, remove the screws in the back, then remove the back cover; connect the battery (2000MA) with the power
connectors, the system will be started and the red LED indicate light on; the indication LED light will be off after the system
warming up.
I
Solar Power Sensor Lamp
PD-SLL80 instruction
www.pdlux.com Tel: [phone](20 lines)
OPERATIONAL GUIDE
ATTENTION:When use this product, please adjust the sensitivity to an appropriate position you
need, please do not adjust the sensitivity to maximum, to avoid the product does not work normally
caused by wrong motion.Because the sensitivity is too high easily detect the wrong motion by wind
blowing leaves & curtains, small animals, and the wrong motion by interference of power grid &
electrical equipment. All those lead the product does not work normally !
When the product does not work normally, please try to lower the sensitivity appropriately, and then
test it.
Solutions of prevent the power network pulse interference the products:
Due to the difference of regional interference power network, the pulse of interference is
uncertain,so the user are not suggested to adjust the sensitive to the maxium when
using.Suggestion:Please install and adjust the sensitive in the appropriate distance using,do
not set the maxium sensitivity to prevent misoperation.

5. “ON” Statues
6. Oki Management
All the lights will be on under the system has been set at “ON”.
Electrical current：500~600MA
When the power is lower than <6.4V, the system Turn OFF
When the battery is lower than 6.6V, the LED indication light will be blinking every 30secs for a period of 8 hours ,after
8 hours ,the voltage is not complete to sustain the work.
When the power is lower than <6.2V, the system will enter into the“power shut off ”mode.Current<25UA
Impulse voltage is 9V, the maximum electric current is 650MA.
When connected to an external power adapter, LED indicator light will flash once.
Warning!
1.When leaving factory,the battery is disconnected. Please connect the battery when using the product.
2.When don’t use the product or conserve the product for a long time,Please disconnect the battery.
Remove the installation base
Twist off two screws on the battery cover, and then remove the cover.
Connect/disconnect the battery connector.
Solar Power Sensor Lamp
PD-SLL80 instruction
www.pdlux.com Tel: [phone](20 lines)
3. “OFF” Statues
4. “AUTO” Statues
The system will be in “power fail safeguard” model. No motion detecting function. Consumes ＜25UA.
The system will accept the manual adjustment for “Delay Time” and “Sensi Tivity”.
“Delay time” can be adjusted from 10 seconds to 3 minutes.
“Sensi Tivity” can be adjusted to 15m(25°C)
The brightness of the LED lights: outside ＜10 LUX
When the external ambient light values > 200LUX, the system will shut off PIR sensor;
Power consume: ＜3 MA
Electrical current:570~660 MA (when all the lights are fully on)
When the power is lower than <6.4V, the system Turn OFF
When the battery is lower than 6.6V, the LED indication light will be blinking every 30secs for a period of 8 hours ,after
8 hours ,the voltage is not complete to sustain the work.
When the power is lower than <6.2V, the system will enter into the“power shut off ”mode,Current<25UA

Please confirm with profession installation.
Please cut off power supply before installation and removal operations.
Make sure that you have cut off the power for safety purposes.
Improper operation caused losses, the manufacturer does not undertake any responsibility.
3.The LEDS in serial can function when all the seals installed in place.
4.Please don’t remove or connect with other lamp when powered on.
5.When the LEDS in serial are damaged ,you need experienced technician to repair using
the same rating LEDS.
