LG THERMAV AHNW16606B0 User manual

www.lg.com
Air-to-Water Heat Pump
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
INSTALLATION MANUAL
AIR
CONDITIONER
P/NO : MFL69676201
ENGLISH ITALIANO
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 1

Air-to-Water Heat Pump Installation Manual
TABLE OF CONTENTS
IMPORTANT INFORMATION...............................................................................................3
SYMBOLS.....................................................................................................................................3
GENERAL .....................................................................................................................................3
SAFETY WARNINGS AND INSTRUCTIONS ...............................................................................4
OBLIGATIONS OF THE MANUFACTURER .................................................................................7
OBLIGATIONS OF THE INSTALLER DURING INSTALLATION ..................................................7
OBLIGATIONS OF THE USER .....................................................................................................7
INSTALLATION PART .........................................................................................................8
GENERAL INFORMATION ..................................................................................................9

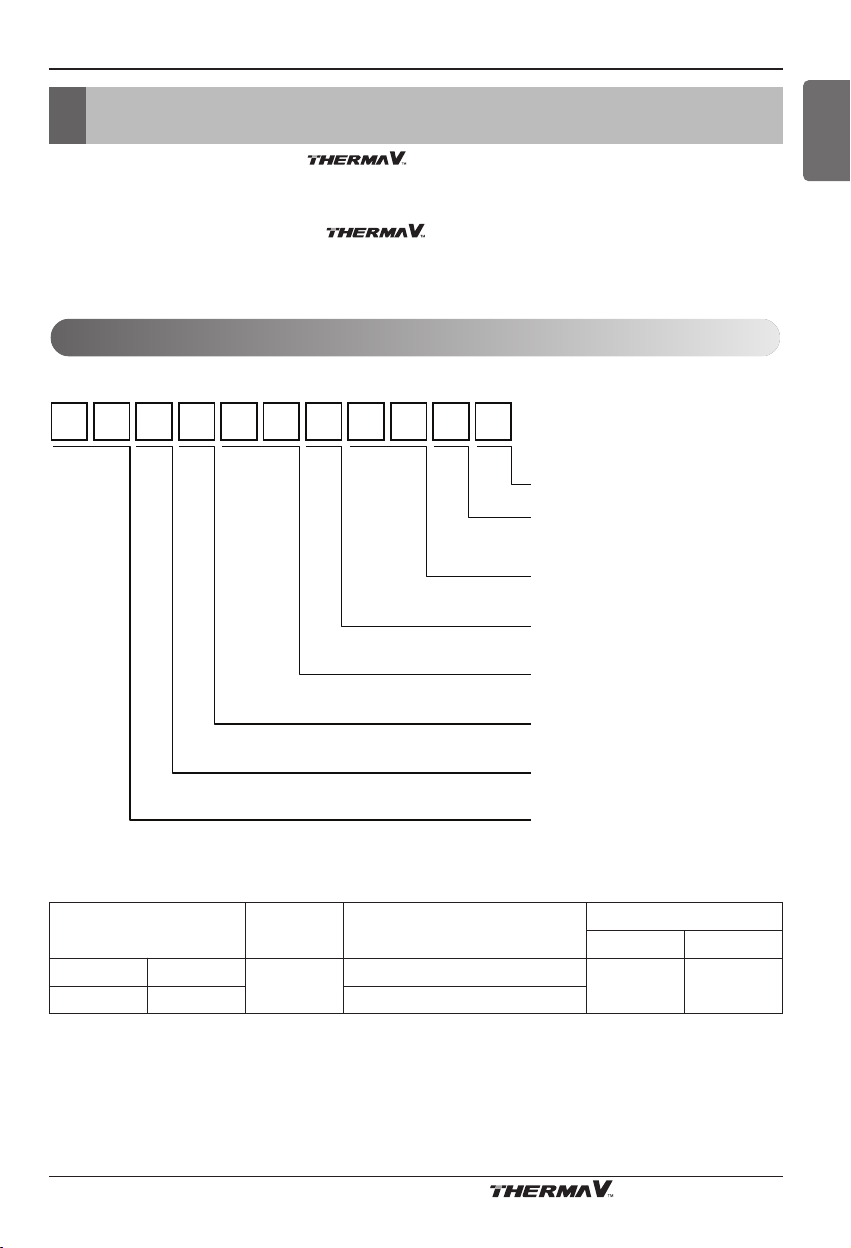

MODEL INFORMATION................................................................................................................9

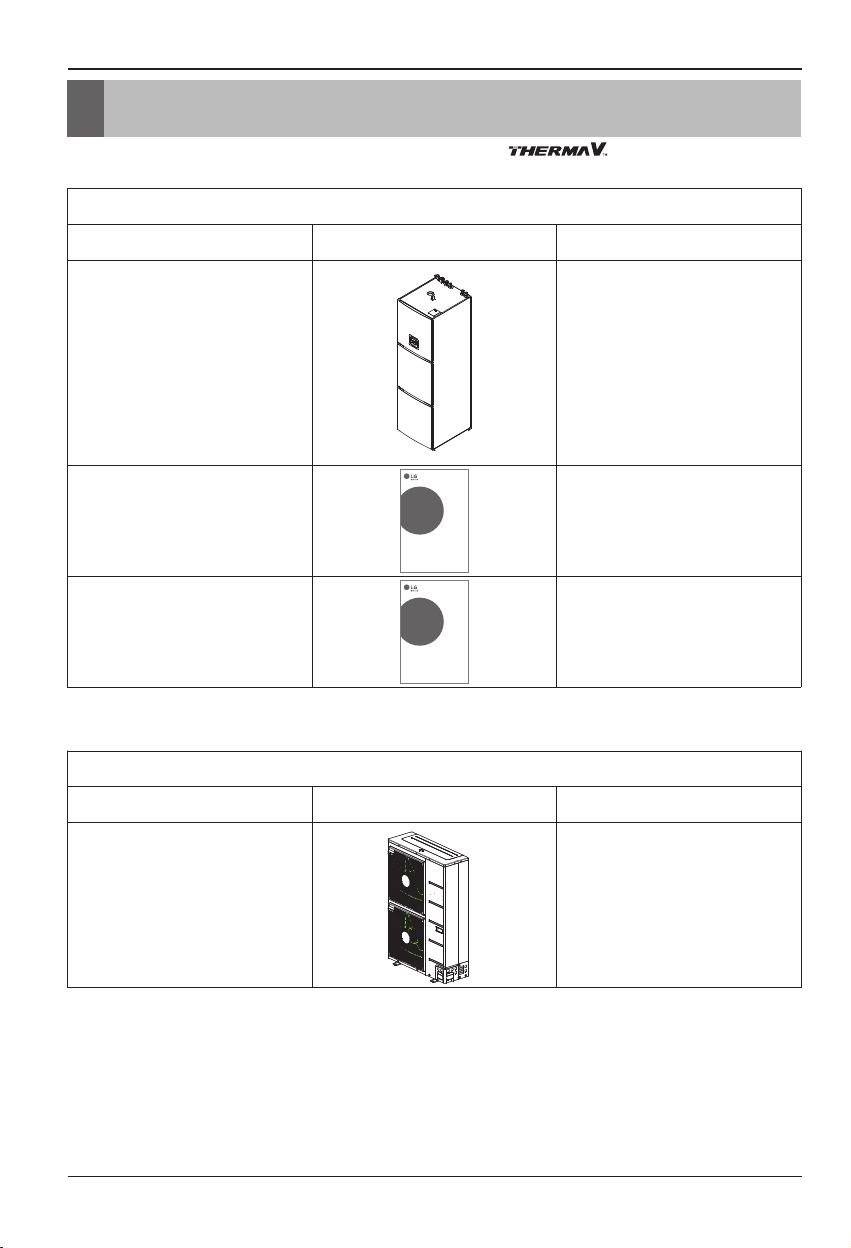

PARTS AND DIMENSIONS ........................................................................................................10
INSTALLATION OF OUTDOOR UNIT ...............................................................................12
CONDITIONS WHERE OUTDOOR UNIT IS INSTALLED..........................................................12

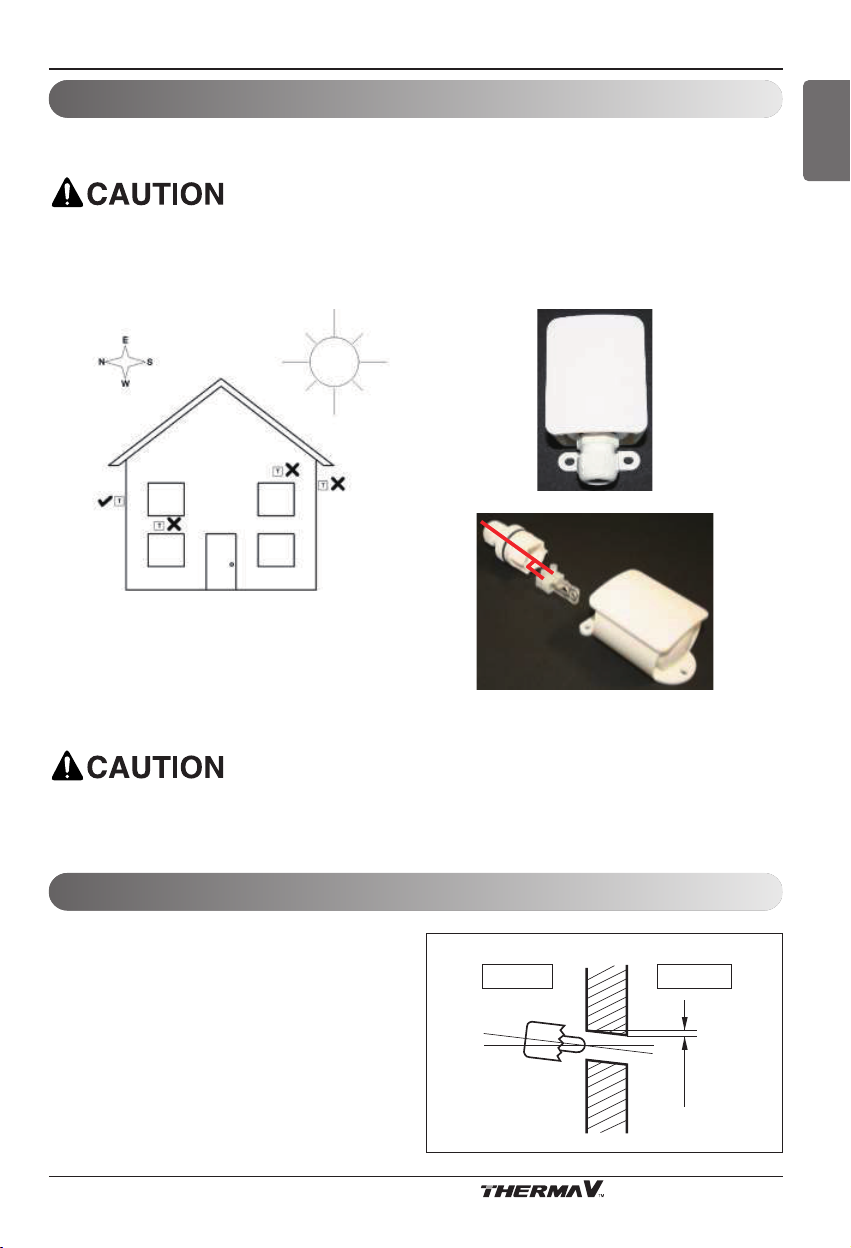

SET UP AND CONNECTION OF THE EXTERNAL SENSOR....................................................13
DRILL A HOLE IN THE WALL .....................................................................................................13

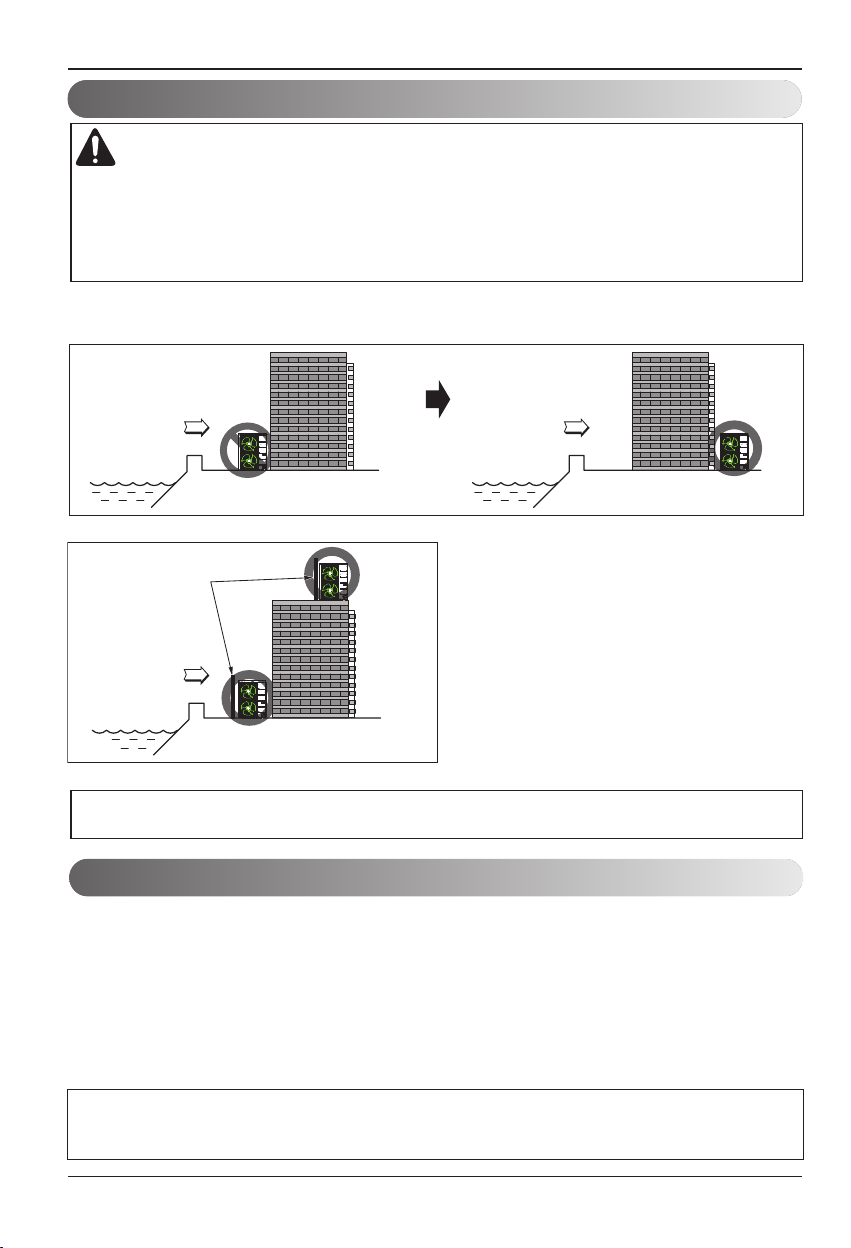

INSTALLATION AT SEASIDE......................................................................................................14
SEASONAL WIND AND CAUTIONS IN WINTER.......................................................................14
INSTALLATION OF INDOOR UNIT ...................................................................................15
GENERAL ...................................................................................................................................15
LOCATION OF THE DEVICE......................................................................................................16
CONNECTION WITH THE OUTDOOR UNIT.............................................................................18
HYDRAULIC CONNECTION ......................................................................................................22
ELECTRICAL CONNECTION .....................................................................................................31
CONNECTION OF THE SPATIAL CORRECTOR KT-1 AND KT-2 (ACCESSORIES)................44
REFRIGERANT PIPING .............................................................................................................46
PIPING AND WIRING FOR OUTDOOR UNIT ...................................................................46
ELECTRICAL WIRING................................................................................................................50
FINALIZING ................................................................................................................................55
LEAKAGE TEST AND EVACUATION .........................................................................................56
SYSTEM SET-UP ...............................................................................................................58
DIP SWITCH SETTING...............................................................................................................58
CHECK POINTS, MAINTENANCE AND TROUBLESHOOTING......................................59
CHECK LIST BEFORE STARTING OPERATION.......................................................................59
CARE AND MAINTENANCE.......................................................................................................60
TEST RUN ..................................................................................................................................62
LIMITING CONCENTRATION.....................................................................................................62
2Air-to-Water Heat Pump
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 2

Installation Manual 3
ENGLISH
The manual describes the process of installation and maintenance of the device. The installation and
maintenance can only be performed by qualified personnel. Read the manual carefully before the in-
stallation, this way you will be informed about the intended use, functionality and process of handling
the device.
• The manual has to be handed over to the end user after installation.
• In case the product is given for use to a third person, the manual has to be handed over to them as
well.
Definitions
• An informed person is a person who reads this manual.
• A qualified person has a certificate of expert qualifications.
• The authorized technician is trained and authorized by the manufacturer to perform maintenance
and servicing of the device.
• The user uses the device according to its use.
• The installer is a person professionally trained for performing hardware and/or electric installation
work and mounting of the device.
Incorrect use of the device can lead to damage to the device, property or injury to the user. To reduce
risk, the manual points out important information with the use of symbols.
These symbols mark various risks for the user or the device.
A notice holding important information regarding requirements of the manufacturer and the device.
Important information
Symbols
Important information
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 3

Important information
4Air-to-Water Heat Pump
• Read Owner’s manual and Installation manual before installation.
• Any remaking or replacement of original components of the device voids the manufacturer’s
guarantee for safe and functional operation. The manufacturer is not responsible for the conse-
quences and will not acknowledge claims for damages in these cases of undesignated and incor-
rect use of the device. The user is solely responsible for injuries and damages on the device
itself or on other objects resulting from undesignated and incorrect use of the device.
• The installation of the device has to be performed in accordance with the manual; otherwise the
manufacturer does not acknowledge the warranty.
• High pressure can cause to safety valve to leak water. Make sure the drainage pipe is open to at-
mospheric pressure.
• Failure to comply with the manual and good practice while connecting the device to the power
supply can lead to serious injury or death.
• Connecting the device to the power source can only be performed by a qualified installer.
• It is prohibited to move, shift, clean or service the device while in operation.
•
It is prohibited to play with the device. Children are not allowed to clean the device without supervision.
• The device can be operated independently only by informed persons who are familiar with the
safe operation of the device and understand possible hazards of its operation. Children older
than 8 and people with reduced physical and mental capacities and with lack of experience and
knowledge can only operate the device under the supervision of an informed person.
• Before installation and any further adjustments to the device it is necessary to consider the man-
ual for safe use and maintenance.
• The installation has to be performed in accordance with national regulations on electrical installa-
tions and with the instructions of the manufacturer. It has to be performed by a professionally
trained person.
• It has to be made sure that the device does not endanger anybody. Access to the device has to
be denied to children and persons who are not informed about the operation of the device.
• The device must never be cleaned with cleaning agents containing sand, soda, acid or chlorides
because these might damage the surface of the device.
• The device contains the refrigerant HFC which is classified as a greenhouse gas according to
the Kyoto protocol. This is why the installation and servicing of the device is only allowed to per-
sons authorized for working with the coolant as defined by the national legislation in force. While
performing works on the device it is necessary to prevent the leaking of the refrigerant into the
atmosphere.
• It is necessary to consider all technical data and instructions in this manual as well as all warn-
ings and notes during planning, design, installation and use of the device.
Safety warnings and instructions
General
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 4

Important information
Installation Manual 5
ENGLISH
• Electrical installations have to be inspected in accordance with regulations on the requirements
for low voltage electrical installations in buildings by a qualified installer.
• Connecting the devices power cable must be performed by a qualified electrician. The device
must not be live during the procedure.
• In case the power cable of the device is damaged, it has to be replaced. The replacement can
only be performed by the manufacturer and authorized maintenance worker.
• Before opening the device disconnect all electrical circuits and make sure the device is not under
voltage.
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service
Center.
• Always ground the unit.
• Install the panel and the cover of control box securely.
• Always install a dedicated circuit and breaker.
• Use the correctly rated breaker or fuse.
• Do not modify or extend the power cable.
• Do not install, remove, or reinstall the unit by yourself (customer).
• For antifreeze, always contact the dealer or an authorized service center.
• For installation, always contact the dealer or an Authorized Service Center.
• Do not install the unit on a defective installation stand.
• Be sure the installation area does not deteriorate with age.
• Do not install the water pipe system as Open loop type.
• Use a vacuum pump or inert (nitrogen) gas when doing leakage test or purging air. Do not com-
press air or oxygen and do not use flammable gases.
• Make sure the connected condition of connector in product after maintenance.
• Do not touch leaked refrigerant directly.
• Take care to ensure that power cable could not be pulled out or damaged during operation.
• Do not place anything on the power cable.
• Do not plug or unplug the power supply plug during operation.
• Do not touch (operate) the unit with wet hands.
• Do not place a heater or other appliances near the power cable.
• Do not allow water to run into electric parts.
• Do not store or use flammable gas or combustibles near the unit.
• Do not use the unit in a tightly closed space for a long time.
• When flammable gas leaks, turn off the gas and open a window for ventilation before turning the
unit on.
• If strange sounds, or small or smoke comes from unit, turn the breaker off or disconnect the
power supply cable.
• Stop operation and close the window in storm or hurricane. If possible, remove the unit from the
window before the hurricane arrives.
• Do not open the front cover of the unit while operation. (Do not touch the electrostatic filter, if the
unit is so equipped.)
• Do not touch any electric part with wet hands. you should be power off before touching electric
part.
• Do not touch refrigerant pipe and water pipe or any internal parts while the unit is operating or
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 5

6Air-to-Water Heat Pump
immediately after operation.
• If you touch the pipe or internal parts, you should be wear protection or wait time to return to nor-
mal temperature.
• Turn the main power on 6 hours ago before the product starting operation.
• Do not touch electric parts for 10 minutes after main power off.
• The inside heater of product may operate during stop mode. It is intended to protect the product.
• Be careful that some part of the control box are hot.
• When the unit is soaked (flooded or submerged), contact an Authorized Service Center.
• Be cautious that water could not be poured to the unit directly.
• Ventilate the unit from time to time when operating it together with a stove, etc.
• Turn the main power off when cleaning or maintaining the unit.
• Take care to ensure that nobody could step on or fall onto the unit.
• For installation, always contact the dealer or an Authorized Service Center.
• If the unit is not used for long time, we strongly recommend not to switch off the power supply to
the unit.
• Putting any kinds of items on or next to the device is prohibited.
• The device must not be placed in a room where it cannot be removed. Later walling or setting up
of other obstacles next to the device is forbidden.
• For the correct operation of the device, the electrical distributor has to provide electricity of ade-
quate quality (SIST EN 50160). In normal conditions this is within ± 10 % of the rated voltage.
The data about the state of the electrical grid have to be acquired from the electrical distributor.
• Connecting the device to the electric grid has to be performed in accordance with the standards.
The device has to be connected to the electric grid via the power supply cut-off which is installed
into the electrical installation under the regulations in force. The power supply cut-off has to sep-
arate all contacts under the regulations of the overvoltage category III.
• Always check for gas (refrigerant) leakage after installation or repair of unit.
• Keep level even when installing the unit.
• Use two or more people to lift and transport the unit.
• Do not use the unit for special purposes, such as preserving foods, works of art, etc.
• Use a soft cloth to clean.
Do not use harsh detergents, solvents, etc.
• Do not step on or put anything on the unit.
• Use a firm stool or ladder when cleaning or maintaining the unit.
• Do not turn on the breaker or power under condition that front panel cabinet, top cover, control
box cover are removed or opened.
• The drainage hole of the safety valve must be directed downwards. Make sure it does not freeze
A yearly inspection of the safety valve is necessary to ensure its proper operation; when perform-
ing it, remove lime deposits and make sure the safety valve is not blocked.
Important information
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 6

Installation Manual 7
ENGLISH
The manufacturer guarantees that the device is in accordance with current European directives and
standards. The device is marked with the mark CE and it has all the necessary documentation.
We reserve the right to make changes to the manual without prior notice.
As manufacturer we do not take responsibility for the consequences arising from:
• Non-compliance with the manual for the device.
• Incorrect and/or inadequate maintenance of the device.
• Non-compliance with the manual for the installation of the device.
The installer is responsible for installing the device in accordance with the following requirements:
• To thoroughly study the instructions for use and installation accompanying the device before instal-
lation.
• To install the device in accordance with the instructions and national legislation, policies and stan-
dards in force.
For ensuring unobstructed and effective operation of the device the user has to follow the following
instructions:
• To thoroughly study the instructions for use and installation accompanying the device before use.
• To have a qualified and authorized installer perform the installation of the device.
• Ensure regular yearly inspections and maintenance of the device by the authorized maintenance
worker.
• Store this manual in an appropriate dry place close to the device.
Obligations of the user
Obligations of the installer during installation
Obligations of the manufacturer
Important information
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 7

8Air-to-Water Heat Pump
Installation Part
Installation Part
Thank you for choosing LG Electronics Air-to-Water Heat Pump
Before starting installation, please make it sure that all parts are found inside the product box.
INDOOR UNIT BOX
Item Image Quantity
Indoor unit
1
Installation Manual
www.lg.com
Pleaseread this installation manual completely before installing the product.
Installationwork must be performed in accordance with the national wiring
standardsby authorized personnel only.
Pleaseretain this installation manual for future reference after reading it
thoroughly.
INSTALLATIONMANUAL
AIR
CONDITIONER
1
Owner's Manual
www.lg.com
Pleaseread this manual carefully before operating
yourset and retain it for future reference.
OWNER’S MANUAL
AIR
CONDITIONER
1
OUTDOOR UNIT BOX
Item Image Quantity
Outdoor Unit
U3 Chassis
(Product heating capacity : 14kW)
1
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 8

Installation Manual 9
ENGLISH
General Information
With advanced inverter technology, is suitable for applications like under floor heating,
under floor cooling, and hot water generation. By Interfacing to various accessories user can cus-
tomize the range of the application.
In this chapter, general information of is presented to identify the installation proce-
dure. Before beginning installation, read this chapter carefully and find helpful information on installa-
tion.
Model number nomenclature
Model name and related information
*1 : tested under Eurovent Heating condition
(water temperature 30°C ’35°C at outdoor ambient temperature 7°C / 6°C)
*2 : tested under Eurovent Cooling condition
(water temperature 23°C ’18°C at outdoor ambient temperature 35°C / 24°C)
*
*3 : All appliances were tested at atmospheric pressure.
Model Information
AH N W 1 6 6 0 6 B 0
Series Number
Function
B: DHW tank inegrated with Buffer tank
D: DHW tank integrated
Heater Capacity (kW)
06 : 6kW
Heater Electrical ratings
6 : 1 phase 220-240V AC 50Hz
Heating Capacity (kW)
16 : 16kW
Model Type
W : Inverter Heat Pump H : Heat Pump
Classification
N : Indoor Unit U : Outdoor Unit — : Set
Air-to-Water Heat Pump for R410A
General Information
Model Name Built -in Electric
Heater(kW)
Power Source
Capacity
Heating(kW)*1 Cooling(kW)*2
Indoor Unit AHNW16606B0 4(2+2) 1Φ 220-240V 50Hz / 3Φ 380-415V 50Hz
14 11
Outdoor Unit AHUW146A2 1Φ 220-240V 50Hz
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 9

10 Air-to-Water Heat Pump
General Information
Indoor unit
Parts and Dimensions
1 Heating/Cooling Inlet A Buffer tank
2 Heating/Cooling Outlet B Circulating pump
3 Warm sanitary water C Electric flow heater
4 DHW - circulation D TT3000 Controller
5 Cold sanitary water - supply E Condenser
6 Gas pipe 5/8‘‘– refrigerant F 3 Way Valve
7 Liquid pipe 3/8‘‘– refrigerant G DHW tank
8Mg. Anode
(unit:mm)
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 10

Installation Manual 11
ENGLISH
General Information
Outdoor unit(External)
Supporter
490
Description
No Name
1
2
3
Liquid-side Service Valve
Gas-side Service Valve
Air discharge Grill
Product Heating
Capacity : 14kW
U3 Chassis
(unit:mm)
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 11

12 Air-to-Water Heat Pump
Installation of Outdoor Unit
The outdoor unit of is installed outside to exchange heat with ambient air. Therefore, it
is important to secure proper space around the outdoor unit and care for specific external conditions.
This chapter presents a guide to install the outdoor unit, make a route to connect with the indoor, and
what to do when installed around seaside.
• If a sunroof is built over the unit to prevent direct sunlight or rain exposure, make sure that heat ra-
diation from the heat exchanger is not restricted.
• Ensure that the spaces indicated by arrows around front, back and side of the unit.
• Do not place animals and plants in the path of the warm air.
• Take the weight of the outdoor unit into account and select a place where noise and vibration are
minimum.
• Select a place so that the warm air and noise from the outdoor unit do not disturb neighbors.

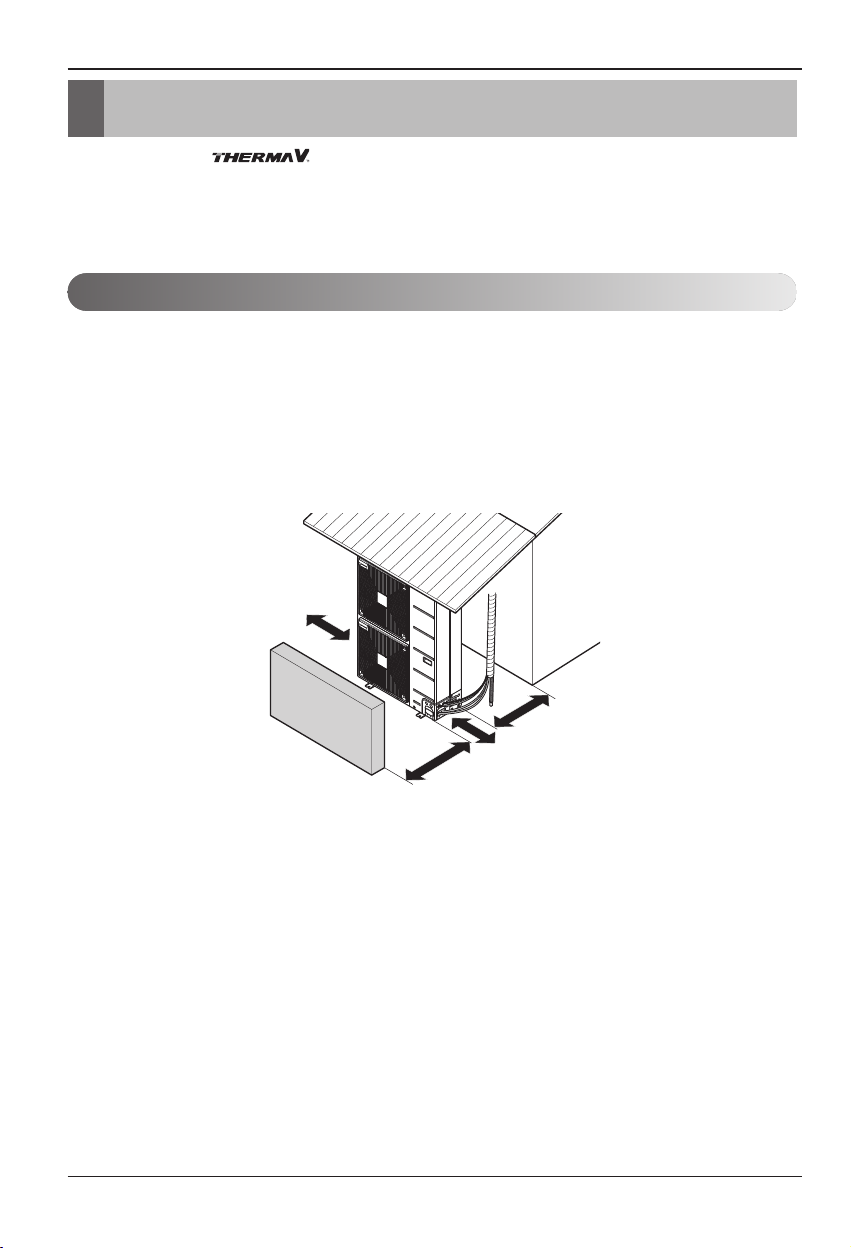

Conditions where Outdoor Unit is Installed
300
Fence or
obstacles
700
300
600
Sunroof
Minimum service space (unit:mm)
Installation of Outdoor Unit
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 12

Installation of Outdoor Unit
Installation Manual 13
ENGLISH
• If making a hole to the wall is required to con-
nect pipe between the indoor unit and the out-
door unit, please follow below descriptions.
- Drill the piping hole with a ø70mm hole core
drill.
- Piping hole should be slightly slant to the
outdoor side to prevent raindrop into indoor
side.
Wall
5~7mm
Indoor Outdoor
Drill a Hole in the Wall
For controlling the heating according to the external temperature, it is necessary to install the exter-
nal temperature sensor.
The sensor must be set up in a shady spot.
The sensor must not be set up above a window or door. It must be located away from heat
sources.
For measuring external temperature, the sensor type PT 1000 is used.
TTemperature sensor for external temperature.
The external sensor must be connected and watertight to prevent water penetration.
Set up and connection of the external sensor
Temperature sensor for external temperature.
The direction of connecting cables.
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 13

Installation of Outdoor Unit
14 Air-to-Water Heat Pump
Seasonal wind and cautions in winter
• Sufficient measures are required in a snow area or severe cold area in winter so that product can be operated well.
• Get ready for seasonal wind or snow in winter even in other areas.
• Install a suction and discharge duct not to let in snow or rain.
• Install the outdoor unit not to come in contact with snow directly. If snow piles up and freezes on the air suction hole,
the system may malfunction. If it is installed at snowy area, attach the hood to the system.
• Install the outdoor unit at the higher installation console by 500 mm than the average snowfall (annual average snowfall)
if it is installed at the area with much snowfall.
•
Where snow accumulated on the upper part of the Outdoor Unit by more than 100 mm, always remove snow for operation.
1. The height of H frame must be more than 2 times the snowfall and its width shall not exceed the width of the
product. (If width of the frame is wider than that of the product, snow may accumulate)
2. Don't install the suction hole and discharge hole of the Outdoor Unit facing the seasonal wind.
Installation at Seaside
1. Air conditioners should not be installed in areas where corrosive gases, such as acid or alkaline gas, are produced.
2. Do not install the product where it could be exposed to sea wind (salty wind) directly. It can result corrosion
on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunc-
tion or inefficient performance.
3. If outdoor unit is installed close to the seaside, it should avoid direct exposure to the sea wind. Otherwise it
needs additional anticorrosion treatment on the heat exchanger.
Periodic ( more than once/year ) cleaning of the dust or salt particles stuck on the heat exchanger by using water
Selecting the location(Outdoor Unit)
1) If the outdoor unit is to be installed close to the seaside, direct exposure to the sea wind should be avoided.
Install the outdoor unit on the opposite side of the sea wind direction.
2) In case, to install the outdoor unit on the seaside, set up a windbreak not to be exposed to the sea wind.
3) Select a well-drained place.
• It should be strong enough like concrete to prevent
the sea wind from the sea.
• The height and width should be more than 150% of
the outdoor unit.
• It should be keep more than 700 mm of space
between outdoor unit and the windbreak for easy
air flow.
CAUTION
Sea wind Sea wind
Sea wind
Windbreak
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 14

Installation of Indoor Unit
Installation Manual 15
ENGLISH

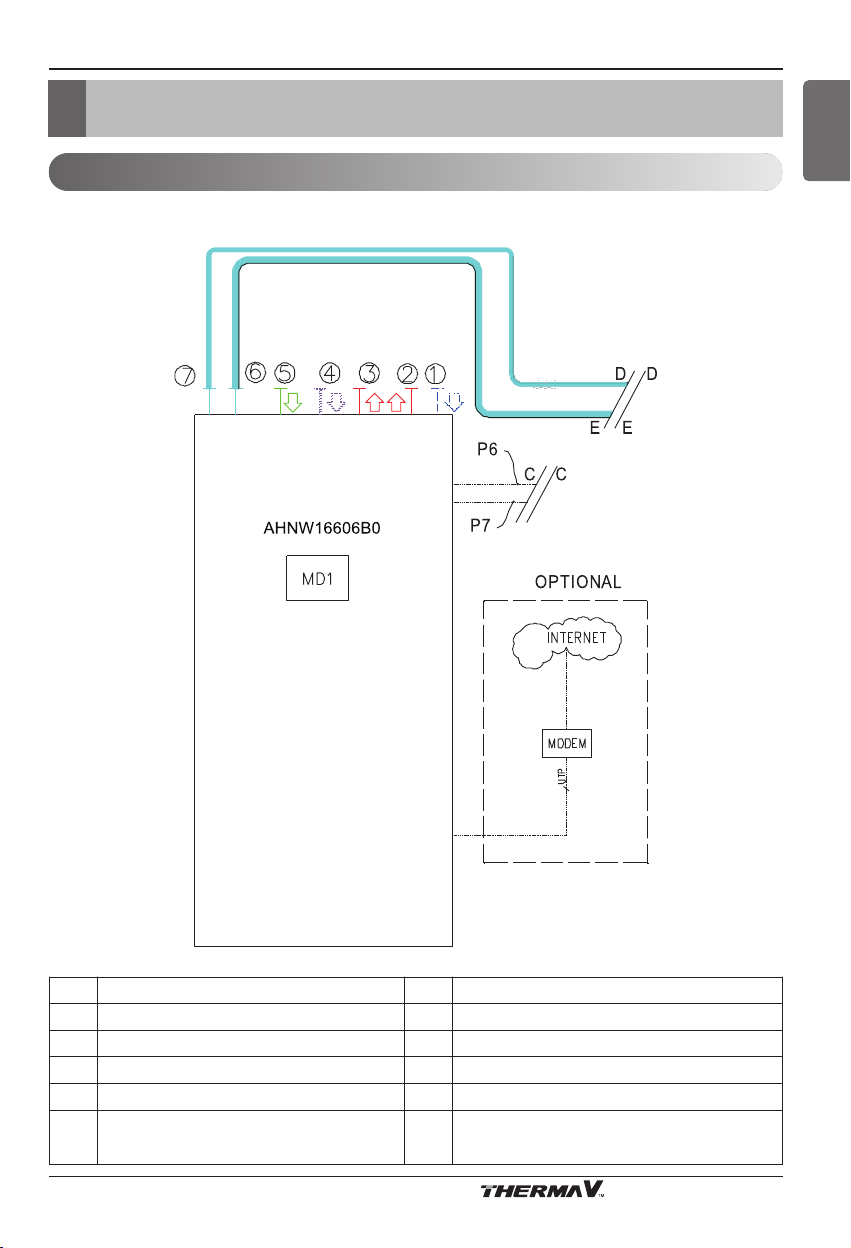

The device is installed according to capacity
General
1 Heating/Cooling Inlet 3 DHW – outlet
2 Heating/Cooling Outlet 4 DHW – circulation
C Electrical and communication connection 5 DHW – inlet
E Connection to outdoor unit 6 Gas pipe 5/8‘‘– refrigerant
D Connection to outdoor unit 7 Liquid pipe 3/8‘‘– refrigerant
P6 Power supply cable P7 Communication cable - connection between
outdoor and indoor unit
Installation of Indoor Unit
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 15

16 Air-to-Water Heat Pump
Installation of Indoor Unit
• It is obligatory to consider the minimal clearance from obstacles for ensuring unobstructed access
for maintenance and service.
• The location of the device has to be accessible with manual transport devices to ensure undis-
turbed delivery of replacement parts and equipment for maintenance and servicing. The operator
is charged costs connected with hiring special equipment for installing the device, servicing and
maintenance separately, these costs are not subject of the warranty.
• When you install the device into the building, make sure that you build in a water drain which will
serve as a water drain in case of spillage.
Minimal clearance from the device
The device must not be installed under pipelines because there is a possibility of condensate form-
ing. Ingress of water condensate can cause disturbances in the operation.
The installation location of the indoor unit must be dry and in the temperature range between +10
C and 40 °C.
Location of the device
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 16

Installation of Indoor Unit
Installation Manual 17
ENGLISH
Minimal clearances of the external device from walls for seamless operation, maintenance and serv-
icing.
The unit should be installed straightly upward.
(unit:mm)
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 17

Installation of Indoor Unit
18 Air-to-Water Heat Pump

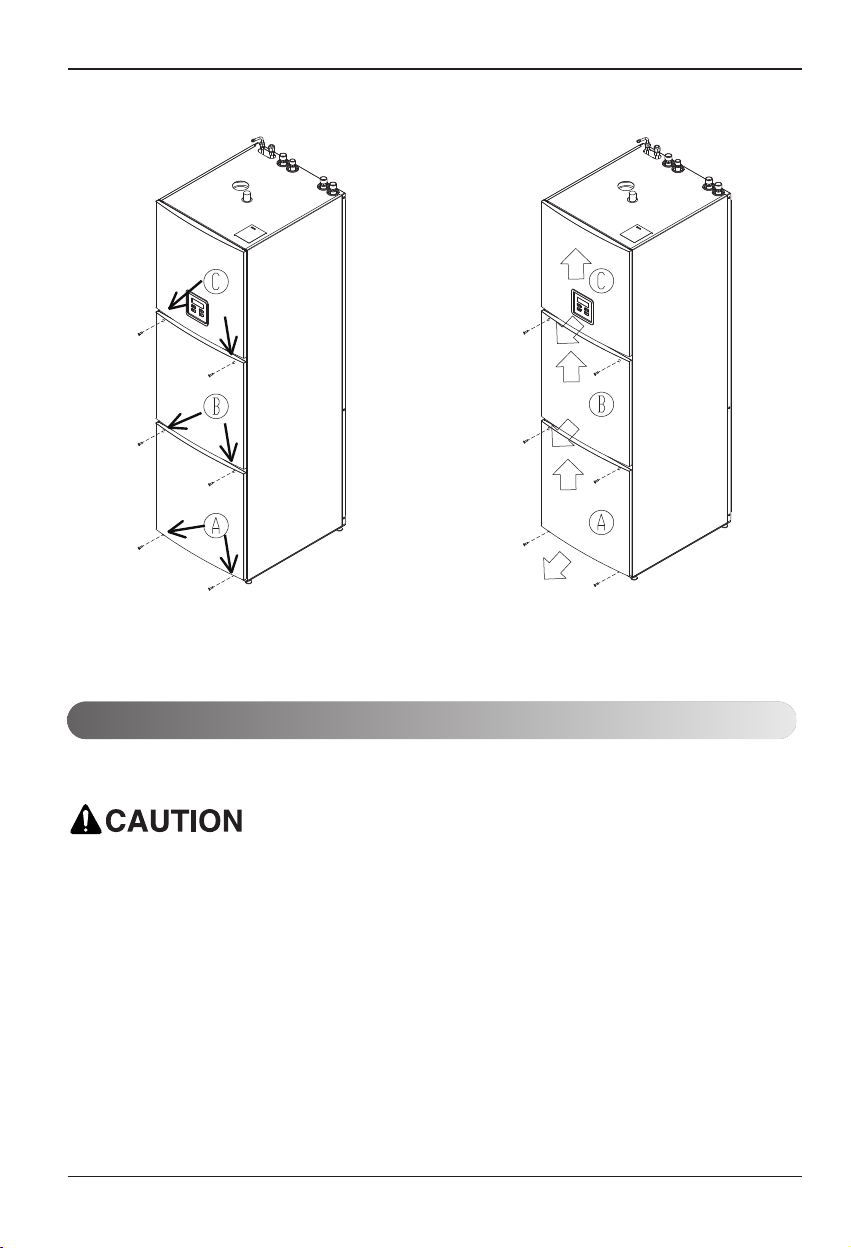

Front panel removal
Front panel removal
The connection between the indoor and outdoor unit is performed via refrigerant pipes and communi-
cation line.
The pipeline and electrical cables have to be protected with heat and waterproof insulation in a
protective pipe. This prevents the pipe connections soaking in cases of high groundwater or rain-
water and with it intensive draining of heat into its surroundings.

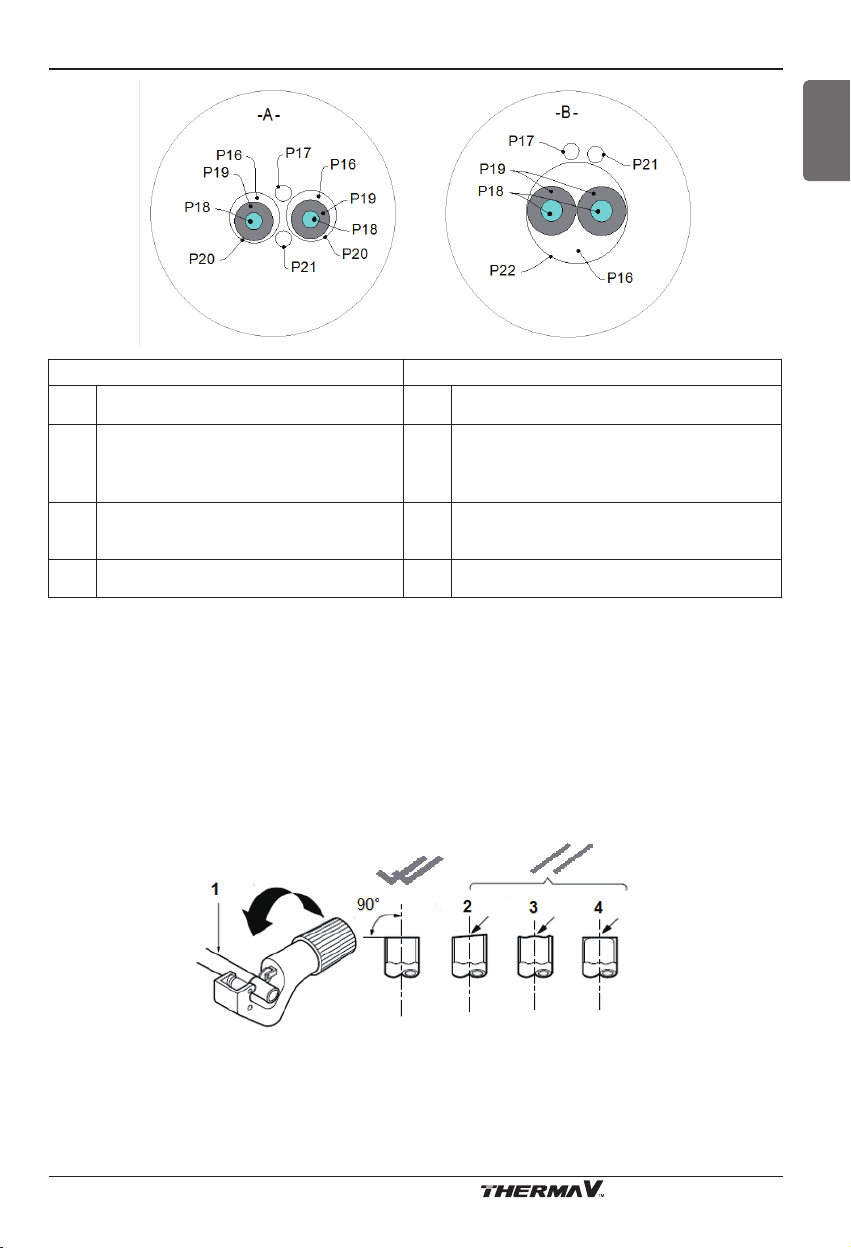

Gas and liquid connection
The pipe connection between the external and internal device can be made by laying the pipes in
two ways:
• A inside two separate ribbed protective pipes,
• B in one joint ribbed protective pipe.

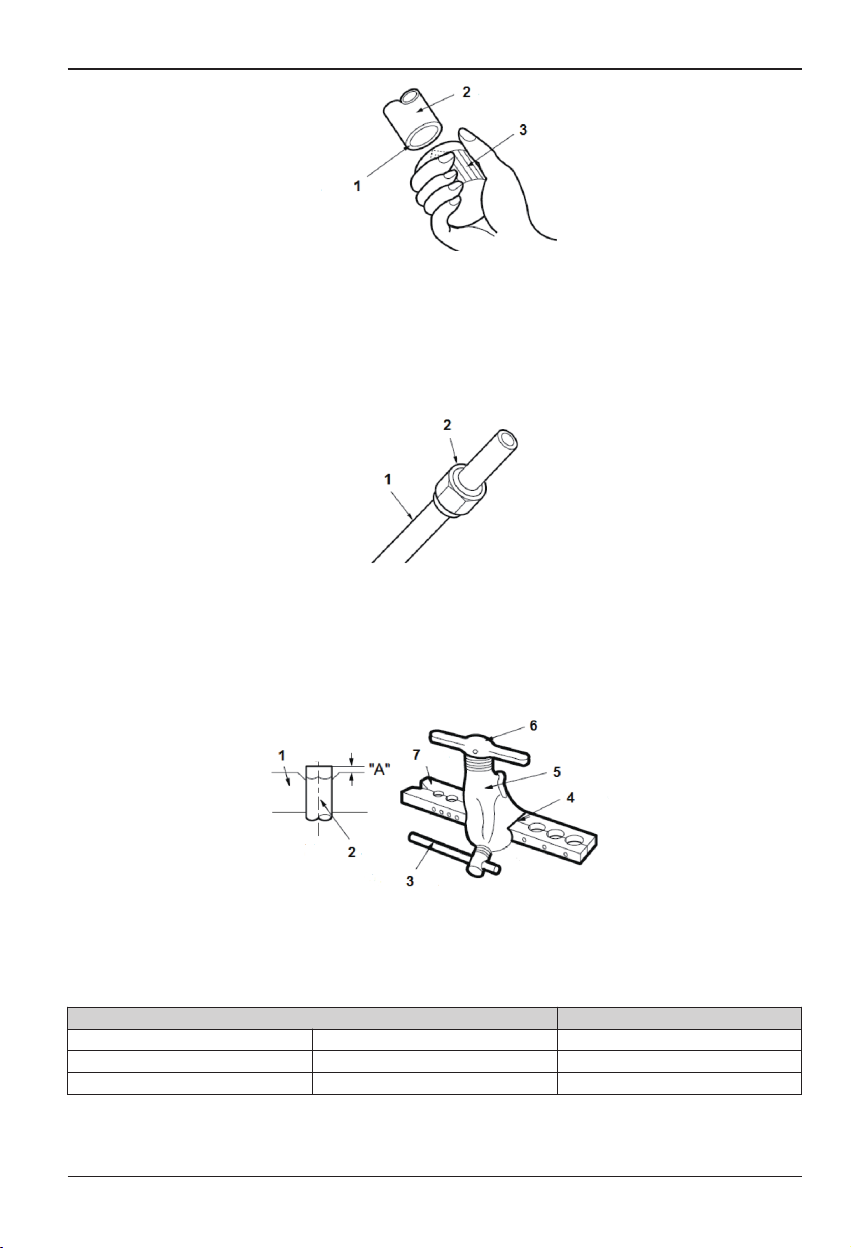

Connection with the outdoor unit
First unscrew 2 screws of panel (A). Open the panel (A) towards yourself and pull up-
ward. After this repeat the procedure for each
panel.(B,C)
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 18

Installation of Indoor Unit
Installation Manual 19
ENGLISH
Preparation of the refrigerant pipe
Prepare the pipe in steps. Unsuitably made joints are one of the main reasons for leakage, the joints
must thus be made thoroughly and in accordance with the listed steps.
STEP 1: Cutting the pipe
• Use a pipe cutter which does not produce chips to cut the pipe.
• Determine the distance between the outdoor and indoor unit.
• Cut the pipes longer in order to ensure connecting the internal and external device normally.
STEP 2: Removal of chips
• Remove all chips from the part where the pipe was cut.
• Hold the pipe downward during cleaning so that the chips do not fall into the pipe.
A B
P16 Fill with waterproof polyurethane foam P20 Ribbed protective pipe min. ɸ 75
P17 Protective pipe for external sensors or
communication cables P21
The ribbed protective pipe for the power
cable depends on the dimension of the sup-
ply cable
P18 Copper pipe Cu – refrigerant grade qual-
ity P22 Ribbed protective pipe min. ɸ 150
P19 Insulation min. 13 mm.
1Copper pipe 2Inclined 3Uneven 4Rough
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 19

Installation of Indoor Unit
20 Air-to-Water Heat Pump
STEP 3: Inserting the screw nut
• Remove the screw nut from the exterior unit.
• Insert the screw nut into the pipe which has been cleaned.
STEP 4: Edging
• The edging has to be performed with tools for edging as shown:
• Mount the copper pipe firmly into the tool for edging. Consider the dimensions listed in the table
below.
1Copper pipe 2Copper pipe held downward 3Beveler
1Copper pipe 2Screw nut
1Holder 2Copper pipe 3Fitting 4Cone 5Bracket 6Handle 7Holder
External diameter ''A''
[mm] [inch] [mm]
9.52 3/8 1.5 ~ 1.7
15.88 5/8 1.6 ~ 1.8
1,MFL69676201,영영 2017. 3. 8. 영영 3:06 Page 20
