LG LST5651SB Use and care manual

ELECTRIC RANGE
OWNER'S MANUAL & COOKING GUIDE
PLEASE READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING.
LST5651SB/SW/SS
Printed in Korea
P/NO.:MFL38379607
Website: http://ca.lge.com

English
Français
- 2 -
TABLE OF CONTENTS
SAFETY ..................................................................3-8
- Important safety instructions.............................3-7
- Appliance outlets ...............................................8
SURFACE CONTROLS COOKING ........................9-12
- “PF” “HS” message .........................................9
- Locations of the radiant surface elements
and controls .......................................................9
- Setting surface controls.....................................10
- About smoothtop surface ..................................11-12
- About cookware.................................................12
INFORMATION ......................................................13-14
- Parts and features .............................................13
- Control panel features........................................14
OPERATION ...........................................................15-22
- Setting the clock ................................................15
- Minimum & maximum control pad settings ......15
- Setting the timer on/off......................................15
- Setting oven lockout feature..............................16
- Options ..............................................................16-17
• Changing hour mode on clock (12hr, 24hr)
• Setting temperature unit (“F” or “C”)
• Setting beeper volume
• Setting preheating alarm light on/off
• Thermostat adjustment
Please record the model number and serial number of
this unit for future reference. We also suggest that you
record the details of any contact with LG (LG
Electronics Canada, Inc.) concerning this unit.
Staple your receipt here to verify your retail purchase.
Model No.:
Serial No.:
Dealer:
Dealer Phone No.:
Thank you for purchasing an LG electric oven.
- Setting bake .......................................................18
- Setting timed bake.............................................19
- Setting delayed timed bake ...............................20
- Setting broil........................................................20
- Recommended broiling guide ............................21
- Setting the cook & warm feature.......................22
- To turn on/off the oven light ..............................22
- Setting the proof feature...................................22
SELF-CLEAN ..........................................................23-24
MAINTENANCE .....................................................25-29
- Removing & replacing the storage drawer .......25
- Oven vent .........................................................25
- Care & cleaning..................................................26-28
- Removing & replacing the lift-off oven door ......29
TROUBLESHOOTING............................................30-33
- Before calling for service ...................................30-33
WARRANTY ...........................................................34

- 3 -
English Français
SAFETY
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT SS SSAA AAFF FFEE EETT TTYY YY II IINN NNSS SSTT TTRR RRUU UUCC CCTT TTII IIOO OONN NNSS SS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage
when using the range. This guide do not cover all possible conditions that may occur. Always contact your service agent or
manufacturer about problems that you do not understand.
This symbol will alert you to hazards or unsafe practices which could cause serious bodily
harm or death.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION”.
These word means :
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or
property damage.
WARNING
CAUTION
• Be certain your appliance is properly installed and
grounded by a qualified technician.
• Do not repair or replace any part of the appliance unless
specifically recommended in the manual.
• All other servicing should be referred to a qualified
technician.
• Always disconnect power to appliance before servicing by
unplugged, removing the fuse or switching off the circuit
breaker
• To reduce the risk of tipping of the range, the range must
be secured by properly installing anti tip devices.
• To check that the anti tip bracket is properly installed:
Grasp the top rear edge of the range back guard and
carefully attempt to tilt it forward.
Verify that the anti tip devices are engaged.
• Warming drawer or Storage drawer : Remove drawer and
visually inspect that the rear leveling leg is fully inserted
into the anti tip bracket.
• Refer to the installation manual for proper anti tip bracket
installation.
SURFACE COOKING UNITS
• Use Proper Pan Sizes. This appliance is equipped with
one or more surface units of different size. Select utensils
having flat bottoms large enough to cover the surface unit
heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition
of clothing. Proper relationship of utensil to burner will
also improve efficiency.
• Never Leave Surface Units Unattended at High
Heat Settings. Boilovers cause smoking and greasy
spillovers that may ignite.
• Glazed Cooking Utensils. Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for range top service without breaking
due to the sudden change in temperature.
• Utensil Handles Should Be urned Inward and Not
Extend Over Adjacent Surface Units. To reduce the
risk of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil, the handle of
a utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
• Be sure you know which control pads operate each surface
unit.
Make sure you turned on the correct surface unit.
WARNING
• DO NOT step or sit on the door.
Install the Anti-Tip Bracket
packed with range.
- The range could be tipped and injury might
result from spilled hot liquid, food, or the
range itself.
- If the range is pulled away from the wall
for cleaning, service, or any other reason,
ensure that the Anti-Tip Device is properly
reengaged when the range is pushed back
against the wall.

- 4 -
English
Français
SAFETY
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT SS SSAA AAFF FFEE EETT TTYY YY II IINN NNSS SSTT TTRR RRUU UUCC CCTT TTII IIOO OONN NNSS SS
OVEN
• DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN. Heating elements
may be hot even though they are dark in color. Interior
surfaces of an oven become hot enough to cause burns.
During and after use, do not touch or let clothing or other
flammable materials contact heating elements or interior
surfaces of oven until they have had sufficient time to cool.
Other surfaces of the appliance may become hot enough to
cause burns. Among these surfaces are the cooktop and
areas facing the cooktop, oven vent openings, surfaces near
these openings, oven doors, and windows of oven doors.
• Use Care When Opening Door. Let hot air or steam
escape before you remove or replace food in the oven
• Do Not Heat Unopened Food Containers. Build-up of
pressure may cause container to burst and result in injury.
• Protective Liners. Do not use aluminum foil or any other
material to line the oven bottoms. Improper installation of
these liners may result in a risk of electric shock or fire.
• Keep Oven Vent Ducts Unobstructed. The oven vent
is located above the left rear surface unit. This area could
become hot during oven use. Never block this vent and
never place plastic or heat-sensitive items on vent.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot, do not, let a potholder come in contact
with the hot heating element in the oven.
• Do Not allow aluminum foil or meat probe to contact
heating elements.
SELF-CLEANING OVENS
• Do Not Clean Door Gasket. The door gasket is essential
for a good seal. Care should be taken not to rub, damage, or
move the gasket.
• Do Not Use Oven Cleaners. No commercial oven
cleaner or oven liner protective coating of any kind should
be used in or around any part of the oven.
• Clean in the self-clean cycle only parts listed in this
manual. Before self-clean the oven, remove the broiler
pan and any utensils of foods from the oven.
• Before Self-Cleaning the Oven. Remove broiler pan
and other utensils.
• Never keep pet birds in the kitchen. The health of
birds is extremely sensitive to the fumes released during an
oven self-clean cycle. Fumes may be harmful or fatal to
birds. Move birds to well-ventilated room.
• Important Instruction. In the event the self clean error
code F is displayed, or three long beeps sound, the oven is
malfunctioning in the self clean mode. Turn off or
disconnect appliance from power supply and have serviced
by a qualified technician.
VENTILATING HOODS:
• Clean Ventilating Hoods Frequently. Grease should
not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan
on.
GLASS/CERAMIC COOKING
SURFACES
• DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS. Surface units may be hot even though they
are dark in color.
Areas near surface units may become hot enough to cause
burns. During and after use, do not touch, or let clothing or
other flammable materials contact surface units or areas
near units until they have had sufficient time to cool.
Among these areas are identification of areas – for
example, the cooktop and surfaces facing the cooktop.
• Do Not Cook on Broken CookTop. If cooktop should
break, cleaning solutions and spillovers may penetrate the
broken cook-top and create a risk of electric shock. Contact
a qualified technician immediately.
• Clean CookTop With Caution. Do not use sponges or
cloth to wipe spills on a hot cooking area. Use a proper
metal scraper.
DEEP FAT FRYERS:
• Use extreme caution when moving the grease kettle or
disposing of hot grease.
WARNING

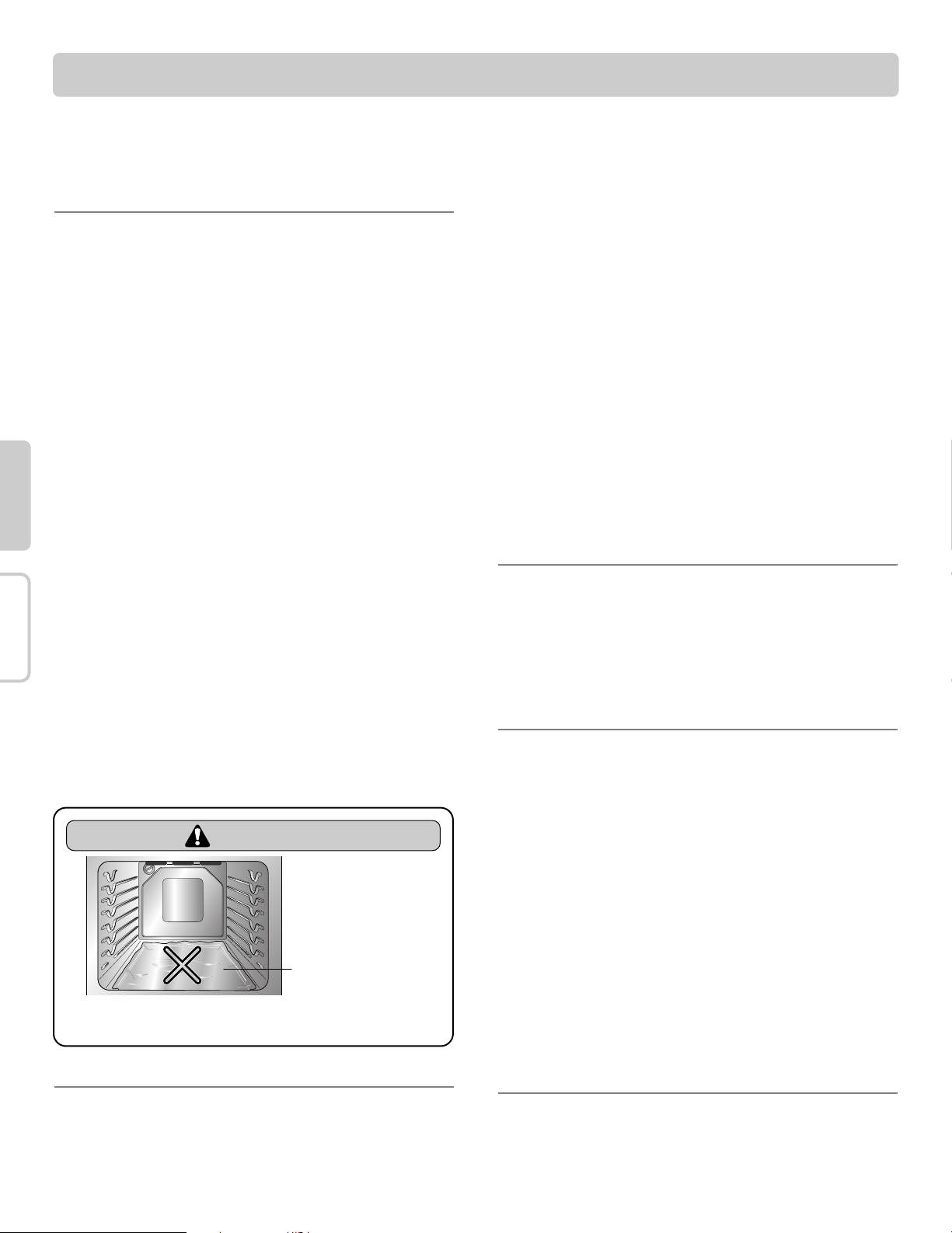

• DO NOT place aluminum foil directly on
the oven bottom.
aluminium foil

- 5 -
English Français
SAFETY
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT SS SSAA AAFF FFEE EETT TTYY YY II IINN NNSS SSTT TTRR RRUU UUCC CCTT TTII IIOO OONN NNSS SS
WARNING
• DO NOT step or sit on the door. Install the Anti-Tip Bracket packed with range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip Device is
properly reengaged when the range is pushed back against the wall.
• Turn POWER OFF before removing the Warming Drawer.
- Failure to do so can result in severe personal injury,death or electrical shock.
• Before replacing your oven light bulb, DISCONNECT the electrical power to the range at the
main fuse or circuit breaker panel.
- Failure to do so can result in severe personal injury,death or electrical shock.
• Make sure oven and bulb are cool.
• Children should be kept away from the range.
- Accessible parts may become hot when the grill is in use.
CAUTION
• DO NOT store items of interest to children in cabinets above a range or on the back guard of a
range.
- Children climbing on the range to reach items could be seriously injured.
• DO NOT use the glass cooktop surface as a cutting board.
• DO NOT place or store items that can melt or catch fire on the glass cooktop, even when it is
not being used.
• Always turn the surface units on after placing cookware.
• DO NOT store heavy items above the cooktop surface that could fall and damage it.
• DO NOT place aluminum foil or plastic items such as salt and pepper shakers, spoon holders,
or plastic wrappings or any other material on the range when it is in use.
- The hot air from the vent could melt plastics or ignite flammable items.
• Make sure you turned on the correct surface unit.
• NEVER cook directly on the glass. Always use cookware.
• Always place the pan in the center of the surface unit you are cooking on.
• DO NOT leave children alone.
- Children should not be left alone or unattended in area where appliance is in use. Children should never be allowed to sit
or stand on any part of the appliance.
• NEVER use your appliance for warming or heating the room.
• DO NOT use water on grease fires.
- Turn off the oven to avoid spreading the flames. Smother the fire by closing the oven door or use dry chemical, baking
soda, or foam-type extinguishers.
• Use only dry potholders.
- Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let the pot holder touch hot heating
elements. Do not use a towel or other bulky cloth.
• Storage in or on appliance.
- Flammable materials should not be stored in an oven or near surface elements.

- 6 -
English
Français
SAFETY
CAUTION
• Be certain all packing materials are removed from the appliance before operating.
- Keep plastics, clothes, and paper away from parts of the appliance that may become hot.
• Wear proper apparel.
- Loose-fitting or hanging garments should never be worn while using the appliance.
• NEVER leave surface units unattended at high heat setting.
- Boilovers cause smoking and greasy spillovers that may catch on fire.
• Always turn the surface units off before removing cookware.
• DO NOT use plastic wrap to cover food.
- Plastic may melt onto the surface and be very difficult to remove.
• DO NOT touch surface units until it has cooled down.
• The surface elements may still be hot and burns may occur if the glass surface is touched
before it has cooled down sufficiently.
• Immediately clean the spills on cooking area to prevent a tough cleaning chore later.
• If cabinet storage is provided directly above cooking surface, limit it to items that are
infrequently used and can be safely stored in an area subjected to heat. Temperatures may be
unsafe for items such as volatile liquids, cleaners or aerosol sprays.
• DO NOT touch surface elements until it has cooled down sufficiently.
- The surface elements may still be hot and burns may occur.
• NEVER leave food unattended at high or medium-high setting.
- Boilovers can cause smoking and greasy spillovers may catch on fire.
• Use only cookware and dishes recommended as safe for oven and cooktop use.
• Always arrange oven racks when the oven is cool.
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT SS SSAA AAFF FFEE EETT TTYY YY II IINN NNSS SSTT TTRR RRUU UUCC CCTT TTII IIOO OONN NNSS SS

- 7 -
English Français
SAFETY
CAUTION
• Use caution with the TIMED BAKE or DELAYED TIMED BAKE features. Use the automatic timer
when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily
spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even
when chilled, they should not stand in the oven for more than 1 hour before cooking begins,
and should be removed promptly when cooking is completed.
- Eating spoiled food can result in sickness from food poisoning.
• Should an oven fire occur, leave the oven door closed and turn the oven off. If the fire
continues, throw baking soda on the fire or use a fire extinguisher.
• DO NOT put water or flour on the fire.
- Flour may be explosive and water can cause a grease fire to spread and cause personal injury.
• DO NOT use the roasting rack when boiling.
- To do so can prevent contacting the broil element and grease splattering.
• DO NOT leave small children unattended near the appliance.
- During the Self-cleaning cycle, the outside of the range can become very hot to touch.
• DO NOT line the oven walls, racks, bottom or any other part of the range with aluminum foil or
any other material.
- Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven
interior(aluminum foil will met to the interior surface of the oven).
• DO NOT force the door open.
- This can damage the automatic door locking system. Use care when opening the oven door after the Self-Cleaning cycle.
Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY
HOT.
• DO NOT use a steel-wool pad.
- It will SCRATCH the surface.
• DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they can scratch the surface.
- It may result in shattering of the glass.
• DO NOT use scrub pads or abrasive cleaning pads.
- They may damage your glass cooktop surface.
• Cookware with rough or bottoms can mark or scratch the cooktop surface.
• Do not slide anything metal or glass across the cooktop.
• Do not use cookware with dirt or dirt build up on bottom.
• Be careful when removing and lifting the door.
• DO NOT lift the door by the handle.
- The door is very heavy.
• The Oven must be switched off before removing the fan guard for cleaning, the guard must be
placed in accordance with the instructions after cleaning.
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT SS SSAA AAFF FFEE EETT TTYY YY II IINN NNSS SSTT TTRR RRUU UUCC CCTT TTII IIOO OONN NNSS SS

- 8 -
English
Français
SAFETY
Appliance utlets
The 120V appliance outlets located on the control console
may be used to run portable appliances placed on
countertops beside the range.
The outlets operate independently and are not affected by
range control settings.
Appliance Outlet Circuit Breakers:
The circuit breakers for the appliance outlets on your range
are located on top of the control console.They are rated for
15 amps, that may trip if the appliance plugged into it
exceeds 15 amps. To reset the circuit breaker, press the
switch of located on the control console.
Do not place portable appliances on the cooktop.
Damage to the portable appliance could result if the
cooktop is hot.
Note:
Appliance Outlet
Circuit Breakers
If appliance outlet don’t operate, test out your small
portable appliance by plugging into other outlets.
Note:

- 9 -
English Français
SURFACE CONTROLS COOKING
LOCATIONS OF THE RADIANT
SURFACE ELEMENTS AND
CONTROLS
The radiant surface elements are located on the cooktop as
below.
The radiant control key locations are same with radiant
surface elements on the cooktop.
PF MESSAGE
The PF message will appear whenever there has been a
power interruption to the appliance. To clear the PF message
press ON/OFF control pad to reset and be sure to reset the
clock with the correct time of day.
HS(H t Surface) MESSAGE
LIGHT WILL:
• Come on when the unit is hot to touch after it is turned off.
• Come on during Self Cleaning Cycle.
• Stay on even after the unit is turned off.
• Glow until the unit has cooled down to approximately
150°F.
single
Left Rear element
single
Left Front element
Dual
Right Front
Dual element
single
Right Rear element

- 10 -
English
Français
SURFACE CONTROLS COOKING

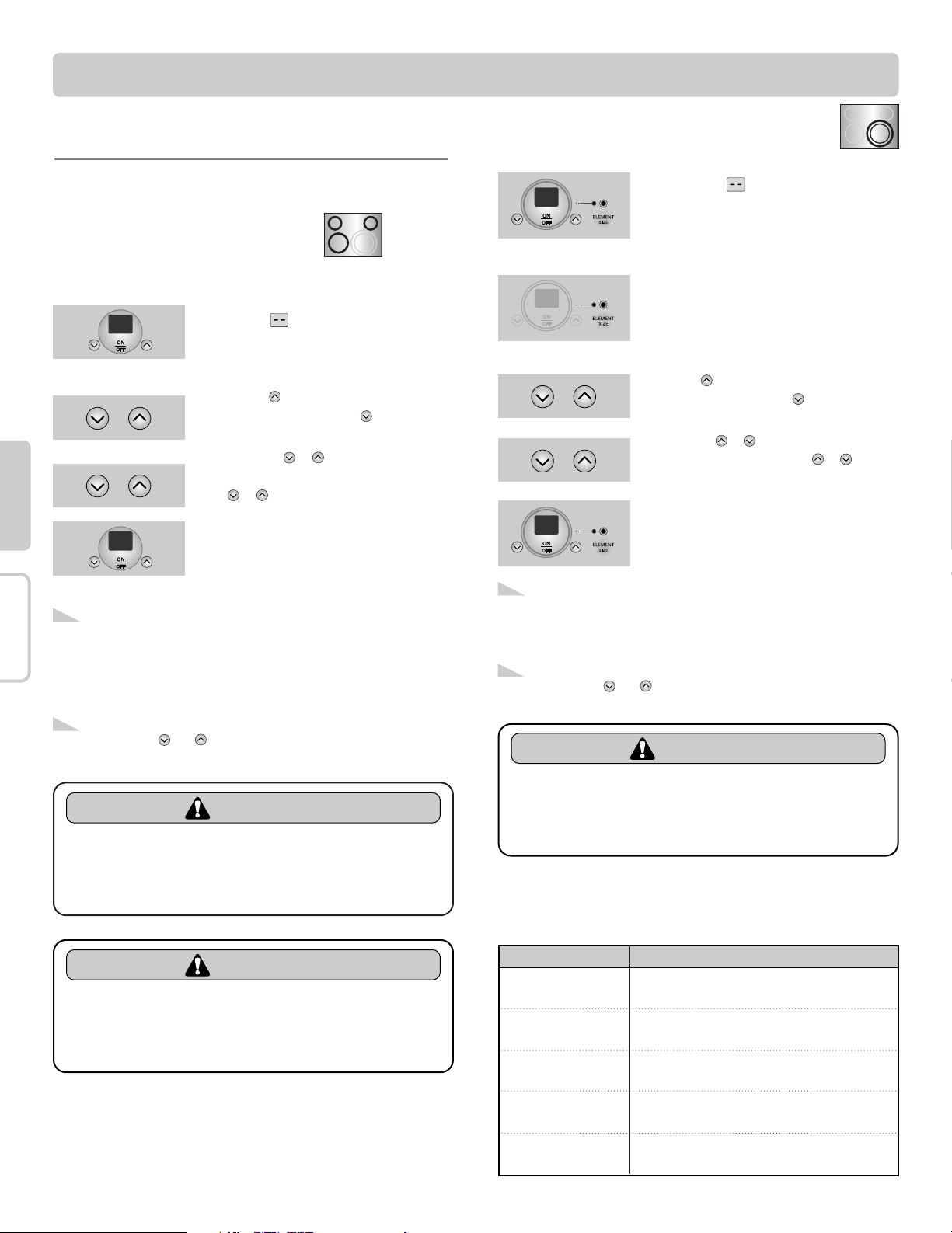

SETTING SURFACE CONTROLS
When changing from a high heat setting to a lower heat
setting, the surface unit may stop glowing. This is normal.
1. Press ON/OFF pad for the desired
element position. The display will
flash “ ”.
(If no further pads are pressed
within 10 seconds, the display will
disappear.)
2. Press ( ) pad once to turn on the
power level “Hi” or ( ) pad once
for “Lo”.
3. Use the ( )/( ) pad to choose
the desired power setting.
( )/( ) pad is continuously
accessible. (Adjustable at any time
while the element is ON.)
4. To turn off the unit after cooking,
press the ON/OFF pad once.
To turn on a single surface unit
(Right Rear, Left Rear, Left Front)
1. Press the ON/OFF pad. The display
will flash “ ”.
(If no further pads are pressed within
10 seconds, the display will
disappear.)
2. Press the ELEMENT SIZE pad as
needed to select the desired burner
size. Default size is 9”. When first
selected, 12” size is ON. The light
above the ELEMENT SIZE pad
indicates which size surface unit is on.
3. Press ( ) pad once to turn on the
power level “Hi” or ( ) pad once for
“Lo”.
4. Use the ( )/( ) pad to choose the
desired power setting. ( )/( ) pad is
continuously accessible. (Adjustable
at any time while the element is ON.)
5. To turn off the unit after cooking,
press the ON/OFF pad once.
To turn on a dual surface unit (Right Front)
Recommended Surface Cooking
Settings
Recommended setting for the single & dual elements.
• Each time a pad is pressed a beep will sound.
• The power level decreases or increases by 0.5
from 9.0 through 3.0. (by 0.2 from 3.0 through
1.0)
• Lo is the lowest power level available.
Note:
• Each time a pad is pressed a beep will sound.
• The power level decreases or increases by 0.5 from
9.0 through 3.0. (by 0.2 from 3.0 through 1.0)
• Lo is the lowest power level available.
Note:
Setting Type of cooking
HIGH
(8.5 – Hi)
MEDIUM HIGH
(5.5 – 8.0)
MEDIUM
(3.5 – 5.0)
MEDIUM LOW
(2.2 – 3.0)
LOW/SIMMER
(Lo – 2.0)
Start most foods, bring water to a
boil or pan broiling.
Continue a rapid boil, fry or deep fat
fry.
Maintain a slow boil, thicken sauces
and gravies or steam vegetables.
Keep foods cooking, poach or stew
(2.8 or lower is a simmer setting).
Keep warm, melt or simmer.
CAUTION
• DO NOT touch surface elements until it
has cooled down sufficiently.
- The surface elements may still be hot and burns may
occur.
CAUTION
• DO NOT touch surface elements until it
has cooled down sufficiently.
- The surface elements may still be hot and burns may
occur.
CAUTION
• NEVER leave food unattended at high or
medium-high setting.
- Boilovers can cause smoking and greasy spillovers
may catch on fire.
To scroll through the power levels quickly press and
hold the or key pads until the power level
desired is reached.
Note:
To scroll through the power levels quickly press and
hold the or key pads until the power level
desired is reached.
Note:

- 11 -
English Français
Smoothtop Surface Notes:
• Cooktop may emit light smoke and odor the first few
times the cooktop is used. This is normal.
• Smoothtop cooktops retain heat for a period of
time after the element is turned off. Turn the
elements off a few minutes before food is completely
cooked and use the retained heat to complete cooking.
When the hot surface light turns off, the cooking area will
cool down enough to touch. Because of the way they retain
heat, the smoothtop elements will not respond to changes
in settings as quickly as coil elements.
• In the event of a potential boilover, remove the pan from
the cooking surface.
• Do not attempt to lift the cooktop.
• The smoothtop surface may appear discolored when it is
hot. This is normal and will disappear when the surface
cools.
SMOOTHTOP SURFACE
SURFACE CONTROLS COOKING
TIPS TO PROTECT THE
SMOOTHTOP SURFACE
Cleaning (see page 27~28 for more information)
Before first use, clean the cooktop.
Clean your cooktop daily or after each use. This will keep
your cooktop looking good and can prevent damage.
If a spillover occurs while cooking, immediately clean the
spill from the cooking area while it is hot to prevent a tough
cleaning chore later. Using extreme care, remove spill with a
proper metal scraper.
Do not allow spills to remain on the cooking area or the
cooktop trim for a long period of time.
Do not use abrasive cleansing powders or scouring pads
which will scratch the cooktop.
Do not use chlorine bleach, ammonia or other cleansers not
specifically recommended for use on glass-ceramic.
To Prevent Marks & Scratches
Do not use glass pans. They may scratch the surface.
Do not place a trivet or wok ring between the surface and
pan. These items can mark or scratches the top.
Do not slide aluminum pans across a hot surface. The pans
may leave marks which need to be removed promptly. (See
Cleaning, page 27~28.)
Make sure the surface and the pan bottom are clean and dry
before turning on to prevent scratches.
To prevent scratching or damaging to the glass-ceramic top,
do not leave sugar, salt or fats on the cooking area. Wipe the
cooktop surface with a clean cloth or paper towel before
using.
Do not slide heavy metal pans across the surface since these
may scratch.
To Prevent Stains
Do not use a soiled dish cloth or sponge to clean the
cooktop surface. A film will remain which may cause stains
on the cooking surface after the area is heated.
Continuously cooking on a soiled surface may/will result in a
permanent stain.
To Prevent Other Damages
Do not allow plastic, sugar or foods with high sugar content
to melt onto the hot cooktop. Should this happen, clean
immediately. (See Cleaning, page 27~28.)
Do not let a pan boil dry as this will damage the surface and
pan.
Do not use cooktop as a work surface or cutting board.
Do not cook food directly on the surface.

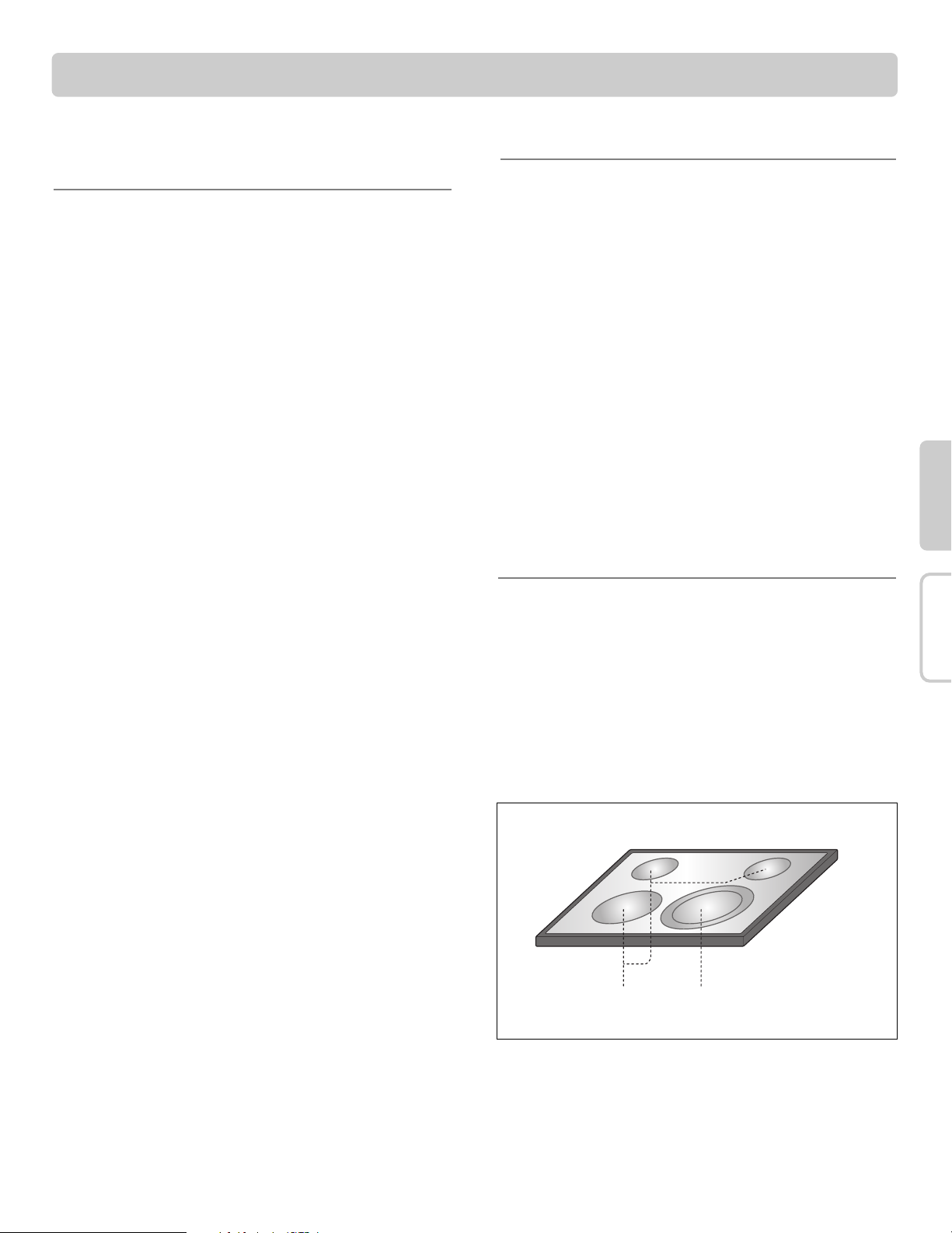

COOKING AREAS
The cooking areas on your range are identified by permanent
circles on the smoothtop surface. For the most efficient
cooking, fit the pan size to the element size.
Pans should not extend more than 1/2to 1-inch
beyond the cooking area.
When a control is turned on, a glow can be seen through the
smoothtop surface. The element will cycle on and off to
maintain the preset heat setting, even on Hi.
For more information on cookware, refer to Cookware
Recommendations.
Single element Dual element

- 12 -
English
Français
SURFACE CONTROLS COOKING
HOME CANNING TIPS
Be sure the canner is centered over the surface unit.
And Make sure the canner is flat on the bottom.
The base must not be more than 1 inch larger than the
element. Use of water bath canners with rippled bottoms
may extend the time required to bring the water to a boil and
cooktops may be damaged.
Some canners are designed with smaller bases for use on
smooth top surfaces.
Use the high heat setting only until the water comes to a boil
or pressure is reached in the canner.
Reduce to the lowest heat setting that maintains the boil
Or pressure.If the heat is not turned down,the cooktop may
be damaged.
USING THE PROPER COOKWARE
Using the right cookware can prevent many problems, such
as food taking longer to cook or achieving inconsistent
results. Proper pans will reduce cooking times and cook food
more evenly. Stainless steel is recommended.
Check pans for flat bottoms by
using a straight edge or ruler
1. Place a ruler across the bottom of the
pan.
2. Hold it up to the light.
3. Little or no light should be visible under
the ruler.
Recommended Incorrect
Flat bottom and
straight sides.
Heavy-gauge pans.
Pan sizes match the
amount of food to be
prepared and the size
of the surface element.
Weight of handle does
not tilt pan. Pan is well
balanced.
Tight-fitting lids.
Flat bottom woks.
Curved, grooved, or warped
pan bottoms. Pans with
uneven bottoms do not cook
efficiently and sometimes may
not boil liquid.
Very thin-gauge metal or glass
pans.
Pans are smaller or larger than
the element.
Cookware with loose or broken
handles. Heavy handles that tilt
the pan.
Loose-fitting lids.
Woks with a ring-stand
bottom.
• Do not use a small pan on a large element. Not only
does this waste energy, but it can also result in
spillovers burning onto the cooking area which
requires extra cleaning.
• Do not use non flat specialty items that are oversized
or uneven such as round bottom woks, rippled
bottom and/or oversized canners and griddles.
• Do not use foil or foil type containers. Foil may melt
onto the glass. If metal melts on the cooktop, do not
use. Call an authorized Service agent.
Note:

- 13 -
English Français
INFORMATION
PARTS AND FEATURES
Oven vent
Ceramic glass
Broiler pan & Grid
Anti-tip bracket
Model and serial
number plate
Grid
Broiler pan
Oven racks (2ea)
Storage drawer
Oven door
Gasket
Oven racks (2ea)
Self clean latch
Automatic oven light switch
Dual element
Single element
Appliance outlet circuit
breaker
Appliance outlet
Template
Cleaner Cleaning
pad
Anchors
(6ea)
Screws
(6ea)
Anti-tip
bracket

- 14 -
English
Français
READ HE INS RUC IONS CAREFULLY BEFORE USING HE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each feature
and function follow later in this Owner’s manual.
CONTROL PANEL FEATURES
INFORMATION
BAKE PAD: Press to select the bake function.
BROIL PAD: Press to select the broil function.
NUMBER PADS: Use to set any function requiring
numbers such as the time of day on the clock, the
timer, the oven temperature, the start time and
length of operation for timed baking.
START PAD: Must be pressed to start any cooking
or cleaning function.
CLEAR/OFF PAD: Press to cancel all oven
operations except the clock and timer.
CLOCK PAD: Press before setting the time of day.
TIMER ON/OFF PAD: Press to select the timer
feature.
COOK TIME PAD: Press and then use the number
pads to set the amount of time you want your food
to cook. The oven will shut off when the cooking
time has run out.
START TIME PAD: Use along with BAKE, CONV.
BAKE, CONV. ROAST, COOK TIME and SELF
CLEAN pads to set the oven to start and stop
automatically at a time you set.
COOK & WARM PAD: Press to keep cooked foods
warm. See the how to set the oven for warming
section.
PROOF PAD: Press to select a warm environment
useful for rising yeast-leavened products.
SELF CLEAN PAD: Press to select self-cleaning
function. See the using the Self-Cleaning Oven
section.
OVEN LIGHT PAD: Press to turn the oven light on
or off.
DISPLAY: Shows the time of day, oven
temperature, whether the oven is in the bake, broil
or self-cleaning mode and the times set for the timer
or automatic oven operations.
If “F– and a number” appear in the
display and the oven control signals, this
indicates a function error code.
Press the CLEAR/OFF pad. Allow the oven to
cool for one hour. Put the oven back into
operation.
If the function error code repeats, disconnect
the power to the oven and call for service.
If your oven was set for a timed oven
operation and a power outage occurred,
the clock and all programmed functions must
be reset.
he time of day will flash and PF will
appear in the display when there has
been a power outage.
Note:

- 15 -
English Français
OPERATION
SETTING THE CLOCK
The CLOCK pad is used to set the clock. The clock has been
preset at the factory for 12 hours operation. When the range
is first plugged in, or when the power supply to the range has
been interrupted, the timer in the display will show with
power failure "PF". You can make a choice between 12 hour
clock and 24 hour clock (refer to the page 16):
1. Press CLEAR/OFF pad.
2. Press CLOCK pad.
3. Press 1, 3, 0 pads to set the time
of day to 1:30.
4. Press START pad.
The clock will start.
To set the clock (example belo for 1:30):
MINIMUM & MAXIMUM
CONTROL PAD SETTINGS
All of the features listed have minimum and maximum time
or temperature settings that may be entered into the control.
An entry acceptance beep will sound each time a control pad
is pressed.
An entry error tone (3 short beeps) will sound if the entry of
the temperature or time is below the minimum or above the
maximum settings for the feature.
1. Press TIMER ON/OFF pad twice.
"0:00" and "HR" inside "O" will
appear and "TIMER" will flash in
the display.
2. Press the number pads to set the
desired time in the display (press
"5" pad).
If you make a mistake press the
TIMER ON/OFF pad and begin
again.
3. Press TIMER ON/OFF pad. The
time will count down with "5:00"
and "TIMER" will show in the
display.
4. When the set time has run out,
"End" will show in the display. The
clock will sound with 3 beeps
every 15 seconds until TIMER
ON/OFF pad is pressed.
1. Press TIMER ON/OFF pad once.
The display will return to the time
of day.
To set the Timer (example for 5 minutes):
To cancel the Timer before the set time has run out:
SETTING THE TIMER ON/OFF
The IMER ON/OFF serves as an extra timer in the
kitchen that will beep when the set time has run out. It does
not start or stop cooking. The IMER ON/OFF feature can
be used during any of the other oven control functions.
FEATURE MIN. TEMP. MAX. TEMP.
/TIME /TIME
BAKE TEMP.
BROIL TEMP.
SELF CLEAN TIME
COOK & WARM
RADIANT ELEMENT
PROOF
170°F / 75°C
LO(400°F)
2 hours
550°F / 285°C
HI(550°F)
4 hours
170°F(75°C) / 3 hours
Default: 12 Hr.
Default: 12 Hr.
If the remaining time is not in the display, recall the
remaining time by pressing the IMER ON/OFF.
Note:
1. If you press TIMER ON/OFF pad once, it allows you to make
a “second” unit of timer setting.
(for example: if you press “5” and “6”, it means 56 seconds)
2. If you press TIMER ON/OFF pad twice, it allows you to make
a “minute” unit of timer setting.
(for example: if you press “5” and “6”, it means 56 minutes)
Note:
If IMER ON/OFF is not
pressed the timer will return
to the time of day.
Note:

1. Press COOK & WARM pad for 3
seconds.
2. Press “3” pad. The display will
show “BEEP Hi”.
3. Press “3” pad to switch beeper
volume (Hi, Lo, OFF).
4. Press START pad to accept the
desired change.
To set beeper volume
SETTING BEEPER VOLUME
The beeper volume feature allows you to adjust the volumes
to a more acceptable volume. There are three possible
volume levels.
- 16 -
English
Français
1. Press COOK & WARM pad for 3
seconds.
2. Press “2” pad. The display will
show “Unit F”.
3. Press “2” pad to switch between
the “F” and “C”.
4. Press START pad to accept the
desired change.
To change display from Fahrenheit to Centigrade or
Centigrade to Fahrenheit:
SETTING TEMPERATURE UNIT —
FAHRENHEIT OR CENTIGRADE
COOK & WARM pad control the Fahrenheit or Centigrade
temperature display modes. The oven control can be
programmed to display temperatures in Fahrenheit or
Centigrade. The oven has been preset at the factory to
display in Fahrenheit.
1. Press and hold START for
3 seconds.
2. 2 beeps will sound, "DOOR
LOCKED" will flash in the display.
Once the oven door is locked the
"DOOR LOCKED" indicator will
stop flashing and remain on along
with the lock icon( ) light.
To activate the Oven Lockout feature:
1. Press and hold START for 3
seconds. A beep will sound
2 times. The "DOOR LOCKED"
will continue to flash until the oven
door has completely unlocked and
the lock icon( ) light will clear.
2. The oven is again fully operational.
To reactivate normal oven operation:
SETTING OVEN LOCKOUT
FEATURE
The S AR pad controls the Oven Lockout feature. The
Oven Lockout feature automatically locks the oven door,
prevents the Warming Drawer and most oven controls from
being turned ON. It does not disable the clock, timer or the
interior oven light.
1. Press and hold COOK & WARM
pad for 3seconds. “OPt” will be
displayed.
2. Press “1” pad. The display will
show “CLO 12H”
3. Press “1” pad to switch between
the “12H” and “24H”.
4. Press START pad to accept the
desired change.
Changing bet een 12 or 24 hour time of day
CHANGING HOUR MODE ON
CLOCK(12hr, 24hr)
Your control is set to use a 12 hour clock. If you would prefer
to have a 24 hour time clock, follow the steps below.
OPERATION (OPTIONS)

- 17 -
English Français
OPERATION (OPTIONS)
1. Press COOK & WARM pad for 3
seconds.
2. Press “4” pad. The display will
show “PrE On”.
3. Press “4” pad to switch between
the “On” and “OFF”.
4. Press START pad to accept the
change.
To set smart oven light on/off
SETTING PREHEATING ALARM
LIGHT ON/OFF
The interior oven light automatically turn on when the oven
door is opened.
When oven reaches set temperature after preheat, the oven
notifies preheat end by flashing oven lamp until door is
opened.
You can activate or deactivate smart oven light feature.
Default Setting is on.
1. Press and hold “BAKE” pad for 3
seconds.
2. To increase the temperature use
the number pads to enter the
desired change.
(Example 20°F : 2, 0).
“20°” will be displayed.
3. Press START to accept the
temperature change and the
display will return to the time of
day. Press CLEAR/OFF to reject
the change if necessary.
To increase the oven temperature:
1. Press and hold “BAKE” pad for 3
seconds.
2. To decrease the temperature use
the number pads to enter the
desired change.
(Example -20°F : 2, 0) and then
press BAKE pad once.
“- 20°” will be displayed.
3. Press START to accept the
temperature change and the
display will return to the time of
day. Press CLEAR/OFF to reject
the change if necessary.
To decrease the oven temperature:
THERMOSTAT ADJUSTMENT
The temperature in the oven has been preset at the factory.
When first using the oven, be sure to follow recipe times and
temperatures. If you think the oven is too hot or too cool, the
temperature in the oven can be adjusted. Before adjusting,
test a recipe by using a temperature setting that is higher or
lower than the recommended temperature. The baking
results should help you to decide how much of an
adjustment is needed.
The oven temperature can be adjusted from 35°F( 19°C) to
35°F(19°C) .
The thermostat adjustments made with this feature
will just change Bake.
Note:

- 18 -
English
Français
OPERATION
Press CLEAR/OFF to cancel the Bake feature at any time.

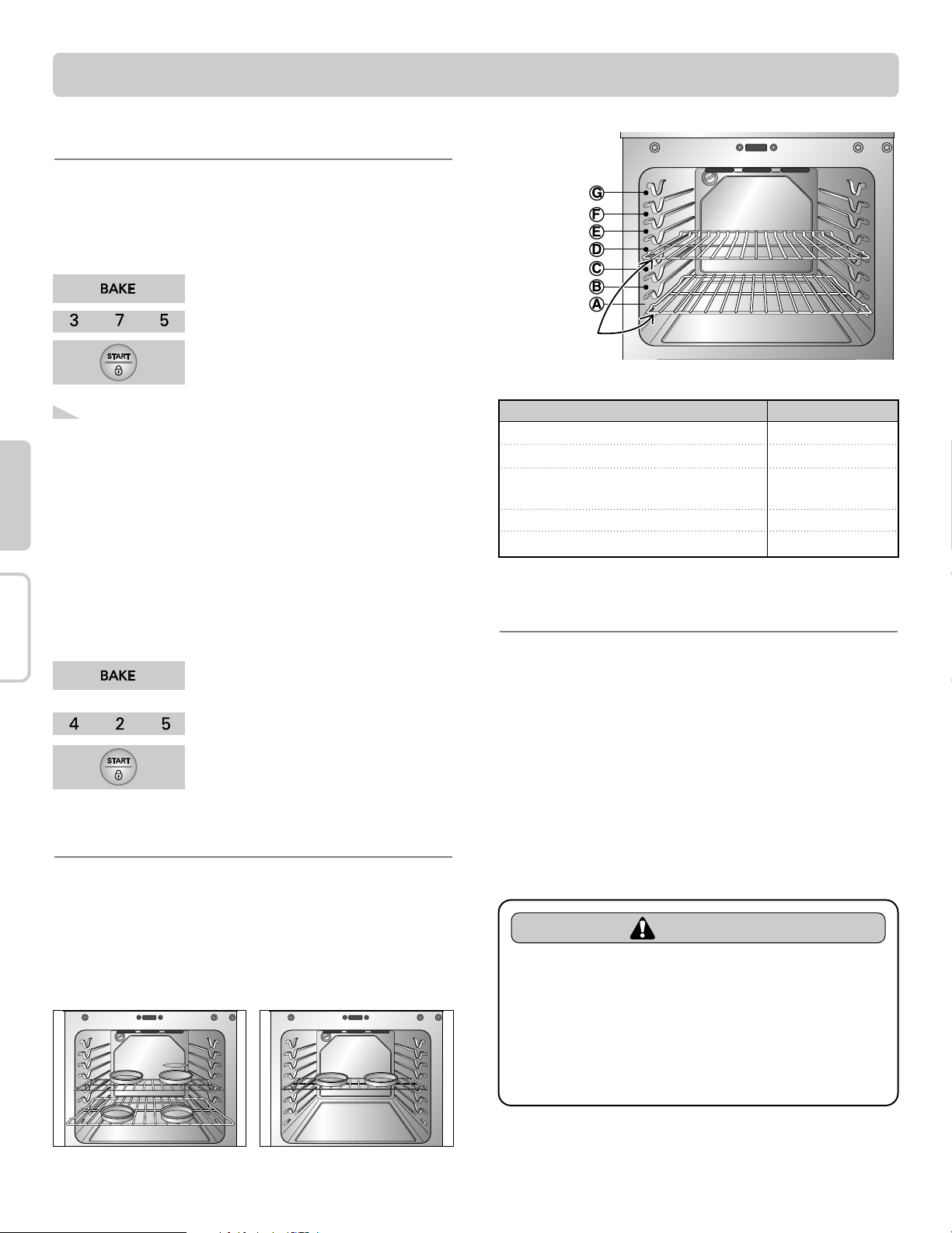

• The oven has 7 rack positions.
To set the Bake Temperature to 375°F:
1. If the oven temperature needs to
be changed to 425°F, press BAKE
pad and "350°" will show in the
display.
2. Press 4, 2, 5. pads.
3. Press START pad.
To change the Bake Temperature hile cooking
(example changing from 375° to 425°F):
SETTING BAKE
The BAKE pad controls normal baking. The oven can be
programmed to bake at any temperature from 170°F to
550°F. Default temperature is 350°F (175°C).
BAKING LAYER CAKES
Baking results will be better if baking pans are centered in
the oven as much as possible. If baking with more than one
pan, place the pans so each has at least 1” to 11/2” of air space
around it.
If cooking on multiple racks, place the oven racks in
positions B and D (for 2 racks). Place in positions B, D and F
(for 3 racks). Place the cookware as shown in Fig. 1, 2.
BEFORE USING OVEN RACKS
The oven has two racks. The racks have stops to be placed
correctly on the supports, those will stop before coming
completely out.
To remove racks:
1. Pull the rack straight out until it stops.
2. Lift up the front of the rack and pull it out.
To replace racks.
1. Place the end of the rack on the support.
2. Tilt the front end up and push the rack in.
1. Press BAKE pad. "350°" will
appear in the display.
2. Press 3, 7, 5. "BAKE" will flash.
3. Press START pad. The display will
show “BAKE” and the changing
temperature starting at 100°F.
Fig.1 Fig.2
Standard
Rack
Type of Food Rack Position
Angel food cake, Frozen pies
Bundt or pound cakes
Biscuits, muffins, brownies, cookies,
cupcakes, layer cakes, pies
Casseroles
Turkey, roast or ham
B
C
D
D
A
Place food in the oven after preheating if the recipe calls for
it.Preheating is so important for good results when baking
cakes, cookies, pastry and breads. After the oven has
reached the desired temperature, long beeps will sound
5 times and oven lamp will flash. This will take
approximately 10~15 minutes.
Important Note:
CAUTION
• DO NOT cover a rack with aluminum foil
or any other material or place on the
oven bottom.
- This will result in poor baking by disturbing heat
circulation and may damage the oven bottom.
• Always arrange oven racks when the
oven is cool.

- 19 -
English Français

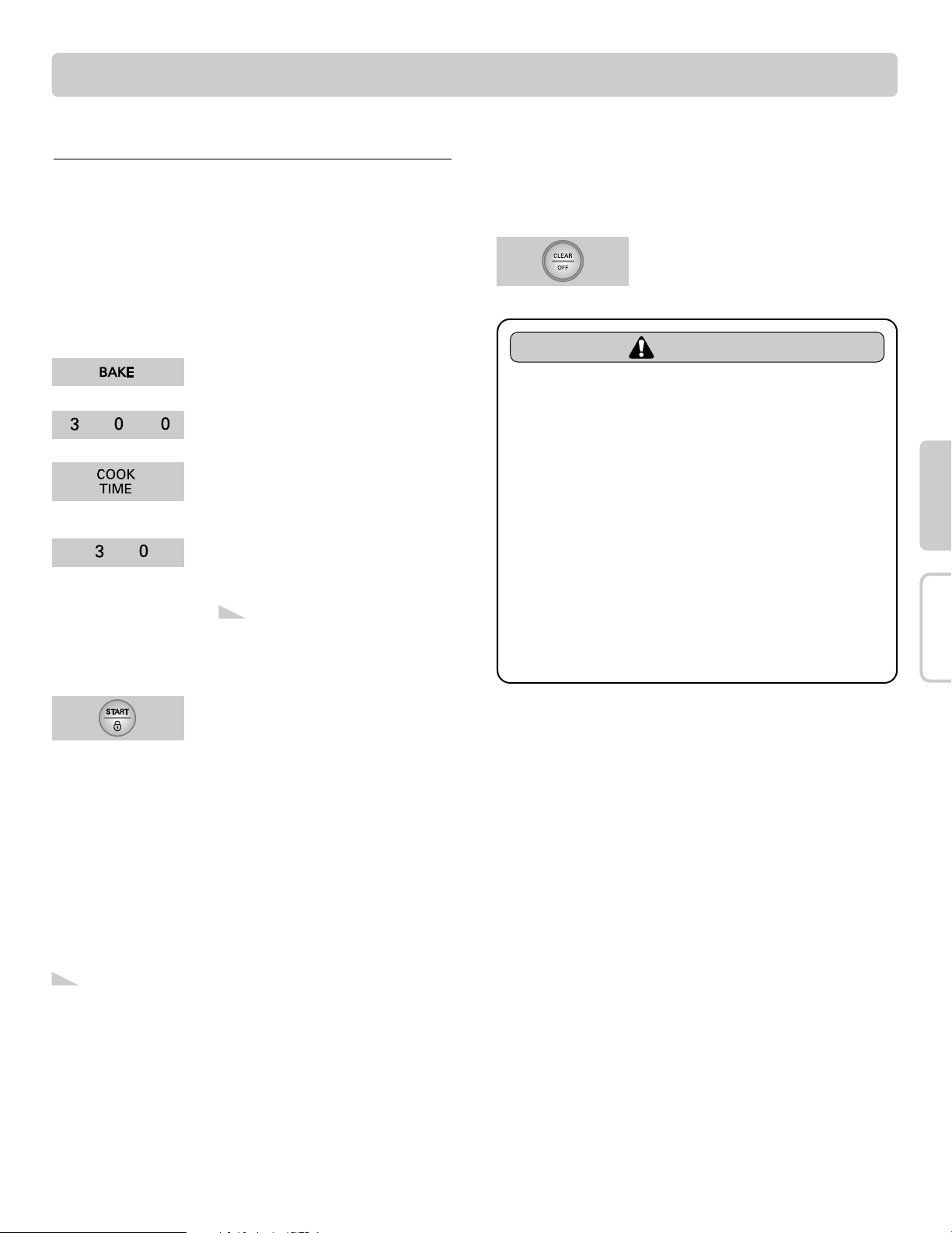

1. Be sure the clock is set for the
correct time of day.
2. Press BAKE pad, "350°" will
appear in the display.
3. Press 3, 0, 0 pads. "BAKE" will
flash and "300°" will appear in the
display.
4. Press COOK TIME pad. "TIMED"
will flash. "BAKE", "0:00" and
"300°" will appear in the display.
5. Enter the desired baking time by
pressing 3, 0 pads. "TIMED" will
flash and "BAKE", "30:00" and
"300°" will appear in the display.
6. Press START pad. The oven will
turn on, and the display will show
the cooking time countdown and
the changing temperature starting
at 100°F (the temperature display
will start to change once the oven
temperature reaches 100°F). The
oven will continue to cook for the
set amount of time, then turn off
automatically, unless the COOK &
WARM feature was set. Refer to
the “Setting the COOK & WARM
feature” section on page 22.
To program the oven to begin baking immediately
and to shut off automatically:
(example belo to bake at 300°F for 30 minutes):
When the Timed Bake finishes:
SETTING TIMED BAKE
The oven will turn on immediately and cook for a selected
length of time. At the end of the cooking time, the oven will
turn off automatically.
1. "End" and the time of day will
show in the display. The oven will
shut off automatically.
2. The control will continue to beep
3 times every 1 minute until
CLEAR/OFF pad is pressed.
OPERATION
Place food in the oven after preheating if the recipe calls for
it.Preheating is so important for good results when baking
cakes, cookies, pastry and breads. After the oven has
reached the desired temperature, long beeps will sound
5 times and oven lamp will flash. This will take
approximately 10~15 minutes.
Important Note:
Baking time can be set for
any amount of time between
1 minute to 11 hours and 59
minutes.
Note:
CAUTION
• Use caution with the TIMED BAKE or
DELAYED TIMED BAKE features. Use the
automatic timer when cooking cured or
frozen meats and most fruits and
vegetables. Foods that can easily spoil,
such as milk, eggs, fish, meat or poultry,
should be chilled in the refrigerator first.
Even when chilled, they should not
stand in the oven for more than 1 hour
before cooking begins, and should be
removed promptly when cooking is
completed.
- Eating spoiled food can result in sickness from
food poisoning.

- 20 -
English
Français
OPERATION

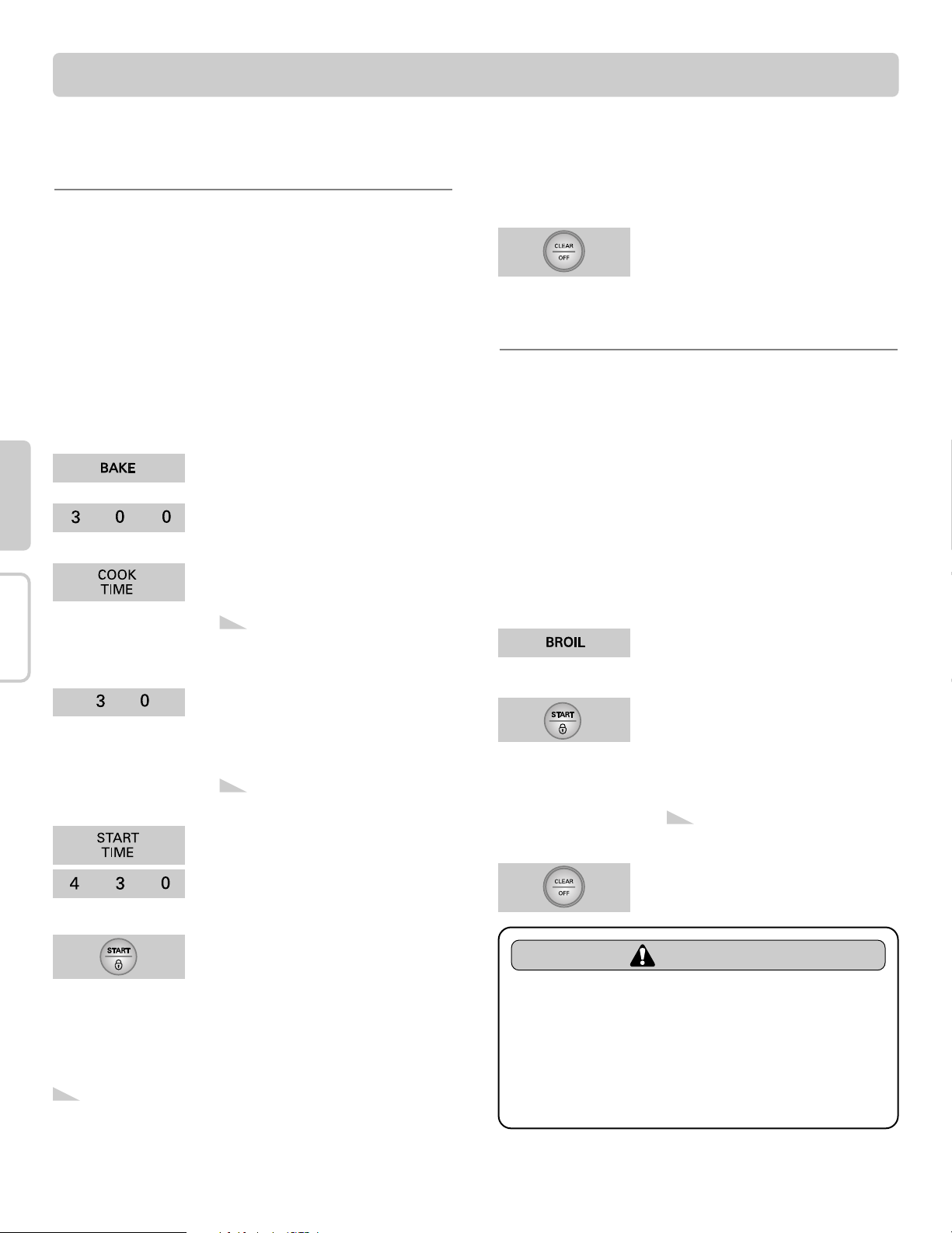

SETTING BROIL
Always operate broil mode with door closed. “Hi” is
used for most broiling. Use “Lo” broil when broiling longer
cooking foods. The lower temperature allows food to cook to
the well done stage without excessive browning. For best
results when broiling, use a pan designed for broiling.
1. Place the meat or fish on the
broiler grid in the broiler pan.
2. Follow suggested rack positions in
the Broiling Guide.
3. Press BROIL pad once for “Hi”
broil or twice for “Lo” broil.
Use “Lo” to cook foods such as
poultry or thick cuts of meat
thoroughly without over-browning
them.
4. Press START pad. The oven will
begin to broil.
5. Broil on one side until food is
browned; turn and cook on the
other side.
6. To cancel broiling or if finished
broiling press CLEAR/OFF pad.
To set the oven to broil at the Hi or Lo setting:
1. Be sure that the clock is set with
the correct time of day.
2. Arrange interior oven rack(s) and
place the food in the oven.
3. Press BAKE pad. "350°" will
appear in the display.
4. Press 3, 0, 0 pads. "BAKE" will
flash and "300°" will appear in the
display.
5. Press COOK TIME pad. "TIMED"
will flash; "BAKE", "0:00" and
"300°" will appear in the display.
6. Enter the desired baking time
using the number pads by pressing
3, 0 pads. "TIMED" will flash;
"BAKE", "30:00" and "300°" will
appear in the display.
7. Press START TIME pad. Enter the
desired start time using the
number pads 4, 3, 0.
8. Press START pad. At the set time,
a short beep will sound. The oven
will begin to Bake. When the oven
has reached the desired
temperature, a long beep will
sound 5 times and oven lamp will
flash. The display will show “300°”
and “BAKE”
To program the oven for a Delay Start and to shut
off automatically (example for baking at 300°F for
30 minutes and starting at 4:30):
SETTING DELAYED TIMED
BAKE
The BAKE, COOK IME and S AR IME pads control
the Delayed Timed Bake feature. The automatic timer of the
Delayed Timed Bake will turn the oven ON and OFF at the
time you select in advance.
1. "End" and the time of day will
show in the display. The oven will
shut off automatically.
2. The unit will continue to beep 3
times every 1 minute until
CLEAR/OFF pad is pressed.
When the set bake time runs out:
Press CLEAR/OFF to cancel the Delayed Timed Bake
feature at any time.
Note:
Always pull the rack out to
the stop position before
turning or removing food.
Note:
Baking time can be set for
any amount of time from 1
minute to 11 hours and 59
Note:
If you want to change cook
time, repeat step 5, 6 and
press start pad.
Note:
CAUTION
• Should an oven fire occur, leave the
oven door closed and turn the oven off.
If the fire continues, throw baking soda
on the fire or use a fire extinguisher.
• DO NOT put water or flour on the fire.
- Flour may be explosive and water can cause a
grease fire to spread and cause personal injury.
