OWNER’S MANUAL
MICROWAVE OVEN
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY
BEFORE OPERATING.
MFL38260004
LCRT1513SB
LCRT1513ST

SAFETY
3-5
Precautions to Avoid Possible Exposure To Excessive Microwave Energy
..............................................................................
3
Grounding Instructions .......................................................................................................................................................
3
............
4-5
..........
6-10
............
6
............
6
............
7
.............
8
............
9
............
10
Important Safety Instructions ..................................................................................................................................
UNDERSTANDING YOUR MICROWAVE OVEN
............................................................................................
.........
.........
........
........
.........
.........
.....................
10
................
11-19
 ................................................................................................................................................
Installation .....................................................................................................................................................
Parts and Accessories ....................................................................................................................................
Control Panel .................................................................................................................................................
Tips for Microwave Cooking ...........................................................................................................................
Cleaning ........................................................................................................................................................
Precautions ...................................................................................................................................................
USING YOUR MICROWAVE OVEN
.........................................................................................................

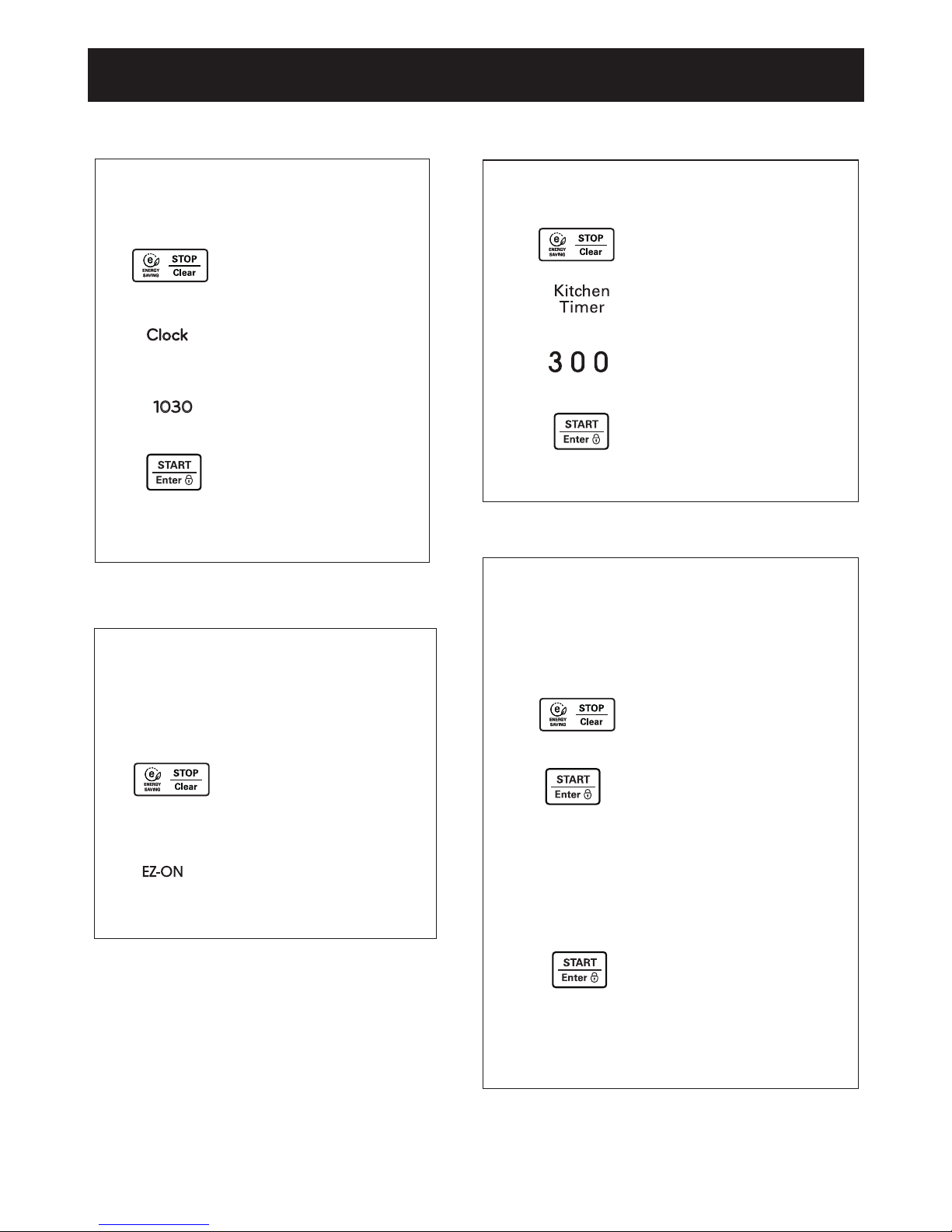

Setting Time of Day
.............................................................................................................................................................
11
ChildLock
................................................................................................................................................................................
11
KitchenTimer......................................................................................................................................................................
11
EZ-ON
.......................................................................................................................... ..................................................
11
SensorTouchOperation Instruction ...................................................................................................................................
15
Potato (Example) ...............................................................................................................................................................
15
QuickSensorTouch Table .................................................................................................................................................
15
Auto Cook Chart
............................................................... ....................................................................................................
14

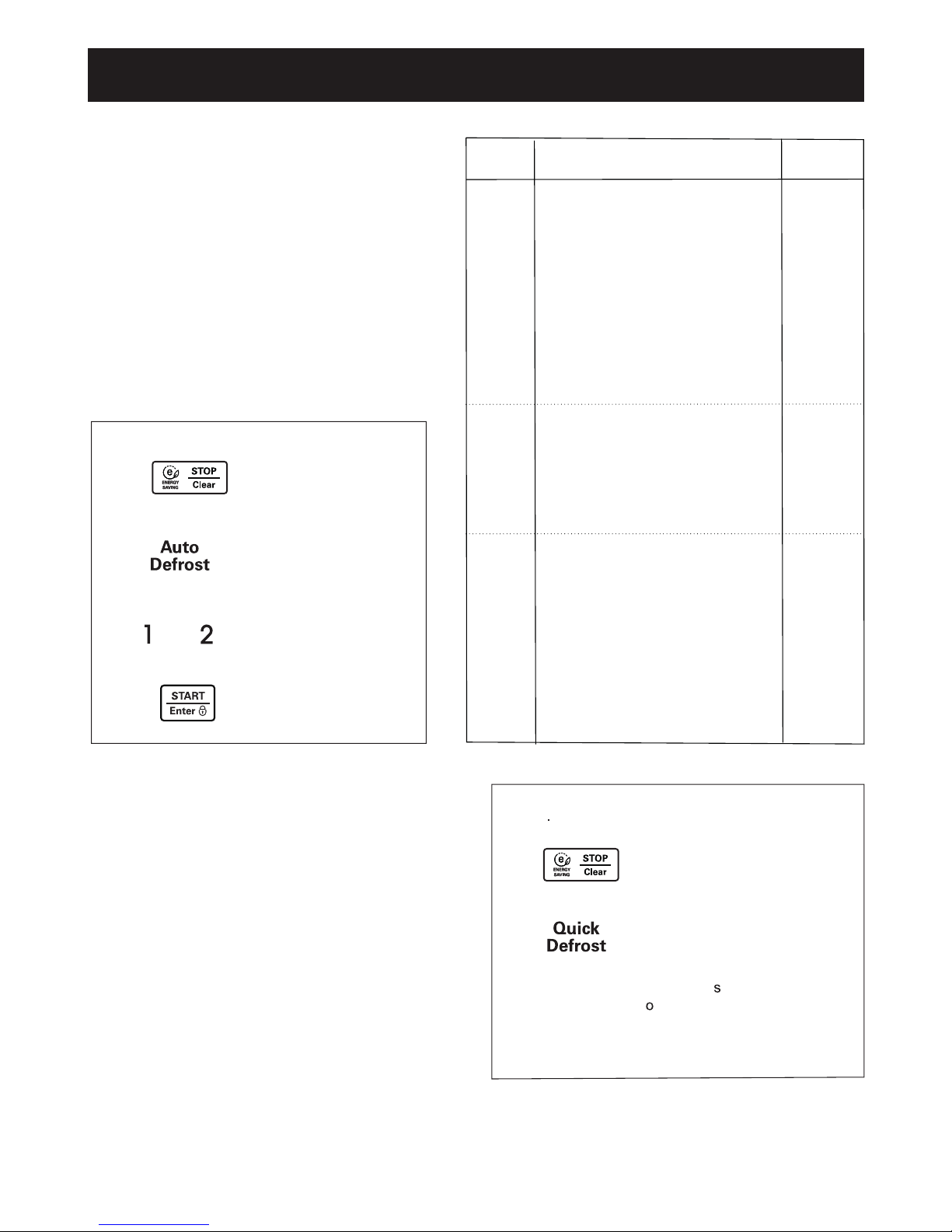

Auto Defrost
...........................................................................................................................................................
16
Auto Defrost Table
..............................................................................................................................................
17-18
Quick Defrost
..............................................................................................................................................................................
16
Multistage Cooking
More/Less ...........................................................................................................................................................................
12
Microwave Power Levels
....................................................................................................................................................
13
Energy Saving
...............................................................................................................................................
13
Auto Cook .........................................................................................................................................................................
14
...........................................................................................................................................................
12
Soften ...............................................................................................................................................................................
19
Melt ...................................................................................................................................................................................
19
Time Cook
..........................................................................................................................................................................
12
TROUBLESHOOTING
..............................................................................................................................................
20-22
Questions and Answers ................................................................................................................................................
20-21
Before Calling for Service ...................................................................................................................................................
22
WARRANTY
.......................................................................................................................................
Inside back cover
............................................................................................................................................................................
TABLE OF CONTENTS
Thank you for purchasing a LG microwave oven.
Please record the model number and serial Model No:
number of this unit for future reference. We also Serial No:
suggest you record the details of your contact Dealer:
with LG (LG Electronics U.S.A., Inc.)
concerning this unit.
Dealer Phone No:
Customer Relations
LG Electronics U.S.A., Inc.
Staple your receipt here for proof of purchase. Service Division Bldg. #3
201 James Record Rd.
Huntsville, AL 35824-0126

3
SAFETY
• Do not attempt to operate this oven with
the door open, since open-door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or tamper
with the safety interlocks.
• Do not place any object between the oven
front face and the door, or allow soil or
cleaner residue to accumulate on sealing
surfaces.
• Do not operate the oven if it is damaged.
It is particularly important that the oven door
close properly and that there is no damage to
the:
- door (bent),
- hinges and latches (broken or loosened),
- door seals and sealing surfaces.
• The oven should not be adjusted or
repaired by anyone except properly qualified
service personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY

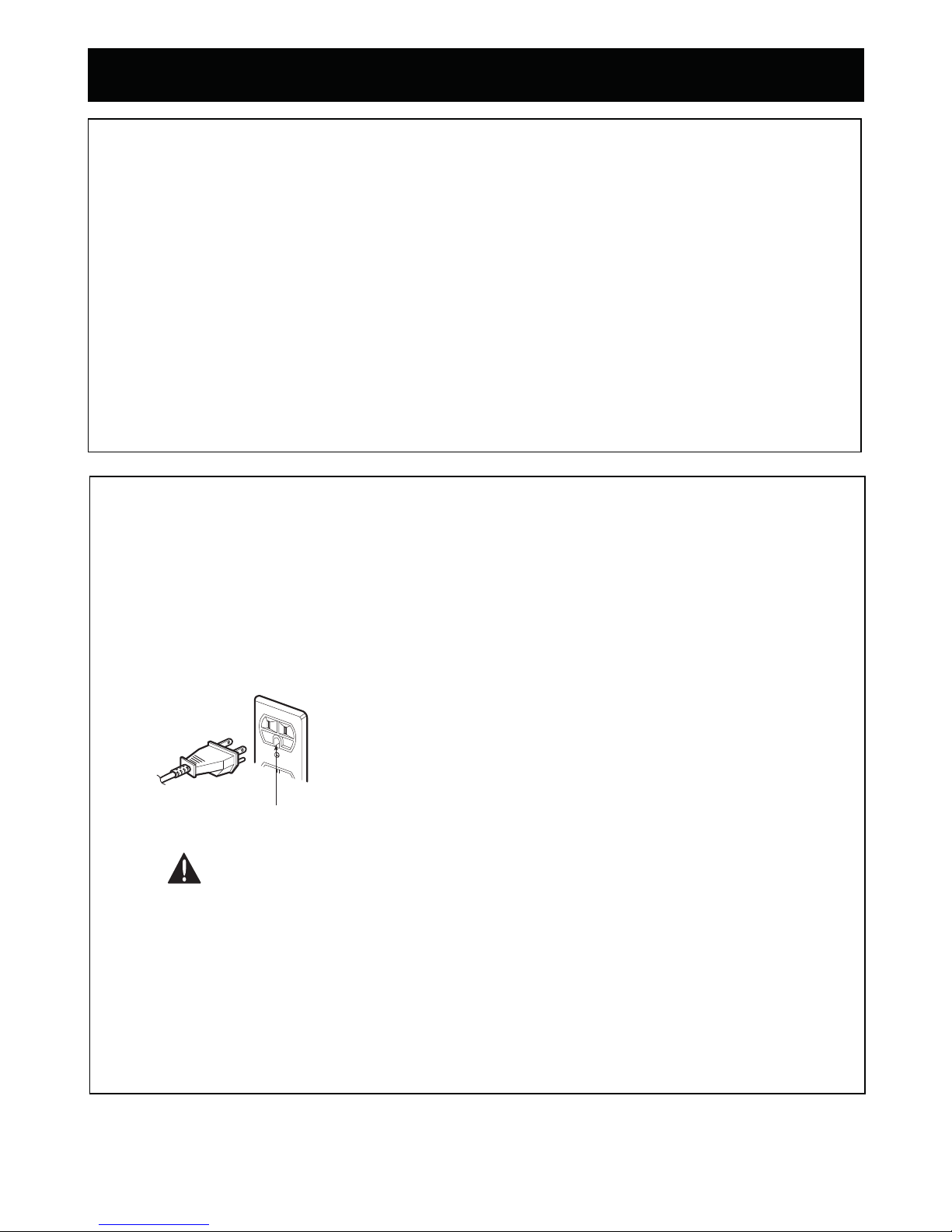

GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape
wire for the electric current. This appliance is
equipped with a cord having a grounding wire
and a grounding plug. The plug must be plugged
into an outlet that is properly installed and
grounded.
WARNING
Improper grounding can result in a risk of electric
shock. Consult a qualified electrician if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded, and either:
1. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot recepta-
cle that will accept the plug on the appliance.
The marked rating of the extension cord shall
be equal to or greater than the electrical
rating of the appliance, or . . .
2. Do not use an extension cord. If the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet near
the appliance.
NOTES:
1. A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are
available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used, (1)
the marked electrical rating of the cord set or
extension cord should be at least as great as
the electrical rating of the appliance, (2) the
extension cord must be a grounding-type
3-wire cord, and (3) the longer cord should be
arranged so that it will not drape over the
countertop or tabletop where it can be pulled
on by children or tripped over accidentally.
Ensure proper ground
exists before use

4
IMPORTANT SAFETY INSTRUCTIONS
3. This appliance must be grounded. Connect only to properly grounded outlet.
See GROUNDING INSTRUCTIONS found on page 3 of this manual.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products, such as whole eggs and sealed containers – for example, closed glass jars are able to
explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals
or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has
been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over the edge of a table or counter.
15. When cleaning surfaces of door and oven that come together on closing the door, use only mild,
nonabrasive soaps or detergents applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the
power cord or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in
the cavity when not in use.
SAFETY
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY found on page 3 of this manual.
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons, or
exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific PRECAUTIONS TO AVOID
The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your
oven.

5
SAFETY
17. Liquids such as water, coffee,or teaare able to be overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To
reduce the risk of injury to persons;
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short time before removing the
container
5) Use extreme care when inserting a spoon or other utensil into the container.
18. Avoid heating small-necked containers such as syrup bottles.
19. Avoid using corrosive and vapors, such as sulfide and chloride.
20. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become
overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients
(instant coffee, etc.), resulting in harm to the oven and possible injury. In all containers, for best results,
stir the liquid several times before heating. Always stir liquid several times between reheatings.
SAVE THESE INSTRUCTIONS

*IEC 60705 RATING STANDARD
MODEL
 
  
 

 
  (WxHxD)
   (WxHxD)
   
120 V AC, 60 Hz
1500W
*1100 W
2450 MHz
13A
21 7/8"x12 1/2"x17 7/32"
15 21 /32"x10 7/16"x15
27
/32"
UNDERSTANDING YOUR MICROWAVE OVEN

SPECIFICATIONS
INSTALLATION
A. Circuits NOTES:
•Never place the turntable in the oven upside down.
For safety purposes this oven must be plugged into a
20 Amp circuit. No other electrical appliances or light-
ing circuits should be on this line. If in doubt, consult a D. Do not block the air vents
licensed electrician.
All air vents should be kept clear during cooking. If air
B. Voltage Warning vents are covered during oven operation the oven may
overheat. In this case, a sensitive thermal safety device
The voltage used at the wall receptacle must be the automatically turns the oven off. The oven will be
same as specified on the oven name plate located on inoperable until it has cooled sufficiently.
the back or on the side of the control panel of the oven.
Use of a higher voltage is dangerous and may result in
a fire or other type of accident causing oven damage. E. Radio interference
Low voltage will cause slow cooking. In case your 1. Microwave oven operation may interfere with TV
microwave oven does not perform normally in spite of or radio reception.
proper voltage, remove and reinsert the plug. 2. When there is interference, it may be reduced or
eliminated by taking the following measures:
C. Placement of the Oven a. Clean the door and the sealing surfaces of the
Your microwave oven can be placed easily in your oven.
kitchen, family room, or anywhere else in your home. b. Reorient the receiving antenna of radio or TV.
Place the oven on a flat surface such as a kitchen c. Relocate the microwave oven in relation to the
countertop or a specially designed microwave oven TV or radio.
cart at least 100cm (39.4 inches) from floor. Do not d. Move the microwave oven away from the
place oven above a gas range. Free air flow around receiver.
the oven is important. Allow at least 4 inches e. Plug the microwave oven into a different outlet
of space at the top, sides, and back of the oven for so that microwave oven and receiver are on
proper ventilation. different branch circuits
LCRT1513ST/LCRT1513SW/LCRT1513SB

UNDERSTANDING YOUR MICROWAVE OVEN


 
 
 
Oven Front Plate
Window Door Screen
Door Seal
Control Panel
Door Open Button
Safety Door Lock System
Display Window
A. Glass Turntable
B. Turntable Shaft
C. Rotating Ring
D. Motor Shaft
A
B
C
D
 

wWARNING:
Do not operate the oven when empty or without the glass tray. It is best to
leave a glass water in the oven when not in use. The water will safly absorb
all microwave energy, if the oven is accidentally started.


CONTROL PANEL
1. DISPLAY.The display includes a clock and
indicators that tell you time of day, cooking time
settings, and cooking functions selected.
2.
SENSOR TOUCH
.This pad allows you to cook most of
your favorite foods without having to select cooking
times and p
owerlevels.
3. AUTO COOK. Touch this pad to select
.ekiluoytahtsdoofeht it has 6 foods categories.
4.
to select food type and defrost food by weight .
5. QUICK DEFROST. Touch this pad to thaw only 1 lb
of food very quickly.
6. MELT. Touch this pads to melt butter/margarine,
chocolate,cheese,or marshmallows.
7.
SOFTEN. Touch this pad to soften butter,ice cream,
cream cheese, or frozen juice.
8. MORE/LESS COOKING. By using the More or Less keys,
timed cook program can be adjusted to cook food for
a longer or shorter time.
9 . CLOCK. Touch this pad to enter the time of day.
1 0. EZ-ON. Touch
this pad, it will add 30 seconds up to
3 minutes 30 seconds; after 3 minutes 30 seconds,
every touch will add 1 minute up to 99 min 59 seconds.
11. KITCHEN TIMER. Touch
this pad to use your
microwave oven
as a kitchen timer.
12. NUMBER PADS Touch number pads to enter
cooking time, power level, quantities, or weights.
13.
COOK
TIME . Touch this pad to set a cooking time.
1 4. POWER LEVER.Touch this pad to set a cooking power
15. STOP/CLEAR. Touch this pad to stop the oven or
clear entries
16.
START/ENTER.START allows oven to begin functioning.
Touch this pad to start entries and to turn
Child Lock on or off.
AUTO DEFROST.
Touch this pad also to save energy.ENERGY SAVING.
1
2
34
5
6
7
8
910
11
12
13 14
15 16

UNDERSTANDING YOUR MICROWAVE OVEN

UNDERSTANDING YOUR MICROWAVE OVEN








 

 









































!"##$%&'(#!()'*+/%;&<&=#*!







>



UNDERSTANDING YOUR MICROWAVE OVEN
?


?

 


?

?



?


?


?

?

?

?


?
































?


?










)@
