LG LMV2055 Series User manual

www.lg.com
OWNER’S MANUAL
MICROWAVE OVEN
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY
BEFORE OPERATING.
MFL56516424
LMV2055**

2
TABLE OF CONTENTS
SAFETY ..................................................................3-4
Important Safety Instructions ............................... 3
UNDERSTANDING YOUR MICROWAVE OVEN ....5-7
USING YOUR MICROWAVE OVEN ...................9-20
Learn About Your Microwave Oven ..................... 9
Clock .................................................................... 9
Vent ON/OFF ......................................................... 9
Light Hi/Low/Off ....................................................10
Child Lock ............................................................ 9
Custom Set ........................................................ 12
17
Soften Table ....................................................... 18
Melt Table .......................................................... 18
Defrost ................................................................19
Quick Defrost .....................................................19
Time Defrost ....................................................... 20
Defrost Tips ........................................................ 20
Metal Rack ......................................................... 20
COOKING ........................................................ 21-25
Getting the Best Cooking Results ...................... 21
Fish and Shellfish ............................................... 21
Fish and Shellfish Cooking Table ....................... 21
Appetizers /Sauces /Soups ................................ 22
Meat ................................................................... 22
Meat Cooking Table ........................................... 23
Chicken .............................................................. 24
Chicken Cooking Table ...................................... 24
Pasta and Rice ................................................... 25
Pasta Cooking Table .......................................... 25
Rice Cooking Table ............................................ 25
CARING FOR YOUR MICROWAVE OVEN .......26-27
Care and Cleaning ............................................... 26
Metal Rack ......................................................... 26
Cleaning the Grease Filters ............................... 26
Charcoal Filter Replacement .............................. 27
Cooktop/Night Light Replacement ..................... 27
Oven and Warming Lamp Light Replacement ....... 27
COOKING UTENSILS .......................................... 28
Microwave Utensil Guide ................................... 28
TROUBLESHOOTING ..................................... 29-30
Before Calling for Service .................................. 29
Questions and Answers ..................................... 30
LIMITED WARRANTY .......................................... 31
Slide-Out Hood ................................................... 20
Timer..................................................................
Precautions to Avoid Possible
Exposure to excessive Microwave
Energy ................................................................... 4
Audible Signals ......................................................10
Interrupting Cooking...............................................10
Slide out Ventilation................................................ 10
Glass touch Controller.............................................10
Vent 4 Speed..........................................................10
Energy Saving...................................................... 10
Add 30 Sec........................................................... 10
Kids Meal ............................................................ 11
Custom Cook....................................................... 11
.
..
..
...
...
..
..
Location of Model Number ................................... 5
Oven Specifications ............................................. 5
Electrical Rating .................................................. 5
Electrical Requirements ...................................... 5
Grounding Instructions ......................................... 5
Microwave Oven Features. .................................. 6

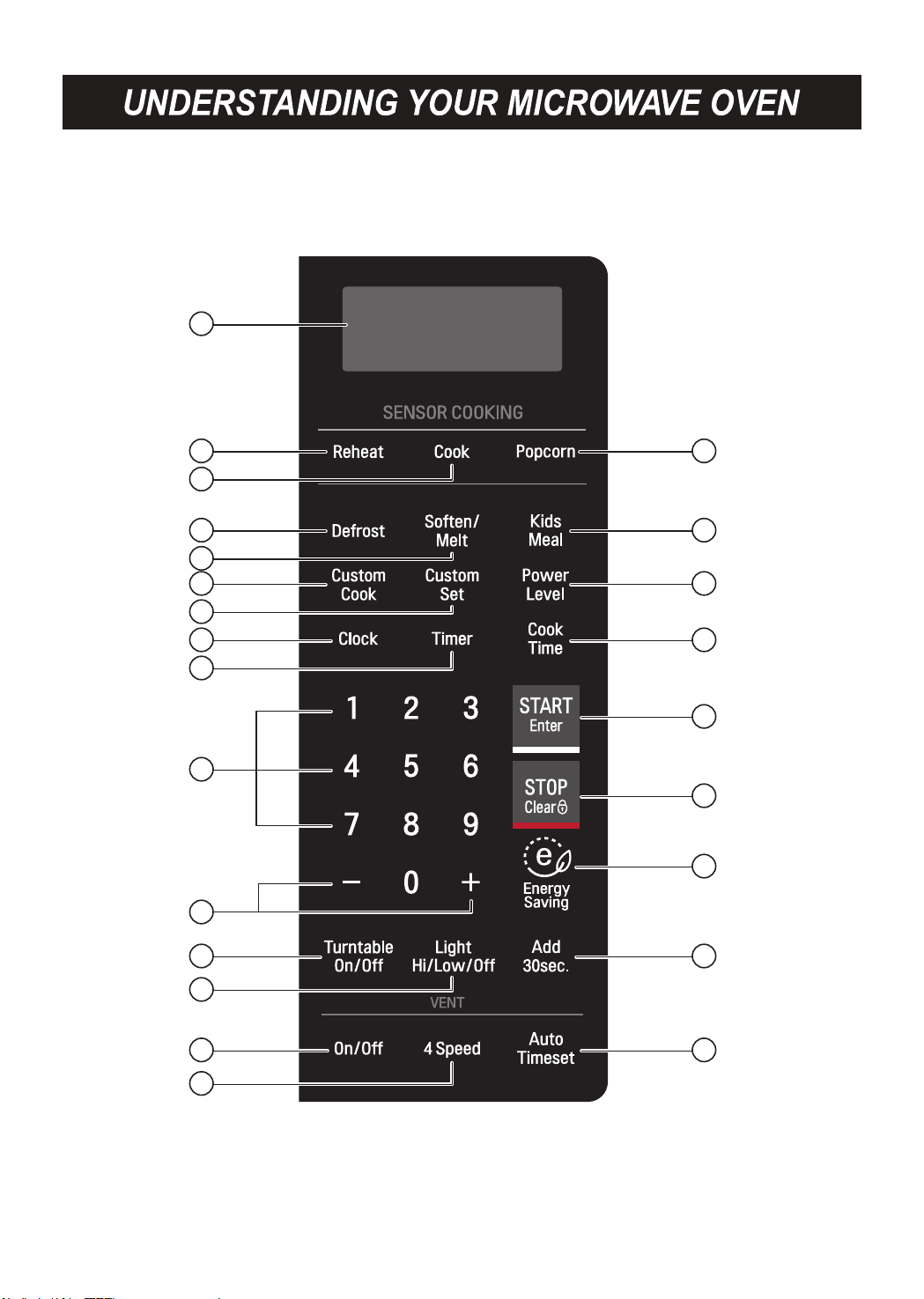

Control Panel Features ........................................ 7
+/-........................................................................ 12
Cooking at High Power Levels .............................12
Microwave Power Levels .....................................12
Multi Stage Cooking .............................................12
Cooking Guide for Lower Power Levels ...............13
Turntable On/Off ..................................................14
Sensor Operating Instructions ..............................14
Sensor Cooking Guide .........................................14
Sensor Popcorn ...................................................14
Sensor Reheat ......................................................15
Sensor Cook ........................................................15
Cooking Guide for Sensor Reheat..........................
..15
Cooking Guide for Sensor Popcorn........................
..16
Cooking Guide for Sensor Cook.............................
..16
Soften/Melt..............................................................17
Using Glass Touch Controller .............................. 7

3
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your oven and avoid harm to yourself or
damage to your oven.
WARNING -To reduce the risk
of burns, electric shock, fire, injury to persons, or
exposure to excessive microwave energy.
• Read all the instructions before using your oven.
•Do not allow children to use this oven without
close supervision.
•Read and follow the specific
PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO
E
foun
XC
d
E
on page
SSIVE
4 .
MICROWAVE ENERGY
•Do not usecorrosive chemicals or vapors, such as
sulfide and chloride, in this appliance. This type of
oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
•Do not use or storethis appliance outdoors. Do not
use this product near water - for example, near a
kitchen sink, in a wet basement, or near a swimming
pool, and the like.
•Do not usethe cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
•Clean the ventilating hood frequently.Do not
allow grease to accumulate on the hood or the
filters.
•Use care when cleaning the vent hood filters.
Corrosive cleaning agents such as lye-based oven
cleaners may damage the filters.
•Do not tamper with the built-in safety switches
on the oven door.The oven has several built-in
safety switches to make sure the power is off when
the door is open.
• If food flames under the hood, turn the fan on.
•Suitable for use above both gas and electric cooking
equipment 36 inches wide or less.
•Do not use this oven for commercial purposes.
It is made for household use only.
•When cleaning the door and the surfaces that
touch the door, use only mild, non-abrasive
soaps or detergents and a sponge or soft cloth.
•If your oven is dropped or damaged,have it
thoroughly checked by a qualified service technician
before using it again.
•To avoid a fire hazard:
- Do not severely overcook food.Severely
overcooked foods can start a fire in the oven.
Watch the oven carefully, especially if you have
paper, plastic, or other combustibles in the oven.
- Do not store combustible items (bread,
cookies, etc.) in the oven, because if lightning
strikes the power lines it may cause the oven to
turn on.
- Do not use wire twist-ties in the oven. Be sure
to inspect purchased items for wire twist-ties and
remove them before placing the item in the oven.
•If a fire should start:
- Keep the oven door closed.
- Turn the oven off.
- Disconnect the power cord or shut off the
power at the fuse or circuit breaker panel.
•To avoid electric shock:
- This appliance must be grounded. Connect it
only to a properly grounded outlet. See the
electrical GROUNDING INSTRUCTIONS
on page 5.
- Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
- Do not immerse the electrical cord or plug
in water.
- Keep the cord away from heated surfaces.
•Take care when The Door is opened.
There is a possibility of being injured.
- If materials inside the oven ignite, keep the oven
door closed, turn the oven off and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel. If the door is opened, the fire may
spread.
NOTE: Turn the microwave’s vent fan on
whenever you use the oven range cooktop
below it.The fan captures smoke, steam, and
odors and also prevents the heat from the
cooktop from damaging microwave components.
If the microwave is cooking, the vent fan turns on
automatically if the sensors detect too much heat
from the cooktop. This is normal, and is designed
to prevent microwave component damage.

4
SAVE THESE INSTRUCTIONS
• To avoid improperly cooking some foods.
- Do not heat any types of baby bottles or baby
food.Uneven heating may occur and possibly
cause personal injury.
- Do not heat small-necked containers,such as
syrup bottles.
- Do not deep-fat fry in your microwave oven.
- Do not attempt home canning in your
microwave oven.
- Do not heat the following items in the
microwave oven:whole eggs in the shell, water
with oil or fat, sealed containers, or closed glass
jars. These items may explode.
• Do not cover or block any openings in the oven.
•Use your oven only for the operations described in
this manual.
• Do not run the microwave empty,without food in it.
.
• Preserve the oven floor:
- Do not heat the oven floor excessively.
- Do notallow the gray film on special microwave-
cooking packages to touch the oven floor. Put the
package on a microwavable dish.
- Do notcook anything directly on the oven floor or
turntable. Use a microwavable dish.
- Keep a browning dish at least 3/16 inch above floor.
Carefully read and follow the instructions for the
browning dish. If you use a browning dish
incorrectly, you could damage the oven floor.
•Install or locate this appliance only in accordance
with the provided installation instructions.
•This appliance should be serviced only by qualified
service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
•Liquids, such as water, coffee, or tea can be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID
To reduce the risk of injury to persons;
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
• Do not let cord hang over edge of table or counter.
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY...
(a) Do not attempt to operate this oven with the
door open since open-door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven
front face and the door or allow soil or
cleaner residue to accumulate on sealing
surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door
closes properly and that there is no
damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired
by anyone except properly qualified service
personnel.
• As with any appliance, close supervision is
necessary when used by children.
•As with any appliance, close supervision is necessary
when the microwave oven is used by children.
•If material inside of the oven should ignite, the oven
door should be kept closed, the appliance turned off,
the power cord disconnected, or the power shut off at
the fuse or circuit breaker panel.

Please read this owner’s manual. It will tell you how
to use all the fine features of this microwave oven.
LOCATION OF MODEL NUMBER
To request service information or replacement parts,
the service center will require the complete model
number of your microwave oven. The number is on the
oven front as shown in the illustration below.
OVEN SPECIFICATIONS
ELECTRICAL REQUIREMENTS
The oven is designed to operate on a Standard
120V/60Hz household outlet. Be sure the circuit is at
least 15A or 20A and the microwave oven is the only
appliance on the circuit. It is not designed for 50Hz
or any circuit other than a 120V/60Hz circuit.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If an electrical
short circuit occurs, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. The appliance is equipped with a cord
having a grounded wire with a grounded plug.
Put the plug into an outlet that is properly installed and
grounded.
WARNING -
If you use the grounding
plug improperly, you risk electric shock.
Ask a qualified electrician if you do not understand the
grounding instructions or if you wonder whether the
appliance is properly grounded.
5
Because this appliance fits under the cabinet, it has a
short power-supply cord. See the separate Installation
Instructions for directions on placing the cord properly.
Keep the electrical power cord dry and do not pinch or
crush it in any way.
If it is necessary to use an extension cord, use only a
3-wire extension cord that has a 3-blade grounding
plug, and a 3-slot receptacle that will accept the plug
on the appliance. The marked rating of the extension
cord shall be equal to or greater than the electrical
rating of the appliance.
For a permanently connected appliance:
This appliance must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit
conductors and connected to the equipment grounding
terminal or lead on the appliance.
Output Power 1,000W (IEC 60705 Standard)
Outer Dimensions 29 7/8" X 167/16" X 15 13/16"
Cavity Volume 2.0Cu.ft
Net Weight 60.9 lbs.
ELECTRICAL RATING
* Electrical Rating of the Oven:120V AC 60Hz
*13Amps / 1500 Watts ( MWO + Cooktop Lamp
+ Ventilation Fan)
MODEL NUMBER LABEL

Push the Slide-out hood to move the slide-out hood
to the Front or Rear.
This will allow you to remove the steam and other
vapors more effectively from surface cooking.
Your microwave oven is designed to make your
cooking experience as enjoyable and productive as
possible. To get you up and running quickly, the
following is a list of the oven’s basic features:
1. Metal Shielded Window. The shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
2.
3. Charcoal Filter (behind Vent Grille)
4. Vent Grille
6. Cooktop/Countertop Light
Model and Serial Number Plate & Cooking
Guide Label
5. Glass Tray. The glass tray moves food as it
cooks for more even cooking.
It must be in the oven during operation for best
cooking results.
7. Control Panel. Touch the pads on this panel to
perform all functions.
8.
9. Grease Filter
10. Slide-Out Hood.
Metal Rack. Use for extra space when cooking in
more than one container at the same time.
Remove cooking rack when you are not using it.
6
WARNING:
Do not operate the oven when empty or without the glass tray. It is best to leave a glass of water in the oven
when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.
Door Handle Model and Serial
Number Plate
Metal Rack Vent Grille
Control Panel
Door Safety
Lock System
Cooking Guide
Slide-Out Hood
Window with
Metal Shield Glass Tray
Cooktop/Countertop Light
Serivce call
Grease Filter

CONTROL PANEL FEATURES
Your microwave oven control panel lets you select the desired cooking function quickly and easily. All you have
to do is touch the necessary Command pad. The following is a list of all the Command and Number pads
located on the control panel. For more information on these features, see the OPERATION section.
7
1. Touch the middle of letter or number to activate.
2. If you touch the button with a fingernail or fingertip, the controller may not sense it is being touched.
3. If the controller or your hands are wet it may not sense your touch.
4. Remove gloves prior to touching the controller.
13
15
16
18
1
2 4
3
5 7
6
8 10
9
11
14
21
12
19
20
2422
23
17
USING GLASS TOUCH CONTROLLER

NOTE: Styling and features vary by model.
8
1. Display. The Display includes a clock and
indicators to tell you time of day, cooking time
settings and cooking functions selected.
2. Reheat. Reheat has preset Power Levels for 6
categories including a casserole, dinner plate, and
soup/sauce. The oven’s sensor will tell the oven
how long to cook depending on the amount of
humidity it detects from the food.
3. Cook. Cook has preset Power Levels for 13
categories including frozen lasagna, casseroles,
and rice. The oven’s sensor will tell the oven how
long to cook depending on the amount of humidity it
detects from the food.
4. Popcorn. Touch this button when popping popcorn
in your microwave oven. The oven’s sensor will
tell the oven how long to cook depending on the
amount of humidity it detects from the popcorn.
5. Defrost. Touch this button to defrost frozen food.
6. Soften/Melt.
• Soften: Touch this button to soften butter, ice
cream, cream cheese, frozen juice.
• Melt: Touch this button to melt butter or
margarine, chocolate, cheese, and marshmallows.
7. Kids Meal. Select type of dish to reheat Mac &
Cheese, Hot dog or Chicken nuggets.
8. Custom Cook. Touch this button to make oven
remember Cook time and Power level.
9. Custom Set. Touch this pad to change the oven’s
default setting for sound, clock, display speed, and
defrost weight.
10. Power Level. Touch this button to select a
cooking power level.
11. Clock. Touch this button to enter the time of day.
12. Timer. Touch this button to start the kitchen timer.
13. Cook Time. Touch this button to set a cooking
time.
14. Number. Touch number buttons to enter cooking
time, power level, quantities or weights.
15. START/Enter. Touch this button to start a function.
If you open the door after the oven begins to cook,
touch START/Enter again.
16. STOP/Clear. Touch this button to stop the oven or
clear all entries.
17. +, -. Touch this button to add or subtract ten
seconds of cooking time each time you touch it.
18. Energy Saving. Touch this button to save energy.
19. Turntable On/Off. Touch this button to turn on/off
the turntable. This option is not available in sensor
cook, defrost, soften and melt modes.
20. Light High/Low/Off. Touch this button to turn the
cooktop/countertop light on high/low or off.
21. Add 30Sec. Touch this button to add 30 seconds
of cooking time each time you touch it.
22. Vent On/Off. Touch button to turn the vent on slow
or off.
23. Vent 4 Speed. Touch button to change vent
speed.
24. Vent Auto Timeset. Touch this button to set
ventilation time. (1, 3, 5, 10, and 30 minutes.)

9
LEARN ABOUT YOUR
MICROWAVE OVEN
This section discusses the concepts behind microwave
cooking and introduces you to the basics you need to
know to operate your microwave oven. Please read this
information before using your oven.
To avoid risk of personal injury or property
damage, do not run the oven empty.
To avoid risk of personal injury or property
damage, do not use stoneware, large sheets of
aluminum foil, metal utensils, or metal trimmed
utensils in the oven. Keep aluminum foil at least
1 inch from the oven wall metal rack and other
pieces of foil.
Example: To set the clock for 8:00 am
1. Touch CLOCK.
2. Enter the time by using the
number keys.
3. Touch START/ENTER
4. Press 1for AM, 2for PM.
5. Touch START/ENTER.
When the oven is first plugged into a power outlet, the
"Please Set Time of Day" prompt will flash several time. If
a time of day is not set, ":" will Show on Disply until you
touch "CLOCK".
CLOCK
The fan moves steam and other vapors from the cooking
surface.
VENT ON/OFF
Use this safety feature to lock the control panel when you
are cleaning the oven, or so that children cannot use the
oven unsupervised.
CHILD LOCK
8 0 0
1
Example: To set the child lock.
Example: To cancel the child lock.
1. Touch Vent On/Off.
Touch once. "FAN SLOW"
will scroll in the display.
Fan will work on slow speed.
2. Touch Vent On/Off.
Fan will turn off. "FANOFF"
will scroll in display.
1. Touch and hold STOP/Clear
until you hear 2 beeps and
"LOCKED" appears
(approximately 4 seconds).
1. Touch and hold STOP/Clear
until "LOCKED" disappears
(approximately 4 seconds).
NOTE: Turn the microwave’s vent fan on whenever
you use the oven range cooktop below it.The fan
captures smoke, steam, and odors and also prevents
the heat from the cooktop from damaging microwave
components.
If the microwave is cooking, the vent fan turns on
automatically if the sensors detect too much heat
from the cooktop. This is normal, and is designed
to prevent microwave component damage.

10
AUDIBLE SIGNALS
Audible signals are available to guide you
when setting and using your oven:
•• A beep will sound each time you touch a button.
•4 beeps signals the end of a cooking cycle.
INTERRUPTING COOKING
You can stop the oven during a cycle by opening
the door. The oven stops heating and the fan stops,
but the light stays on.
To restart cooking, closethe door and touch
START/Enter.
If you do not want to continue cooking, open
the door and touch STOP/Clear.
SLIDE OUT VENTILATION
Push bottom of unit to extend hood and back side
down , Extended hood is more powerful to gather
smoke and steam from cooktop.
GLASS TOUCH CONTROLLER
- Touch the middle of letter or number to activate.
- If you touch the button with a fingernail or fingertip,
the controller may not sense it is being touched.
- If the controller or your hands are wet it may not sense
your touch.
- Remove gloves prior to touching the controller.
- Use the child lock feature when cleaning the controller
to avoid unintended activation.
LIGHT HI/LOW/OFF
The button on the right of the control panel controls
the cooktop light.
Example: To set the Lamp for ON
1. Touch Light Hi/Low/Off.
To turn on, touchonce.
"Light" will flash in display,
then stay on.
2. Touch Light Hi/Low/Off.
To turn off, touchbutton
again. "Light" will disappear
fromthe display.
VENT 4 SPEED
When the fan is on, touch this
button to toggle the fan speed.
Fan speed will change in
sequence from slow, low, high,
turbo and back to slow.
The Energy Saving feature saves energy by turning
off the display by pressing the Energy Saving button.
The display will automatically turn off after 5 minutes
of idleness if the clock has not been set.
If the clock has been set, then the display will not
automatically turn off.
1. Touch Energy Saving to
turn the display off.
2. Touch Energy Saving to
turn the display on.
ADD 30 SEC
A time-saving button, this simplified control lets you
quickly set and start microwave cooking without the
need to touch START/Enter.
Example: To set ADD 30 SEC for 2 minutes.
Touch Add 30 Sec. 4 times.
The oven begins cooking
and the display shows time
counting down.
NOTE: If you continue to touch Add 30 Sec., it will
add 30 seconds up to 99 min 59 seconds.
