LG MC-8087CLR User manual

MICROWAVE OVEN
SERVICE MANUAL
MODEL: MC-8087CLR
CAUTION
BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
Website http://biz.lgservice.com
P/NO : 3828W5S3981
Rev. 2 : January, 2005
Rev. 1 : September, 2004
Printed in Korea

INTERIOR PARTS
OVEN CAVITY PARTS
DOOR PARTS
LATCH BOARD PARTS
CONTROL PANEL PARTS
BASE PLATE PARTS
6-1

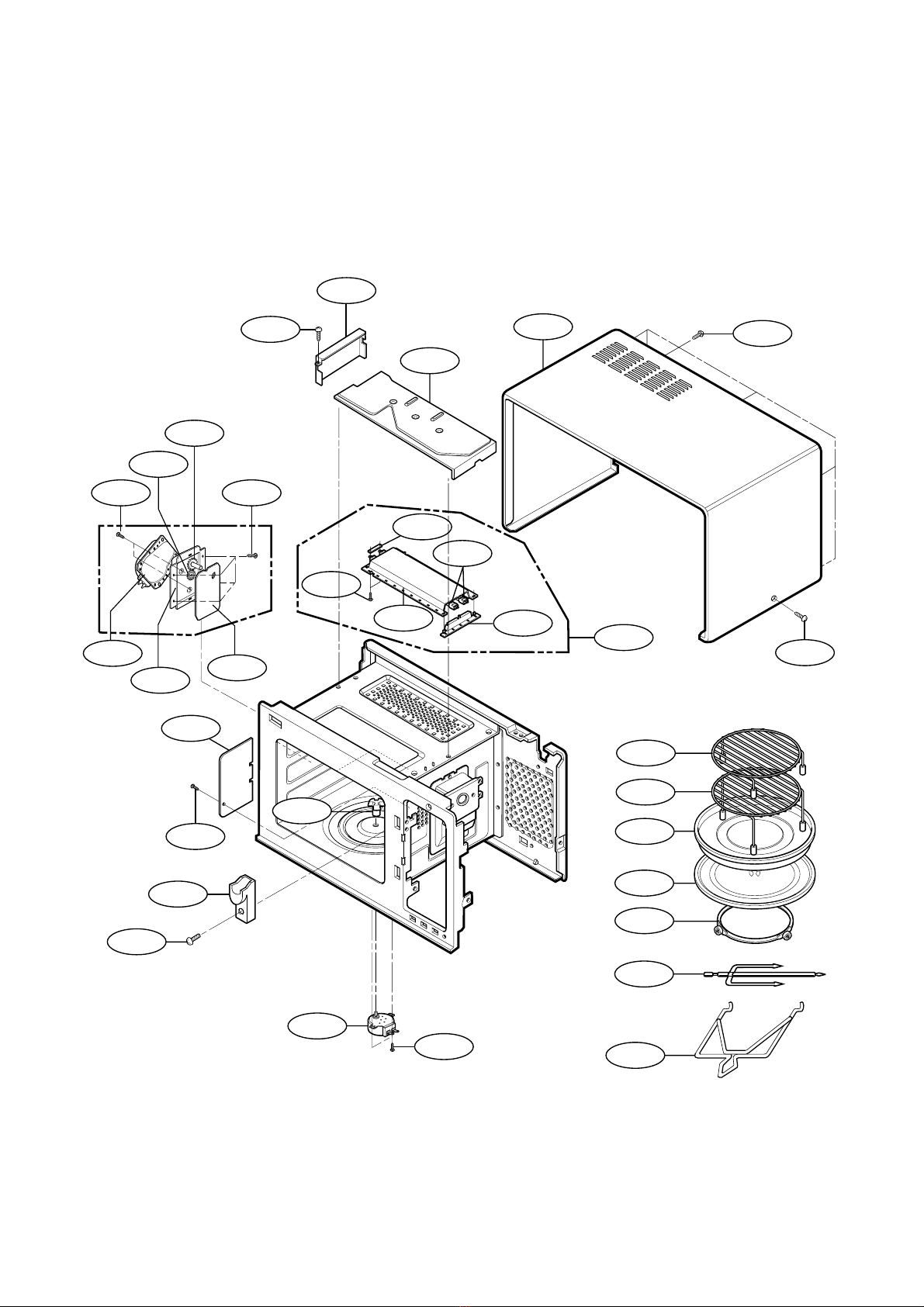

EXPLODED VIEW
INTRODUCTION
#EV#

6-2
13536A
13581A
14970A
14026A
13552A
13213A
14890A
13551A
15006A
DOOR PARTS
#EV#

6-3
24781M
24510L
23806C
249401
23551A
23551B
268711
WTP004
WTP015
250201
250202
24970A

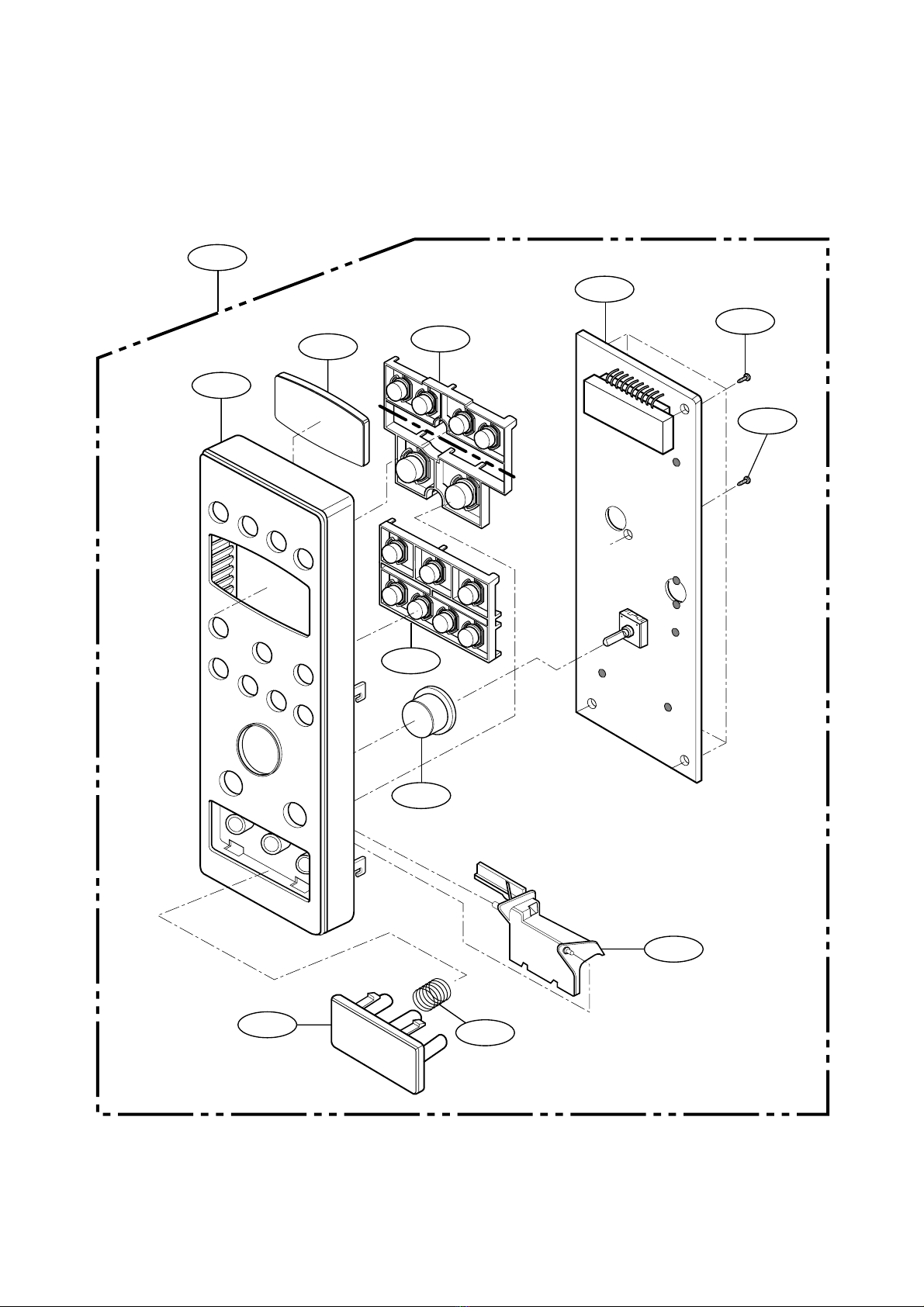

CONTROL PANEL PARTS
#EV#

6-4
35264A
33112U
WTT021
WTT010
35301A
348101
35300A
348102
33550H
WMT002
33052M
34930R
WTT011
34370T
34271A
35889A
33390G
33390M
35026G
35026C
33650T
36549S
WTT011
WTP013
54974A
WTT021
WTP013
36549R
WTP013
349801
344701
344702
34810R
OVEN CAVITY PARTS
#EV#

6-5
WSZ085
43500A
43501A
466001
466003
466001

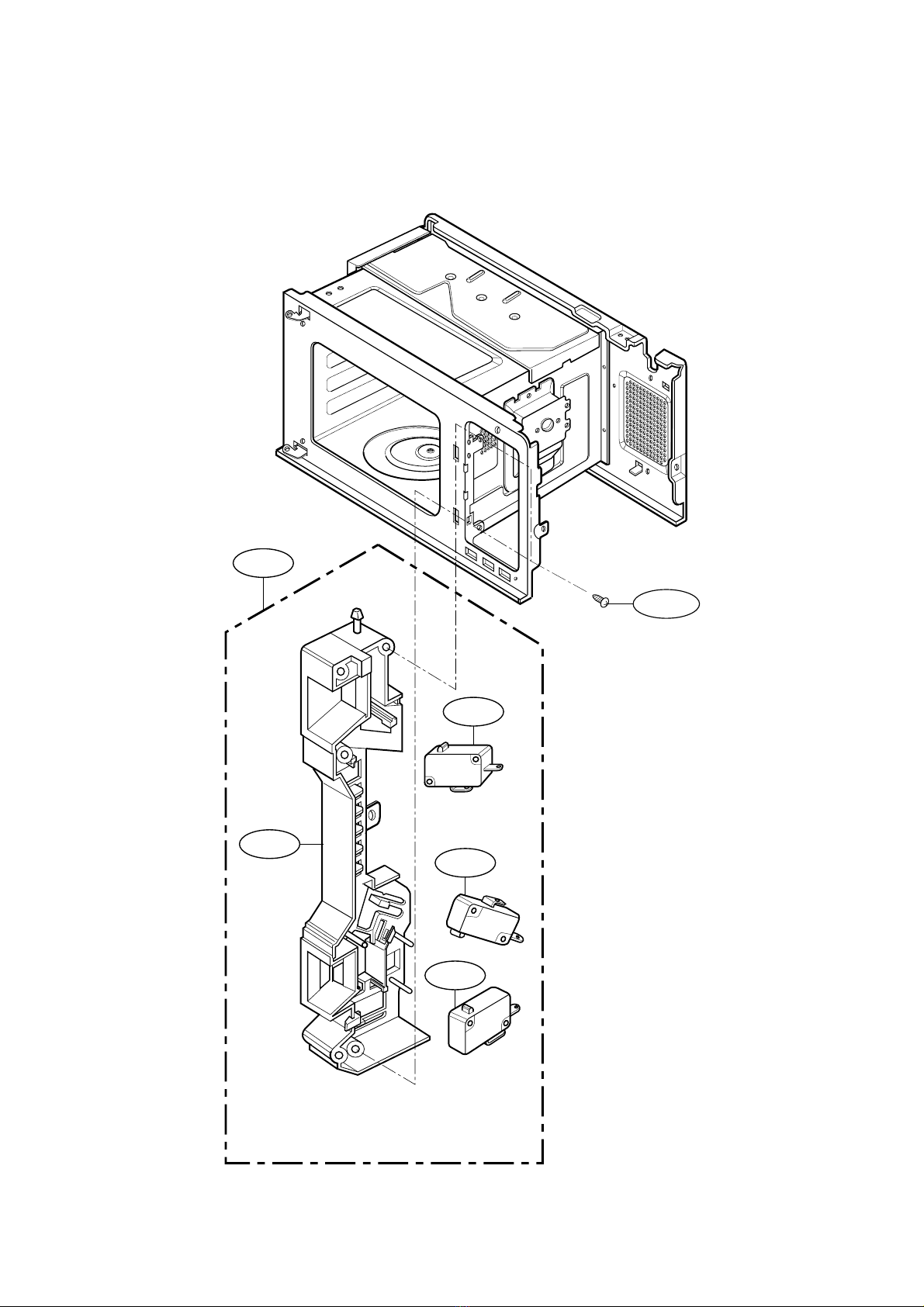

LATCH BOARD PARTS
#EV#

6-6
56411A
568772
54810S
WTT011
56322A
53504A
33808A
54975G
55300S
54350S
55900C 56208A
55900N
36549C
50FZZA WSZ002
56201A
WTT037
56549F
568771
55900A
50CZZH
WTT028
WTT028
54810C
54974S
WWP008
WWS005
WNH003
WTT021
WNH002
WTT022
WMT002
WSZ062
WSZ002
56851C
WSZ 002
WTP004
56912B 56930M
55262A
948501
56324A
WSZ002
34930W
MC-8087CLR / 02
MC-8087CLR
MC-8087CLR / 01
56851D
*Rating Label Check
*Rating Label Check
INTERIOR PARTS
#EV#

6-7
WTT 021
WSZ062
63302A
63303A
56170D
WSZ 002
WTT 030
647781
948502
*Rating Label
Model No. Check
BASE PLATE PARTS
#EV#

REPERE REFERENCE DESIGNATION
*01 3828W5A3866 MANUAL,OWNERS
*02 3828W5S3980 MANUAL,SERVICE
*02 3828W5S3981 MANUAL,SERVICE
*03 3878W5A0051 COOK BOOK
*10 3890W3Y778A BOX,YELLOW
13213A 3213W1A028F DOOR FRAME ASSY
13213a 3213W1A028R DOOR FRAME ASSEMBLY
13536A 3536W1A001A SEAL TAPE
13551A 383EW5A194B SERVICE PARTS
24970A 4B72388A SPRING
249401 4940W1A117A KNOB
24781M 4781W1M361C CONTROLLER ASSEMBLY,MICOM
24510L 4510W3L004A LEVER,[RELEASE LEVER]
23806C 3806W1A108A DECO,CONTROL PANEL
23551B 383EW5A182A SERVICE PARTS
23551A 383EW5A195B SERVICE PARTS
15006A 5006W3A017A CAP,[CHOKE COVER]
14970A 4970WRA001C SPRING
34810R 3B73973A BRACKET
348102 4810W4G066A BRACKET,[HEATER]
348101 4810W3G082A BRACKET,[HEATER]
344702 4B74952A GEAR
344701 4B75472A GEAR
34370T 3B72373E SHAFT,[TURN TABLE SHAFT]
34271A 4271W3A001B BAR ASSY
33808A 3550W1A072A nsp10092004 COVER,BACK
33650T 2B72896A HANDLE,[ROTI HANDLE]
466003 3B73361E SWITCH,MICRO
466001 3B73362F SWITCH,MICRO
43501A 3501W1A003U BOARD ASSEMBLY,LATCH
43500A 3500W1A008A BOARD,[LATCH BOARD]
36549S 6549W2S002W MOTOR(CIRC),SYNCHRONOUS
36549R 6549W2S002P MOTOR(CIRC),SYNCHRONOUS
36549C 2B72063D MOTOR(CIRC),CIRCULATION
35889A 5889W2A005L ROTATING RING ASSY
35301A 5301W2A034T HEATER ASSEMBLY
56208A 6208W2A005D GLASS WOOL
56201A 6201W2A021B FILTER ASSEMBLY(CIRC)
56170D 6170W1D068C TRANSFORMER,HIGH VOLTAGE
55900N 3B72559A FAN
55900C 3B72561A FAN
55900A 2B72125A FAN
55300S 5300W2S018A HEATER,[SHEATH]
55262A 5262W2A018B DUCT
54975G 4975W1G002C GUIDE ASSY,[CHAMBER]
948503 3B72245C CUSHION
948502 3B72245C CUSHION
948502 3B72244C CUSHION
948501 3B72244T CUSHION
647781 4B75290A LEG
63303A 3303W1A014A BASE PLATE ASSY
63302A 3302W1A029A BASE PLATE
56930M 6930W1A003K THERMOSTAT
56912B 6912W3B002D LAMP[OVEN/BASELESS]

C80 0CH1221K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C25 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C21 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C20 0CH1223K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C130 0CH1223K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C121 0CH1102K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C120 0CH1102K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C11 0CE1076K638 CAPACITOR,FIXED ELECTROLYTIC
C10 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
D90 0DD414809AA DIODE,SWITCHING
D37 0DD414809AB DIODE
D36 0DD414809AB DIODE
D35 0DD414809AB DIODE
D33 0DD414809AB DIODE
D32 0DD414809AB DIODE
D31 0DD414809AB DIODE
D30 0DD414809AB DIODE
D25 0DD414809AA DIODE,SWITCHING
SW7 6600R000019 SWITCH,TACT
SW6 6600R000019 SWITCH,TACT
SW5 6600R000019 SWITCH,TACT
SW4 6600R000019 SWITCH,TACT
SW3 6600R000019 SWITCH,TACT
SW2 6600R000019 SWITCH,TACT
SW13 6600R000019 SWITCH,TACT
SW12 6600R000019 SWITCH,TACT
SW11 6600R000019 SWITCH,TACT
SW10 6600R000019 SWITCH,TACT
SW1 6600R000019 SWITCH,TACT
RY6 6920WRD008A RELAY
RY5 6920W5A012A RELAY
RY4 6920WRD008A RELAY
RY3 6920W5A012A RELAY
RY2 6920W5A012A RELAY
RY1 6920WRD008A RELAY
R99 0RH4702L622 RESISTOR,METAL GLAZED(CHIP)
R96 0RD2701F608 RESISTOR,FIXED CARBON FILM
R95 0RD2701G608 RESISTOR,FIXED CARBON FILM
R94 0RD2701G608 RESISTOR,FIXED CARBON FILM
R93 0RD2701G608 RESISTOR,FIXED CARBON FILM
R92 0RD2701F608 RESISTOR,FIXED CARBON FILM
R91 0RD2701G608 RESISTOR,FIXED CARBON FILM
R90 0RD2701F608 RESISTOR,FIXED CARBON FILM
R83 0RD1503F608 RESISTOR,FIXED CARBON FILM
R82 0RD1503G608 RESISTOR,FIXED CARBON FILM
R81 0RD2202F608 RESISTOR,FIXED CARBON FILM
R80 0RD2202G608 RESISTOR,FIXED CARBON FILM
R55 0RH1004L622 RESISTOR,METAL GLAZED(CHIP)
R54 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R51 0RD1000G608 RESISTOR,FIXED CARBON FILM
R50 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R37 0RH1002L622 RESISTOR,METAL GLAZED(CHIP)
R36 0RD2001F608 RESISTOR,FIXED CARBON FILM
R35 0RH1002L622 RESISTOR,METAL GLAZED(CHIP)
R32 0RH0000L622 RESISTOR,METAL GLAZED(CHIP)
R30 0RD2001G608 RESISTOR,FIXED CARBON FILM

R26 0RH3901L622 RESISTOR,METAL GLAZED(CHIP)
R25 0RD1001G608 RESISTOR,FIXED CARBON FILM
R23 0RH1002L622 RESISTOR,METAL GLAZED(CHIP)
R22 0RD1001F608 RESISTOR,FIXED CARBON FILM
R21 0RH2202L622 RESISTOR,METAL GLAZED(CHIP)
R20 0RD2202G608 RESISTOR,FIXED CARBON FILM
R132 0RH1001L422 RESISTOR,METAL GLAZED(CHIP)
R13 0RH1003L622 RESISTOR,METAL GLAZED(CHIP)
R123 0RD4702F608 RESISTOR,FIXED CARBON FILM
R122 0RD4702F608 RESISTOR,FIXED CARBON FILM
R121 0RD1001G608 RESISTOR,FIXED CARBON FILM
R120 0RD1001G608 RESISTOR,FIXED CARBON FILM
R12 0RD0102G608 RESISTOR,FIXED CARBON FILM
R11 0RD0102G608 RESISTOR,FIXED CARBON FILM
R102 0RH4702L622 RESISTOR,METAL GLAZED(CHIP)
R100 0RH4702L622 RESISTOR,METAL GLAZED(CHIP)
R10 0RH1000L622 RESISTOR,METAL GLAZED(CHIP)
R04 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R03 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R02 0RH4701L622 RESISTOR,METAL GLAZED(CHIP)
R01 0RD1501F608 RESISTOR,FIXED CARBON FILM
Q50 0TR107009AC TRANSISTOR,BIPOLARS
Q40 0TR105009AC TRANSISTOR,BIPOLARS
Q37 0TR387509AB TRANSISTOR,BIPOLARS
Q36 0TR105009AC TRANSISTOR,BIPOLARS
Q35 0TR105009AC TRANSISTOR,BIPOLARS
Q33 0TR105009AC TRANSISTOR,BIPOLARS
Q32 0TR105009AC TRANSISTOR,BIPOLARS
Q31 0TR105009AC TRANSISTOR,BIPOLARS
Q30 0TR150409BF TRANSISTOR,BIPOLARS
Q20 0TR387509AB TRANSISTOR,BIPOLARS
Q02 0TR126609AA TRANSISTOR,BIPOLARS
Q01 0TR126609AA TRANSISTOR,BIPOLARS
PT1 6010W2P043Q TRANSFORMER,POWER
PT1 6010W2P043H TRANSFORMER,POWER
ZD2 0DZ750009AC DIODE,ZENERS
ZD1 0DZ510009CA DIODE,ZENERS
WWS005 1WSD0400032 WASHER,SPRING LOCK
WWP008 1WPL0500032 WASHER,PLAIN
WTT037 1TTL0403818 SCREW TAPPING,TRUSS HEAD
WTT030 1TTL0403118 SCREW TAPPING,TRUSS HEAD
WTT028 1TTL0402818 SCREW TAPPING,TRUSS HEAD
WTT028 1TTL0402818 SCREW TAPPING,TRUSS HEAD
WTT022 1TTL0402422 SCREW TAPPING,TRUSS HEAD
WTT021 1TTL0402418 SCREW TAPPING,TRUSS HEAD
WTT010 1TTG0402422 SCREW TAPPING,TRUSS HEAD
WTP015 1TPL0402618 SCREW TAPPING,PAN HEAD
WTP013 1TPL0402418 SCREW TAPPING,PAN HEAD
WTP013 1TPL0402418 SCREW TAPPING,PAN HEAD
WTP004 1TPL0302418 SCREW TAPPING,PAN HEAD
WTP002 1TPL0302018 SCREW TAPPING,PAN HEAD
WSZ092 4B70572B SCREW,DRAWING
WSZ085 4B70188C SCREW,DRAWING
WSZ062 4000W4A003A SCREW,DRAWING
WSZ002 1SBF0402418 SCREW TAP TITE(S),BINDING HEAD
WNH003 1NHA0400032 NUT,HEXAGON

WNH002 1NHA0400018 NUT,HEXAGON
WMT002 1MTC0402432 SCREW MACHINE,TRUSS HEAD
WMT002 1MTC0402432 SCREW MACHINE,TRUSS HEAD
U01 0IZZW5A261A IC,DRAWING
SW9 6600R000019 SWITCH,TACT
SW8 6600R000019 SWITCH,TACT
EN1 6024W5A0007 VOLUME,ROTARY
DP1 6302W5A022A DIGITRON
D96 0DD414809AA DIODE,SWITCHING
D95 0DD414809AA DIODE,SWITCHING
D94 0DD414809AA DIODE,SWITCHING
D93 0DD414809AA DIODE,SWITCHING
D92 0DD414809AA DIODE,SWITCHING
D91 0DD414809AA DIODE,SWITCHING
D20 0DD414809AA DIODE,SWITCHING
D10 0DD400209AA DIODE,RECTIFIERS
D03 0DD400209AA DIODE,RECTIFIERS
D02 0DD400209AA DIODE,RECTIFIERS
D01 0DD400209AA DIODE,RECTIFIERS
CU1 4850W4C001E CUSHION
CR1 6212JB8001A RESONATOR,CRYSTAL
C81 0CH1221K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C07 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C06 0CH1104K946 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C05 0CE1076D638 CAPACITOR,FIXED ELECTROLYTIC
C04 0CE4776H618 CAPACITOR,FIXED ELECTROLYTIC
C04 0CE4771H638 CAPACITOR,FIXED ELECTROLYTIC
C02 0CE2276K618 CAPACITOR,FIXED ELECTROLYTIC
C01 0CK1040K948 CAPACITOR,FIXED CERAMIC(High d
BZ1 6908W3YA01C BUZZER,PIEZO CERAMIC
568772 6877W3A009A CONNECTOR ASSEMBLY
568771 6877W1A075Z HARNESS
56851D 6021W3B001Q CABLE ASSEMBLY
56851D 6021W3B001M CABLE ASSY,DIODE
56549F 6549W1F008A MOTOR(CIRC),FAN
56411A 6411W2C002F POWER CORD ASSEMBLY
56324A 2B71732F MAGNETRON
56322A 6322W2A001A THERMISTOR,NTC
54974S 4974W1S016A GUIDE,[SUCTION GUIDE]
54974A 4974W2G040A AIR TUNNEL
54810S 3B72717A BRACKET,[CONVETION MOTOR]
54810C 4810W4C003A BRACKET,[CAPACITOR]
54350S 4B73725A RING
53504A 3300W1G057A CHAMBER
50FZZA 3B74133N FUSE,DRAWING
50CZZH 0CZZW1H004S CAPACITOR,DRAWING[HIGH VOLTAGE]
35300A 5300W1A001A HEATER,MIRACLON
35264A 5264W1A004A AIR TUNNEL
35026G 3B71492Y SHELF
35026C 3750W1A003M SHELF
349801 4B75492A SUPPORTER
34960A 4960W3G005A MOUNT
34930W 4B72510F HOLDER,[WIRE HOLDER]
34930R 4930W3A001A HOLDER,[SHELF & ROTI BAR HOLDER]
33550H 3550W2A076A COVER,[HEATER COVER]
33390M 3390W2P002F TRAY,[METAL]

33390G 3390W1G002A TRAY,[GLASS]
33112U 3112W1U019X OUT CASE,U-BENDING
33052M 3052W1M004B CANOPY,MICA
268711 6871W1S309A PWB(PCB) ASSEMBLY,SUB
250202 5020W1A222A BUTTON
250201 5020W1A221A BUTTON
14890A 4890W1A001V GLASS
14026A 4026W2A012A LATCH
13581A 3581W0A107E DOOR ASSEMBLY
13552A 3552W1A037A CHOKE COVER
13213a 3213W1A028S DOOR FRAME ASSEMBLY
*01 3828W5A3866 MANUAL,OWNERS
*02 3828W5S3516 MANUAL,SERVICE
*10 3890W3Y778A BOX,YELLOW
ZD2 0DZ750009AC DIODE,ZENERS
ZD1 0DZ510009CA DIODE,ZENERS
WWS005 1WSD0400032 WASHER,SPRING LOCK
WWP008 1WPL0500032 WASHER,PLAIN
WTT037 1TTL0403818 SCREW TAPPING,TRUSS HEAD
WTT030 1TTL0403118 SCREW TAPPING,TRUSS HEAD
WTT028 1TTL0402818 SCREW TAPPING,TRUSS HEAD
WTT028 1TTL0402818 SCREW TAPPING,TRUSS HEAD
WTT022 1TTL0402422 SCREW TAPPING,TRUSS HEAD
WTT021 1TTL0402418 SCREW TAPPING,TRUSS HEAD
WTT010 1TTG0402422 SCREW TAPPING,TRUSS HEAD
WTP015 1TPL0402618 SCREW TAPPING,PAN HEAD
WTP013 1TPL0402418 SCREW TAPPING,PAN HEAD
WTP013 1TPL0402418 SCREW TAPPING,PAN HEAD
WTP004 1TPL0302418 SCREW TAPPING,PAN HEAD
WTP002 1TPL0302018 SCREW TAPPING,PAN HEAD
WSZ092 4B70572B SCREW,DRAWING
WSZ085 4B70188C SCREW,DRAWING
WSZ062 4000W4A003A SCREW,DRAWING
WSZ002 1SBF0402418 SCREW TAP TITE(S),BINDING HEAD
WNH003 1NHA0400032 NUT,HEXAGON
WNH002 1NHA0400018 NUT,HEXAGON
WMT002 1MTC0402432 SCREW MACHINE,TRUSS HEAD
WMT002 1MTC0402432 SCREW MACHINE,TRUSS HEAD
U01 0IZZW5A261A IC,DRAWING
SW9 6600R000019 SWITCH,TACT
SW8 6600R000019 SWITCH,TACT
SW7 6600R000019 SWITCH,TACT
SW6 6600R000019 SWITCH,TACT
SW5 6600R000019 SWITCH,TACT
SW4 6600R000019 SWITCH,TACT
SW3 6600R000019 SWITCH,TACT
SW2 6600R000019 SWITCH,TACT
SW13 6600R000019 SWITCH,TACT
SW12 6600R000019 SWITCH,TACT
SW11 6600R000019 SWITCH,TACT
SW10 6600R000019 SWITCH,TACT
SW1 6600R000019 SWITCH,TACT
RY6 6920WRD008A RELAY
RY5 6920W5A012A RELAY
RY4 6920WRD008A RELAY
RY3 6920W5A012A RELAY

RY2 6920W5A012A RELAY
RY1 6920WRD008A RELAY
R99 0RH4702L622 RESISTOR,METAL GLAZED(CHIP)
R96 0RD2701F608 RESISTOR,FIXED CARBON FILM
R95 0RD2701G608 RESISTOR,FIXED CARBON FILM
R94 0RD2701G608 RESISTOR,FIXED CARBON FILM
R93 0RD2701G608 RESISTOR,FIXED CARBON FILM
R92 0RD2701F608 RESISTOR,FIXED CARBON FILM
R91 0RD2701G608 RESISTOR,FIXED CARBON FILM
R90 0RD2701F608 RESISTOR,FIXED CARBON FILM
R83 0RD1503F608 RESISTOR,FIXED CARBON FILM
R82 0RD1503G608 RESISTOR,FIXED CARBON FILM
R81 0RD2202F608 RESISTOR,FIXED CARBON FILM
R80 0RD2202G608 RESISTOR,FIXED CARBON FILM
R55 0RH1004L622 RESISTOR,METAL GLAZED(CHIP)
R54 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R51 0RD1000G608 RESISTOR,FIXED CARBON FILM
R50 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R37 0RH1002L622 RESISTOR,METAL GLAZED(CHIP)
R36 0RD2001F608 RESISTOR,FIXED CARBON FILM
R35 0RH1002L622 RESISTOR,METAL GLAZED(CHIP)
R32 0RH0000L622 RESISTOR,METAL GLAZED(CHIP)
R30 0RD2001G608 RESISTOR,FIXED CARBON FILM
R26 0RH3901L622 RESISTOR,METAL GLAZED(CHIP)
R25 0RD1001G608 RESISTOR,FIXED CARBON FILM
R23 0RH1002L622 RESISTOR,METAL GLAZED(CHIP)
R22 0RD1001F608 RESISTOR,FIXED CARBON FILM
R21 0RH2202L622 RESISTOR,METAL GLAZED(CHIP)
R20 0RD2202G608 RESISTOR,FIXED CARBON FILM
R132 0RH1001L422 RESISTOR,METAL GLAZED(CHIP)
R13 0RH1003L622 RESISTOR,METAL GLAZED(CHIP)
R123 0RD4702F608 RESISTOR,FIXED CARBON FILM
R122 0RD4702F608 RESISTOR,FIXED CARBON FILM
R121 0RD1001G608 RESISTOR,FIXED CARBON FILM
R120 0RD1001G608 RESISTOR,FIXED CARBON FILM
R12 0RD0102G608 RESISTOR,FIXED CARBON FILM
R11 0RD0102G608 RESISTOR,FIXED CARBON FILM
R102 0RH4702L622 RESISTOR,METAL GLAZED(CHIP)
R100 0RH4702L622 RESISTOR,METAL GLAZED(CHIP)
R10 0RH1000L622 RESISTOR,METAL GLAZED(CHIP)
R04 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R03 0RH1001L622 RESISTOR,METAL GLAZED(CHIP)
R02 0RH4701L622 RESISTOR,METAL GLAZED(CHIP)
R01 0RD1501F608 RESISTOR,FIXED CARBON FILM
Q50 0TR107009AC TRANSISTOR,BIPOLARS
Q40 0TR105009AC TRANSISTOR,BIPOLARS
Q37 0TR387509AB TRANSISTOR,BIPOLARS
Q36 0TR105009AC TRANSISTOR,BIPOLARS
Q35 0TR105009AC TRANSISTOR,BIPOLARS
Q33 0TR105009AC TRANSISTOR,BIPOLARS
J102 6854B20001B JUMP WIRE
J101 6854B20001B JUMP WIRE
EN1 6024W5A0007 VOLUME,ROTARY
DP1 6302W5A022A DIGITRON
D96 0DD414809AA DIODE,SWITCHING
D95 0DD414809AA DIODE,SWITCHING

D94 0DD414809AA DIODE,SWITCHING
D93 0DD414809AA DIODE,SWITCHING
D92 0DD414809AA DIODE,SWITCHING
D91 0DD414809AA DIODE,SWITCHING
D90 0DD414809AA DIODE,SWITCHING
D37 0DD414809AB DIODE
D36 0DD414809AB DIODE
D35 0DD414809AB DIODE
D33 0DD414809AB DIODE
D32 0DD414809AB DIODE
D31 0DD414809AB DIODE
D30 0DD414809AB DIODE
D25 0DD414809AA DIODE,SWITCHING
D20 0DD414809AA DIODE,SWITCHING
D10 0DD400209AA DIODE,RECTIFIERS
D03 0DD400209AA DIODE,RECTIFIERS
D02 0DD400209AA DIODE,RECTIFIERS
D01 0DD400209AA DIODE,RECTIFIERS
CU1 4850W4C001E CUSHION
CR1 6212JB8001A RESONATOR,CRYSTAL
CN2 6630WRYA01A CONNECTOR (CIRC),WAFER
CN1 6630W5V012E CONNECTOR (CIRC),WAFER
C81 0CH1221K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C80 0CH1221K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C25 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C21 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C20 0CH1223K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C130 0CH1223K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C121 0CH1102K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C120 0CH1102K566 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C11 0CE1076K638 CAPACITOR,FIXED ELECTROLYTIC
C10 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C07 0CK2230K948 CAPACITOR,FIXED CERAMIC(High d
C06 0CH1104K946 CAPACITOR,FIXED CERAMIC(Temp.compensate)
C05 0CE1076D638 CAPACITOR,FIXED ELECTROLYTIC
C04 0CE4771H638 CAPACITOR,FIXED ELECTROLYTIC
C02 0CE2276K618 CAPACITOR,FIXED ELECTROLYTIC
C01 0CK1040K948 CAPACITOR,FIXED CERAMIC(High d
BZ1 6908W3YA01C BUZZER,PIEZO CERAMIC
??? 6873W5P309A Temp part for SBOM structure
??? 5263W2A014U Temp part for SBOM structure
??? 4975W1S073K Temp part for SBOM structure
??? 4975W1G001V Temp part for SBOM structure
??? 3551W1A014B Temp part for SBOM structure
??? 2B73143A Temp part for SBOM structure
948504 3B72245C CUSHION
948503 4B73438W CUSHION
948502 3B72244C CUSHION
948501 3B72244T CUSHION
647781 4B75290A LEG
63303A 3303W1A014A BASE PLATE ASSY
63302A 3302W1A029A BASE PLATE
56930M 6930W1A003K THERMOSTAT
56912B 6912W3B002D LAMP[OVEN/BASELESS]
568772 6877W3A009A CONNECTOR ASSEMBLY
568771 6877W1A075Z HARNESS

56851D 6021W3B001M CABLE ASSY,DIODE
56549F 6549W1F008A MOTOR(CIRC),FAN
56411A 6411W2C002F POWER CORD ASSEMBLY
56324A 2B71732F MAGNETRON
56322A 6322W2A001A THERMISTOR,NTC
56208A 6208W2A005D GLASS WOOL
56201A 6201W2A021B FILTER ASSY,NOISE
56170D 6170W1D068C TRANSFORMER,HIGH VOLTAGE
55900N 3B72559A FAN
55900C 3B72561A FAN
55900A 2B72125A FAN
Q32 0TR105009AC TRANSISTOR,BIPOLARS
Q31 0TR105009AC TRANSISTOR,BIPOLARS
Q30 0TR150409BF TRANSISTOR,BIPOLARS
Q20 0TR387509AB TRANSISTOR,BIPOLARS
Q02 0TR126609AA TRANSISTOR,BIPOLARS
Q01 0TR126609AA TRANSISTOR,BIPOLARS
PT1 6010W2P043H TRANSFORMER,POWER
J209 6854A20001B JUMP WIRE
J207 6854A20001B JUMP WIRE
J206 6854A20001B JUMP WIRE
J205 6854A20001B JUMP WIRE
J204 6854A20001B JUMP WIRE
J203 6854A20001B JUMP WIRE
J202 6854A20001B JUMP WIRE
J201 6854A20001B JUMP WIRE
J117 6854B20001B JUMP WIRE
J116 6854B20001B JUMP WIRE
J115 6854B20001B JUMP WIRE
J114 6854B20001B JUMP WIRE
J112 6854B20001B JUMP WIRE
J111 6854B20001B JUMP WIRE
J110 6854B20001B JUMP WIRE
J109 6854B20001B JUMP WIRE
J108 6854B20001B JUMP WIRE
J107 6854B20001B JUMP WIRE
J106 6854B20001B JUMP WIRE
J105 6854B20001B JUMP WIRE
J104 6854B20001B JUMP WIRE
J103 6854B20001B JUMP WIRE
55300S 5300W2S018A HEATER,[SHEATH]
55262A 5262W2A018B DUCT
54975G 4975W1G002C GUIDE ASSY,[CHAMBER]
54974S 4974W1S016A GUIDE,[SUCTION GUIDE]
54974A 4974W2G040A AIR TUNNEL
54810S 3B72717A BRACKET,[CONVETION MOTOR]
54810C 4810W4C003A BRACKET,[CAPACITOR]
54350S 4B73725A RING
53504A 3300W1G057A CHAMBER
50FZZA 3B70856K FUSE,DRAWING
50CZZH 0CZZW1H003K CAPACITOR,DRAWING[HIGH VOLTAGE]
466003 3B73361E SWITCH,MICRO
466001 3B73362F SWITCH,MICRO
43501A 3501W1A003U BOARD ASSEMBLY,LATCH
43500A 3500W1A008A BOARD,[LATCH BOARD]
36549S 6549W2S002W MOTOR(CIRC),SYNCHRONOUS

36549R 6549W2S002P MOTOR(CIRC),SYNCHRONOUS
36549C 2B72063D MOTOR(CIRC),CIRCULATION
35889A 5889W2A005L ROTATING RING ASSY
35301A 5301W2A034A HEATER ASSY
35300A 5300W2A006S HEATER,MIRACLON
35264A 5264W1A004A AIR TUNNEL
35026G 3B71492Y SHELF
35026C 3750W1A003M SHELF
349801 4B75492A SUPPORTER
34960A 4960W3G005A MOUNT
34930W 4B72510F HOLDER,[WIRE HOLDER]
34930R 4930W3A001A HOLDER,[SHELF & ROTI BAR HOLDER]
34810R 3B73973A BRACKET
348102 4810W4G066A BRACKET,[HEATER]
348101 4810W3G082A BRACKET,[HEATER]
344702 4B74952A GEAR
344701 4B75472A GEAR
34370T 3B72373E SHAFT,[TURN TABLE SHAFT]
34271A 4271W3A001B BAR ASSY
33808A 3550W1A072A COVER,BACK
33650T 2B72896A HANDLE,[ROTI HANDLE]
33550H 3550W2A076A COVER,[HEATER COVER]
33390M 3390W2P002F TRAY,[METAL]
33390G 3390W1G002A TRAY,[GLASS]
33112U 3112W1U019X OUT CASE,U-BENDING
33052M 3052W1M004B CANOPY,MICA
268711 6871W1S309A PWB(PCB) ASSEMBLY,SUB
250202 5020W1A222A BUTTON
250201 5020W1A221A BUTTON
24970A 4B72388A SPRING
249401 4940W1A117A KNOB
24781M 4781W1M361C CONTROLLER ASSEMBLY,MICOM
24510L 4510W3L004A LEVER,[RELEASE LEVER]
23806C 3806W1A108A DECO,CONTROL PANEL
23806A 3806W1A108A DECO,CONTROL PANEL
23551B 383EW5A182A SERVICE PARTS
23551A 383EW5A195B SERVICE PARTS
15006A 5006W3A017A CAP,[CHOKE COVER]
14970A 4970WRA001C SPRING
14890A 4890W1A001V GLASS
14026A 4026W2A012A LATCH
13581A 3581W0A107E DOOR ASSEMBLY
13552A 3552W1A037A CHOKE COVER
13551A 383EW5A194B SERVICE PARTS
13536A 3536W1A001A SEAL TAPE
13213A 3213W1A028F DOOR FRAME ASSY
*03 3878W5A0051 COOK BOOK
