OWNER’S MANUAL

MICROWAVEOVEN

PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.

MH14

P/No. : .'-

WARNING

Safety

Precautions

1. Do not attempt to tamper with, or make any adjustments or repairs to the

door, control panel, safety interlock switches or any other part of the

oven. Repairs should only be undertaken by a qualified service

technician.

2. Do not operate the oven when empty (except Pre-heat Mode). It is best to

leave a glass of water in the oven when not in use. The water will safely

absorb all microwave energy, if the oven is accidentally started.

3. Do not operate the oven with a kitchen towel, a napkin or any other

obstruction between the door and the front edges of the oven.

4. Do not use recycled paper products.

5. Do not rinse the turntable by placing it in water just after cooking.

6. Be certain to place the oven so the front of the door is 8 cm or more

behind the edge of the surface on which it is placed.

7. Do not cook eggs in their shell.

8. Do not attempt deepfat frying in your oven.

9. Remove the plastic wrapping from food before defrosting.

10. If smoke is observed, switch off or disconnected the oven from the power

supply and keep the oven door closed.

11. Only allow children to use the oven without supervision when adequate

instructions have been given so that the child is able to use the oven in a

safe way and understands the hazards of improper use.

12. Liquids or other foods must not be heated in sealed containers.

13. Always use gloves when removing dish from oven.

14. Do not cover the ventillation slots.

15. Never use metal or metal trimmed utensils in your microwave oven.

ªEither use earth or use exclusive 230V consent with earth.

ªDo not bend power cord forcefully or break.

ªDo not pull out power cord.

ªDo not use several power plug in one consent at the same time.

ªDo not plug in or pull out power cord with wet hand.

ªDo not spray water inside and outside of microwave oven.

ªPlug out power cord during cleaning or maintenance of set.

ªDo not heat up the food more than necessary.

ªDo not use microwave oven other than cooking or sterilization such as

cloth drying etc.

ªDo not insert pin or steel wire etc. into inside/out side of case.

ªPlease be careful during taking the food since high temp. water or

soup may be overflow to cause burn.

ªDo not plug in power cord when consent hole is loose or plug is

damaged.

ªDo not use oven while some foreign material is attached on the door.

ªDo not place the water container on the set.

ªDo not place heavy things on the set & do not cover the set with cloth

while using.

ªDo not install the set in the damp space or water sputtering area.

ªDo not let children hang onto oven door.

ªDo not heat the unpeeled fruit or bottle with lid.

ªDo not hold food or accessories as soon as cooking is over.

ªPlug out oven if it is not used for long duration.

ªInstall microwave oven in the well ventilated, flat place.

There is danger of blast if covered bottle, sealed food, egg, and chestnut

etc. are cooked inside oven.

Safety

Precautions

Safety Precautions

Contents

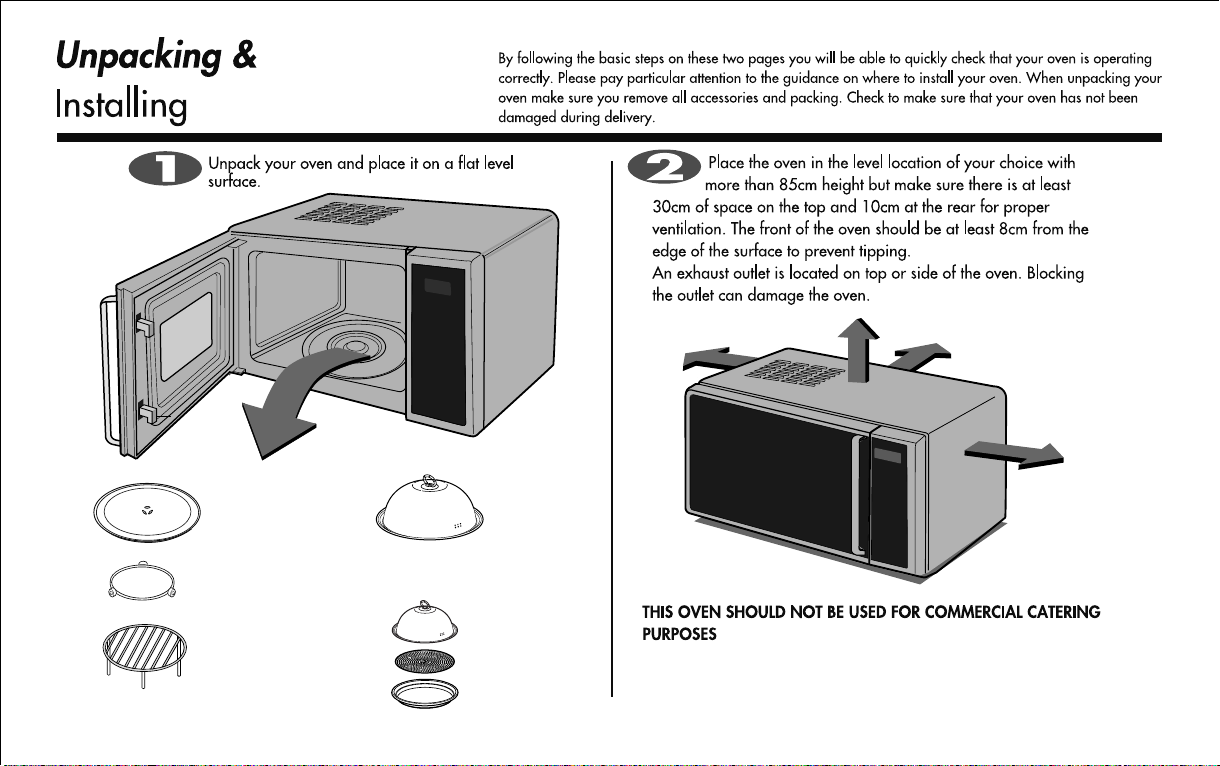

Unpacking & Installing

3~4

6~7

Micro Power Cooking

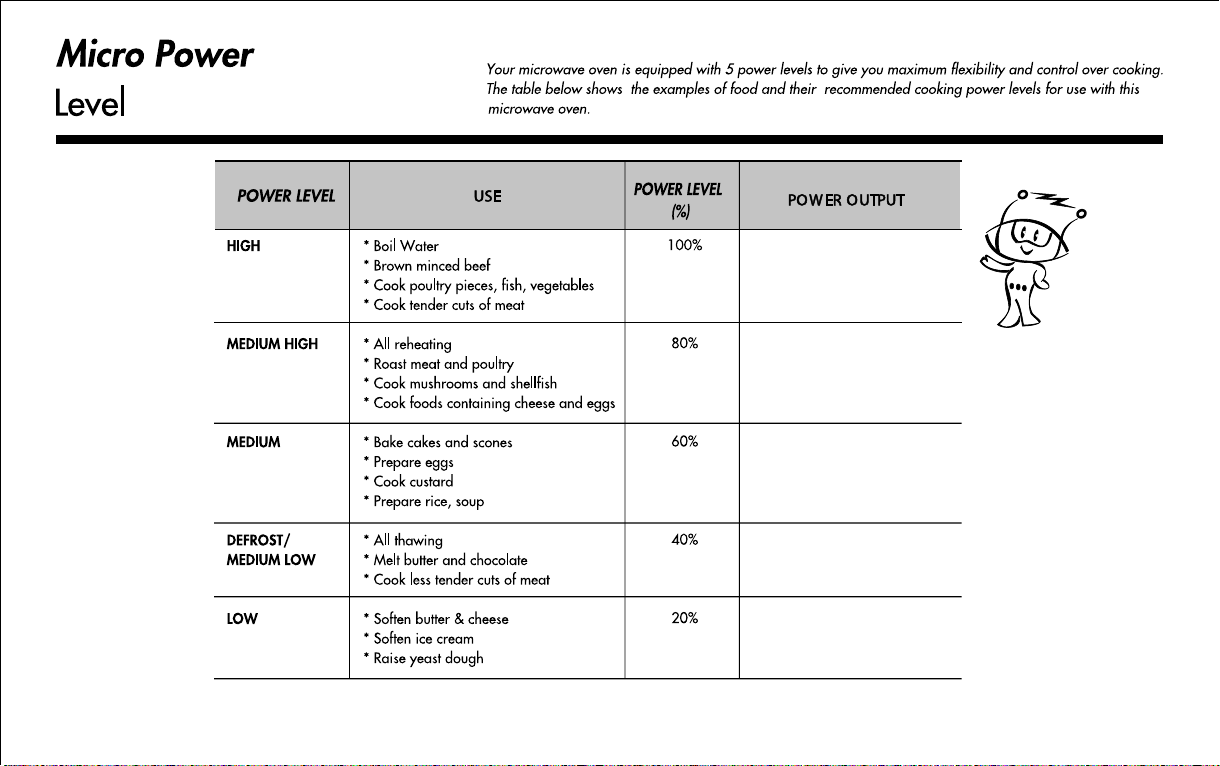

Micro Power Level

Quick Start

SENSOR COOK

Instant Food, Re-heat, Indian Delicacy

Important safety instructions

Utility Corner, Fermentation

Snacks, Sea Food, Breakfast, Sweets' Corner,

Indian Cuisine, Child's Favourite

Microwave - safe Utensils

Food characteristics & Microwave cooking

Questions & Answers

Two Recipes for Starter

Child Lock

Grill Cooking

Utility Corner

Combination Cooking

Light Disinfect

15~19

•Health Plus •Soup •Continental

Nutri Care

AUTO COOK 20~38

39~40

42~43

Plug Wiring Information/Technical Specifications 46

GRILL RACK

GLASS TRAY

ROTATING RING

STEAM CHEF

(A)

(B)

(C)

(D)

(E)

Steam Cover

Steam Plate

Steam Water Bowl /

Multi Cook Tawa

STEAM CHEF - PARTS

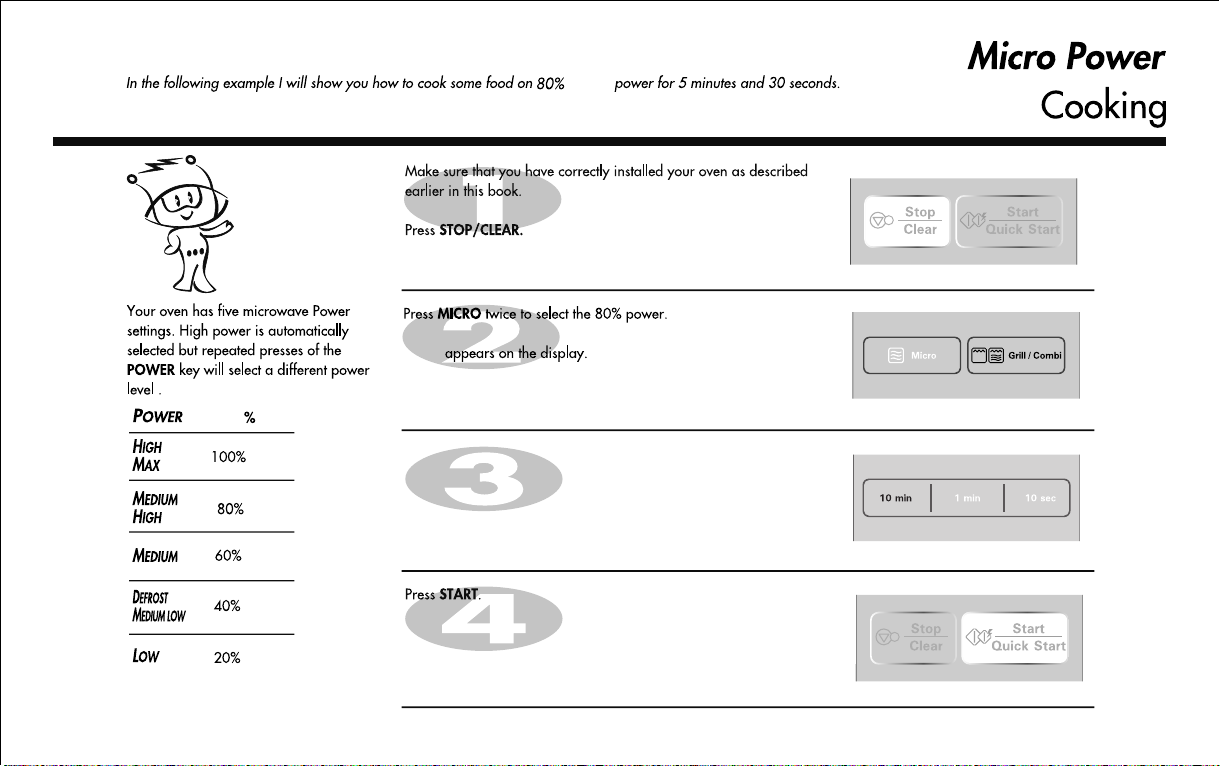

(P-HI)

(P-80)

(P-60)

(P-40)

(P-20)

(P-80)

“P-80”

Press 1 MIN five times.

Press 10 SEC three times.

P-HI

P-80

P-60

P-40

P-20

GRILL RACK

Press GRILL / C20%, One Time.

Press 10 MIN once.

Press 1 MIN twice.

Press 10 SEC three times.

quartz

Press GRILL / COMBI four times.

Press 10 MIN twice.

Press 1 MIN five times.

(Micro & Grill mode run alternatively as below)

12 Sec

18 Sec

30 Sec

48 Sec

42 Sec

30 Sec

Light

Disinfect

The oven has a special function Light

Disinfect which allows you to sterilize

the Microwave Safe Glass Utensils

thereby giving a hygienic and clean

utensils/cavity.

In the following example I will show you how to programme your oven with Light Disinfect function.

Press LIGHT DISINFECT.

Procedure :

1. Sterilize Microwave Safe Glass Untensil : Keep the empty utensil and press the button Light Disinfect.

2. Clean the cavity : Keep the cavity empty and press the button Light Disinfect.

When time ends (beeps), clean the cavity with a damp cloth.

Note : The Light Disinfect does not disinfect the food, so do not put food in the utensils.

SENSOR COOK

1. Instant Food

2. Re-heat

3. Indian Delicacy

About the Sensor Features

Humidity sensor

The Sensor Features detect the increasing humidity released during cooking. The oven automatically adjusts the cooking time to various types& amounts of food.

Note: 1) Do not use the Sensor Features twice in succession as the food results may vary.

2) Be sure the outside of the cooking containers & the inside of microwave oven are dry before placing food in the oven. Beads of moisture, leading into steam can mislead the sensor.

Sensor Menu

Humidity Sensor cooking provides exciting new features to make microwave oven easier, Your new microwave oven will guide you, step by step, whether it be simply to reheat food or cook food

and sensor menu with all the popular food choices helps you to cook perfectly because it has been pre-programmed and can tell how long to cook or reheat food.

Example: POPCORN

PRECAUTION

After step , the display shows . After step , the display shows directly.

(If the display shows SENS continuously & the cooking time does not appear, please contact the SVC center).

Do not open the door during step , otherwise, the sensor will stop working and the process will be canceled.

There's no effect of opening the door during step . It is possible to adjust cooking time by manually.

The above explanation is for one example, the cooking time may vary according to different food conditions.

1. Press one time,

the sensor will start blinking.

2. Press ,

it will leave the sensor light on.

Display shows

sensor touch system works by detecting a build-up of vapor.

3. When you hear "beep", it will

show remaining cooking time automatically.

SENSS1F1

SENS

2 SENS 3

Menu Weight Limit Utensil Instructions

Instant Food

0.1 kg -

Popcorn

SIF1

Method :

1. Follow the package instructions. Place the Microwave safe popcorn packet in the centre of the microwave on the glass tray.

2. Select menu & press start.

0.2 kg Microwave

safe bowl

Sponge

Cake

For

Butter

Maida

Powdered sugar

Almonds, Walnuts

Egg

Baking powder

Almond essence

Water/milk

0.2 kg

100 g

75 g

As per taste

1 no.

½ tsp

As required

Method :

1. Sieve maida & baking powder. In a bowl cream powdered sugar & butter & beat well. Beat the egg well & add to the

creamed butter & sugar. Add maida,cocoa powder & vanilla essence & beat well.

2. For spoon dropping consistency add milk or water. Pour into a microwave safe bowl & sprinkle chopped almonds/walnuts.

3. Select menu & press start. Give a standing time of 3 minutes.

SIF3

0.1 ~ 0.4 kg Microwave

safe glass bowl

Microwave

safe idli steamer*

Sweet

Corn

Method :

1. In a MWS glass bowl add sweet corn as per weight (0.1kg / 0.2 kg / 0.3 kg / 0.4 kg).

2. Add ½ cup water to the idli steamer & place the MWS glass bowl in the steamer & cover with the lid.

3. Select menu & press start.

SIF4

3 Nos. Microwave

safe bowl

Scrambled

Egg

Method :

1. Place the eggs & milk in a MWS bowl & whisk slightly. Cover them.

Select menu & press start.

2. After cooking allow them to stand for 3 minutes.

Note: For 3 eggs 3 tbsp milk

SIF2

1~4 Nos. -Boiled

Potato

Method :

1. Place the pricked potato (as per the number to be prepared) on the glass tray.

Select menu & press start.

SIF5

*Provided with the starter kit.

Re-heat

0.2 ~ 0.4 kg Microwave

safe bowl

Dry

Vegetables

Menu Weight Limit Utensil Instructions

Method :

1. Place the cooked vegetables in a MWS bowl. Select menu & press start.

Srh1

0.2 ~ 0.5 kg Microwave

safe bowl

Rice

Method :

1. Place the cooked rice in a MWS bowl Select menu & press start.

Srh2

Srh3

Srh4

Re-heat

This feature reheats single previously cooked foods.

Procedure

Place the food in a Microwave safe bowl & keep in the oven. Press Reheat the oven starts immediately.

The oven signals when steam is sensed & and the time remaining starts counting down.

Note:

1. Do not use the Sensor Reheat twice in succession as the food results may vary.

2. After removing the food from the oven, stir, if possible, to even out the temperature. Reheated foods may have wide variations in temperature. Some areas may

be extremely hot.

3. Do not open the door while the time is counting down.

0.2 ~ 0.4 kg Microwave

safe bowl

Method :

1. Place the cooked curry/dal in a MWS bowl. Select menu & press start.

Curry/Dal

0.2 ~ 0.5 kg Microwave

safe bowl

Method :

1. Place the cooked snacks in a MWS bowl. Select menu & press start.

Snacks
